rapid acquisition of the mn multicast subscription after handover draft contreras multimob rams 00

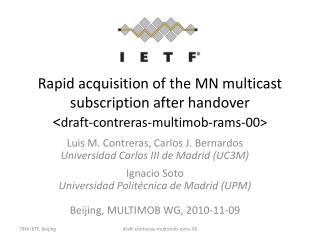

Rapid acquisition of the MN multicast subscription after handover<draft-contreras-multimob-rams-00>

Luis M. Contreras, Carlos J. Bernardos

Universidad Carlos III de Madrid (UC3M)

Ignacio Soto

Universidad Politécnica de Madrid (UPM)

Beijing, MULTIMOB WG, 2010-11-09

draft-contreras-multimob-rams-00

protocol extension to accelerate the mag s knowledge of the mn s multicast subscription after ho
Protocol extension to accelerate the MAG’s knowledge of the MN’s multicast subscription after HO
  • MAG entity in base solution relays on standard MLD procedures to get knowledge of MN multicast subscription after handover
  • Several delay sources contribute to increase the timing for multicast delivery at the new point of attachment
    • Delay due to the access to radio resources among competing MNs
    • Delay due to radio frame structure
    • Delay due to retransmissions caused by radio channel unreliability
    • Delay due to MLD message processing at MN
  • Solution proposal: to accelerate the MAG’s knowledge acquisition of the MN’s multicast subscription by means of new signaling messages internal to the network, decoupling subscription acquisition from
    • Underlaying radio technology
    • IGMP/MLD parametrisation tuning
    • PMIPv6 multicast architecture (current or evolved)
slide3

Predictive handover

MN1

pMAG

nMAG

LMA

Mcast

source

(S1,G1)

Mcast Data

MN detached

MN Detached Event

Extended DeReg PBU

Multicast info storage in Binding Cache

PBA

MN attached

MN Attached Event

PBU

LMA decission

Extended PBA

Multicast group join

(S1,G1)

slide4

Reactive handover

MN1

pMAG

nMAG

LMA

Mcast

source

(S1,G1)

Mcast Data

MN detached

MN attached

MN Attached Event

PBU

LMA decission

Subscription Info Query

Subscription Info Response

Extended PBA

Multicast group join

(S1,G1)

slide6

Multicast activity indication

Activation

De-activation

slide7

Proposed extensions to PMIPv6 [RFC5213]

Active Multicast Subscription mobility option (for PBU/PBA)

Subscription Query message

Subscription Response message

slide8

Proposed extensions to PMIPv6 [RFC5213]

Multicast Activity Indication message

Multicast Activity Indication Acknowledge message
