taxi out nominal case 1 4
Taxi out – nominal case (1/4)

Voice contact on LFPG Delivery frequency

Notification (onboard initiated) *

CPDLC establishment (ground initiated) *

DELIVERY

Departure Clearance request

CONTACT LFPG GND 121.800

EXPECT ROUTING TO HOLDING POINT Z8 RWY 27R VIA TWY G N BD13 D Y11 RWY 27L K8 Z8 *

Departure Clearance * *

ROGER

WILCO

Pilot

ATCO

Only one CPDLC connection is envisioned for ground operations (TBC). Ground system will be in charge to propose the messages to the relevant control position.

Either through voice or through datalink ? If datalink, either CPDLC or A623 ?

Pilot may append any foreseen constraints (if datalink: free text?specific message?) so that the EXPECT then provided may fulfil them

EXPECT computed by ground system sent in response to Departure Cl. Request (controller may have to validate it)

taxi out nominal case 2 4

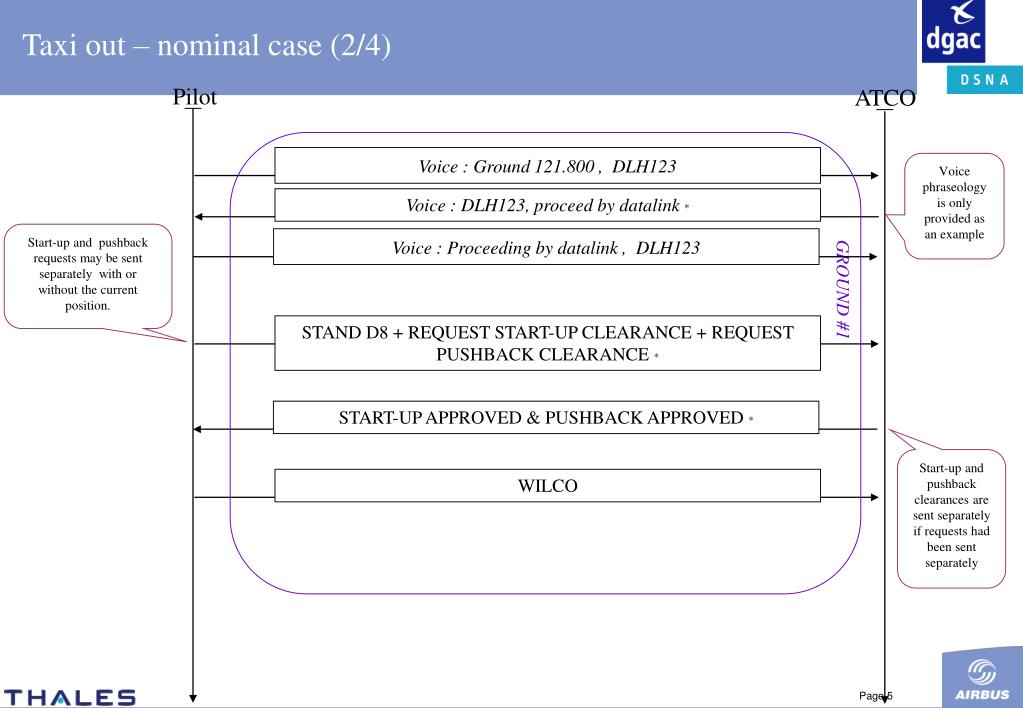

Taxi out – nominal case (2/4)

Voice : DLH123, proceed by datalink *

Voice : Ground 121.800 , DLH123

WILCO

Voice : Proceeding by datalink , DLH123

GROUND #1

STAND D8 + REQUEST START-UP CLEARANCE + REQUEST PUSHBACK CLEARANCE *

START-UP APPROVED & PUSHBACK APPROVED *

Pilot

ATCO

Voice phraseology is only provided as an example

Start-up and pushback requests may be sent separately with or without the current position.

Start-up and pushback clearances are sent separately if requests had been sent separately

taxi out nominal case 3 4
Taxi out – nominal case (3/4)

Voice : DLH123, proceed by datalink *

CONTACT LFPG GND 121.600 *

MONITOR LFPG TWR 119.250 *

TAXI TO INTERSECTION N/NA2 VIA TWY G N

Voice : Proceeding by datalink , DLH123

WILCO

REQUEST TAXI

WILCO

WILCO

Voice : Ground 121.600 , DLH123

WILCO

TAXI TO RWY 27R VIA TWY N BD13 D Y11 HOLD SHORT RWY 27L *

GROUND #1

GROUND #2

ATCO

Pilot

Transfer to Ground#2 frequency when near to N/NA2

Voice phraseology is only provided as an example

The next taxi clearance may be provided without pilot request

Transfer to Tower frequency when near to RWY 27L. Message could either be Monitor or Contact

taxi out nominal case 4 4
Taxi out – nominal case (4/4)

Voice: cleared for take-off runway 27 left, DLH 123*

Voice: crossing runway 27 left and maintaining holding point K8, DLH123*

Voice: lining up runway 27 left and waiting, DLH123

Voice: DLH123, cross runway 27 leftand maintain holding point K8 + datalink information confirming the cross clearance, for moving map display purpose (removal of stop bar) and Runway Incursions alerting capability *

Voice: DLH123, line-up runway 27 left and wait + datalink information confirming the cross clearance, for moving map display purpose (removal of stop bar) and Runway Incursions alerting capability *

WILCO *

TOWER

Voice remains for runway clearances. The means through which the datalink information is sent is TBD.

TAXI TO HOLDING POINT Z8 RWY 27R VIA TWY K8 Z8 *

Voice: DLH123, cleared for take-off runway 27 left wind 280 degrees 10 knots + datalink information confirming the take-off clearance, for moving map display purpose *

Pilot

ATCO

Voice remains for runway clearances. The means through which the datalink information is sent is TBD.

Only voice read-back required (no acknowledgment of the datalink information)

TBC according to airport configuration (i.e. relevant through datalink or voice?)

Only voice read-back required (no acknowledgment of the datalink information)

Only voice read-back required (no acknowledgment of the datalink information)

taxi in nominal case with app twr gnd equipped with cpdlc 1 3
Taxi in - Nominal case with APP, TWR & GND equipped with CPDLC (1/3)

RWY exit *

ATIS *

ATIS request

ROGER

EXPECT ROUTING TO STAND D8 VIA TWY V1 S2 RWY 26R S2 W2 N E GE2 G *

EN ROUTE-APPROACH

WILCO

CONTACT LFPG TWR 119.25 *

Pilot

ATCO

Either through voice or through datalink ?

CPLDC already established with APP

EXPECT computed from RWY exit, if available, otherwise “standard” routing (TBC)

RWY exit data

provided from ATC via TBD

ground forwarding between Approach and Ground *

Ground forwarding may enable the Approach to exchange, with the pilot, data related to ground operations (e.g. taxi route information)

Transfer to Tower frequency

Only one CPDLC connection is envisioned for ground operations (TBC). Ground system will be in charge to propose the message to the relevant control position.

Transfer of CPDLC connexion between APP and ground system *

(seamless transfer for the crew – no “manual” notification required)

taxi in nonimal case with app twr gnd equipped with cpdlc 2 3
Taxi in - Nonimal case with APP, TWR & GND equipped with CPDLC (2/3)

TOWER

Voice: crossing runway 26 right and maintaining holding point S2, DLH123 *

CONTACT LFPG GND 121.8

Voice: DLH123, wind 270 12 knots,runway26 left cleared to land. Report runway vacated or in case of missed approach.

Voice: DLH123, cross runway 26 rightand maintain holding point S2 + datalink information confirming the cross clearance for moving map display purpose only *

Voice: DLH123, hold short of runway 26 right on taxiway S2.

Voice : Tower 119.25 , DLH123

Voice : Runway 26 left, cleared to land, DLH123

Voice : holding short of 26 right, on taxiway S2, DLH123

WILCO *

Voice : Runway 26 left vacated on taxiway V1, DLH123

Pilot

ATCO

Voice remains for runway clearances. The means through which the datalink information is sent is TBD.

Only voice read-back required (no acknowledgment of the datalink information)

Transfer to Ground frequency

taxi in nonimal case with app twr gnd equipped with cpdlc 3 3
Taxi in - Nonimal case with APP, TWR & GND equipped with CPDLC (3/3)

GROUND

TAXI TO STAND D8 VIA TWY S2 W2 N E GE2 G *

Voice : DLH123, proceed by datalink *

WILCO

Voice : Ground 121.8 , DLH123

Voice : Proceeding by datalink , DLH123

ATCO

Pilot

Voice phraseology is only provided as an example

The taxi clearance after landing may be provided without pilot request

expect routing use 1 2
EXPECT ROUTING use (1/2)
  • Purpose: It intends to inform the flight crew of the taxi route or at least the final destination, i.e. the take-off runway for taxi out and the stand/parking for taxi in, even if the controller sending this information message is not in charge of the final destination
  • Taxi out : 2 messages possible
      • UL#243 : EXPECT ROUTING TO [airportElement] VIA [

 provides the expected taxi route to the final destination

      • UL#254 : EXPECT ROUTING TO [airportElement] WITH PUSHBACK FACING [direction]
      • only the final destination and optionally the pushback direction are known

Note: the airportElement and the taxiRoute elements are the information displayed on the DCDU and the taxiRouteClearance element is dedicated to the graphical depiction on the moving map.

  • taxiRoute] [taxiRouteClearance]

Expected final destination

Start of taxi

Entry in an area depending

on a different controller

expect routing use 2 2
EXPECT ROUTING use (2/2)

Departure Clearance request

EXPECT ROUTING TO HOLDING POINT Z8 RWY 27R VIA TWY G N BD13 D Y11 RWY 27L K8 Z8

Departure Clearance

ROGER

  • Taxi out (cont.) :
      • Information useful during flight preparation, i.e. at the same time departure clearance is granted
  • Taxi in : only one message relevant
      • UL#243 : EXPECT ROUTING TO [airportElement] VIA [taxiRoute] [taxiRouteClearance] , same intent/features as for taxi out
      • Information useful early during the approach phase (appropriate moment is TBD- not worthy while a/c on ground)

Pilot

ATCO

Either through voice or through datalink ?

taxi clearance use ul 241 1 4

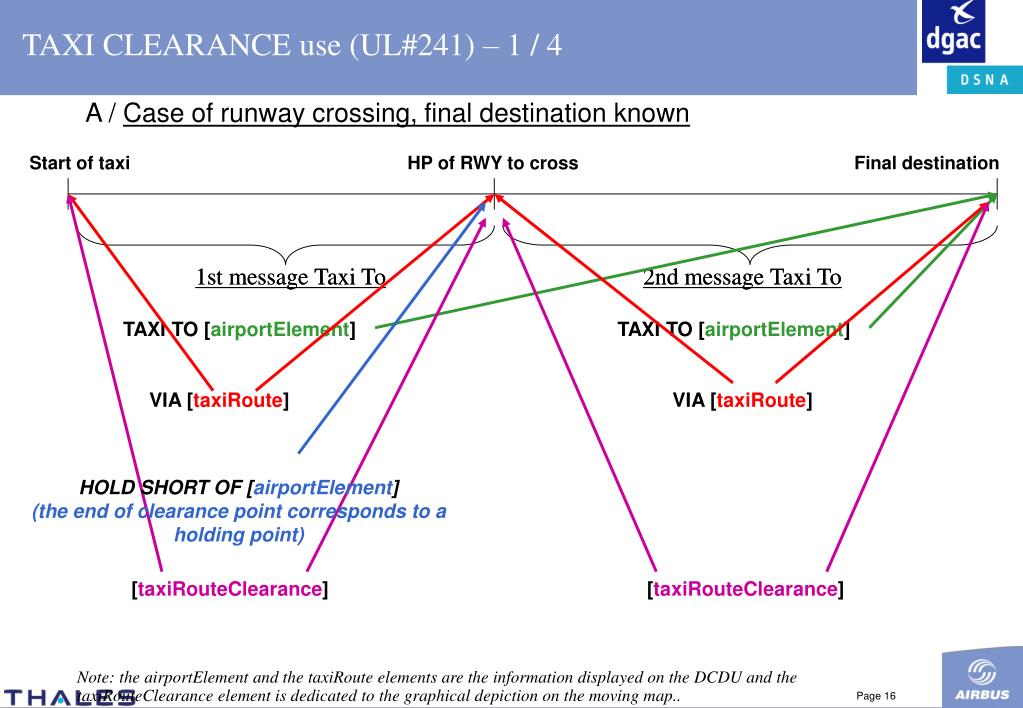

TAXI CLEARANCE use (UL#241) – 1 / 4

A / Case of runway crossing, final destination known

Start of taxi

HP of RWY to cross

Final destination

1st message Taxi To

1st message Taxi To

2nd message Taxi To

2nd message Taxi To

TAXI TO [airportElement]

TAXI TO [airportElement]

VIA [taxiRoute]

VIA [taxiRoute]

HOLD SHORT OF [airportElement]

(the end of clearance point corresponds to a holding point)

[taxiRouteClearance]

[taxiRouteClearance]

Note: the airportElement and the taxiRoute elements are the information displayed on the DCDU and the taxiRouteClearance element is dedicated to the graphical depiction on the moving map..

taxi clearance use ul 241 2 4
TAXI CLEARANCE use (UL#241) – 2 / 4

TAXI TO RWY 27R VIA TWY N BD13 D Y11 HOLD SHORT OF RWY 27L

WILCO

WILCO

TAXI TO HOLDING POINT Z8 RWY 27R VIA TWY K8 Z8

A / Case of runway crossing, final destination known

Pilot

ATCO

Aircraft cleared to cross RWY 27L

Note: the use of datalink taxi clearance after runway crossing is TBC according to airport configuration (i.e. relevant through datalink or voice? A priori interviewed ground controllers mentioned they would aim at always updating their system even when few remaining taxi route but it should be confirmed)

taxi clearance use ul 241 3 4
TAXI CLEARANCE use (UL#241) – 3 / 4

B / Case of final destination unknown, ground control segmentation

Final destination

Start of taxi

Ground control limit point

1st message Taxi To

1st message Taxi To

2nd message Taxi To

2nd message Taxi To

TAXI TO [airportElement]

TAXI TO [airportElement]

VIA [taxiRoute]

VIA [taxiRoute]

[taxiRouteClearance]

[taxiRouteClearance]

Note: the airportElement and the taxiRoute elements are the information displayed on the DCDU and the taxiRouteClearance element is dedicated to the graphical depiction on the moving map.

taxi clearance use ul 241 4 4
TAXI CLEARANCE use (UL#241) – 4 / 4

TAXI TO INTERSECTION N-NA2 VIA TWY G N

CONTACT LFPG GND 121.8

Voice : DLH123, proceed by datalink

WILCO

WILCO

WILCO

Voice : Ground 121.8 , DLH123

Voice : Proceeding by datalink , DLH123

TAXI TO HOLDING POINT Y13 RWY 27L VIA N B BQ2 Y13

GROUND#2

B / Case of final destination unknown, ground control segmentation

Pilot

ATCO

GROUND#1

revise taxi clearance use ul 244 1 2
REVISE TAXI CLEARANCE use (UL#244) – 1 / 2

TAXI TO [airportElement] VIA [taxiRoute] HOLD SHORT OF [airportElement] [taxiRouteClearance]

1st message :

End of revise taxi

Clearance point

REVISE TAXI TO [airportElement] VIA [taxiRoute] HOLD SHORT OF [airportElement] [taxiRouteClearance]

2nd message :

  • Revision is sent from the current position of the aircraft (not from the deviating point)
  • The end of the revise taxi clearance point may be the same as the end of initial taxi clearance point provided that a part of the taxiRoute is different.

Note: the airportElement and the taxiRoute elements are the information displayed on the DCDU and the taxiRouteClearance element is dedicated to the graphical depiction on the moving map.

Start of taxi

End of taxi clearance point

Current a/c position

revise taxi clearance use ul 244 2 2
REVISE TAXI CLEARANCE use (UL#244) – 2 / 2

TAXI TO HOLDING POINT Y13 RWY 27L VIA N B BQ2 Y13

GROUND

WILCO

WILCO

REVISE TAXI TO HOLDING POINT Y11 RWY 27L VIA B BD20 Y11

Pilot

ATCO

Long Term change in the cleared taxi route => revision only managed by datalink

mixed mode communication 2 2
MIXED MODE COMMUNICATION (2/2)

TAXI TO HOLDING POINT Y11 RWY 27L VIA N BD13 D Y11

GROUND

WILCO

WILCO

Voice : Taxiing holding point Y11 runway 27 left via taxiway B BD20 Y11, DLH123

REVISE TAXI TO HOLDING POINT Y11 RWY 27L VIA B BD20 Y11

Voice : DLH123, disregard CPDLC TAXI message. Turn right on B. + simultaneous sending of a datalink warning dedicated to the airport moving map (e.g. TAXI CLEARANCE: CHANGE IN PROGRESS)

  • Example :

ATCO

Pilot

Near intersection N/B

Voice phraseology is TBC and the use of a datalink warning dedicated to the airport moving map is to further studied

how to read the message tables
How to read the message tables
  • Caption
    • UM : Uplink Message
    • DM : Downlink Message
    • In [ ] : parameter
    • In italic : optional field
  • Sorting into groups (to be normalized or not)
    • Meaning of colours used:
uplinks options
UPLINKS – Options

The following messages answer a specific graphical need, but should not require an answer from pilots, and even should not be presented as a textual CPDLC message.

uplinks runway clearances
UPLINKS – Runway clearances

These messages answer a specific graphical need, but should not require an answer from pilots, and even should not be presented as a textual CPDLC message.
