  1. Channel Assignment using Chaotic Simulated Annealing Enhanced Hopfield Neural Network Amir massoud Farahmand(a,b) Mohammad Javad Yazdanpanah (b) a) Department of Computing Science, University of Alberta b) Department of Electrical and Computer Engineering, University of Tehran

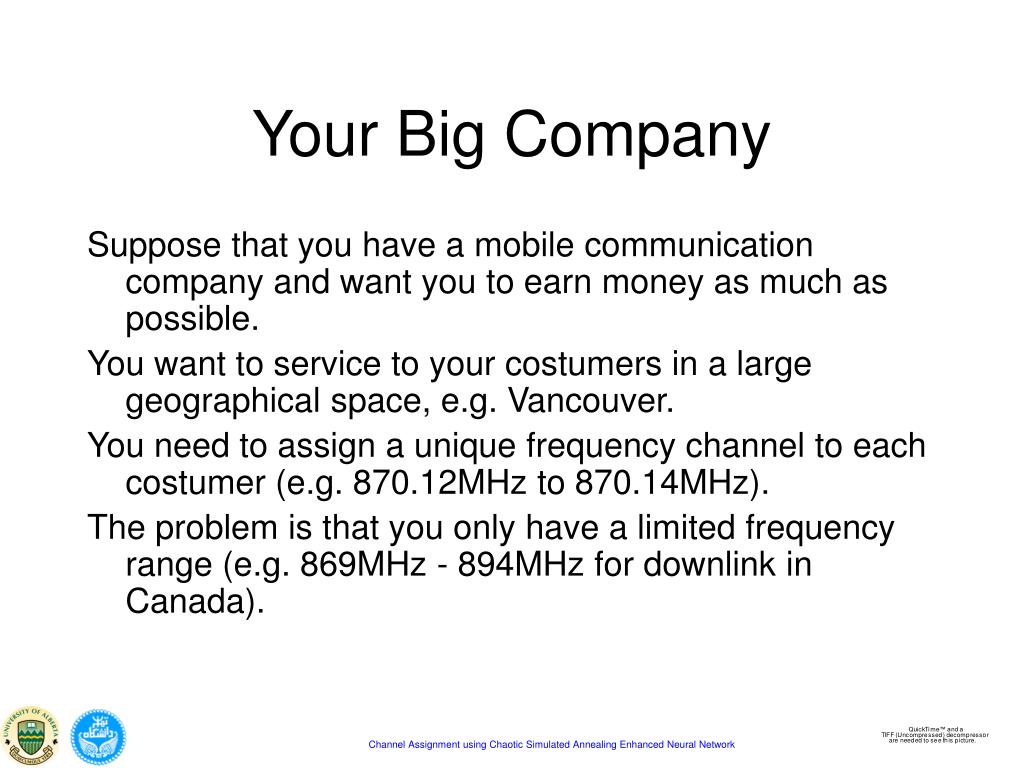

  2. Your Big Company Suppose that you have a mobile communication company and want you to earn money as much as possible. You want to service to your costumers in a large geographical space, e.g. Vancouver. You need to assign a unique frequency channel to each costumer (e.g. 870.12MHz to 870.14MHz). The problem is that you only have a limited frequency range (e.g. 869MHz - 894MHz for downlink in Canada).

  3. Cells and Interference Divide the region to smaller sub-regions(cells). You have the whole frequency range for each cell. The Problem of Interference

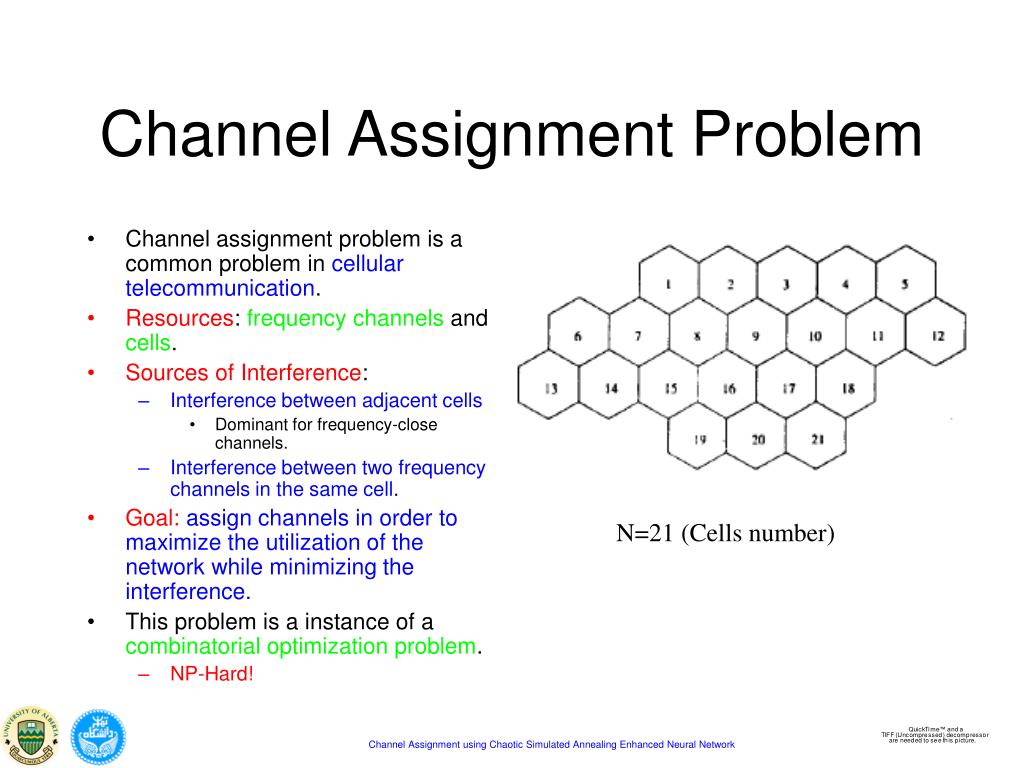

  4. Channel Assignment Problem • Channel assignment problem is a common problem in cellular telecommunication. • Resources: frequency channels and cells. • Sources of Interference: • Interference between adjacent cells • Dominant for frequency-close channels. • Interference between two frequency channels in the same cell. • Goal:assign channels in order to maximize the utilization of the network while minimizing the interference. • This problem is a instance of a combinatorial optimization problem. • NP-Hard! N=21 (Cells number)

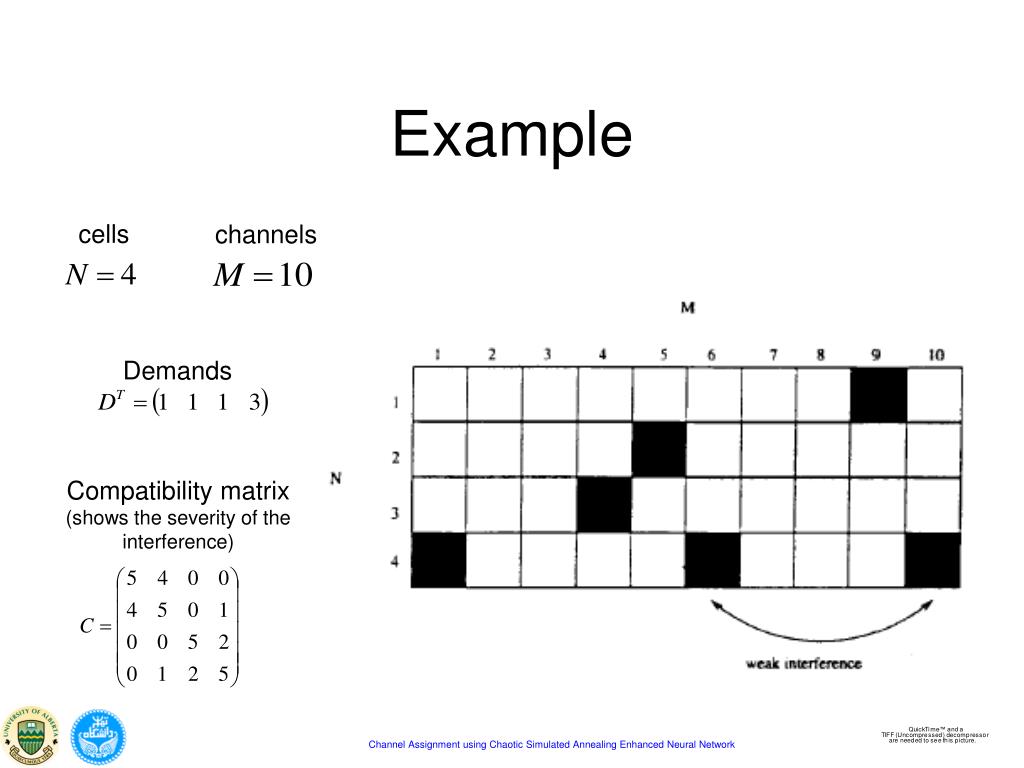

  5. Example cells channels Demands Compatibility matrix (shows the severity of the interference)

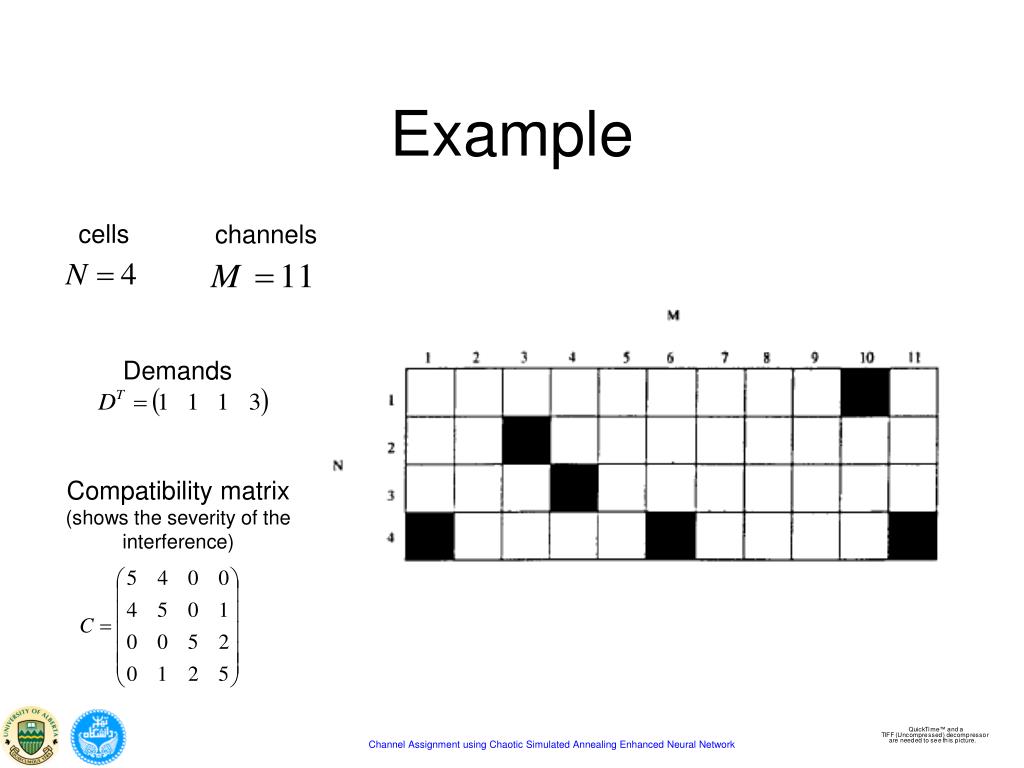

  6. Example cells channels Demands Compatibility matrix (shows the severity of the interference)

  7. Combinatorial Optimization Problem

  8. Combinatorial Optimization Problem(Samples) • Traveling Salesman Problem • VLSI Connection Optimization • Job Scheduling • Postal Delivery • Car Sequencing • Channel Assignment Problem

  9. How to Solve a COP? • Search all space?! • Infeasible for large problems. • Approximately solve it • Different heuristics • Meta-heuristics • Simulated Annealing • Tabu Search • Evolutionary Computation Methods • Hopfield Neural Networks

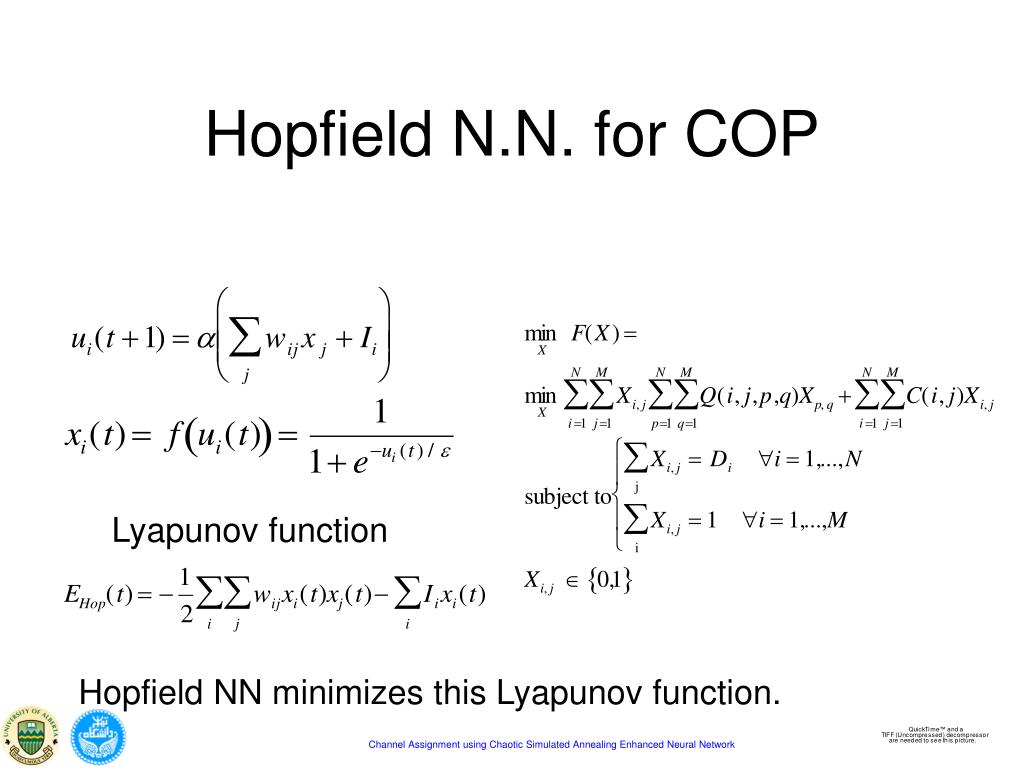

  10. Hopfield N.N. for COP Lyapunov function Hopfield NN minimizes this Lyapunov function.

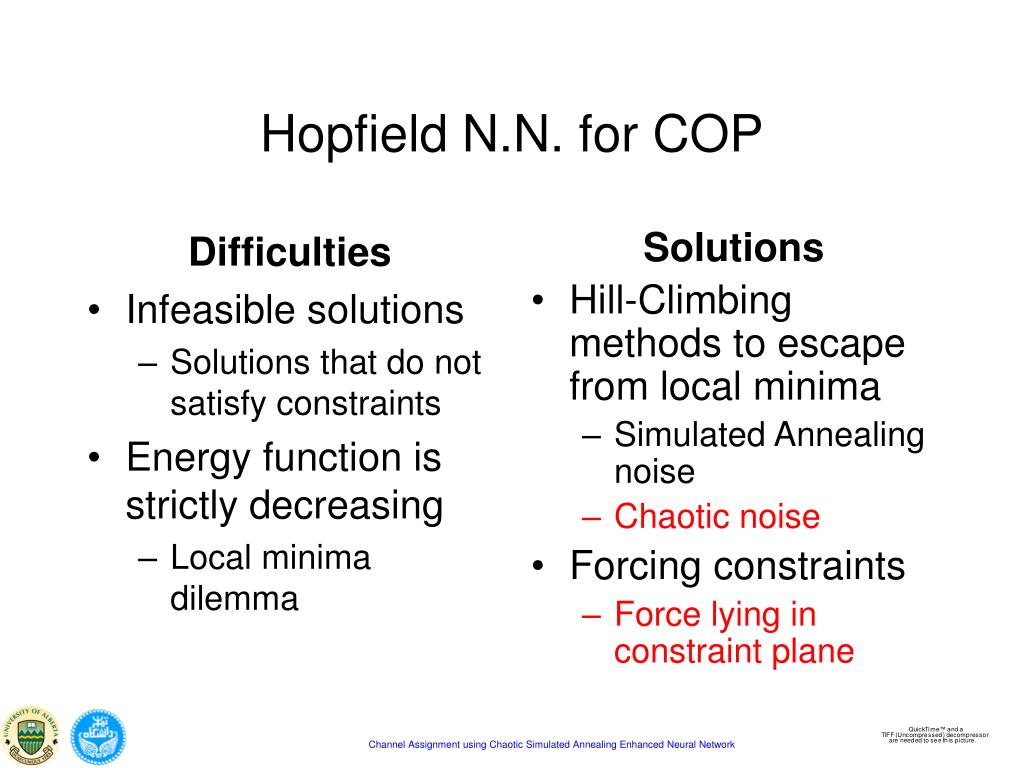

  11. Difficulties Infeasible solutions Solutions that do not satisfy constraints Energy function is strictly decreasing Local minima dilemma Solutions Hill-Climbing methods to escape from local minima Simulated Annealing noise Chaotic noise Forcing constraints Force lying in constraint plane Hopfield N.N. for COP

  12. Example of Trapping in a Local Minimum

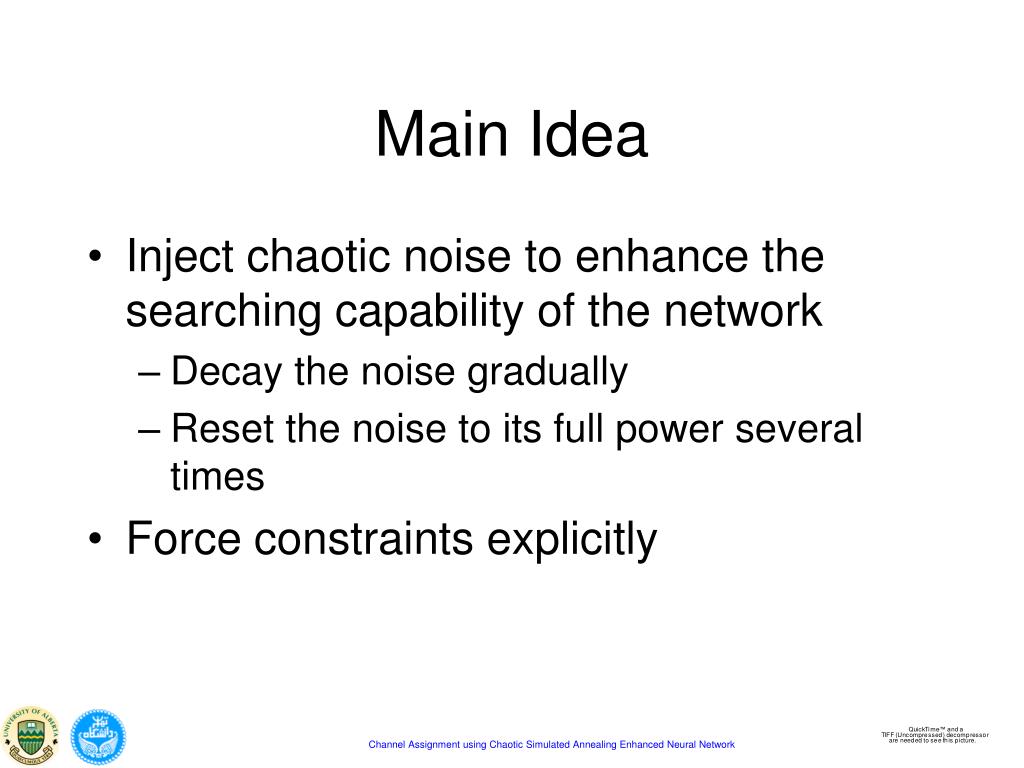

  13. Main Idea • Inject chaotic noise to enhance the searching capability of the network • Decay the noise gradually • Reset the noise to its full power several times • Force constraints explicitly

  14. The Network Dynamics

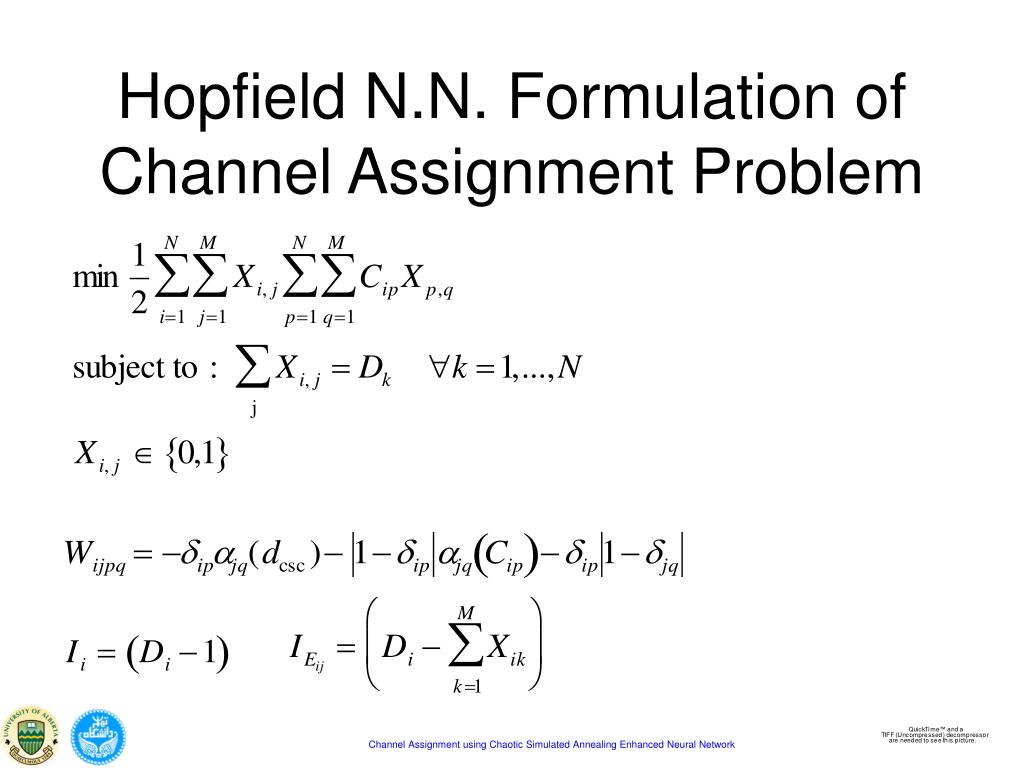

  15. Hopfield N.N. Formulation of Channel Assignment Problem

  16. Experiments

  17. Experiments

  18. Experiments

  19. Conclusions • Hopfield NN with chaotic injected noiseand forcing constraints as external inputs can solve COP very well.

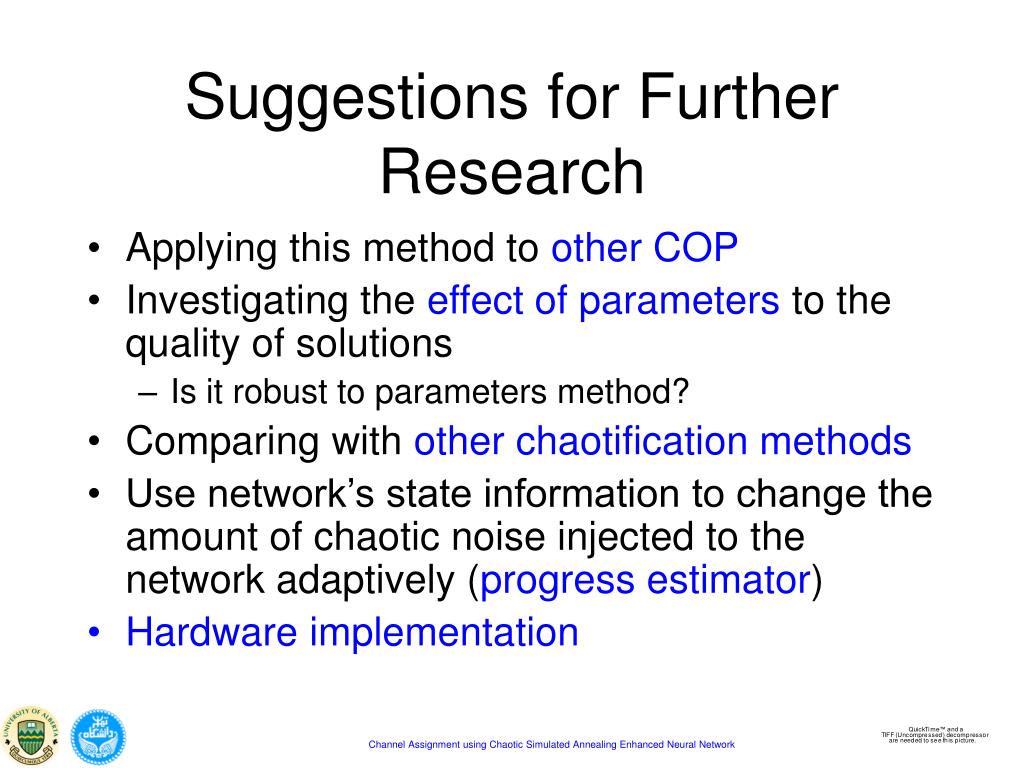

  20. Suggestions for Further Research • Applying this method to other COP • Investigating the effect of parameters to the quality of solutions • Is it robust to parameters method? • Comparing with other chaotification methods • Use network’s state information to change the amount of chaotic noise injected to the network adaptively (progress estimator) • Hardware implementation
