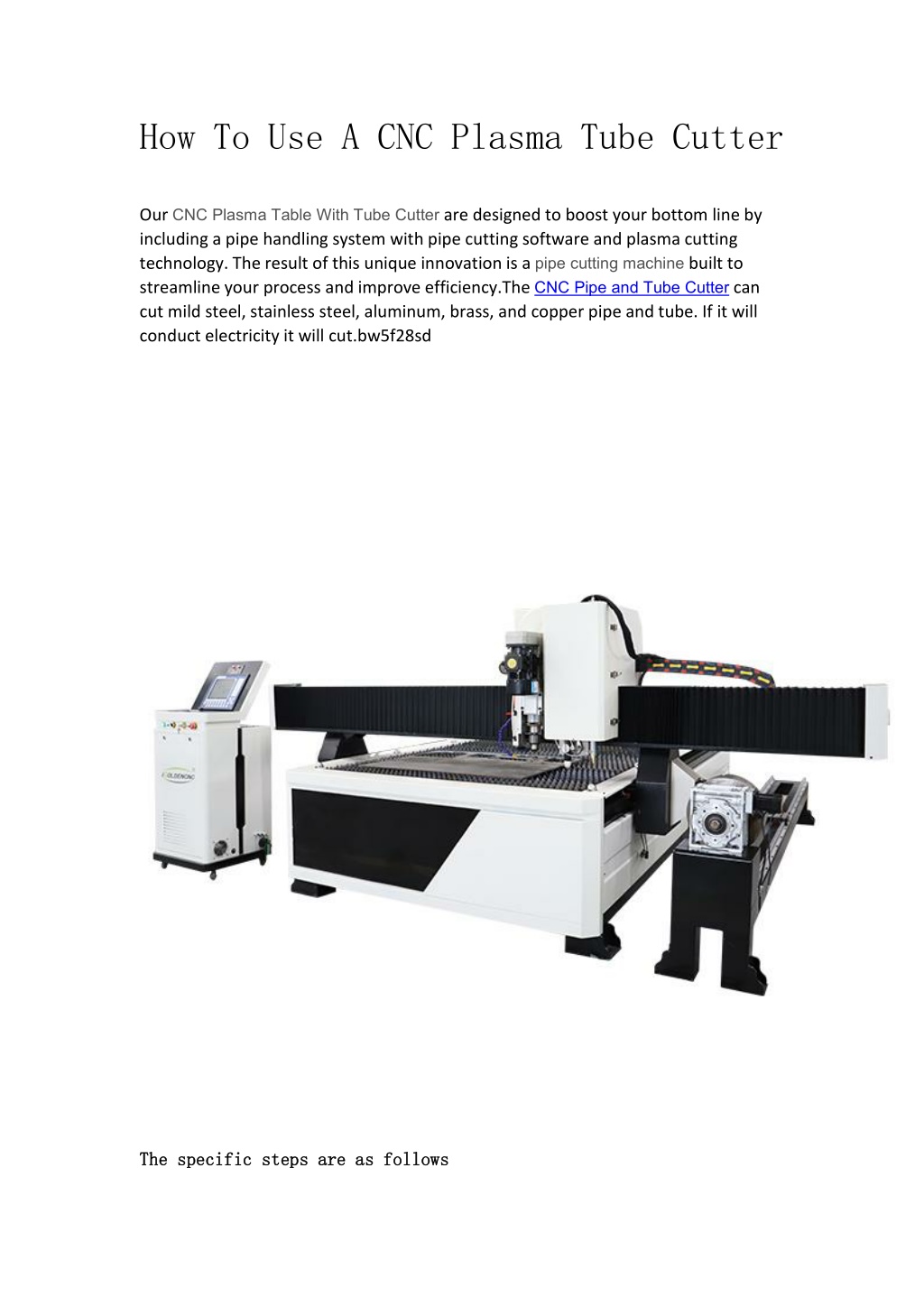

  1. How To Use A CNC Plasma Tube Cutter Our CNC Plasma Table With Tube Cutter are designed to boost your bottom line by including a pipe handling system with pipe cutting software and plasma cutting technology. The result of this unique innovation is a pipe cutting machine built to streamline your process and improve efficiency.The CNC Pipe and Tube Cutter can cut mild steel, stainless steel, aluminum, brass, and copper pipe and tube. If it will conduct electricity it will cut.bw5f28sd The The specific specific steps steps are are as as follows follows

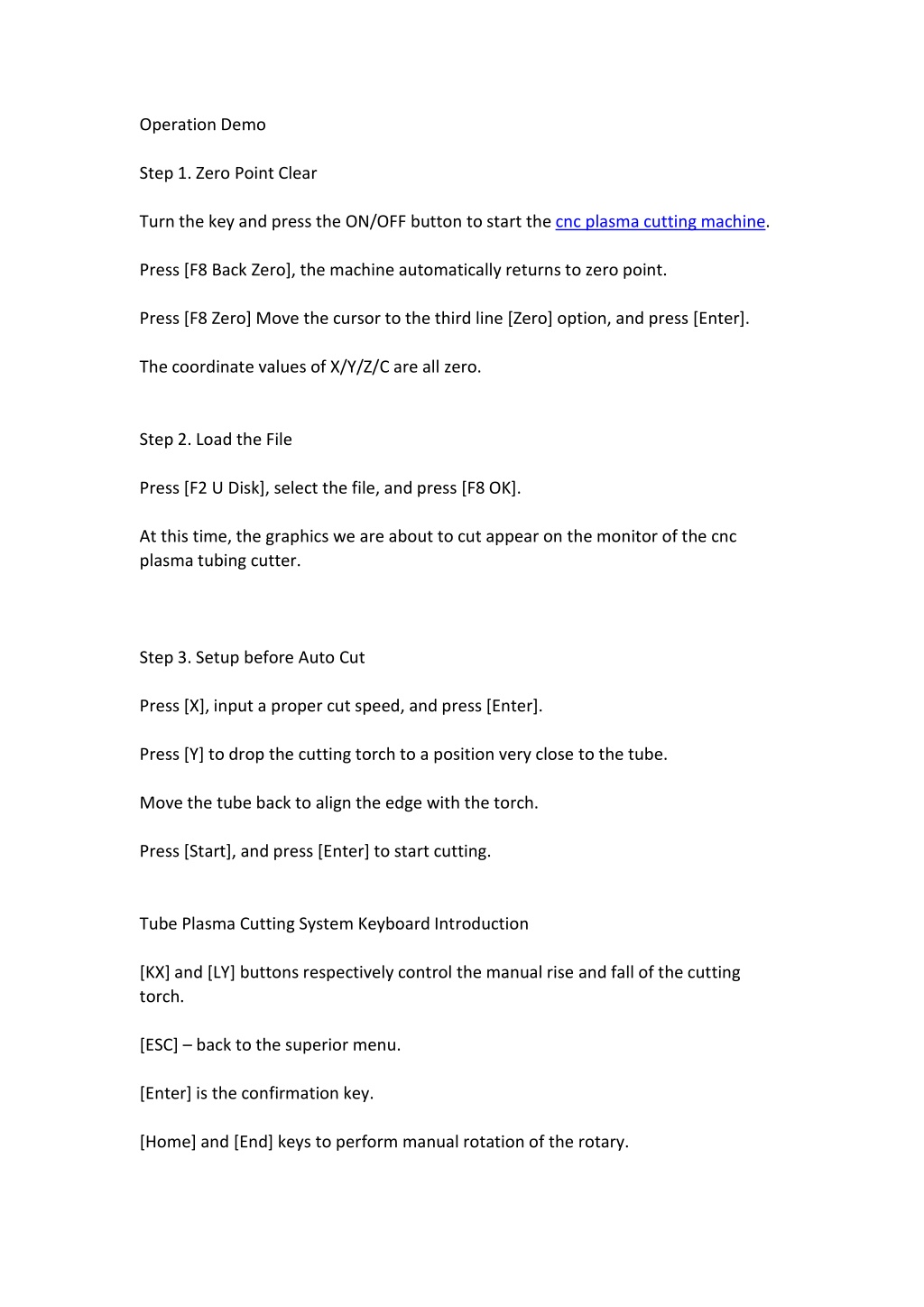

  2. Operation Demo Step 1. Zero Point Clear Turn the key and press the ON/OFF button to start the cnc plasma cutting machine. Press [F8 Back Zero], the machine automatically returns to zero point. Press [F8 Zero] Move the cursor to the third line [Zero] option, and press [Enter]. The coordinate values of X/Y/Z/C are all zero. Step 2. Load the File Press [F2 U Disk], select the file, and press [F8 OK]. At this time, the graphics we are about to cut appear on the monitor of the cnc plasma tubing cutter. Step 3. Setup before Auto Cut Press [X], input a proper cut speed, and press [Enter]. Press [Y] to drop the cutting torch to a position very close to the tube. Move the tube back to align the edge with the torch. Press [Start], and press [Enter] to start cutting. Tube Plasma Cutting System Keyboard Introduction [KX] and [LY] buttons respectively control the manual rise and fall of the cutting torch. [ESC] – back to the superior menu. [Enter] is the confirmation key. [Home] and [End] keys to perform manual rotation of the rotary.

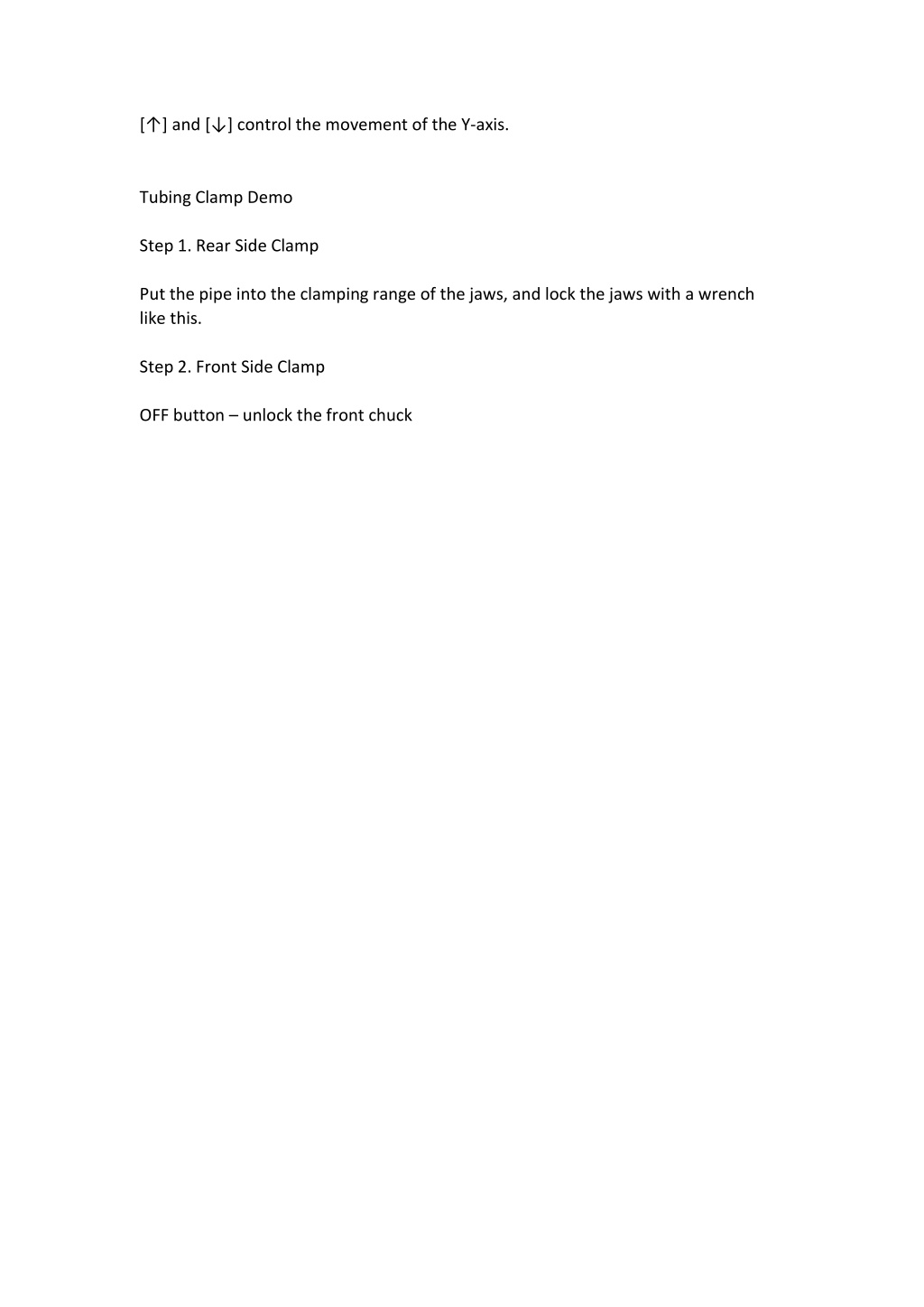

  3. [↑] and [↓] control the movement of the Y-axis. Tubing Clamp Demo Step 1. Rear Side Clamp Put the pipe into the clamping range of the jaws, and lock the jaws with a wrench like this. Step 2. Front Side Clamp OFF button – unlock the front chuck

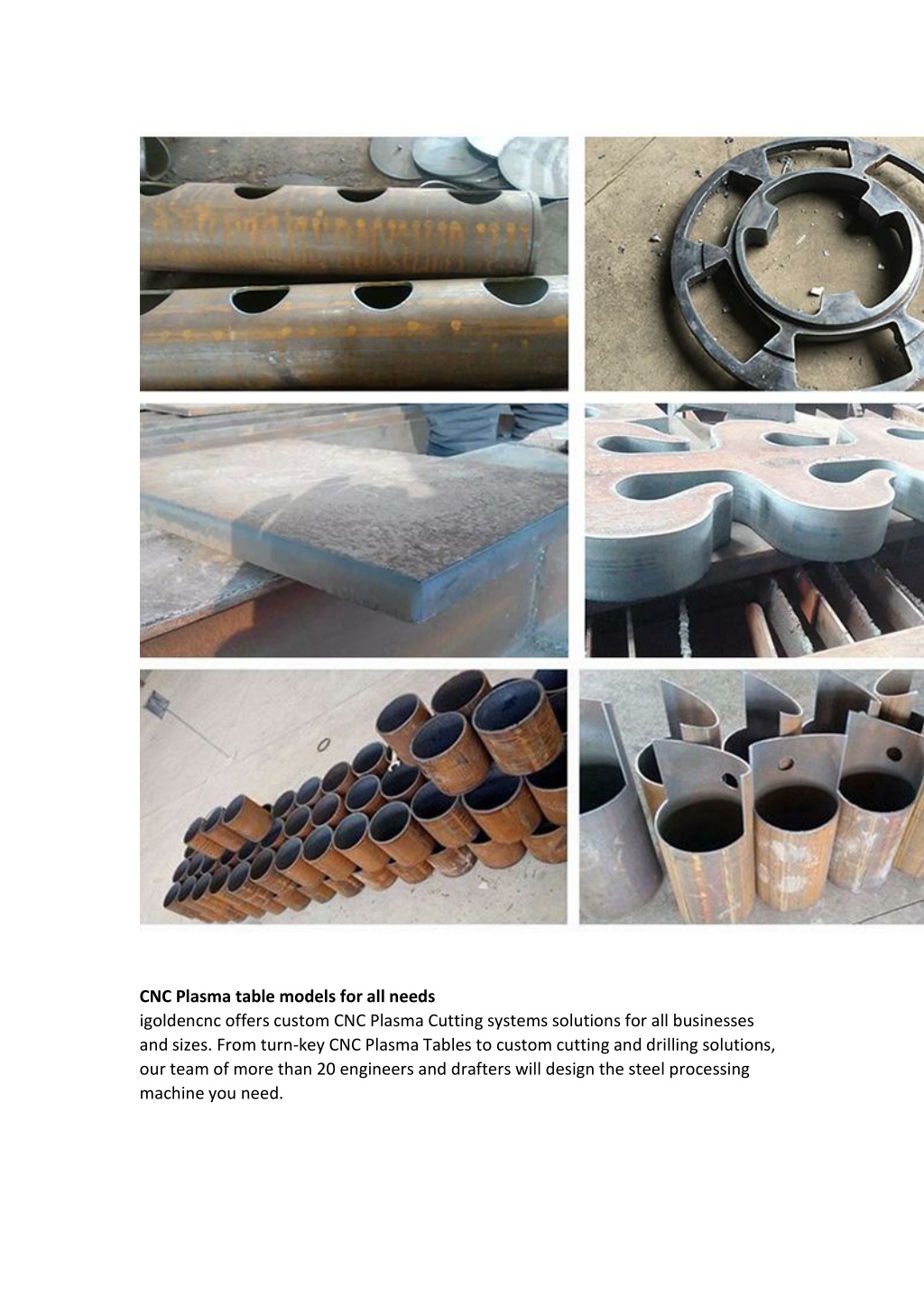

  4. CNC Plasma table models for all needs igoldencnc offers custom CNC Plasma Cutting systems solutions for all businesses and sizes. From turn-key CNC Plasma Tables to custom cutting and drilling solutions, our team of more than 20 engineers and drafters will design the steel processing machine you need.
