6060 Advertising CNC Router Engraving Machine/6060 Mini CNC Router

Small 6060 CNC router with 24 x 24 inch movable working table. And this type of small 6060 CNC router is Suitable for diverse and flexible processing, effectively improving processing efficiency.

madelynn
Download Presentation

6060 Advertising CNC Router Engraving Machine/6060 Mini CNC Router

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

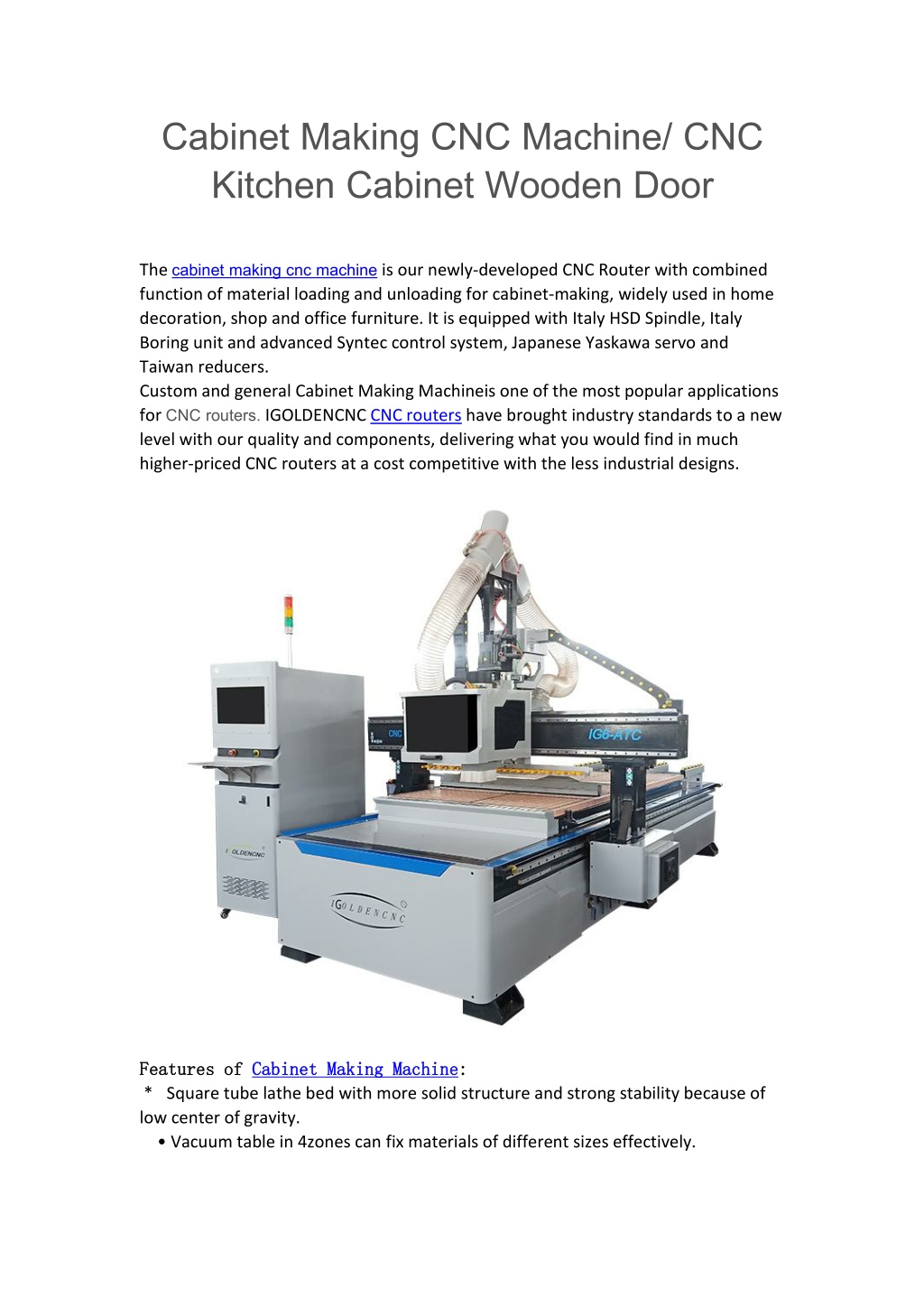

  1. Cabinet Making CNC Machine/ CNC Kitchen Cabinet Wooden Door The cabinet making cnc machine is our newly-developed CNC Router with combined function of material loading and unloading for cabinet-making, widely used in home decoration, shop and office furniture. It is equipped with Italy HSD Spindle, Italy Boring unit and advanced Syntec control system, Japanese Yaskawa servo and Taiwan reducers. Custom and general Cabinet Making Machineis one of the most popular applications for CNC routers. IGOLDENCNC CNC routers have brought industry standards to a new level with our quality and components, delivering what you would find in much higher-priced CNC routers at a cost competitive with the less industrial designs. Features Features of * Square tube lathe bed with more solid structure and strong stability because of low center of gravity. • Vacuum table in 4zones can fix materials of different sizes effectively. of Cabinet Cabinet Making Making Machine Machine: :

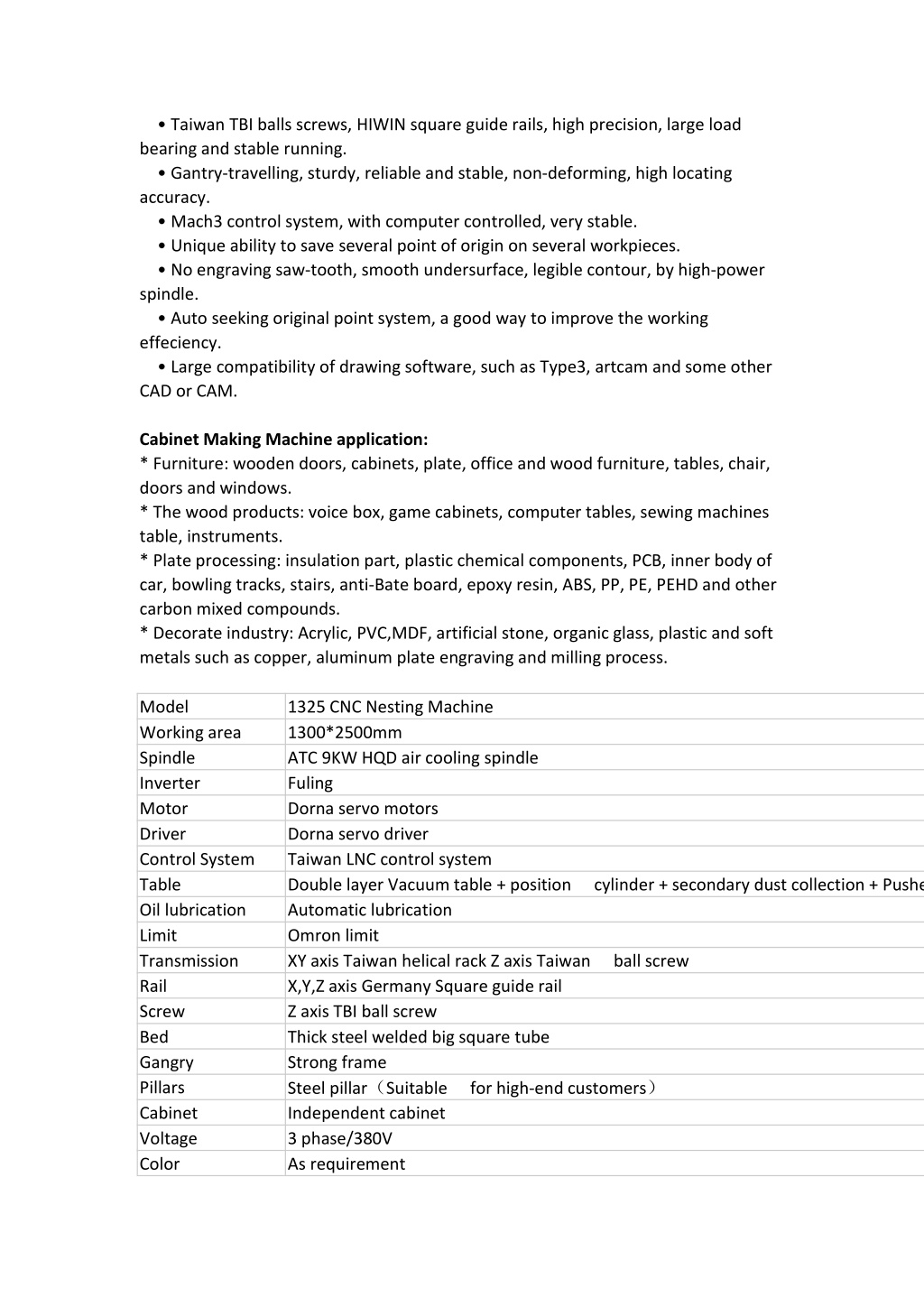

  2. • Taiwan TBI balls screws, HIWIN square guide rails, high precision, large load bearing and stable running. • Gantry-travelling, sturdy, reliable and stable, non-deforming, high locating accuracy. • Mach3 control system, with computer controlled, very stable. • Unique ability to save several point of origin on several workpieces. • No engraving saw-tooth, smooth undersurface, legible contour, by high-power spindle. • Auto seeking original point system, a good way to improve the working effeciency. • Large compatibility of drawing software, such as Type3, artcam and some other CAD or CAM. Cabinet Making Machine application: * Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows. * The wood products: voice box, game cabinets, computer tables, sewing machines table, instruments. * Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti-Bate board, epoxy resin, ABS, PP, PE, PEHD and other carbon mixed compounds. * Decorate industry: Acrylic, PVC,MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process. Model Working area Spindle Inverter Motor Driver Control System Table Oil lubrication Limit Transmission Rail Screw Bed Gangry Pillars Cabinet Voltage Color 1325 CNC Nesting Machine 1300*2500mm ATC 9KW HQD air cooling spindle Fuling Dorna servo motors Dorna servo driver Taiwan LNC control system Double layer Vacuum table + position Automatic lubrication Omron limit XY axis Taiwan helical rack Z axis Taiwan X,Y,Z axis Germany Square guide rail Z axis TBI ball screw Thick steel welded big square tube Strong frame Steel pillar（Suitable Independent cabinet 3 phase/380V As requirement cylinder + secondary dust collection + Pusher system ball screw for high-end customers）

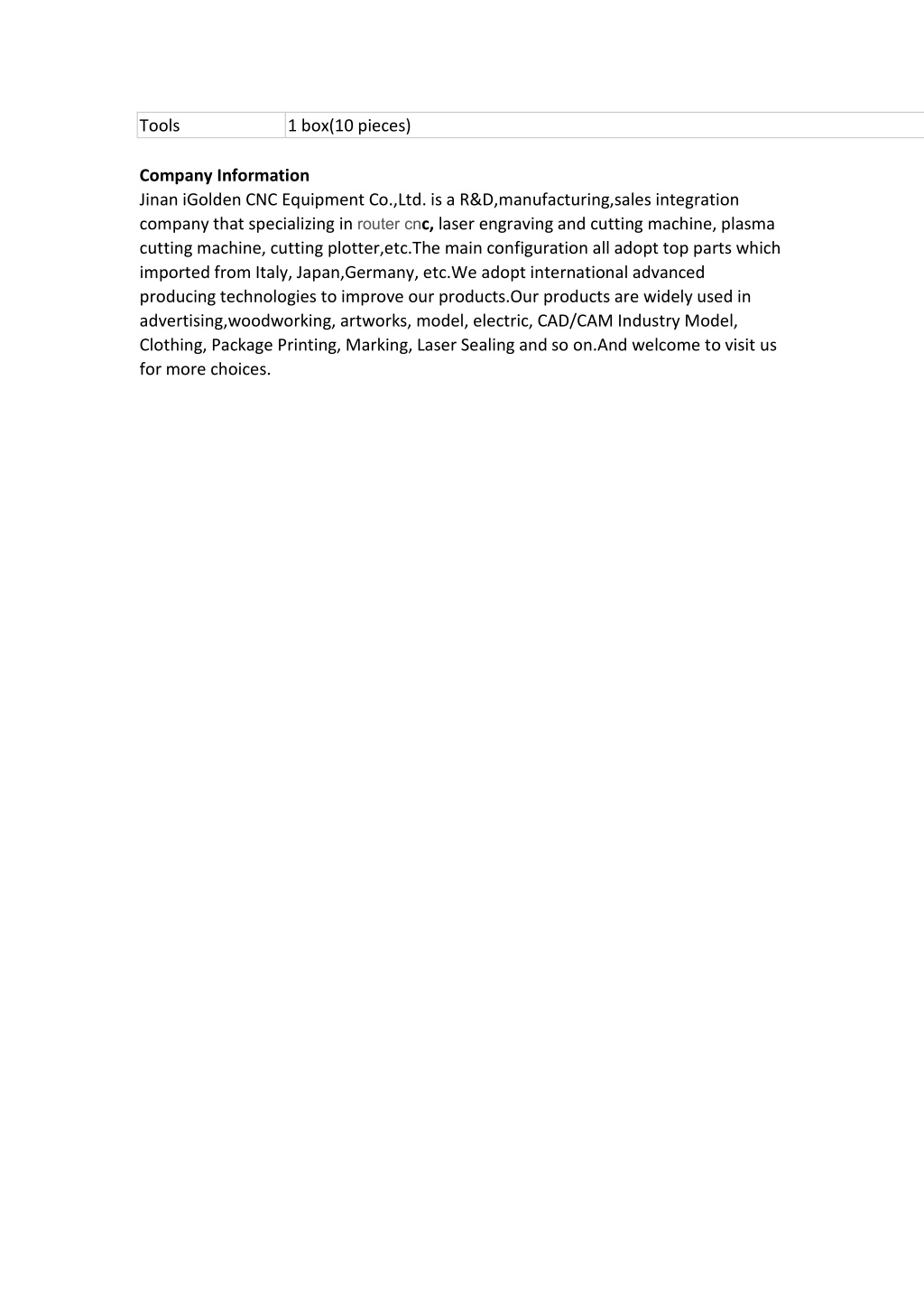

  3. Tools 1 box(10 pieces) Company Information Jinan iGolden CNC Equipment Co.,Ltd. is a R&D,manufacturing,sales integration company that specializing in router cnc, laser engraving and cutting machine, plasma cutting machine, cutting plotter,etc.The main configuration all adopt top parts which imported from Italy, Japan,Germany, etc.We adopt international advanced producing technologies to improve our products.Our products are widely used in advertising,woodworking, artworks, model, electric, CAD/CAM Industry Model, Clothing, Package Printing, Marking, Laser Sealing and so on.And welcome to visit us for more choices.
