Presentation Transcript

  1. UNECE-Eurostat-OECD Meeting on Management of Statistical Information Systems, MSIS 2008 Integrate architecture using SDMX - A framework for SDMX Laura Vignola National Statistical Institute – Italy (Istat) Luxembourg, 07/04/2008

  2. UNECE-Eurostat-OECD Meeting on Management of Statistical Information Systems,MSIS 2008 UNECE-Eurostat-OECD Meeting on Management of Statistical Information Systems,MSIS 2008 Istat situation of data dissemination ISTAT situation of data dissemination A lot of sub - system web with data stored in different db server and with different structure Tables excel, Gesmes files, other formats Luxembourg, 07-09/04/2008

  3. UNECE-Eurostat-OECD Meeting on Management of Statistical Information Systems,MSIS 2008 First phase of exchange data in SDMX format Short term indicators database - CONISTAT 1) Mapping between metadata alredy present in CONISTAT and the DSD done by Eurostat 2) Realizing a WS who accept an SDMXquery and retrive an SDMX compact Luxembourg, 07-09/04/2008

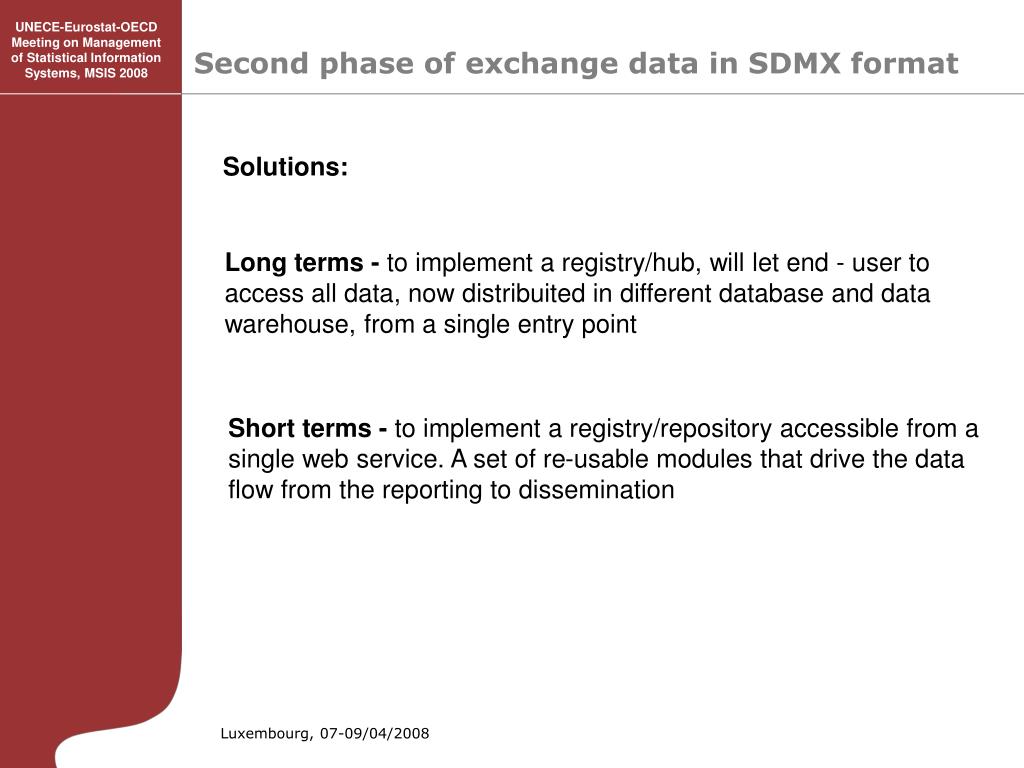

  4. UNECE-Eurostat-OECD Meeting on Management of Statistical Information Systems,MSIS 2008 Second phase of exchange data in SDMX format Solutions: Long terms - to implement a registry/hub, will let end - user to access all data, now distribuited in different database and data warehouse, from a single entry point Short terms - to implement a registry/repository accessible from a single web service. A set of re-usable modules that drive the data flow from the reporting to dissemination Luxembourg, 07-09/04/2008

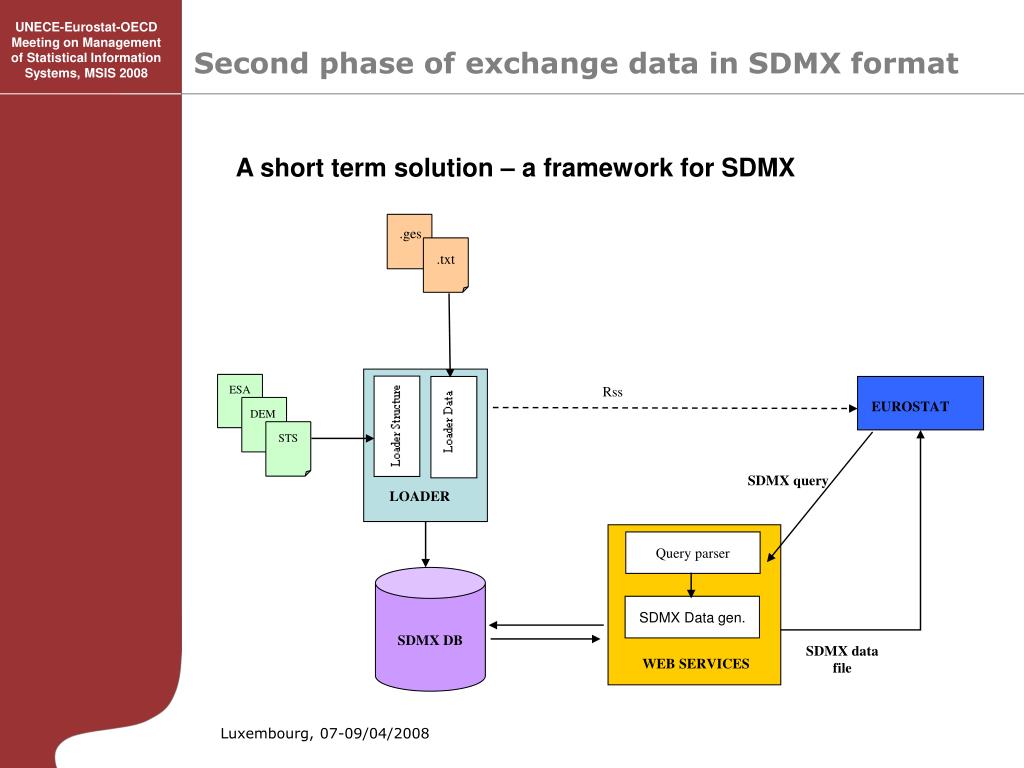

  5. UNECE-Eurostat-OECD Meeting on Management of Statistical Information Systems,MSIS 2008 Second phase of exchange data in SDMX format A short term solution – a framework for SDMX .ges .txt ESA Rss EUROSTAT DEM STS SDMX query LOADER Query parser SDMX Data gen. SDMX DB SDMX data file WEB SERVICES Luxembourg, 07-09/04/2008

  6. UNECE-Eurostat-OECD Meeting on Management of Statistical Information Systems,MSIS 2008 Structure of database DESCRIPTORS COMPONENT_DESCRIPTOR KEYFAMILIES PK_DESCRIPTOR FK_KEY_FAMILY DESCRIPTOR_TYPE GROUP_ID KEYFAMILY NAME AGENCY VERSION ISFINAL FLAG_CS FK_DESCRIOPTOR FK_KEYFAMILY FK_COMPONENT COMPONENT_DESCRIPTOR_TYPE DATA_FLOWS PK_DATAFLOW DESCRIZIONE FK_KEY_FAMILY COMPONENTS CROSSSECTIONAL_AL PK_COMPONENT FK_KEYFAMILY FK_CODE_LIST COMPONENT_TYPE ORDERC USAGE_STATUS ATTACHMENT_LEVEL USED PK_COMPONENT FK_KEY_FAMILY CROSSSECTIONALATTACHDATASET CROSSSECTIONALATTACHGROUP CROSSSECTIONALATTACHSERIES CROSSSECTIONALATTACHOBS CODE_LISTS PK_CODE_LIST FK_KEY_FAMILY NAME AGENCY CODES PK_CODE FK_KEY_FAMILY FK_CODE_LISTS DESCRIPTION METADATI_STS METADATI_DEMOGRAPHY SSTSIND_PROD_M SSTSIND_ORD_M FREQ REF_AREA ADJUSTMENT STS_INDICATOR STS_ACTIVITY STS_INSTITUTION STS_BASE_YEAR TIME_FORMAT FK_DATAFLOW DEMOGRAPHY1 FREQ COUNTRY SEX DEMO TAB_NUM REV_NUM UNIT_MULT DECI TIME_FORMAT UNIT FK_DATAFLOW FREQ REF_AREA ADJUSTMENT STS_INDICATOR STS_ACTIVITY STS_INSTITUTION STS_BASE_YEAR TIME_PERIOD OBS_VALUE OBS_STATUS OBS_COM OBS_CONF FREQ REF_AREA ADJUSTMENT STS_INDICATOR STS_ACTIVITY STS_INSTITUTION STS_BASE_YEAR TIME_PERIOD OBS_VALUE OBS_STATUS OBS_COM OBS_CONF OBS_PRE_BREAK FREQ COUNTRY SEX DEMO TIME_PERIOD OBS_VALUE OBS_STATUS Luxembourg, 07-09/04/2008

  7. UNECE-Eurostat-OECD Meeting on Management of Statistical Information Systems,MSIS 2008 Client Server Application Luxembourg, 07-09/04/2008

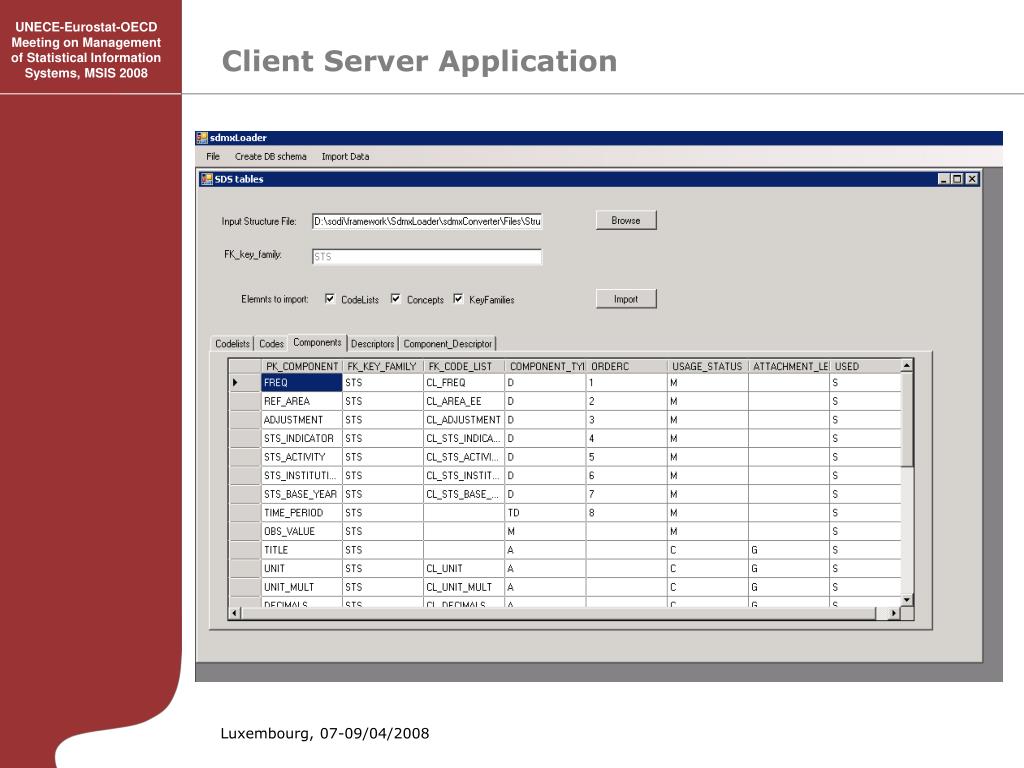

  8. UNECE-Eurostat-OECD Meeting on Management of Statistical Information Systems,MSIS 2008 Client Server Application Luxembourg, 07-09/04/2008

  9. UNECE-Eurostat-OECD Meeting on Management of Statistical Information Systems,MSIS 2008 Client Server Application Luxembourg, 07-09/04/2008

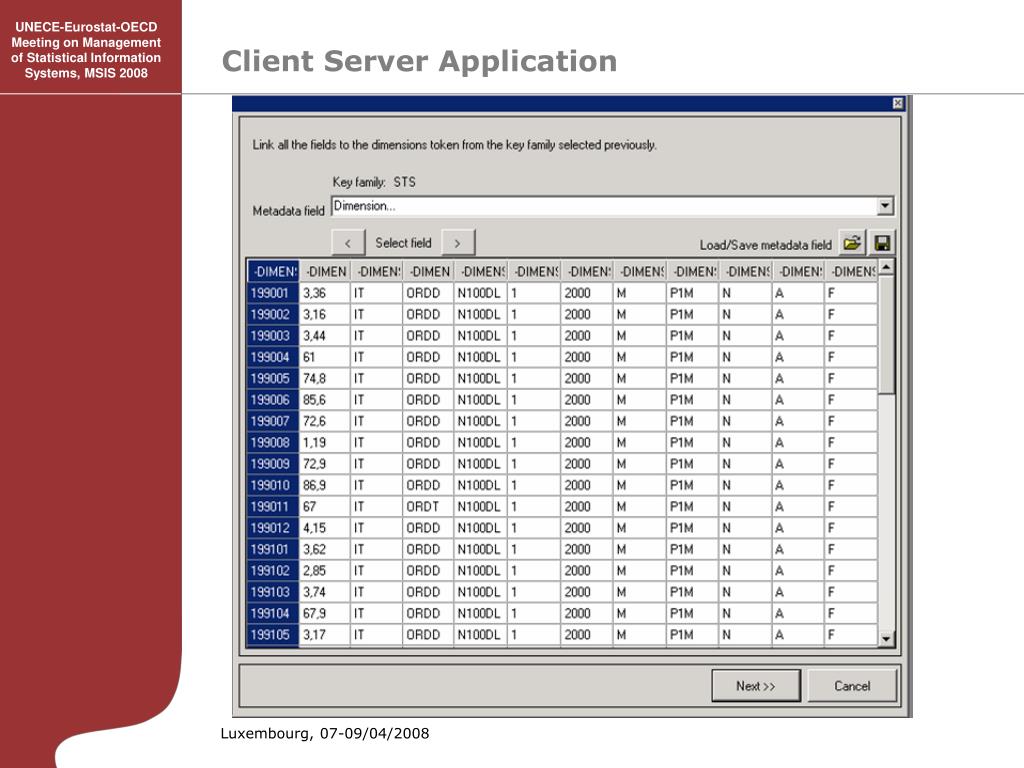

  10. UNECE-Eurostat-OECD Meeting on Management of Statistical Information Systems,MSIS 2008 Client Server Application Luxembourg, 07-09/04/2008

  11. UNECE-Eurostat-OECD Meeting on Management of Statistical Information Systems,MSIS 2008 Client Server Application Luxembourg, 07-09/04/2008

  12. UNECE-Eurostat-OECD Meeting on Management of Statistical Information Systems,MSIS 2008 SDMX Data Where Query • <Query> • <query:DataWhere> • <query:And> • <query:DataFlow>STSIND_PROD_M</query:DataFlow> • <query:Dimension name="FREQUENCY">M</query:Dimension> • <query:Dimension name="INDICATOR">PROD</query:Dimension> • <query:Or> • <query:And> • <query:Dimension name="ADJUSTMENT">S</query:Dimension> • <query:Or> • <query:Dimension name="STS_ACTIVITY">N100DA</query:Dimension> • <query:Dimension name="STS_ACTIVITY">N100C0</query:Dimension> • <query:Dimension name="STS_ACTIVITY">N100D0</query:Dimension> • </query:Or> • <query:Time> • <query:StartTime>2000-01</query:StartTime> • <query:EndTime>2006-01</query:EndTime> • </query:Time> • </query:And> • <query:And> • <query:Dimension name="STS_ACTIVITY">N100C0</query:Dimension> • <query:Time> • <query:StartTime>1995-01</query:StartTime> • <query:EndTime>2003-01</query:EndTime> • </query:Time> • </query:And> • </query:Or> • </query:And> • </query:DataWhere> • </Query> Luxembourg, 07-09/04/2008

  13. UNECE-Eurostat-OECD Meeting on Management of Statistical Information Systems,MSIS 2008 The query parser Db independent side of web services - rewriting the xml file <Time> <StartTime>Date 1</StartTime> <EndTime>Date 2</EndTime> </Time> <And> <StartTime>Date 1</StartTime> <EndTime>Date 2</EndTime> </And> <And> <And> Cond 1, Cond 2 </And> </And> <And> Cond 1 Cond 2 </And> Luxembourg, 07-09/04/2008

  14. UNECE-Eurostat-OECD Meeting on Management of Statistical Information Systems,MSIS 2008 The query parser <Or> <Or> Cond 4, Cond 5 </Or> </Or> <Or> Cond 1 Cond 2 </Or> <And> Cond 1 <Or> Cond 2, Cond 3</Or> </And> <Or> <And> Cond 1, Cond 2</And> <And> Cond 1, Cond 3 </And> </Or> Luxembourg, 07-09/04/2008

  15. UNECE-Eurostat-OECD Meeting on Management of Statistical Information Systems,MSIS 2008 SDMX Data file generator Db dependent side of web services SELECT METADATI_STS.*,SSTSIND_PROD.* FROM METADATI_STS,SSTSIND_PROD WHERE ADJUSTMENT=‘S’ AND FREQUENCY=‘M’ AND INDICATOR=‘PROD’ AND STS_ACTIVITY=N100DA AND TIME_PERIOD BETWEEN 2000-01 AND 2006-01 UNION SELECT METADATI_STS.*,SSTSIND_PROD.* FROM METADATI_STS,SSTSIND_PROD WHERE ADJUSTMENT=‘S’ AND FREQUENCY=‘M’ AND INDICATOR=‘PROD’ AND STS_ACTIVITY=N100D0 AND TIME_PERIOD BETWEEN 2000-01 AND 2006-01 ……………………………………………… Luxembourg, 07-09/04/2008

  16. UNECE-Eurostat-OECD Meeting on Management of Statistical Information Systems, MSIS 2008 Future developement - Introduce new features on the existing modules - Make available some of this modules as API Luxembourg, 07/04/2008
