  1. Introduction Purpose • Provide an overview of Sullins Box Header product line Objectives • Discuss the features & benefits of SBH Box (Shrouded) Headers Content • 18 pages Learning Time • 15 minutes

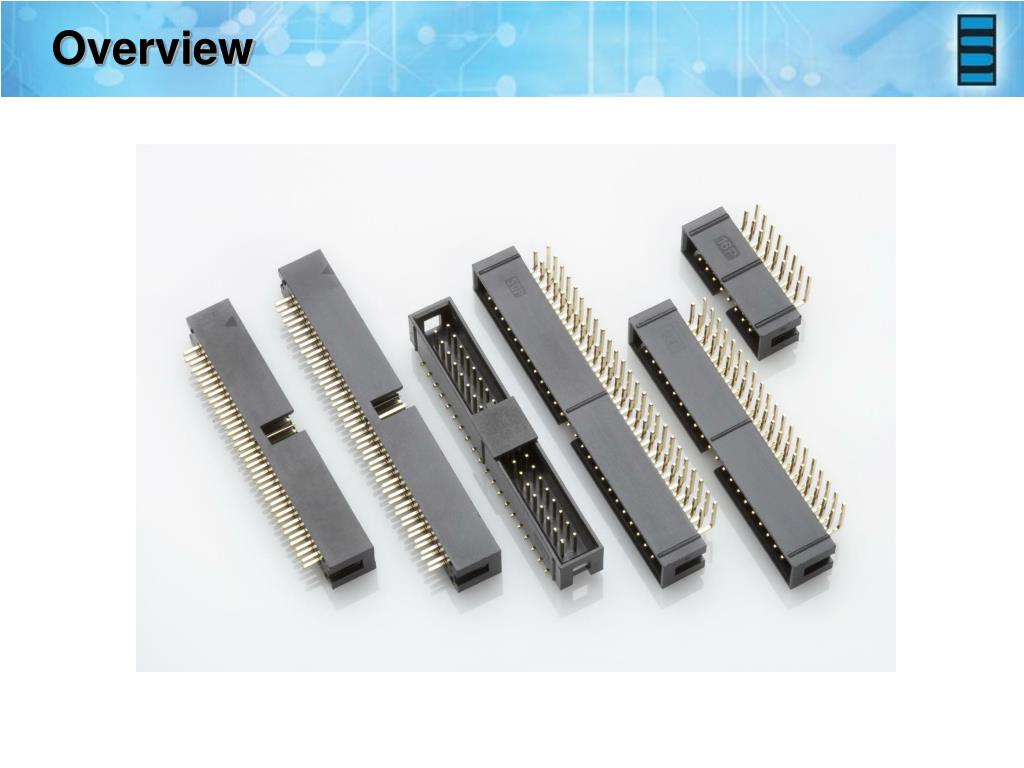

  2. Overview

  3. SBH Series Box (Shrouded) Header Features & Benefits • Available in dual row 3-50 positions (6-100 pins)* • Available in .050x.050”, .050x.100”, 2.00mm & .100” contact center • Termination types include straight, right angle, and SMT • Mate with female headers to create board-to-board interconnection • Mate with IDC sockets to create board-to-cable interconnection • Comes with polarizing key slot to help avoid mismating • Available in full gold flash plating • Support operating temperatures up to 85°C • RoHS compliant * Some series offer less positions

  4. Product Application Examples

  5. Applications • Provide space saving and high density benefits for applications in which PCB needs be connected to another board or cable. • Household appliances • HVAC equipment • Gasoline pumps • Vending machines • Telecomm and datacomm equipments • Industrial machinery

  6. Part Number Coding

  7. Part Number Breakdown SBH11-PBPC-D05-ID-BK

  8. Part Number Breakdown SBH11-PBPC-D05-ST-BK

  9. Part Number Breakdown SBH11-PBPC-D05-ST-BK

  10. Part Number Breakdown SBH11-PBPC-D05-ST-BK

  11. Part Number Breakdown SBH11-PBPC-D05-ST-BK

  12. Part Number Breakdown SBH11-PBPC-D05-ST-BK

  13. Part Number Breakdown SBH11-PBPC-D05-ST-BK * Some series offer less positions.

  14. Part Number Breakdown SBH11-PBPC-D05-ST-BK

  15. Part Number Breakdown SBH11-PBPC-D05-ST-BK

  16. Sullins Advantage • Short lead time • Free samples – Fast! • High quality & reliable connectors • Design & build custom parts • Dedicated technical support resources • Dedicated inside sales team • Flexible delivery schedules

  17. Summary Sullins SBH Box Header line offers: • High density, low power board-to-board and board-to-cable connections • Mating parts to help reduce vendor counts per BOM • Design flexibility with various options
