Presentation Transcript
inducting subcontractor process ontologies

Inducting SubcontractorProcess Ontologies

2003 Construction Research Congress

March 21, 2003

William O’Brien

Raja. R. A. Issa

Rodrigo Castro-Raventós

Jaehyun Choi

Joachim Hammer

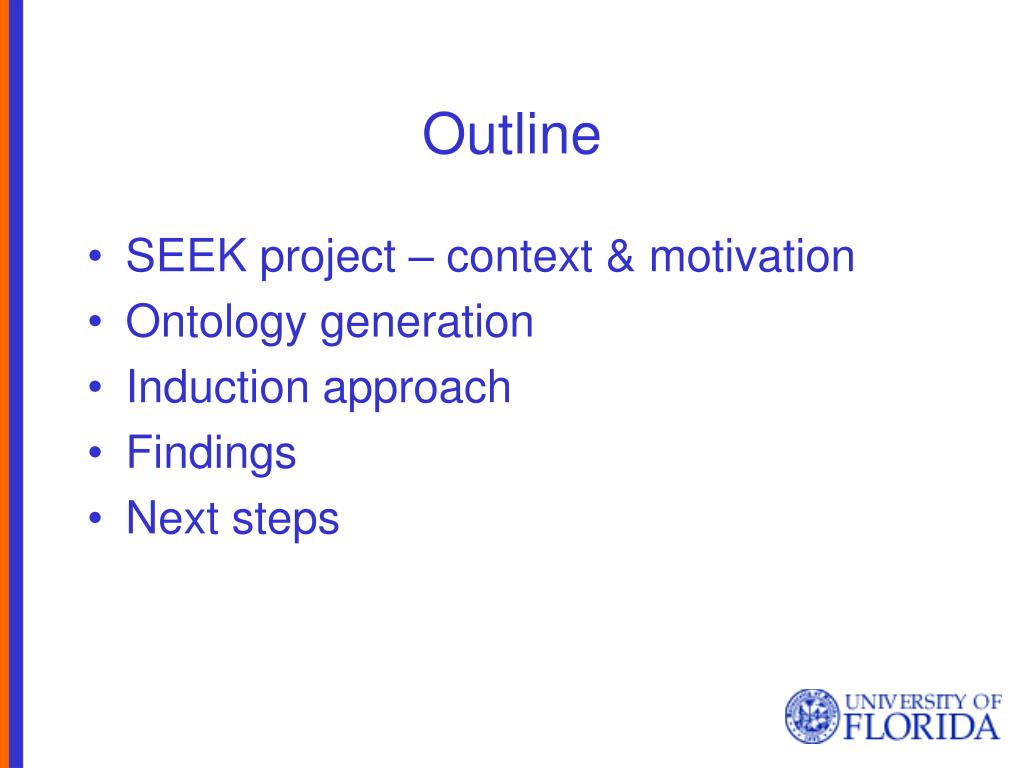

outline
Outline
  • SEEK project – context & motivation
  • Ontology generation
  • Induction approach
  • Findings
  • Next steps

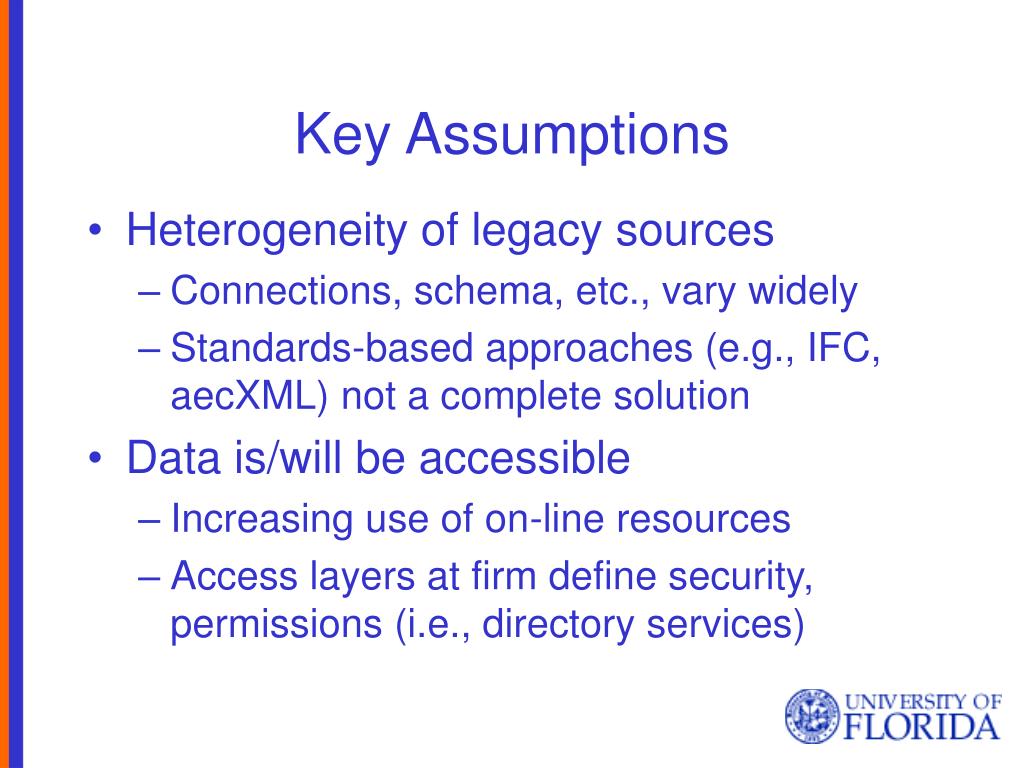

key assumptions
Key Assumptions
  • Heterogeneity of legacy sources
    • Connections, schema, etc., vary widely
    • Standards-based approaches (e.g., IFC, aecXML) not a complete solution
  • Data is/will be accessible
    • Increasing use of on-line resources
    • Access layers at firm define security, permissions (i.e., directory services)
environment context
Environment & Context

supply chain/extended enterprise

supplier

sub/

supplier

coordinator

(CM, lead sub)

sub/

supplier

Firm

Legacy

Source

supply chain analysis

(e.g. scheduler)

Extractor/

Translator

Secure hosting infrastructure

Decision/

Negotiation

Support Tool

SEEK

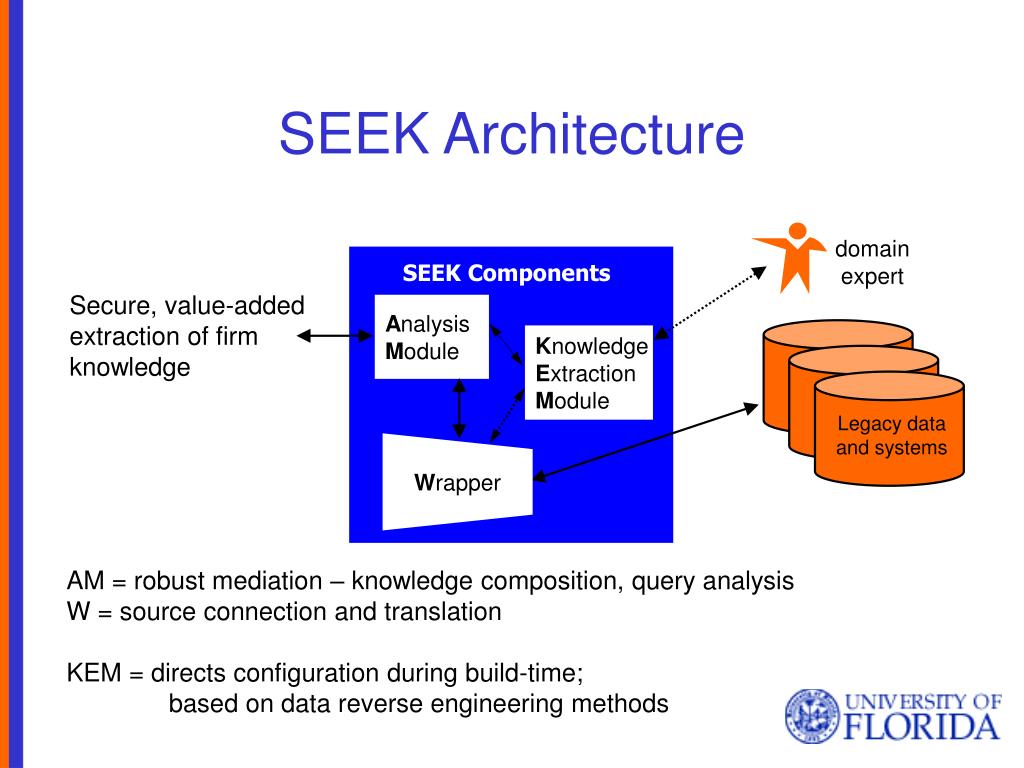

seek architecture
SEEK Architecture

domain

expert

SEEK Components

Secure, value-added extraction of firm knowledge

Analysis

Module

Knowledge

Extraction

Module

Legacy data

and systems

Wrapper

AM = robust mediation – knowledge composition, query analysis

W = source connection and translation

KEM = directs configuration during build-time;

based on data reverse engineering methods

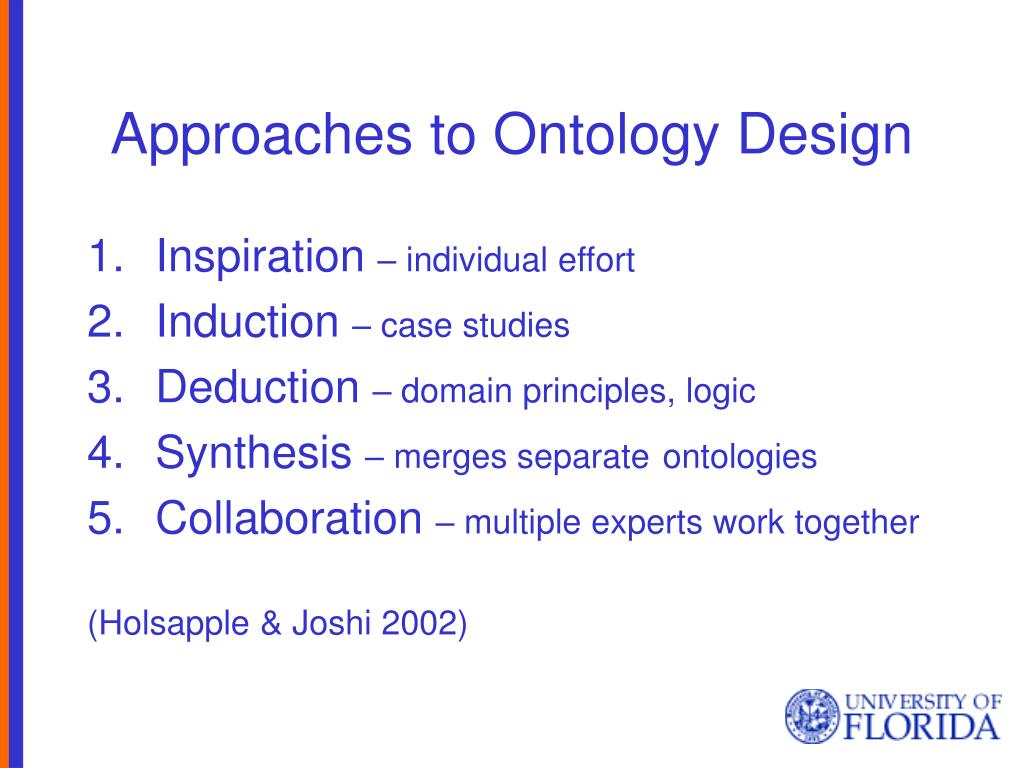

approaches to ontology design
Approaches to Ontology Design
  • Inspiration – individual effort
  • Induction – case studies
  • Deduction – domain principles, logic
  • Synthesis – merges separateontologies
  • Collaboration – multiple experts work together

(Holsapple & Joshi 2002)

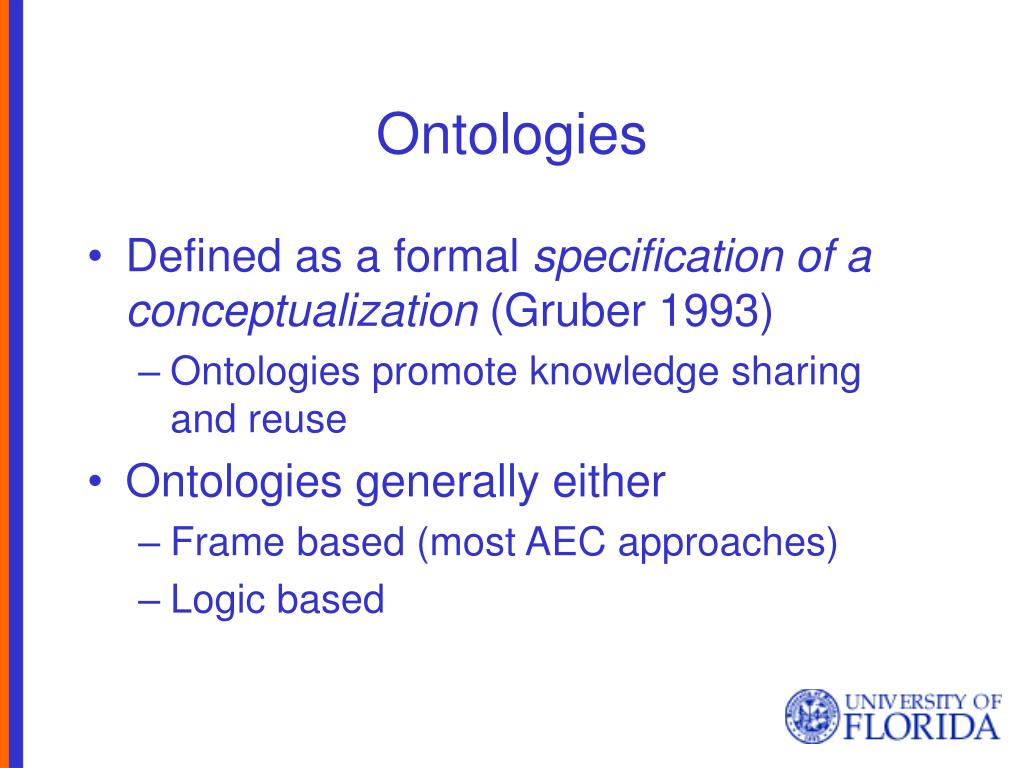

ontologies
Ontologies
  • Defined as a formal specification of a conceptualization (Gruber 1993)
    • Ontologies promote knowledge sharing and reuse
  • Ontologies generally either
    • Frame based (most AEC approaches)
    • Logic based

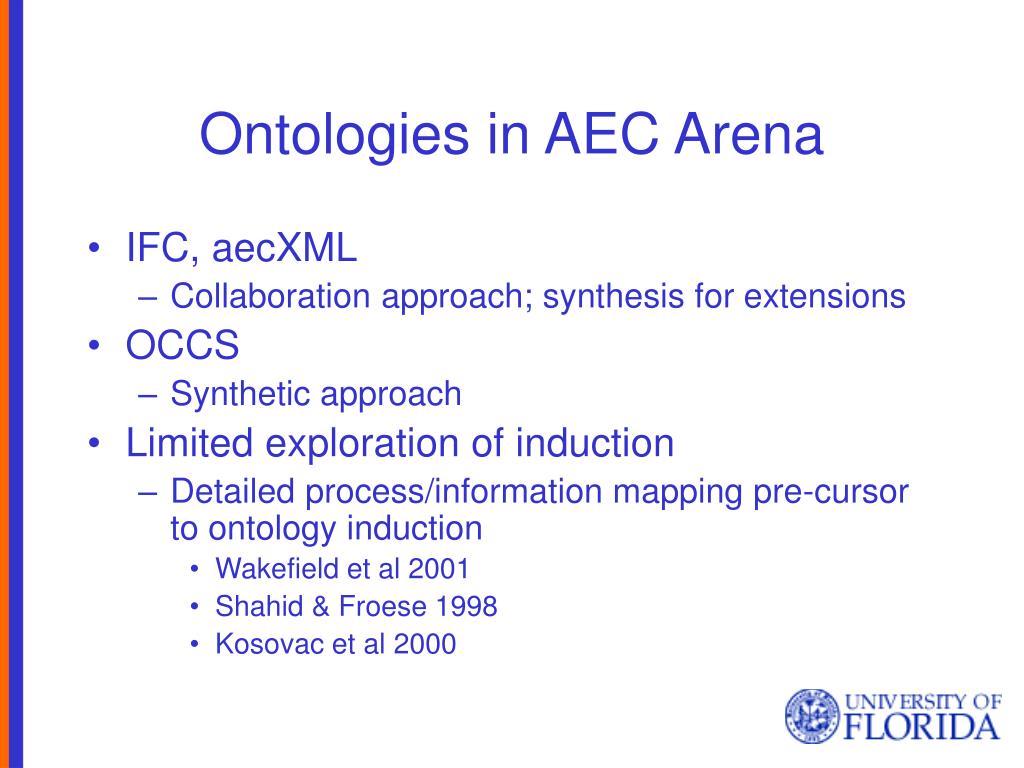

ontologies in aec arena
Ontologies in AEC Arena
  • IFC, aecXML
    • Collaboration approach; synthesis for extensions
  • OCCS
    • Synthetic approach
  • Limited exploration of induction
    • Detailed process/information mapping pre-cursor to ontology induction
      • Wakefield et al 2001
      • Shahid & Froese 1998
      • Kosovac et al 2000

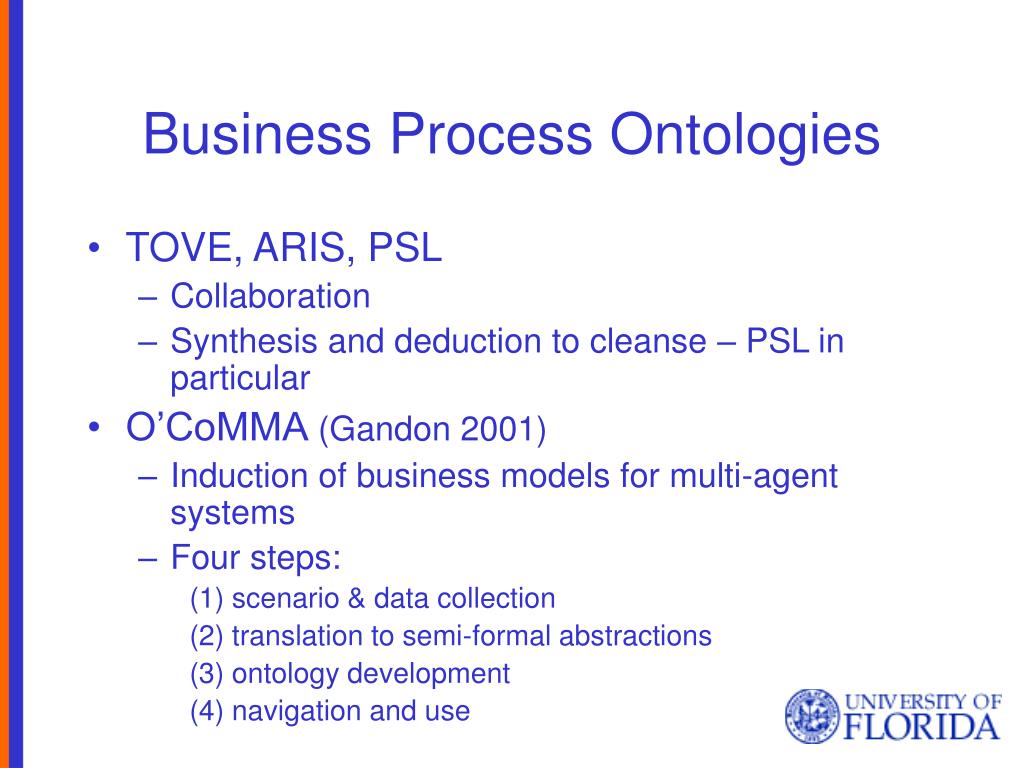

business process ontologies
Business Process Ontologies
  • TOVE, ARIS, PSL
    • Collaboration
    • Synthesis and deduction to cleanse – PSL in particular
  • O’CoMMA (Gandon 2001)
    • Induction of business models for multi-agent systems
    • Four steps:

(1) scenario & data collection

(2) translation to semi-formal abstractions

(3) ontology development

(4) navigation and use

practical it problems
Practical IT Problems

How do we deploy models (such as subcontractor resource allocation models) to support firm and supply chain operations?

Many firms, each with their own computer system and business rules…

…how do we get the data out of the firms?

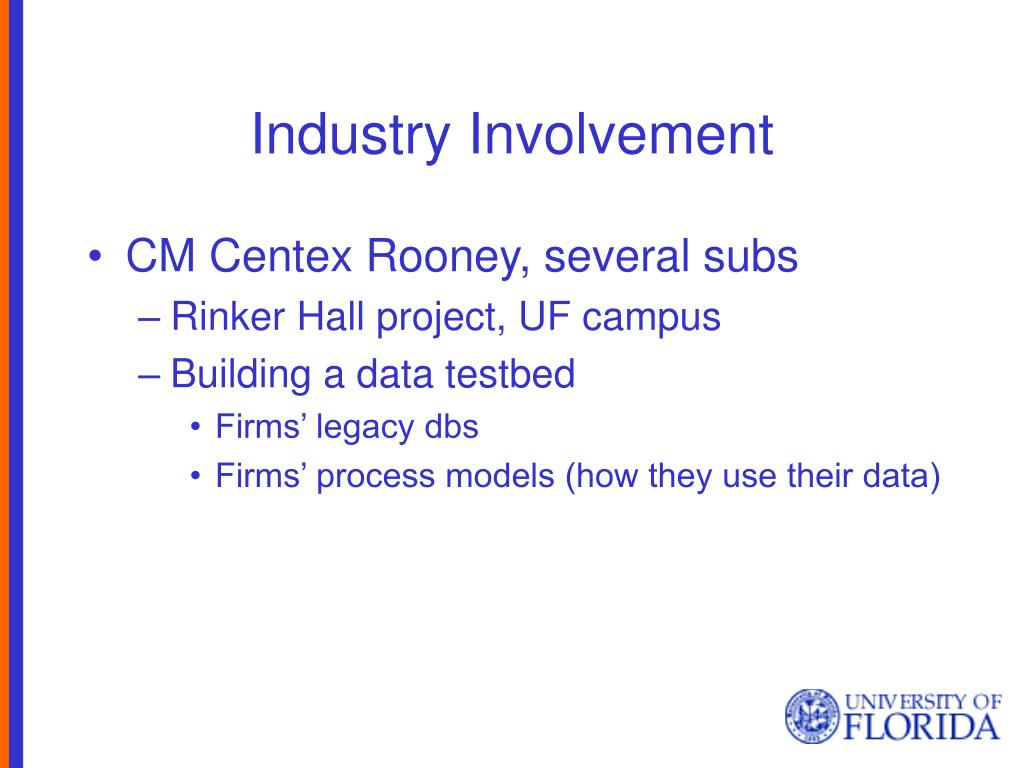

industry involvement
Industry Involvement
  • CM Centex Rooney, several subs
    • Rinker Hall project, UF campus
    • Building a data testbed
      • Firms’ legacy dbs
      • Firms’ process models (how they use their data)
practical problems
Practical Problems

How do we deploy models (such as subcontractor resource allocation models) to support firm and supply chain operations?

Enable deployment of decision support tools across an extended enterprise (e.g., supply chain) composed of firms with varying levels of sophistication

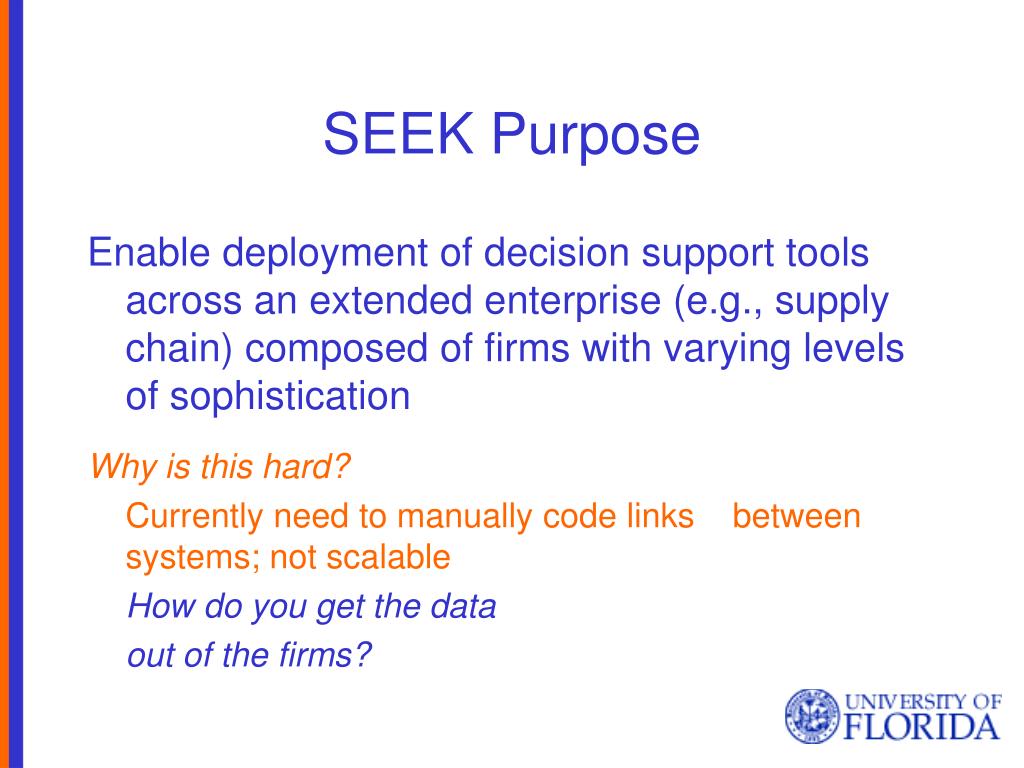

seek purpose
SEEK Purpose

Enable deployment of decision support tools across an extended enterprise (e.g., supply chain) composed of firms with varying levels of sophistication

Why is this hard?

Currently need to manually code links between systems; not scalable

How do you get the data

out of the firms?

research team
Subcontractor

Resource Allocation

Hong-Long Chen

Mohammad El-Mashaleh

Luis Silva

Bibo Yang, ISE

Dr. Joe Geunes, ISE

IT for Subs/S-C

Mera Faddoul

Jae-Hyun Choi

Rodrigo Castro-Raventós, BCN

Dr. Ray Issa, BCN

Dr. Joachim Hammer, CISE

Research Team

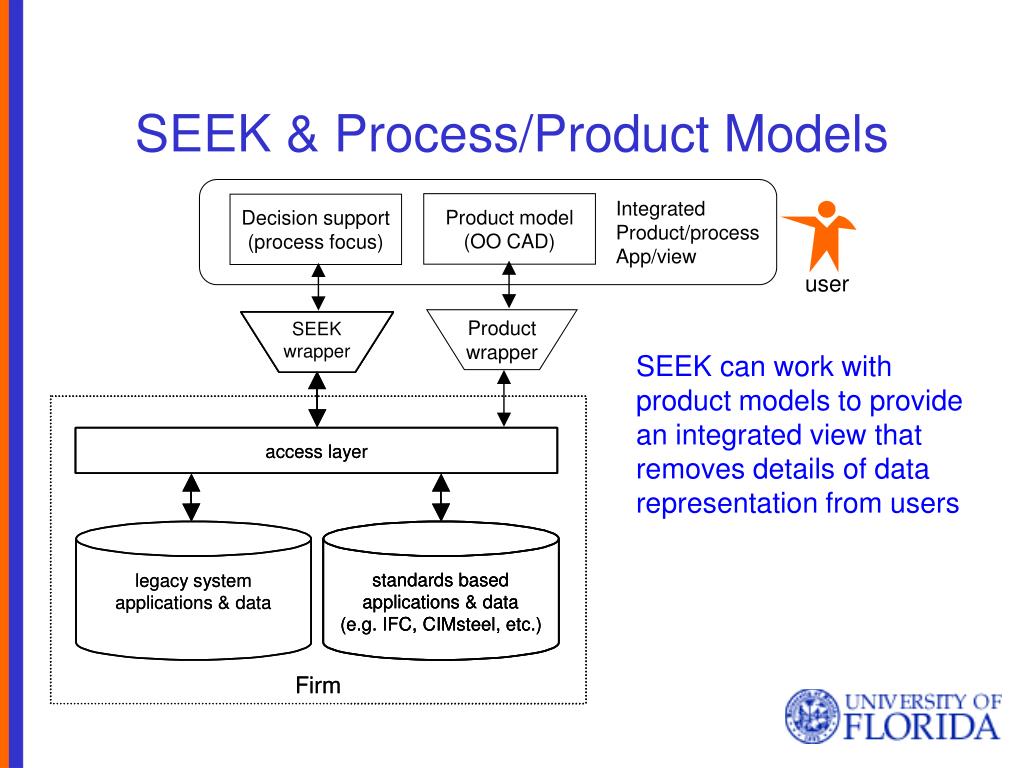

seek process product models
SEEK & Process/Product Models

Integrated

Product/process

App/view

Product model

(OO CAD)

Decision support

(process focus)

user

Product

wrapper

SEEK can work with product models to provide an integrated view that removes details of data

representation from users

seek key capabilities
SEEK Key Capabilities
  • Rapid configuration with limited set-up: SEEK can be rapidly configured to query a wide variety of legacy systems, removing burden of set-up and integration that exists with current techniques.
  • Connection to physically and semantically heterogeneous sources: SEEK can automatically discover data and knowledge in a wide variety of legacy sources.
  • Composition of knowledge: SEEK can compose answers to queries, extending the capabilities of underlying legacy sources.
  • Protection of source-specific, proprietary knowledge:SEEK establishes a layer between the source and end user, protecting details of source representation. Access is also set at the source level, further protecting privacy.
