Kirloskar Valves

Kirloskar valves for various isolating and flow control applications with various MOCs and sizes with very study & rigid design, actually KBL is the first company to get compliance certificate from factory mutual India<br>

machineryvijayengineering
Download Presentation

Kirloskar Valves

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

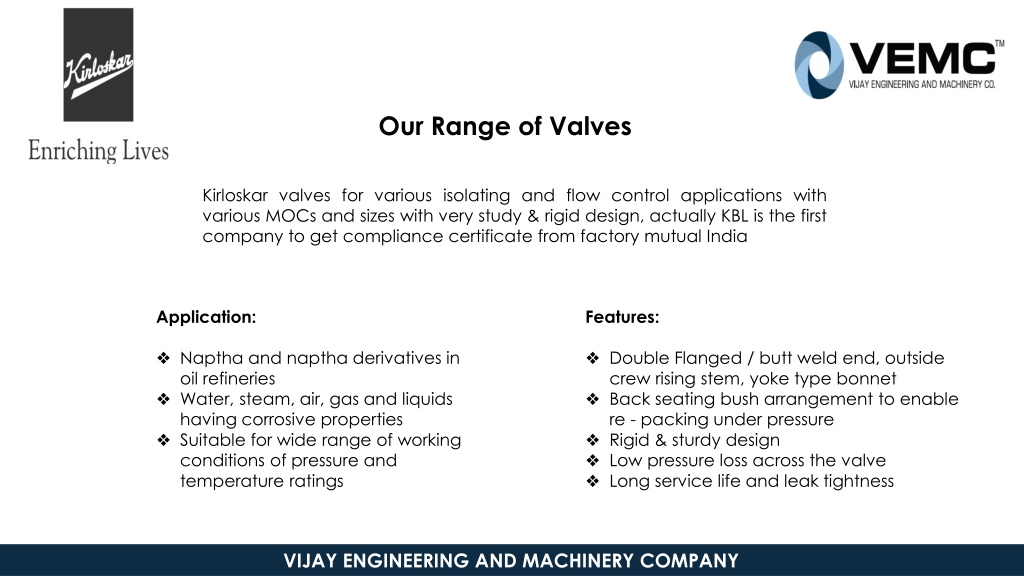

  1. Our Range of Valves Kirloskar valves for various isolating and flow control applications with various MOCs and sizes with very study & rigid design, actually KBL is the first company to get compliance certificate from factory mutual India Application: • Naptha and naptha derivatives in oil refineries • Water, steam, air, gas and liquids having corrosive properties • Suitable for wide range of working conditions of pressure and temperature ratings Features: • Double Flanged / butt weld end, outside crew rising stem, yoke type bonnet • Back seating bush arrangement to enable re - packing under pressure • Rigid & sturdy design • Low pressure loss across the valve • Long service life and leak tightness VIJAY ENGINEERING AND MACHINERY COMPANY

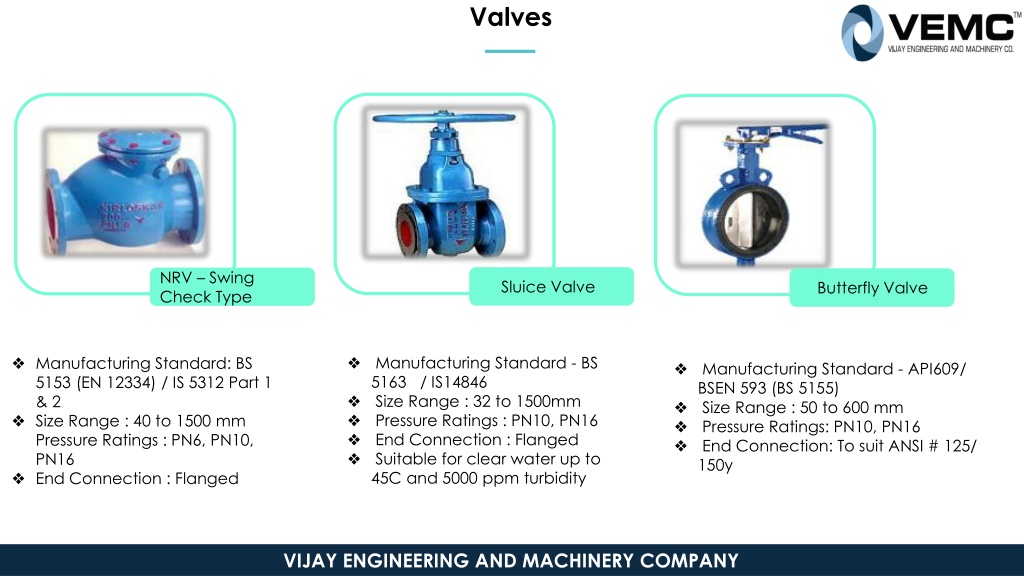

  2. Valves NRV – Swing Check Type Sluice Valve Butterfly Valve • Manufacturing Standard - BS 5163 / IS14846 • Size Range : 32 to 1500mm • Pressure Ratings : PN10, PN16 • End Connection : Flanged • Suitable for clear water up to 45C and 5000 ppm turbidity • Manufacturing Standard: BS 5153 (EN 12334) / IS 5312 Part 1 & 2 • Size Range : 40 to 1500 mm Pressure Ratings : PN6, PN10, PN16 • End Connection : Flanged • Manufacturing Standard - API609/ BSEN 593 (BS 5155) • Size Range : 50 to 600 mm • Pressure Ratings: PN10, PN16 • End Connection: To suit ANSI # 125/ 150y VIJAY ENGINEERING AND MACHINERY COMPANY

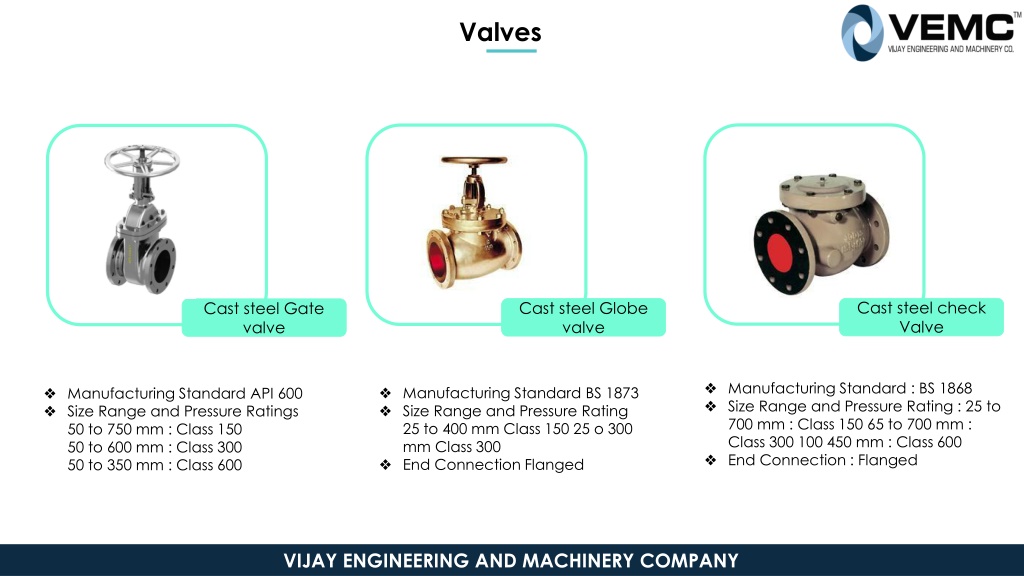

  3. Valves Cast steel Gate valve Cast steel Globe valve Cast steel check Valve • Manufacturing Standard : BS 1868 • Size Range and Pressure Rating : 25 to 700 mm : Class 150 65 to 700 mm : Class 300 100 450 mm : Class 600 • End Connection : Flanged • Manufacturing Standard BS 1873 • Size Range and Pressure Rating 25 to 400 mm Class 150 25 o 300 mm Class 300 • End Connection Flanged • Manufacturing Standard API 600 • Size Range and Pressure Ratings50 to 750 mm : Class 15050 to 600 mm : Class 30050 to 350 mm : Class 600 VIJAY ENGINEERING AND MACHINERY COMPANY

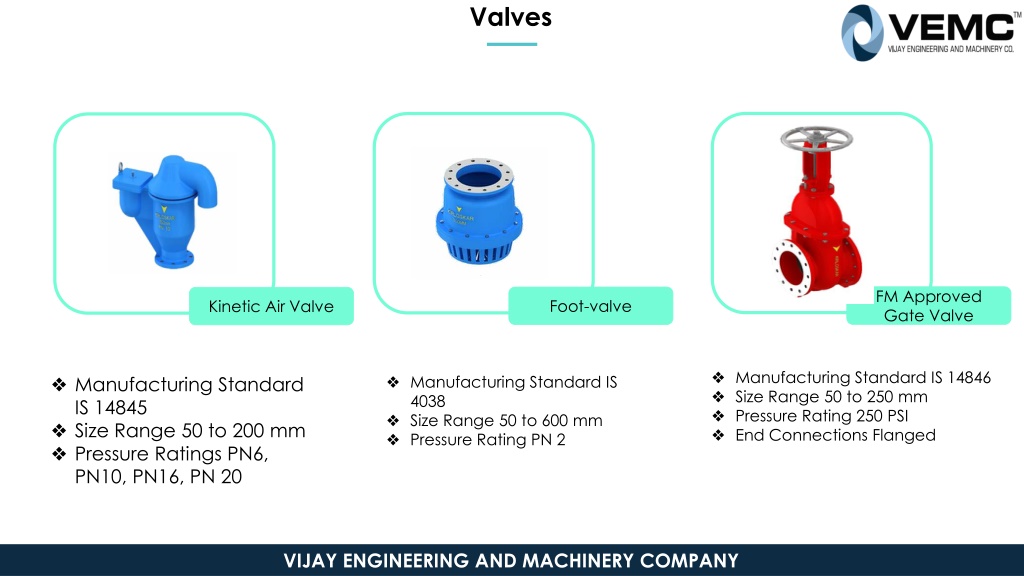

  4. Valves Kinetic Air Valve Foot-valve FM Approved Gate Valve • Manufacturing Standard IS 14846 • Size Range 50 to 250 mm • Pressure Rating 250 PSI • End Connections Flanged • Manufacturing Standard IS 4038 • Size Range 50 to 600 mm • Pressure Rating PN 2 • Manufacturing Standard IS 14845 • Size Range 50 to 200 mm • Pressure Ratings PN6, PN10, PN16, PN 20 VIJAY ENGINEERING AND MACHINERY COMPANY
