  1. Automatic Diagnosis and Response to Memory Corruption Vulnerabilities Authors: Jun Xu, Peng Ning, Chongkyung Kil, Yan Zhai, Chris Bookholt In ACM CCS’05 Presenter: Tai Do CDA 6938, Spring 2007

  2. Introduction ([KJB+06]) • Memory Corruption Vulnerability • Popular means to take control of target program • 49% of all attacks in 2006* • Successful attacks cause a remote code execution • Attack techniques: stack overrun, heap overflows, etc.

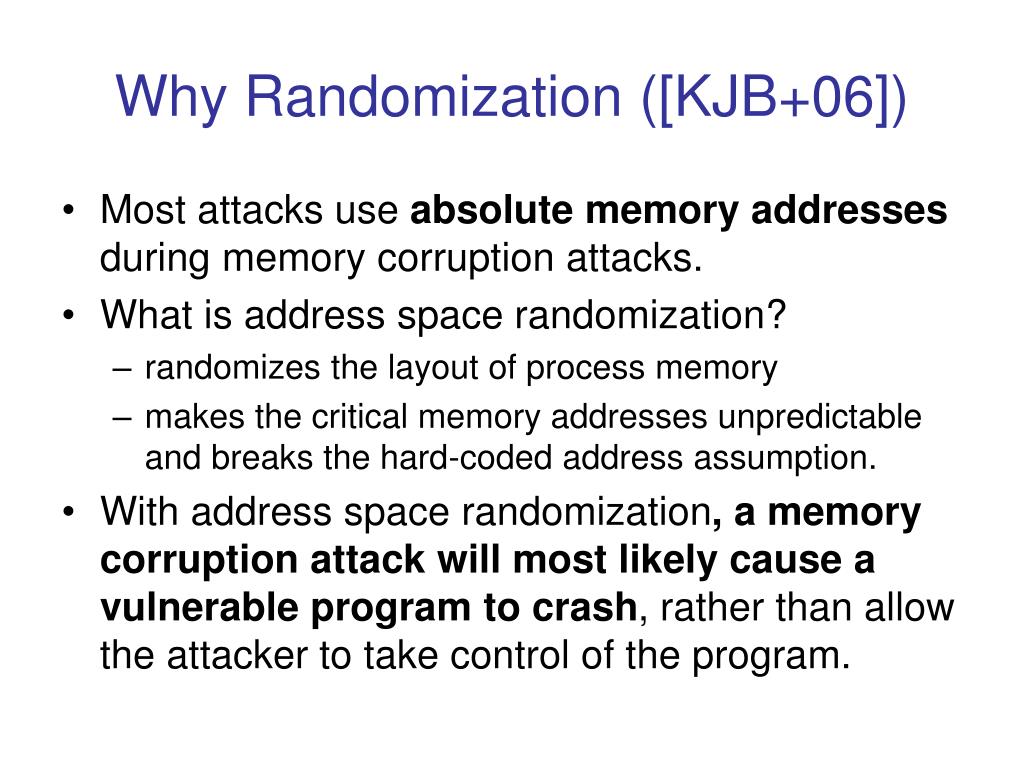

  3. Why Randomization ([KJB+06]) • Most attacks use absolute memory addresses during memory corruption attacks. • What is address space randomization? • randomizes the layout of process memory • makes the critical memory addresses unpredictable and breaks the hard-coded address assumption. • With address space randomization, a memory corruption attack will most likely cause a vulnerable program to crash, rather than allow the attacker to take control of the program.

  4. Buffer Overflow Attack ([N02]) instruction pointer (IP or PC) stack pointer base pointer

  5. NOP Attacker’s code retAddr Normal Process Layout NOP Attacker’s code retAddr Randomized Process Layout Adapt from [KJB+06]

  6. How to identify security vulnerability from a program crash • Open source web server ghttpd-1.4. • Log(): server logging functionalities. • Buffer overflow vulnerability: temp[] • Address space randomization causes a working exploit to crash the server process. • Manual Debug session (gdb) is time consuming and difficult: PC register and stack trace are both corrupted.

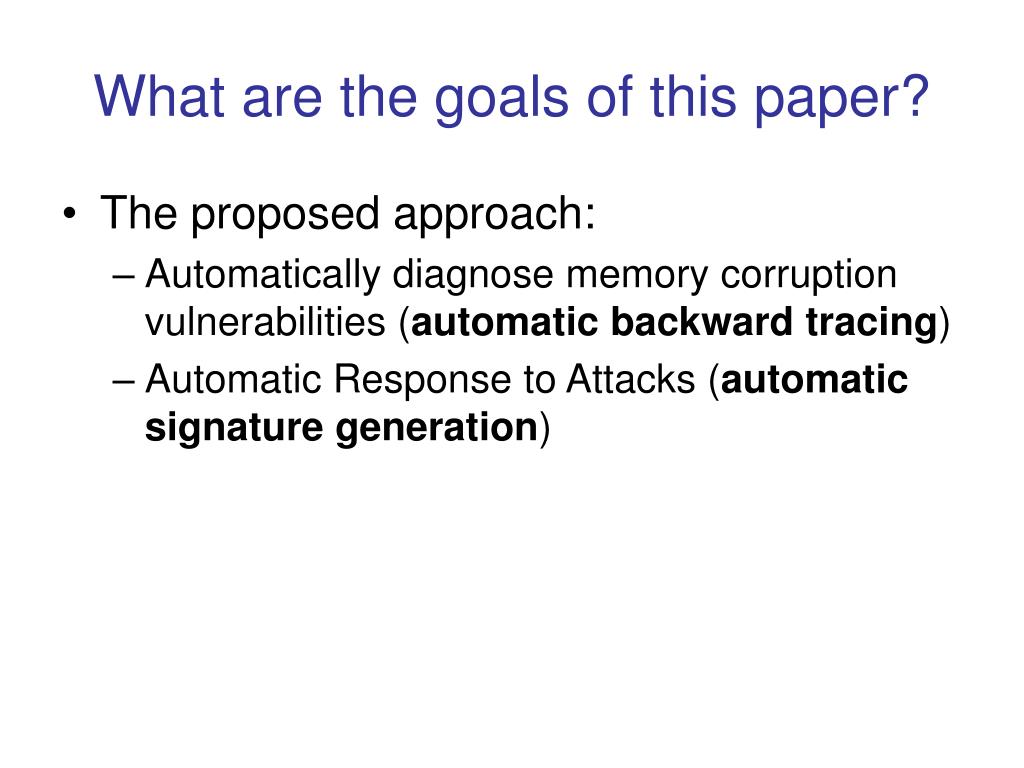

  7. What are the goals of this paper? • The proposed approach: • Automatically diagnose memory corruption vulnerabilities (automatic backward tracing) • Automatic Response to Attacks (automatic signature generation)

  8. Outline • System Description: • Modeling Memory Corruption Attacks • Diagnosing Memory Corruption Vulnerabilities (Monitor and Diagnosis Engine) • Automatic Response to Attacks (Signature Generator) • Evaluation • Conclusion: strengths, weaknesses, suggestions

  9. System Overview

  10. System Architecture

  11. Modeling Memory Corruption Attacks • Why modeling memory corruption attacks on a randomized program? • Useful abstract model to guide the later discussion. • The model is just a finite state machine. • It shows possible cases that lead to program crash.

  12. Modeling: Two Cases with a Buffer Overflow Attack Dereference a corrupted local variable The corrupted return address is invalid, crash when the ret instruction is executed

  13. Modeling: State Transition For A Memory Corruption • Case 1 (green): Format String • Case 2 and 3 (red and blue): buffer overflow • Case 4 (purple): not sure c: corrupting instruction t: takeover instruction f: faulting instruction

  14. Diagnosing Memory Corruption Vulnerabilities • Diagnosis means backward tracing to automatically locate the memory corruption vulnerabilities (the corrupting instruction) • Similar to automated debugging process.

  15. Diagnosis= Trace back • Tracing back to the initial corrupting instruction consists of two steps: • Step 1: Convert Case-IV crashes to one of three other cases • Step 2: Trace the corrupting instructions. • Locating the faulting instruction is critical in both steps. This is the starting point of the backward tracing.

  16. Diagnosis:Locating Faulting Instruction The process image at the time of crash does not include the specific address of f PC points to the address of the next instruction to be executed should f complete Simple Case Complex Case

  17. For the complex case: use monitored re-execution and programmable breakpoints. Flow chart for identifying the Faulting instruction in the Complex Case

  18. Diagnosis:Converting Case-IV Crashes • Convert case-IV to other cases • Idea: re-execution with non-overlapping memory layout. • Caveat: • Applicable to programs that uses no more than 1/3 of the available address space, which is between 1 and 2 GB on a 32-bit system. Most network service applications have small memory fingerprints.

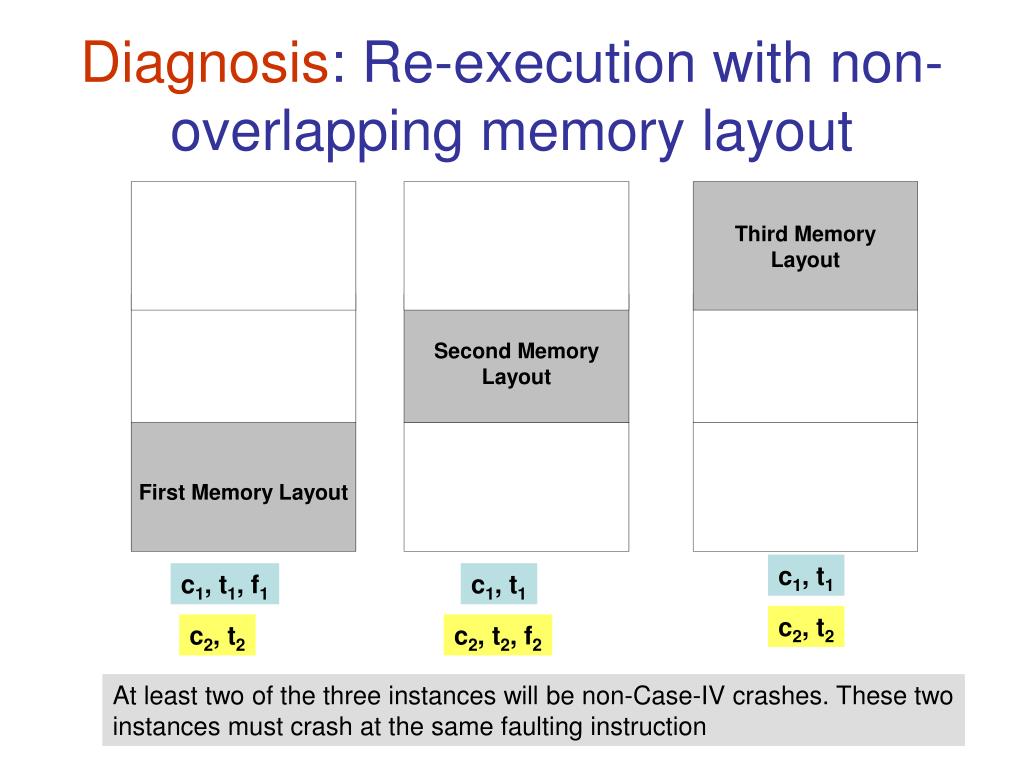

  19. Diagnosis: Re-execution with non-overlapping memory layout c1, t1 c1, t1, f1 c1, t1 c2, t2 c2, t2 c2, t2, f2 At least two of the three instances will be non-Case-IV crashes. These two instances must crash at the same faulting instruction

  20. Diagnosis:Tracing the Corrupting Instructions • We are left with three cases: I, II and III • We can use the faulting instruction and network malicious inputs to eliminate easier cases.

  21. Diagnosis:Tracing the Corrupting InstructionsCase III and IIB • I don’t quite get the solution for tracing case III and IIB yet!!!!!! • The idea: • The solution can not guarantee to trace back to the initial corrupting instruction if the data corrupted by this instruction is transformed in arbitrary ways before being used as a faulty address. • Nevertheless, current solution works well in the experimental evaluation.

  22. Outline • System Description: • Modeling Memory Corruption Attacks • Diagnosing Memory Corruption Vulnerabilities • Automatic Response to Attacks • Evaluation • Conclusion: strengths, weaknesses, suggestions

  23. Automatic Response To Attacks • Basic Message Signature: • the (invalid) address y that corrupting instruction c tries to write and the value x that c is writing. • Use critical byte sequences from the attack for the message filter: x and/or y. • Correlating Message Signature with Program Execution State: • Improve false positive. • Attacks happen only at some specific server execution states. • Use the application’s call stack trace as an indication of the server protocol state (program counter + return addresses).

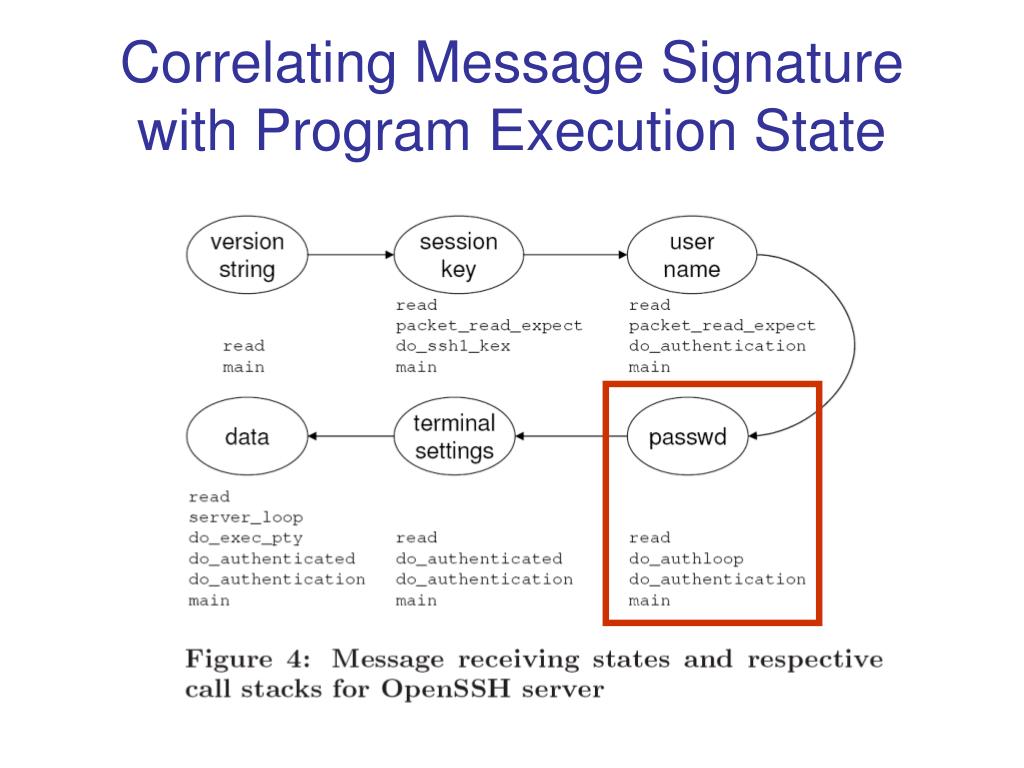

  24. Correlating Message Signature with Program Execution State

  25. Outline • System Description: • Modeling Memory Corruption Attacks • Diagnosing Memory Corruption Vulnerabilities • Automatic Response to Attacks • Evaluation • Conclusion: strengths, weaknesses, suggestions

  26. Experimental EvaluationEffectiveness of Diagnosis • Compare call stack traces: from the diagnosis algorithm AND from manual code inspection and debugging • Correctly identify ALL the vulnerable functions at the time of corruption.

  27. Experimental EvaluationAutomatic Response • Complex protocol (OpenSSH): correlated message filtering helps. • For ghttpd: binary signature vs. plain text URLs??? (no match for signatures)

  28. Outline • System Description: • Modeling Memory Corruption Attacks • Diagnosing Memory Corruption Vulnerabilities • Automatic Response to Attacks • Evaluation • Conclusion: strengths, weaknesses, suggestions

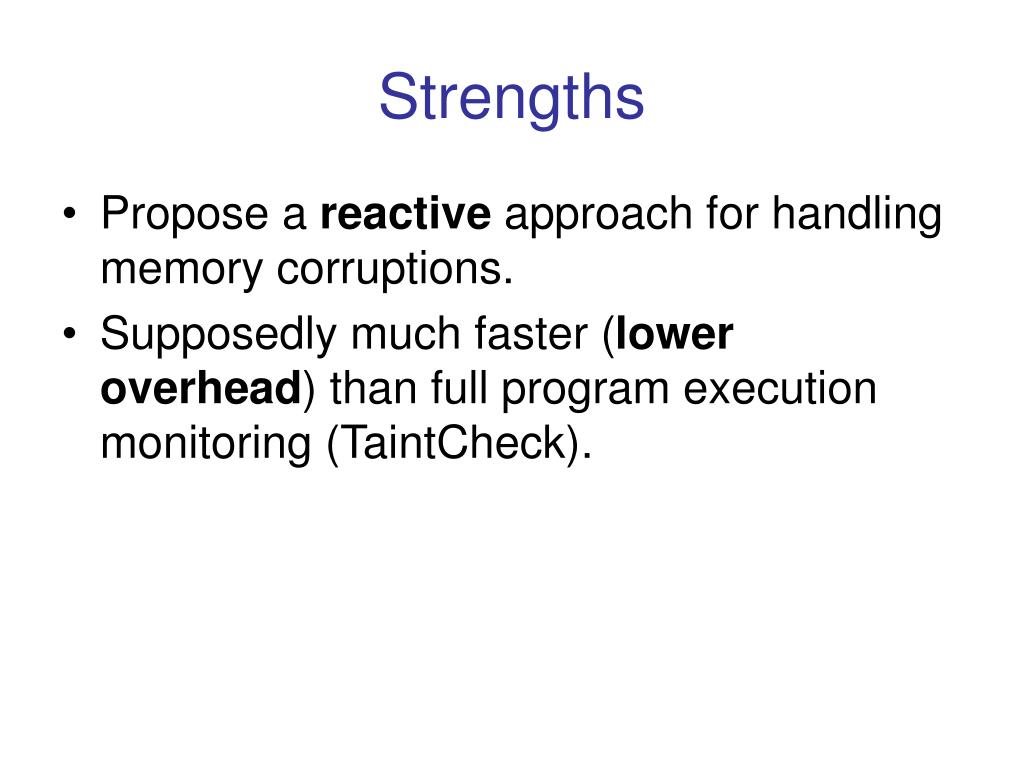

  29. Strengths • Propose a reactive approach for handling memory corruptions. • Supposedly much faster (lower overhead) than full program execution monitoring (TaintCheck).

  30. Weaknesses • No report on performance overhead due to implementation issues with the prototype system. • False negatives are possible. • Tracing corrupting instructions is not complete: • in theory, some are still untraceable after program crashes. • in practice, current findings seem to work well

  31. Suggestions • Obvious To-Do lists: • Fine tune the system prototype. Report performance overhead • Work on not-traceable-yet scenarios for corrupting instructions

  32. Keywords to take home  • Randomized program, memory corruption attacks. • State transition, memory corruption attack modeling • Monitored re-execution and programmable breakpoints • Re execution with non overlapping memory

  33. Thank you Questions?

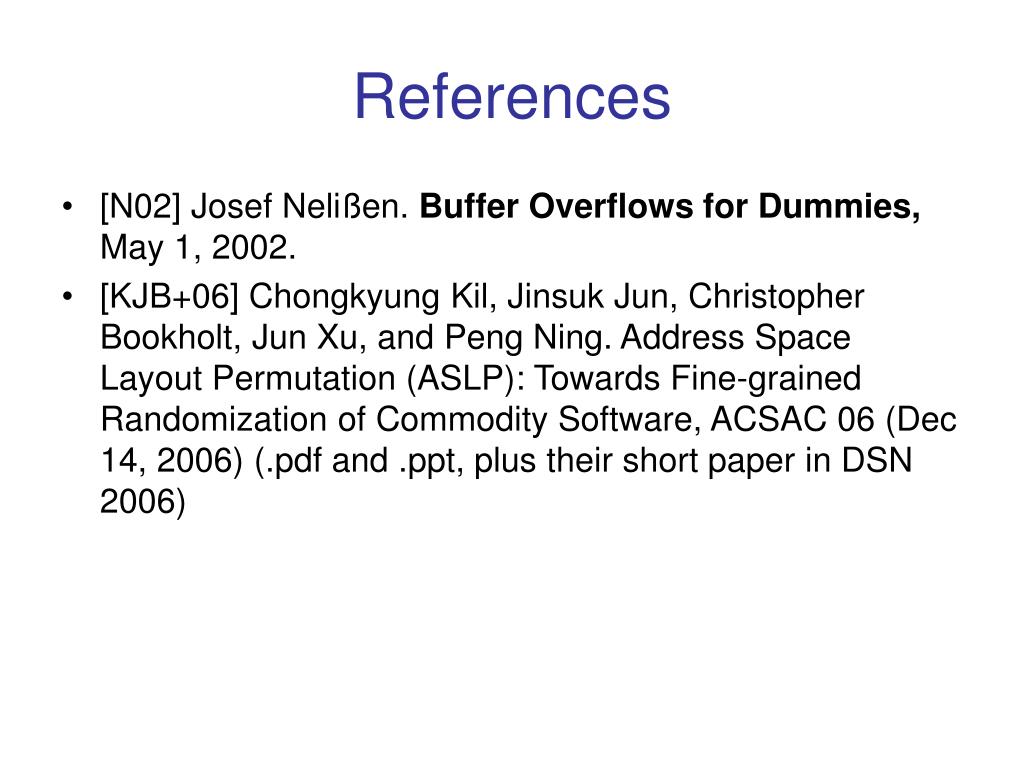

  34. References • [N02] Josef Nelißen. Buffer Overflows for Dummies, May 1, 2002. • [KJB+06] Chongkyung Kil, Jinsuk Jun, Christopher Bookholt, Jun Xu, and Peng Ning. Address Space Layout Permutation (ASLP): Towards Fine-grained Randomization of Commodity Software, ACSAC 06 (Dec 14, 2006) (.pdf and .ppt, plus their short paper in DSN 2006)
