strataplot a graphic correlation tool for biostratigraphic analysis

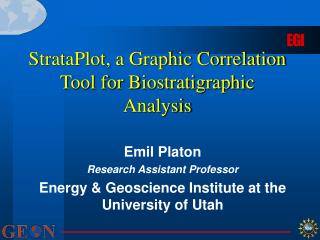

StrataPlot, a Graphic Correlation Tool for Biostratigraphic Analysis

Emil Platon

Research Assistant Professor

Energy & Geoscience Institute at the University of Utah

this talk
This talk
  • Basic introduction to Biostratigraphy
  • Graphic correlation method
  • StrataPlot specifications
  • StrataPlot demonstration
biostratigraphy
Biostratigraphy
  • Biostratigraphy is the science of dating rocks by using the fossils contained within them.
  • Index Fossil - short life span

-broad geographic distribution

- common

- easy to identify

  • http://en.wikipedia.org/wiki/Biostratigraphy
biostratigraphy geologic time
Biostratigraphy - Geologic Time

http://www.ucmp.berkeley.edu/help/timeform.html

biostratigraphy fossils
Biostratigraphy - Fossils
  • Macrofossils

Ammonites (cephalopods)

      • very good index fossil
  • Microfossils

Foraminifera (single-celled protists)

      • Planktonic species - good index fossils

http://paleodirect.com/ammonites.htm

biostratigraphy biozonation
Biostratigraphy - Biozonation

Interval Zone

Total Range Zone

Partial Range Zone

"sp. i I.Z."

c

"sp. c I.Z."

"sp. f T.R.Z."

f

i

b

e

"sp. h P.R.Z."

h

"sp. b I.Z."

"sp. e I.Z."

Time

"sp. a I.Z."

"sp. g T.R.Z."

a

"sp. d T.R.Z."

d

g

After M. Caron, 1979

biostratigraphy biozonation7
Biostratigraphy - Biozonation

MESOGEAN

BOREAL

M.A.

Ammonite

Foraminifera

Dic. primitiva

Dic. concavata

Coniacian

88

Subprion. neptuni

Romanic. deveriai

Marg. schneegansi

Marg. coronata

IZ

PRZ

Selwynoc. woolgari

Romanic. oraniss.

Turonian

P. helvetica

P. helvetica

Mammi. nodosoides

Inoc. labiatus

TRZ

TRZ

90

W. archaeocretacea

W. archaeocretacea

PRZ

PRZ

Cenomanian

R. cushmani

R. cushmani

After M. Caron, 1979

biostratigraphy graphic correlation
Biostratigraphy - Graphic Correlation
  • Uses any event that can be tied to the absolute time.
    • First and last stratigraphic occurrences of taxa (e.g., 1st appearance of P. helvetica in the geologic)
    • First abundant occurrence of some taxa
    • Magnetic reversals.
    • etc.
strataplot specifications
StrataPlot - Specifications
  • Standalone Windows application
  • GUI + Database
  • Installation:
    • Application
    • Data Base
    • Borland Builder Data Base Engine
strataplot database
StrataPlot - Database
  • Research localities studied by AMOCO exploration and later donated to EGI by British Petroleum

Paleo 24

Oracle

StrataPlot

DB

Paradox

strataplot public database
StrataPlot - Public Database
  • Public Data:
    • More than 2000 public localities
    • More than 700 interpreted localities
  • Six Composite Standards
  • Time Scale Recalibration
    • Mesozoic and Cenozoic - Gracianski et al. (1998)
    • Paleozoic - Gradstein et al. (2004)
strataplot current status
StrataPlot - Current Status
  • Beta Testing
  • Dr. Thomas D. Demchuck - ConocoPhillips - USA
  • Dr. Peter P. McLaughlin - Delaware Geological Survey - USA
  • Dr. Matthew Wakefield BG Group - UK
  • Dr. Peter Griggs - BHPBillton - USA
  • Dr. Jason Crux - BHPBillton - USA
  • Dr. Vladimir Davydov - Boise State University - USA
  • Dr. Ned Covas - Nobel Energy Inc. - USA
  • Dr. Miroslav Bubik - National Geological Survey - Czeck Republic
  • Dr. Baraboshkin Evgenij Jurievich - Moskow State Univeristy - Russia
  • Dr. William N. Krebs - Petronas - Malayesia
  • Dr. Jeffrey A. Stein - Consulting Palynologist -USA
  • Dr. Richard Howe - Shell - USA*
  • Dr. Anthony Gary - University of Utah - USA
  • Dr. Sudeep Kanungo - University of Utah - USA
  • Dr. Armando Cunha - Petrobras - Brazil
strataplot current status29
StrataPlot - Current Status
  • More beta testing needed

Emil PLATON
