    1. Real ApplicationTesting Julian Dyke Independent Consultant Web Version juliandyke.com

    2. Real Application TestingIntroduction • Introduced in Oracle 11.1 • Licensable option • Includes • Database Replay • SQL Performance Analyzer • Database Replay • Captures database workload on production system • Replays captured workload on test system • Optionally includes concurrency and timing characteristics • Generates reports and recommends changes • SQL Performance Analyzer • Identifies performance divergence between workloads on source and target platforms • Generates tuning recommendations

    3. Real Application TestingDatabase Replay • Requires the following steps: • Capture workload into capture files • Copy files to test system and preprocess them • Replay files on test system • Perform detailed analysis of workload capture and replay using reports generated by Database Replay • Potential applications • Test operating system upgrades • Test database upgrades and migrations • Test parameter changes • Evaluate migration from single-instance to RAC • Test storage changes • Debugging • Test database manageability features

    4. Real Application TestingWorkload Capture • To capture workload on an existing system: • Create a operating system directory e.g. [oracle@server14]$ mkdir /home/oracle/rat/test1 • Create an Oracle directory e.g.: SQL> CREATE DIRECTORY dir1 AS '/home/oracle/rat/test1'; • Start the capture process: dbms_workload_capture.start_capture( name => 'TEST4', dir => 'DIR4'); • Run the workload: • Finish the capture process: dbms_workload_capture.finish_capture;

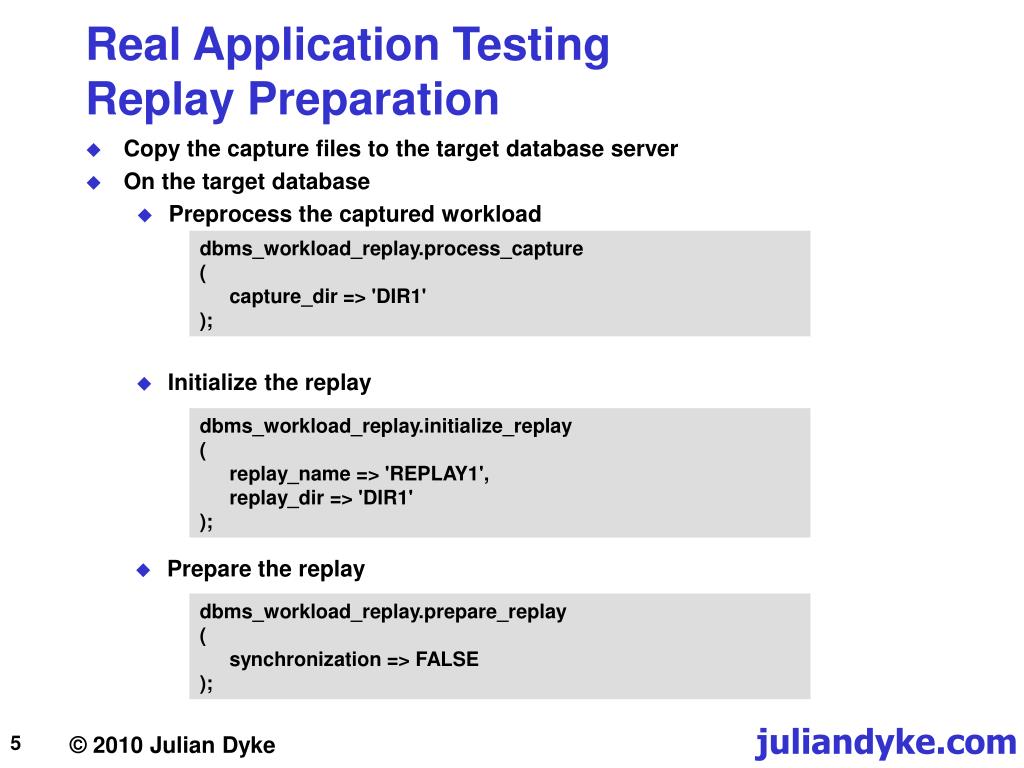

    5. Real Application TestingReplay Preparation • Copy the capture files to the target database server • On the target database • Preprocess the captured workload dbms_workload_replay.process_capture( capture_dir => 'DIR1'); • Initialize the replay dbms_workload_replay.initialize_replay( replay_name => 'REPLAY1', replay_dir => 'DIR1'); • Prepare the replay dbms_workload_replay.prepare_replay( synchronization => FALSE);

    6. Real Application TestingWorkload Replay • Copy the workload files to the client system. For example: • /home/oracle/rat/test1 • On the client • Run the workload client to calibrate the replay $ wrc tpcc/tpcc@cluster1-scan mode=CALIBRATE \ replaydir=/home/oracle/rat/test1 • The calibration process recommends the number of client processes required to perform the replay • Replay the workload $ wrc tpcc/tpcc@cluster1-scan mode=REPLAY \replaydir=/home/oracle/rat/test1 • The client will not start to replay the workload until the replay has been started on the target database

    7. Real Application TestingWorkload Replay • On the target database • Start the replay process dbms_workload_replay.start_replay; • When the replay process completes on the client, run the replay report SET SERVEROUTPUT ON TRIMSPOOL ON LONG 500000 LINESIZE 200VAR v_rep_rpt CLOB; DECLARE l_cap_id NUMBER; l_rep_id NUMBER;BEGIN l_cap_id := dbms_workload_replay.get_replay_info (dir => 'DIR4'); SELECT MAX (id) INTO l_rep_id FROM dba_workload_replays WHERE capture_id = l_cap_id; :v_rep_rpt := dbms_workload_replay.report ( replay_id => l_rep_id, format => DBMS_WORKLOAD_CAPTURE.TYPE_TEXT );END;/PRINT :v_rep_rpt

    8. Real Application TestingSQL Performance Analyzer • Can analyze impact on SQL performance of • Database upgrade • Configuration changes to operating system or hardware • Schema changes • Changes to database initialization parameters • Refreshing optimizer statistics • SQL tuning

    9. Thank you for your interest info@juliandyke.com
