Structural collapse rescue operations

6.2 Awareness Level

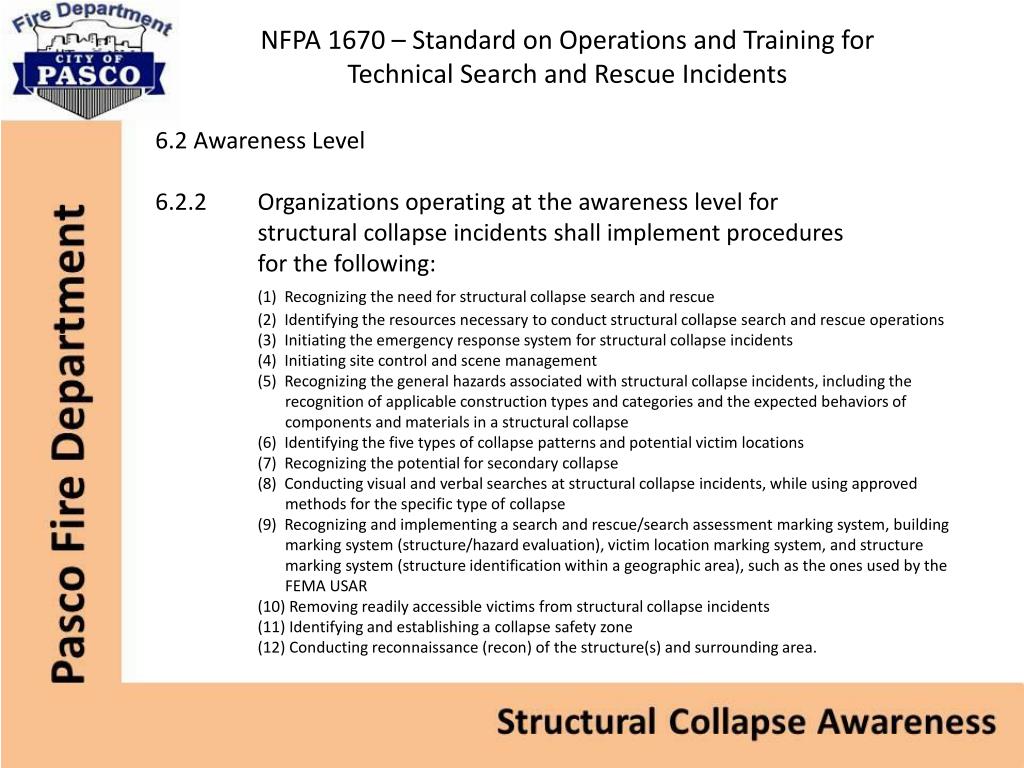

6.2.2 Organizations operating at the awareness level for structural collapse incidents shall implement procedures for the following:

(1) Recognizing the need for structural collapse search and rescue

(2) Identifying the resources necessary to conduct structural collapse search and rescue operations

(3) Initiating the emergency response system for structural collapse incidents

(4) Initiating site control and scene management

(5) Recognizing the general hazards associated with structural collapse incidents, including the recognition of applicable construction types and categories and the expected behaviors of components and materials in a structural collapse

(6) Identifying the five types of collapse patterns and potential victim locations

(7) Recognizing the potential for secondary collapse

(8) Conducting visual and verbal searches at structural collapse incidents, while using approved methods for the specific type of collapse

(9) Recognizing and implementing a search and rescue/search assessment marking system, building marking system (structure/hazard evaluation), victim location marking system, and structure marking system (structure identification within a geographic area), such as the ones used by the FEMA USAR

(10) Removing readily accessible victims from structural collapse incidents

(11) Identifying and establishing a collapse safety zone

(12) Conducting reconnaissance (recon) of the structure(s) and surrounding area.


Structural collapse rescue operations

NFPA 1670 – Standard on Operations and Training for Technical Search and Rescue Incidents

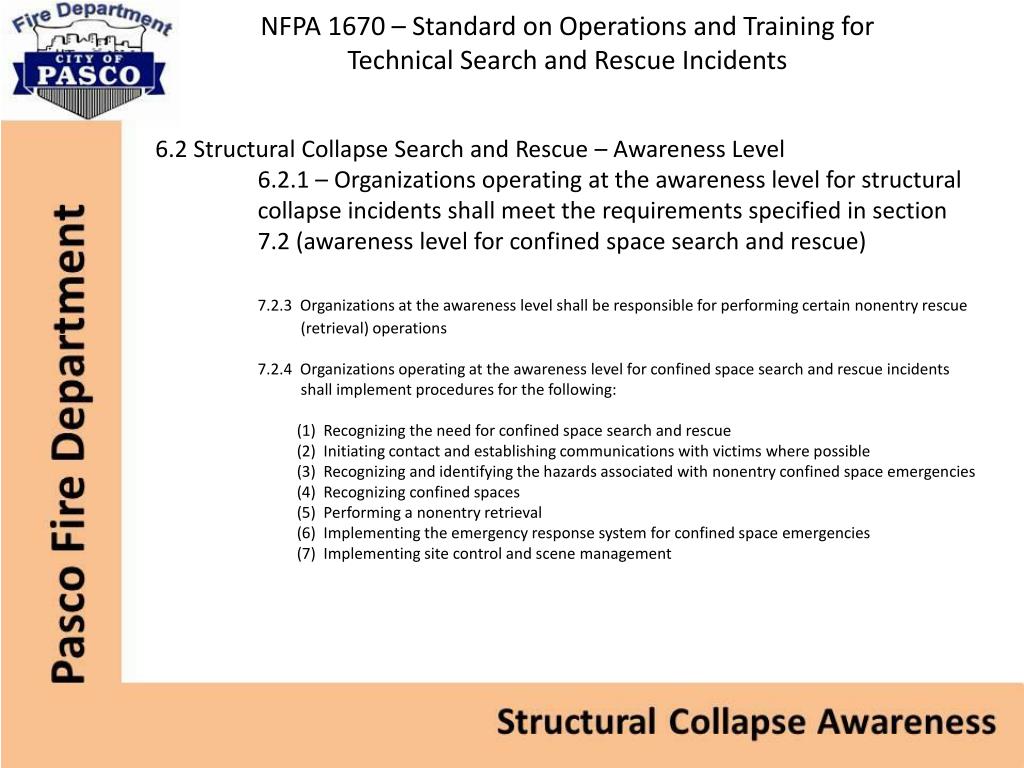

6.2 Structural Collapse Search and Rescue – Awareness Level

6.2.1 – Organizations operating at the awareness level for structural collapse incidents shall meet the requirements specified in section 7.2 (awareness level for confined space search and rescue)

7.2.3 Organizations at the awareness level shall be responsible for performing certain nonentry rescue (retrieval) operations

7.2.4 Organizations operating at the awareness level for confined space search and rescue incidents shall implement procedures for the following:

(1) Recognizing the need for confined space search and rescue

(2) Initiating contact and establishing communications with victims where possible

(3) Recognizing and identifying the hazards associated with nonentry confined space emergencies

(4) Recognizing confined spaces

(5) Performing a nonentry retrieval

(6) Implementing the emergency response system for confined space emergencies

(7) Implementing site control and scene management


Structural collapse rescue operations

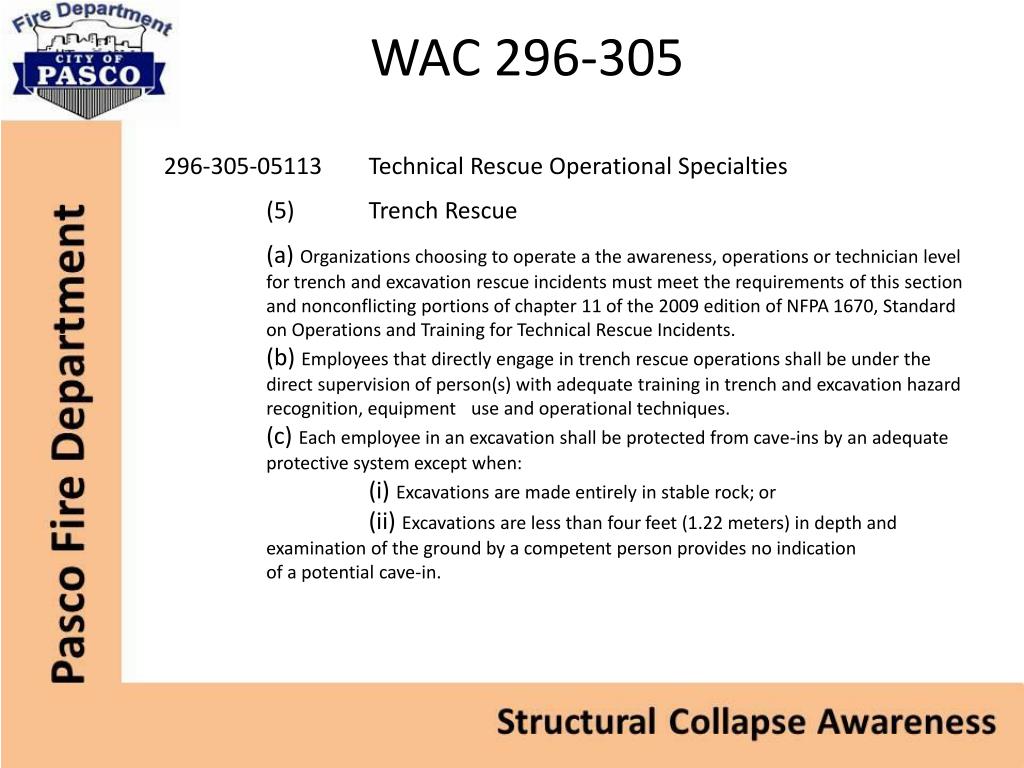

  • 296-305-05113 Technical Rescue Operational Specialties

  • (5) Trench Rescue

  • (a) Organizations choosing to operate a the awareness, operations or technician level for trench and excavation rescue incidents must meet the requirements of this section and nonconflicting portions of chapter 11 of the 2009 edition of NFPA 1670, Standard on Operations and Training for Technical Rescue Incidents.

  • (b) Employees that directly engage in trench rescue operations shall be under the direct supervision of person(s) with adequate training in trench and excavation hazard recognition, equipment use and operational techniques.

  • (c) Each employee in an excavation shall be protected from cave-ins by an adequate protective system except when:

  • (i) Excavations are made entirely in stable rock; or

  • (ii) Excavations are less than four feet (1.22 meters) in depth and examination of the ground by a competent person provides no indication of a potential cave-in.


Structural collapse rescue operations

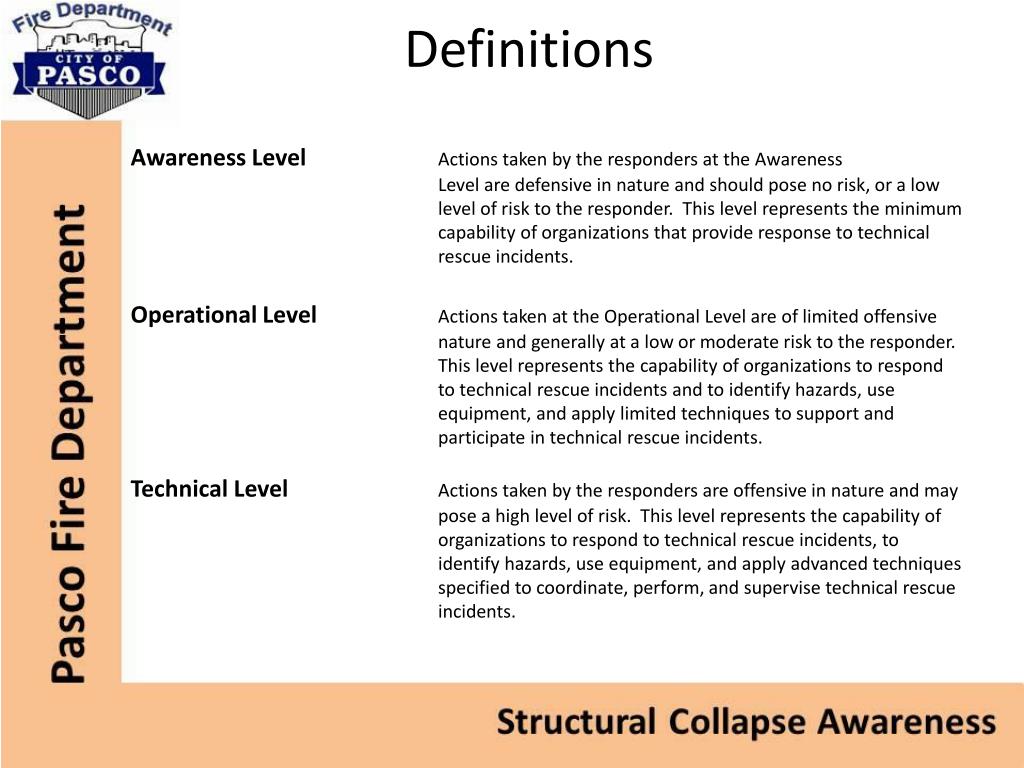

  • Awareness LevelActions taken by the responders at the Awareness Level are defensive in nature and should pose no risk, or a low level of risk to the responder. This level represents the minimum capability of organizations that provide response to technical rescue incidents.

  • Operational LevelActions taken at the Operational Level are of limited offensive nature and generally at a low or moderate risk to the responder. This level represents the capability of organizations to respond to technical rescue incidents and to identify hazards, use equipment, and apply limited techniques to support and participate in technical rescue incidents.

  • Technical LevelActions taken by the responders are offensive in nature and may pose a high level of risk. This level represents the capability of organizations to respond to technical rescue incidents, to identify hazards, use equipment, and apply advanced techniques specified to coordinate, perform, and supervise technical rescue incidents.


What is it
What is it? Technical Search and Rescue Incidents

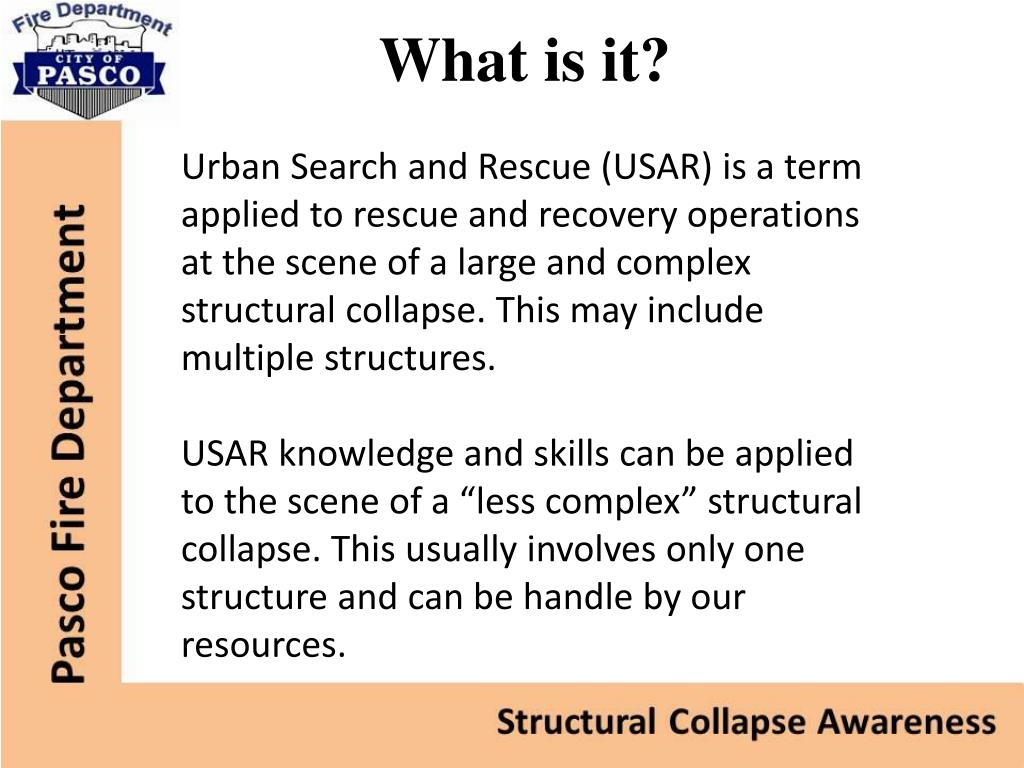

Urban Search and Rescue (USAR) is a term applied to rescue and recovery operations at the scene of a large and complex structural collapse. This may include multiple structures.

USAR knowledge and skills can be applied to the scene of a “less complex” structural collapse. This usually involves only one structure and can be handle by our resources.


How can we apply our usar knowledge and skills

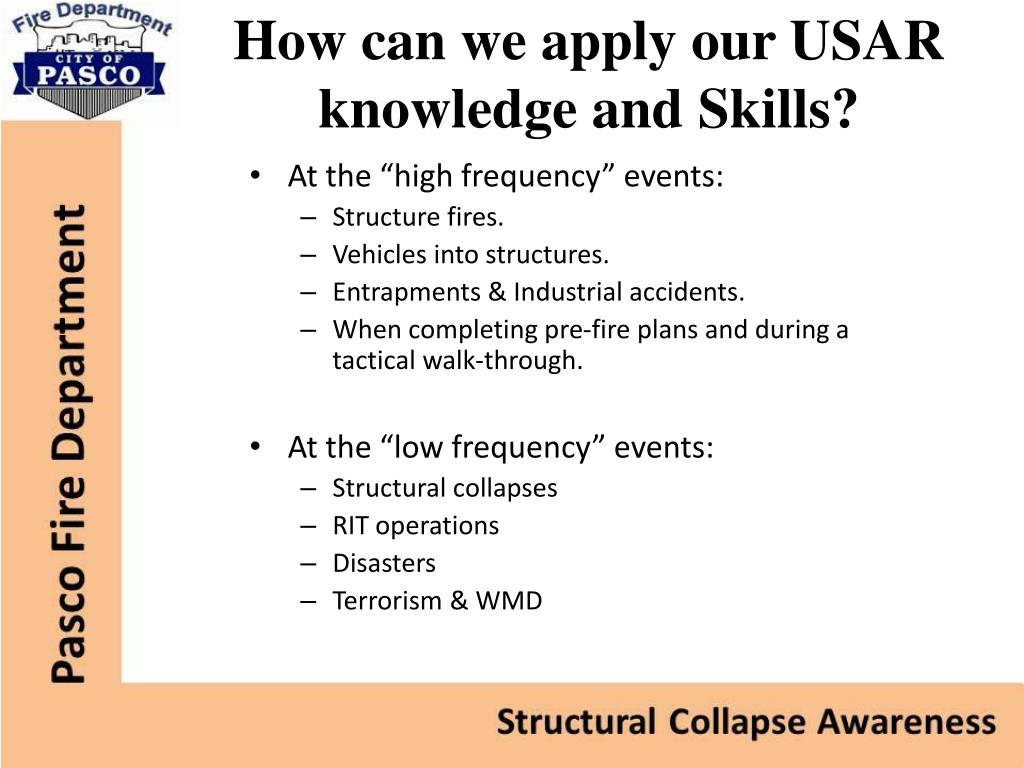

How can we apply our USAR knowledge and Skills? Technical Search and Rescue Incidents

  • At the “high frequency” events:

    • Structure fires.

    • Vehicles into structures.

    • Entrapments & Industrial accidents.

    • When completing pre-fire plans and during a tactical walk-through.

  • At the “low frequency” events:

    • Structural collapses

    • RIT operations

    • Disasters

    • Terrorism & WMD


Structural collapse rescue operations

Survival Times Technical Search and Rescue Incidents

Survival vs Time for Extrication


Common causes of structural collapse
Common causes of Structural Collapse Technical Search and Rescue Incidents


Building construction
Building Construction Technical Search and Rescue Incidents

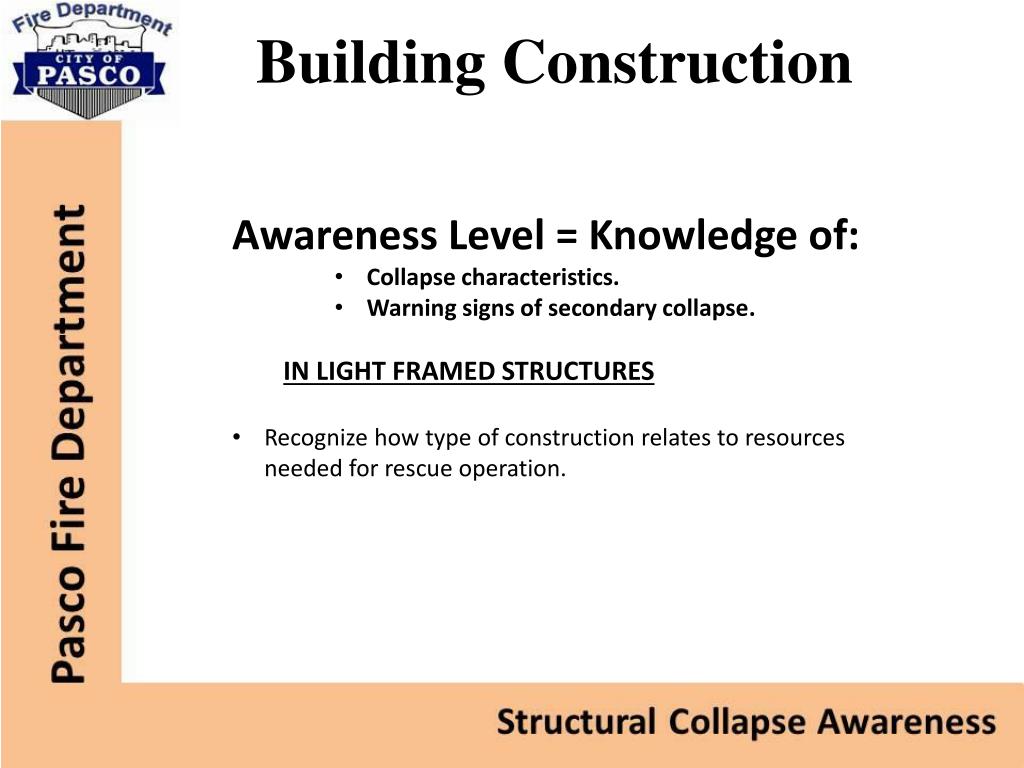

  • Awareness Level = Knowledge of:

    • Collapse characteristics.

    • Warning signs of secondary collapse.

  • IN LIGHT FRAMED STRUCTURES

  • Recognize how type of construction relates to resources needed for rescue operation.


  • Building construction1
    Building Construction Technical Search and Rescue Incidents

    Light Frame Building Collapse

    • Usually residential homes and apartments

    • Highly susceptible to fires

    • Complete Collapses occur frequently

    Look for badly cracked walls, leaning walls, offset of structure from foundation, or leaning first story.


    Building construction2
    Building Construction Technical Search and Rescue Incidents

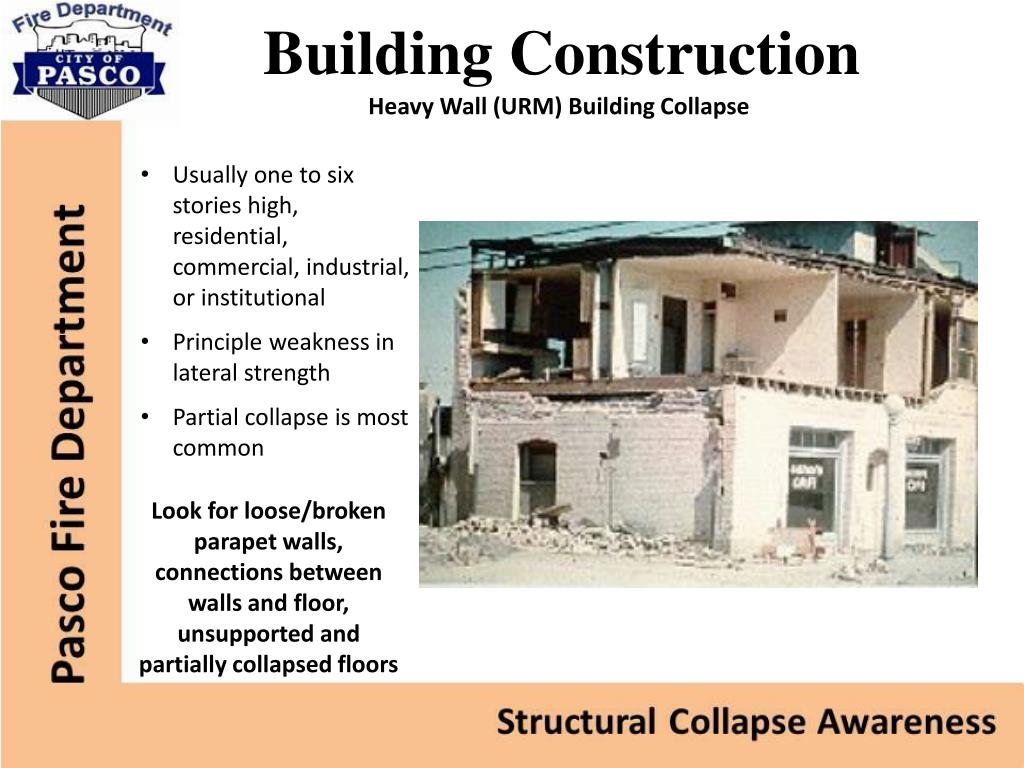

    Heavy Wall (URM) Building Collapse

    • Usually one to six stories high, residential, commercial, industrial, or institutional

    • Principle weakness in lateral strength

    • Partial collapse is most common

    Look for loose/broken parapet walls, connections between walls and floor, unsupported and partially collapsed floors


    Building construction3
    Building Construction Technical Search and Rescue Incidents

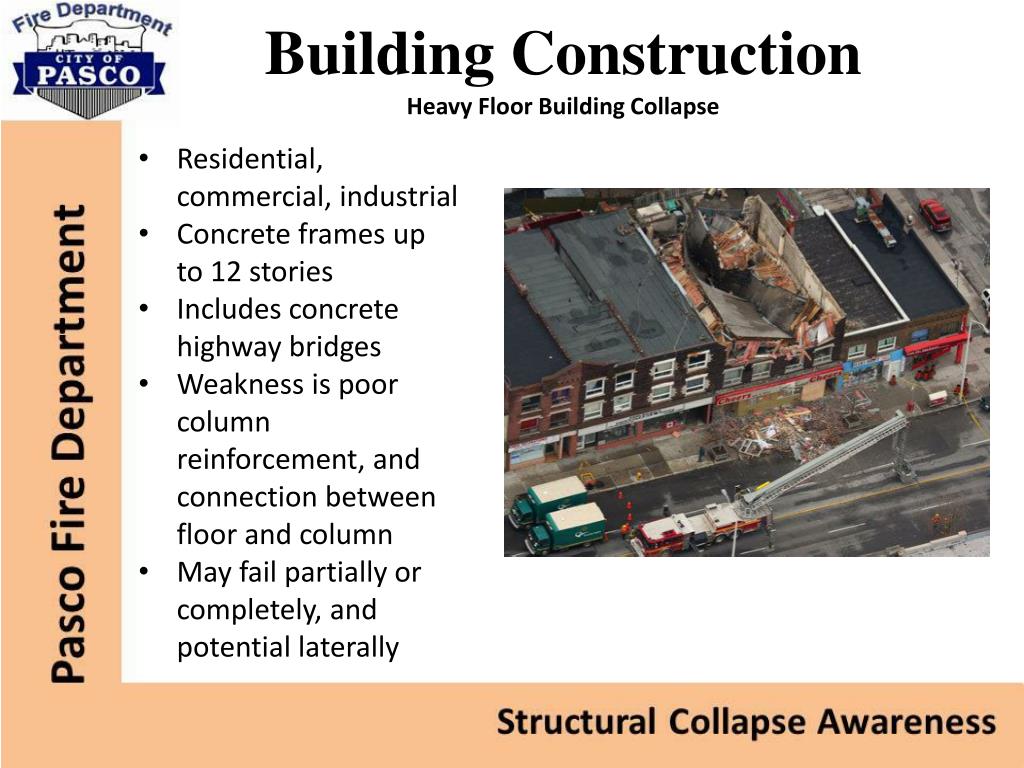

    Heavy Floor Building Collapse

    • Residential, commercial, industrial

    • Concrete frames up to 12 stories

    • Includes concrete highway bridges

    • Weakness is poor column reinforcement, and connection between floor and column

    • May fail partially or completely, and potential laterally


    Building construction4
    Building Construction Technical Search and Rescue Incidents

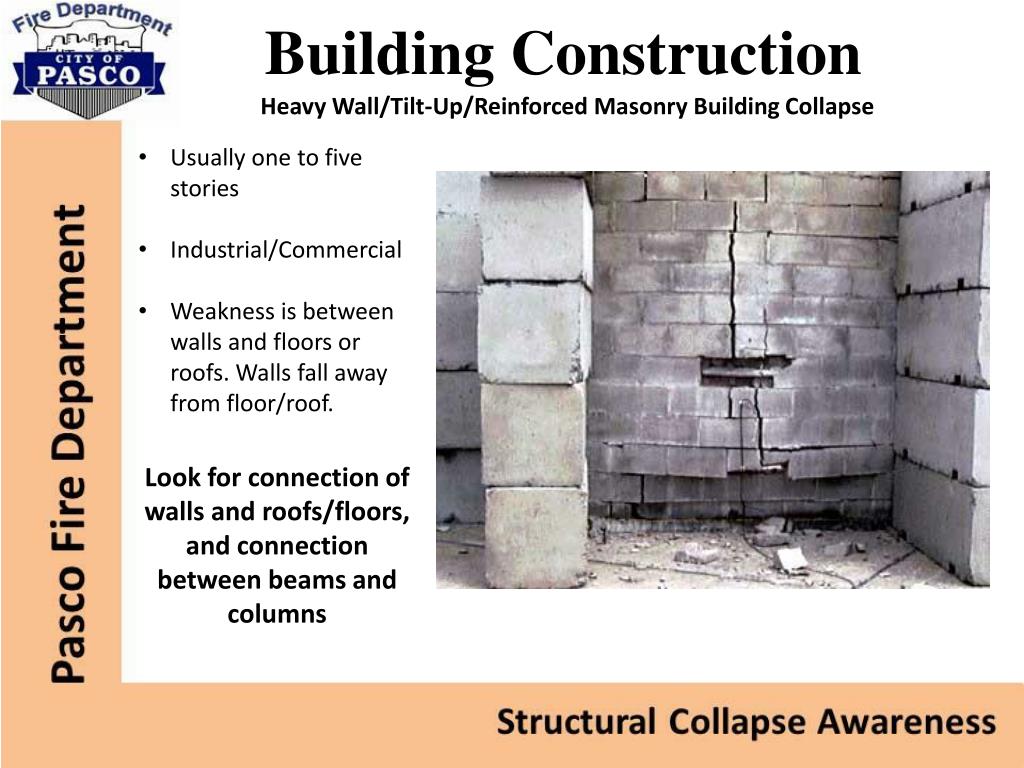

    Heavy Wall/Tilt-Up/Reinforced Masonry Building Collapse

    • Usually one to five stories

    • Industrial/Commercial

    • Weakness is between walls and floors or roofs. Walls fall away from floor/roof.

    Look for connection of walls and roofs/floors, and connection between beams and columns


    Structural collapse rescue operations

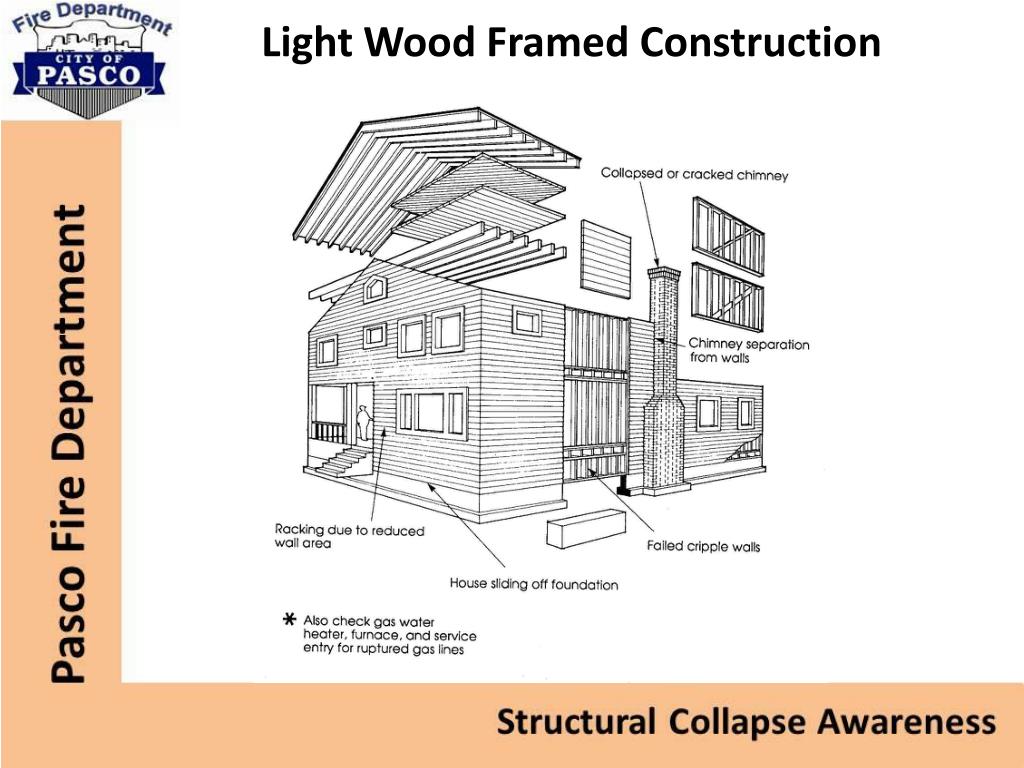

    Light Wood Framed Construction Technical Search and Rescue Incidents


    Structural collapse rescue operations

    Light Metal Framed Construction Technical Search and Rescue Incidents


    Structural collapse rescue operations

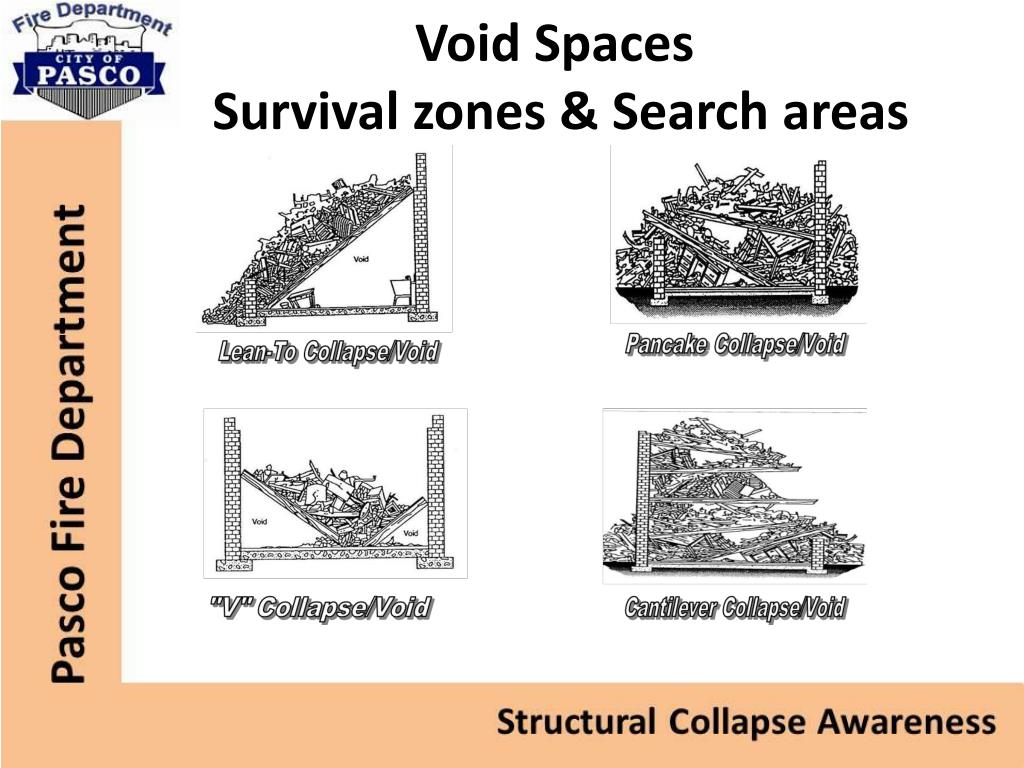

    Void Spaces Technical Search and Rescue Incidents Survival zones & Search areas


    Structural collapse rescue operations

    Structural Collapse Technical Search and Rescue Incidents

    Size - Up

    6 Sided Approach

    Four Sides

    Above

    Below


    Structural collapse rescue size up

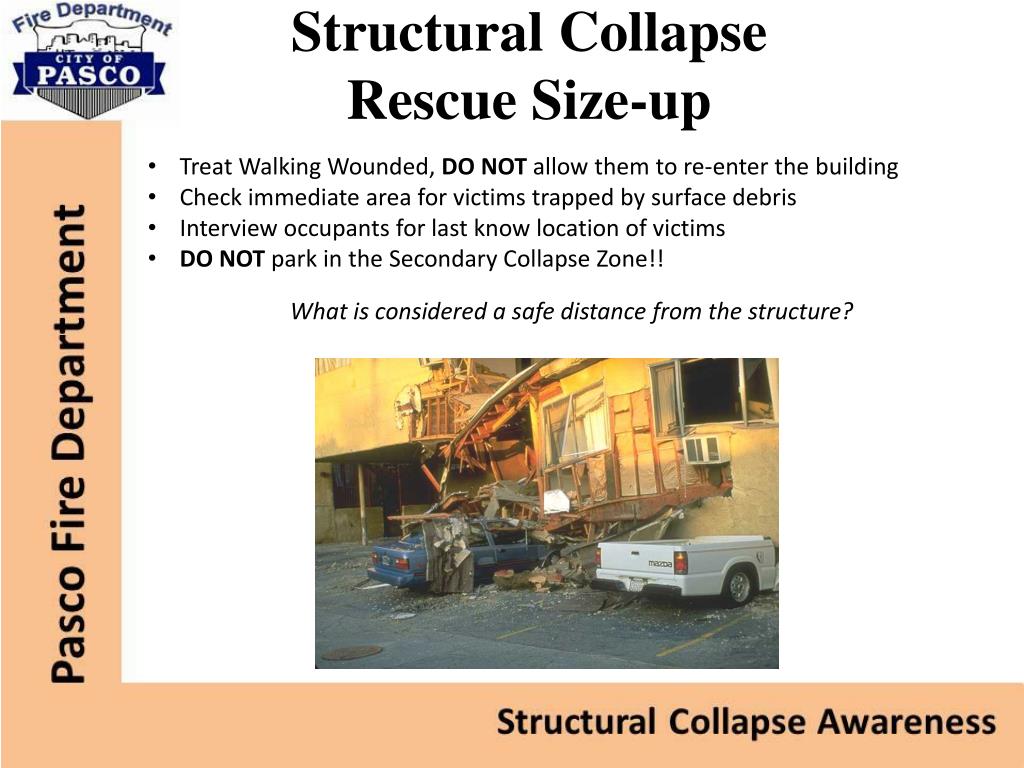

    Structural Collapse Technical Search and Rescue IncidentsRescue Size-up

    • Treat Walking Wounded, DO NOT allow them to re-enter the building

    • Check immediate area for victims trapped by surface debris

    • Interview occupants for last know location of victims

    • DO NOT park in the Secondary Collapse Zone!!

    What is considered a safe distance from the structure?


    Structural collapse rescue operations

    Stages of Collapse Rescue Operations Technical Search and Rescue Incidents

    • Stage I

    • Stage II


    Structural collapse rescue operations

    Stages of Collapse Rescue Operations Technical Search and Rescue Incidents

    Stage I Size Up and Recon

    • Depending on the event can last a few minutes to several hours

      • Find out how big the problem really is

  • Organized Survey of the damaged area

  • What resources are available

  • What can we do about the problem


  • Structural collapse rescue operations

    Stages of Collapse Rescue Operations Technical Search and Rescue Incidents

    Stage I Size Up and Recon

    Prioritize the Problems

    The first priority is YOUR safety

    The second priority is the safety of your crew

    The third priority is other people

    The fourth priority is property conservation


    Structural collapse rescue operations

    Stages of Collapse Rescue Operations Technical Search and Rescue Incidents

    Stage I Size Up and Recon

    Establish Incident Command

    • Designate a command post.

      • Ensure that the CP is located outside of the secondary collapse zone

    • Remain available by staying in the command post


    Structural collapse rescue operations

    Stages of Collapse Rescue Operations Technical Search and Rescue Incidents

    Stage I Size Up and Recon

    Rescue and Remove Surface Victims

    • 50% of all survivors are surface victims – injured but not trapped – Deal with them first

    • Remove them from the hazards

    • Keep people from entering structures, allow structures time to settle

    • Organize spontaneous rescue teams and direct them where they will do the most good


    Structural collapse rescue operations

    Stages of Collapse Rescue Operations Technical Search and Rescue Incidents

    Stage II

    • Begins when rescue teams arrive and ICS has been established

    • Use the information gathered to search the likely survival places

    • Use location methods, searching outside by voice, listening devices, dogs, TICS, and fiber optics


    Structural collapse rescue operations

    Stages of Collapse Rescue Operations Technical Search and Rescue Incidents

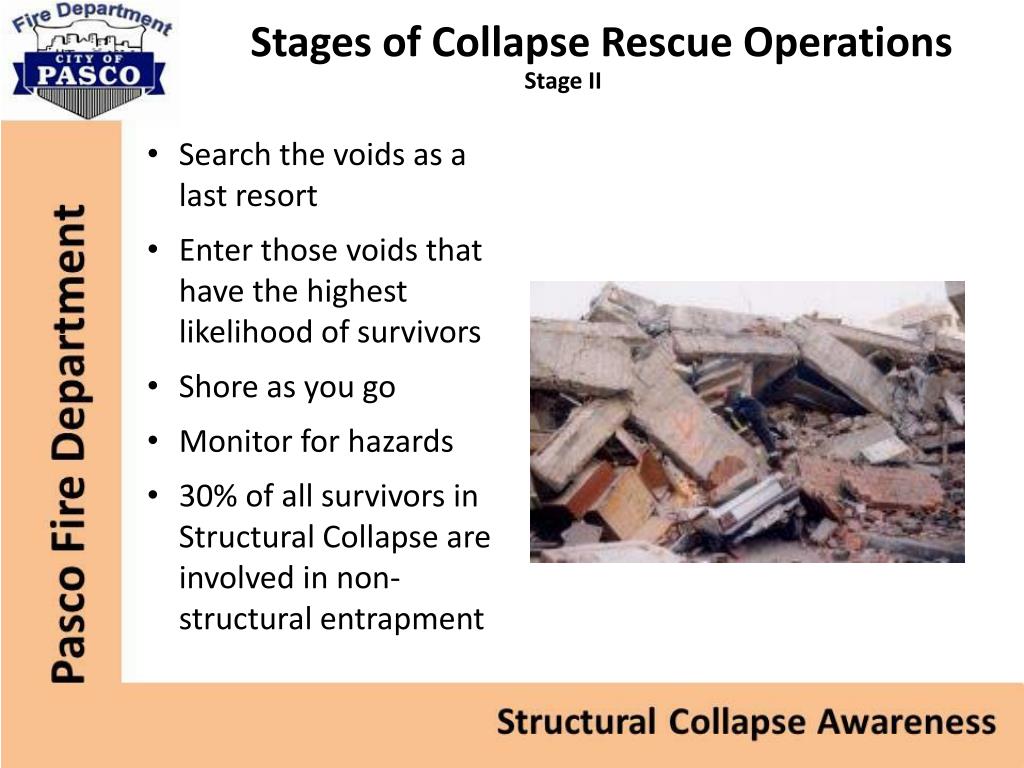

    Stage II

    • Search the voids as a last resort

    • Enter those voids that have the highest likelihood of survivors

    • Shore as you go

    • Monitor for hazards

    • 30% of all survivors in Structural Collapse are involved in non-structural entrapment


    Structural collapse rescue operations

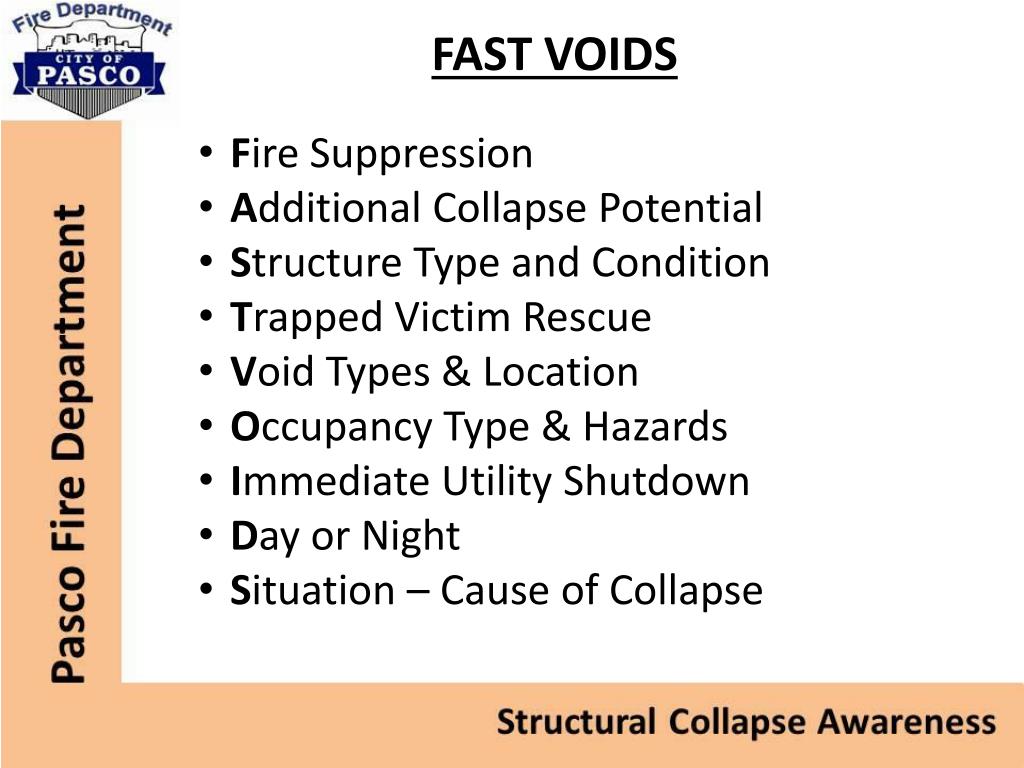

    FAST VOIDS Technical Search and Rescue Incidents

    • Fire Suppression

    • Additional Collapse Potential

    • Structure Type and Condition

    • Trapped Victim Rescue

    • Void Types & Location

    • Occupancy Type & Hazards

    • Immediate Utility Shutdown

    • Day or Night

    • Situation – Cause of Collapse


    Structural collapse rescue operations

    Stages of Collapse Technical Search and Rescue Incidents

    Rescue Operations

    • Stage III

    • Stage IV


    Structural collapse rescue operations

    Stages of Collapse Rescue Operations Technical Search and Rescue Incidents

    Stage III

    • Begins after all surface victims are removed and cared for and those in voids can be removed without major debris removal

    • Selective debris removal using heavy equipment, trained rescue teams working with private contractors

    • Removal of entombed victims


    Structural collapse rescue operations

    Stages of Collapse Rescue Operations Technical Search and Rescue Incidents

    Stage IV

    • Usually begins 5-6 days after the event

    • Probability of further survivors is minimal, and private contractors will usually finish clean up


    Structural collapse rescue operations

    Types of Search Technical Search and Rescue Incidents

    Canine

    Physical

    Technical


    Locating survivors and victims
    Locating Survivors and Victims Technical Search and Rescue Incidents

    Hailing procedures.

    Search and Listen!

    Thermal Imaging

    Search Camera

    Confined Space Equipment

    Search Dogs


    Search team tools and equipment
    Search Team Tools and Equipment Technical Search and Rescue Incidents

    • Tools for

    • Search Team

    • Lineman’s Pliers.

    • Tin Snips

    • Utility Knife.

    • Marking Chalk and Lumber Crayons.

    • Spray Paint.

    • Flashlight and Chemical Light sticks.


    Structural collapse rescue operations

    Search Markings Technical Search and Rescue Incidents


    Structural collapse rescue operations

    Search Marking Technical Search and Rescue Incidents

    Completed Search

    Secondary Search

    Completed

    Entrance Marking

    3-30-03

    2120

    T-82

    LPG

    E-82

    3-30-03

    X


    Structural collapse rescue operations

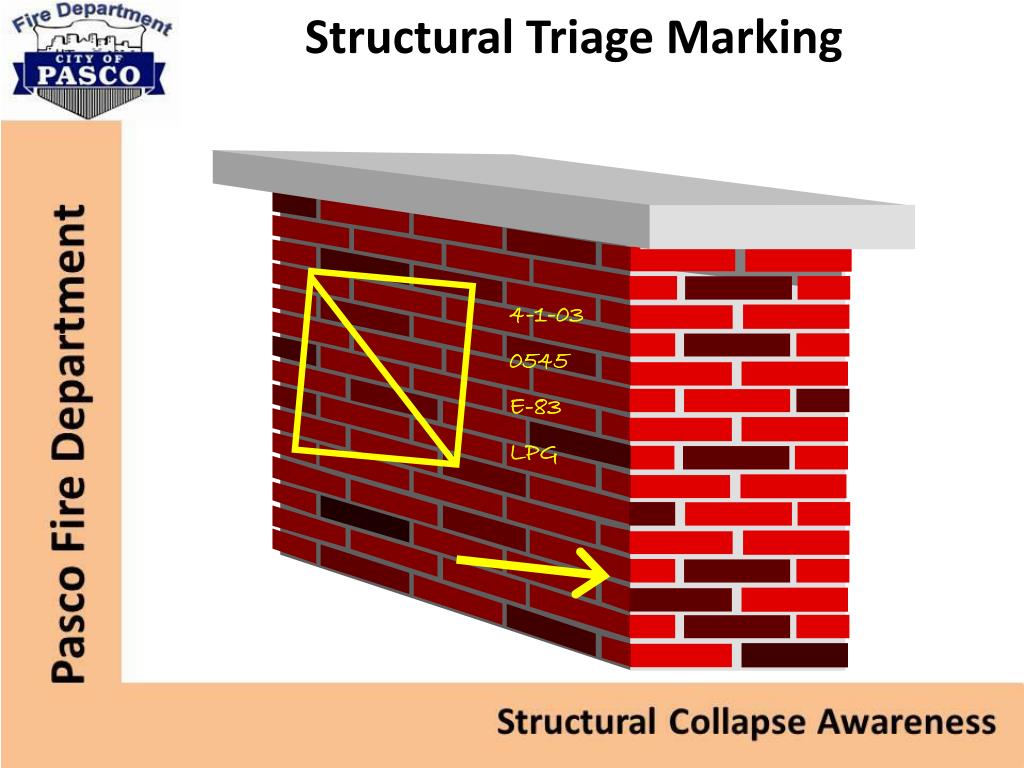

    Structural Triage Marking Technical Search and Rescue Incidents

    4-1-03

    0545

    E-83

    LPG


    Safety

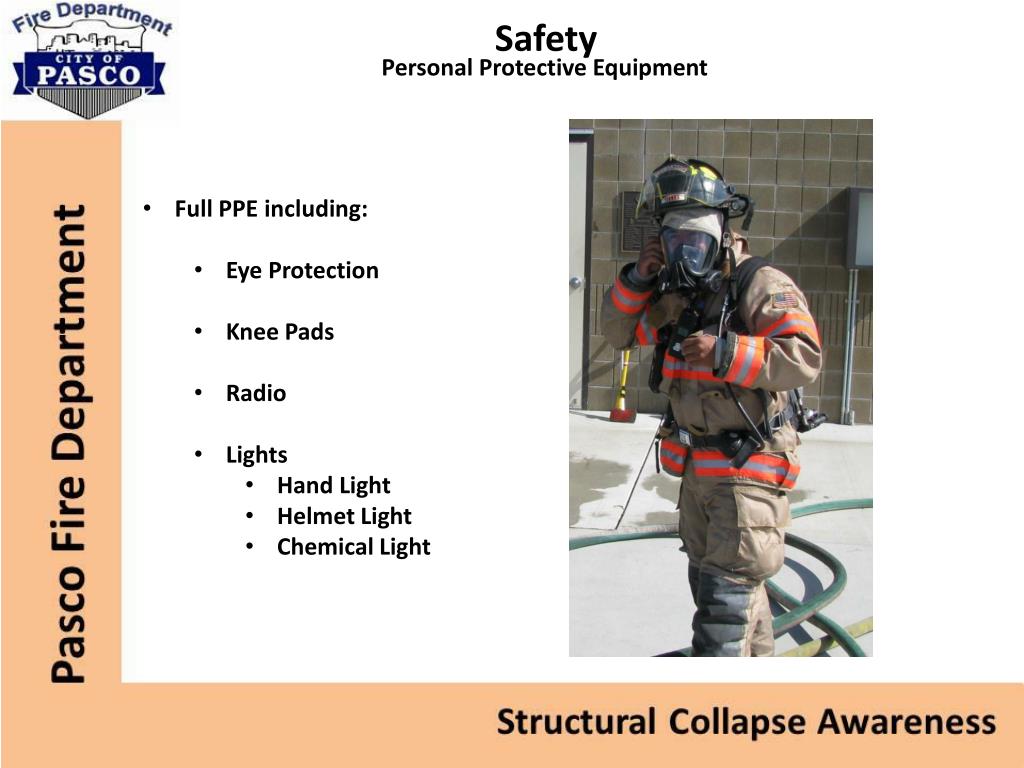

    Safety Technical Search and Rescue Incidents

    Work with Special Operations

    (Technical Rescue &

    Hazardous Materials)

    Team Leaders.

    Obtain Safety Briefings before working

    • Barricade Tape use

    • Collapse Zone

    • Monitor Structure

    • Know Warning signals

    • Know your Personal Limitations

    • Personal Protective Equipment

    • Rehydration & Rehab

    • CISD


    Structural collapse rescue operations

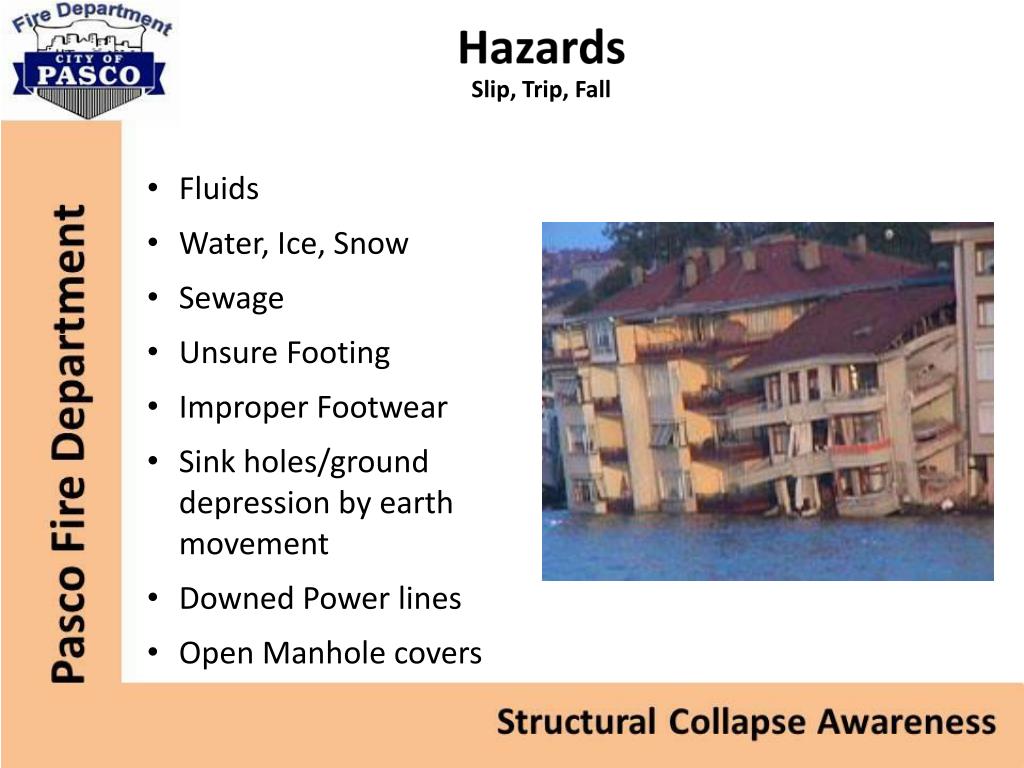

    Hazards Technical Search and Rescue Incidents

    Structural Instability

    • Weakened Floors, walls, roofs, beams and columns

    • Free standing walls

    • Spalling of Concrete structure, masonry

    • Shifting of debris from aftershocks, vibrations or secondary collapse

    • Attached buildings can be an exposure, or weakened by collapse


    Structural collapse rescue operations

    Hazards Technical Search and Rescue Incidents

    Overhead Hazards

    • Loosened debris and unstable building structures overhead

    • Low Hanging power lines

    • Building contents that are unstable and displaced

    • Failing slings or cables while lifting materials


    Structural collapse rescue operations

    Sharp Debris Technical Search and Rescue Incidents

    • Broken Glass

    • Jagged Metal

    • Nails

    • Wood Splinters

    • Rough Masonry


    Structural collapse rescue operations

    Slip, Trip, Fall Technical Search and Rescue Incidents

    • Fluids

    • Water, Ice, Snow

    • Sewage

    • Unsure Footing

    • Improper Footwear

    • Sink holes/ground depression by earth movement

    • Downed Power lines

    • Open Manhole covers


    Structural collapse rescue operations

    Below - Grade Technical Search and Rescue Incidents

    • Atmospheric changes due to ruptured fuel, gas lines or presence of hazardous chemicals

    • Floods

      • May have caused collapse

      • From ruptures water/sewage lines

      • From ground water

    • Elevation differences can cause difficult access and egress


    Structural collapse rescue operations

    Utilities Technical Search and Rescue Incidents

    • Electrical

    • Fuel/Gas

    • Water

    • Steam

    • Sewage


    Structural collapse rescue operations

    Hazardous Materials Technical Search and Rescue Incidents

    • Commercial Establishments

    • Hazardous Household Chemicals

      • Ammonia

      • Bleach

      • Household Cleaners

      • Solvents

      • Etc.

    • Garage


    Structural collapse rescue operations

    • Fire, Smoke, Explosion Technical Search and Rescue Incidents

    • Heavy Vibrations

    • Inhalation Hazards

    • Power Tools

    • Noise

    • Scene Control


    Structural collapse rescue operations

    Safety Considerations Technical Search and Rescue Incidents

    Scene Approach

    • Be Aware of Secondary Explosive Devices

    • Be Aware of Collapse area and Secondary collapse area

    • Establish Safe Zones

    • Be Aware of probable Hazardous Materials

    • Utilities

    • Fire Danger


    Structural collapse rescue operations

    • Establish safe areas and hazard zones Technical Search and Rescue Incidents

    • Monitor building movement

    • Before searching voids:

      • Survey

      • Stabilize

      • Search

    • Awareness for Stress Factors

      • Personnel

      • Scene

    • Rehab

    • Enforce Safety


    Structural collapse rescue operations

    Safety Technical Search and Rescue Incidents

    Personal Protective Equipment

    • Full PPE including:

      • Eye Protection

      • Knee Pads

      • Radio

      • Lights

        • Hand Light

        • Helmet Light

        • Chemical Light


    Structural collapse rescue operations

    • Safety Technical Search and Rescue Incidents

    Respiratory Protection

    • Level will depend on atmospheric hazards

      • Cartridge Filter

      • SCBA

      • Supplied Air


    Structural collapse rescue operations

    Communications Technical Search and Rescue Incidents

    Maintain voice contact with rescuers

    Communicate needs to team leaders

    ALL rescuers should have a portable radio

    Have pre-determined hand signals


    On site emergency signaling procedures
    On-Site Emergency Signaling Procedures Technical Search and Rescue Incidents

    • Emergency Signaling is used to alert on scene response personnel of:

      • Structural Instability

      • Secondary Devices/Explosions

      • Possible victim location

      • Hazardous Material Leaks

      • Other hazards that require immediate action (withdrawal, abandonment and evacuation, etc.)

    • Radio Announcement & portable Air Horn or Bull Horn Alert Systems are most common. Vehicle mounted air horns can also be used, if they can be heard inside of collapsed structure and around work area.

    • Accountability Systems will be used (Passports, PAR, and Roll-Calls).


    Responding after during earthquakes
    Responding After & During Earthquakes Technical Search and Rescue Incidents


    Structural collapse ems concerns
    Structural Collapse EMS Concerns Technical Search and Rescue Incidents

    • Majority of victims will have injuries from falling debris

    • Most visible surface victims will have minimal entrapment.

    • Victims may have vision and breathing difficulties from dust exposure and impaction.

    • Blast injuries may be present (hearing!).

    • Entrapped victims will need Technical Rescue (USAR) Teams.

    1989 Loma Prieta Earthquake Cars crushed by collapsing brick facade near Fifth and Townsend Streets. At this locality, five people were killed while leaving from work. [C.E. Meyer, U.S. Geological Survey]


    Extended operations
    Extended Operations Technical Search and Rescue Incidents

    Night Ops

    Rotating Shifts

    Environmental Exposure


    Collapses and crime scene operations
    Collapses and Crime Scene Operations Technical Search and Rescue Incidents

    Coordination with Local Law Enforcement (PPD, FCSO, WSP), Federal agencies (ATF, FBI, etc), and Medical Examiner (Coroner).

    Evidence

    Preservation


    Technical rescue team
    Technical Rescue Team Technical Search and Rescue Incidents

    • When at the scene of a Structural Collapse:

    • Notify FCCC and the Battalion Chief and request a “Technical Rescue Team”. Provide the radio frequency and cell phone number that you can be reached at.

    • -A Technical Rescue Team Leader will contact you and provide:

      • Assistance with initial actions

      • Safety considerations.

      • Technical Rescue Team Response.
