File Systems

1. File Systems We need a mechanism that provides long-term information storage with following characteristics: Possible to store large amount of INFO INFO survives after termination of any process Multiple processes can access INFO concurrently The file system is the component of O.S. that manipulate the INFO as files and directories The file systems is the appearance of INFO from the user’s standpoint that involved two main structures :Files and directories

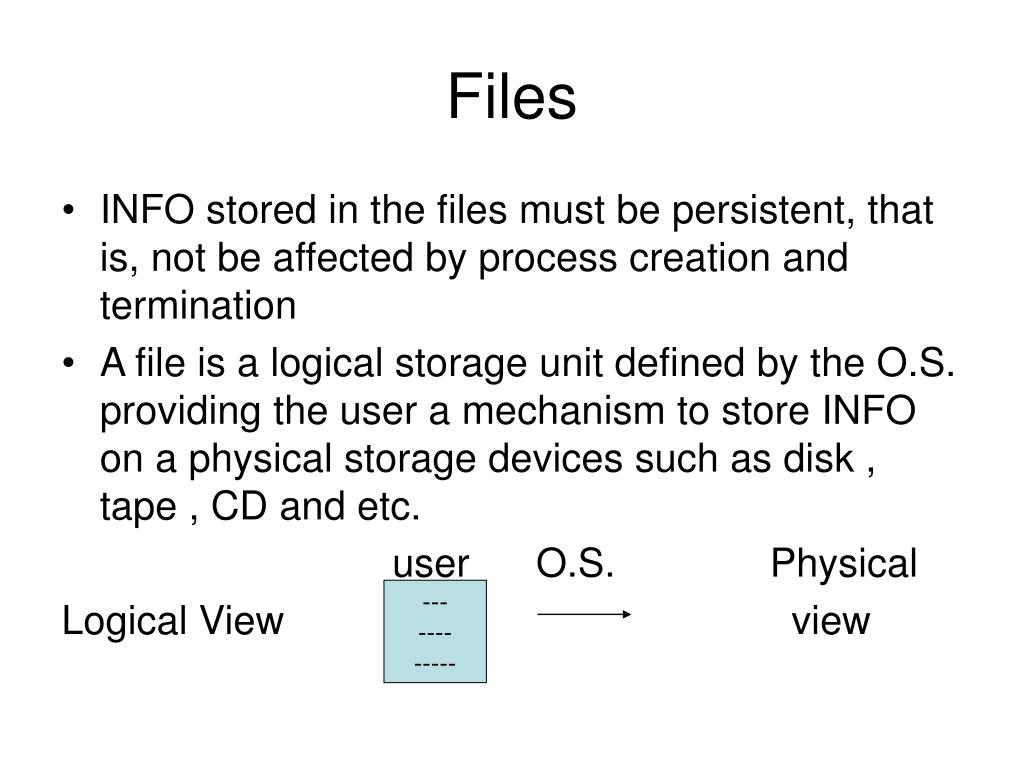

2. Files • INFO stored in the files must be persistent, that is, not be affected by process creation and termination • A file is a logical storage unit defined by the O.S. providing the user a mechanism to store INFO on a physical storage devices such as disk , tape , CD and etc. user O.S. Physical Logical View view --- ---- -----

3. File Naming • Some O.S. recognize difference between upper and lower case letters ( e.g., Unix) and some of them don’t (e.g., MS-DOS) • The file extension usually indicates what type of file it is (see the next slide). In some systems (e.g., UNIX), file extension are just conventions and are not enforced by O.S. Some other systems (e.g., Windows) are aware of extension and use programs that are assigned to the extensions (e.g., file.doc starts Word)

5. File Structure • The structure of a file is determined by O.S. • Some O.S.,’s (e.g., CPM and old mainframes) impose the view that a file is a sequence of fixed length records ( e.g., b in the next slide) • Other O.S.’s may impose a B-tree (or index) like structure on a file in order to support rapid search ( e.g., c in the next slide) • The problem with imposing more structure by O.S. is it is difficult to do something out of the ordering that is not foreseen by O.S. designer

7. File Structure • O.S. systems such as UNIX and Windows impose no structure to ensure maximum flexibility. They consider a file as a steam of bytes , and user processes define any structure that they want • I/O is usually performed in units of ONE physical Block and all blocks have the same size that is related to the page size in paging scheme.

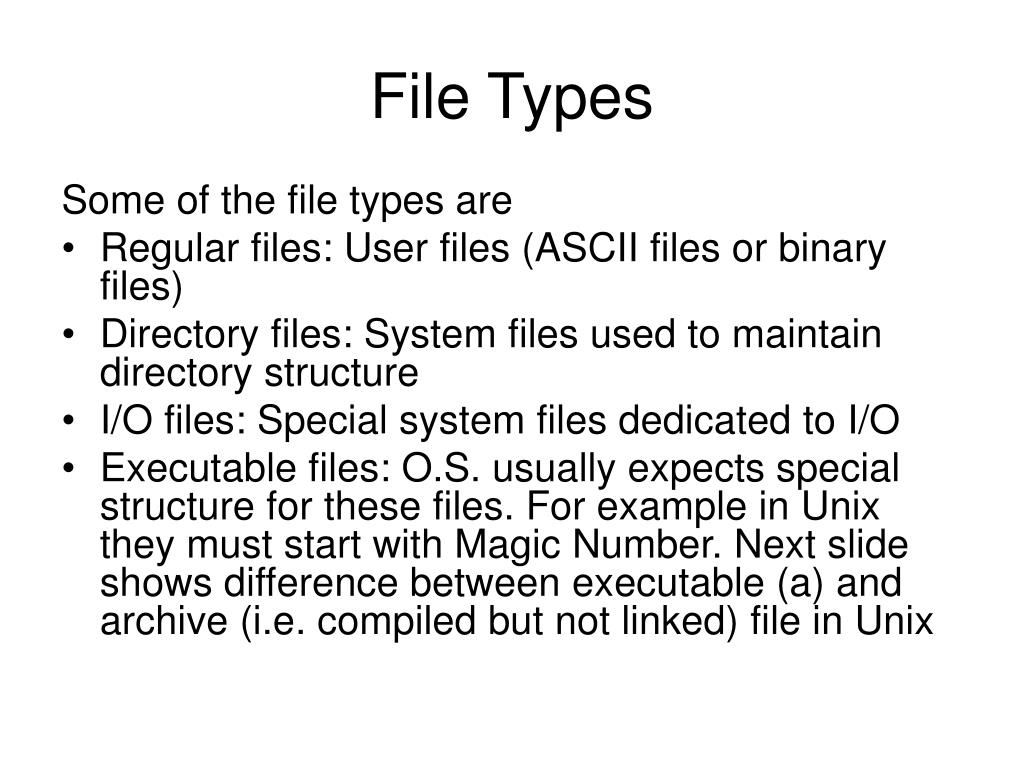

8. File Types Some of the file types are • Regular files: User files (ASCII files or binary files) • Directory files: System files used to maintain directory structure • I/O files: Special system files dedicated to I/O • Executable files: O.S. usually expects special structure for these files. For example in Unix they must start with Magic Number. Next slide shows difference between executable (a) and archive (i.e. compiled but not linked) file in Unix

10. File Access Generally two types of access are provided for the files : • Sequential access: starts from the beginning and read sequentially (usually is using with tapes) • Random access: can access any byte in the file directly. O.S. provides these operations to the user

11. File Attributes Deals with: • Location: where the file is physically located • Size: how big is the file • Type : what kind of file it is • Protection: who can access the file • Time & Date: when was the last access or modification • User: who created the file and other information. Some of the attributes are shown in the next slide

13. File Operations Most common system calls relating to files • Create: announce that file is coming and set attributes and allocate space • Delete: Free disk space, adjust directory structure • Open : Fetch the attributes and location of the file • Close: Release internal table space and writing the file’s last block

14. File Operations • Read: Data read from the file and put into memory for user access • Write: Data are written to the file usually at the current position • Append: Adds data to the end of file • Seek: Random access data from the file, repositioning the file pointer for reading • Rename: Change the name of the file • Get & Set attribute: Get attributes of file or set attributes of a file (e.g., get and set read only attribute ) See the program for copying a file in UNIX shown in the next slides. It can be called by the following command line: copyfile abc xyz

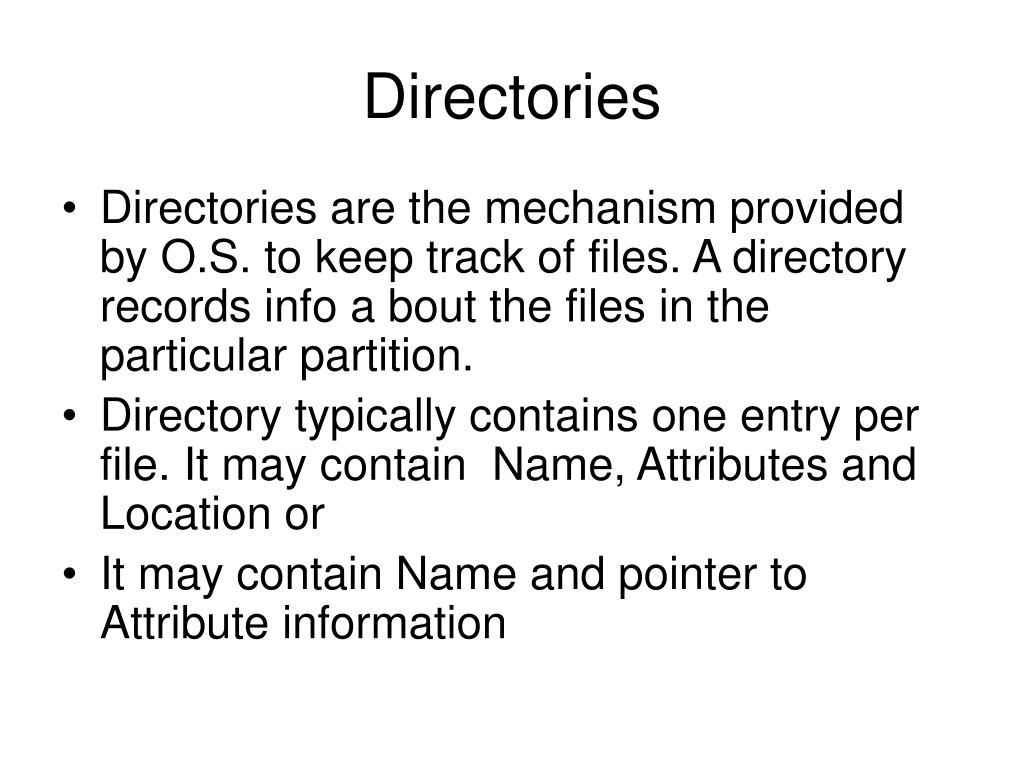

17. Directories • Directories are the mechanism provided by O.S. to keep track of files. A directory records info a bout the files in the particular partition. • Directory typically contains one entry per file. It may contain Name, Attributes and Location or • It may contain Name and pointer to Attribute information

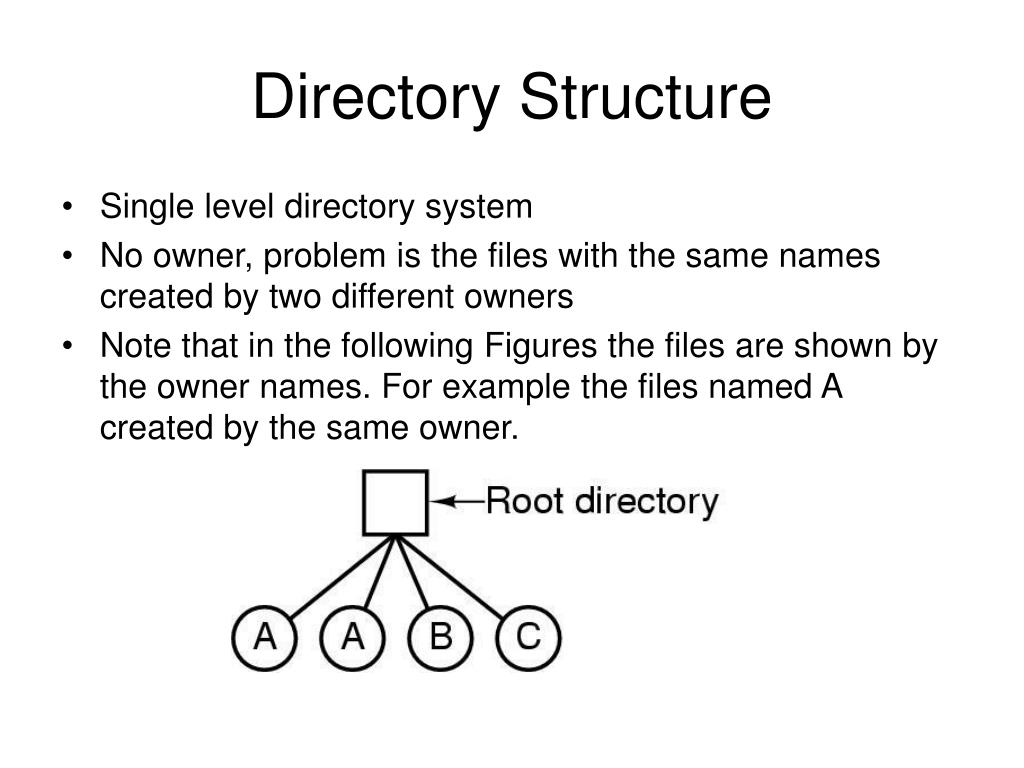

18. Directory Structure • Single level directory system • No owner, problem is the files with the same names created by two different owners • Note that in the following Figures the files are shown by the owner names. For example the files named A created by the same owner.

19. Directory Structure • Two-level directory system • Search in directories is based on user name. Problem is the user with the large number of files

20. Directory Structure • Hierarchical directory system

21. Path Names • Absolute path name: /usr/ast/mailbox. Always starts with / (i.e.,separator) • Relative Path Name: mailbox • Current directory or working directory determines the relative path name • In Unix . is current directory and .. refers to parent • For example: cp ../lib/abdy.doc .

22. Directory Operations • Create : creates . , .. • Delete : only empty directory can be deleted • Rename • Link & unlink: link is a common technique used for sharing files or directories between users. (see next slide). Instead of link, duplication of the files can be used for shared files but the problem of duplication is consistency is difficult to maintain. Link within a directory can be hard link (implemented by i-node that explained later) or symbolic linking (creating a file that contains the path of the linked file).

23. Directories • Creating a shared file by link changes the directory structure from a tree to a graph

24. File System Layout • Most disks divided up into one or more partitions, with independent file systems on each partition. • Sector 0 of disk is called MBR ( Master Boot Record) and contains partition table that contains start and ending address for each partition • The layout of a disk partition depends on its file system. For example after its first block ( i.e., boot block) it may contain super block that contains administrative information such as magic numbers to identify file types. (see next slide)

26. Implementing the Files Various methods are used in different O.S. for implementing the files: • Contiguous Allocation: Each file is stored on consecutive disk blocks. For example for a disk with 4K block size a 20K file is stored on 5 consecutive blocks. (see next slide) Advantages: • simple to implement because we need to know only disk address of the first block and number of blocks • The read performance is excellent because we need only one disk operation to read the entire file.

27. Contiguous Allocation

28. Contiguous Allocation The disadvantages of Contiguous allocation are: • Disk fragmentation: happens when the files are removed. Compaction is difficult because all the blocks following the holes should be copied. It is worse when the disk filled up. • Needs to know the final size of new file to be able to choose the correct hole to place it. That is also difficult Consecutive allocation is good for write once medias such as CD-ROMS and DVDs

29. Linked List Allocation • A linked list of disk blocks (first word is pointer) is kept in this method • Every disk blocks can be used (except for internal fragmentation) • The sequential read for the blocks of the file is easy but random access to each block is hard because we have to read all the blocks of a file before that block • Because of pointer the amount of data stored in each block is not a power of two

30. Linked List Allocation

31. Linked List Allocation using a Table in Memory • Both of disadvantages of the linked list allocation can be eliminated by keeping the table of pointer to the blocks (FAT) in the memory. MSDOS uses that. • Random access to blocks is easy because there is no disk reference involved. We need only the starting block number. • The problem is for 20 GB disk, and a 1 KB block size table needs 20 million entries if each be 4 bytes, table will take approximately 80 MB .

32. File Allocation Table

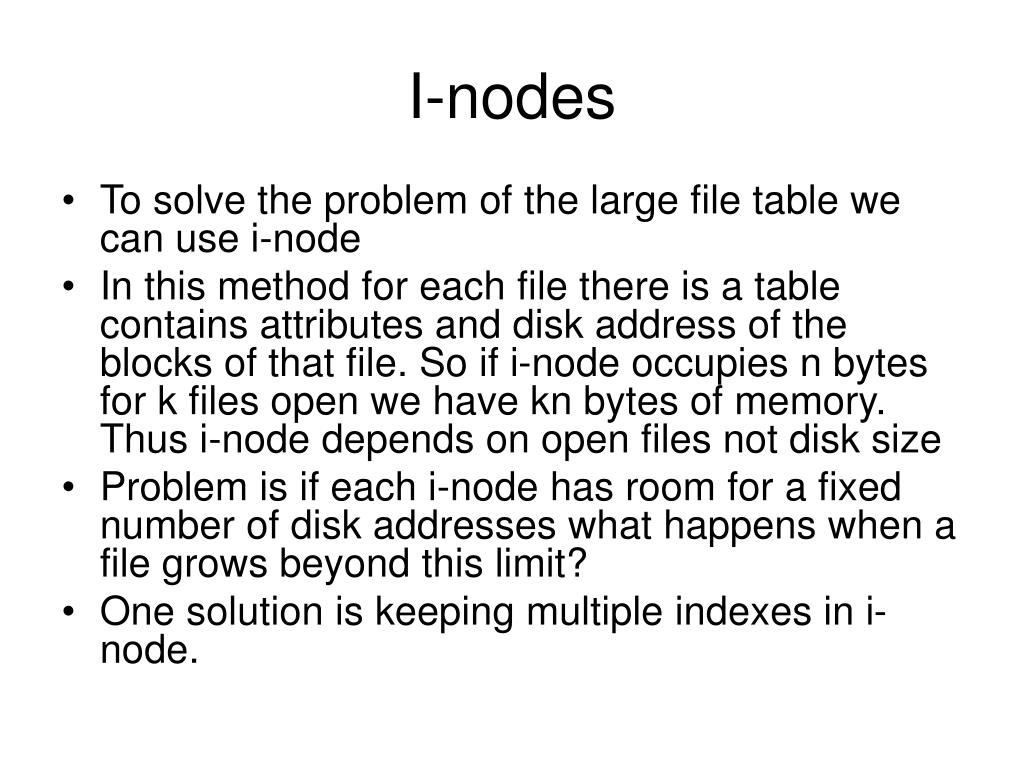

33. I-nodes • To solve the problem of the large file table we can use i-node • In this method for each file there is a table contains attributes and disk address of the blocks of that file. So if i-node occupies n bytes for k files open we have kn bytes of memory. Thus i-node depends on open files not disk size • Problem is if each i-node has room for a fixed number of disk addresses what happens when a file grows beyond this limit? • One solution is keeping multiple indexes in i-node.

35. I-node in Unix i-node in UNIX has • Initial 10 disk addresses. • Single indirect blocks keeps address of file more blocks for larger files. • Double indirect block that holds address of the blocks each contains a list of single indirect block • Triple indirect block has the address of block each is double indirect block

36. I-node in Unix

37. Implementing Directories • Basically, a directory is a file that contains an entry for each file or subdirectory in that directory • When a file is opened, O.S. uses the path name to locate directory entry • Each directory entry contain the file information • Each file information can be stored directly in directory entry (a in the next slide) • Or file information can be stored in i-node and each directory entry refers to i-node (b in the next slide)

38. Implementing Directories

39. Directories in MS-DOS • Same as CP/M directory entries they are 32 bits each • The extension is for a large file size that requires more than one directory entry. The order in which directory entries should be followed • First block number is the physical block number address of the file

40. Directories in MS-DOS

41. Directories in UNIX • Each directory entry contains file name and i-node number

42. Directories in UNIX • Directory lookup in Unix and all hierarchical system is same • First file system locates the root directory. • Then it looks up the first component of the path and its i-node • From the i-node system looks up the block address of next component and it works in the same way until the file can be found. For example next slide shows the steps in looking up /usr/ast/mbox

44. Disk Space ManagementPhysical Disk Structure • Main secondary storage is disk. Tape mainly is used for backup • The physical disk consists of cylinders. Each cylinder is divided into tracks. A track is divided further into sectors. One or more sectors form a logical block. Data transfers between the main memory and disk are in the units of logical blocks. The size of a logical block is usually 512 bytes or larger, although the disk can be formatted to have different logical block sizes

47. Disk Read Speed • The total time for accessing a file consists of the time to move the head to the right track (seek time), the time to find a correct sector (rotational delay), and the time to transfer data (transfer time). Disk seek time contributes more to the total delay of accessing the files, especially when files are not stored in contiguous blocks.

48. Disk Read • Example : The seek time is 10 msec per block in average, and rotation latency is 8 msec per block in average and transfer time is 0.25 msec for 1KB block for a disk system. The average reading time for each block in this disk system is: 10 + 8 + 0.25 = 18.25 ms • Usually as shown in this example seek time and rotation time contribute more to disk read latency. • It means if we reduce seek time or rotation latency we can increase disk read time significantly. Therefore most of the optimizations for increasing disk performance are based on reducing disk seek time. • For example in Unix FFS uses cylinder grouping technique to reduce disk seek time

49. Cylinder Grouping Technique • Fast File System (FFS, a Unix file system) uses the cylinder grouping technique to provide both block-level and file-level clustering. In the cylinder grouping technique, users or applications have to place the related files into a directory. The files of the directory are allocated in one or more consecutive cylinders to reduce disk seek time (see next slide). In the cylinder grouping technique, files belonging to a directory are stored on consecutive blocks on disk(s). With the same approach, FFS also tries to store a single file in consecutive disk blocks.
