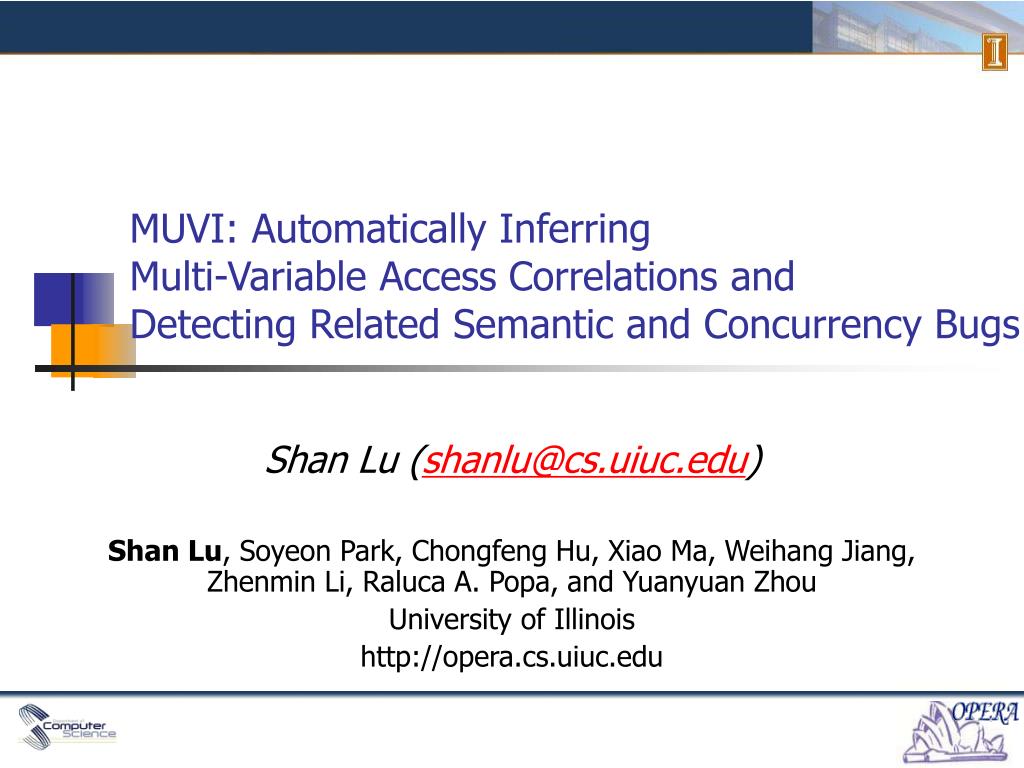

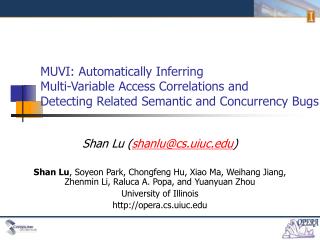

MUVI: Automatically InferringMulti-Variable Access Correlations andDetecting Related Semantic and Concurrency Bugs

Shan Lu (shanlu@cs.uiuc.edu)

Shan Lu, Soyeon Park, Chongfeng Hu, Xiao Ma, Weihang Jiang, Zhenmin Li, Raluca A. Popa, and Yuanyuan Zhou

University of Illinois

http://opera.cs.uiuc.edu

bugs are bad

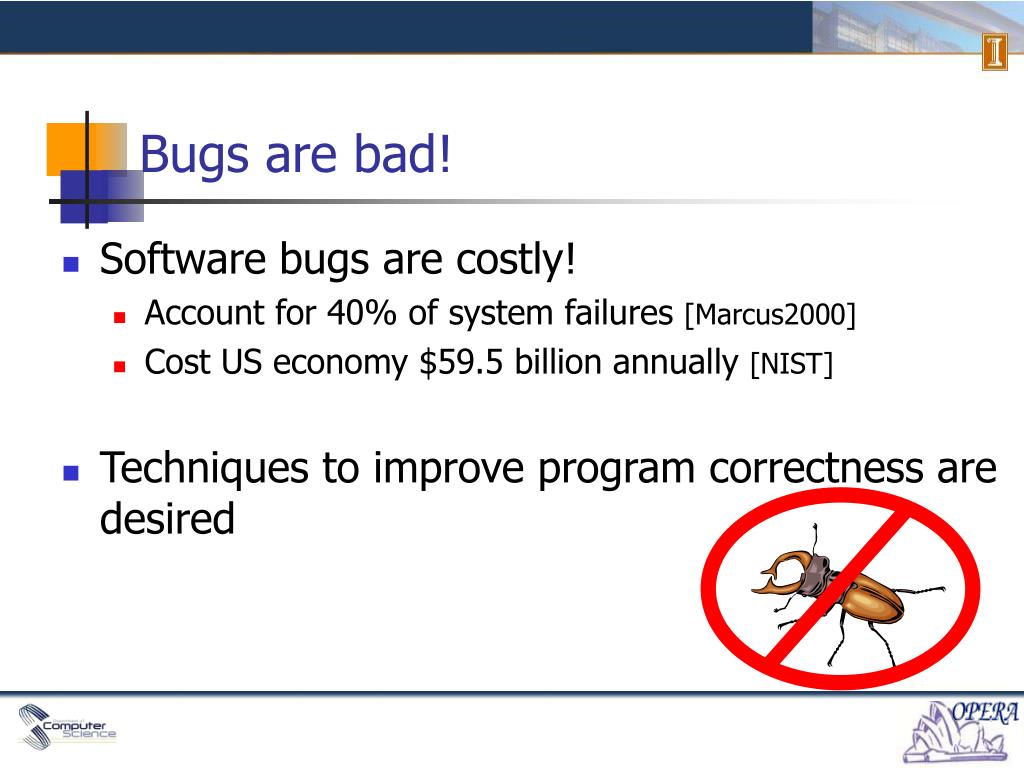

Bugs are bad!
  • Software bugs are costly!
    • Account for 40% of system failures [Marcus2000]
    • Cost US economy $59.5 billion annually [NIST]
  • Techniques to improve program correctness are desired
software bug categories
Software bug categories
  • Memory bugs
    • Improper memory accesses and usage
    • A lot of study and effective detection tools
  • Semantic bugs
    • Violation to the design requirements or programmer intentions
    • Biggest part (~80%*) of software bugs
    • No silver bullet
  • Concurrency bugs
    • Wrong synchronization in concurrent execution
    • Increasingly important with the pervading concurrent program trend
    • Hard to detect

*Have Things Changed Now? -- An Empirical Study of Bug Characteristics in Modern Open Source Software [ACID’06]

an important type of semantic information

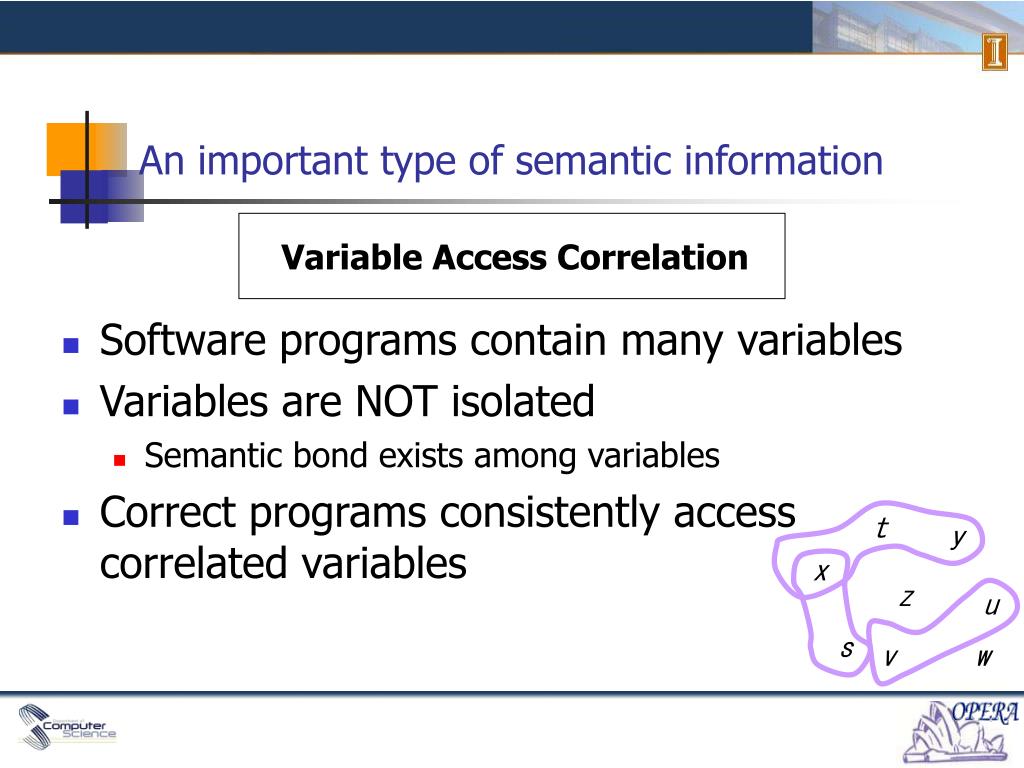

An important type of semantic information
  • Software programs contain many variables
  • Variables are NOT isolated
    • Semantic bond exists among variables
  • Correct programs consistently access correlated variables

Variable Access Correlation

t

y

x

z

u

s

v

w

variable correlation in programs

Class THD

{

char* db;

int db_length;

}

struct net_device_stats

{

long rv_packets

long rv_bytes;

}

struct fb_var_screeninfo

{ …

int red_msb;

int blue_msb;

int green_msb;

int transp_msb;

}

struct st_test_file *

cur_file;

struct st_test_file *

file_stack;

4

MySQL

Linux

Linux

MySQL

Constraint specification

Different representation

Different aspects

Implementation-demand

Variable correlation in programs
  • Semantic correlation widely exists among variables
variable access correlation constraint

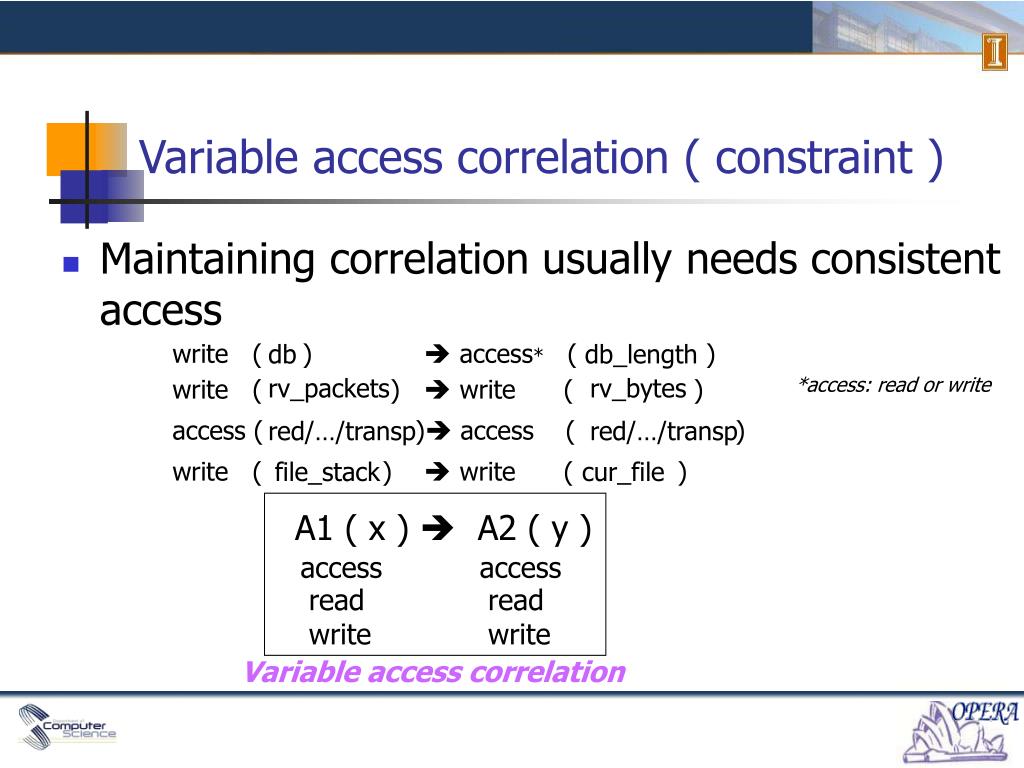

Variable access correlation ( constraint )
  • Maintaining correlation usually needs consistent access

db db_length

write ( )  access* ( )

rv_packets rv_bytes

*access: read or write

write ( )  write ( )

red/…/transp red/…/transp

access ( ) access ( )

write ( )  write ( )

file_stack cur_file

A1 ( x )  A2 ( y )

access

access

read

read

write

write

Variable access correlation

violating the correlations leads to bugs
Violating the correlations leads to bugs
  • Programmers may forget to access correlated variables
  • A type of semantic bugs not handled by previous tools

Mostly consistent access

--- correct

Inconsistent access

--- BUG!

Correlated

variables

More examples of inconsistent update bugs are in our paper.

Confirmed by Linux developers

Inconsistent update bugs

violating the correlations leads to bugs ii
Violating the correlations leads to bugs (ii)

Thread 1

Thread 2

js_FlushPropertyCache ( … ) {

memset ( cachetable, 0, SIZE);

cacheempty = TRUE;

}

js_PropertyCacheFill ( … ) {

cachetable[indx] = obj;

cacheempty = FALSE;

}

struct JSCache {

JSEntry table[SIZE];

bool empty;

}

lock ( T )

lock ( T )

unlock ( T )

unlock ( T )

lock ( E )

BUG

lock ( E )

  • Programmers may forget to synchronize concurrent accesses to correlated variables
  • This is NOT a traditional data race bug
    • Bug occurs even if accesses to each single variable are well synchronized

Mozilla

unlock ( E )

unlock ( E )

Multi-variable concurrency bugs

our contribution
Our contribution
  • A technique to automatically infer variable access correlation
  • Bug detection based on variable access correlation
    • Inconsistent-update semantic bugs
    • Multi-variable concurrency bugs
  • Disclose correlations and new bugs from real-world applications (Linux-device_driver, Mozilla, MySQL, Httpd)
    • > 6000 variable correlations
    • 39 new inconsistent-update semantic bugs
    • 4 new multi-variable concurrency bugs from Mozilla
outline
Outline
  • Motivation
    • What is variable access correlation
  • MUVI variable access correlation inference
  • MUVI bug detection
    • Inconsistent-update semantic bug detection
    • Multi-variable concurrency bug detection
  • Evaluation
  • Conclusions
basic idea of correlation inference
Basic idea of correlation inference

access correlation

A1 ( x )  A2 ( y )

  • Our target:
  • Our inference method:
    • Assumption: mature program, mostly correct
    • x and y appear together in many times
    • x and y seldom appear separately

Statistically infer access correlation based on variable access pattern in source code

  • How to judge``together’’?
  • Our metric:
  • static code distance within a function scope
  • Our paper talks about other potential metrics

Access correlation

How to do this efficiently?

frequent itemset mining

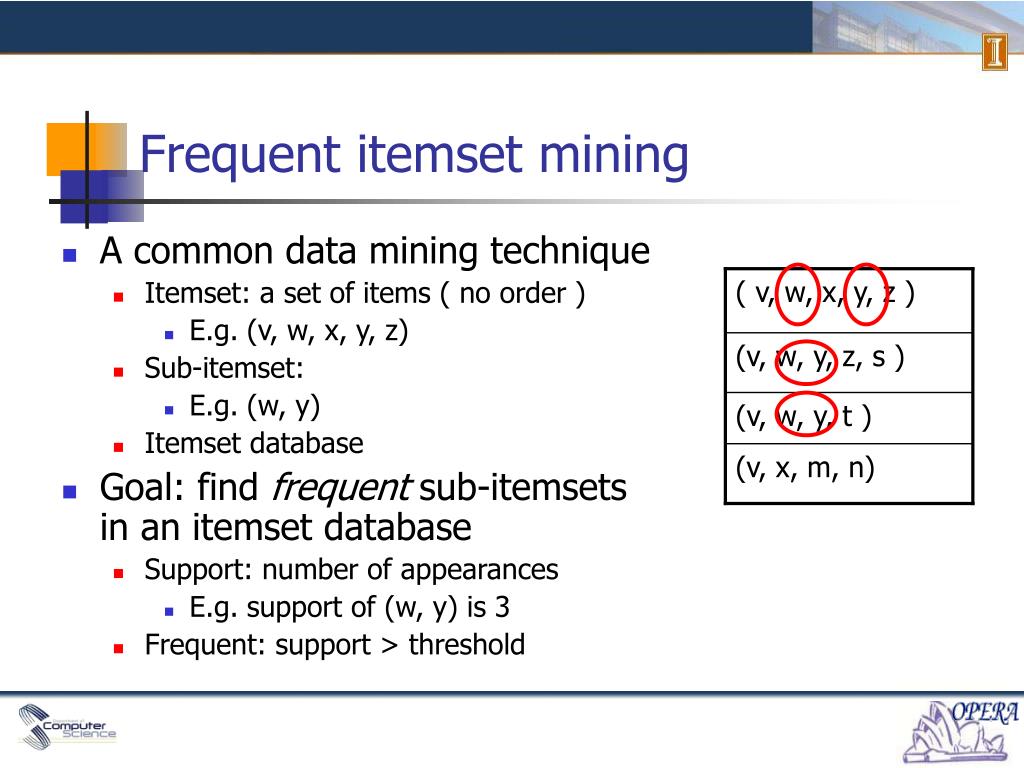

Frequent itemset mining
  • A common data mining technique
    • Itemset: a set of items ( no order )
      • E.g. (v, w, x, y, z)
    • Sub-itemset:
      • E.g. (w, y)
    • Itemset database
  • Goal: find frequent sub-itemsets in an itemset database
    • Support: number of appearances
      • E.g. support of (w, y) is 3
    • Frequent: support > threshold

( v, w, x, y, z )

(v, w, y, z, s )

(v, w, y, t )

(v, x, m, n)

flowchart of variable correlation inference

Pre-processing

Itemset Database

Mining

Frequent variable sets

Post-processing

Variable access correlation

Flowchart of variable correlation inference

Source files

How?

How?

muvi inference algorithm pre process
MUVI Inference algorithm (pre-process)
  • What is an item?
    • A variable
  • What is an itemset?
    • A function
  • What to put into an itemset?
    • Accessed variables
    • Access type (read/write)

Program

Source

Code

?

Itemset Database

muvi inference algorithm pre process15
MUVI Inference algorithm (pre-process)
  • Input: program
  • Output: an itemset database
  • Flow-insensitive, inter-procedural analysis
    • Consider Global variables and structure-typed variables
    • Also consider variables accessed in callee functions

Database

int x;

f1 ( ) {

read x;

}

f2 ( ) {

S t;

write t.y;

}

int z;

f3 ( ) {

read z;

f1 ( );

f2 ( );

}

f1

{read, x}

{read, x}

f3

f2

{write, S::y}

{write, S::y}

f3

{read, z}

……

f1

f2

muvi inference algorithm post process
MUVI Inference algorithm (post-process)
  • Input: frequent variable sets

(x, y), which appear together in many functions

  • Pruning
    • What if x and y appear separately many times?
      • Prune out low confidence (conditional probability) pairs
    • What if x is too popular, e.g. stderr, stdout?
  • Categorize based on access type
      • write (x)  write (y)? Or write (x)  read (y)? etc.
  • Output: variable correlation

A1 ( x )  A2 ( y )

outline17
Outline
  • Motivation
  • MUVI variable access correlation inference
  • MUVI bug detection
    • Inconsistent-update semantic bug detection
    • Multi-variable concurrency bug detection
  • Evaluation
  • Conclusions
inconsistent update bug detection
Inconsistent-update bug detection
  • Step 1: get all write(x)acc(y) correlations
  • Step 2: get all violations to above correlations
  • Step 3: prune out unlikely bugs
    • Code analysis to check caller and callee functions

write (fb_var_screeninfo::blue_msb)  access (fb_var_screeninfo::transp_msb)

#support = 11 #violation = 1 (function neofb_check_var)

inconsistent-update bug

multi variable concurrency bug detection muvi lock set algorithm
Multi-variable concurrency bug detection-- MUVI Lock-set algorithm
  • Original algorithm
    • Look for common locks among conflicting accesses to each shared variable
  • MV Lock-Set algorithm
    • Look for common locks among conflicting accesses to each shared variable and their correlated accesses
multi variable concurrency bug detection other muvi extension algorithm

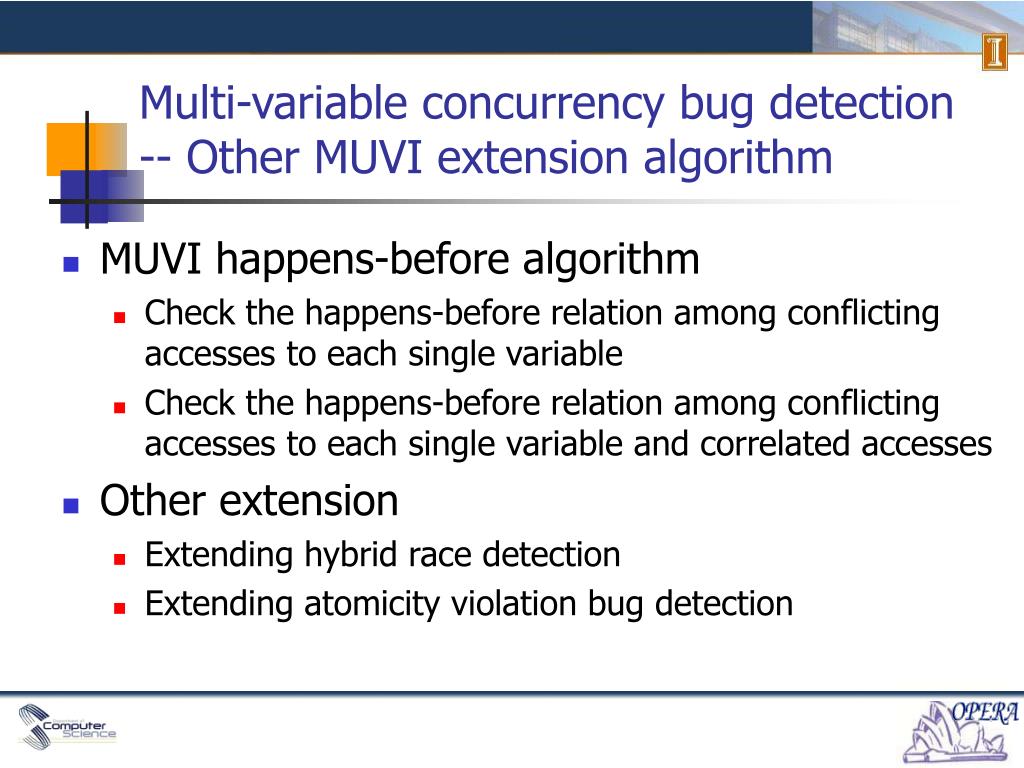

Multi-variable concurrency bug detection-- Other MUVI extension algorithm
  • MUVI happens-before algorithm
    • Check the happens-before relation among conflicting accesses to each single variable
    • Check the happens-before relation among conflicting accesses to each single variable and correlated accesses
  • Other extension
    • Extending hybrid race detection
    • Extending atomicity violation bug detection
outline21
Outline
  • Motivation
  • MUVI variable access correlation inference
  • MUVI bug detection
    • Inconsistent-update semantic bug detection
    • Multi-variable concurrency bug detection
  • Evaluation
  • Conclusions
methodology

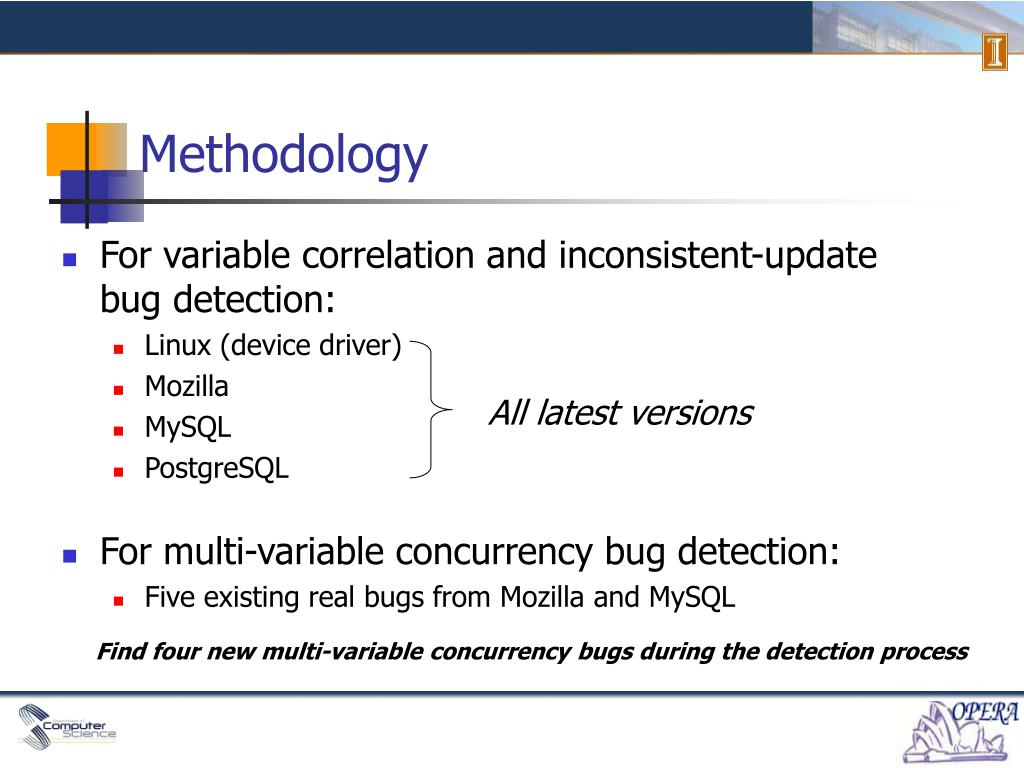

Methodology
  • For variable correlation and inconsistent-update bug detection:
    • Linux (device driver)
    • Mozilla
    • MySQL
    • PostgreSQL
  • For multi-variable concurrency bug detection:
    • Fiveexisting real bugs from Mozilla and MySQL

All latest versions

Find four new multi-variable concurrency bugs during the detection process

results on correlation inference
Results on correlation inference
  • Macro, inline functions
  • coincidence
inconsistent update bug detection results
Inconsistent-update bug detection results
  • Semantic exceptions
  • Wrong correlations
  • No future read access
multi variable concurrency bug detection results
Multi-variable concurrency bug detection results
  • MV-Happens-Before has similar results
  • Variables are conditionally correlated
  • The correlation is missed by MUVI
multi variable concurrency bug detection results26
Multi-variable concurrency bug detection results
  • 4 new multi-variable concurrency bugs detected!

Wrong result!

conclusion
Conclusion
  • Variable access correlations can be inferred
  • Variable access correlation is important
    • Help detect two types of bugs
    • Other usage
      • Provide specifications to ease programming
      • Provide hints for assigning locks or TMs
        • E.g. AtomicSet, AutoLocker, Colorama
related works
Related works
  • Program specification inference
    • [ErnstICSE00], [EnglerSOSP01], [KremenekOSDI06], [LiblitPLDI03], [WhaleyISSTA02], [YangICSE06], etc.
  • Code pattern mining
    • [LiOSDI04], [LiFSE05], [LivshitsFSE05], etc.
  • Concurrency bug detection
    • [ChoiPLDI02], [EnglerSOSP03], [FlanaganPOPL04], [SavageTOCS97], [Praun01], [XuPLDI05], [YuSOSP05], etc.
  • Techniques for easing concurrent programming
    • [Harris03], [HerlihyISCA93], [McCloskeyPOPL06], [Rajwar02], [Hammond04], [Moore6], [Rossbach07], etc.
acknowledgement

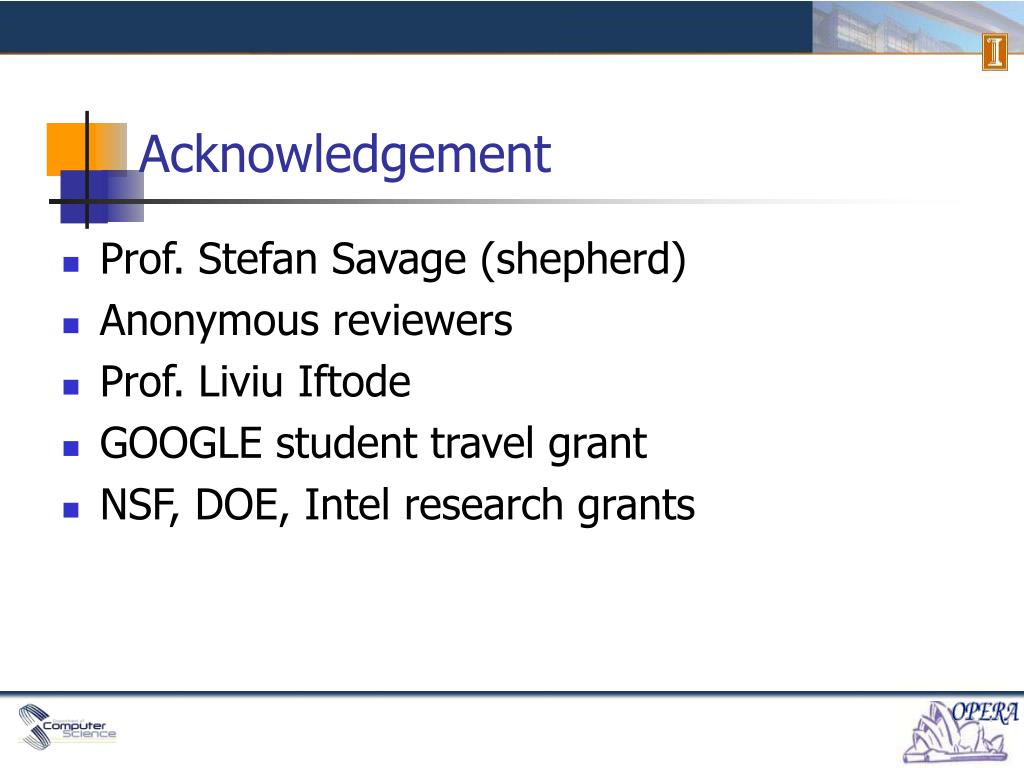

Acknowledgement
  • Prof. Stefan Savage (shepherd)
  • Anonymous reviewers
  • Prof. Liviu Iftode
  • GOOGLE student travel grant
  • NSF, DOE, Intel research grants
thanks

Thanks!

http://opera.cs.uiuc.edu
