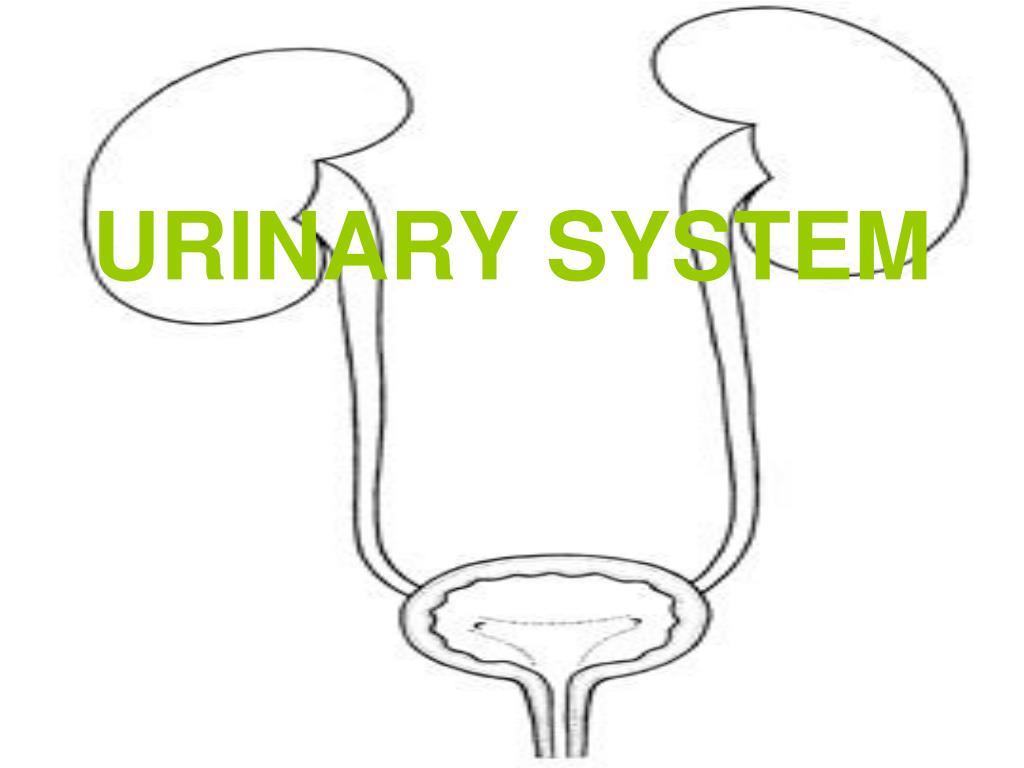

  1. URINARY SYSTEM

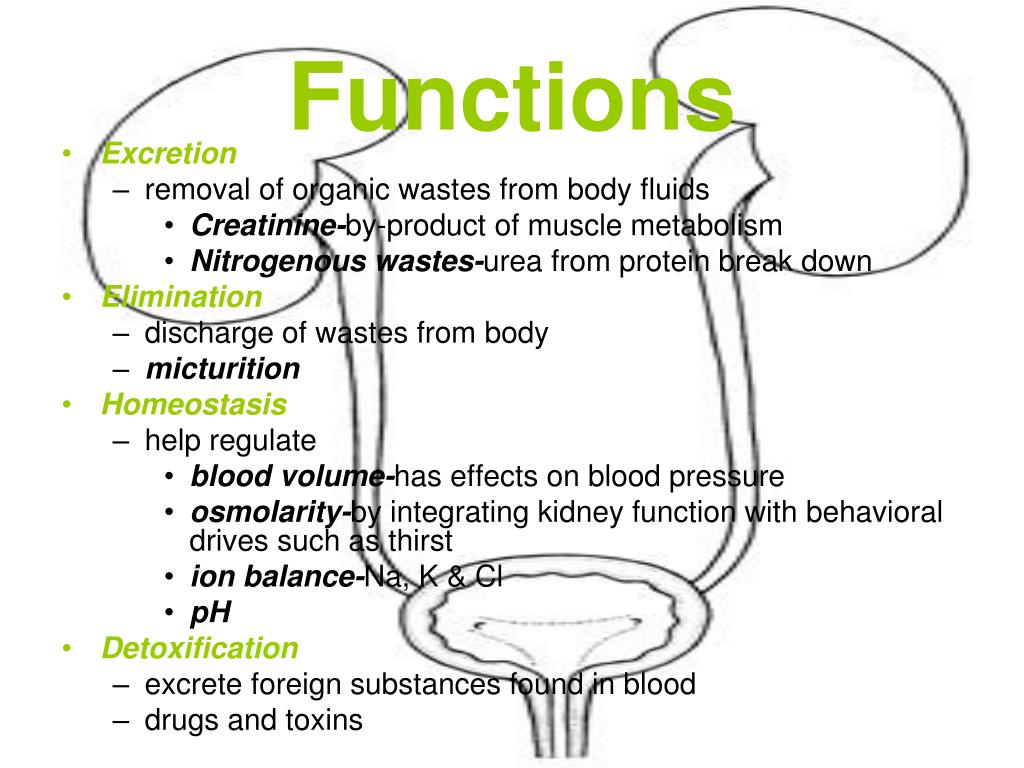

  2. Functions • Excretion • removal of organic wastes from body fluids • Creatinine-by-product ofmuscle metabolism • Nitrogenous wastes-urea from protein break down • Elimination • discharge of wastes from body • micturition • Homeostasis • help regulate • blood volume-has effects on blood pressure • osmolarity-by integrating kidney function with behavioral drives such as thirst • ion balance-Na, K & Cl • pH • Detoxification • excrete foreign substances found in blood • drugs and toxins

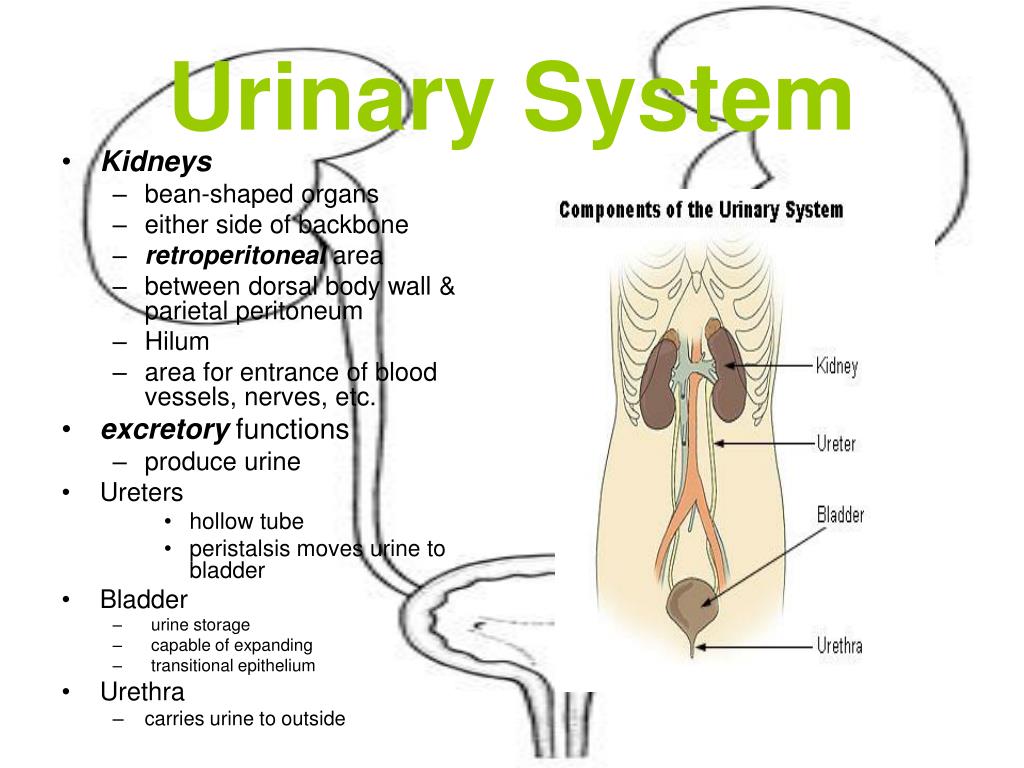

  3. Urinary System • Kidneys • bean-shaped organs • either side of backbone • retroperitonealarea • between dorsal body wall & parietal peritoneum • Hilum • area for entrance of blood vessels, nerves, etc. • excretory functions • produce urine • Ureters • hollow tube • peristalsis moves urine to bladder • Bladder • urine storage • capable of expanding • transitional epithelium • Urethra • carries urine to outside

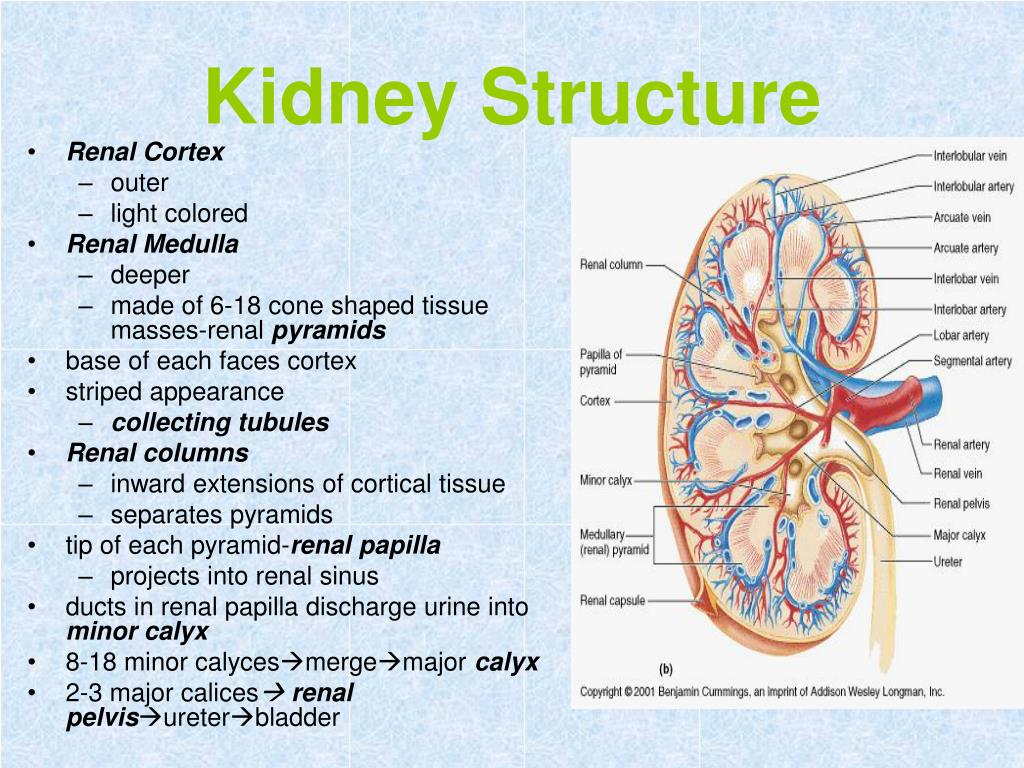

  4. Kidney Structure • Renal Cortex • outer • lightcolored • Renal Medulla • deeper • made of 6-18 cone shaped tissue masses-renal pyramids • base of each faces cortex • striped appearance • collecting tubules • Renal columns • inward extensions of cortical tissue • separates pyramids • tip of each pyramid-renal papilla • projects into renal sinus • ducts in renal papilla discharge urine into minor calyx • 8-18 minor calycesmergemajor calyx • 2-3 majorcalicesrenal pelvisureterbladder

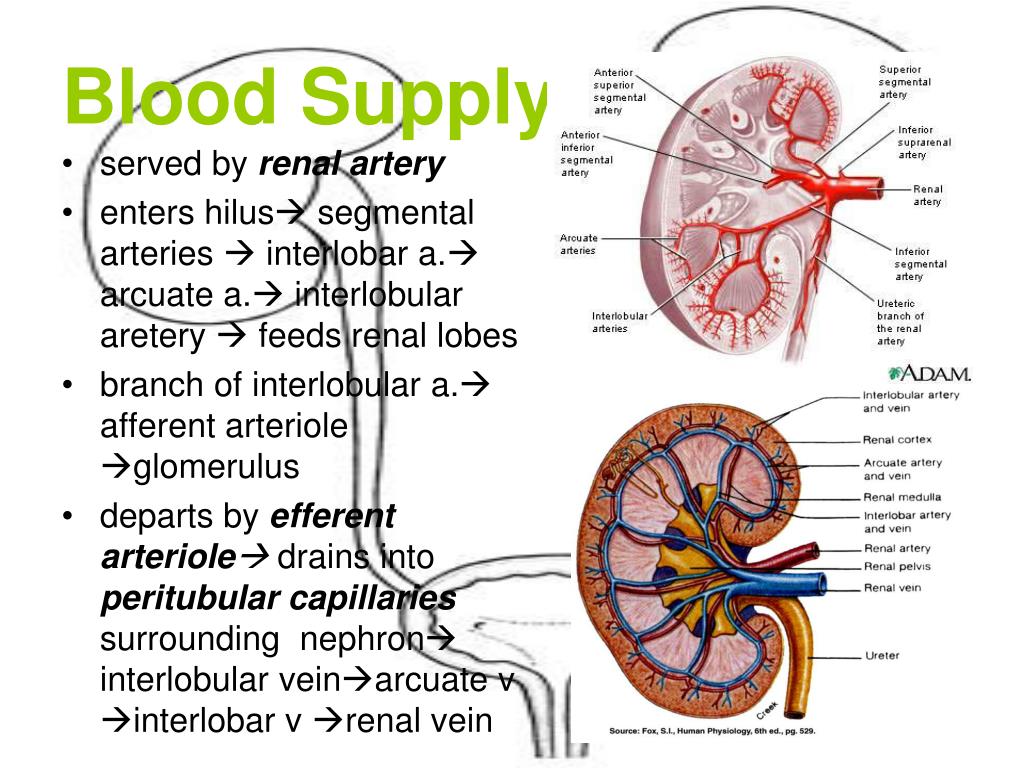

  5. Blood Supply • served by renal artery • enters hilus segmental arteries  interlobar a. arcuatea. interlobular aretery  feeds renal lobes • branch of interlobular a. afferent arteriole glomerulus • departs by efferent arterioledrains into peritubular capillaries surrounding nephron interlobular veinarcuate v interlobar v renal vein

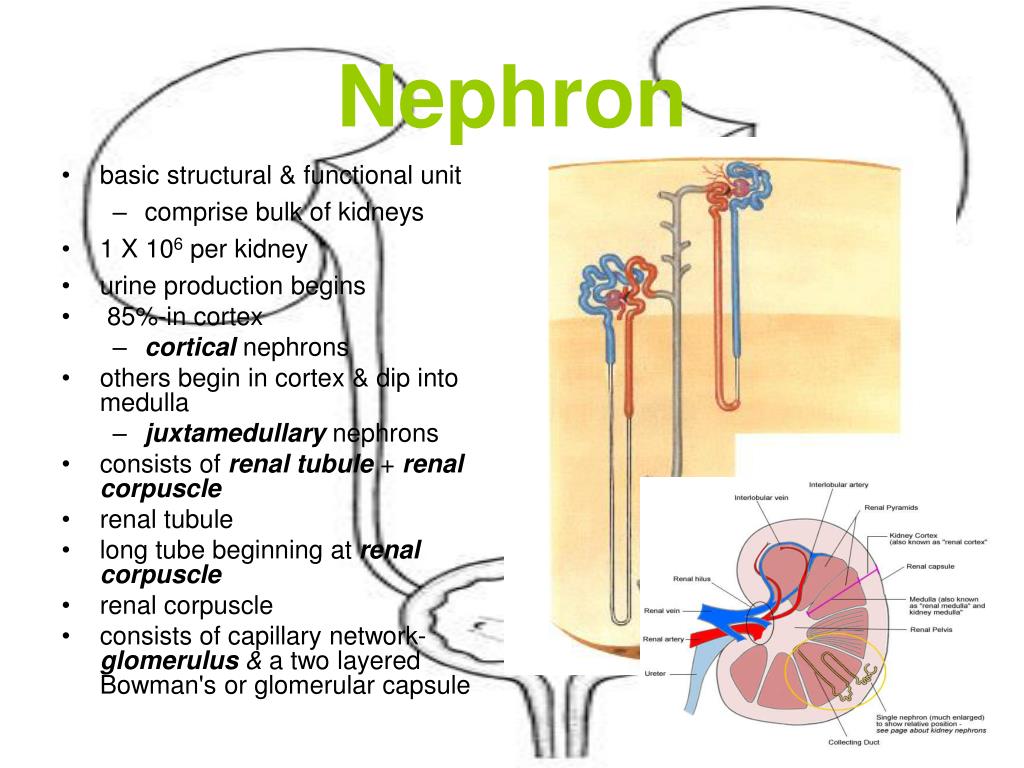

  6. Nephron • basic structural & functional unit • comprise bulk of kidneys • 1 X 106 per kidney • urine production begins • 85%-in cortex • cortical nephrons • others begin in cortex & dip intomedulla • juxtamedullarynephrons • consists of renal tubule + renal corpuscle • renal tubule • long tube beginning at renalcorpuscle • renal corpuscle • consists of capillary network-glomerulus & a two layered Bowman's or glomerular capsule

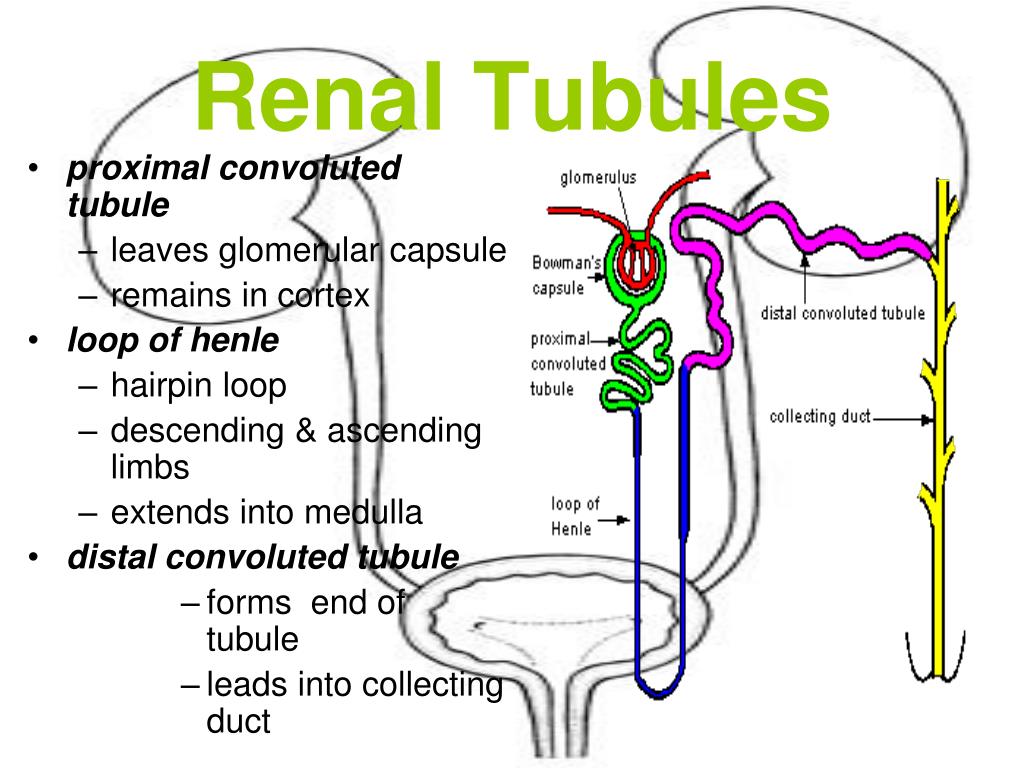

  7. Renal Tubules • proximal convoluted tubule • leaves glomerular capsule • remains in cortex • loop of henle • hairpin loop • descending & ascending limbs • extends into medulla • distal convoluted tubule • forms end of tubule • leads into collecting duct

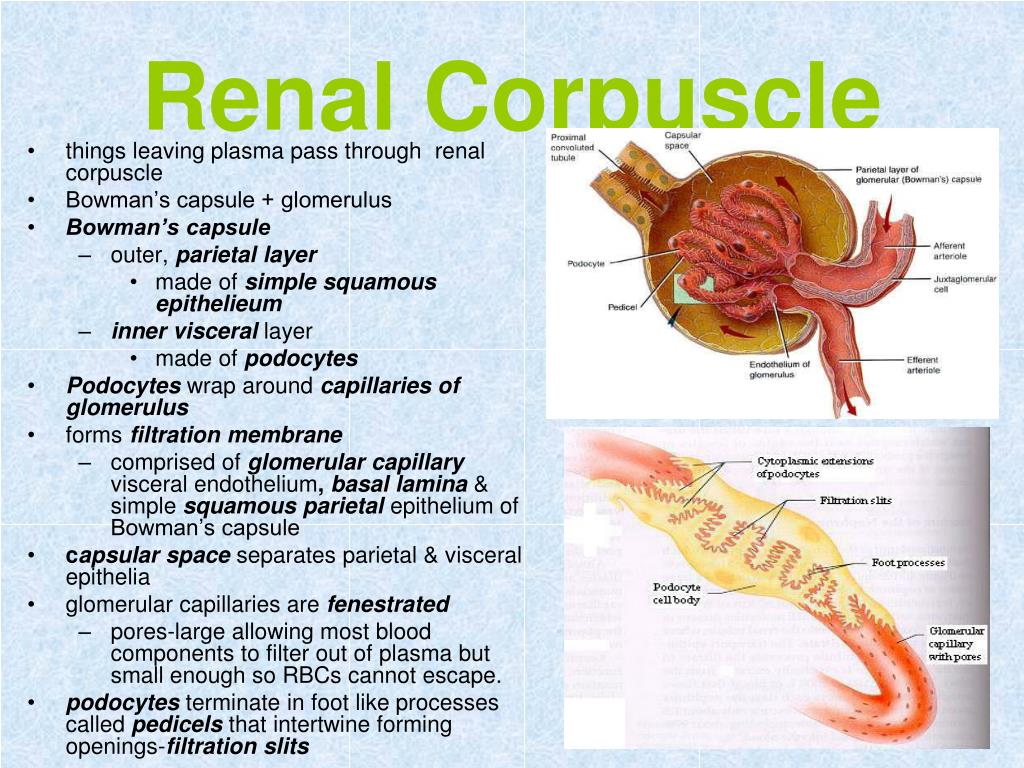

  8. Renal Corpuscle • things leaving plasma pass through renal corpuscle • Bowman’s capsule + glomerulus • Bowman’s capsule • outer, parietal layer • made of simple squamous epithelieum • inner visceral layer • madeof podocytes • Podocytes wrap around capillaries of glomerulus • forms filtration membrane • comprised of glomerular capillaryvisceral endothelium, basal lamina&simple squamous parietal epithelium of Bowman’s capsule • capsular space separates parietal & visceral epithelia • glomerular capillaries are fenestrated • pores-large allowing most blood components to filter out of plasma but small enough so RBCs cannot escape. • podocytes terminate in foot like processes called pedicels that intertwine forming openings-filtration slits

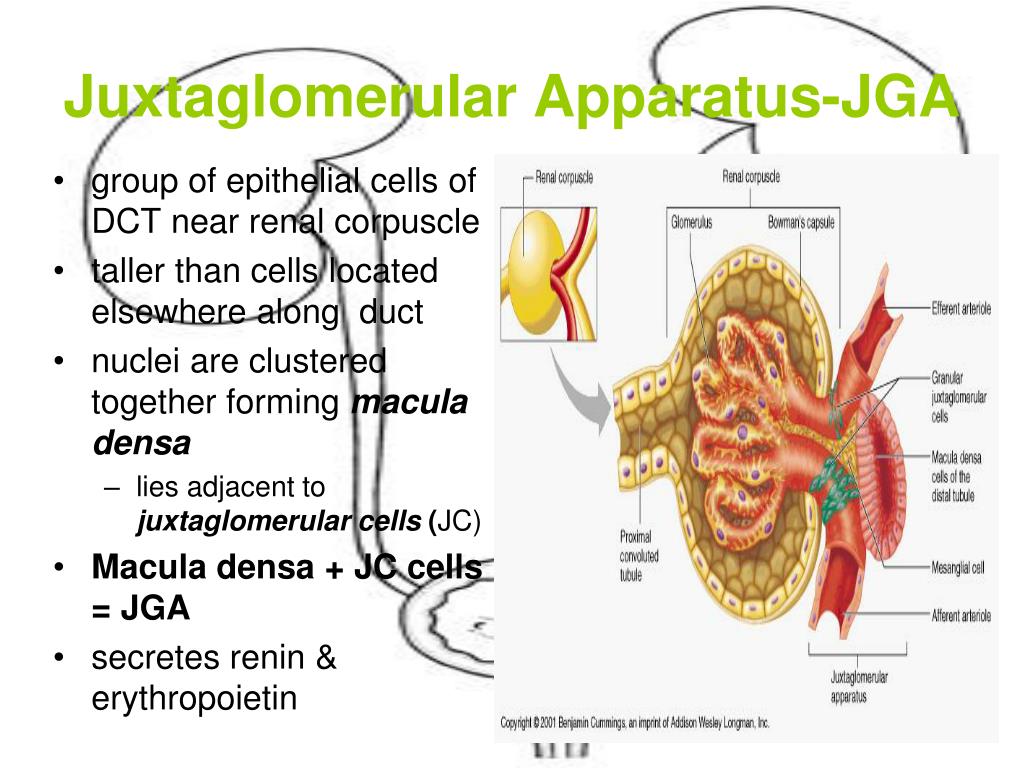

  9. Juxtaglomerular Apparatus-JGA • group of epithelial cells of DCT near renal corpuscle • taller than cells located elsewhere along duct • nuclei are clustered together forming macula densa • lies adjacent to juxtaglomerularcells (JC) • Macula densa + JC cells = JGA • secretes renin & erythropoietin

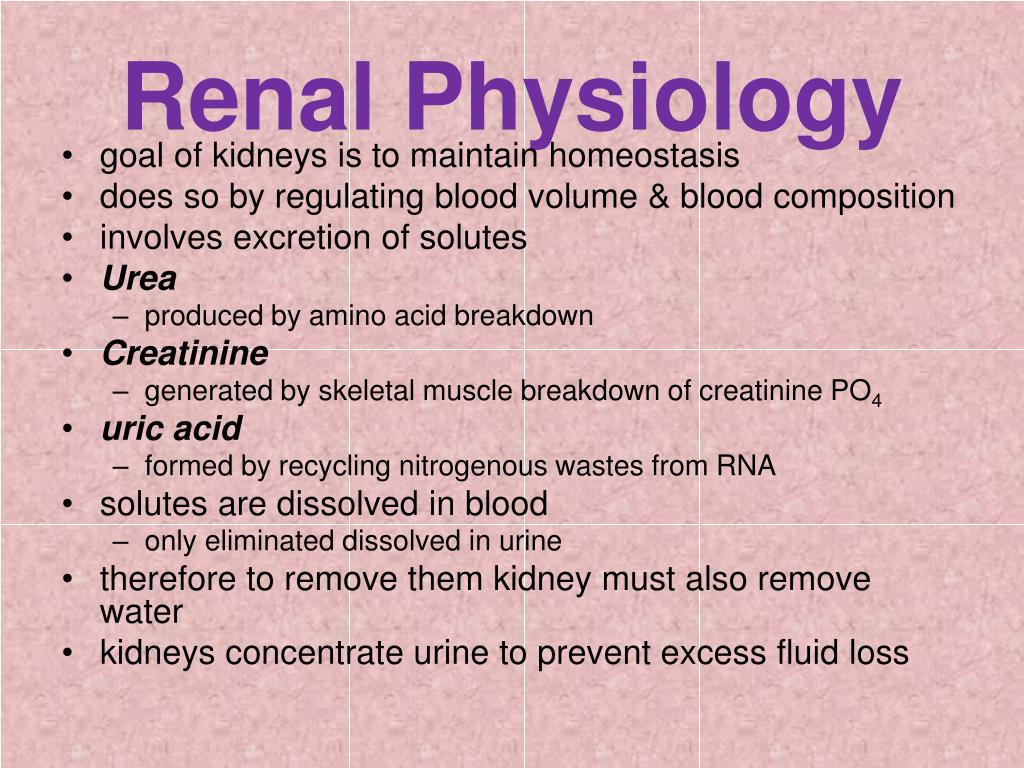

  10. Renal Physiology • goal of kidneys is to maintain homeostasis • does so by regulating blood volume & blood composition • involves excretion of solutes • Urea • produced by amino acid breakdown • Creatinine • generated by skeletal muscle breakdown of creatinine PO4 • uric acid • formed by recycling nitrogenous wastes from RNA • solutes are dissolved in blood • only eliminated dissolved in urine • therefore to remove them kidney must also remove water • kidneys concentrate urine to prevent excess fluid loss

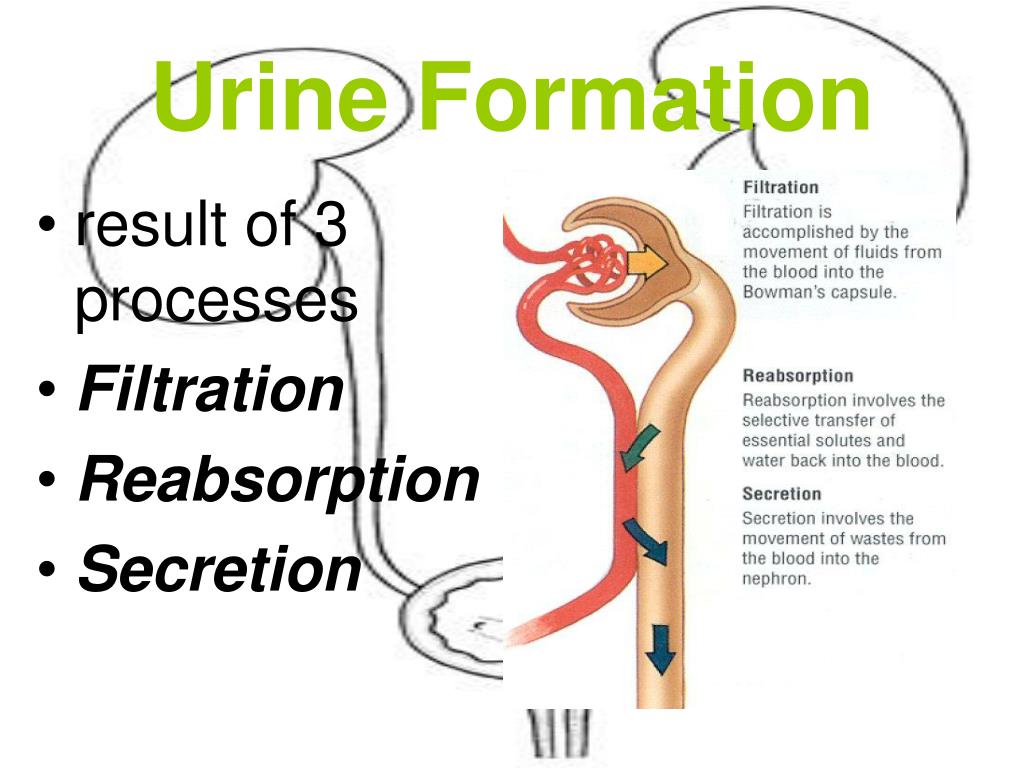

  11. Urine Formation • result of 3 processes • Filtration • Reabsorption • Secretion

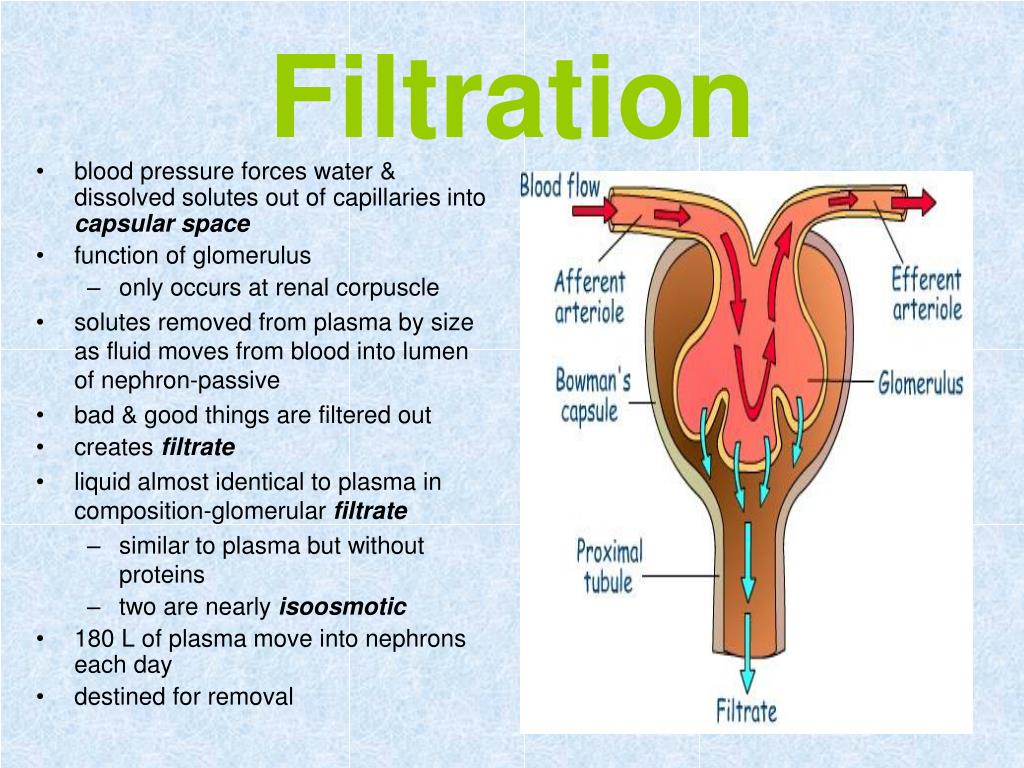

  12. Filtration • blood pressure forces water & dissolved solutes out of capillaries into capsular space • function of glomerulus • only occurs at renal corpuscle • solutes removed from plasma by size as fluid moves from blood into lumen of nephron-passive • bad & good things are filtered out • creates filtrate • liquidalmost identical to plasma in composition-glomerular filtrate • similar to plasma but without proteins • two are nearly isoosmotic • 180 L of plasma move into nephrons each day • destined for removal

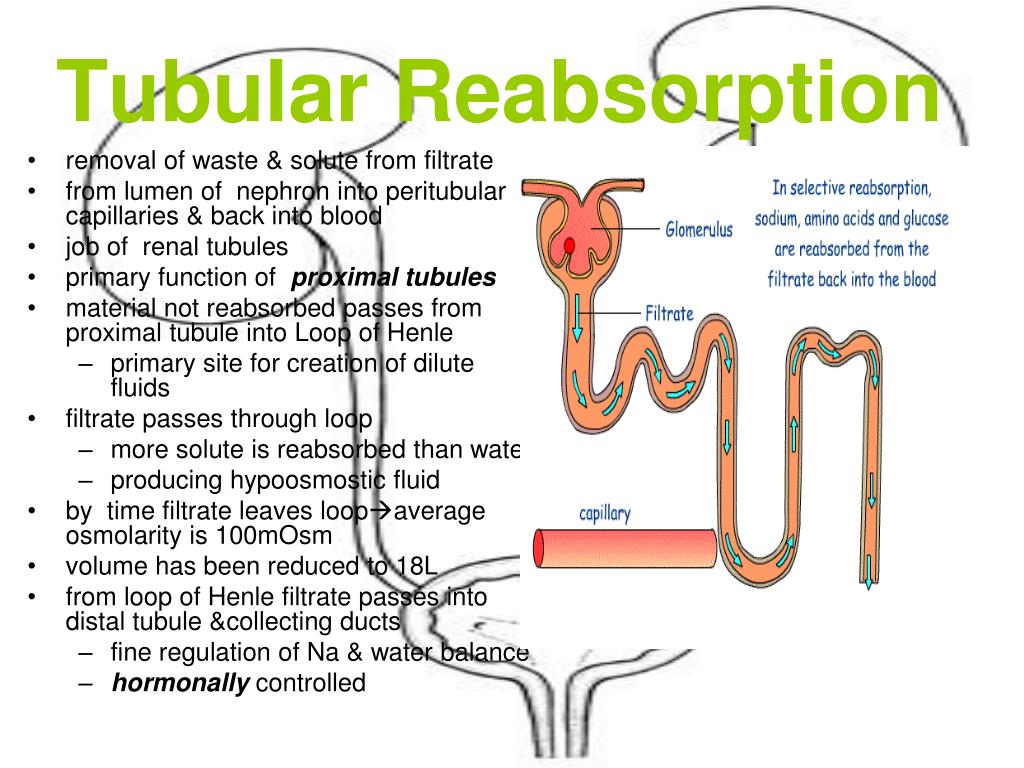

  13. Tubular Reabsorption • removal of waste & solute from filtrate • from lumen of nephron into peritubular capillaries & back into blood • job of renal tubules • primary function of proximal tubules • material not reabsorbed passes from proximal tubule into Loop of Henle • primary site for creation of dilute fluids • filtrate passes through loop • more solute is reabsorbed than water • producing hypoosmostic fluid • by time filtrate leaves loopaverage osmolarity is 100mOsm • volume has been reduced to 18L • from loop of Henle filtrate passes into distal tubule &collecting ducts • fine regulation of Na & water balance • hormonally controlled

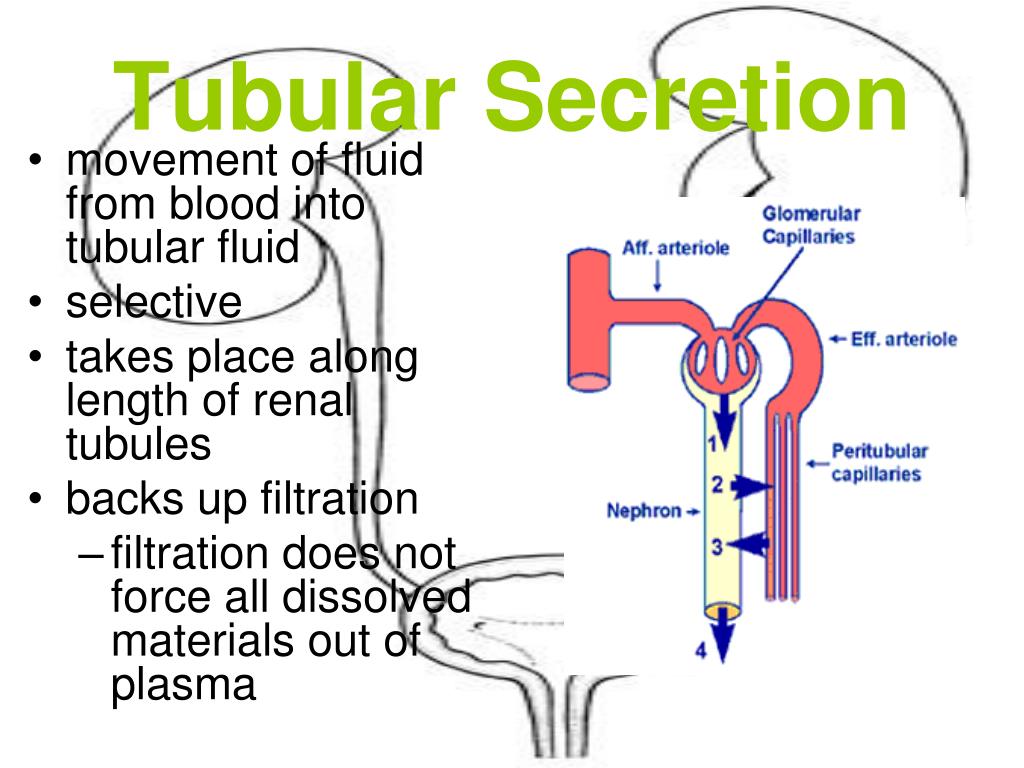

  14. Tubular Secretion • movement of fluid from blood into tubular fluid • selective • takes place along length of renal tubules • backs up filtration • filtration does not force all dissolved materials out of plasma

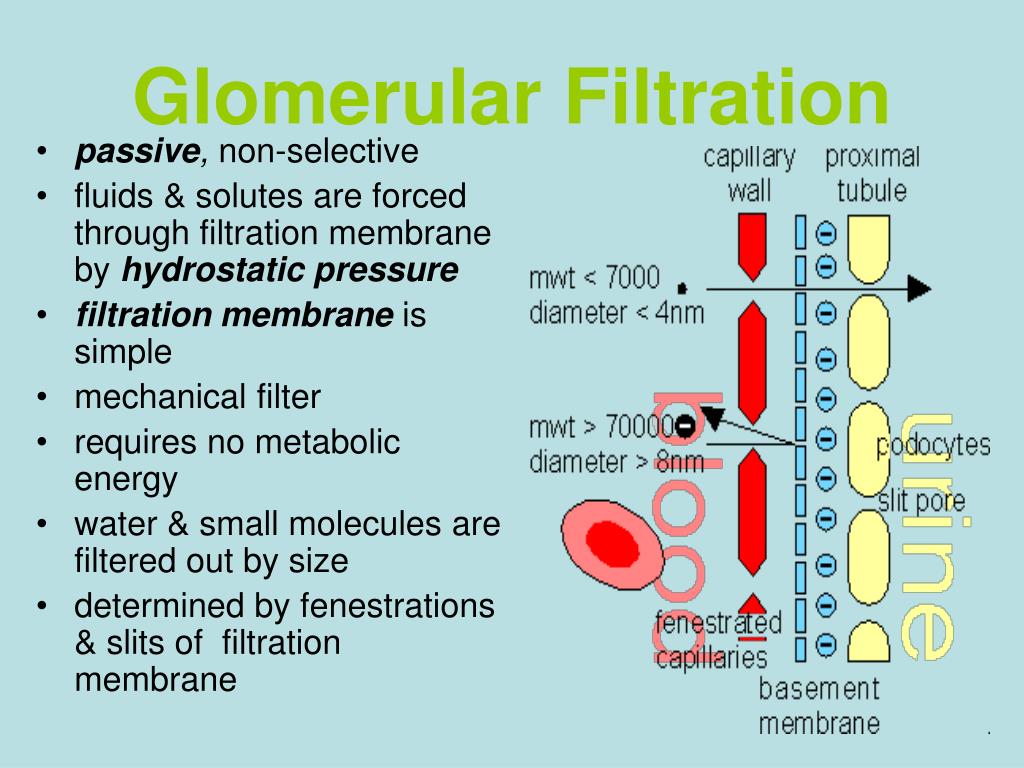

  15. Glomerular Filtration • passive, non-selective • fluids & solutes are forced through filtration membrane by hydrostatic pressure • filtration membraneis simple • mechanical filter • requires nometabolic energy • water & small molecules are filtered out by size • determined by fenestrations & slits of filtration membrane

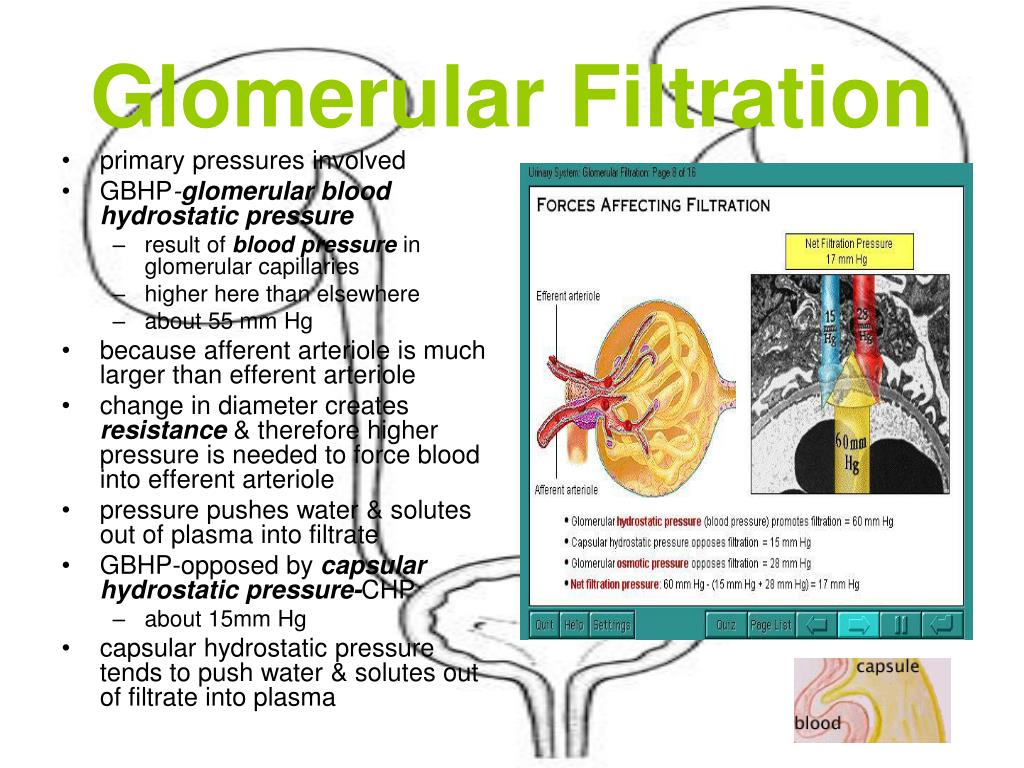

  16. Glomerular Filtration • primary pressures involved • GBHP-glomerular bloodhydrostaticpressure • result ofblood pressure in glomerular capillaries • higher here than elsewhere • about 55 mm Hg • because afferent arteriole is much larger than efferent arteriole • change in diameter creates resistance & therefore higher pressure is needed to force blood into efferent arteriole • pressure pushes water & solutes out of plasma into filtrate • GBHP-opposed by capsular hydrostatic pressure-CHP • about 15mm Hg • capsular hydrostatic pressure tends to push water & solutes out of filtrate into plasma

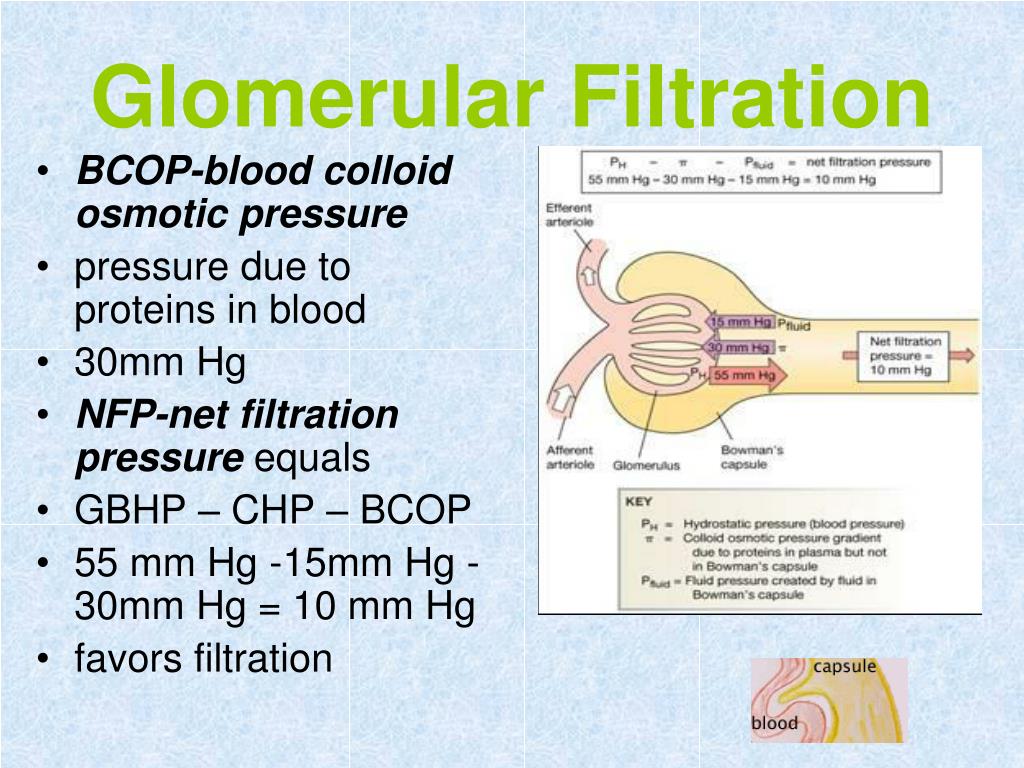

  17. Glomerular Filtration • BCOP-blood colloid osmotic pressure • pressure due to proteins in blood • 30mm Hg • NFP-net filtration pressure equals • GBHP – CHP – BCOP • 55 mm Hg -15mm Hg -30mm Hg = 10 mm Hg • favors filtration

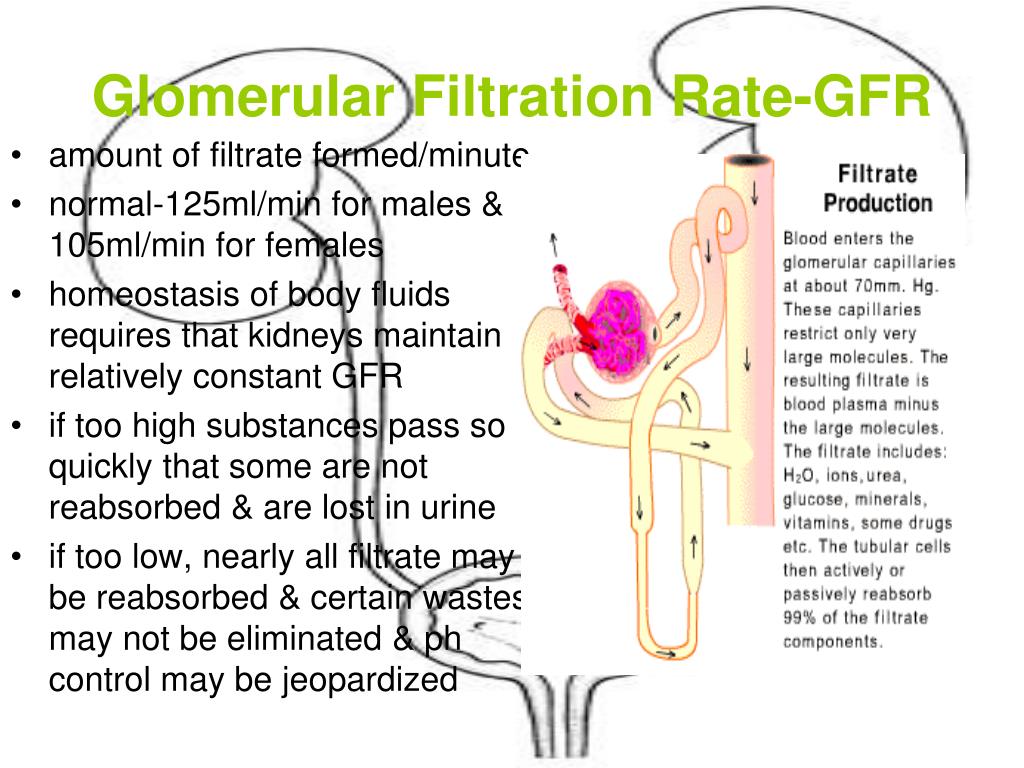

  18. Glomerular Filtration Rate-GFR • amount of filtrate formed/minute • normal-125ml/min for males & 105ml/min for females • homeostasis of body fluids requires that kidneys maintain relatively constant GFR • if too high substances pass so quickly that some are not reabsorbed & are lost in urine • if too low, nearly all filtrate may be reabsorbed & certain wastes may not be eliminated & ph control may be jeopardized

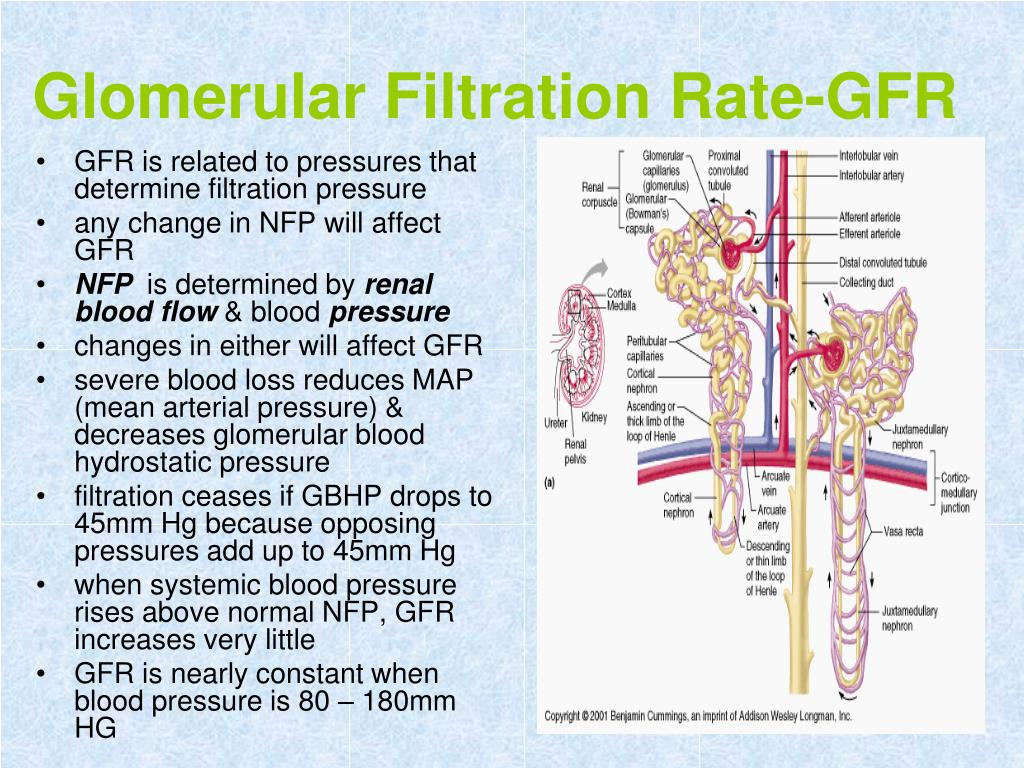

  19. Glomerular Filtration Rate-GFR • GFR is related to pressures that determine filtration pressure • any change in NFP will affect GFR • NFP is determined by renal blood flow & blood pressure • changes in either will affect GFR • severe blood loss reduces MAP (mean arterial pressure) & decreases glomerular blood hydrostatic pressure • filtration ceases if GBHP drops to 45mm Hg because opposing pressures add up to 45mm Hg • when systemic blood pressure rises above normal NFP, GFR increases very little • GFR is nearly constant when blood pressure is 80 – 180mm HG

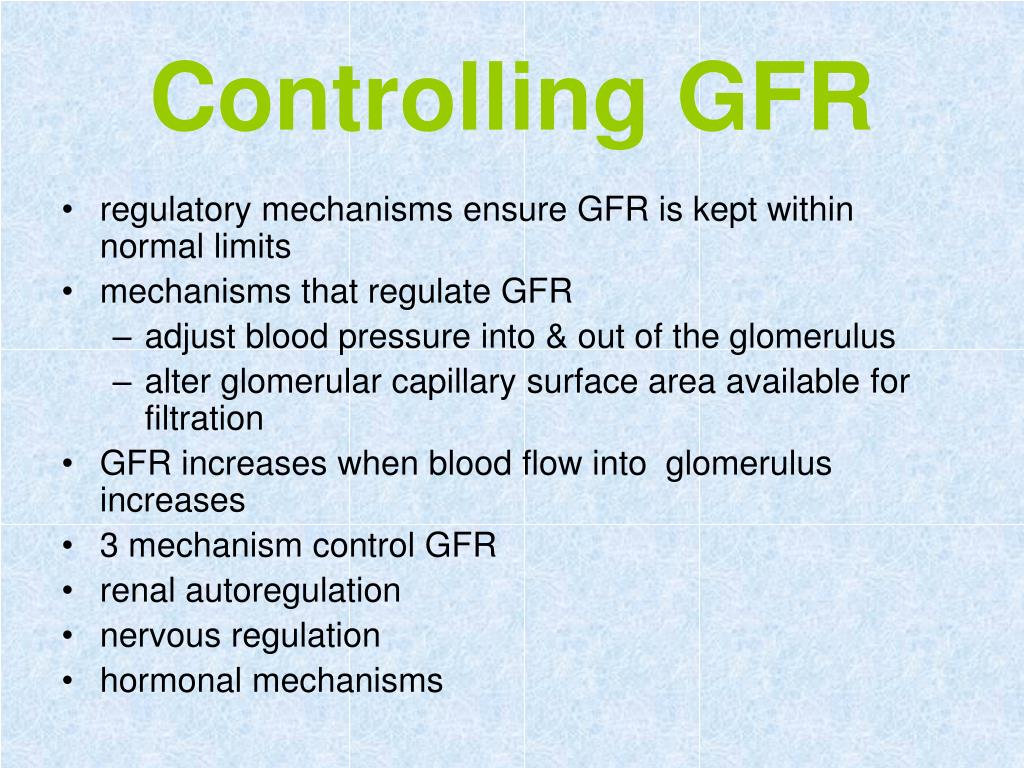

  20. Controlling GFR • regulatory mechanisms ensure GFR is kept within normal limits • mechanisms that regulate GFR • adjust blood pressure into & out of the glomerulus • alter glomerular capillary surface area available for filtration • GFR increases when blood flow into glomerulus increases • 3 mechanism control GFR • renal autoregulation • nervous regulation • hormonal mechanisms

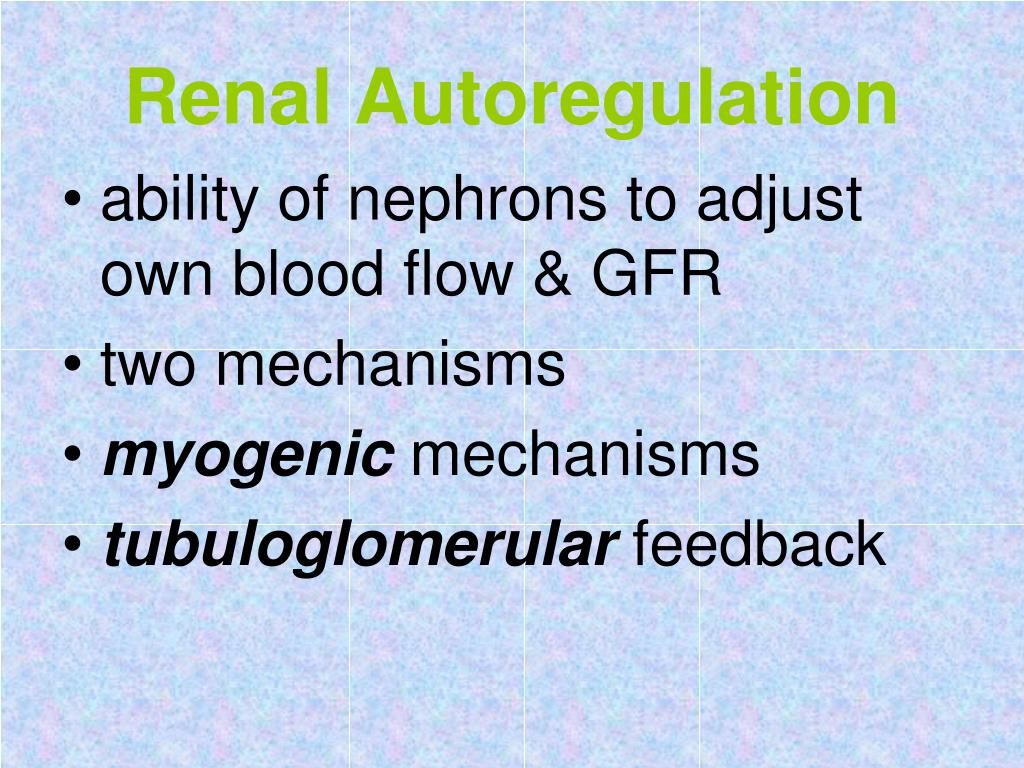

  21. Renal Autoregulation • ability of nephrons to adjust own blood flow & GFR • two mechanisms • myogenic mechanisms • tubuloglomerular feedback

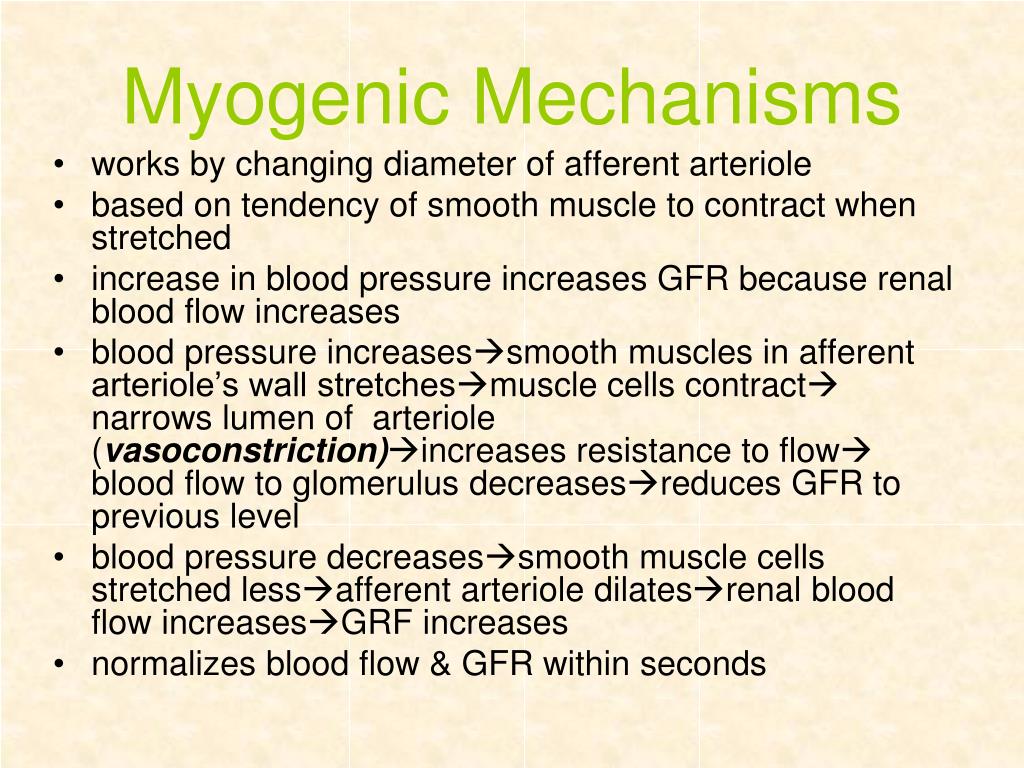

  22. Myogenic Mechanisms • works by changing diameter of afferent arteriole • based on tendency of smooth muscle to contract when stretched • increase in blood pressure increases GFR because renal blood flow increases • blood pressure increasessmooth muscles in afferent arteriole’s wall stretchesmuscle cells contract narrows lumen of arteriole (vasoconstriction)increases resistance to flow blood flow to glomerulus decreasesreduces GFR to previous level • blood pressure decreasessmooth muscle cells stretched lessafferent arteriole dilatesrenal blood flow increasesGRF increases • normalizes blood flow & GFR within seconds

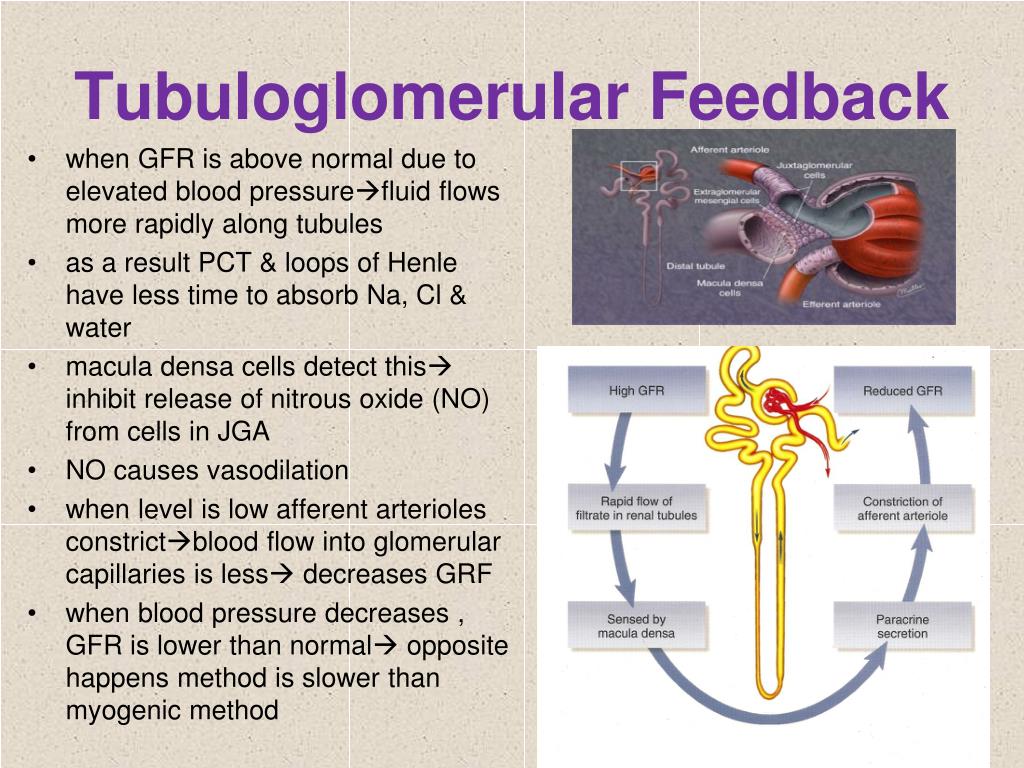

  23. Tubuloglomerular Feedback • when GFR is above normal due to elevated blood pressurefluid flows more rapidly along tubules • as a result PCT & loops of Henle have less time to absorb Na, Cl & water • macula densa cells detect this inhibit release of nitrous oxide (NO) from cells in JGA • NO causes vasodilation • when level is low afferent arterioles constrictblood flow into glomerular capillaries is less decreases GRF • when blood pressure decreases , GFR is lower than normal opposite happens method is slower than myogenic method

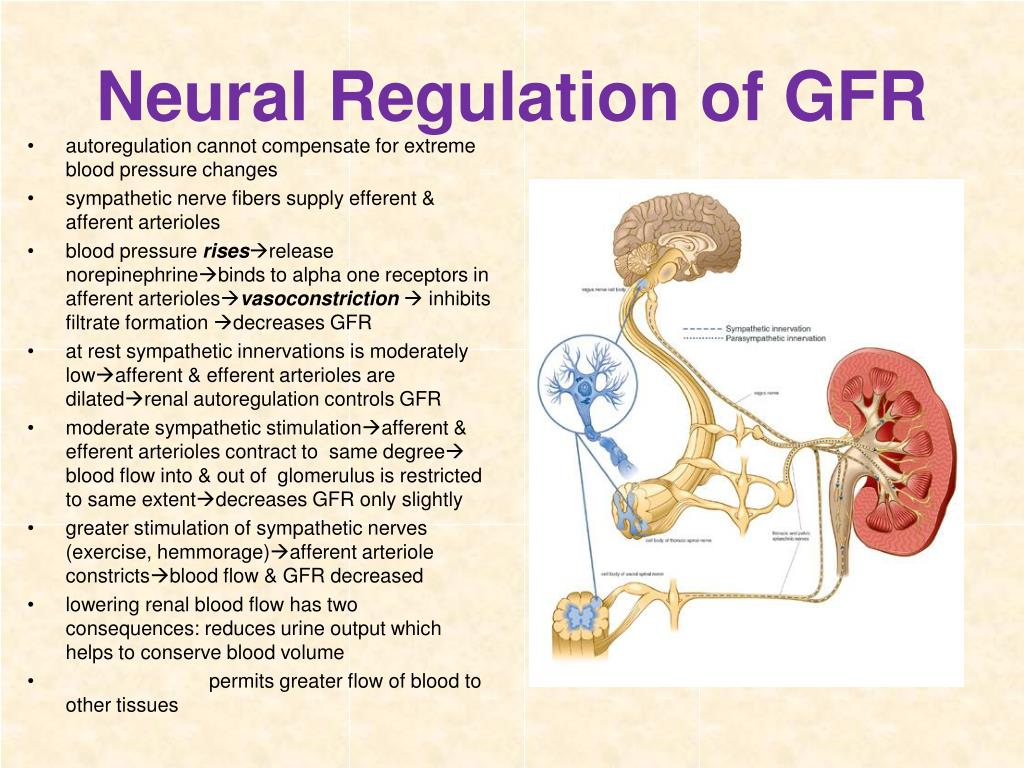

  24. Neural Regulation of GFR • autoregulation cannot compensate for extreme blood pressure changes • sympathetic nerve fibers supply efferent & afferent arterioles • blood pressure risesrelease norepinephrinebinds to alpha one receptors in afferent arteriolesvasoconstriction inhibits filtrate formation decreases GFR • at rest sympathetic innervations is moderately lowafferent & efferent arterioles are dilatedrenal autoregulation controls GFR • moderate sympathetic stimulationafferent & efferent arterioles contract to same degree blood flow into & out of glomerulus is restricted to same extentdecreases GFR only slightly • greater stimulation of sympathetic nerves (exercise, hemmorage)afferent arteriole constrictsblood flow & GFR decreased • lowering renal blood flow has two consequences: reduces urine output which helps to conserve blood volume • permits greater flow of blood to other tissues

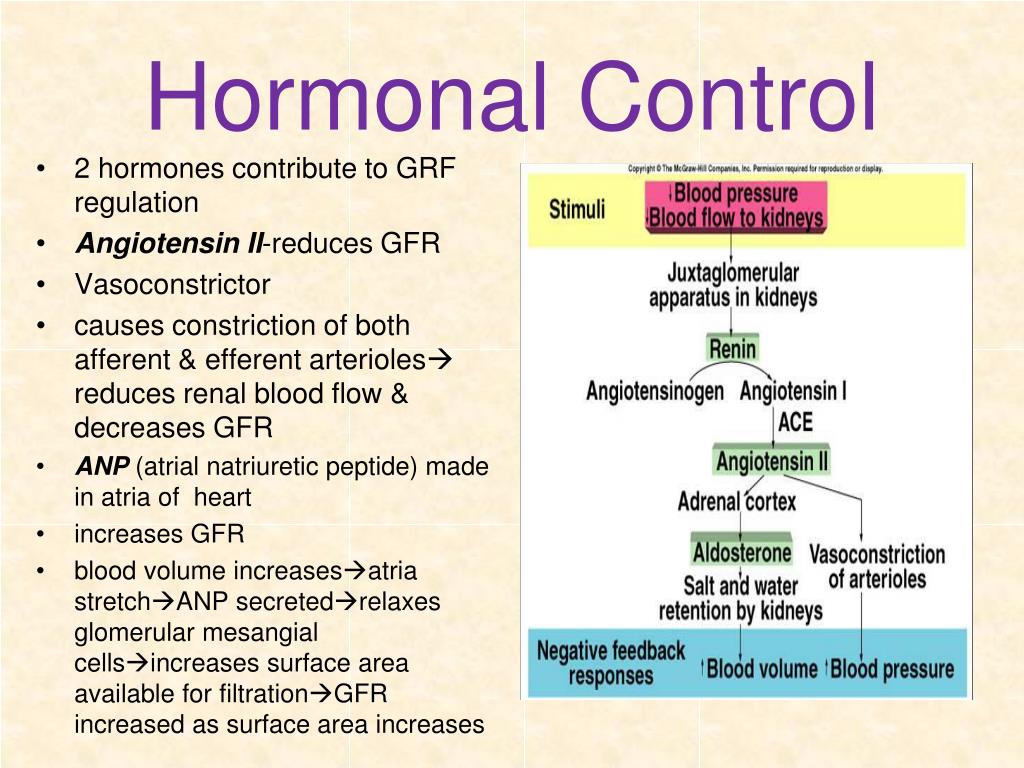

  25. Hormonal Control • 2 hormones contribute to GRF regulation • Angiotensin II-reduces GFR • Vasoconstrictor • causes constriction of both afferent & efferent arterioles reduces renal blood flow & decreases GFR • ANP (atrial natriuretic peptide) made in atria of heart • increases GFR • blood volume increasesatria stretchANP secretedrelaxes glomerular mesangial cellsincreases surface area available for filtrationGFR increased as surface area increases

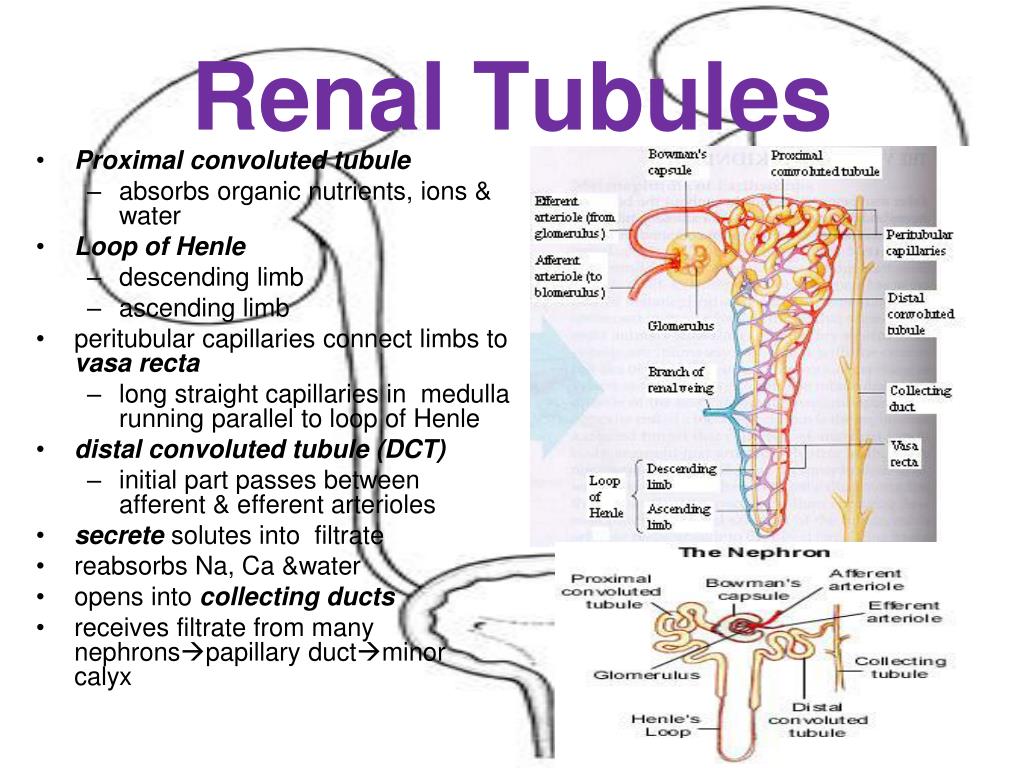

  26. Renal Tubules • Proximal convolutedtubule • absorbs organic nutrients, ions & water • Loop of Henle • descending limb • ascending limb • peritubular capillaries connect limbs to vasa recta • long straight capillaries in medulla running parallel to loop of Henle • distal convoluted tubule (DCT) • initial part passes between afferent & efferent arterioles • secrete solutes into filtrate • reabsorbs Na, Ca &water • opens into collecting ducts • receives filtrate from many nephronspapillary ductminor calyx

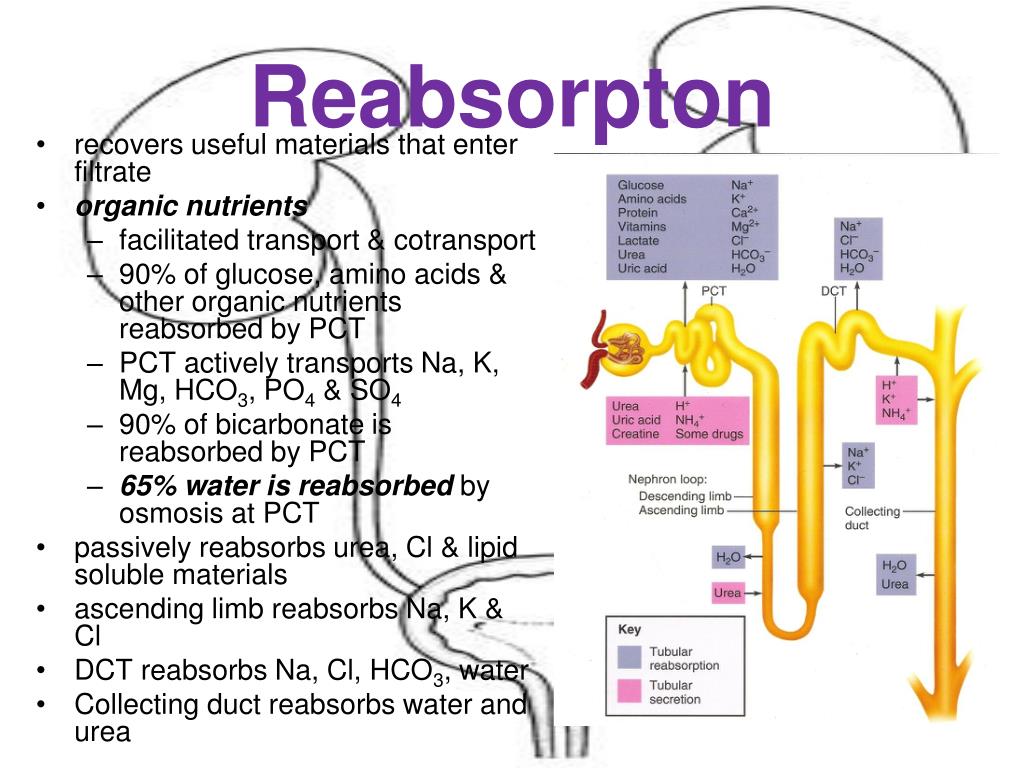

  27. Reabsorpton • recovers useful materials that enter filtrate • organic nutrients • facilitated transport & cotransport • 90% of glucose, amino acids & other organic nutrients reabsorbed by PCT • PCT actively transports Na, K, Mg, HCO3, PO4 & SO4 • 90% of bicarbonate is reabsorbed by PCT • 65% water is reabsorbed by osmosis at PCT • passively reabsorbs urea, Cl & lipid soluble materials • ascending limb reabsorbs Na, K & Cl • DCT reabsorbs Na, Cl, HCO3, water • Collecting duct reabsorbs water and urea

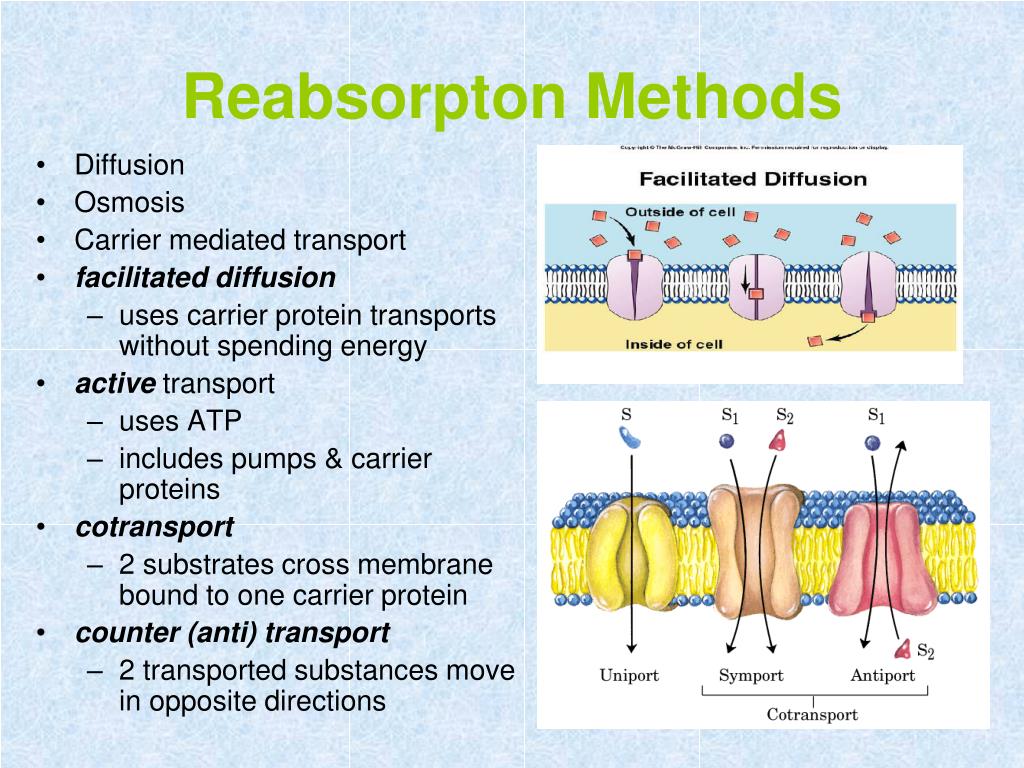

  28. Reabsorpton Methods • Diffusion • Osmosis • Carrier mediated transport • facilitated diffusion • uses carrier protein transports without spending energy • activetransport • uses ATP • includes pumps & carrier proteins • cotransport • 2 substrates cross membrane bound to one carrier protein • counter (anti) transport • 2 transported substances move in opposite directions

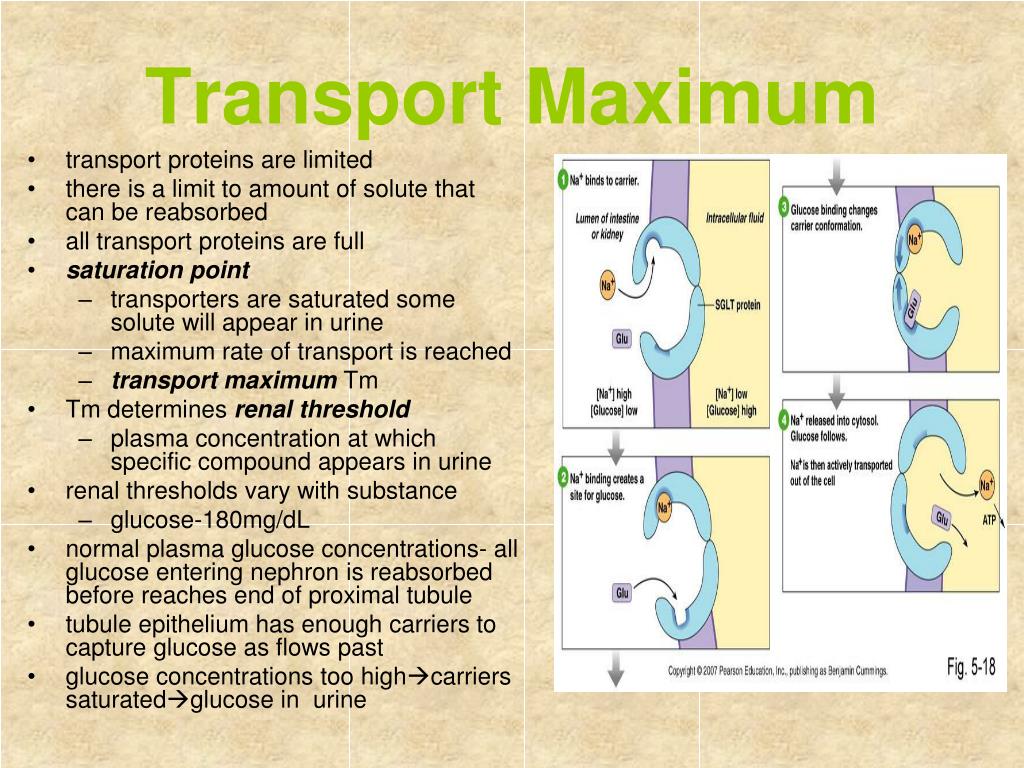

  29. Transport Maximum • transport proteins are limited • there is a limit to amount of solute that can be reabsorbed • all transport proteins are full • saturation point • transporters are saturated some solute will appear in urine • maximum rate of transport is reached • transport maximum Tm • Tm determines renal threshold • plasma concentration at which specific compound appears in urine • renal thresholds vary with substance • glucose-180mg/dL • normal plasma glucose concentrations- all glucose entering nephron is reabsorbed before reaches end of proximal tubule • tubule epithelium has enough carriers to capture glucose as flows past • glucose concentrations too highcarriers saturatedglucose in urine

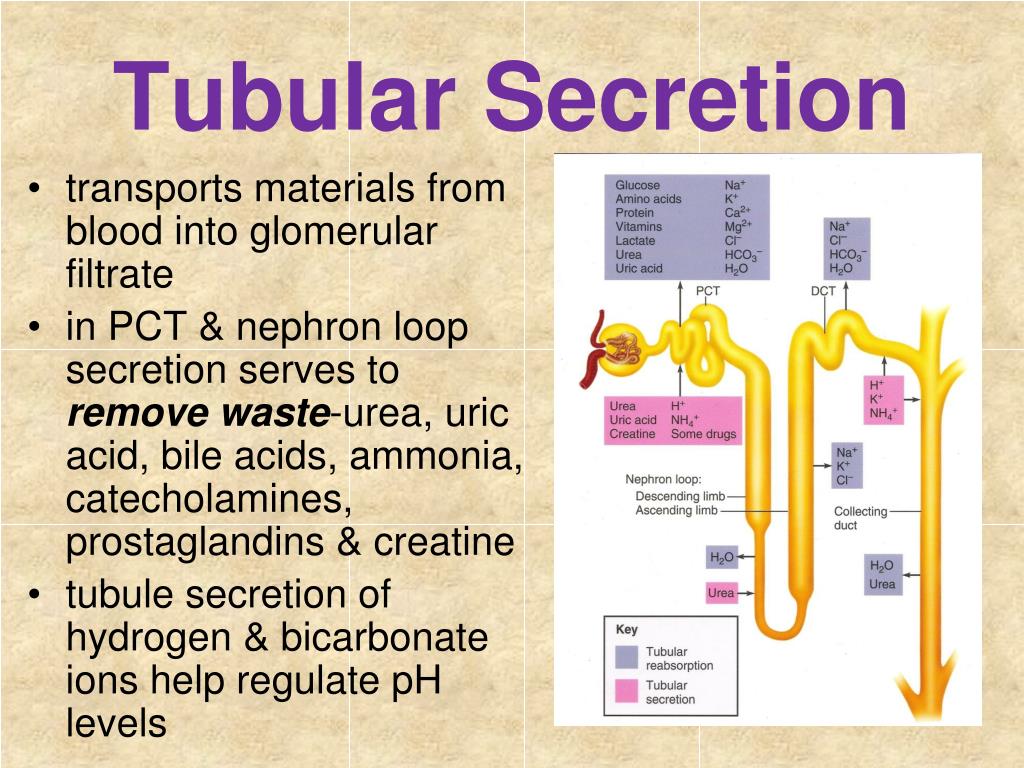

  30. Tubular Secretion • transports materials from blood into glomerular filtrate • in PCT & nephron loop secretion serves to remove waste-urea, uric acid, bile acids, ammonia, catecholamines, prostaglandins & creatine • tubule secretion of hydrogen & bicarbonate ions help regulate pH levels

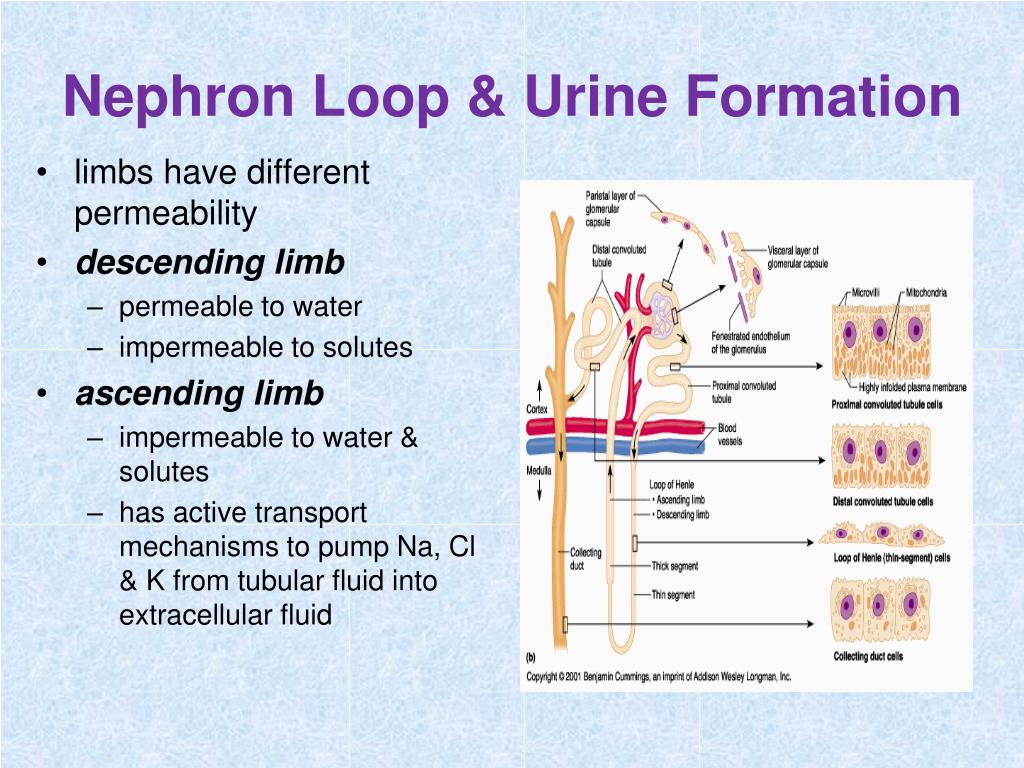

  31. Nephron Loop & Urine Formation • limbs have different permeability • descending limb • permeable to water • impermeable to solutes • ascending limb • impermeable to water & solutes • has active transport mechanisms to pump Na, Cl & K from tubular fluid into extracellular fluid

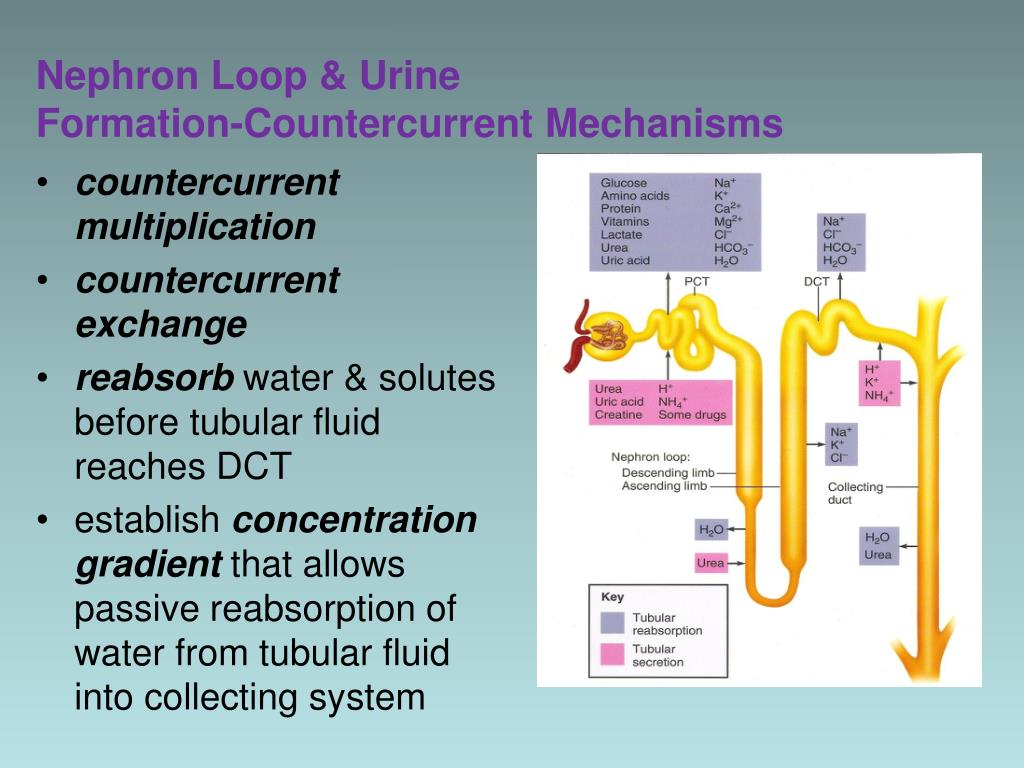

  32. Nephron Loop & Urine Formation-Countercurrent Mechanisms • countercurrent multiplication • countercurrent exchange • reabsorb water & solutes before tubular fluid reaches DCT • establish concentration gradient that allows passive reabsorption of water from tubular fluid into collecting system

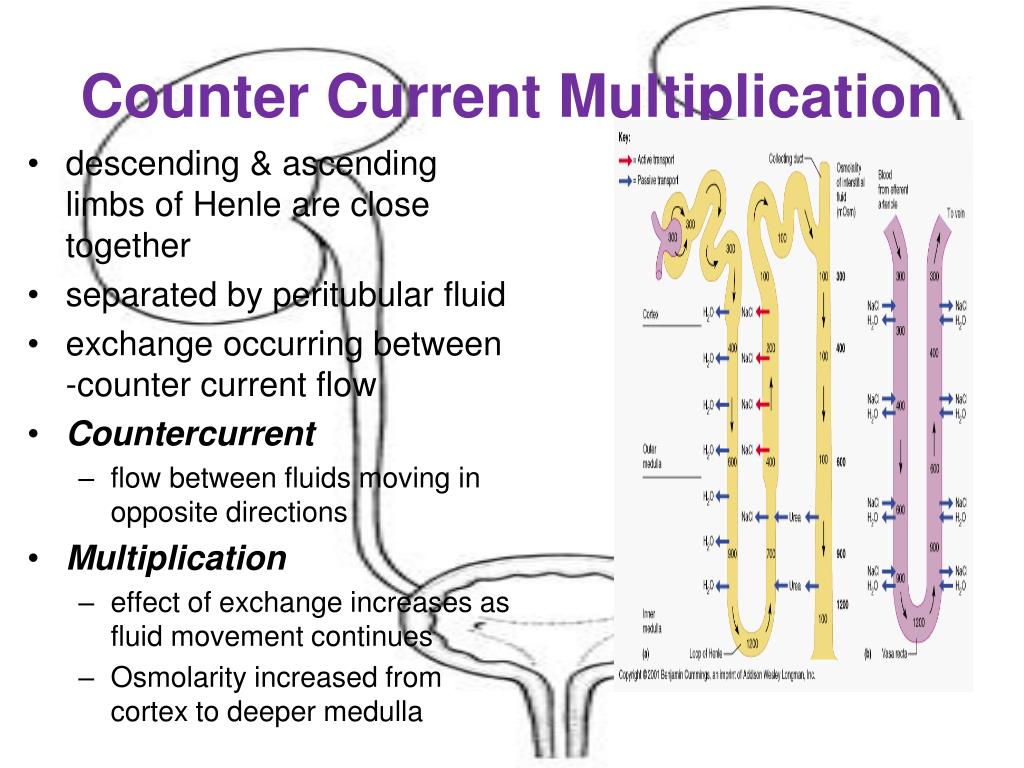

  33. Counter Current Multiplication • descending & ascending limbs of Henle are close together • separated by peritubular fluid • exchange occurring between -counter current flow • Countercurrent • flow between fluids moving in opposite directions • Multiplication • effectof exchange increases as fluid movement continues • Osmolarity increased from cortex to deeper medulla

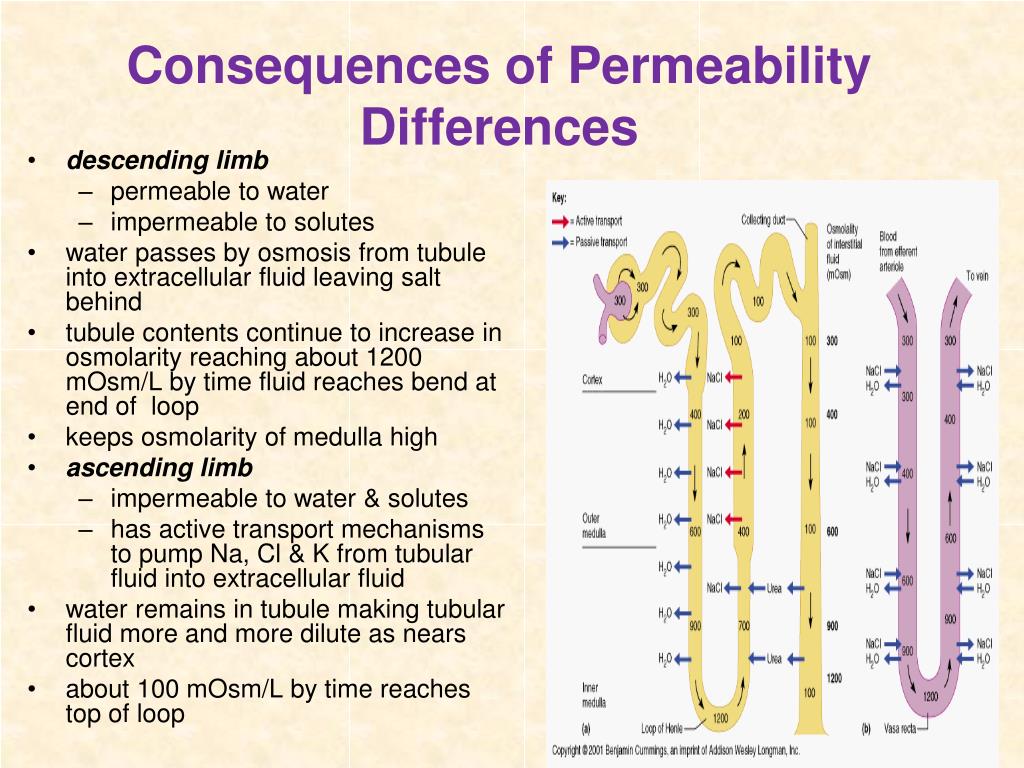

  34. Consequences of Permeability Differences • descending limb • permeable to water • impermeable to solutes • water passes by osmosis from tubule into extracellular fluid leaving salt behind • tubule contents continue to increase in osmolarity reaching about 1200 mOsm/L by time fluid reaches bend at end of loop • keeps osmolarity of medulla high • ascending limb • impermeable to water & solutes • has active transport mechanisms to pump Na, Cl & K from tubular fluid into extracellular fluid • water remains in tubule making tubular fluid more and more dilute as nears cortex • about 100 mOsm/L by time reaches top of loop

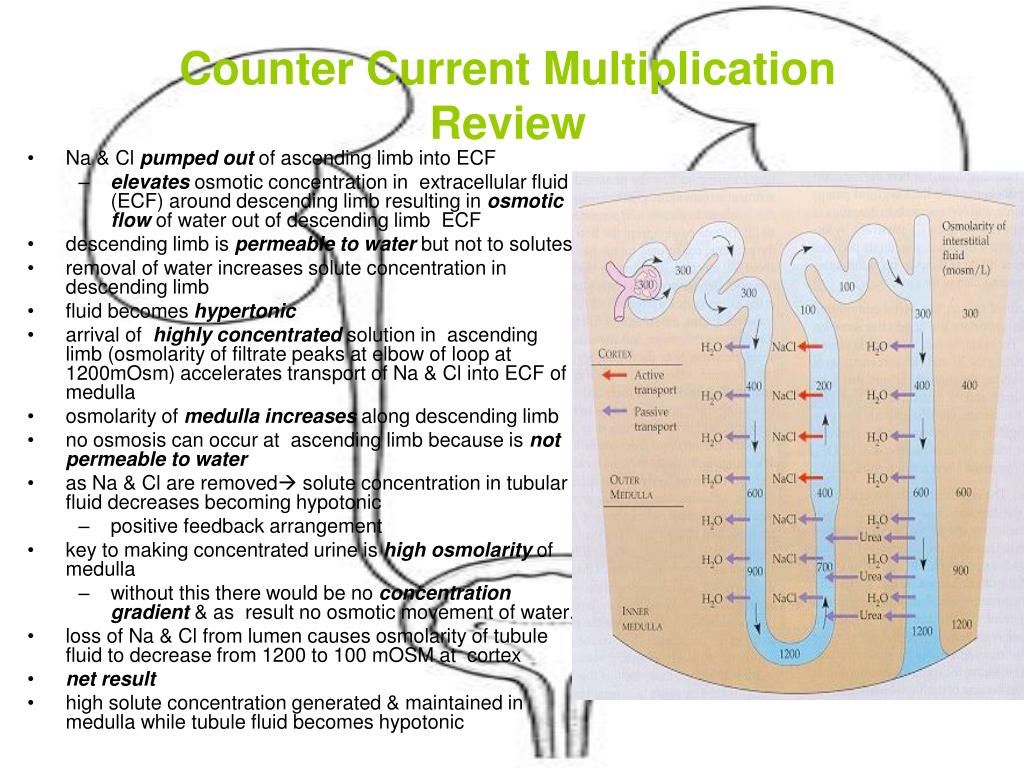

  35. Counter Current MultiplicationReview • Na & Cl pumped out of ascending limb into ECF • elevates osmotic concentration in extracellular fluid (ECF) around descending limb resulting in osmotic flow of water out of descending limb ECF • descending limb is permeable to water but not to solutes • removal of water increases solute concentration in descending limb • fluid becomes hypertonic • arrival of highly concentrated solution in ascending limb (osmolarity of filtrate peaks at elbow of loop at 1200mOsm) accelerates transport of Na & Cl into ECF of medulla • osmolarity of medullaincreases along descending limb • no osmosis can occur at ascending limb because is not permeable to water • as Na & Cl are removed solute concentration in tubular fluid decreases becoming hypotonic • positive feedback arrangement • key to making concentrated urine is high osmolarity of medulla • without this there would be no concentration gradient & as result no osmotic movement of water. • loss of Na & Cl from lumen causes osmolarity of tubule fluid to decrease from 1200 to 100 mOSM at cortex • net result • high solute concentration generated & maintained in medulla while tubule fluid becomes hypotonic

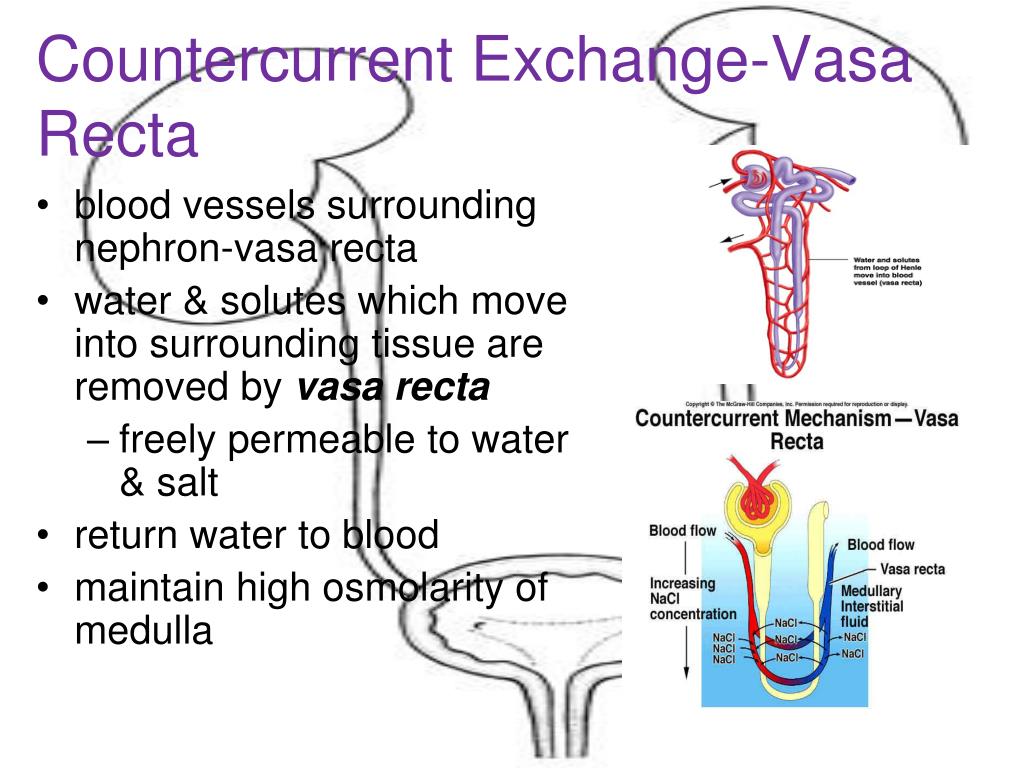

  36. Countercurrent Exchange-Vasa Recta • blood vessels surrounding nephron-vasa recta • water & solutes which move into surrounding tissue are removed by vasa recta • freely permeable to water & salt • return water to blood • maintain high osmolarity of medulla

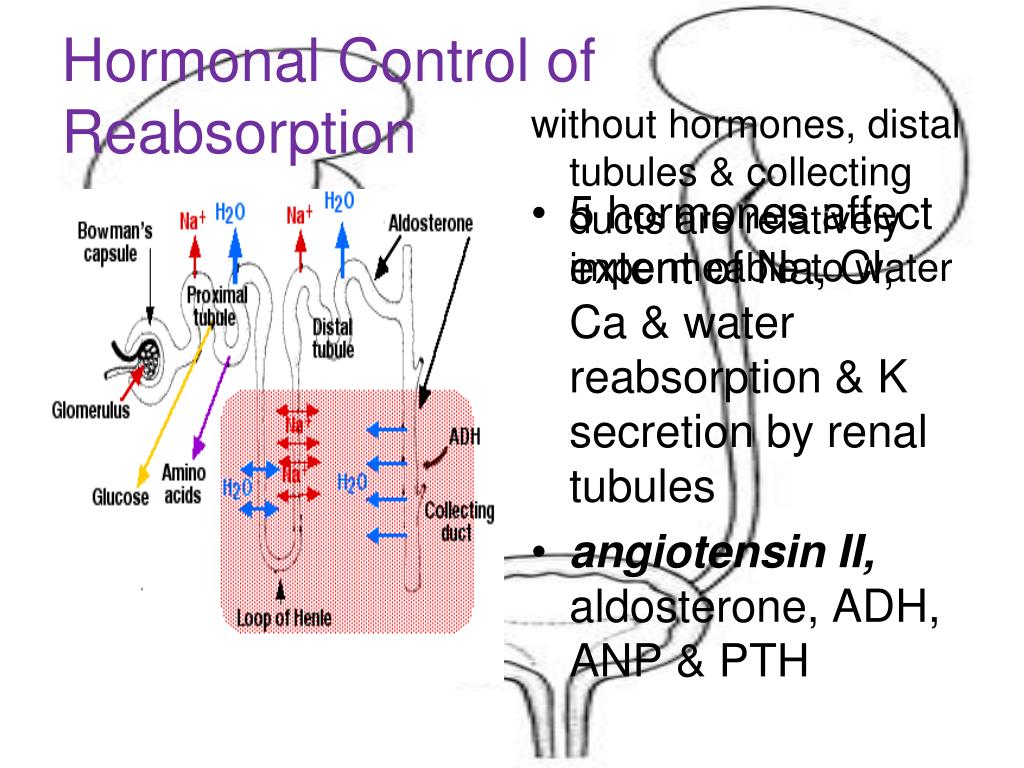

  37. Hormonal Control of Reabsorption withouthormones, distal tubules & collecting ducts are relatively impermeable to water • 5 hormones affect extent of Na, Cl, Ca & water reabsorption & K secretion by renal tubules • angiotensin II, aldosterone, ADH, ANP & PTH

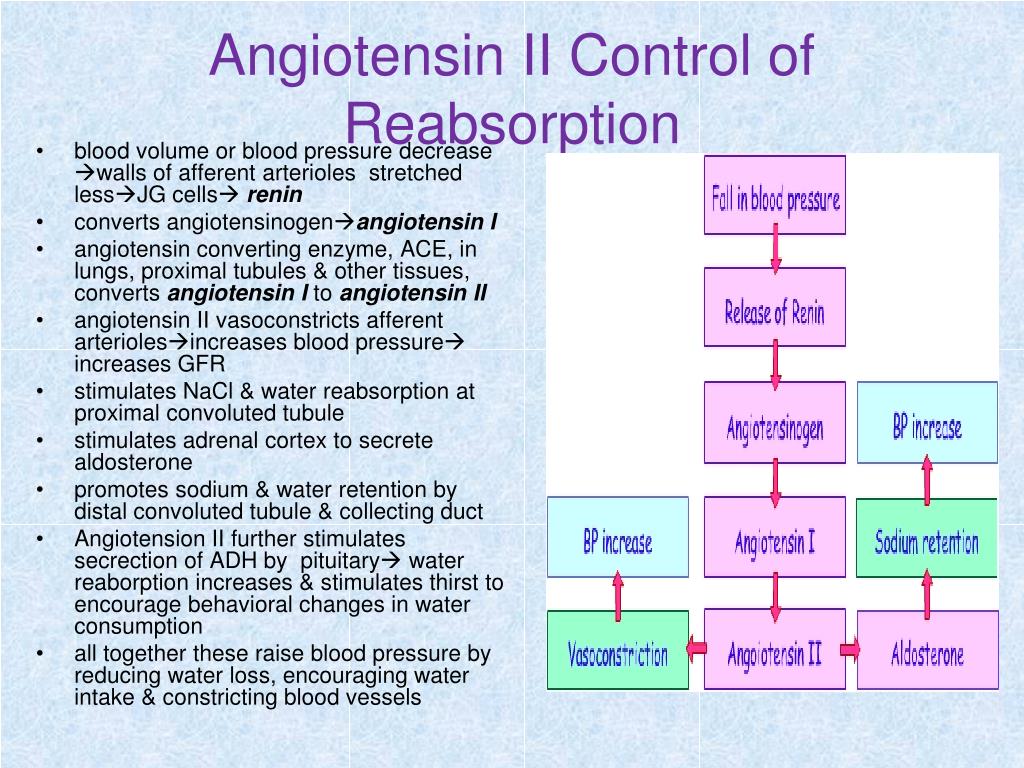

  38. Angiotensin II Control of Reabsorption • blood volume or blood pressure decrease walls of afferent arterioles stretched lessJG cellsrenin • converts angiotensinogenangiotensin I • angiotensin converting enzyme, ACE, in lungs, proximal tubules & other tissues, converts angiotensin I to angiotensin II • angiotensin IIvasoconstricts afferent arteriolesincreases blood pressure increases GFR • stimulates NaCl & water reabsorption at proximal convoluted tubule • stimulates adrenal cortex to secrete aldosterone • promotes sodium & water retention by distal convoluted tubule & collecting duct • Angiotension II further stimulates secrection of ADH by pituitary water reaborption increases & stimulates thirst to encourage behavioral changes in water consumption • all together these raise blood pressure by reducing water loss, encouraging water intake & constricting blood vessels

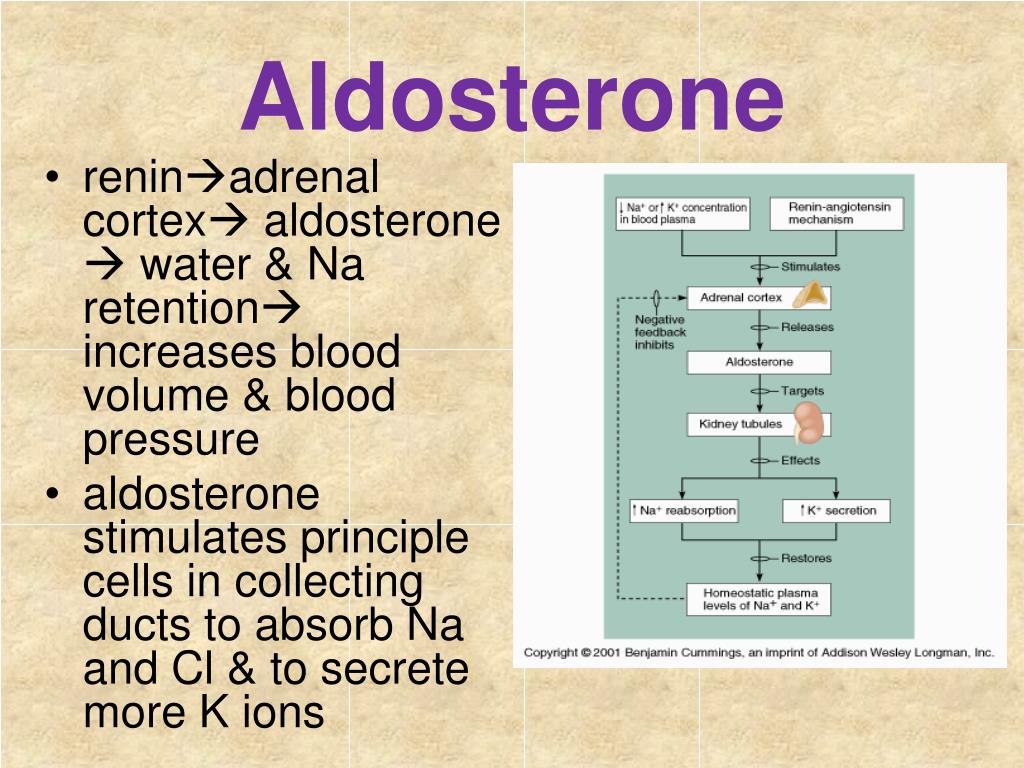

  39. Aldosterone • reninadrenal cortex aldosterone  water & Na retention increases blood volume & blood pressure • aldosterone stimulates principle cells in collecting ducts to absorb Na and Cl & to secrete more K ions

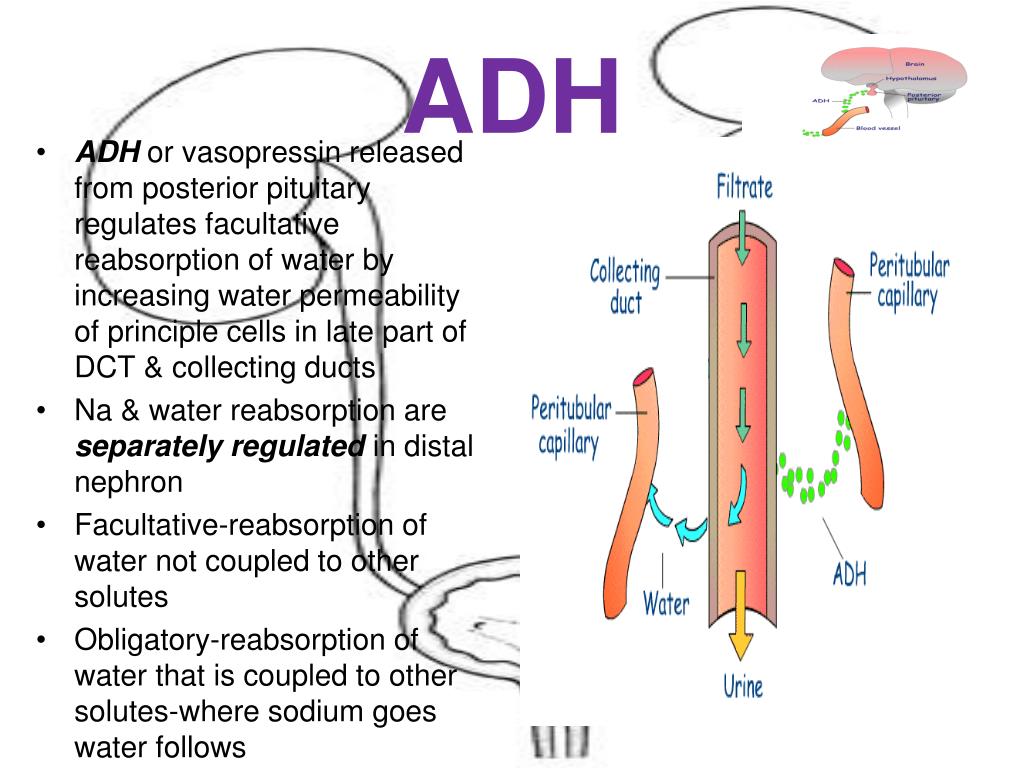

  40. ADH • ADH or vasopressin released from posterior pituitary regulates facultative reabsorption of water by increasing water permeability of principle cells in late part of DCT & collecting ducts • Na & water reabsorption are separately regulated in distal nephron • Facultative-reabsorption of water not coupled to other solutes • Obligatory-reabsorption of water that is coupled to other solutes-where sodium goes water follows

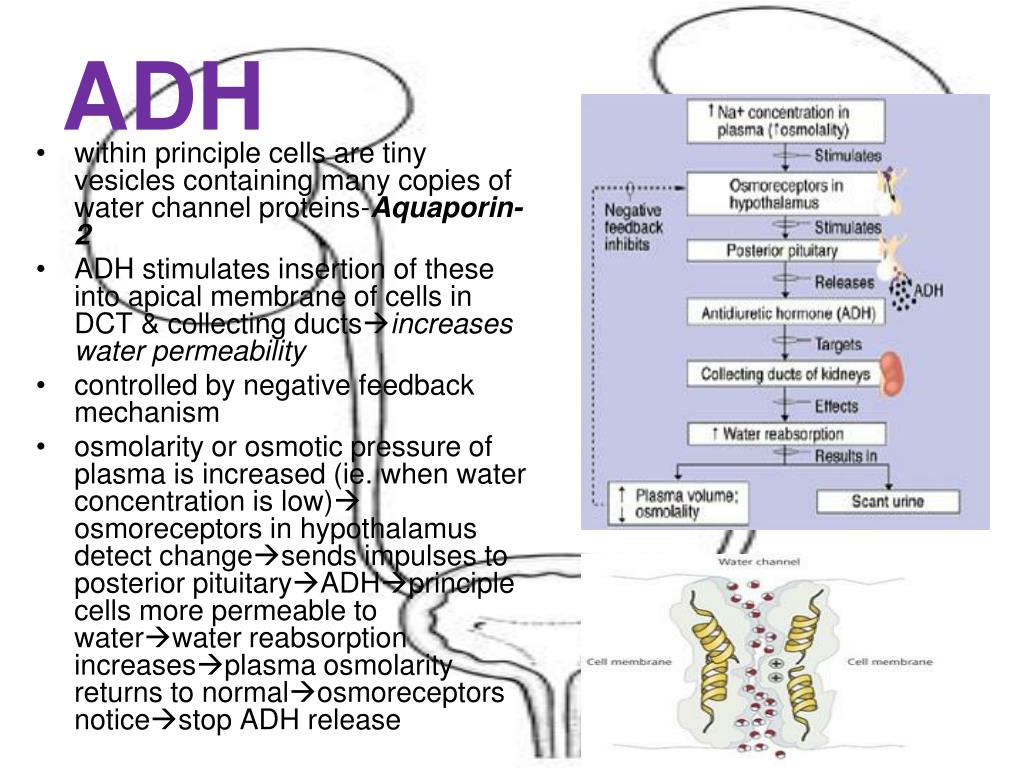

  41. ADH • within principle cells are tiny vesicles containing many copies of water channel proteins-Aquaporin-2 • ADH stimulates insertion of these into apical membrane of cells in DCT & collecting ductsincreases water permeability • controlled by negative feedback mechanism • osmolarity or osmotic pressure of plasma is increased (ie. when water concentration is low) osmoreceptors in hypothalamus detect changesends impulses to posterior pituitaryADHprinciple cells more permeable to waterwater reabsorption increasesplasma osmolarity returns to normalosmoreceptors noticestop ADH release

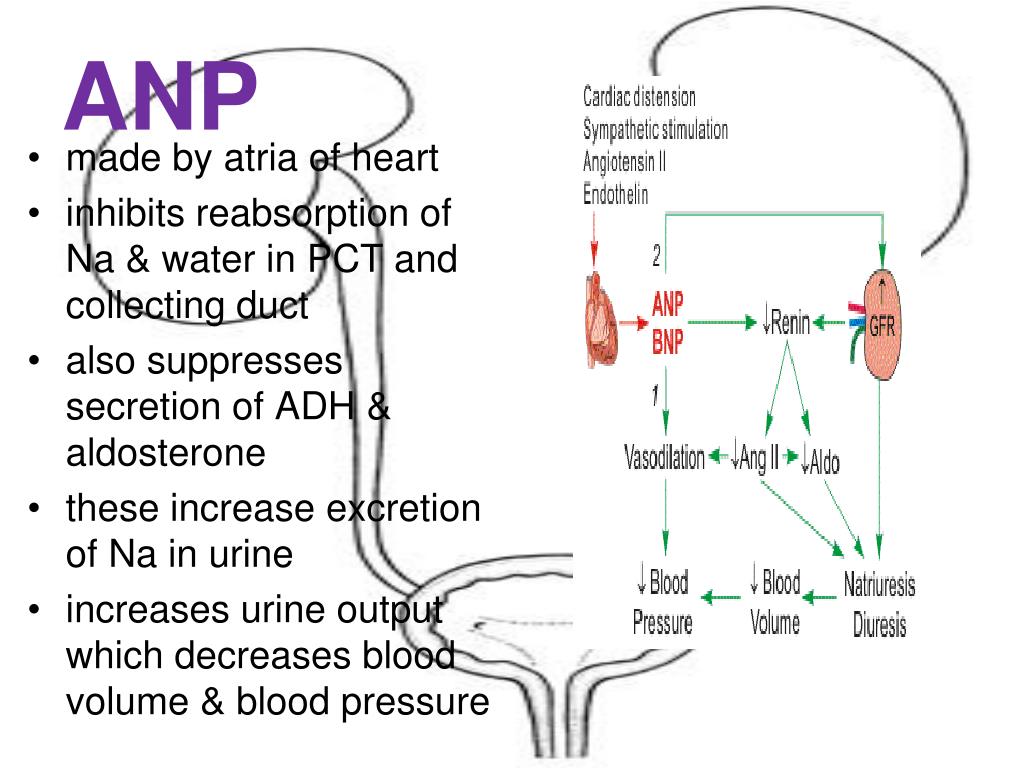

  42. ANP • made by atria of heart • inhibits reabsorption of Na & water in PCT and collecting duct • also suppresses secretion of ADH & aldosterone • these increase excretion of Na in urine • increases urine output which decreases blood volume & blood pressure

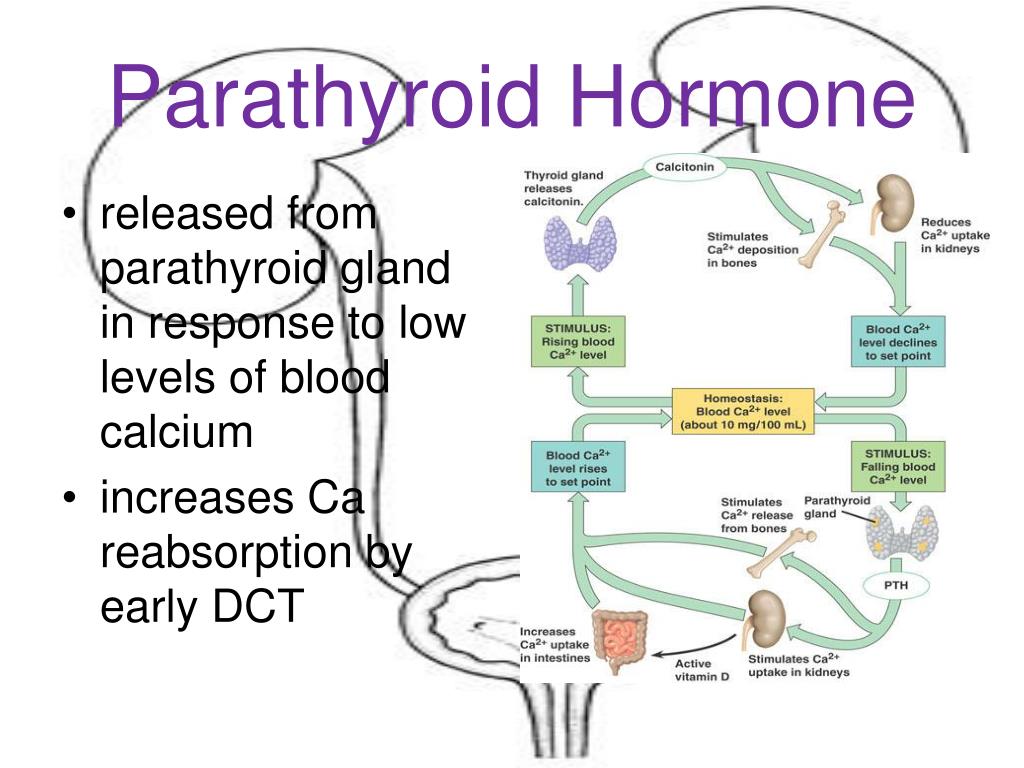

  43. Parathyroid Hormone • released from parathyroid gland in response to low levels of blood calcium • increases Ca reabsorption by early DCT

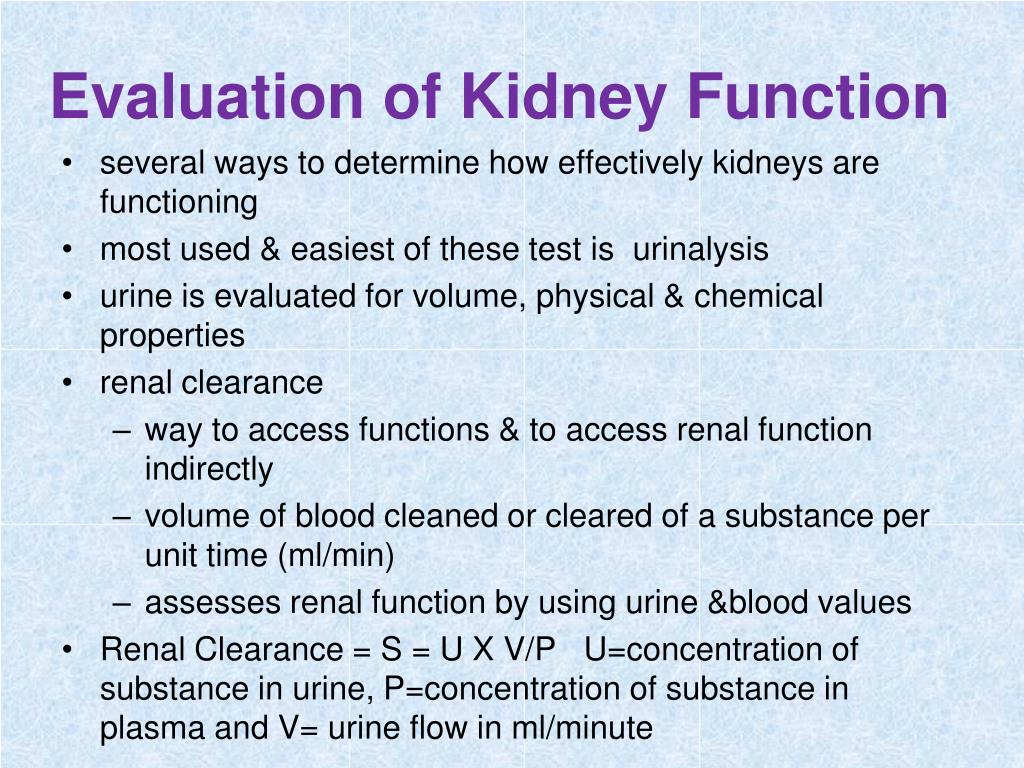

  44. Evaluation of Kidney Function • several ways to determine how effectively kidneys are functioning • most used & easiest of these test is urinalysis • urine is evaluated for volume, physical & chemical properties • renal clearance • way to access functions & to access renal function indirectly • volume of blood cleaned or cleared of a substance per unit time (ml/min) • assesses renal function by using urine &blood values • Renal Clearance = S = U X V/P U=concentration of substance in urine, P=concentration of substance in plasma and V= urine flow in ml/minute

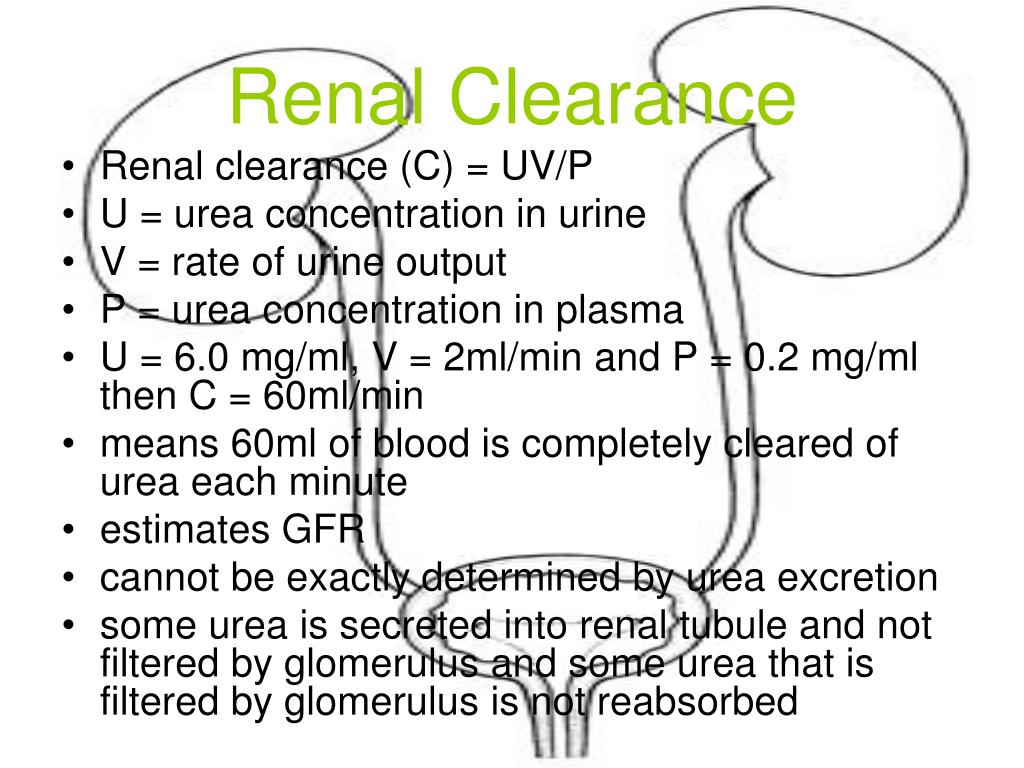

  45. Renal Clearance • Renal clearance (C) = UV/P • U = urea concentration in urine • V = rate of urine output • P = urea concentration in plasma • U = 6.0 mg/ml, V = 2ml/min and P = 0.2 mg/ml then C = 60ml/min • means 60ml of blood is completely cleared of urea each minute • estimates GFR • cannot be exactly determined by urea excretion • some urea is secreted into renal tubule and not filtered by glomerulus and some urea that is filtered by glomerulus is not reabsorbed

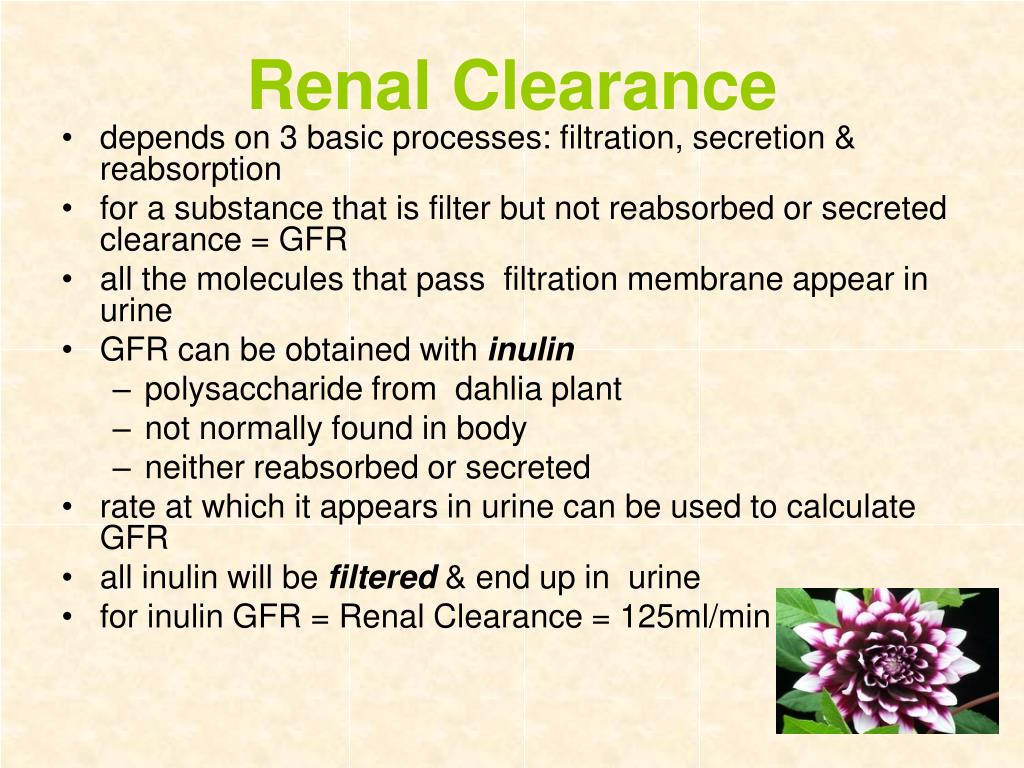

  46. Renal Clearance • depends on 3 basic processes: filtration, secretion & reabsorption • for a substance that is filter but not reabsorbed or secreted clearance = GFR • all the molecules that pass filtration membrane appear in urine • GFR can be obtained with inulin • polysaccharide from dahlia plant • not normally found in body • neither reabsorbed or secreted • rate at which it appears in urine can be used to calculate GFR • all inulin will befiltered & end up in urine • for inulin GFR = Renal Clearance = 125ml/min

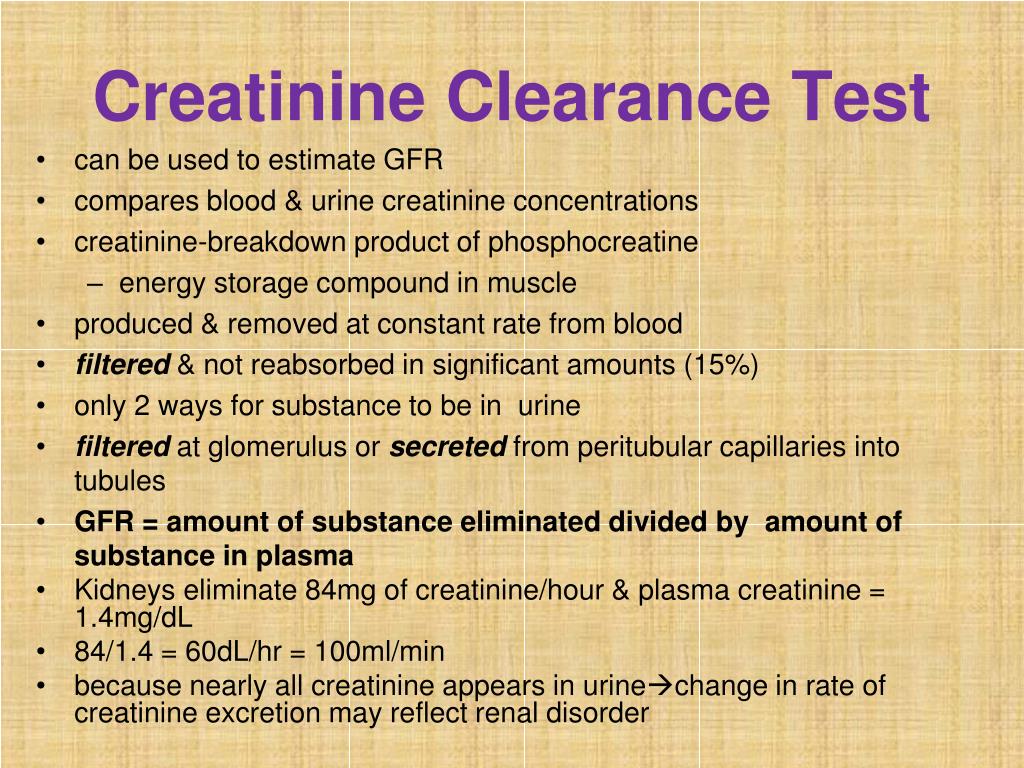

  47. Creatinine Clearance Test • can be used to estimate GFR • compares blood & urine creatinine concentrations • creatinine-breakdown product of phosphocreatine • energy storage compound in muscle • produced & removed at constant rate from blood • filtered & not reabsorbed in significant amounts (15%) • only 2 ways for substance to be in urine • filtered at glomerulus or secretedfrom peritubular capillaries into tubules • GFR = amount of substance eliminated divided by amount of substance in plasma • Kidneys eliminate 84mg of creatinine/hour & plasma creatinine = 1.4mg/dL • 84/1.4 = 60dL/hr = 100ml/min • because nearly all creatinine appears in urinechange in rate of creatinine excretion may reflect renal disorder

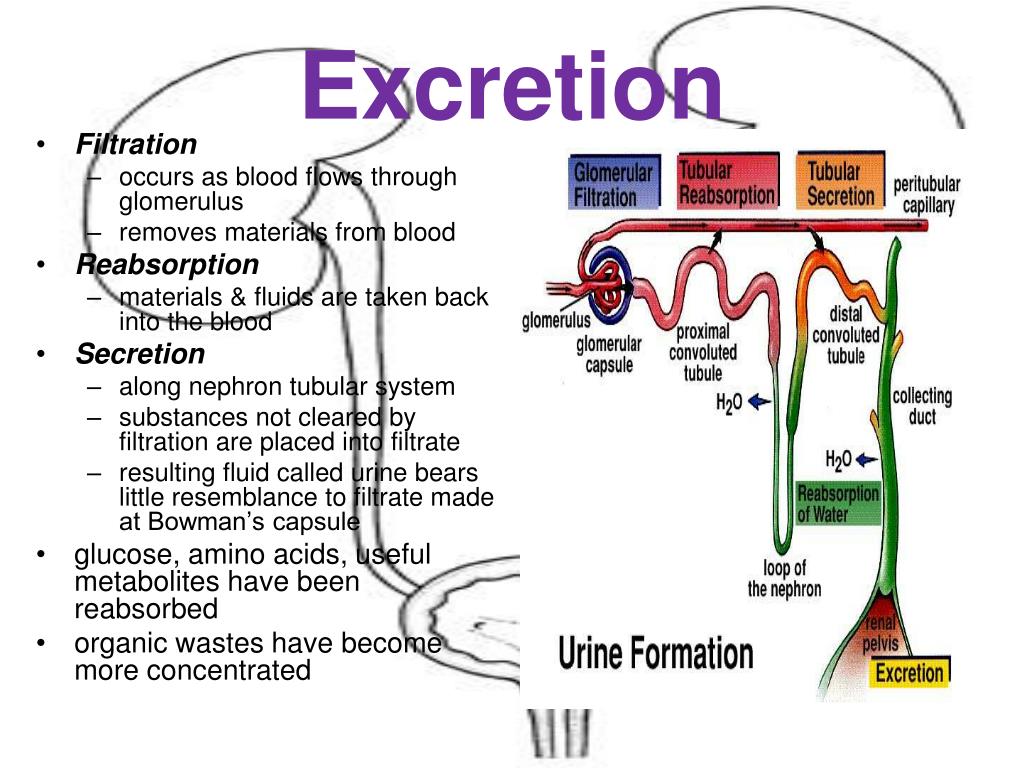

  48. Excretion • Filtration • occurs as blood flows through glomerulus • removes materials from blood • Reabsorption • materials & fluids are taken back into the blood • Secretion • along nephron tubular system • substances not cleared by filtration are placed into filtrate • resulting fluid called urine bears little resemblance to filtrate made at Bowman’s capsule • glucose, amino acids, useful metabolites have been reabsorbed • organic wastes have become more concentrated

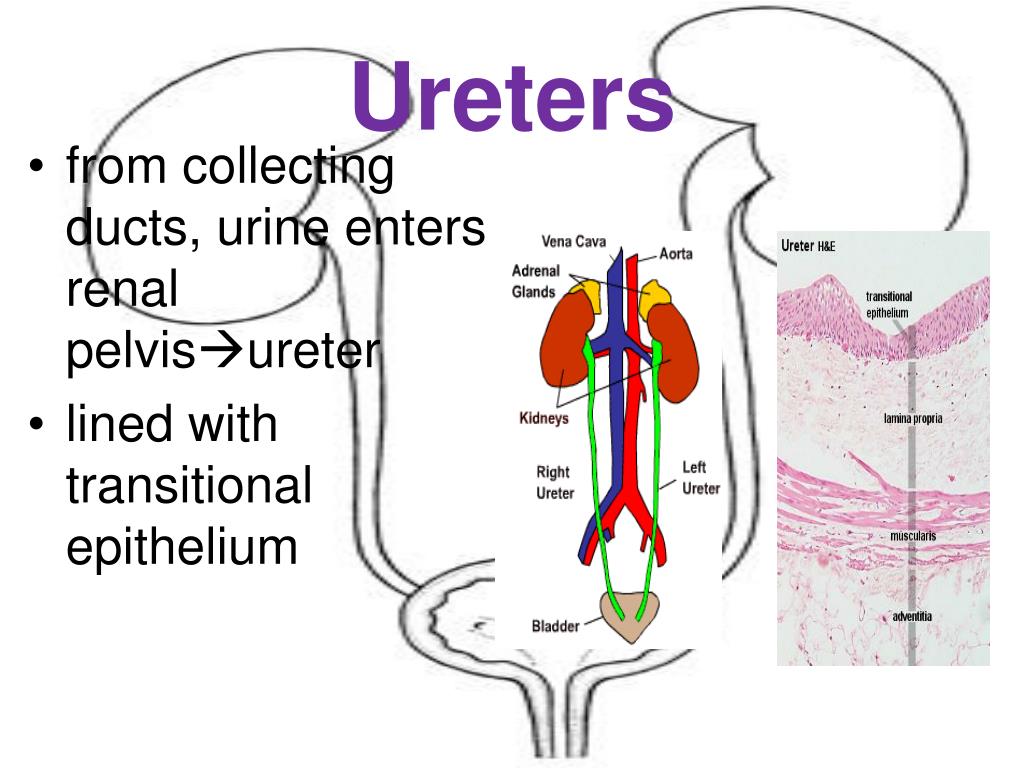

  49. Ureters • from collecting ducts, urine enters renal pelvisureter • lined with transitional epithelium
