  1. Electron poor materials research group Group meeting Nov 11, 2010 Theory- Bader Analysis -> FCC

  2. Procedure • Static Calculations of the 4 FCC structures were computed • Calculations were done on a Gamma 9X9X9 grid • An extra flag was used in the INCAR file: LAECHG = .TRUE. • Turns on All Electron CHGCAR file outputs and outputs 3 files • AECCAR0: core charge density • AECCAR1: atomic AE charge density (overlapping atomic charge density) • AECCAR2: AE charge density • The files AECCAR0 and AECCAR2 are added together for bader analysis per instructions: http://theory.cm.utexas.edu/bader/vasp.php • chgsum.sh AECCAR0 AECCAR2, chsum is a shellscript • Outputs CHGCAR_sum • Bader analysis is done on the vasp CHGCAR from the static run • bader.x -p atom_index -p bader_index CHGCAR -ref CHGCAR_sum • atom_index: Write the atomic volume index to a charge density file • bader_index: Write the Bader volume index to a charge density file

  3. NOTES • Only the PAW potentials can output there core charges for bader analysis • A fine fft grid is needed to accurately reproduce the correct total core charge. It is essential to do a few calculations, increasing NG(X,Y,Z)F until the total charge is correct. • The outputs from bader.x are: • ACF.dat – Atomic Coordinate file. Shows the location and charge of the atoms • BCF.dat – Bader Coordinate file. • AVF.dat – Atomic Volume file. Used to keep track of other files that may be output with the bader program with flag –p all_atom • AtIndex.dat (only with –p atom_index) – charge density file which contains the atomic borders • BvIndex.dat (only with –p bader_index) –charge density file which contains the bader borders

  4. INCAR_static System = GaAs SIGMA = 0.01 #RECOMMENDED MINIMUM SETUP PREC = NORMAL #PRECISION ENCUT = 275 #LREAL = .FALSE. #.FALSE. MEANS USE RECIPROCAL LATTICE ISMEAR = 0 #USE GAUSSIAN SMEARING LAECHG=.TRUE.

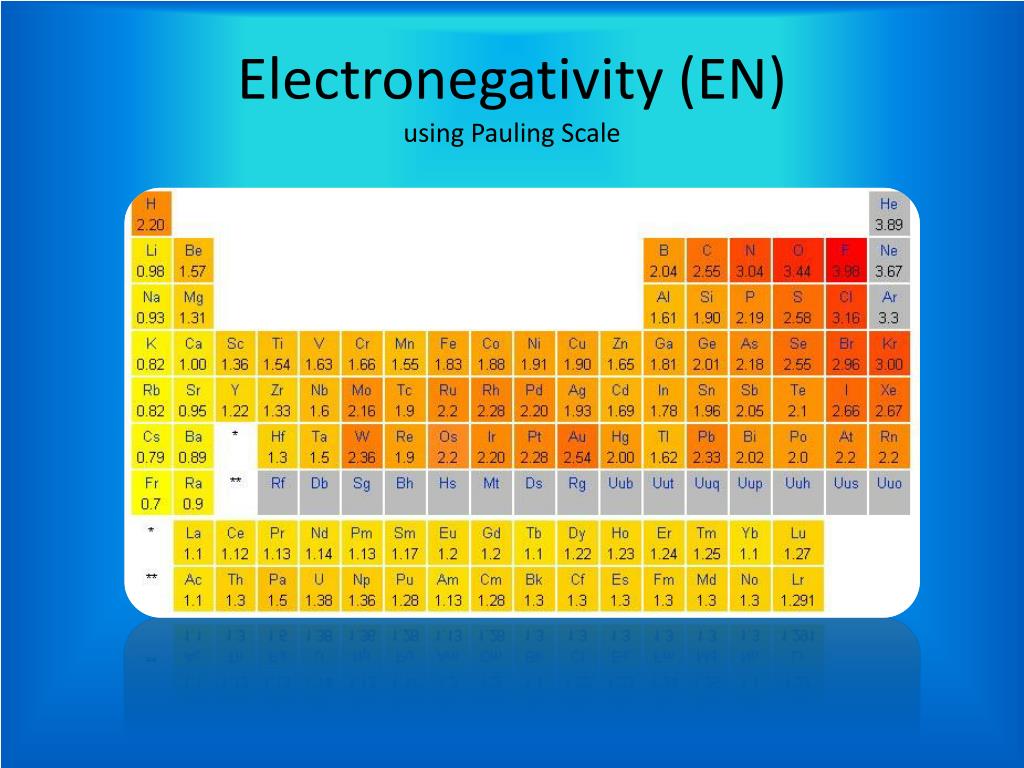

  5. Electronegativity (EN)using Pauling Scale

  6. GaAs ACF.dat : # X Y Z CHARGE MIN DIST ATOMIC VOL -------------------------------------------------------------------------------- 1 0.0000 0.0000 0.0000 2.2907 0.8192 16.8049 2 1.4133 1.4133 1.4133 5.7093 1.0377 28.3647 -------------------------------------------------------------------------------- VACUUM CHARGE: 0.0000 VACUUM VOLUME: 0.0000 NUMBER OF ELECTRONS: 8.0000 ENAs – ENGa = 0.37 Bader charge shift = 0.7093

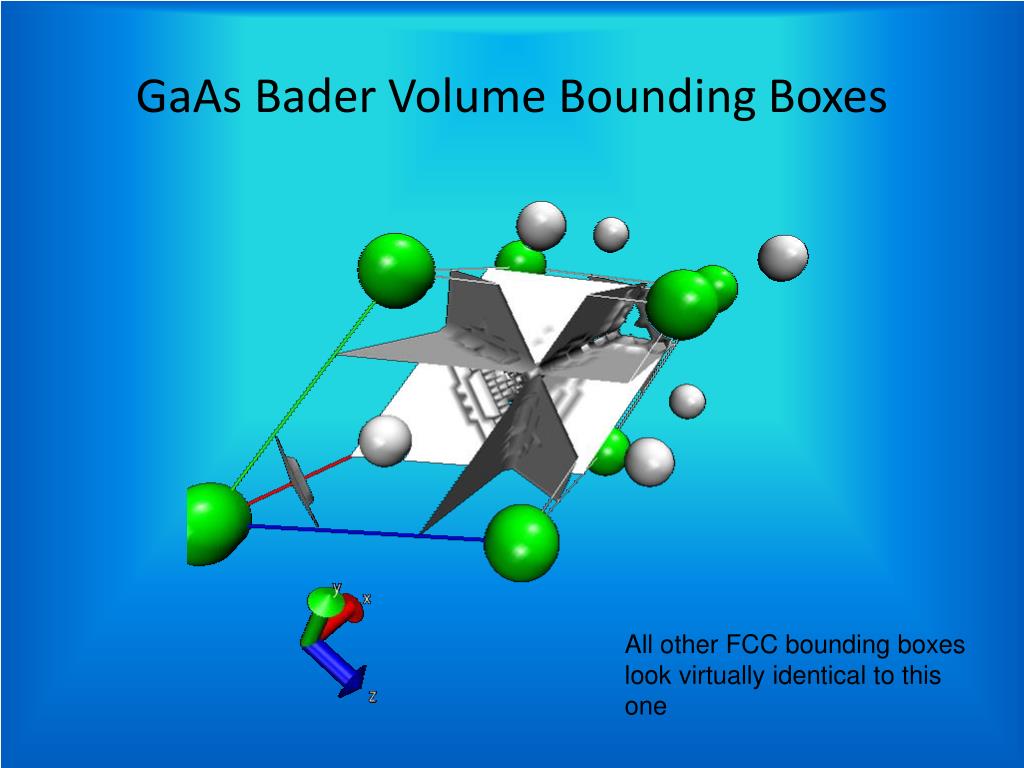

  7. GaAs Bader Volume Bounding Boxes All other FCC bounding boxes look virtually identical to this one

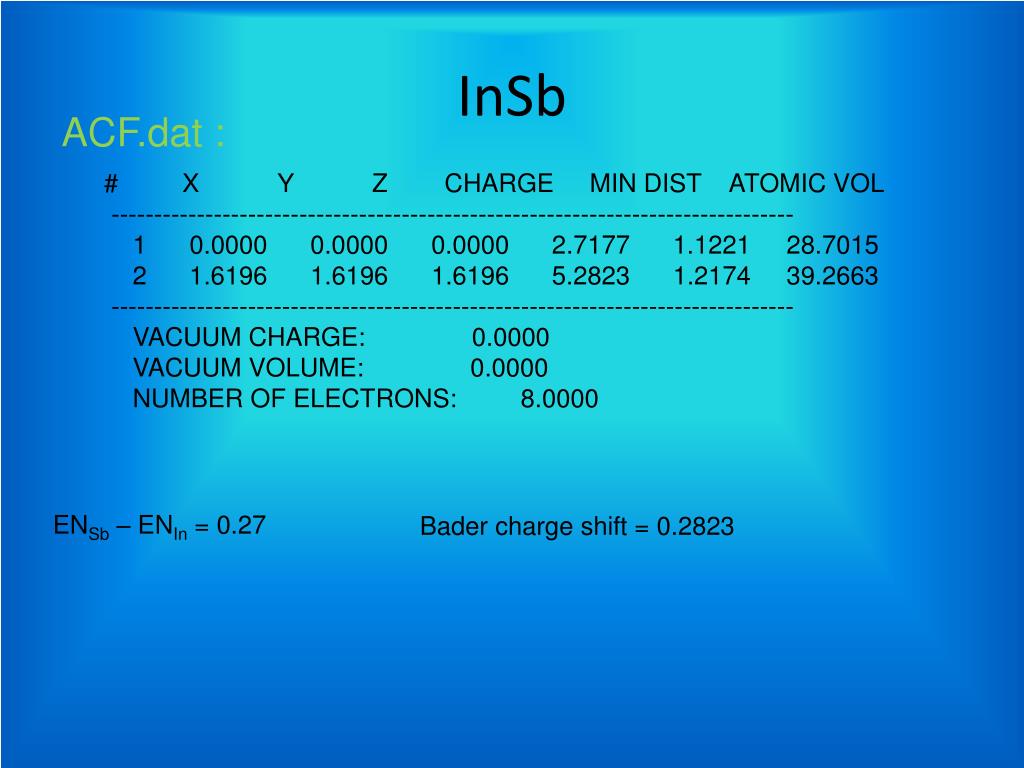

  8. InSb ACF.dat : # X Y Z CHARGE MIN DIST ATOMIC VOL -------------------------------------------------------------------------------- 1 0.0000 0.0000 0.0000 2.7177 1.1221 28.7015 2 1.6196 1.6196 1.6196 5.2823 1.2174 39.2663 -------------------------------------------------------------------------------- VACUUM CHARGE: 0.0000 VACUUM VOLUME: 0.0000 NUMBER OF ELECTRONS: 8.0000 ENSb – ENIn = 0.27 Bader charge shift = 0.2823

  9. GaSb ACF.dat : # X Y Z CHARGE MIN DIST ATOMIC VOL -------------------------------------------------------------------------------- 1 0.0000 0.0000 0.0000 2.8499 0.9801 22.0766 2 1.5240 1.5240 1.5240 5.1501 1.1732 34.5544 -------------------------------------------------------------------------------- VACUUM CHARGE: 0.0000 VACUUM VOLUME: 0.0000 NUMBER OF ELECTRONS: 8.0000 ENSb – ENGa = 0.24 Bader charge shift = 0.1501

  10. ZnSe ACF.dat : # X Y Z CHARGE MIN DIST ATOMIC VOL -------------------------------------------------------------------------------- 1 0.0000 0.0000 0.0000 11.3512 0.9048 16.2281 2 1.4218 1.4218 1.4218 6.6488 1.1507 29.7541 -------------------------------------------------------------------------------- VACUUM CHARGE: 0.0000 VACUUM VOLUME: 0.0000 NUMBER OF ELECTRONS: 18.0000 ENSe – ENZn = 0.9 Bader charge shift = 0.6488

  11. ZnTe ACF.dat : # X Y Z CHARGE MIN DIST ATOMIC VOL -------------------------------------------------------------------------------- 1 0.0000 0.0000 0.0000 11.5271 0.8809 18.6275 2 1.5258 1.5258 1.5258 6.4729 1.2743 38.2015 -------------------------------------------------------------------------------- VACUUM CHARGE: 0.0000 VACUUM VOLUME: 0.0000 NUMBER OF ELECTRONS: 18.0000 ENTe – ENZn = 0.45 Bader charge shift = 0.4729

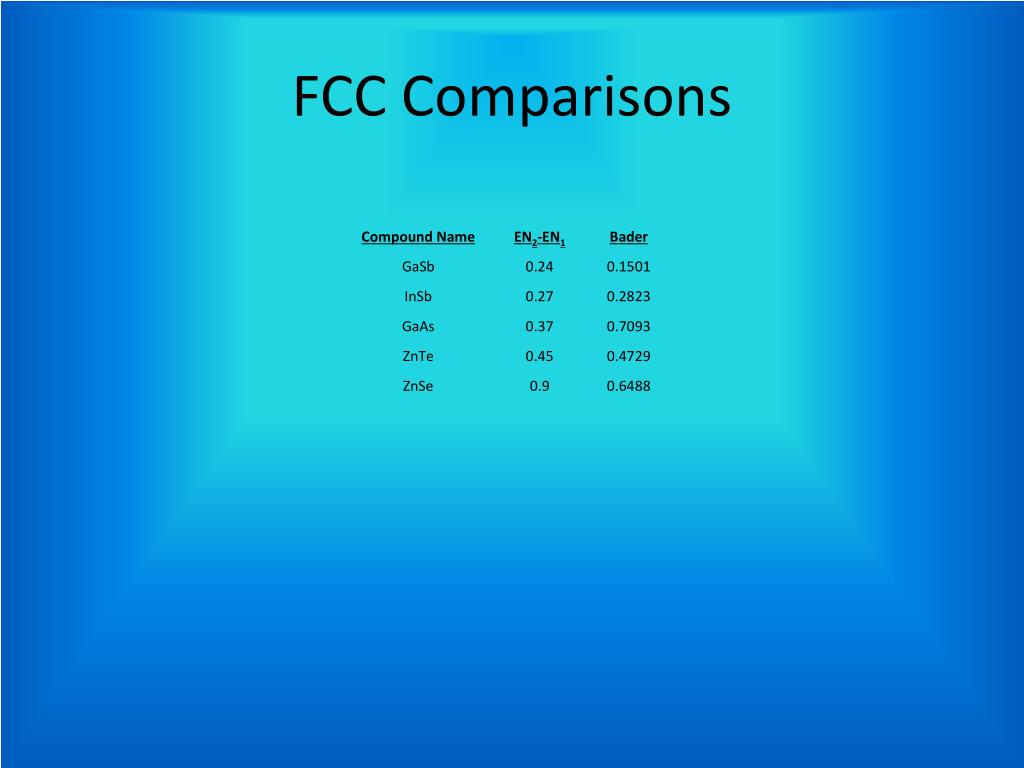

  12. FCC Comparisons
