  1. A AN NIGHT VISION DEVICES

  2. MYTHS OF THE NIGHT VISION DEVICES

  3. 1. ONE SIZE FITS ALL Head Mount Helmet Mount

  4. PROPER FIT HEAD MOUNT • With both hands pull neck pad and assembly over head • Adjust chin and vertical straps until tight • Holding chin cup in place pull slack/ snug on top and side straps • Loosen all straps (2” from end) • Snap front and rear snaps

  5. PPROPER FIT HELMET MOUNT Chin Strap Nape Strap • Remove strap slack / close buckle lever • Press release / remove mounting bracket • Secure front and rear brackets with catch in the up position • Tension the nape strap for stable fit • Secure NVD to mount bracket

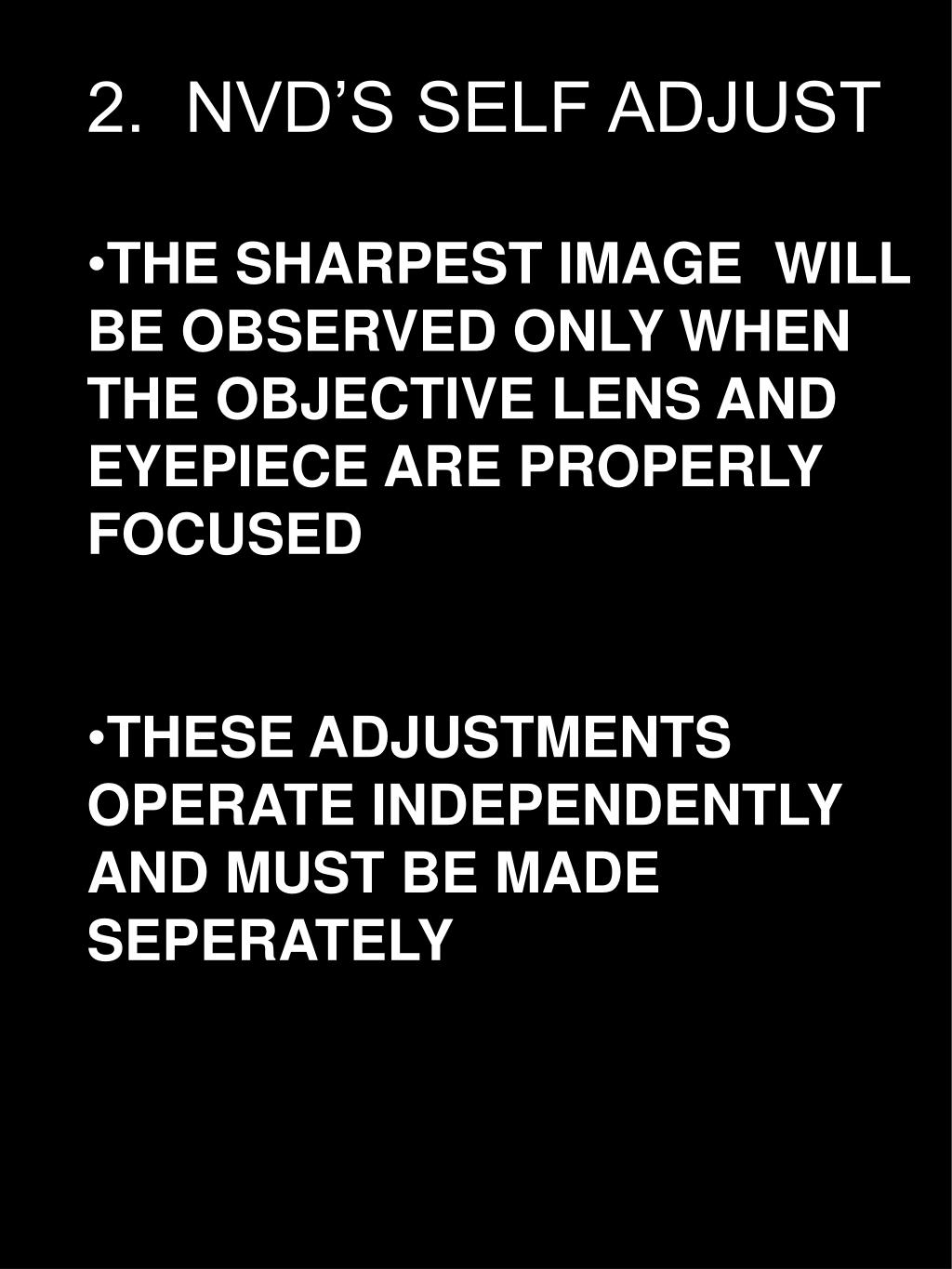

  6. 2. NVD’S SELF ADJUST • THE SHARPEST IMAGE WILL BE OBSERVED ONLY WHEN THE OBJECTIVE LENS AND EYEPIECE ARE PROPERLY FOCUSED • THESE ADJUSTMENTS OPERATE INDEPENDENTLY AND MUST BE MADE SEPERATELY

  7. ORDER OF ADJUSTMENTS • Eye Relief • Interpupillary Adjustment • (AN/PVS7’s only) • Diopter Adjustment • Objective Focus • ** Any adjustment to the head strap requires eye relief adjustment

  8. INTERPUPILLARY ADJUSTMENTAN/PVS-7

  9. SOCKET RELEASE BUTTON EYE RELIEF • Comfortable distance • Best visibility

  10. Diopter Adjustment DIOPTER ADJUSTMENTAN/PVS-7/14 DIOPTER ADJUSTMENT Used to focus the eyes (with or without glasses) to the image intensification screen

  11. OBJECTIVE LENS FOCUS KNOBAN/PVS-7/14 Lens Focus Adjust for sharpest view of image being viewed

  12. Variable Gain VARIABLE GAIN AN/PVS14 VARIABLE GAIN CONTROLAN/PVS-14 Adjusts the illumination input to the eye

  13. FOR OPTIMUM PERFORMANCE Adjust the television before turning the channels!!!
