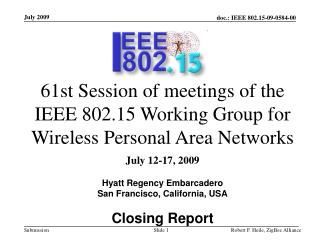

  1. 61st Session of meetings of the IEEE 802.15 Working Group for Wireless Personal Area Networks July 12-17, 2009 Hyatt Regency Embarcadero San Francisco, California, USA Closing Report Robert F. Heile, ZigBee Alliance

  2. 802.15 Organization Chart To add your name to the WG/SG/TG reflectors please go to www.ieee802.org/15 Robert F. Heile, ZigBee Alliance

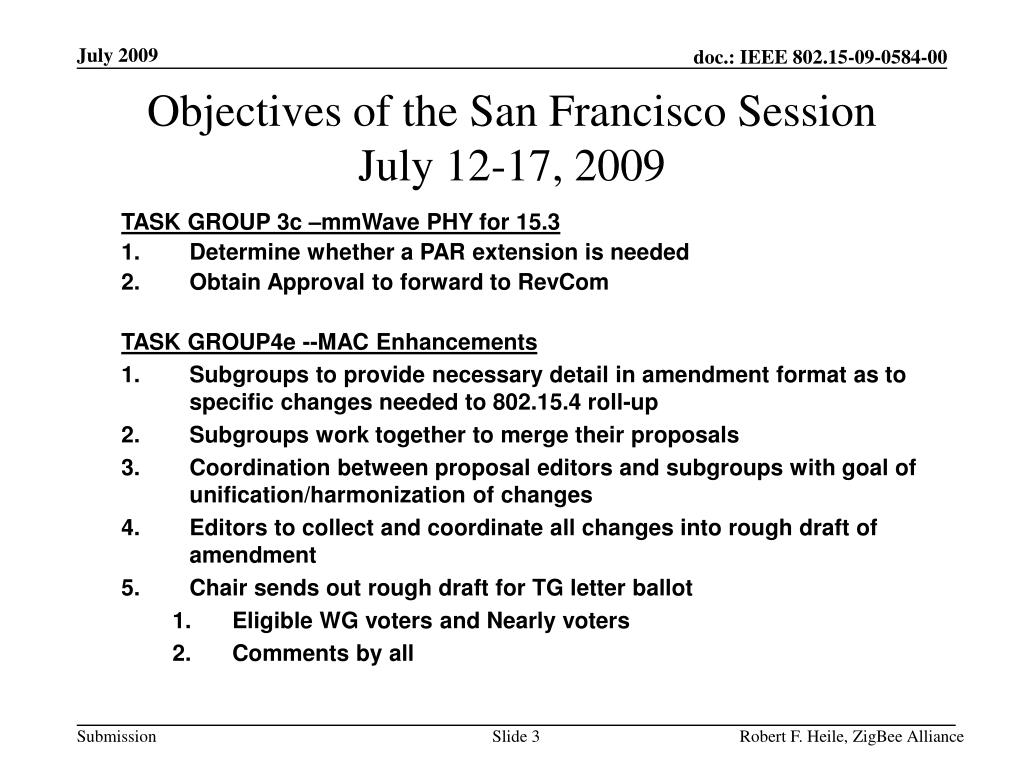

  3. Objectives of the San Francisco Session July 12-17, 2009 TASK GROUP 3c –mmWave PHY for 15.3 • Determine whether a PAR extension is needed • Obtain Approval to forward to RevCom TASK GROUP4e --MAC Enhancements • Subgroups to provide necessary detail in amendment format as to specific changes needed to 802.15.4 roll-up • Subgroups work together to merge their proposals • Coordination between proposal editors and subgroups with goal of unification/harmonization of changes • Editors to collect and coordinate all changes into rough draft of amendment • Chair sends out rough draft for TG letter ballot • Eligible WG voters and Nearly voters • Comments by all Robert F. Heile, ZigBee Alliance

  4. Objectives of the San Francisco Session July 12-17, 2009 TASK GROUP-4f Active RFID • Continue with Proposal Review Process • Discuss MAC enhancement issues/needs for 4e • Evaluate Timeline TASK GROUP-4g Smart Utility Networks • Hear Proposals • Look for common ground and merger opportunities • Discuss MAC enhancement issues/needs for 4e • Evaluate Timeline Robert F. Heile, ZigBee Alliance

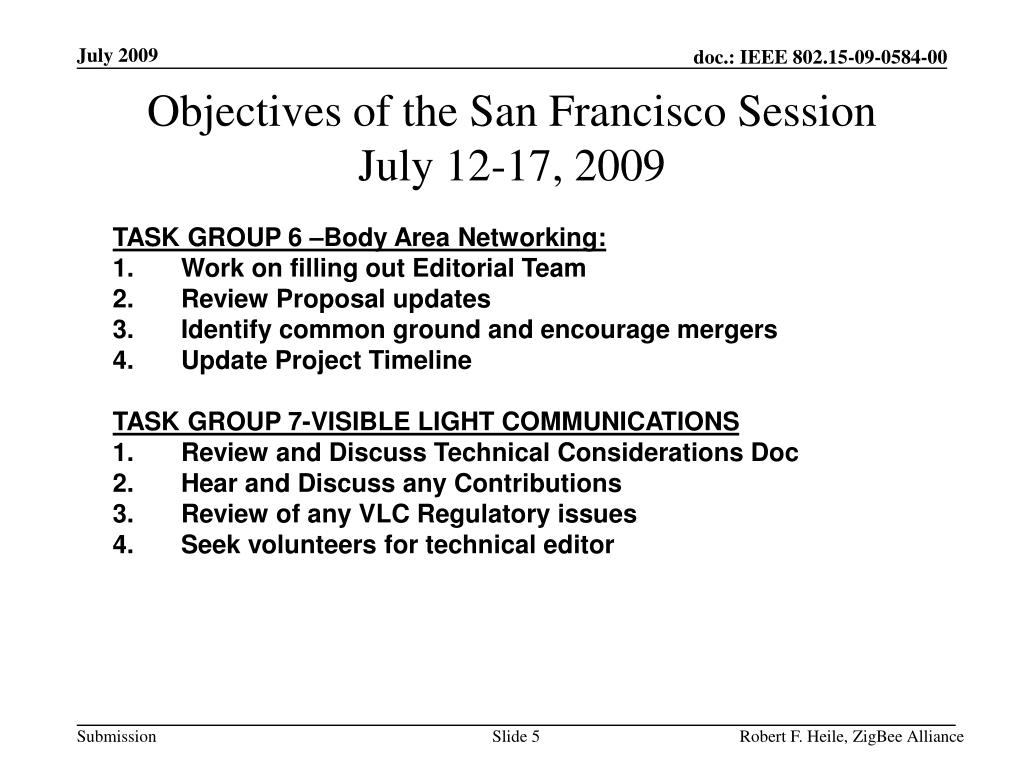

  5. Objectives of the San Francisco Session July 12-17, 2009 TASK GROUP 6 –Body Area Networking: • Work on filling out Editorial Team • Review Proposal updates • Identify common ground and encourage mergers • Update Project Timeline TASK GROUP 7-VISIBLE LIGHT COMMUNICATIONS • Review and Discuss Technical Considerations Doc • Hear and Discuss any Contributions • Review of any VLC Regulatory issues • Seek volunteers for technical editor Robert F. Heile, ZigBee Alliance

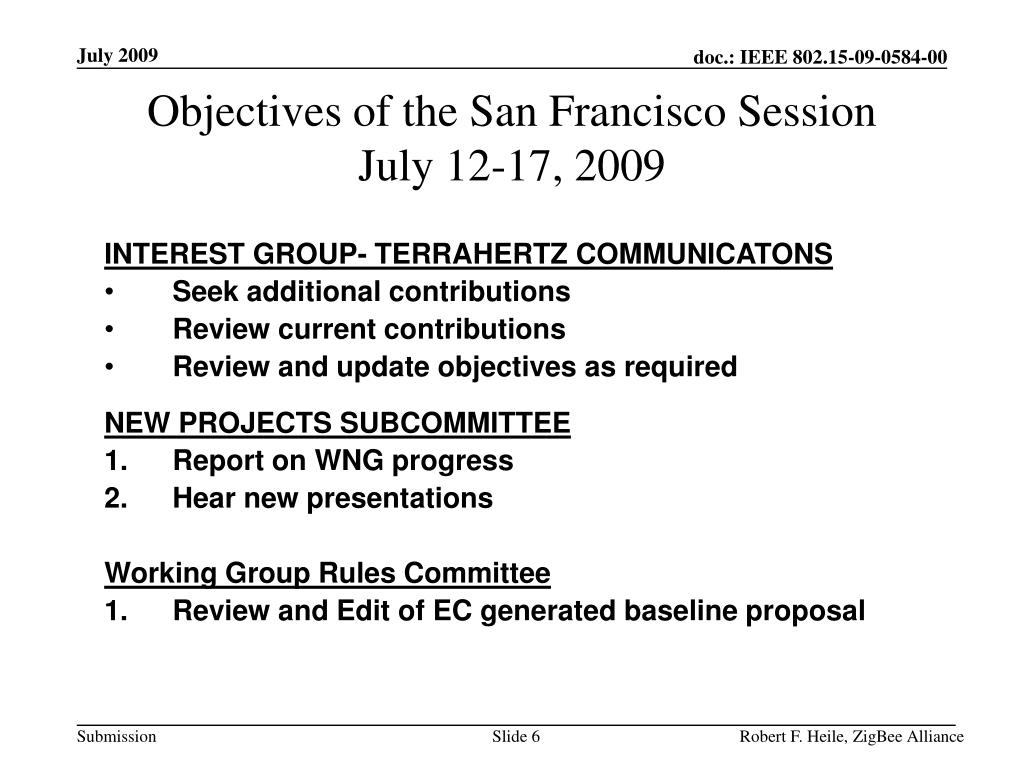

  6. Objectives of the San Francisco Session July 12-17, 2009 INTEREST GROUP- TERRAHERTZ COMMUNICATONS • Seek additional contributions • Review current contributions • Review and update objectives as required NEW PROJECTS SUBCOMMITTEE • Report on WNG progress • Hear new presentations Working Group Rules Committee • Review and Edit of EC generated baseline proposal Robert F. Heile, ZigBee Alliance

  7. Robert F. Heile, ZigBee Alliance

  8. Upcoming Sessions • September 20-25, 2009, Hilton Waikoloa Village, Big Island, HI, USA, 802 Wireless Interim Meeting*. • November 15-20, 2009, Hyatt Regency Atlanta, GA, USA, 802 Plenary Meeting. • January 17-22, 2010, Hyatt Century Plaza, Los Angeles CA, USA 802 Wireless Interim Meeting*. • March 14-19, 2010, Caribe Royale Suites, Orlando, FL, USA, 802 Plenary Meeting. • May 16-21, 2010, Shangri-La Beijing, Beijing, PRC 802 Wireless Interim Meeting*. • July 11-16, 2010 , Manchester Grand Hyatt San Diego, CA, USA, 802 Plenary Meeting. • September 12-17, 2010, Hilton Waikoloa Village, Big Island, HI, USA, 802 Wireless Interim Meeting* Robert F. Heile, ZigBee Alliance

  9. TG3c 26th Meeting mmWave PHY Amendment to 802.15.3c San Francisco, USAClosing ReportShu Kato, NICT July, 2009 Slide 9 Robert F. Heile, ZigBee Alliance

  10. 1. 13:30 , July 14. Call to order. • TG3c Leadership:Chair: R. Fisher. • Acting Chair: S. KatoVice Chair: A Mathew Secretaries : T. Baykas, C.S. Sum • Technical Editor: J. Gilb • Sub Editors: C. Ngo, T. Baykas, C.S. Sum, B. Gaffney, Z. Lan • 3. 6 2-hour time slots are allocated, 3 canceled Slide 10 Robert F. Heile, ZigBee Alliance

  11. Meeting Accomplishments • A total of 9 comments received from the sponsor ballot: all resolved • A total of 11 contributions presented • The 3rd recirculation ballot started: July 15 – July 25, 2009 • A sponsor ballot resolution committee is appointed and a ballot resolution conference calls are scheduled (09/419r2) • Motion for RevCom is approved • Joint meeting with 802.11ad was held • Joint meeting with 802.11ad is planned for September meeting Slide 11 Robert F. Heile, ZigBee Alliance

  12. Motion Ballots Slide 12 Robert F. Heile, ZigBee Alliance

  13. 802.15 WG Motion • Motion to ask Executive Committee for conditional approval to forward the Draft Standard P802-15-3c-D12_Draft_Amendment.pdf to RevCom with the condition that it is first amended with the resolutions in 09/493r1 • By:Shuzo Kato • Seconded by: Phil Beecher • Yes: 59 No:0 Abstain: 0 Slide 13 Robert F. Heile, ZigBee Alliance

  14. Contributions Slide 14 Robert F. Heile, ZigBee Alliance

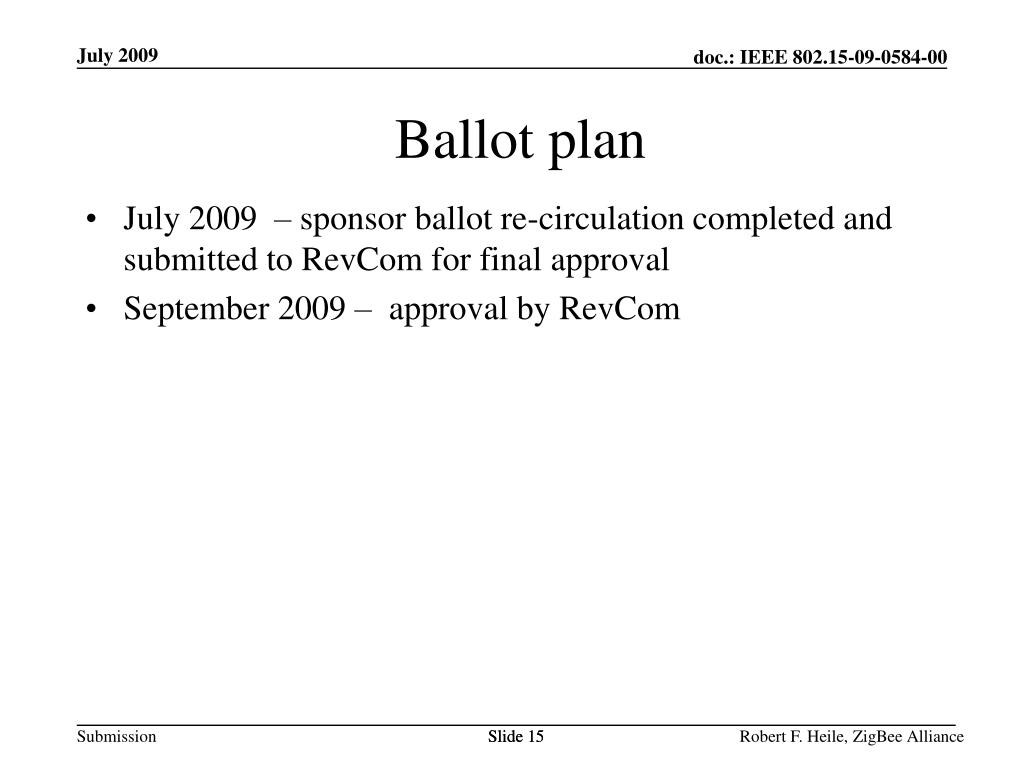

  15. Ballot plan • July 2009 – sponsor ballot re-circulation completed and submitted to RevCom for final approval • September 2009 – approval by RevCom Slide 15 Robert F. Heile, ZigBee Alliance

  16. TG3c Timeline Project timeline based on 08/0076r1 Slide 16 Robert F. Heile, ZigBee Alliance

  17. July 2009 TG4e 15.4 MAC Enhancements San Francisco, USAClosing Report Chair Pat Kinney, Kinney Consulting Slide 17 Robert F. Heile, ZigBee Alliance

  18. Meeting Goals • Subgroups draft each proposal as an amendment to standard to provide necessary detail as to specific changes to 802.15.4-2009 • Subgroups work with other subgroups to merge their proposals • Coordination between proposal editors and subgroups with goal of unification/harmonization of changes • Editors to collect and coordinate all changes into rough draft of amendment • Chair sends out rough draft for TG letter ballot • Eligible WG voters and Nearly voters • Comments by all Slide 18 Slide 18 Robert F. Heile, ZigBee Alliance

  19. TG4e Meetings This Week Slide 19 Slide 19 Robert F. Heile, ZigBee Alliance

  20. FactoryAutomation ISA, HCF Contention-Free Contention-Free TDMA E-GTS ZigBee, 802.15.5 Contention Access Contention Access nonbeacon-enabled PAN beacon-enabled PAN Overhead Reduction/Security Low Energy Channel Diversity 802.15.4 MAC Slide 20 Robert F. Heile, ZigBee Alliance

  21. Technical Editing Path Forward Editor and subgroup work on each proposal to provide necessary detail as to specific changes to 802.15.4-2006 Subgroups work with other subgroups to merge their proposals Coordination between proposal editors and subgroups with goal of unification or harmonization of changes Collect all changes into rough draft of amendment TG ballot of rough draft Comment resolution effort WG ballot of draft July 2009> Slide 21 Robert F. Heile, ZigBee Alliance

  22. Editing Assignments Slide 22 Robert F. Heile, ZigBee Alliance

  23. Proposed TG4e Baseline Schedule Slide 23 Slide 23 Robert F. Heile, ZigBee Alliance

  24. Conference Calls TG4e: 21 July, 28 July, 4 August, 11 August 6:00 PDT, 9:00 EDT, 15:00 CEST, 22:00Tokyo E-GTS: 22 July, 29 July, 5 August, 12 August 6:00 PDT, 8:00 CDT, 9:00 EDT, 15:00 CEST, 21:00 Beijing, 22:00 Seoul TSCH: 22 July, 29 July, 5 August, 12 August 6:30 PDT, 9:30 EDT, 15:30 CEST, 22:30Tokyo Factory Automation: 21 July, 28 July, 4 August, 11 August 5:00 PDT, 8:00 EDT, 14:00 CEST, 21:00Tokyo Channel Diversity: 23 July, 30 July, 6 August, 13 August 17:00 PDT, 20:00 EDT, 02:00 CEST, 09:00Tokyo Overhead Reduction: 23 July, 30 July, 6 August, 13 August 09:00 PDT, 12:00 EDT, 18:00 CEST, 01:00Tokyo Low Energy: 23 July, 30 July, 6 August, 13 August 6:00 PDT, 9:00 EDT, 15:00 CEST, 21:00 Beijing Slide 24 Robert F. Heile, ZigBee Alliance

  25. IEEE 802.15.4f Active RFID PHY Amendment to 15.4 Closing Report Chair: Mike McInnis, Boeing San Francisco, California July 16, 2009 Robert F. Heile, ZigBee Alliance

  26. 802.15.4f PAR Purpose Paragraph from 802.15.4f Project Authorization Request (PAR) document. 5.4 Purpose of Proposed Standard: To provide a standard for low cost, ultra low energy consumption, flexible and highly reliable communication means and air interface protocol for Active RFID and sensor applications. The air interface should be able to support a wide range of needs for which active RFID systems can be useful and enable improved performance and flexibility for future mass deployments of active RFID systems around the world. Robert F. Heile, ZigBee Alliance

  27. IEEE 802.15.4f Active RFID Meeting Overview • Chair: Mike McInnis • Vice-Chair: Tim Harrington • Secretary: George Cavage • Six each meeting time slots were allocated during this session and one joint meeting time slot with 802.15.4e and 802.15.4g. • 3. Administrative meeting Documents during this session: • 0499-00 -Agenda-July-2009.xls • 0498-01 -Opening-Introduction-July-2009.ppt • 0559-00 -Active-RFID-Minutes-SFO-July-2009.doc • Presentations during this meeting session: • 0497-01 -Decawave-preliminary-PHY-proposal.ppt • 0500-00 -433 MHz PHY and MAC for TG4f preliminary proposal.ppt • 0513-00 -Ubisense preliminary PHY proposals for TG4f.ppt Robert F. Heile, ZigBee Alliance

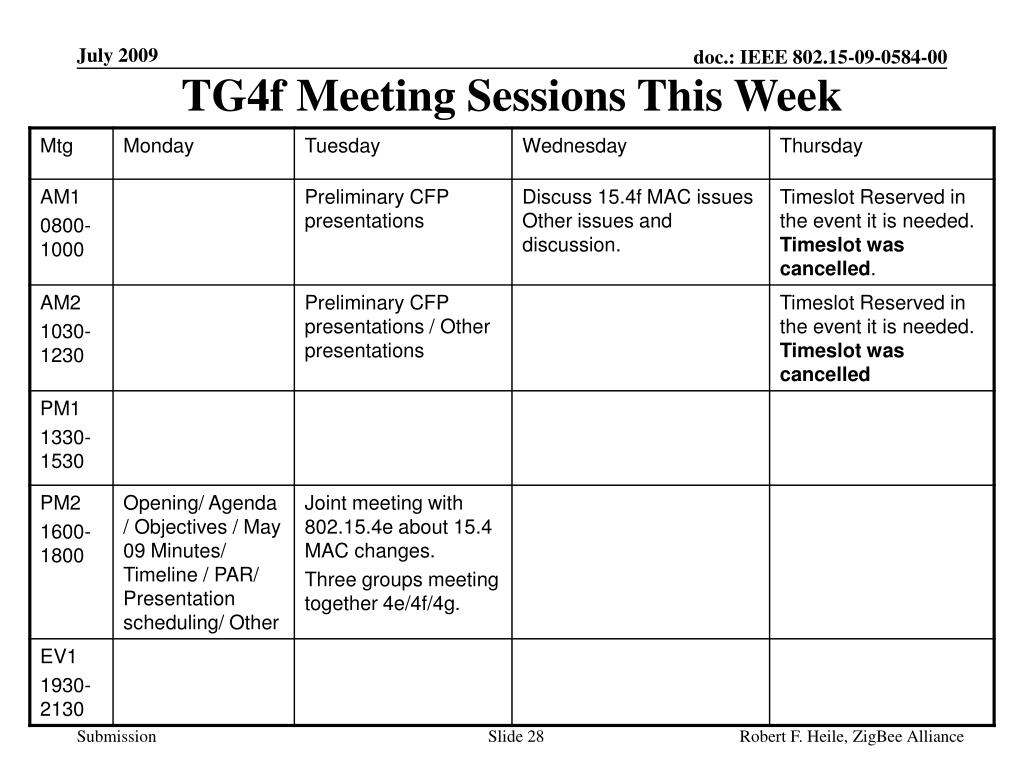

  28. TG4f Meeting Sessions This Week Robert F. Heile, ZigBee Alliance

  29. Active RFID Meeting AchievementsJuly 2009 • Heard three Call for Preliminary Proposal (CFPP) presentations in response to: • 802.15.4f Call-for-Preliminary-Proposals document. • https://mentor.ieee.org/802.15/dcn/09/15-09-0418-01-004f-call-for-preliminary-proposals.doc • Preliminary Proposal Presentations were optional during this meeting. • Discussed the 802.15.4 MAC as it pertains to 802.15.4f alternate PHYs and Application requirements. • Continued team building between the anticipated PHY proposers. • Final PHY Proposals are to be heard during the September 2009 meeting session in Hawaii as defined in the 802.15.4f Call for Preliminary PHY Proposal document. (0418-01) Robert F. Heile, ZigBee Alliance

  30. Draft 802.15.4f Timeline July Plenary Meeting Heard and Discussed Preliminary PHY Proposals and 802.15.4 MAC September Interim meeting Hear and Discuss PHY Proposals November Plenary meeting Vote on PHY Proposals Robert F. Heile, ZigBee Alliance

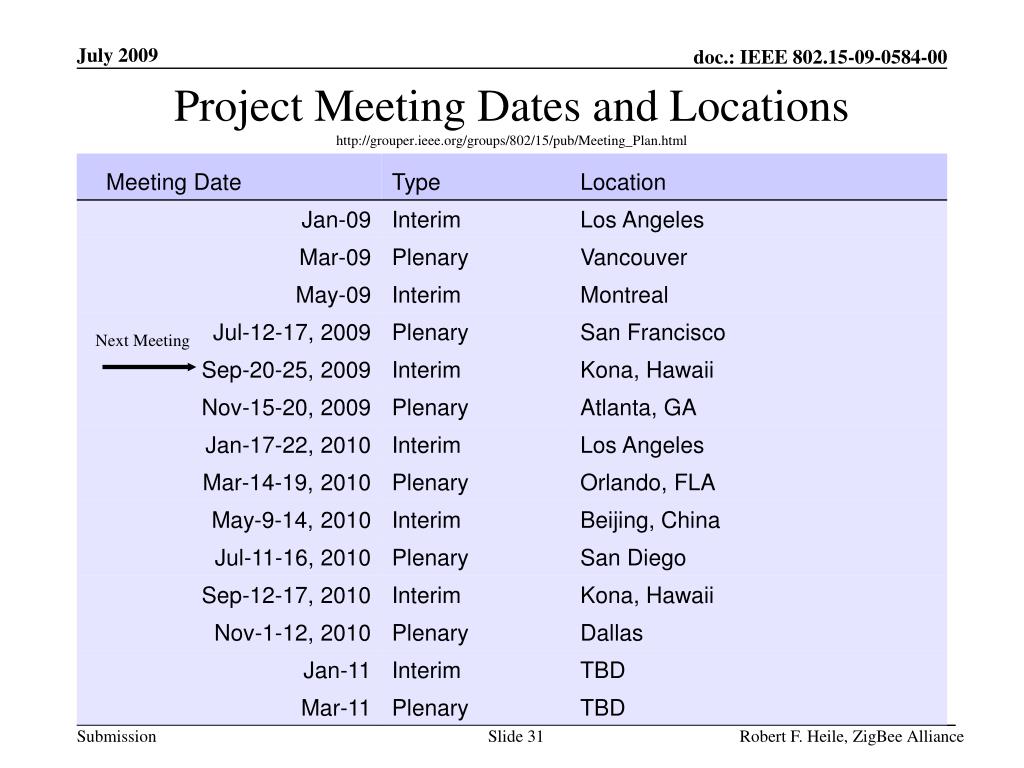

  31. Project Meeting Dates and Locationshttp://grouper.ieee.org/groups/802/15/pub/Meeting_Plan.html Next Meeting Robert F. Heile, ZigBee Alliance

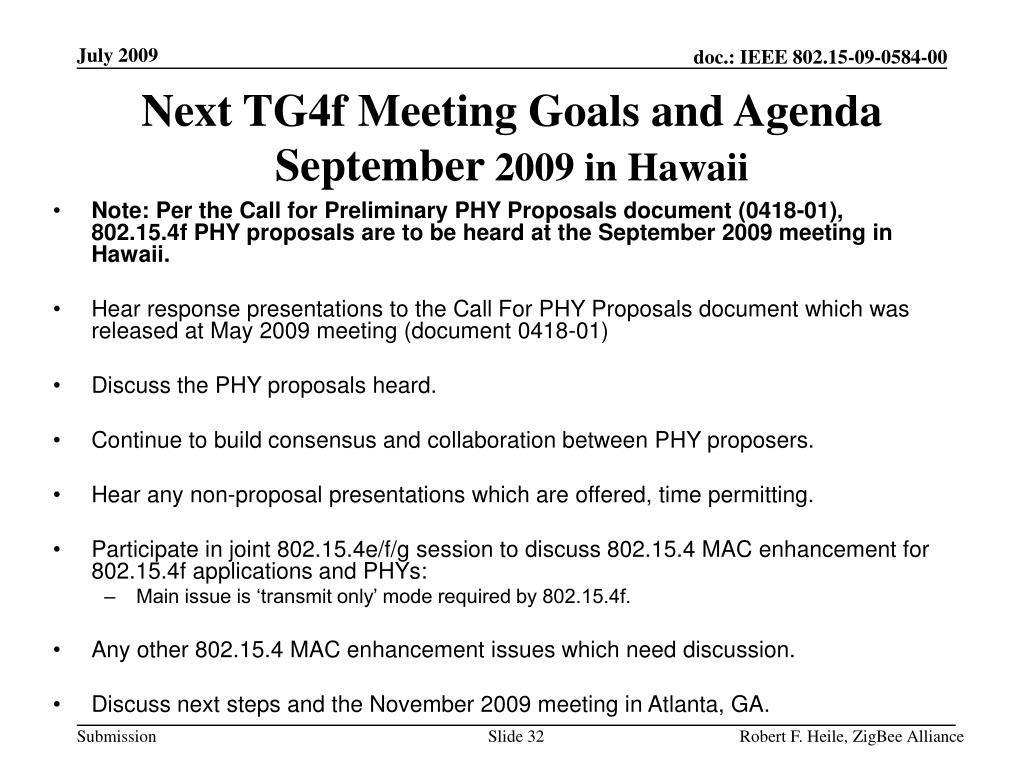

  32. Next TG4f Meeting Goals and AgendaSeptember 2009 in Hawaii • Note: Per the Call for Preliminary PHY Proposals document (0418-01), 802.15.4f PHY proposals are to be heard at the September 2009 meeting in Hawaii. • Hear response presentations to the Call For PHY Proposals document which was released at May 2009 meeting (document 0418-01) • Discuss the PHY proposals heard. • Continue to build consensus and collaboration between PHY proposers. • Hear any non-proposal presentations which are offered, time permitting. • Participate in joint 802.15.4e/f/g session to discuss 802.15.4 MAC enhancement for 802.15.4f applications and PHYs: • Main issue is ‘transmit only’ mode required by 802.15.4f. • Any other 802.15.4 MAC enhancement issues which need discussion. • Discuss next steps and the November 2009 meeting in Atlanta, GA. Robert F. Heile, ZigBee Alliance

  33. Sign up for 802.15.4f Active RFID e-mail reflector • Sign-up at: http://grouper.ieee.org/groups/802/15/pub/Subscribe.html • Email reflector address is: STDS-802-15-4f@listserv.ieee.org • Next Meeting • September 21-24 in Hawaii. • Hilton Waikoloa Village, Big Island, HI • Note: Register ASAP to save big $$$ • Registration fees for Hawaii are; • $600.00US Before 6pm Pacific Time (PT), Friday, July 31, 2009 • $850.00US After July 31, 2009 • $1150.00US After September 11, 2009. • Register for the next meeting at: • http://ieee802.facetoface-events.com/wireless Robert F. Heile, ZigBee Alliance

  34. 802.15.4g Smart Utility Networks PHY Amendment to 15.4 Closing Report Chair: Phil Beecher, Independent San Francisco, California July 16, 2009 Robert F. Heile, ZigBee Alliance

  35. TG4g-SUN PAR Scope This Standard defines an amendment to IEEE 802.15.4. It addresses principally outdoor Low Data Rate Wireless Smart Metering Utility Network requirements. It defines an alternate PHY and only those MAC modifications needed to support its implementation. Specifically, the amendment supports all of the following: Operation in any of the regionally available license exempt frequency bands, such as 700MHz to 1GHz, and the 2.4 GHz band. Data rate of at least 40 kbits per second but not more than 1000 kbits per second Achieve the optimal energy efficient link margin given the environmental conditions encountered in Smart Metering deployments. Principally outdoor communications PHY frame sizes up to a minimum of 1500 octets Simultaneous operation for at least 3 co-located orthogonal networks Connectivity to at least one thousand direct neighbors characteristic of dense urban deployment Provides mechanisms that enable coexistence with other systems in the same band(s) including IEEE 802.11, 802.15 and 802.16 systems Slide 35 Robert F. Heile, ZigBee Alliance

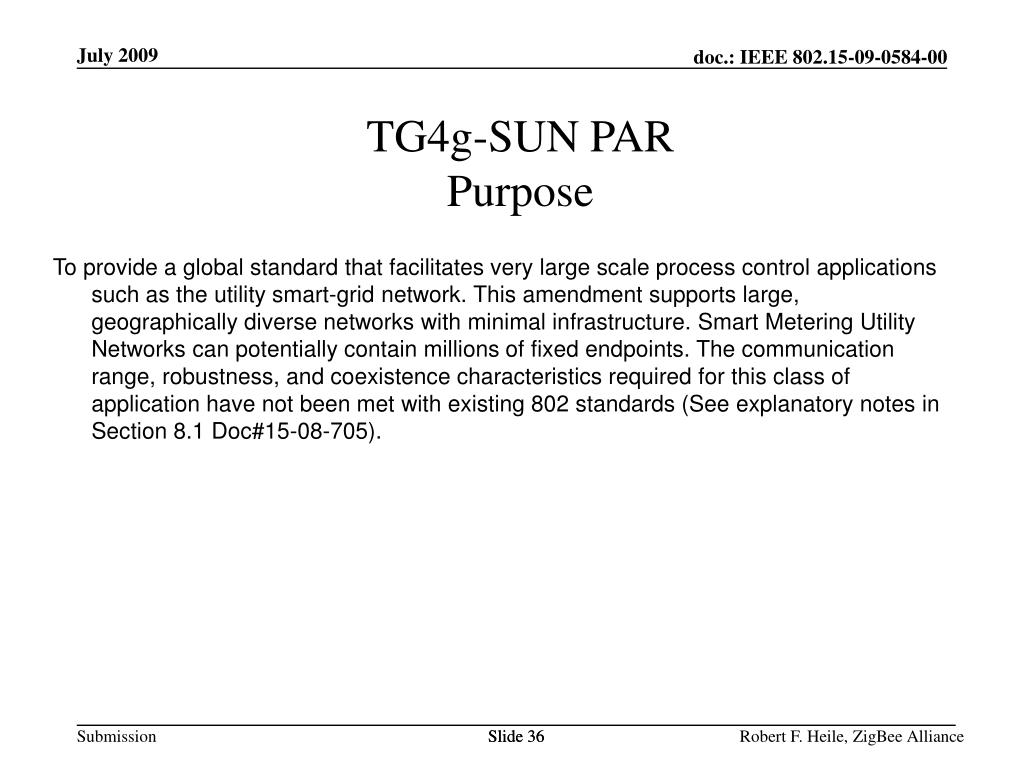

  36. TG4g-SUN PAR Purpose To provide a global standard that facilitates very large scale process control applications such as the utility smart-grid network. This amendment supports large, geographically diverse networks with minimal infrastructure. Smart Metering Utility Networks can potentially contain millions of fixed endpoints. The communication range, robustness, and coexistence characteristics required for this class of application have not been met with existing 802 standards (See explanatory notes in Section 8.1 Doc#15-08-705). Slide 36 Robert F. Heile, ZigBee Alliance

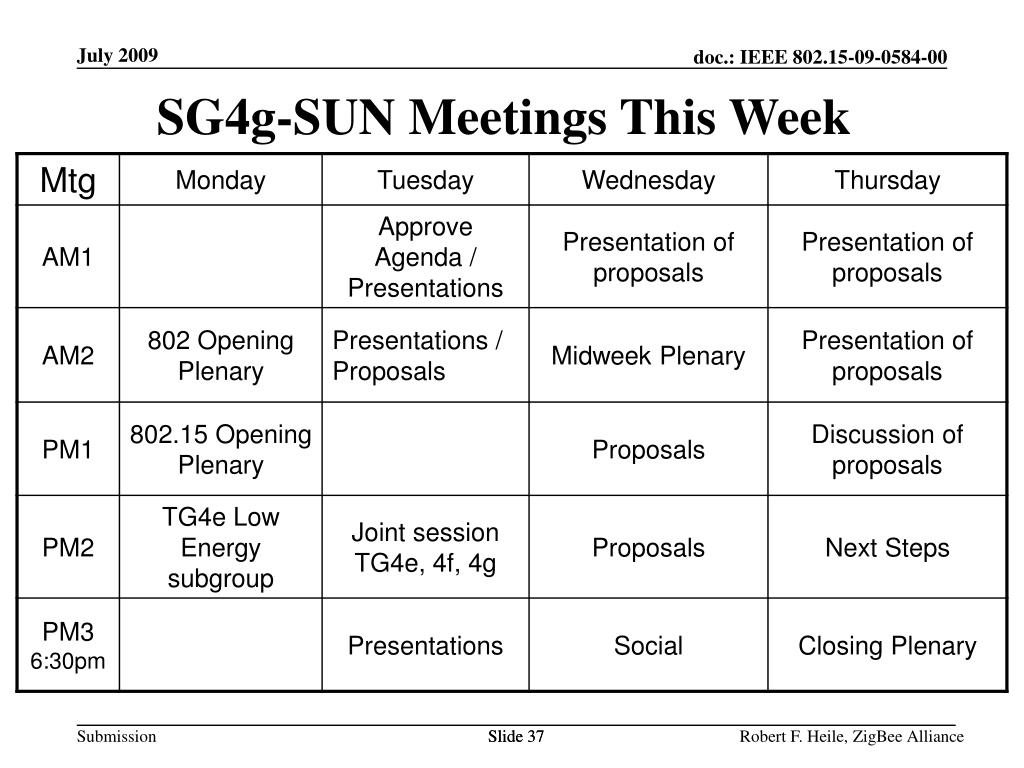

  37. SG4g-SUN Meetings This Week Slide 37 Robert F. Heile, ZigBee Alliance

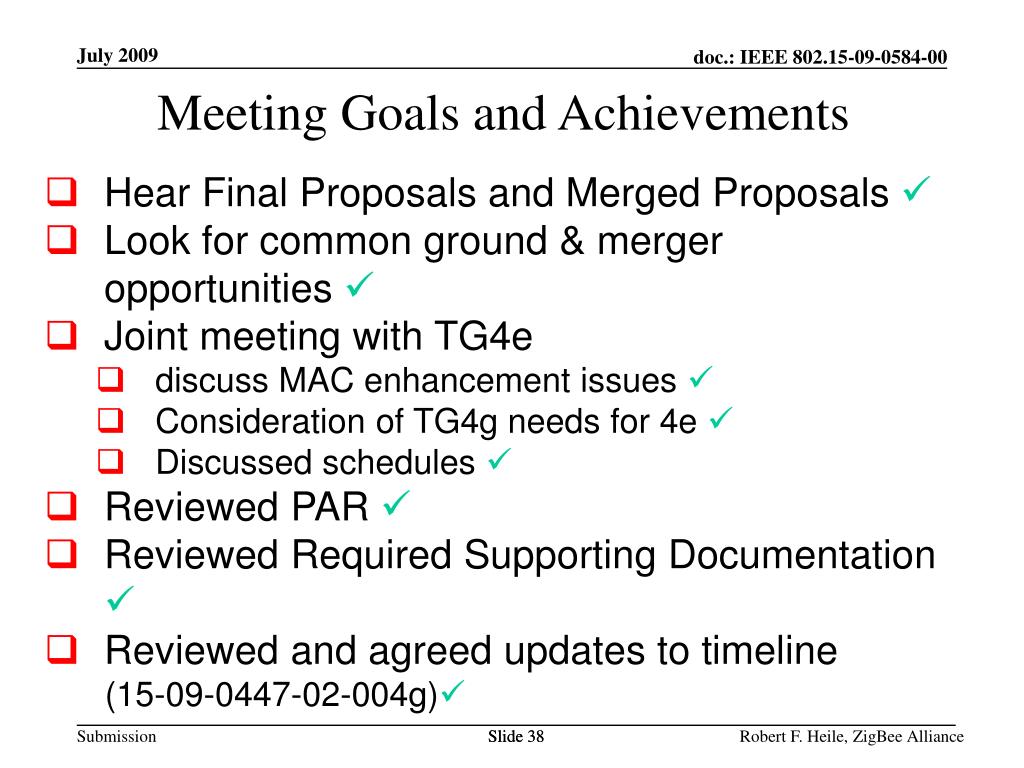

  38. Meeting Goals and Achievements • Hear Final Proposals and Merged Proposals  • Look for common ground & merger opportunities  • Joint meeting with TG4e • discuss MAC enhancement issues  • Consideration of TG4g needs for 4e  • Discussed schedules  • Reviewed PAR  • Reviewed Required Supporting Documentation  • Reviewed and agreed updates to timeline (15-09-0447-02-004g) Slide 38 Robert F. Heile, ZigBee Alliance

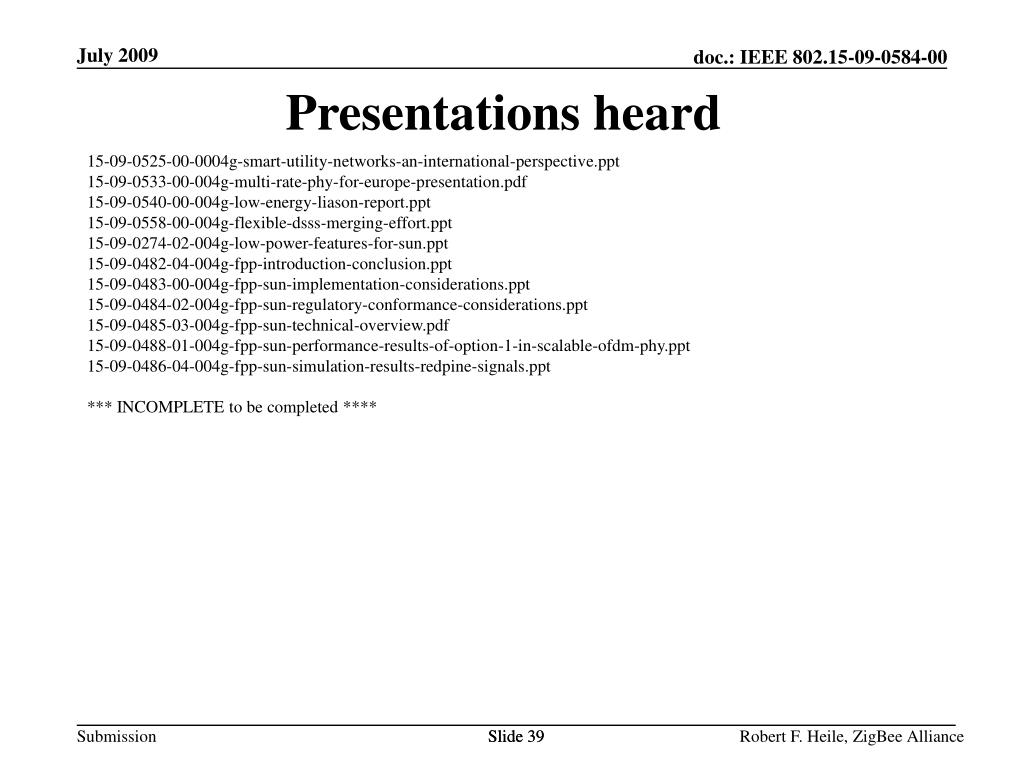

  39. Presentations heard 15-09-0525-00-0004g-smart-utility-networks-an-international-perspective.ppt 15-09-0533-00-004g-multi-rate-phy-for-europe-presentation.pdf 15-09-0540-00-004g-low-energy-liason-report.ppt 15-09-0558-00-004g-flexible-dsss-merging-effort.ppt 15-09-0274-02-004g-low-power-features-for-sun.ppt 15-09-0482-04-004g-fpp-introduction-conclusion.ppt 15-09-0483-00-004g-fpp-sun-implementation-considerations.ppt 15-09-0484-02-004g-fpp-sun-regulatory-conformance-considerations.ppt 15-09-0485-03-004g-fpp-sun-technical-overview.pdf 15-09-0488-01-004g-fpp-sun-performance-results-of-option-1-in-scalable-ofdm-phy.ppt 15-09-0486-04-004g-fpp-sun-simulation-results-redpine-signals.ppt *** INCOMPLETE to be completed **** Slide 39 Robert F. Heile, ZigBee Alliance

  40. Between Now and September 2009 • Teleconference calls: to be held weekly on Thursdays at 4pm BST, restarting July 30, 2009 (details will be posted to reflector) • Work on Proposals – continue merging and enhancing. • Use reflector for technical discussions and comments on proposals • Use sub-groups and ad-hoc calls where appropriate • Collate Use Case info • Work on Technical Requirements • Preparatory work for September meeting Robert F. Heile, ZigBee Alliance

  41. IEEE 802.15 TG6 Body Area Network Closing Report Chair: Art Astrin, Astrin Radio San Francisco, CA July 16, 2009 Slide 41 Robert F. Heile, ZigBee Alliance

  42. Purpose of Proposed Standard (PAR 07-0575) The purpose of the proposed standard it to provide an international standard for a short range (ie about human body range), low power and highly reliable wireless communication for use in close proximity to, or inside, a human body. Data rates, typically up to 10Mbps, will be offered to satisfy an evolutionary set of entertainment and healthcare services. Current PANs do not meet the medical (proximity to human tissue) and relevant communication regulations for some application environments. They also do not support the combination of reliability (QoS), low power, data rate and noninterference required to broadly address the breadth of body area network applications. Slide 42 Robert F. Heile, ZigBee Alliance

  43. Need for the Project (PAR 07-0575) There is a need for a standard optimized for ultra low power devices and operation on, in or around the human body to serve a variety of applications including medical and personal entertainment. Examples of the applications served by the proposed standard are: EEG, ECG, EMG, vital signals monitoring (temperature (wearable thermometer), respiratory, wearable heart rate monitor, wearable pulse oximeter, wearable blood pressure monitor, oxygen, pH value , wearable glucose sensor, implanted glucose sensor, cardiac arrhythmia), wireless capsule endoscope (gastrointestinal), wireless capsule for drug delivery, deep brain stimulator, cortical stimulator (visual neuro-stimulator, audio neuro stimulator, Parkinson’s disease, etc…), remote control of medical devices such as pacemaker, actuators, insulin pump, hearing aid (wearable and implanted), retina implants, disability assistance, such as muscle tension sensing and stimulation, wearable weighing scale, fall detection, aiding sport training. This will include body-centric solutions for future wearable computers. In a similar vein, the same technology can provide effective solutions for personal entertainment as well.The existence of a body area network standard will provide opportunities to expand these product features, better healthcare and well being for the users. It will therefore result in economic opportunity for technology component suppliers and equipment manufacturers. Slide 43 Robert F. Heile, ZigBee Alliance

  44. Session Merger Results • CEA, FT, Thales • GE, TI, Philips, Toumaz -> MedWin • Three new merged proposal presentations • NICT, Meiji, YNU PHY UWB only • KETI, Tensorcom, KORPA, (LG Electronics, Mitsubishi) • ETRI, Samsung HBC • Others in progress Slide 44 Slide 44 Robert F. Heile, ZigBee Alliance

  45. One Tutorial Presentation: 15-09-0511 Dr. Darrell M Wilson, MD Professor and Chief, Pediatric Endocrinology and Diabetes Stanford University and the Lucile Packard Children's Hospital at Stanford Body Area Network and Diabetes – a template for medical device communication Internationally known clinical researcher, concentrating in the area of pediatric diabetes and has published over 200 peer reviewed articles and chapters. His initial degree was in electrical engineering, a BS from UC Davis in 1973. He has been an IEEE member since the early 1970’s.In his talk he reviewed diabetes disease, discussed current conventional treatment and discuss cutting edge approaches, which include closed loop systems and their problems. He then went over what he envisions as  Body Area Network upsides for diabetes and what they envision as important features/functional aspects to such a network. Slide 45 Robert F. Heile, ZigBee Alliance

  46. MAC Slide 46 Robert F. Heile, ZigBee Alliance

  47. PHY UWB Slide 47 Robert F. Heile, ZigBee Alliance

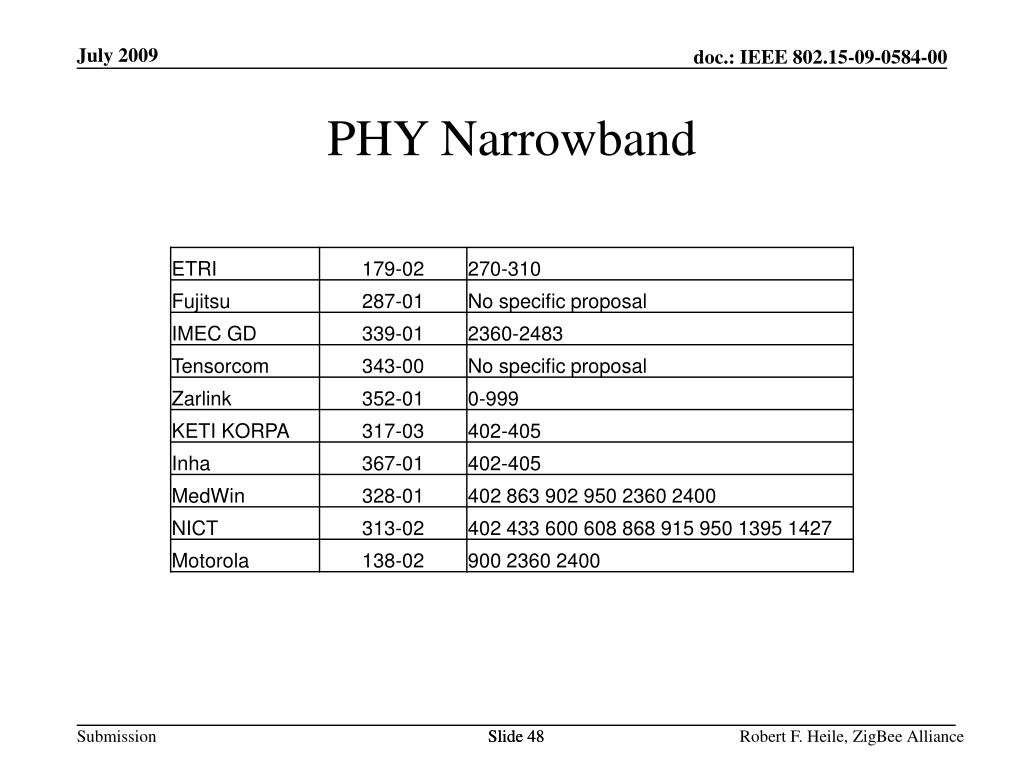

  48. PHY Narrowband Slide 48 Robert F. Heile, ZigBee Alliance

  49. Narrowband PHY Interests 1 = preferenceD = don’t careX = opposed to inclusion in standard (NONE!) 49 Slide 49 Robert F. Heile, ZigBee Alliance

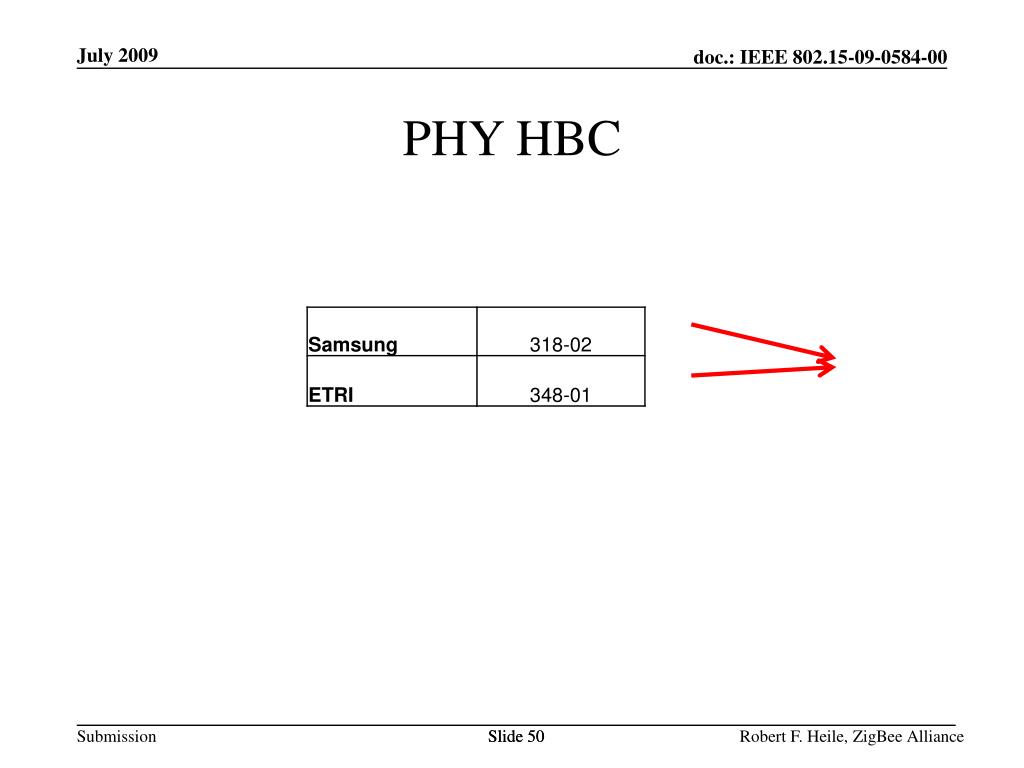

  50. PHY HBC Slide 50 Robert F. Heile, ZigBee Alliance
