abstract data types adts

Abstract Data Types (ADTs)

by

Briana Morrison

adapted from Dale/Weems/Headington and Cahoon/Davidson

topics
Topics
  • Abstraction
  • Abstract Data Types (ADTs)
  • Separate Compilation
  • Rational Class
  • Overloading Operators
  • Member function vs. non-member function
  • Good ADTs
  • Namespaces
abstraction
Abstraction
  • is the separation of the essential qualities of an object from the details of how it works or is composed
  • focuses on what, not how
  • is necessary for managing large, complex software projects
control abstraction
Control Abstraction
  • separates the logical properties of an action from its implementation

.

.

.

Search (list, item, length, where, found);

.

.

.

  • the function call depends on the function’s specification (description), not its implementation (algorithm)
data abstraction

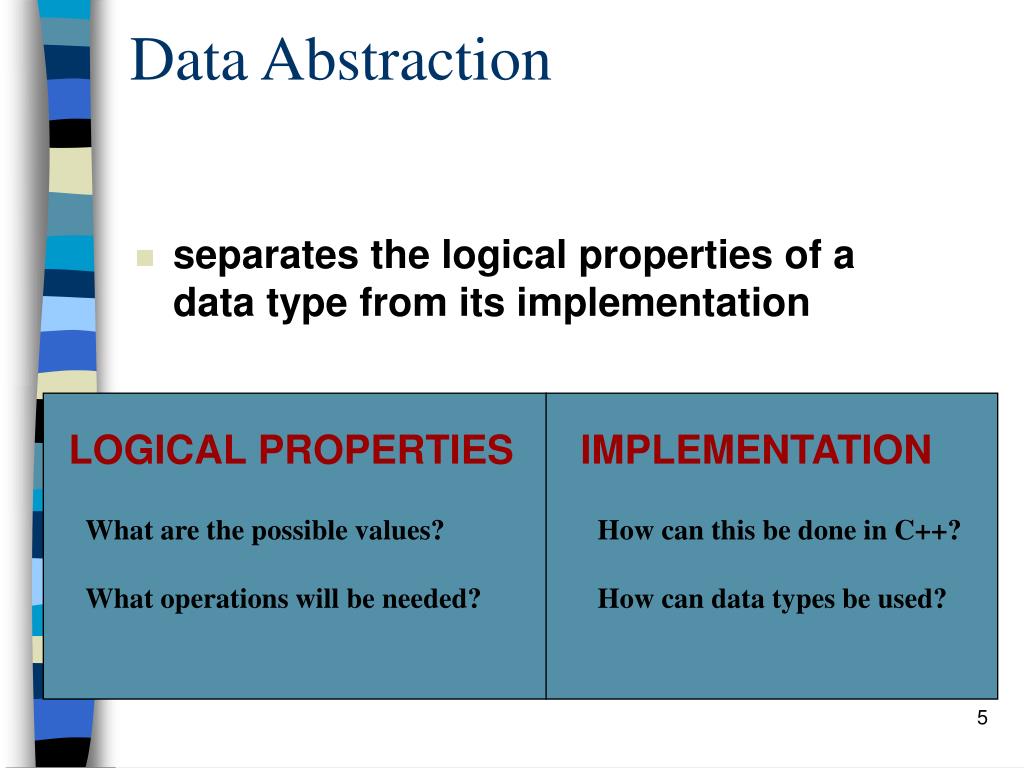

Data Abstraction
  • separates the logical properties of a data type from its implementation

LOGICAL PROPERTIES IMPLEMENTATION

What are the possible values? How can this be done in C++?

What operations will be needed? How can data types be used?

data type
Data Type

set of values

(domain)

allowable operations

on those values

FOR EXAMPLE, data type int has

operations

+, -, *, /, %, >>, <<

domain

-32768 . . . 32767

abstract data type adt

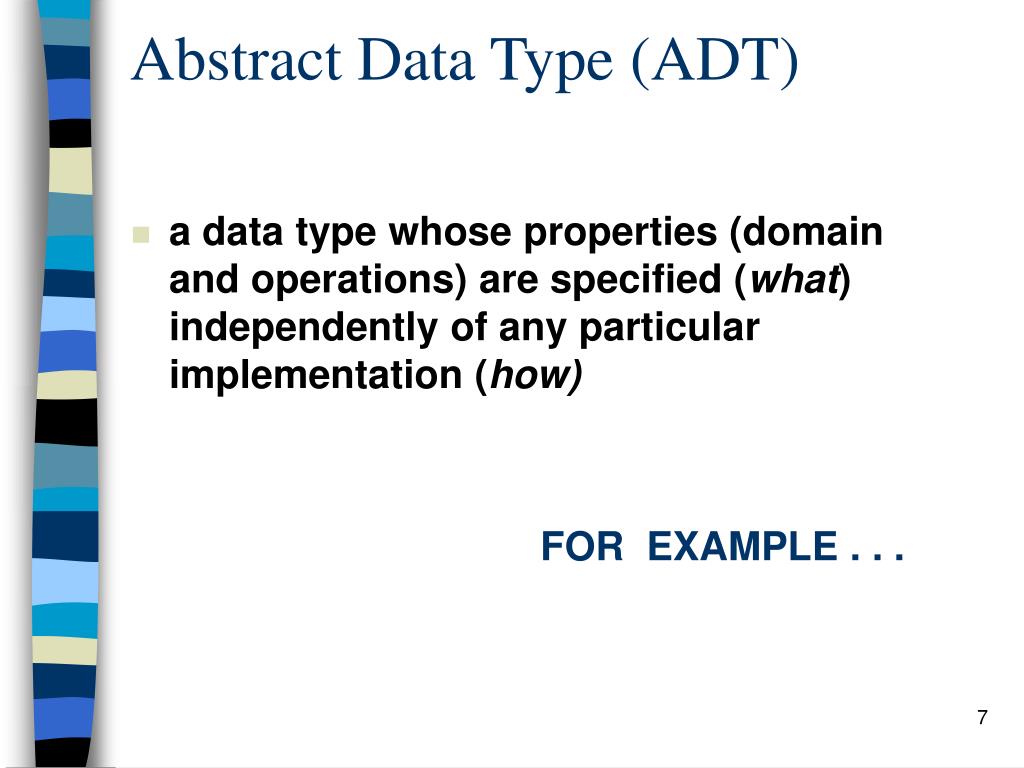

Abstract Data Type (ADT)
  • a data type whose properties (domain and operations) are specified (what) independently of any particular implementation (how)

FOR EXAMPLE . . .

adt specification example
ADT Specification Example

TYPE

TimeType

DOMAIN

Each TimeType value is a time in hours, minutes, and seconds.

OPERATIONS

Set the time

Print the time

Increment by one second

Compare 2 times for equality

Determine if one time is “less than” another

another adt specification

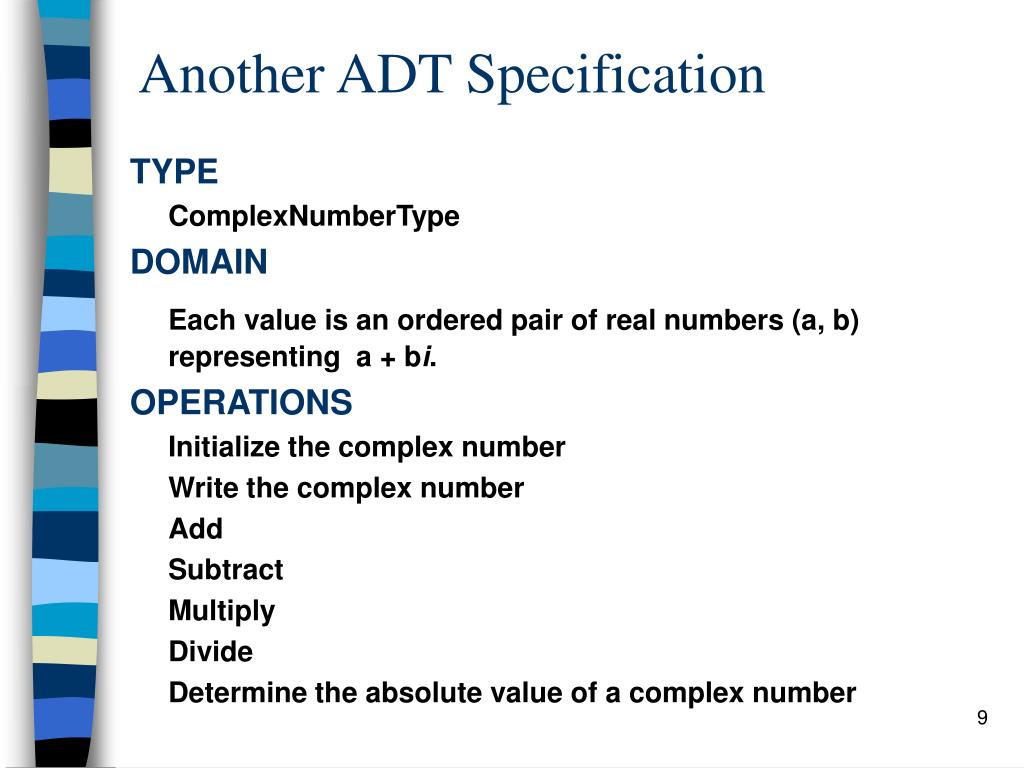

Another ADT Specification

TYPE

ComplexNumberType

DOMAIN

Each value is an ordered pair of real numbers (a, b) representing a + bi.

OPERATIONS

Initialize the complex number

Write the complex number

Add

Subtract

Multiply

Divide

Determine the absolute value of a complex number

adt implementation means
ADT Implementation means
  • choosing a specific data representation for the abstract data using data types that already exist (built-in or programmer-defined)
  • writing functions for each allowable operation
several possible representations of timetype

“10” “45” “27”

10 45 27

Several Possible Representations of TimeType

3 int variables

3 strings

3-element int array

  • actual choice of representation depends on time, space, and algorithms needed to implement operations

10 45 27

class timetype specification

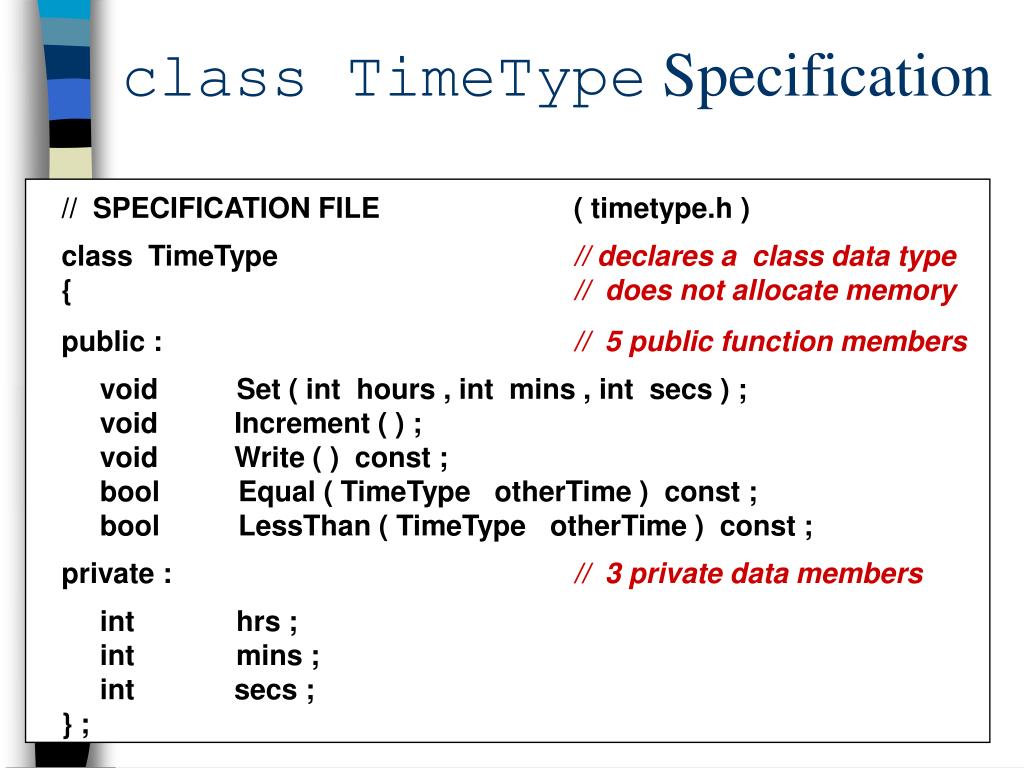

class TimeType Specification

// SPECIFICATION FILE ( timetype.h )

class TimeType// declares a class data type

{// does not allocate memory

public : // 5 public function members

void Set (int hours ,int mins , int secs ) ;

void Increment ( ) ;

void Write ( ) const ;

bool Equal ( TimeType otherTime ) const ;

bool LessThan (TimeType otherTime ) const ;

private : // 3 private data members

int hrs ;

int mins ;

int secs ;

} ;

slide13

TimeType Class Instance Diagrams

currentTime endTime

Set

Set

Private data:

hrs

mins

secs

Private data:

hrs

mins

secs

Increment

Increment

18

30

0

17

58

2

Write

Write

LessThan

LessThan

Equal

Equal

client code using timetype
Client Code UsingTimeType

#include “timetype.h” // includes specification of the class

using namespace std ;

int main ( )

{

TimeType currentTime ; // declares 2 objects of TimeType

TimeType endTime ;

bool done = false ;

currentTime.Set ( 5, 30, 0 ) ;

endTime.Set ( 18, 30, 0 ) ;

while ( ! done )

{ . . .

currentTime.Increment ( ) ;

if ( currentTime.Equal ( endTime ) )

done = true ;

} ;

}

implementation file for timetype
Implementation File for TimeType

// IMPLEMENTATION FILE ( timetype.cpp )

// Implements the TimeType member functions.

#include “ timetype.h” // also must appear in client code

#include <iostream>

. . .

bool TimeType :: Equal ( /* in */ TimeType otherTime ) const

// Postcondition:

// Function value == true, if this time equals otherTime

// == false , otherwise

{

return ( (hrs == otherTime.hrs) && (mins == otherTime.mins)

&& (secs == otherTime.secs) ) ;

}

. . .

separate compilation and linking of files

timetype.h

client.cpp

timetype.cpp

client.obj

timetype.obj

client.exe

Separate Compilation and Linking of Files

specification file

main program

implementation file

#include “timetype.h”

Compiler

Compiler

Linker

avoiding multiple inclusion of header files
Avoiding Multiple Inclusion of Header Files
  • often several program files use the same header file containing typedef statements, constants, or class type declarations--but, it is a compile-time error to define the same identifier twice
  • this preprocessor directive syntax is used to avoid the compilation error that would otherwise occur from multiple uses of #include for the same header file

#ifndef Preprocessor_Identifier

#define Preprocessor_Identifier

.

.

.

#endif

example using preprocessor directive ifndef
Example Using Preprocessor Directive #ifndef

// timetype .h FOR COMPILATION THE CLASS DECLARATION IN

// SPECIFICATION FILE FILE timetype.h WILL BE INCLUDED ONLY ONCE

#ifndef TIME_H

#define TIME_H // timetype .cpp // client.cpp

// IMPLEMENTATION FILE // Appointment program

class TimeType

{ #include “timetype.h” #include “timetype.h”

public:

. . .. . . int main ( void )

{

private: . . .

. . . }

} ;

#endif

rational abstract data type
Rational Abstract Data Type
  • Consider

Rational a(1,2); // a = 1/2

Rational b(2,3); // b = 2/3

cout << a << " + " << b << " = " << a + b;

Rational s; // s = 0/1

cin >> s;

cout << s << " * " << a << " = " << s * a;

if (s == b)

cout << “Equal” << endl;

  • Observation
    • Natural look that is analogous to fundamental-type arithmetic objects
rational number review
Multiplication

Division

Rational number

Ratio of two integers: a/b

Numerator over the denominator

Standard operations

Addition

Subtraction

Rational Number Review
rational number representation
Rational Number Representation
  • Requirements
    • Represent a numerator and denominator
      • Implies in part a class representation with two int data members
        • NumeratorValue and DenominatorValue
        • Data members private to support information hiding
    • Public arithmetic behaviors (member functions)
      • Rational addition, multiplication and equality
    • Public relational behaviors
      • Equality and less than comparisons
        • Practice rule of class minimality
rational number representation1
Rational Number Representation
  • Other requirements
    • Public object behaviors
      • Construction
        • Default construction
        • Specific numerator and denominator construction
      • Assignment (provided automatically)
      • Value reading and printing
      • Inspection/accessors and mutation of data members
        • Clients deal with a Rational object!
rational number representation2

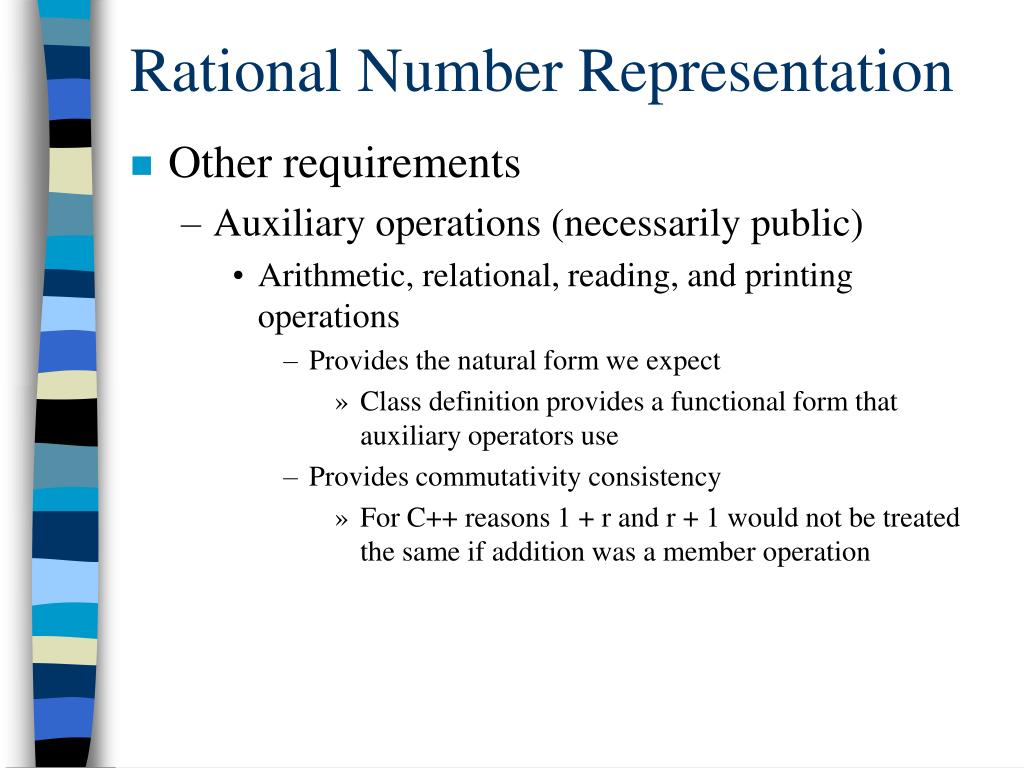

Rational Number Representation
  • Other requirements
    • Auxiliary operations (necessarily public)
      • Arithmetic, relational, reading, and printing operations
        • Provides the natural form we expect
          • Class definition provides a functional form that auxiliary operators use
        • Provides commutativity consistency
          • For C++ reasons 1 + r and r + 1 would not be treated the same if addition was a member operation
slide24

Rational Class Instance Diagrams

a b

SetNumerator

SetNumerator

Add

Add

SetDenominator

SetDenominator

Multiply

Multiply

Private data:

Numerator

value

Denominator

value

Private data:

Numerator

value

Denominator

value

Print

Print

2

3

1

2

Read

Read

LessThan

LessThan

Equal

Equal

Numerator

Numerator

Denominator

Denominator

consider

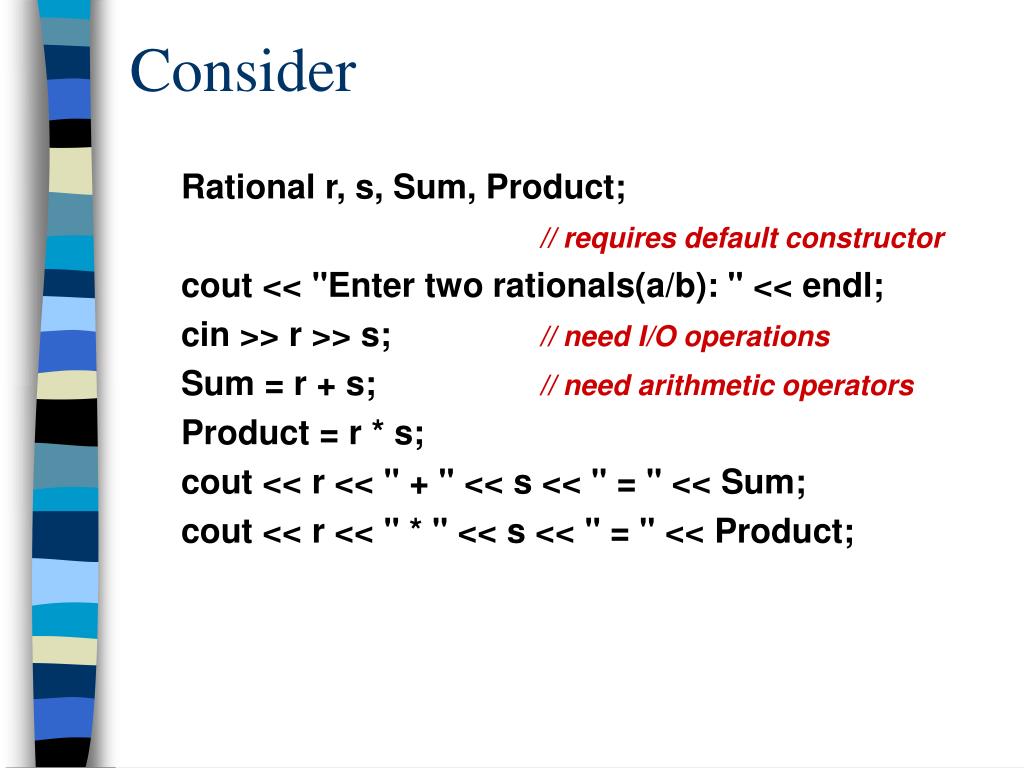

Consider

Rational r, s, Sum, Product;

// requires default constructor

cout << "Enter two rationals(a/b): " << endl;

cin >> r >> s; // need I/O operations

Sum = r + s; // need arithmetic operators

Product = r * s;

cout << r << " + " << s << " = " << Sum;

cout << r << " * " << s << " = " << Product;

class rational overview
Class Rational Overview

class Rational {

public:

// for everybody including clients

// for Rational member functions

private:

// for hidden Rational memberfunctions

// for Rational data members

} ;

rational private section
Rational Private Section

private:

// data members

int NumeratorValue;

int DenominatorValue;

class rational interface

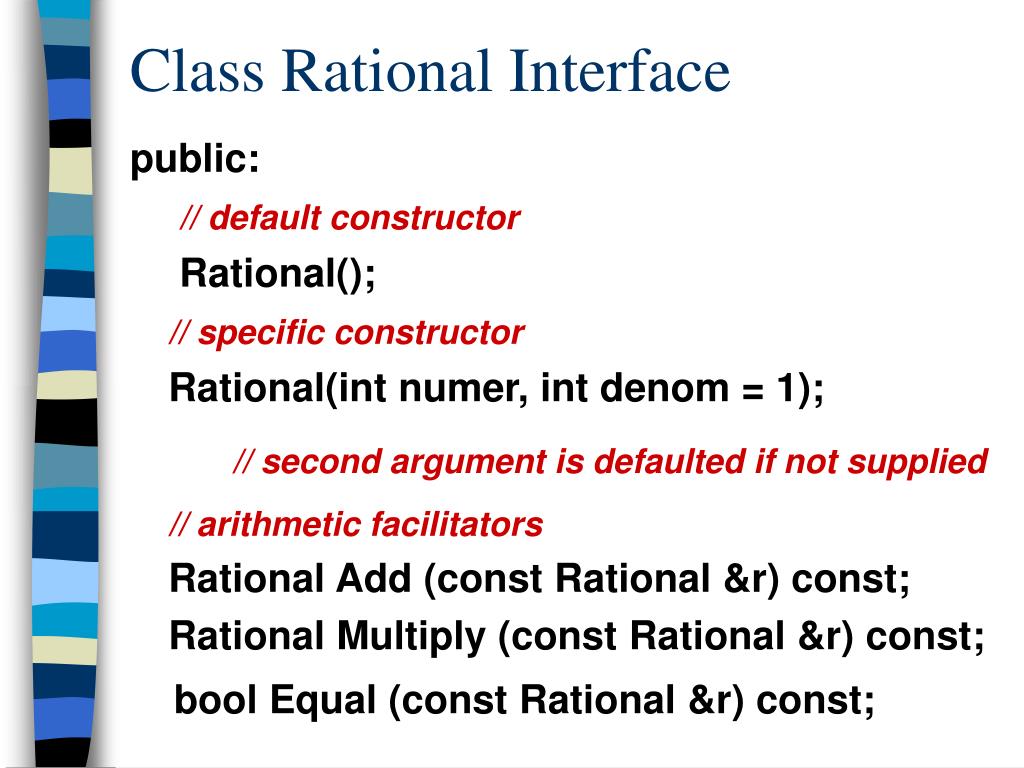

Class Rational Interface

public:

// default constructor

Rational();

// specific constructor

Rational(int numer, int denom = 1);

// second argument is defaulted if not supplied

// arithmetic facilitators

Rational Add (const Rational &r) const;

Rational Multiply (const Rational &r) const;

bool Equal (const Rational &r) const;

class rational interface cont
Class Rational Interface Cont.

public cont.

// stream facilitators

void Print (ostream &sout) const;

void Read (istream &sin);

// inspectors

int Numerator ( ) const;

int Denominator ( ) const;

// mutators

void SetNumerator (int numer);

void SetDenominator (int denom);

};

auxiliary operator prototyping
Auxiliary Operator Prototyping

//after the class definition in rational.h

Rational operator+ (const Rational &r, const Rational &s);

Rational operator* (const Rational &r, const Rational &s);

Rational operator== (const Rational &r, const Rational &s);

ostream& operator<< (ostream &sout, const Rational &s);

istream& operator>> (istream &sin, Rational &r);

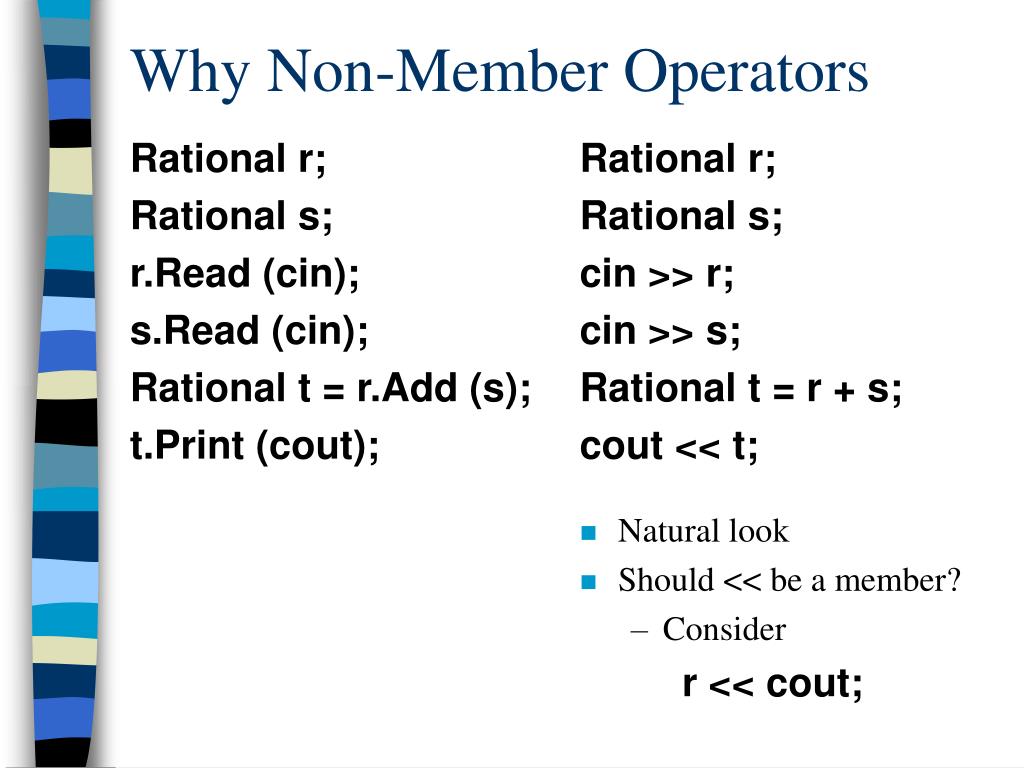

why non member operators
Rational r;

Rational s;

r.Read (cin);

s.Read (cin);

Rational t = r.Add (s);

t.Print (cout);

Rational r;

Rational s;

cin >> r;

cin >> s;

Rational t = r + s;

cout << t;

Natural look

Should << be a member?

Consider

r << cout;

Why Non-Member Operators
const power
Const Power

const Rational OneHalf (1,2);

cout << OneHalf; // legal

cin >> OneHalf; // illegal

remember
Remember
  • Every class object
    • Has its own data members
    • Has its own member functions
      • When a member function accesses a data member
        • By default the function accesses the data member of the object to which it belongs!
          • No special notation needed
  • Auxiliary functions
    • Are not class members
    • To access a public member of an object, an auxiliary function must use the dot operator on the desired object

object.member

rational adt implementation

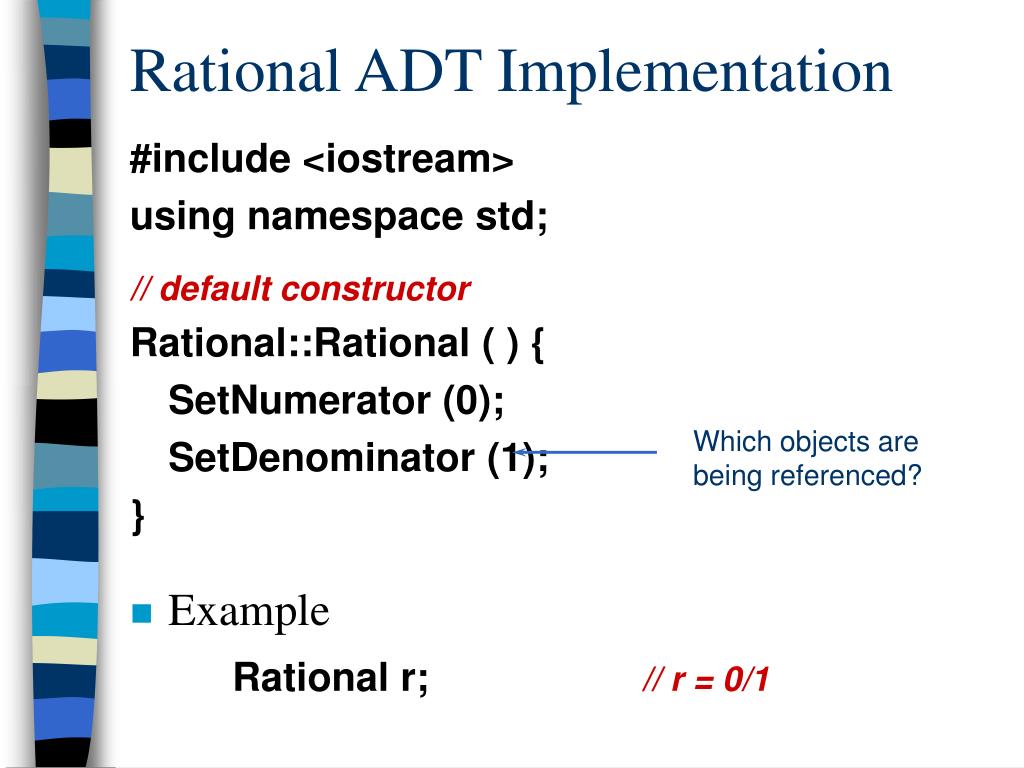

Rational ADT Implementation

#include <iostream>

using namespace std;

// default constructor

Rational::Rational ( ) {

SetNumerator (0);

SetDenominator (1);

}

  • Example

Rational r; // r = 0/1

Which objects arebeing referenced?

specific constructor

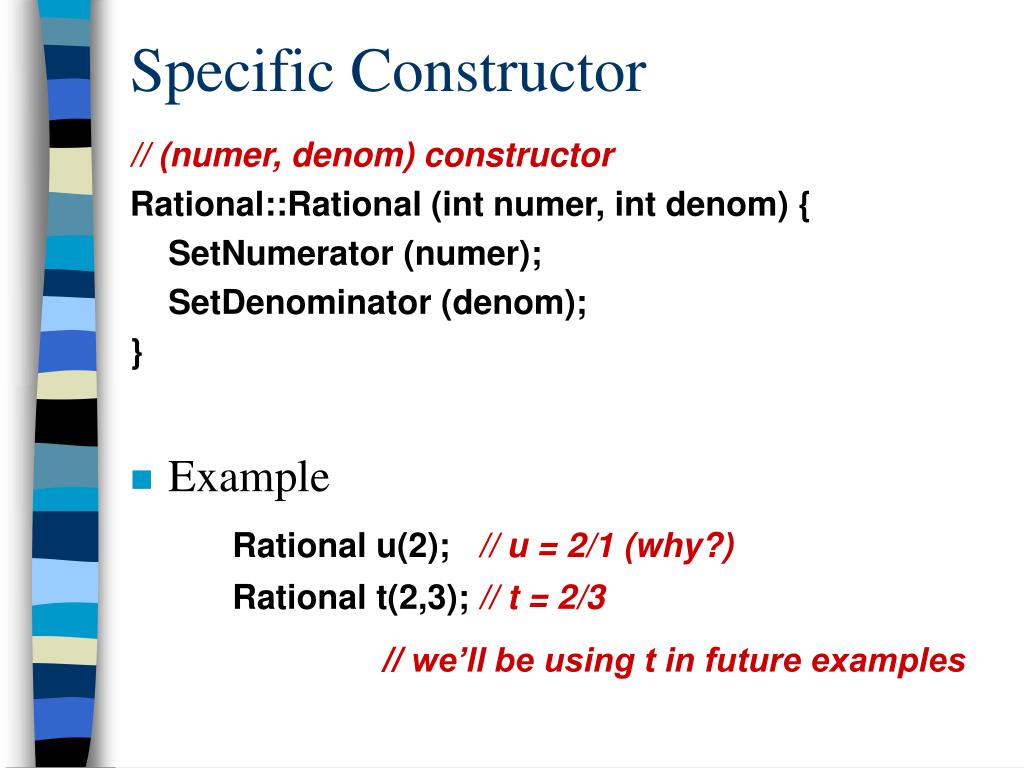

Specific Constructor

// (numer, denom) constructor

Rational::Rational (int numer, int denom) {

SetNumerator (numer);

SetDenominator (denom);

}

  • Example

Rational u(2); // u = 2/1 (why?)

Rational t(2,3); // t = 2/3

// we’ll be using t in future examples

accessors inspectors
Accessors / Inspectors

int Rational::Numerator ( ) const {

return NumeratorValue;

}

int Rational::Denominator ( ) const {

return DenominatorValue;

}

  • Where are the following legal?

int a = Numerator ( );

int b = t.Numerator ( );

Which object isbeing referenced?

Why the const?

numerator mutator
Numerator Mutator

void Rational::SetNumerator (int numer) {

NumeratorValue = numer;

}

  • Where are the following legal?

SetNumerator (1);

t.SetNumerator (2);

Why no const?

denominator mutator
Denominator Mutator

void Rational::SetDenominator (int denom) {

if (denom != 0)

DenominatorValue = denom;

else {

cerr << "Illegal denominator: " << denom

<< "using 1" << endl;

DenominatorValue = 1;

}

}

  • Example

SetDenominator (5);

addition facilitator
Addition Facilitator

Rational Rational::Add (const Rational &r) const {

int a, b, c, d;

a = Numerator ( );

b = Denominator ( );

c = r.Numerator ( );

d = r.Denominator ( );

return Rational (a*d + b*c, b*d);

}

  • Example

cout << t.Add (u);

multiplication facilitator

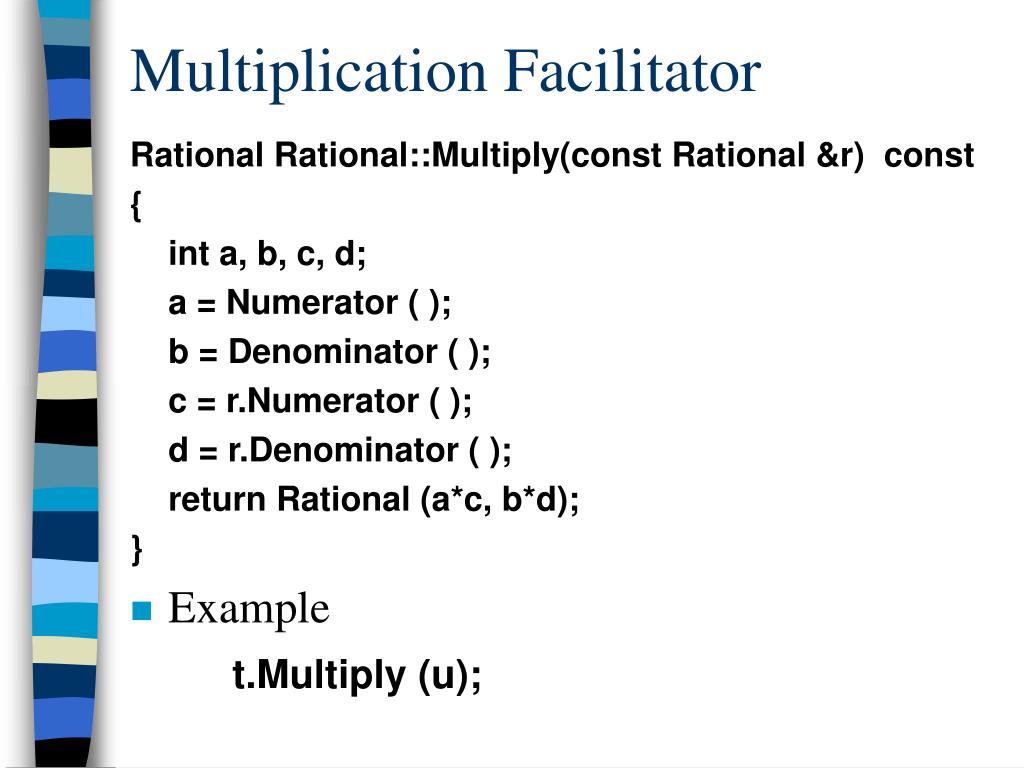

Multiplication Facilitator

Rational Rational::Multiply(const Rational &r) const

{

int a, b, c, d;

a = Numerator ( );

b = Denominator ( );

c = r.Numerator ( );

d = r.Denominator ( );

return Rational (a*c, b*d);

}

  • Example

t.Multiply (u);

equality facilitator
Equality Facilitator

bool Rational::Equal (const Rational &r) const {

int a, b, c, d;

a = Numerator ( );

b = Denominator ( );

c = r.Numerator ( );

d = r.Denominator ( );

return (a*d == b*c);

}

  • Example

t.Equal (u);

print facilitator
Print Facilitator

void Rational::Print (ostream &sout) const {

sout << Numerator ( ) << '/' << Denominator ( );

return;

}

  • Example

t.Print (cout);

  • Why is sout a reference parameter?
basic read facilitator

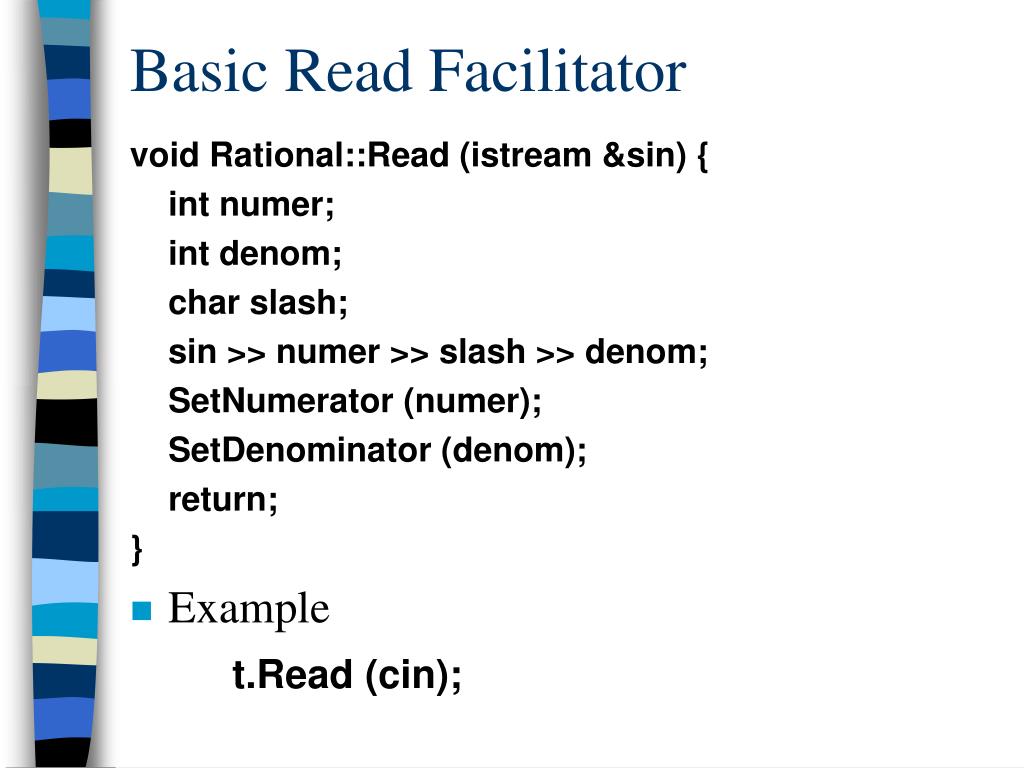

Basic Read Facilitator

void Rational::Read (istream &sin) {

int numer;

int denom;

char slash;

sin >> numer >> slash >> denom;

SetNumerator (numer);

SetDenominator (denom);

return;

}

  • Example

t.Read (cin);

auxiliary arithmetic operators
Auxiliary Arithmetic Operators

Rational operator+ (const Rational &r,

const Rational &s) {

return r.Add (s);

}

Rational operator* (const Rational &r,

const Rational &s) {

return r.Multiply (s);

}

  • Example

cout << (t + t) * t;

auxiliary equality operator
Auxiliary Equality Operator

bool operator== (const Rational &r,

const Rational &s) {

return r.Equal (s);

}

  • Example

if (s == t)

cout << “Equal” <<endl;

auxiliary output operator

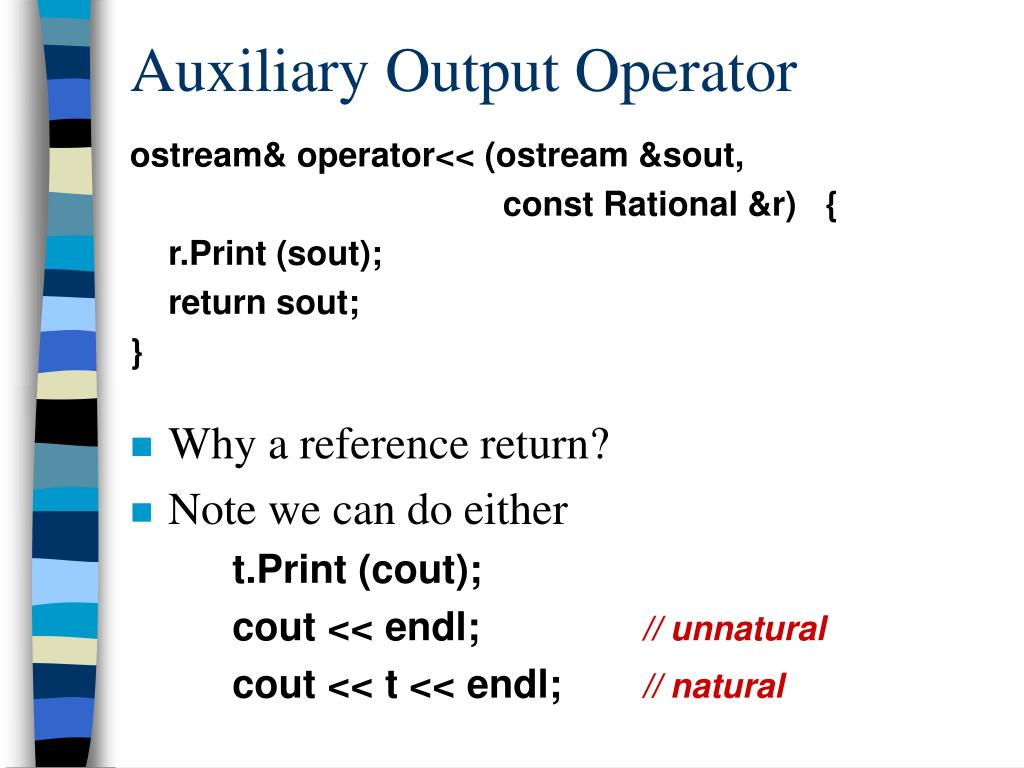

Auxiliary Output Operator

ostream& operator<< (ostream &sout,

const Rational &r) {

r.Print (sout);

return sout;

}

  • Why a reference return?
  • Note we can do either

t.Print (cout);

cout << endl;// unnatural

cout << t << endl;// natural

auxiliary input operator
Auxiliary Input Operator

istream& operator>> (istream &sin, Rational &r) {

r.Read (sin);

return sin;

}

  • Why a reference return?
  • We can do either

t.Read (cin); // unnatural

cin >> t; // natural

overloading operators rules
Overloading Operators Rules

1. At least one argument must be of class type

2. May be a friend function

3. Cannot create a new operator

4. Cannot change the number of arguments for operator

5. Cannot change the precedence of operator

6. Cannot overload the following operators:

  • . (member selector)
  • :: (scope resolution)
  • .* (member indirection)
  • ?: (conditional if)
separate compilation components

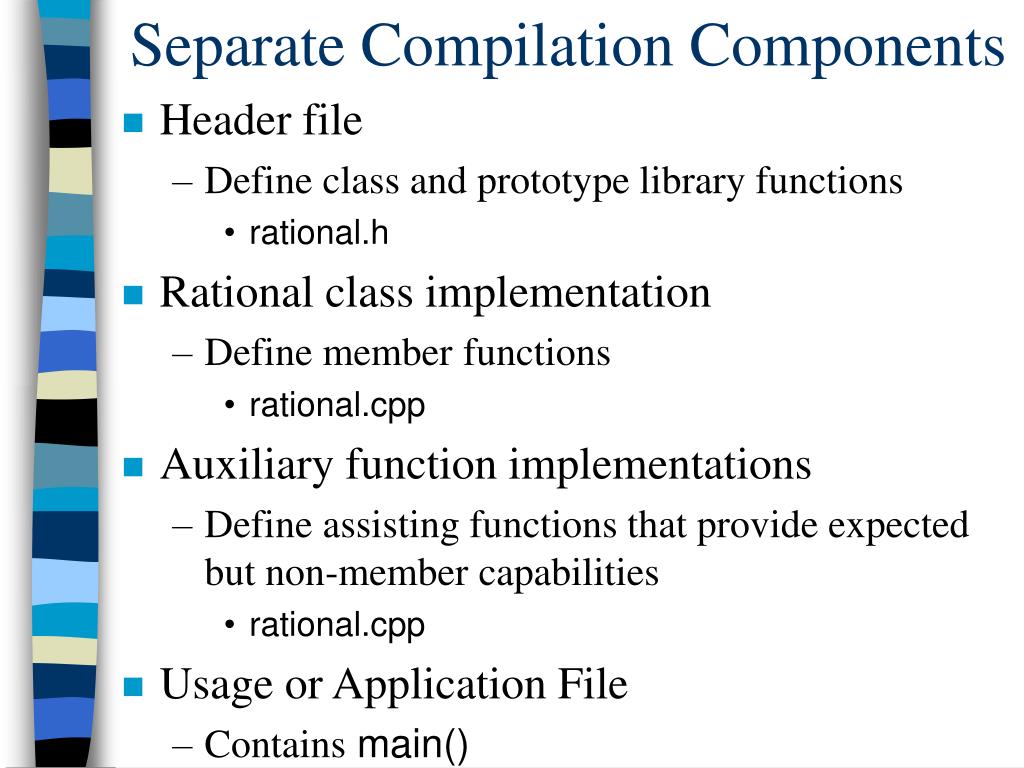

Separate Compilation Components
  • Header file
    • Define class and prototype library functions
      • rational.h
  • Rational class implementation
    • Define member functions
      • rational.cpp
  • Auxiliary function implementations
    • Define assisting functions that provide expected but non-member capabilities
      • rational.cpp
  • Usage or Application File
    • Contains main()
rational adt header file

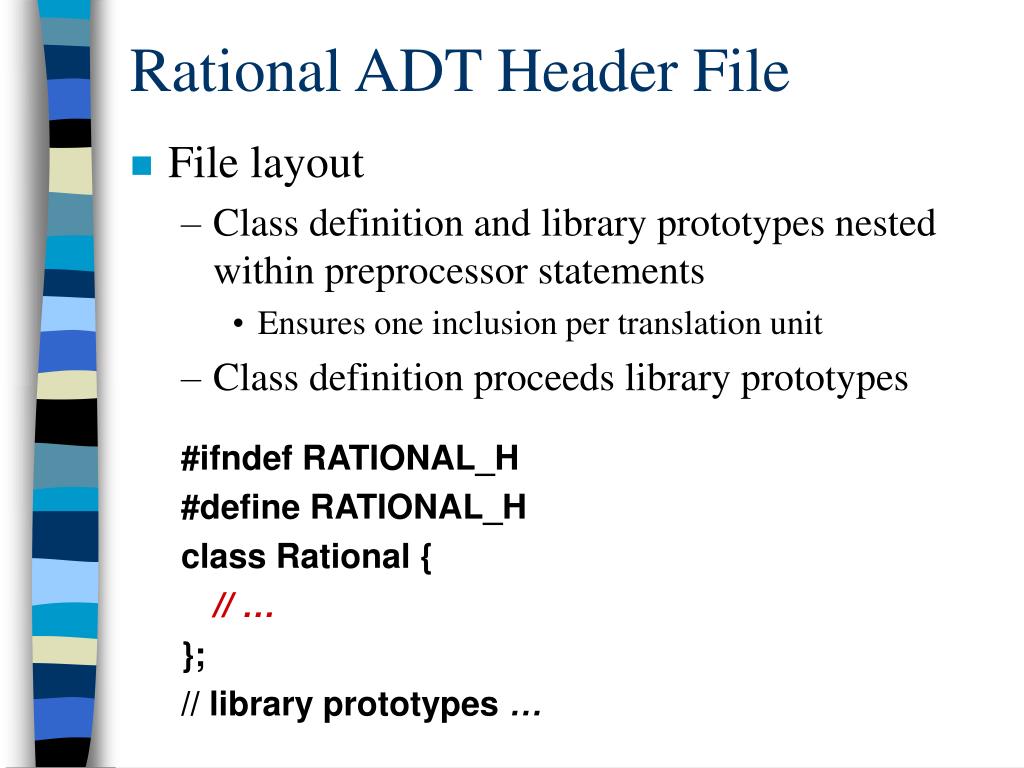

Rational ADT Header File
  • File layout
    • Class definition and library prototypes nested within preprocessor statements
      • Ensures one inclusion per translation unit
    • Class definition proceeds library prototypes

#ifndef RATIONAL_H

#define RATIONAL_H

class Rational {

// …

};

// library prototypes …

rational implementation file
Rational Implementation File

// Start of rational.cpp

#include <iostream>

#include "rational.h”

using namespace std;

// implementation

Rational::Rational ( ) {

...

Is this necessary?

usage file
Usage File

// Start of main.cpp

#include <iostream>

#include "rational.h”

using namespace std;

// declaration of any functions

int main( ) {

Rational a, b(2,3);

etc.

}

// definition of any functions

member functions vs non member
Member Functions vs. Non-Member
  • Generally use a member function if function acts only on the invoking object (only 1 object needed for function)
    • example is inspectors, mutators
    • exceptions are input/output operators
  • Use non-member function when action needs two or more objects
    • examples are comparison and arithmetic
good adts
Good ADTs

A good ADT will have the following:

1. Constructors for setting and changing data values, including default constructor

2. Some way to test two objects for equality (typically == operator)

3. Method for inputting data for the value(s) (typically >> operator)

4. Method for outputting data for the value(s) (typically << operator)

5. Functions to perform basic operations such as:

inspectors, mutators, arithmetic

namespaces
Namespaces
  • way to deal with the same name for two different things
  • std namespace
  • global namespace
  • You can use more than one namespace at the same time
  • All ADTs should be defined inside a specific namespace
3 ways to use namespace identifiers
3 Ways to Use Namespace Identifiers
  • use a qualified name consisting of the namespace, the scope resolution operator :: and the desired the identifier

alpha = std :: abs( beta ) ;

  • write a using declaration

using std::abs ;

alpha = abs( beta );

  • write a using directive locally or globally

using namespace std ;

alpha = abs( beta );

putting code in a namespace
Putting Code in a Namespace

using namespace std;

namespace morrison1

{ void greeting( ); }

namespace morrison2

{ void greeting( ); }

void main( )

{ { using namespace morrison2;

greeting( ); }

{ using namespace morrison1;

greeting( ); }

}
