  1. Examples of Four-Dimensional Data Assimilation in Oceanography Ibrahim Hoteit University of Maryland October 3, 2007

  2. Outline • 4D Data Assimilation • 4D-VAR and Kalman Filtering • Application to Oceanography • Examples in Oceanography • 4D-VAR Assimilation Tropical Pacific, San Diego, … • Filtering Methods Mediterranean Sea, Coupled models, Nonlinear filtering ... • Discussion and New Applications

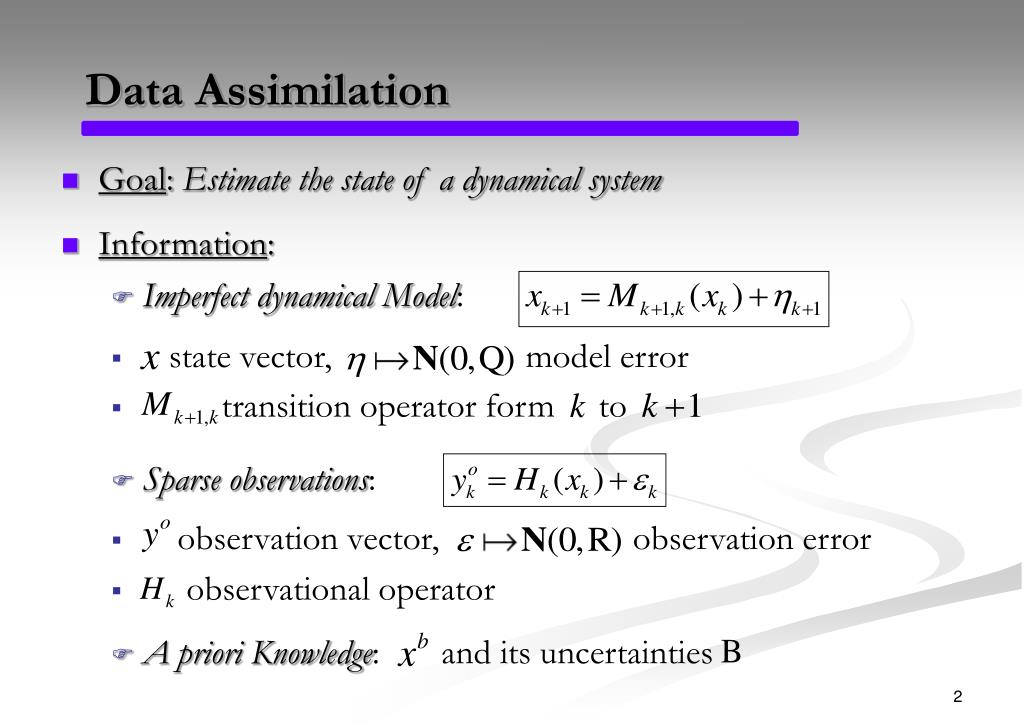

  3. Data Assimilation • Goal: Estimate the state of a dynamical system • Information: • Imperfect dynamical Model: • state vector, model error • transition operator form to • Sparse observations: • observation vector, observation error • observational operator • A priori Knowledge: and its uncertainties

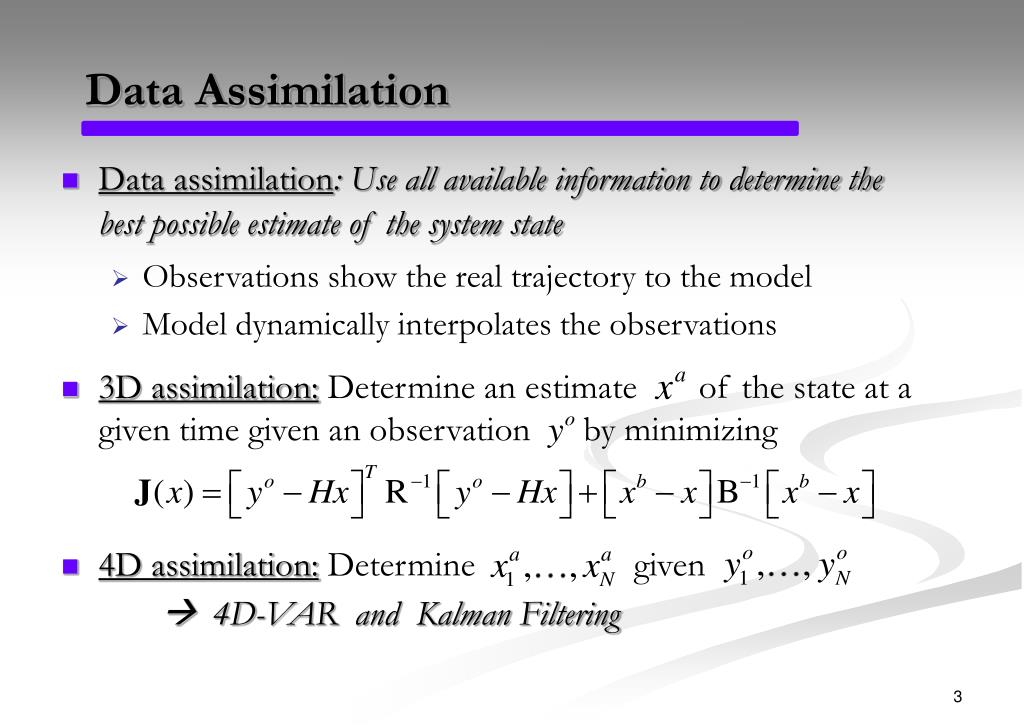

  4. Data Assimilation • Data assimilation: Use all available information to determine the best possible estimate of the system state • Observations show the real trajectory to the model • Model dynamically interpolates the observations • 3D assimilation:Determine an estimate of the state at a given time given an observation by minimizing • 4D assimilation:Determine given  4D-VAR and Kalman Filtering

  5. 4D-VAR Approach • Optimal Control:Look for the model trajectory that best fits the observations by adjusting a set of “control variables”  minimize with the model as constraint: • is the control vector and may include any model parameter (IC, OB, bulk coefficients, etc) … and model errors • Use a gradient descent algorithm to minimize • Most efficient way to compute the gradients is to run the adjoint model backward in time

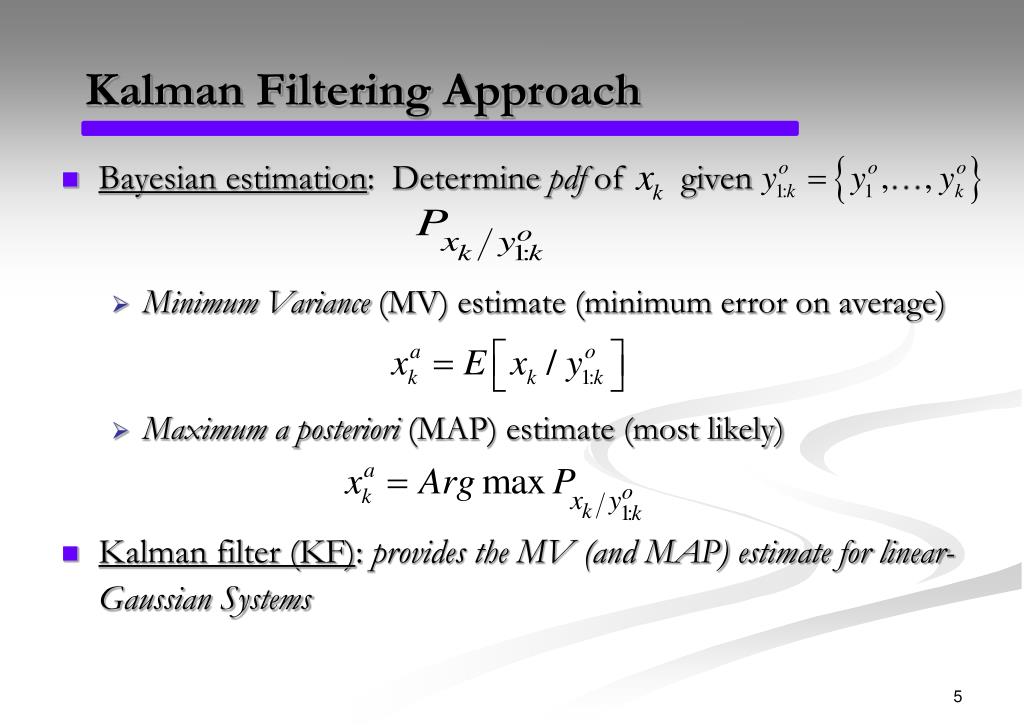

  6. Kalman Filtering Approach • Bayesian estimation: Determine pdf of given • Minimum Variance (MV) estimate (minimum error on average) • Maximum a posteriori (MAP) estimate (most likely) • Kalman filter (KF): provides the MV (and MAP) estimate for linear-Gaussian Systems

  7. The Kalman Filter (KF) Algorithm • Initialization Step: Analysis Step (observation) Forecast Step (model) • Kalman Gain • Analysis state • Analysis Error covariance • Forecast state • Forecast Error covariance

  8. Application to Oceanography • 4D-VAR and the Kalman filter lead to the same estimate at the end of the assimilation window when the system is linear, Gaussian and perfect • Nonlinear system: • 4D-VAR cost function is non-convex  multiple minima • Linearize the system  suboptimal Extended KF (EKF) • System dimension ~ 108: • 4D-VAR control vector is huge • KF error covariance matrices are prohibitive • Errors statistics: • Poorly known • Non-Gaussian: KF is still the MV among linear estimators

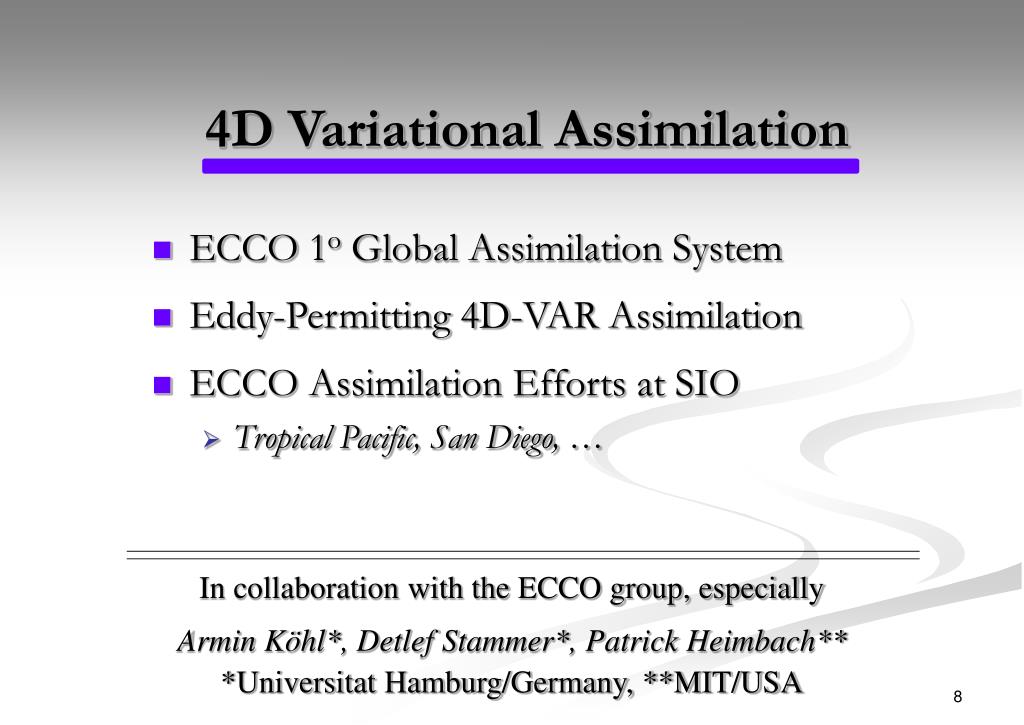

  9. 4D Variational Assimilation • ECCO 1o Global Assimilation System • Eddy-Permitting 4D-VAR Assimilation • ECCO Assimilation Efforts at SIO • Tropical Pacific, San Diego, … In collaboration with the ECCO group, especially Armin Köhl*, Detlef Stammer*, Patrick Heimbach** *Universitat Hamburg/Germany, **MIT/USA

  10. ECCO 1o Global Assimilation System • MITGCM (TAF-compiler enabled) • NCEP forcing and Levitus initial conditions • Model: • Data: • Assimilation scheme:4D-VAR with control of the initial conditions and the atmospheric forcing (with diagonal weights!!!) • ECCO reanalysis:1o global ocean state and atmospheric forcing from 1992 to 2004, …and from 1952  2001 (Stammer et al. …) • Altimetry (daily):SLA TOPEX, ERS • SST (monthly): TMI and Reynolds • Profiles (monthly) : XBTs, TAO, Drifters, SSS, ... • Climatology (Levitus S/T) and Geoid (Grace mission)

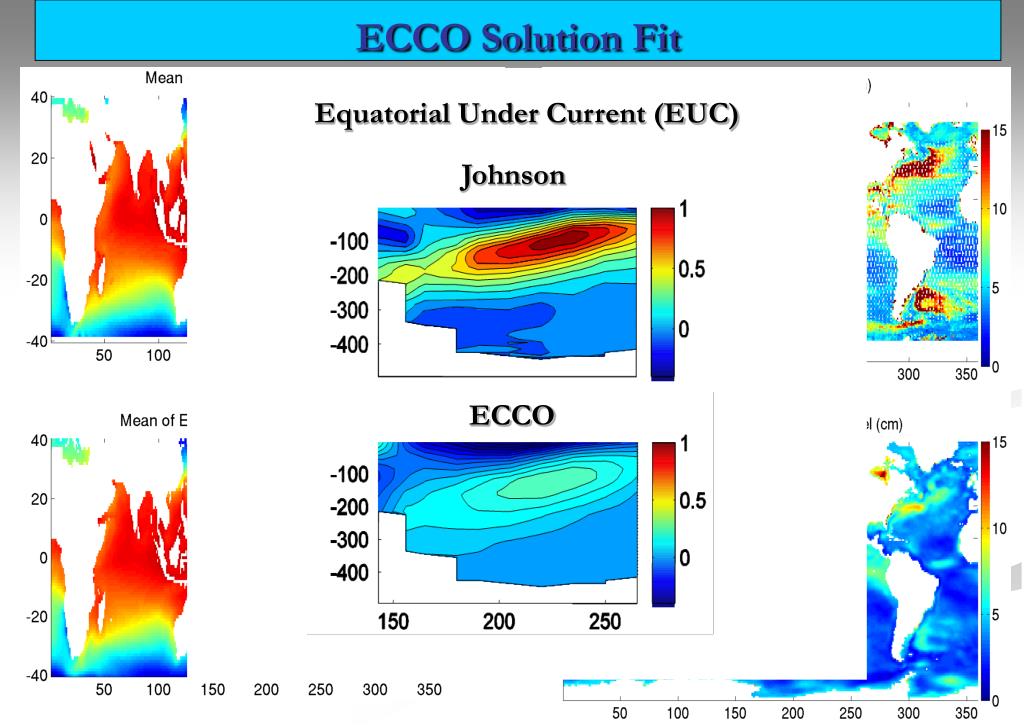

  11. ECCO Solution Fit Equatorial Under Current (EUC) Johnson ECCO

  12. ECCO Tropical Pacific Configuration • Regional: 26oS  26oN, 1/3o, 50 layers, ECCO O.B. • Data: • TOPEX, TMI SST, TAO, XBT, CTD, ARGO, Drifters; all at roughly daily frequency • Climatology: Levitus-T and S, Reynolds SST and GRACE • Control: Initial conditions , 2-daily forcing, and weekly O.B. • Smoothing: Smooth ctrl fields using Laplacian in the horizontal and first derivatives in the vertical and in time • First guess: Levitus (I.C.), NCEP (forcing), ECCO (O.B.) MITGCM Tropical Pacific OB = (U,V,S,T)

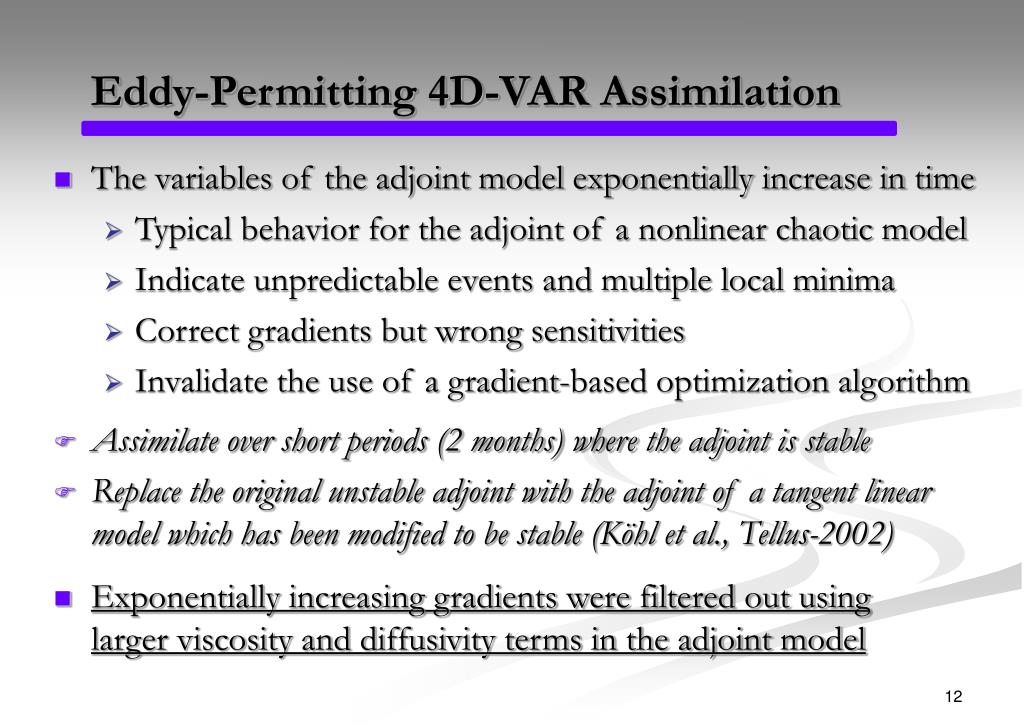

  13. Eddy-Permitting 4D-VAR Assimilation • The variables of the adjoint model exponentially increase in time • Typical behavior for the adjoint of a nonlinear chaotic model • Indicate unpredictable events and multiple local minima • Correct gradients but wrong sensitivities • Invalidate the use of a gradient-based optimization algorithm • Assimilate over short periods (2 months) where the adjoint is stable • Replace the original unstable adjoint with the adjoint of a tangent linear model which has been modified to be stable (Köhl et al., Tellus-2002) • Exponentially increasing gradients were filtered out using larger viscosity and diffusivity terms in the adjoint model

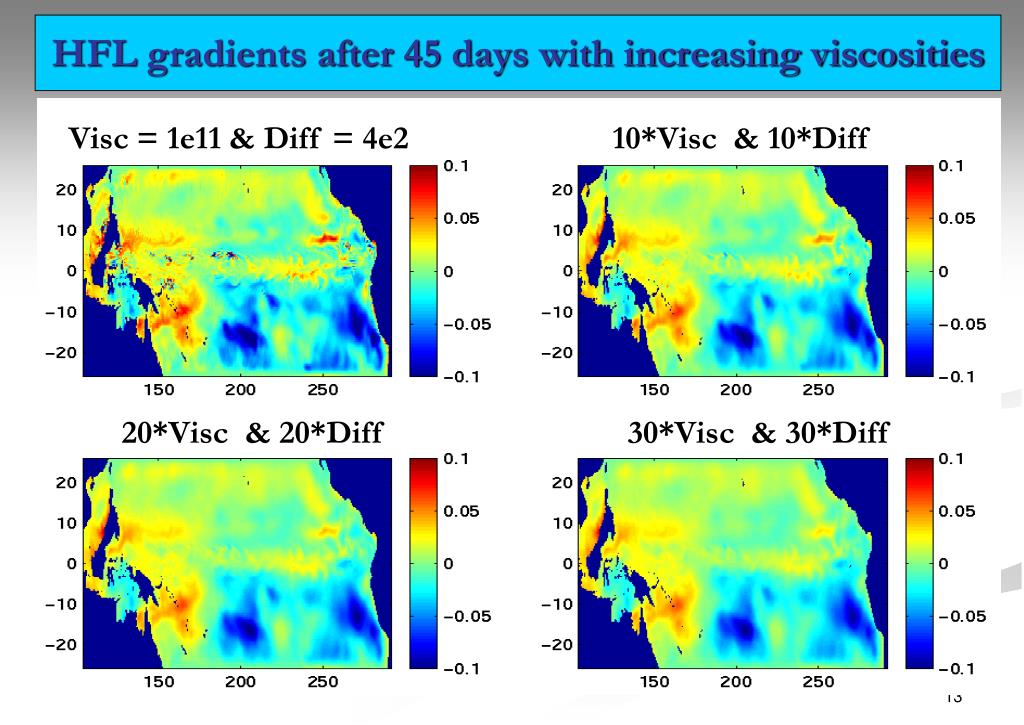

  14. HFL gradients after 45 days with increasing viscosities Visc = 1e11 & Diff = 4e2 10*Visc & 10*Diff 20*Visc & 20*Diff 30*Visc & 30*Diff

  15. Initial temperature gradients after 1 year (2000) 10*Visc & 10*Diff 20*Visc & 20*Diff

  16. Data Cost Function Terms 1/6;39 1/3;39 1;39 1;23

  17. Control Cost Function Terms 1/6;39 1/3;39 1;39 1;23

  18. Fit to Data 1/6;39 1/3;39 1;39 1;23

  19. Assimilation Solution (weekly field end of August)

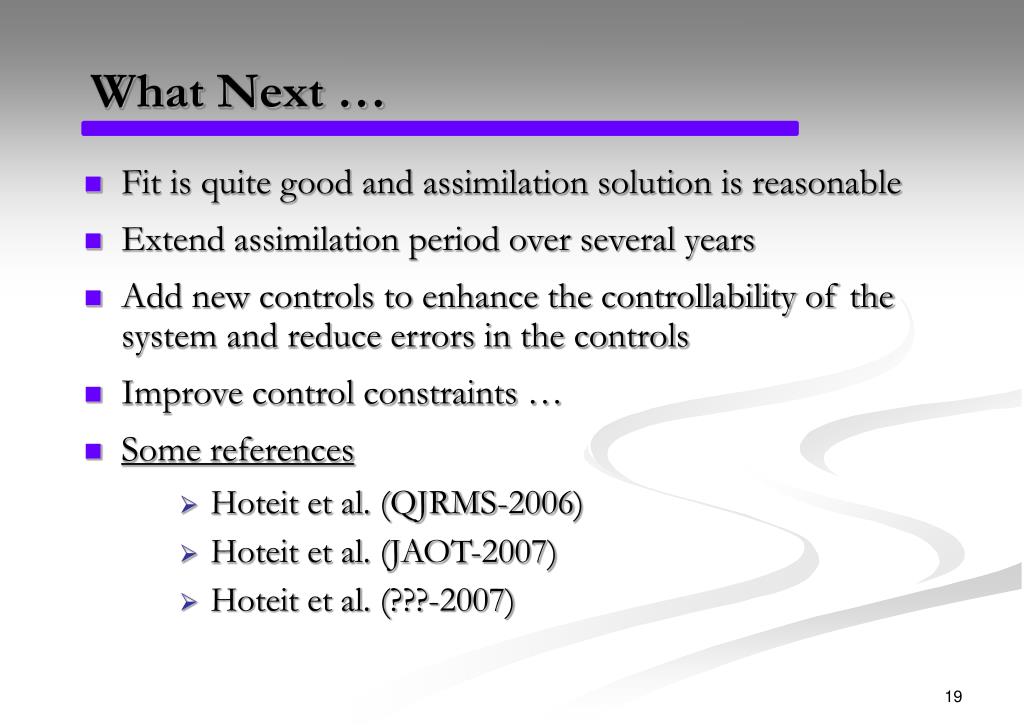

  20. What Next … • Fit is quite good and assimilation solution is reasonable • Extend assimilation period over several years • Add new controls to enhance the controllability of the system and reduce errors in the controls • Improve control constraints … • Some references • Hoteit et al. (QJRMS-2006) • Hoteit et al. (JAOT-2007) • Hoteit et al. (???-2007)

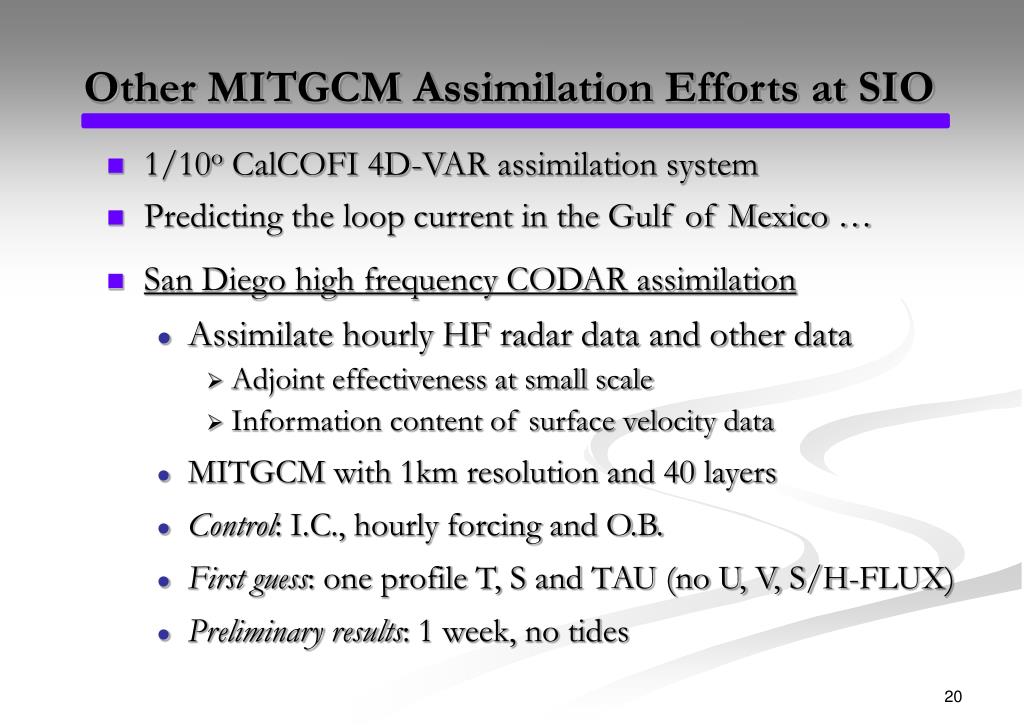

  21. Other MITGCM Assimilation Efforts at SIO • 1/10o CalCOFI 4D-VAR assimilation system • Predicting the loop current in the Gulf of Mexico … • San Diego high frequency CODAR assimilation • Assimilate hourly HF radar data and other data • Adjoint effectiveness at small scale • Information content of surface velocity data • MITGCM with 1km resolution and 40 layers • Control: I.C., hourly forcing and O.B. • First guess: one profile T, S and TAU (no U, V, S/H-FLUX) • Preliminary results: 1 week, no tides

  22. Model Domain and Radars Coverage Time evolution of the normalized radar cost 1/6;39 1/3;39 1;39 1;23

  23. Assimilation Solution: SSH / (U,V) & Wind Adj. 1/6;39 1/3;39 1;39 1;23

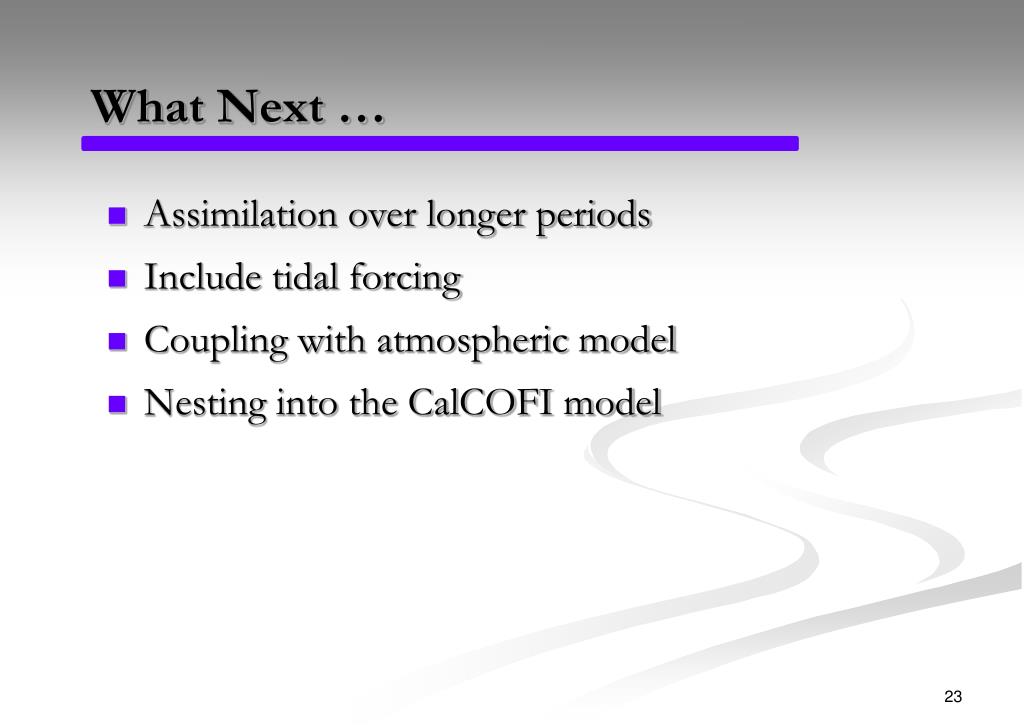

  24. What Next … • Assimilation over longer periods • Include tidal forcing • Coupling with atmospheric model • Nesting into the CalCOFI model

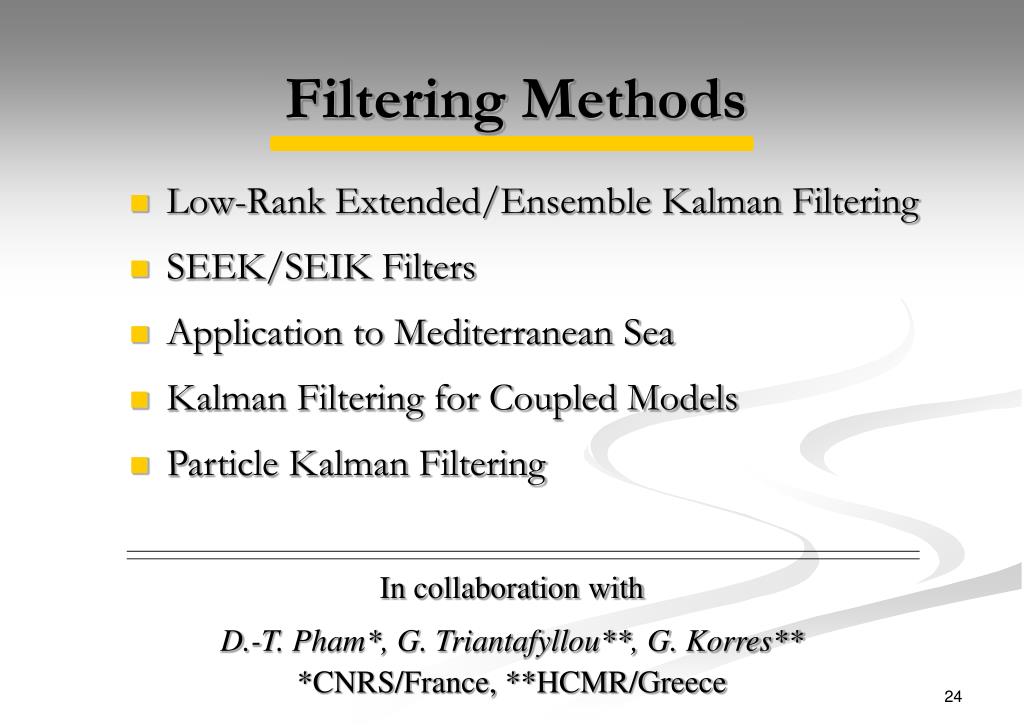

  25. Filtering Methods • Low-Rank Extended/Ensemble Kalman Filtering • SEEK/SEIK Filters • Application to Mediterranean Sea • Kalman Filtering for Coupled Models • Particle Kalman Filtering In collaboration with D.-T. Pham*, G. Triantafyllou**, G. Korres** *CNRS/France, **HCMR/Greece

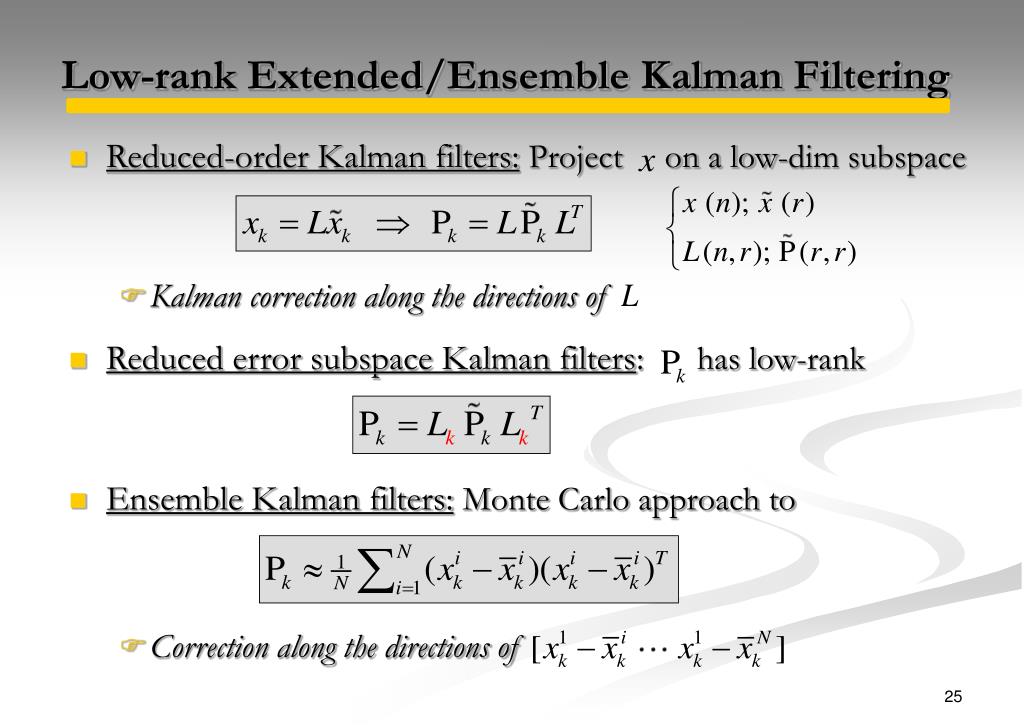

  26. Low-rank Extended/Ensemble Kalman Filtering • Reduced-order Kalman filters:Project on a low-dim subspace • Kalman correction along the directions of • Reduced error subspace Kalman filters: has low-rank • Ensemble Kalman filters:Monte Carlo approach to • Correction along the directions of

  27. Singular Evolutive Kalman (SEEK) Filters • Low-rank (r) error subspace Kalman filters: Analysis Forecast • A “collection” of SEEK filters: • SEEK:Extended variant • SFEK: Fixed variant • SEIK:Ensemble variant with (r+1) members only! (~ETKF) Inflation and Localization

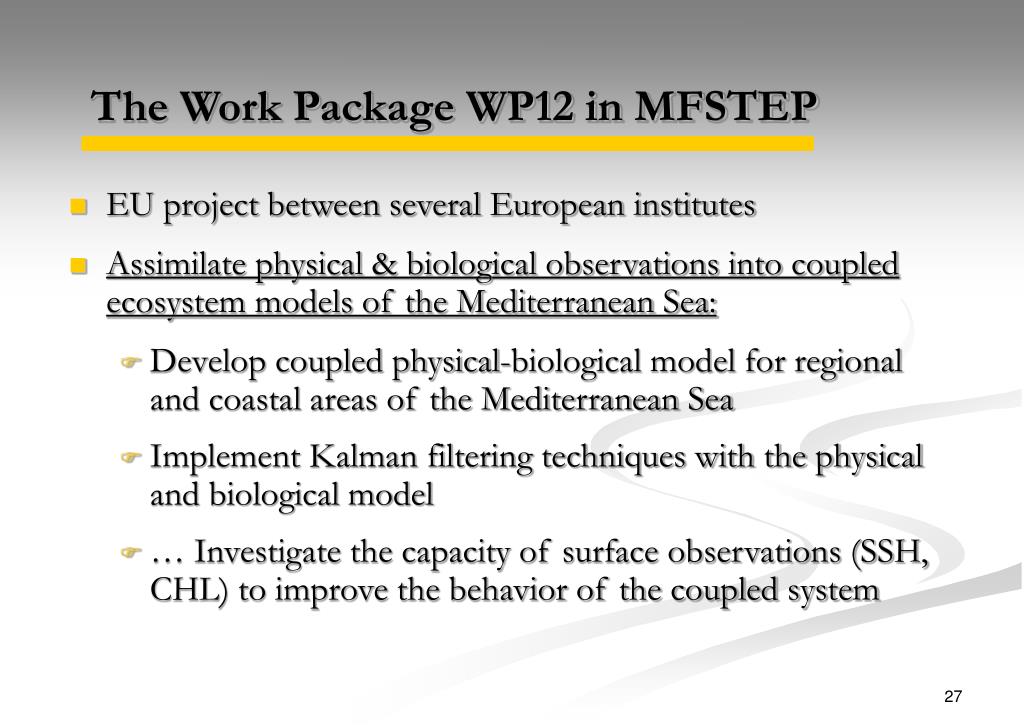

  28. The Work Package WP12 in MFSTEP • EU project between several European institutes • Assimilate physical & biological observations into coupled ecosystem models of the Mediterranean Sea: • Develop coupled physical-biological model for regional and coastal areas of the Mediterranean Sea • Implement Kalman filtering techniques with the physical and biological model • … Investigate the capacity of surface observations (SSH, CHL) to improve the behavior of the coupled system

  29. The Coupled POM – BFM Model One way coupled: Ecology does not affect the physics

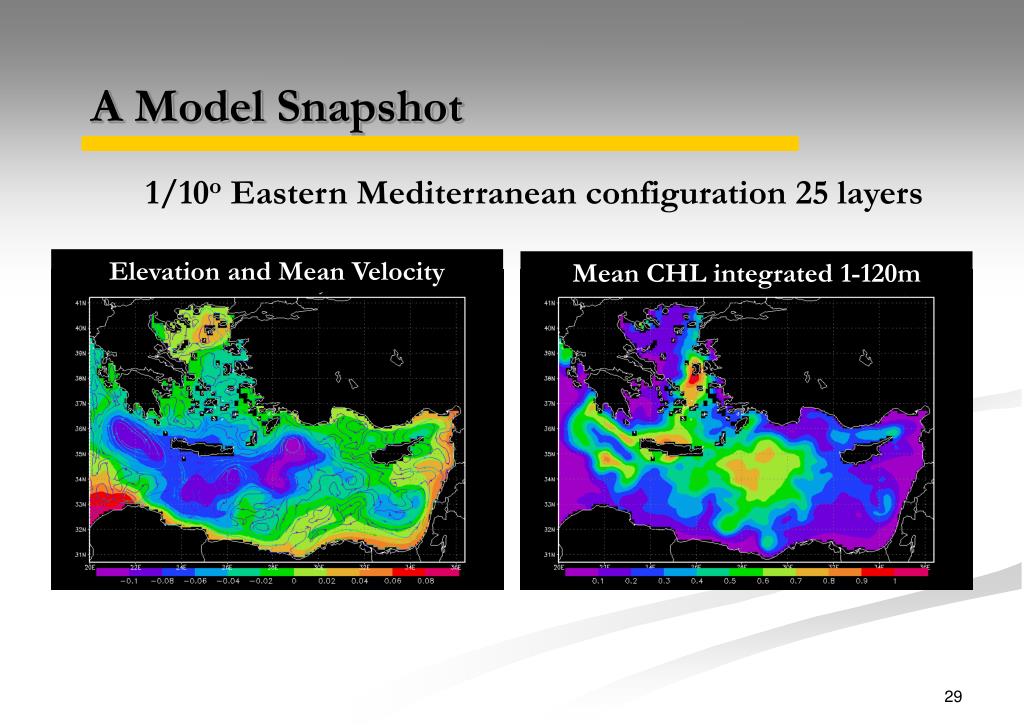

  30. A Model Snapshot 1/10o Eastern Mediterranean configuration 25 layers Elevation and Mean Velocity Mean CHL integrated 1-120m

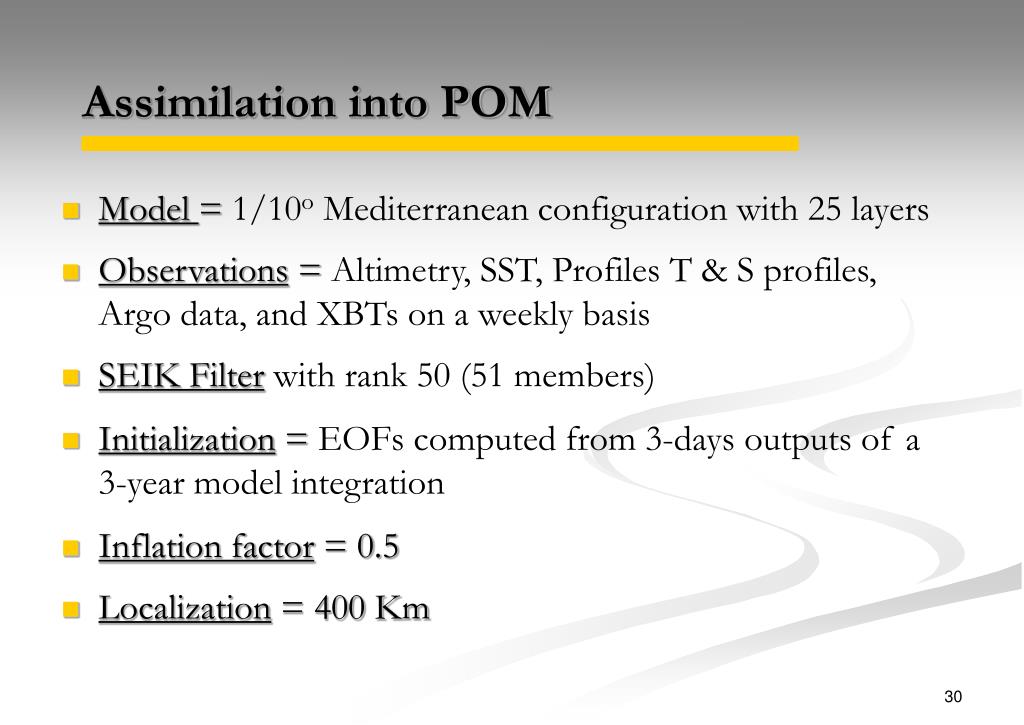

  31. Assimilation into POM • Model = 1/10o Mediterranean configuration with 25 layers • Observations = Altimetry, SST, Profiles T & S profiles, Argo data, and XBTs on a weekly basis • SEIK Filterwith rank 50 (51 members) • Initialization = EOFs computed from 3-days outputs of a 3-year model integration • Inflation factor = 0.5 • Localization = 400 Km

  32. Mean Free-run RMS Error Assimilation into POM SSH RMS Misfits Mean Forecast RMS Error Forecast Free-Run Obs Error = 3cm Mean Analysis RMS Error Analysis

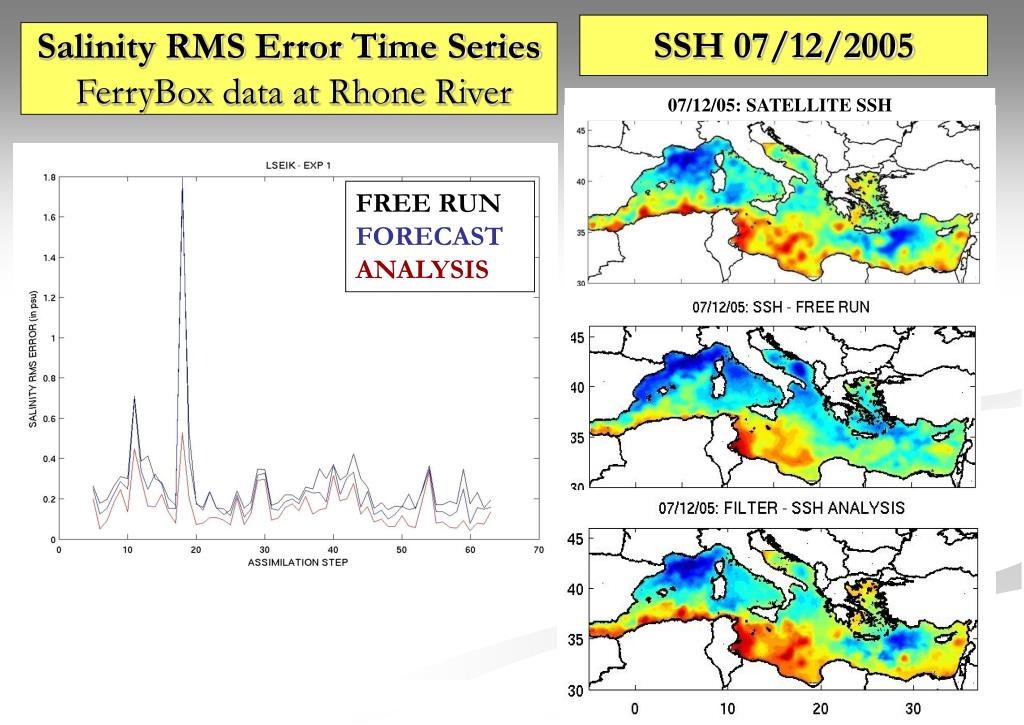

  33. Salinity RMS Error Time SeriesFerryBox data at Rhone River SSH 07/12/2005 07/12/05: SATELLITE SSH FREE RUN FORECAST ANALYSIS 20/8/2014 ECOOP KICK-OFF

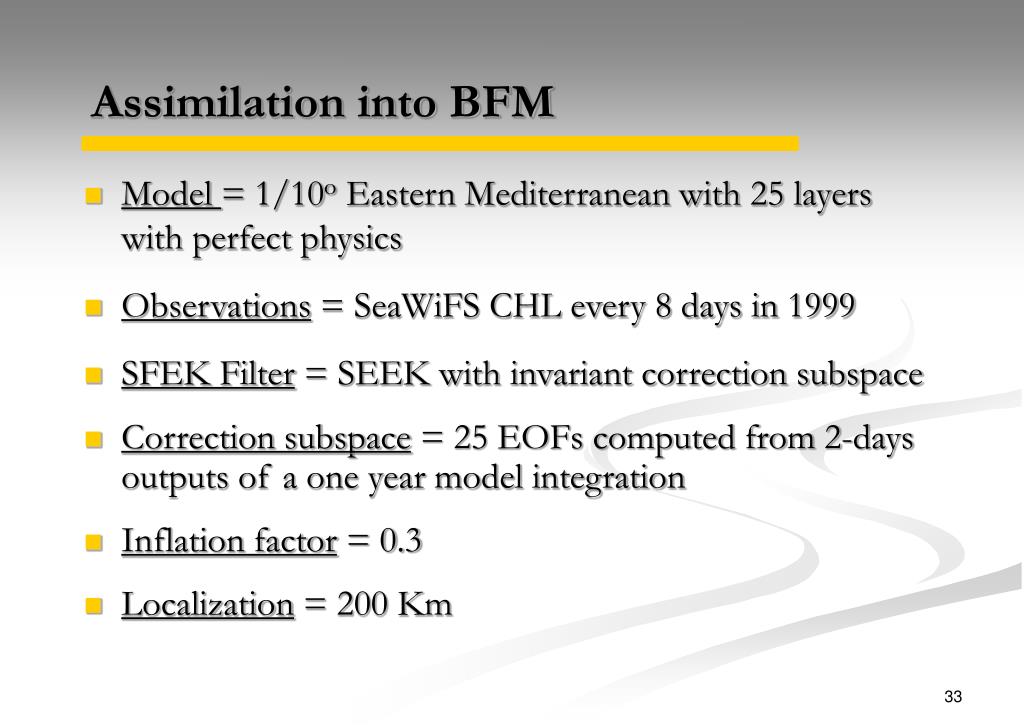

  34. Assimilation into BFM • Model = 1/10o Eastern Mediterranean with 25 layers with perfect physics • Observations = SeaWiFS CHL every 8 days in 1999 • SFEK Filter = SEEK with invariant correction subspace • Correction subspace = 25 EOFs computed from 2-days outputs of a one year model integration • Inflation factor = 0.3 • Localization = 200 Km

  35. Assimilation into BFM CHL RMS Misfits Free-Run Forecast Analysis

  36. Ph Cross-Section at 28oE CHL Cross-Section at 34oN

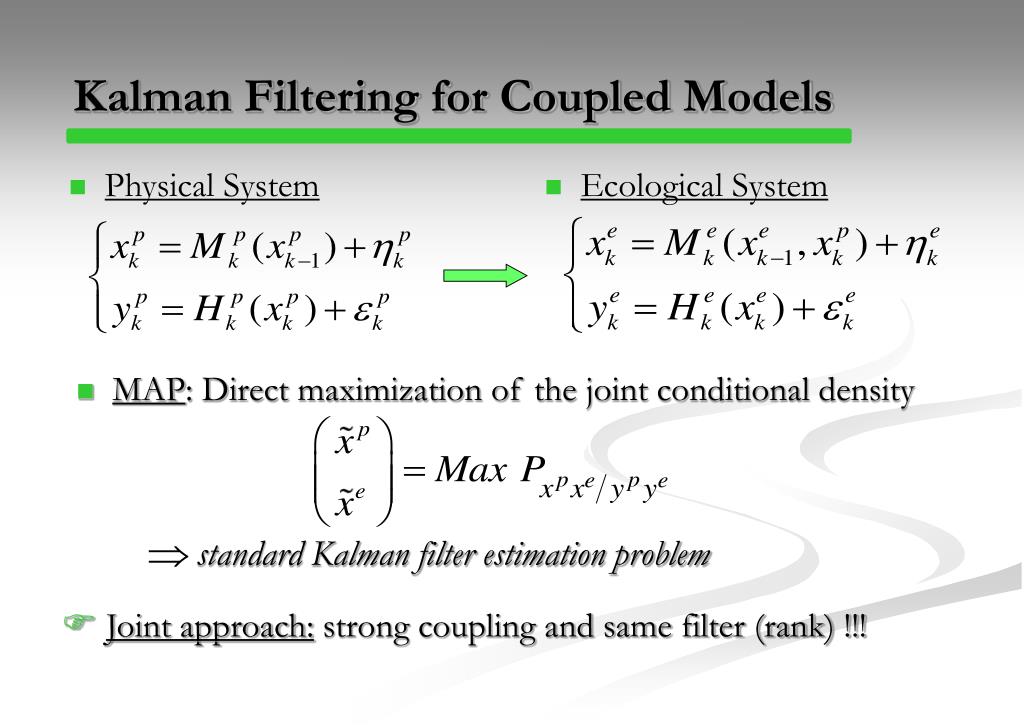

  37. Physical System • Ecological System Kalman Filtering for Coupled Models • MAP: Direct maximization of the joint conditional density standard Kalman filter estimation problem • Joint approach: strong coupling and same filter (rank) !!!

  38. Decompose the joint density into marginal densities Dual Approach • Compute MAP estimators from each marginal density • Separate optimization leads to two Kalman filters … • Different degrees of simplification and ranks for each filter  significant cost reduction • Same from the joint or the dual approach • The physical filter assimilate and

  39. RRMS for state vectors • Twin-Experiments 1/10o Eastern Mediterranean (25 layers) • Joint:SEEK rank-50 • Dual:SEEK rank-50 for physics SFEK rank-20 for biology • . Physics Biology Ref Dual Joint Ref Dual Joint

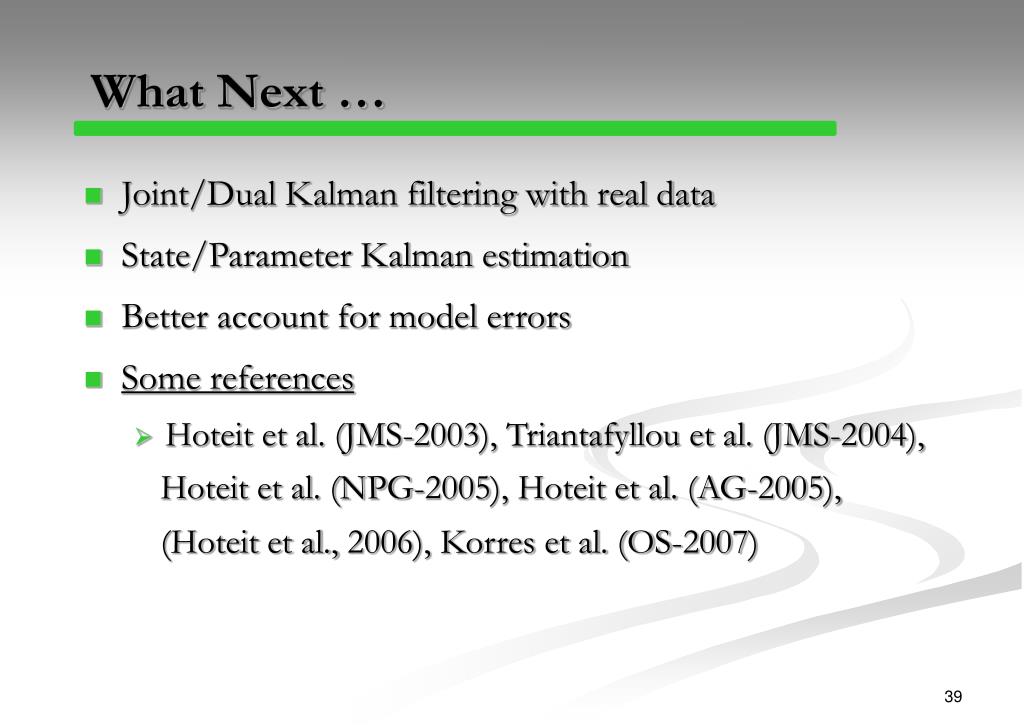

  40. What Next … • Joint/Dual Kalman filtering with real data • State/Parameter Kalman estimation • Better account for model errors • Some references • Hoteit et al. (JMS-2003), Triantafyllou et al. (JMS-2004), Hoteit et al. (NPG-2005), Hoteit et al. (AG-2005), (Hoteit et al., 2006), Korres et al. (OS-2007)

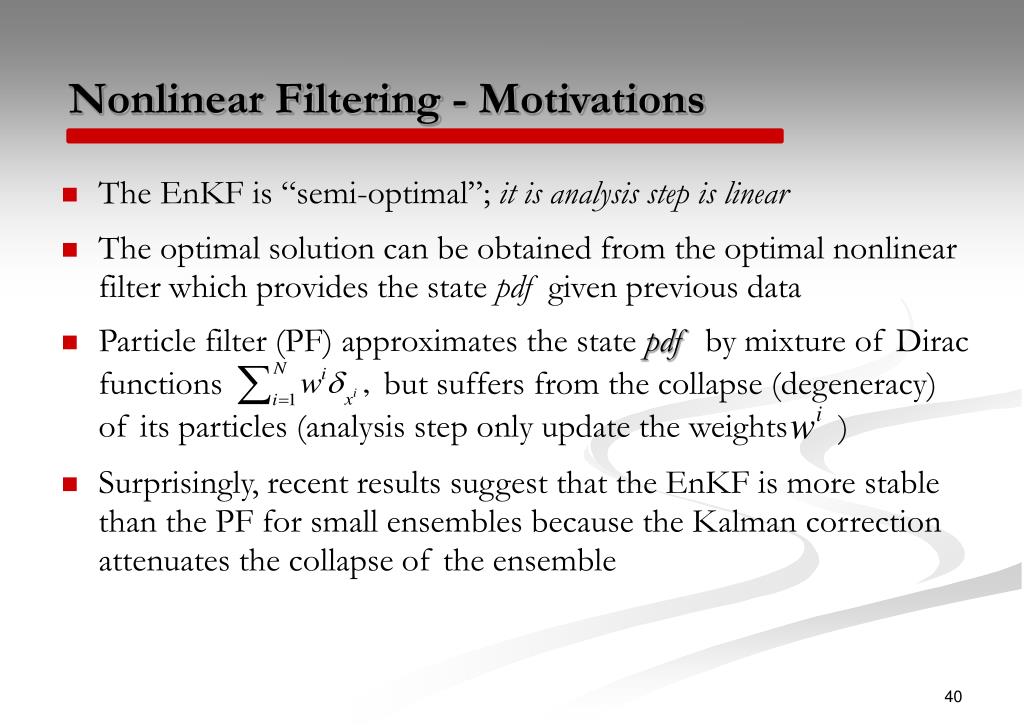

  41. Nonlinear Filtering - Motivations • The EnKF is “semi-optimal”; it is analysis step is linear • The optimal solution can be obtained from the optimal nonlinear filter which provides the state pdf given previous data • Particle filter (PF) approximates the state pdf by mixture of Dirac functions but suffers from the collapse (degeneracy) of its particles (analysis step only update the weights ) • Surprisingly, recent results suggest that the EnKF is more stable than the PF for small ensembles because the Kalman correction attenuates the collapse of the ensemble

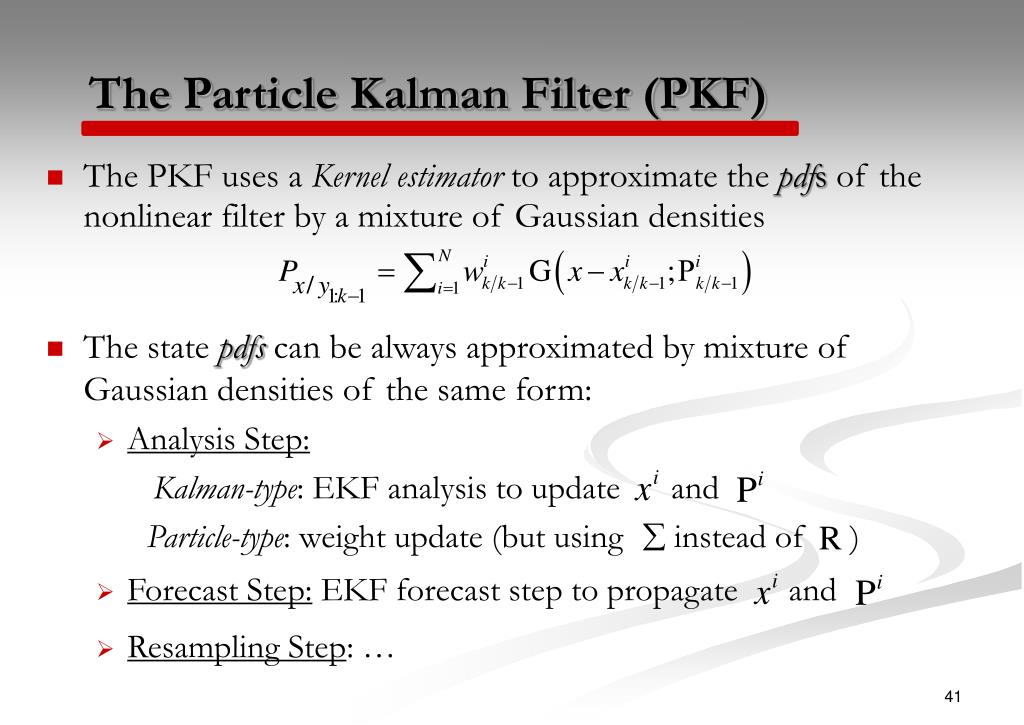

  42. The Particle Kalman Filter (PKF) • The PKF uses a Kernel estimator to approximate the pdfs of the nonlinear filter by a mixture of Gaussian densities • The state pdfs can be always approximated by mixture of Gaussian densities of the same form: • Analysis Step: Kalman-type: EKF analysis to update and Particle-type: weight update (but using instead of ) • Forecast Step: EKF forecast step to propagate and • Resampling Step: …

  43. Particle Kalman Filtering in Oceanography • It is an ensemble of extended Kalman filters with weights!!  Particle Kalman Filtering • requires simplification of the particles error covariance matrices • The EnKF can be derived as a simplified PKF • Hoteit et al. (MWR-2007) successfully tested one low-rank PKF with twin experiments • What Next … • Derive and test several simplified variants of the PKF • Assess the relevance of a nonlinear analysis step:  comparison with the EnKF • Assimilation of real data …

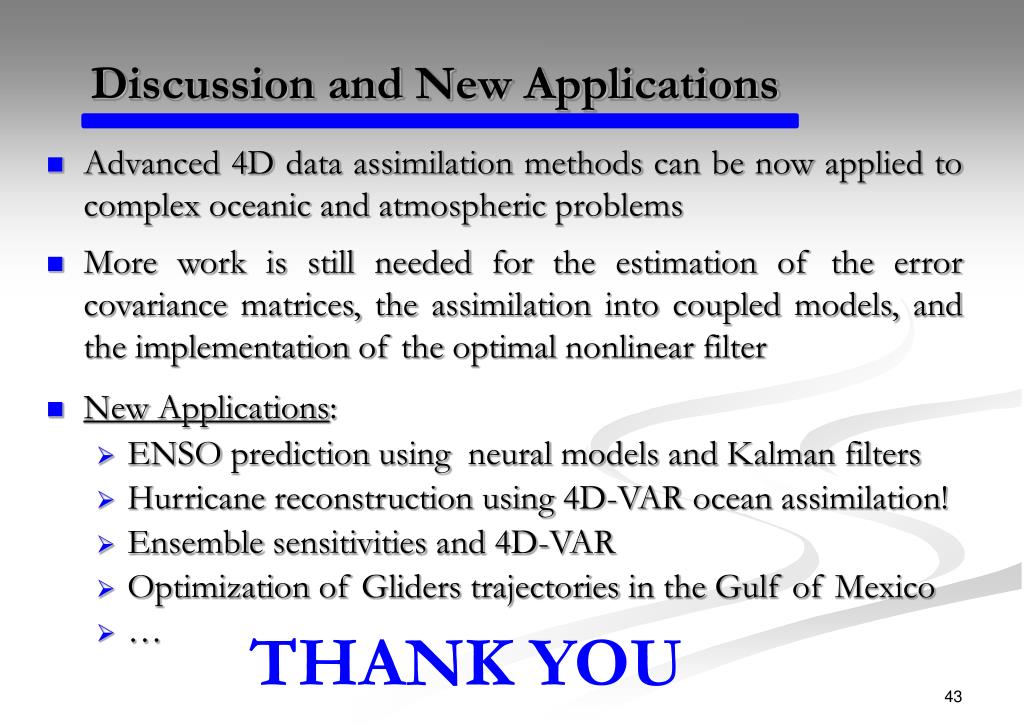

  44. Discussion and New Applications • Advanced 4D data assimilation methods can be now applied to complex oceanic and atmospheric problems • More work is still needed for the estimation of the error covariance matrices, the assimilation into coupled models, and the implementation of the optimal nonlinear filter • New Applications: • ENSO prediction using neural models and Kalman filters • Hurricane reconstruction using 4D-VAR ocean assimilation! • Ensemble sensitivities and 4D-VAR • Optimization of Gliders trajectories in the Gulf of Mexico • … THANK YOU

  45. 4D-VAR or (Ensemble) Kalman Filter? 4D-VAR EnKF  4D-VAR or EnkF? …

  46. Sensitivity to first guess (25 Iterations)

  47. Comparison with TAO-Array RMS RMS Zonal Velocity (m/s) 1/6;39 1/3;39 RMS Meridional Velocity (m/s) 1;39 1;23

  48. San Diego HF Radar Currents Assimilation • Assimilate hourly HF radar data and other data • Goals: • Adjoint effectiveness at small scale • Information content of surface velocity data • Dispersion of larvae, nutrients, and pollutants • MITGCM with 1km resolution with 40 layers • Control: I.C., hourly forcing, and O.B. • First guess: one profile, no U and V, and no forcing! • Preliminary results: 1 week, no tides

  49. Cost Function terms 1/6;39 1/3;39 1;39 1;23
