  1. www.meteogroup.com WRF for winter roads Hugo Hartmann, Jelle Wisse, Daniël van Dijke Presentation 7B.5 – 14th Annual WRF User’s Workshop, 24-28 June 2013

  2. Winter roads… Winter is beautiful... but that is not the topic of this presentation… Winter is also very dangerous for public safety!

  3. RoadCast • A weather forecasting service of MeteoGroup

  4. Outline • MeteoGroup‘sRoadCast • WRF casedefinition • Results • Conclusions & Outlook

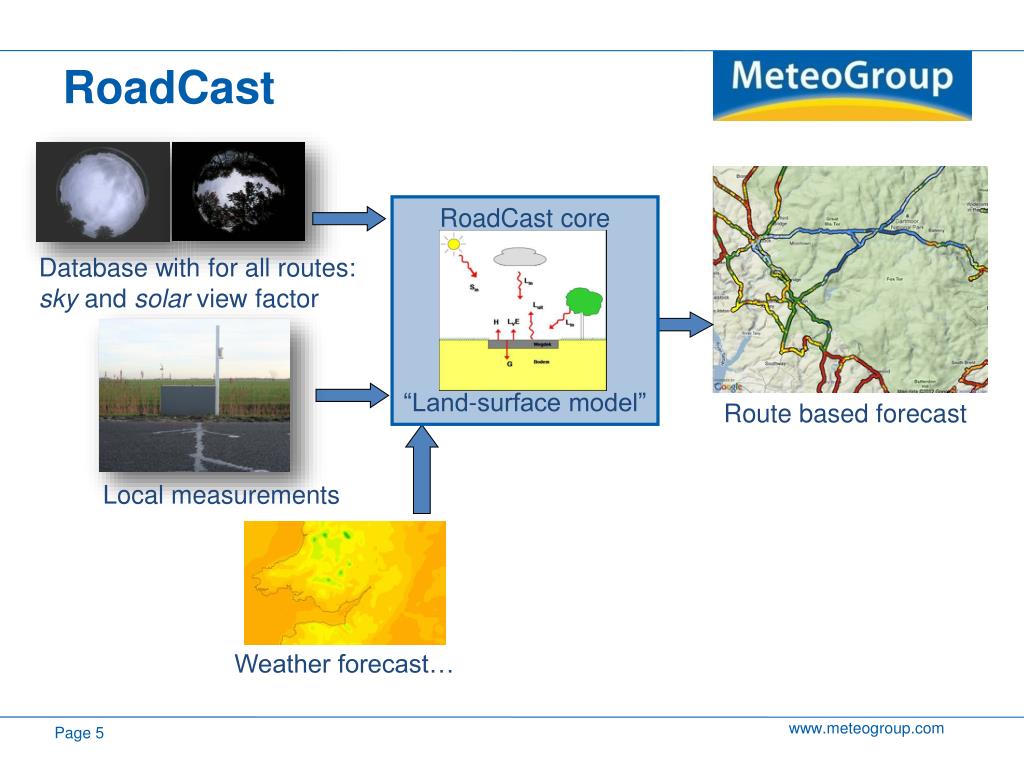

  5. RoadCast RoadCast core “Land-surface model” Local measurements Route based forecast Database with for all routes: sky and solar view factor Weather forecast…

  6. RoadCast sensitivity to temperature variations Forecastof roadsurfacetemperature Observedroadsurfacetemperature Otterlo Otterlo 17 Feb 2011 (clear-skynight) Ede Ede Arnhem Arnhem • Observedtemperaturevariations are more extreme (land-use, topography) • Solution: usemeasured air temperatureprofile as input to the model (thermal map) WRF?? EXPENSIVE!

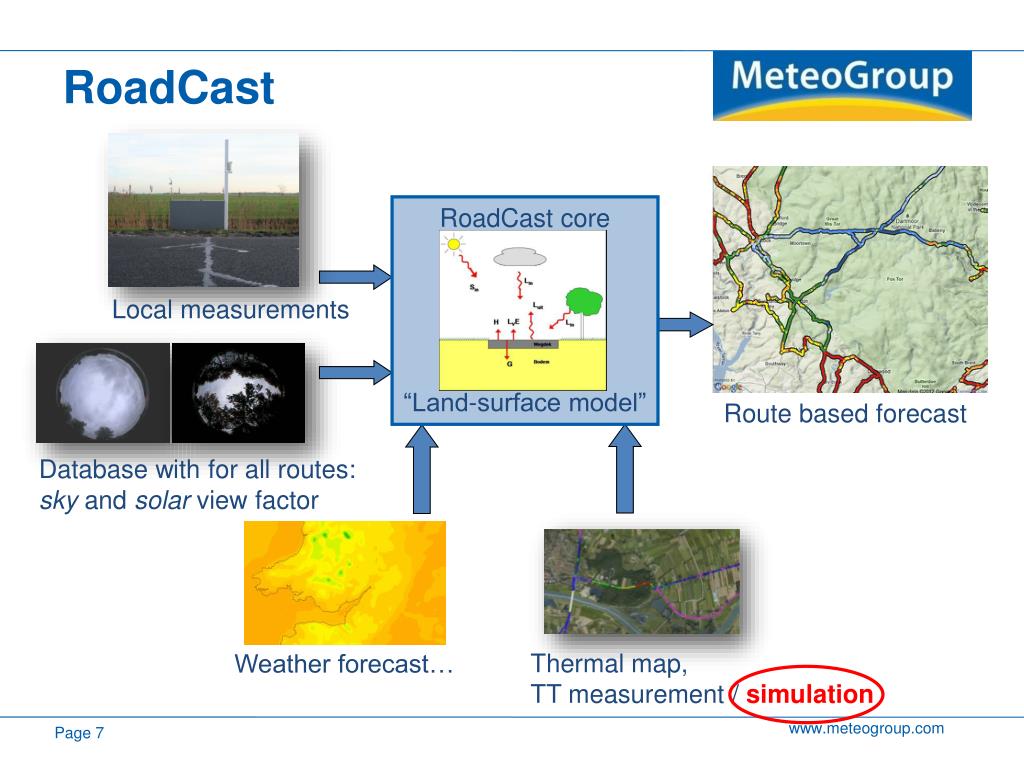

  7. RoadCast RoadCast core “Land-surface model” Local measurements Route based forecast Database with for all routes: sky and solar view factor Weather forecast… Thermal map, TT measurement / simulation

  8. WRF case definition • Project aim: Investigatewhether WRF is able to simulaterealisticlocal air temperaturevariationsduringclear and calmnights • Domain of interest: Wales, complex terrain ridge 22 km ridge valley 16 km 0 km valley 10 km 35 km 28 km Google Earth

  9. WRF case definition Synopticsituations (clear-sky) CASE ‘EAST’ – EASTERLY WIND CASE ‘NORTH’ – NORTHERLY WIND March 26-27, 2012 March 28-29, 2012

  10. WRF case definition WRF 3.3.1 (7.5 km – 1.5 km – 0.5 km) • ECMWF 00z input (0.125°  15 km) • One-waynested • Simulation time: 2 days (1 dayspin-up) • 39 eta levels (first level 10 m) • 148 x 148 gridpoints (0.5 km) 7.5 km 0.5 km 1.5 km Google Earth WRF 7.5 km WRF 1.5 km WRF 0.5 km

  11. Results (0.5 km) – 15 UTC EAST NORTH N 0 20°C 0 20°C 0 10 m/s 0 10 m/s

  12. Results (0.5 km) – 5 UTC EAST NORTH N 0 20°C 0 20°C Page 13 0 10 m/s 0 10 m/s

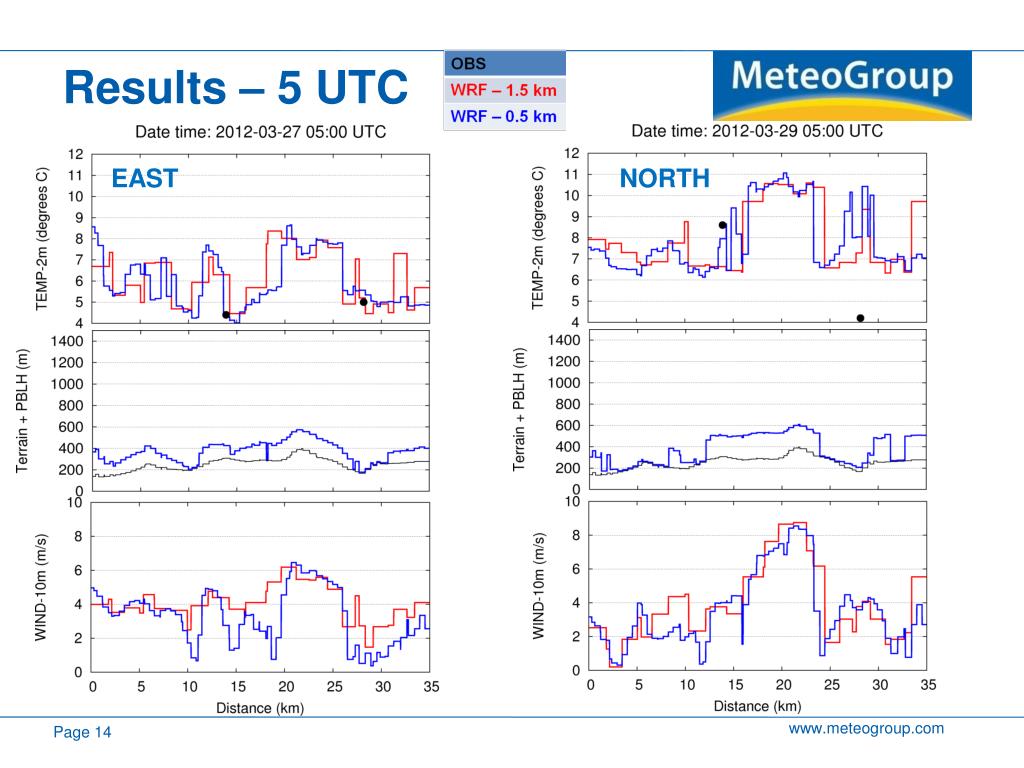

  13. Results – 5 UTC EAST NORTH Page 14

  14. Results – Ridge EAST NORTH

  15. Results – Valley EAST NORTH

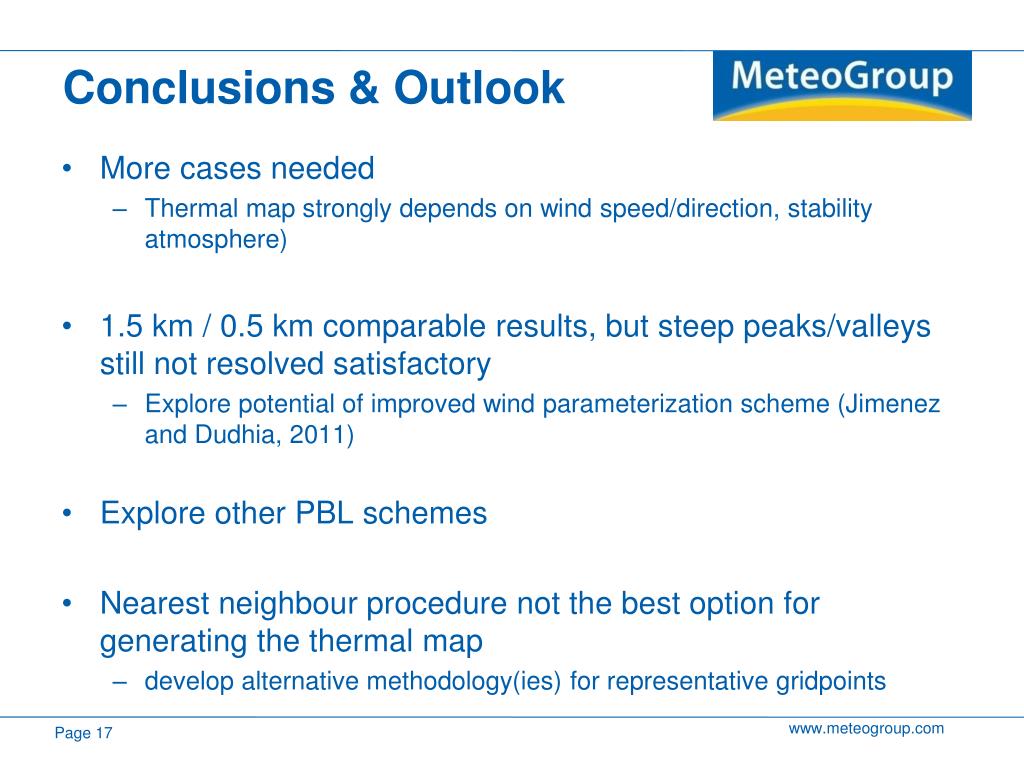

  16. Conclusions & Outlook • More cases needed • Thermal map strongly depends on wind speed/direction, stability atmosphere) • 1.5 km / 0.5 km comparable results, but steep peaks/valleys still not resolved satisfactory • Explore potential of improved wind parameterization scheme (Jimenez and Dudhia, 2011) • Explore other PBL schemes • Nearest neighbour procedure not the best option for generating the thermal map • develop alternative methodology(ies) for representative gridpoints

  17. www.meteogroup.com Thankyou
