slide1

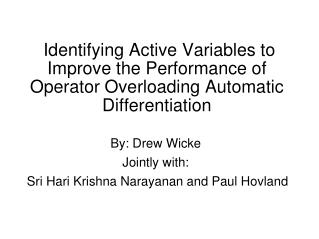

Identifying Active Variables to Improve the Performance of Operator Overloading Automatic Differentiation

By: Drew Wicke

Jointly with:

Sri Hari Krishna Narayanan and Paul Hovland

slide2

What is Automatic Differentiation?

  • A means of computing the derivative of a function within a computer program
  • Operator Overloading AD – Utilizes features of the programming language to alter the meaning of mathematical operators to compute the derivative
slide3

What is Sacado?

  • Operator overloaded version of AD
  • Made by Sandia National Laboratories
  • A package in the Trilinos framework
  • http://trilinos.sandia.gov/packages/sacado/index.html

DERIV_TYPE operator* (DERIV_TYPE other) {

this->val = this->val() * other.val();

this->dx = this->val() * other.dx() + other->val() * this->dx();

return *this;

}

example code
Example Code

//Function where x is the independent f

// is the dependent

voidfoo(double *x, double *f){

doubletheConst = 3.14 * 2 – 6;

double div = ((*x) / 2);

doublesquarePoly = (*x) * (*x) + 45;

if (squarePoly >= 100) {

(*f) = div * theConst;

}

else{

doublealtInput = (*x) * theConst;

(*f) = div * altInput + theConst;

}

}

int main()

{

doublex, f;

foo(&x, &f);

return0;

}

slide5

Sacado Example

typedefSacado::Fad::DFad<double> DERIV_TYPE_double;

voidfoo(DERIV_TYPE_double x, DERIV_TYPE_double f);

int main()

{

DERIV_TYPE_double x, f;// independent and dependent vars

// init value of x and f is set to zero and deriv

// value is set to zero

x= 2.0; // set the initial

x.diff(0, 1); // set that x is independent

foo(&x, &f); // call foo with x and f as args

// print the value of x and the value of f

// by calling the method val which returns

// the non-derivative value

printf("f(%f) = %f\n", x.val(), f.val());

// print the derivative by calling the dx method

// and pass zero as the argtodxto specify what

// independent variable we want the derivative

// with respect to

printf("df/dx = %f\n", f.dx(0));

return0;

}

example continued
Example Continued

//Function where x is the input f is the output

voidfoo(DERIV_TYPE_double *x, DERIV_TYPE_double *f){

DERIV_TYPE_doubletheConst = 3.14 * 2 – 6;

DERIV_TYPE_double div = ((*x) / 2);

DERIV_TYPE_doublesquarePoly = (*x) * (*x) + 45;

if (squarePoly >= 100) {

(*f) = div * theConst;

}

else{

DERIV_TYPE_doublealtInput = (*x) * theConst;

(*f) = div * altInput + theConst;

}

}

slide7

Why That Code is Not Optimal

  • Vary variables are those whose value is computed using an independent variable.
  • Useful variablesare used to compute the value of the dependent variable
  • Active variablesare both vary and useful.

voidfoo(DERIV_TYPE_double *x, DERIV_TYPE_double *f){

DERIV_TYPE_doublesquarePoly= (*x) * (*x) + 45;

DERIV_TYPE_doubletheConst= 3.14 * 2 – 6;

DERIV_TYPE_double div = ((*x) / 2);

if (squarePoly >= 100)

(*f) = div * theConst;

else{

DERIV_TYPE_doublealtInput= (*x) * theConst;

(*f) = div * altInput + theConst;

}

}

slide8

What Does Our Tool Do?

  • Replaces the manual process, which is slow and overestimates the number active variables.

voidfoo(DERIV_TYPE_double *x, DERIV_TYPE_double *f){

double squarePoly= (*x) * (*x) + 45; // vary

double theConst= 3.14 * 2 – 6; // useful

DERIV_TYPE_double div = ((*x) / 2); // active

if (squarePoly >= 100) {

(*f) = div * theConst;

}

else{

DERIV_TYPE_doublealtInput= (*x) * theConst;

(*f) = div * altInput + theConst;

}

}

activity analysis tool flow
Activity Analysis Tool Flow

ROSE AST

OpenAnalysis ICFG

Input code

convert

int main(){

doubleval;

val = 4.3;

return0;

}

convert

Useful Analysis

Vary Analysis

Activity Analysis

Output

code

Change type

of active variables

int main(){

DERIV_TYPE_doubleval;

val = 4.3;

return0;

}

slide10

Challenges in Type Changing

  • Typedefs – must extract base type and all other types such as pointers to set to the derivative type.
  • Structs – must copy struct and change all variables with the body of the struct to the Sacado derivative type.

struct mine { doublemdou; };

struct mine smin; // active (before)

typedefdouble* fir;

typedef fir* sec;

sec test;//active (before)

structmine { doublemdou; };

structDERIV_CLASS_mine {

DERIV_TYPE_doublemdou;

}

typedefstructDERIV_CLASS_mineDERIV_TYPE_mine;

DERIV_TYPE_minesmin;// (after)

// after:

DERIV_TYPE_double **test;

slide11

Initial Code

//Function where x is the independent f is the dependent

voidfoo(double *x, double *f){

# pragma $adic_indep,x

# pragma $adic_dep,f// do some math

doubletheConst = 3.14 * 2 – 6;

double div = ((*x) / 2);

doublesquarePoly = (*x) * (*x) + 45;

if (squarePoly >= 100) {

(*f) = div * theConst;

}

else{

doublealtInput = (*x) * theConst;

(*f) = div * altInput + theConst;

}

}

slide12

Resulting Code

//Function where x is the input f is the output

voidfoo(DERIV_TYPE_double *x, DERIV_TYPE_double *f){

# pragma $adic_indep,x

# pragma $adic_dep,f// do math

doubletheConst = 3.14 * 2 – 6; // .28

DERIV_TYPE_double div = ((*x) / 2);

doublesquarePoly = (*x) * (*x) + 45;// ERROR must downcast!

if (squarePoly >= 100) {

(*f) = div * theConst;

}

else{

DERIV_TYPE_doublealtInput = (*x) * theConst;

(*f) = div * altInput + theConst;

}

}

Add a downcast if the left hand side is vary and the right hand side has an active variable.

slide13

Resulting Code With Downcast

//Function where x is the input f is the output

voidfoo(DERIV_TYPE_double *x, DERIV_TYPE_double *f){

# pragma $adic_indep,x

# pragma $adic_dep,f// do math

doubletheConst = 3.14 * 2 – 6; // .28

DERIV_TYPE_double div = ((*x) / 2);

doublesquarePoly = ADValue((*x) * (*x) + 45); // Problem solved

if (squarePoly >= 100) {

(*f) = div * theConst;

}

else{

DERIV_TYPE_doublealtInput = (*x) * theConst;

(*f) = div * altInput + theConst;

}

}

slide14

Tool Limitations

  • Typedefed structs: typedef struct{…} myStruct;
  • C++ structs, classes, templates
  • Function pointers: double (*func)(double, double)
  • Array parameters due to not being made active: void foo(double myParam[]);
slide15

Conclusion and Future Work

  • Can be used with any operator overloading AD package
  • Benchmarking the tool
  • Add support for C++

Thank You

slide16

How Does the Tool Work?

  • Creates Abstract Syntax Tree (AST) of code using ROSE
  • int main(){
  • double val;
  • val = 4.3;
  • return0;
  • }
  • Converts AST to an

OpenAnalysis form

definition

slide17

Creates Interprocedural Control Flow Graph (ICFG)

Images from:

M. J. Harrold, G. Rothermel, and S. Sinha, “Computation of Interprocedural Control Dependence”, Proceedings of the ACM SIGSOFT International Symposium on Software Testing and Analysis (ISSTA ‘98), pp. 11-20, March 1998

slide18

What Analyses are Used?

  • Vary Analysis – Identifies variables that vary with the independent variable, but are not used in the output
  • Useful Analysis – Identifies variables that are not vary but contribute to the output
  • Activity Analysis – Identifies active variables, those that depend on the value of an input variable to compute the output variable. The intersection of vary and useful variables.
slide19

What Does Our Tool Do?

  • Replaces the manual process that is slow and overestimates, with our tool.
  • Identifies active variables using the source code analysis toolkit OpenAnalysis
  • Changes the type of active variables to a typedef type using the source transformation tool ROSE

voidfoo(DERIV_TYPE_double *x, DERIV_TYPE_double *f){

double theConst= 3.14 * 2 – 6;

DERIV_TYPE_double div = ((*x) / 2);

double squarePoly= (*x) * (*x) + 45;

if (squarePoly >= 100) {

(*f) = div * theConst;

}

else{

DERIV_TYPE_doublealtInput= (*x) * theConst;

(*f) = div * altInput + theConst;

}

}
