How Cleanroom Ceiling Panels Help in Controlling Cross-Contamination

Maintaining a contamination-free environment is crucial in industries like pharmaceuticals, biotechnology, and electronics manufacturing. One of the most essential components in ensuring this level of cleanliness is the Cleanroom Ceiling Panels. These panels play a vital role in preventing cross-contamination by acting as a barrier against airborne particles, bacteria, and other contaminants.<br>

luckydeepcleanroom
Download Presentation

How Cleanroom Ceiling Panels Help in Controlling Cross-Contamination

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. How Cleanroom Ceiling Panels Help in Controlling Cross-Contamination

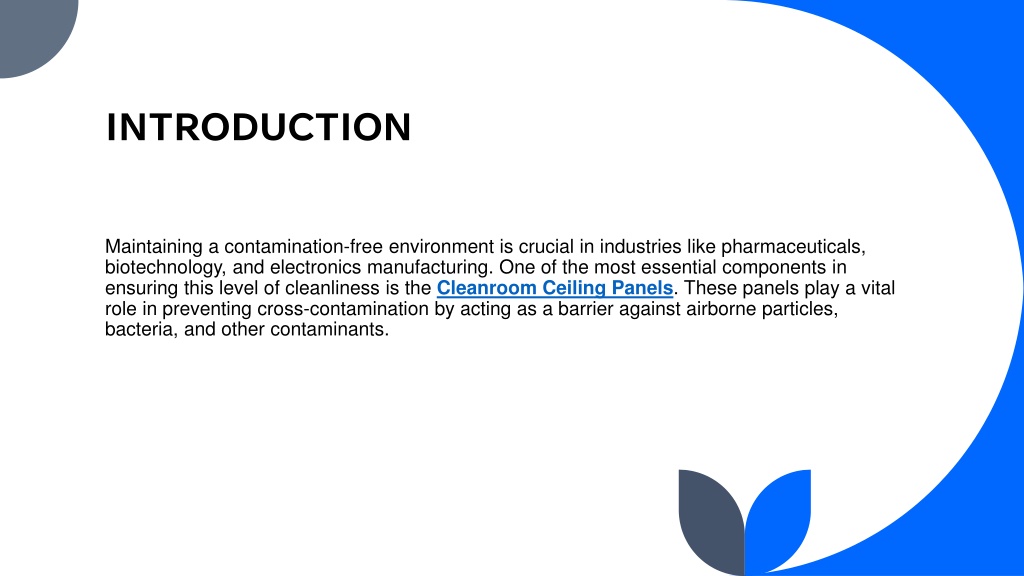

  2. INTRODUCTION Maintaining a contamination-free environment is crucial in industries like pharmaceuticals, biotechnology, and electronics manufacturing. One of the most essential components in ensuring this level of cleanliness is the Cleanroom Ceiling Panels. These panels play a vital role in preventing cross-contamination by acting as a barrier against airborne particles, bacteria, and other contaminants.

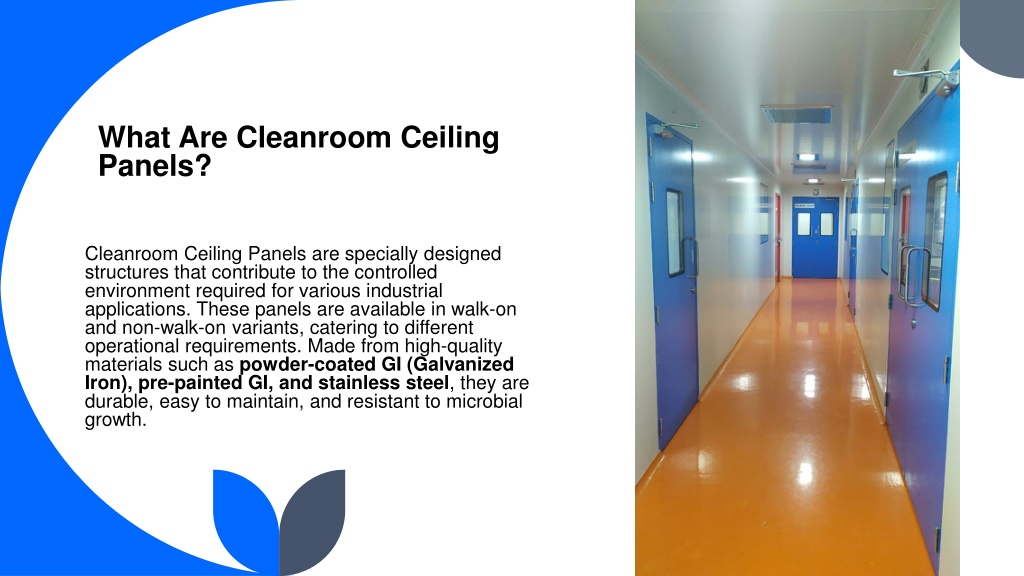

  3. What Are Cleanroom Ceiling Panels? Cleanroom Ceiling Panels are specially designed structures that contribute to the controlled environment required for various industrial applications. These panels are available in walk-on and non-walk-on variants, catering to different operational requirements. Made from high-quality materials such as powder-coated GI (Galvanized Iron), pre-painted GI, and stainless steel, they are durable, easy to maintain, and resistant to microbial growth.

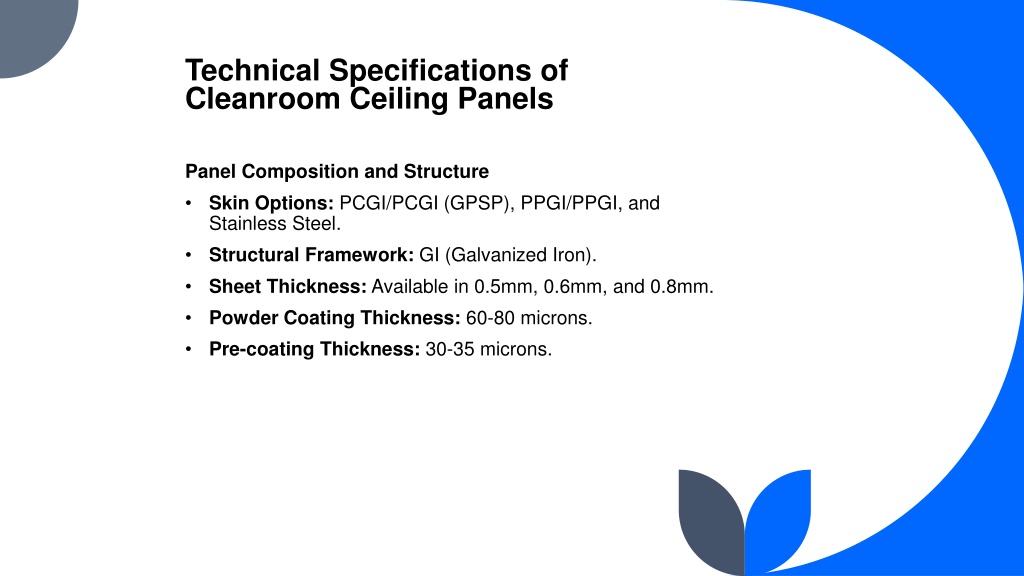

  4. Technical Specifications of Cleanroom Ceiling Panels Panel Composition and Structure Skin Options: PCGI/PCGI (GPSP), PPGI/PPGI, and Stainless Steel. Structural Framework: GI (Galvanized Iron). Sheet Thickness: Available in 0.5mm, 0.6mm, and 0.8mm. Powder Coating Thickness: 60-80 microns. Pre-coating Thickness: 30-35 microns.

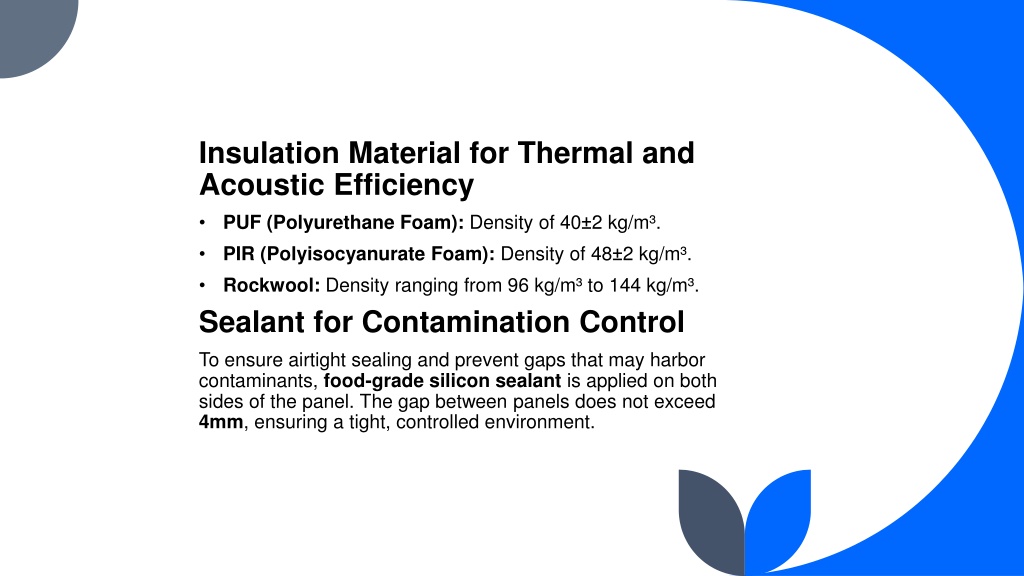

  5. Insulation Material for Thermal and Acoustic Efficiency PUF (Polyurethane Foam): Density of 40±2 kg/m³. PIR (Polyisocyanurate Foam): Density of 48±2 kg/m³. Rockwool: Density ranging from 96 kg/m³ to 144 kg/m³. Sealant for Contamination Control To ensure airtight sealing and prevent gaps that may harbor contaminants, food-grade silicon sealant is applied on both sides of the panel. The gap between panels does not exceed 4mm, ensuring a tight, controlled environment.

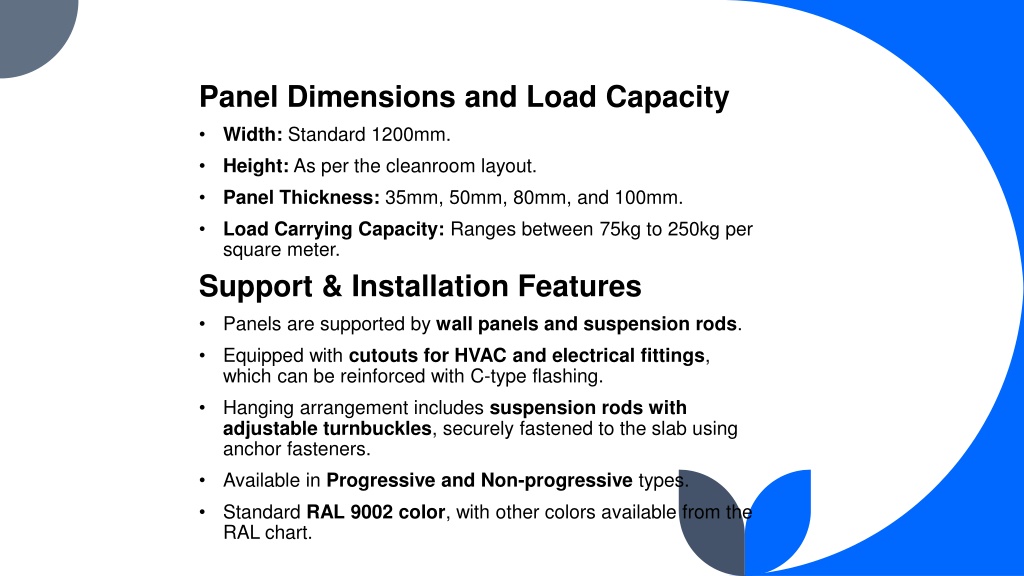

  6. Panel Dimensions and Load Capacity Width: Standard 1200mm. Height: As per the cleanroom layout. Panel Thickness: 35mm, 50mm, 80mm, and 100mm. Load Carrying Capacity: Ranges between 75kg to 250kg per square meter. Support & Installation Features Panels are supported by wall panels and suspension rods. Equipped with cutouts for HVAC and electrical fittings, which can be reinforced with C-type flashing. Hanging arrangement includes suspension rods with adjustable turnbuckles, securely fastened to the slab using anchor fasteners. Available in Progressive and Non-progressive types. Standard RAL 9002 color, with other colors available from the RAL chart.

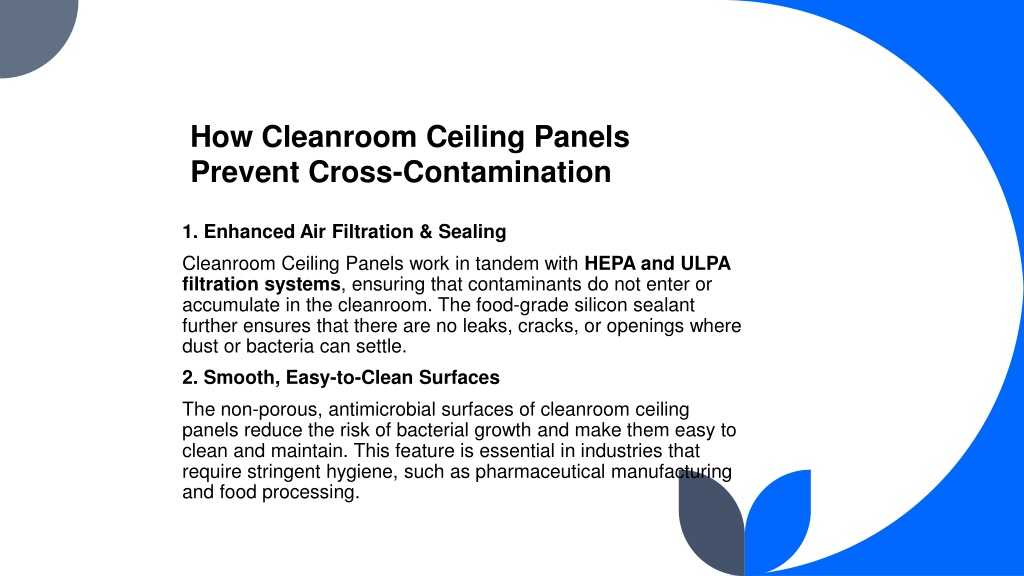

  7. How Cleanroom Ceiling Panels Prevent Cross-Contamination 1. Enhanced Air Filtration & Sealing Cleanroom Ceiling Panels work in tandem with HEPA and ULPA filtration systems, ensuring that contaminants do not enter or accumulate in the cleanroom. The food-grade silicon sealant further ensures that there are no leaks, cracks, or openings where dust or bacteria can settle. 2. Smooth, Easy-to-Clean Surfaces The non-porous, antimicrobial surfaces of cleanroom ceiling panels reduce the risk of bacterial growth and make them easy to clean and maintain. This feature is essential in industries that require stringent hygiene, such as pharmaceutical manufacturing and food processing.

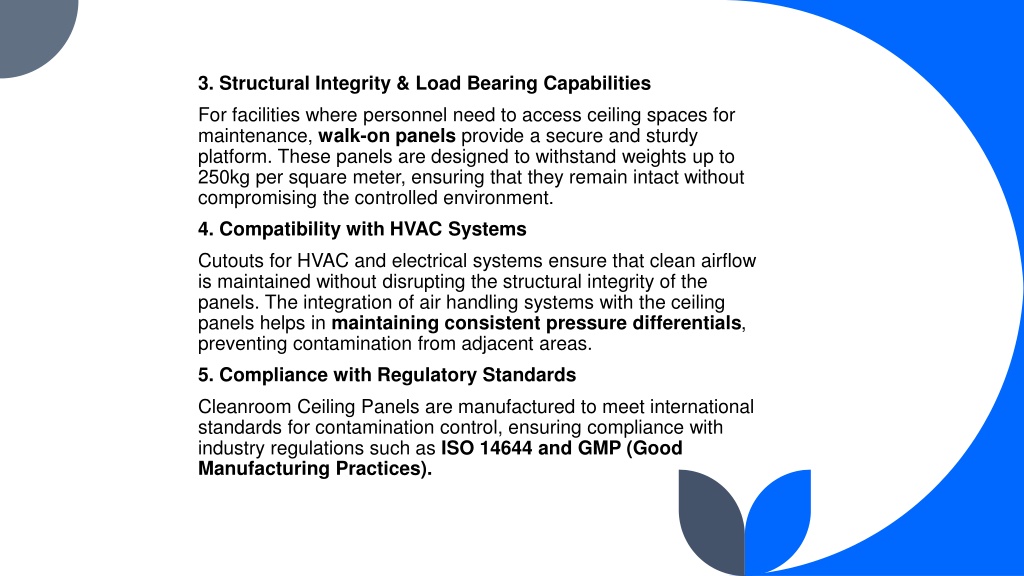

  8. 3. Structural Integrity & Load Bearing Capabilities For facilities where personnel need to access ceiling spaces for maintenance, walk-on panels provide a secure and sturdy platform. These panels are designed to withstand weights up to 250kg per square meter, ensuring that they remain intact without compromising the controlled environment. 4. Compatibility with HVAC Systems Cutouts for HVAC and electrical systems ensure that clean airflow is maintained without disrupting the structural integrity of the panels. The integration of air handling systems with the ceiling panels helps in maintaining consistent pressure differentials, preventing contamination from adjacent areas. 5. Compliance with Regulatory Standards Cleanroom Ceiling Panels are manufactured to meet international standards for contamination control, ensuring compliance with industry regulations such as ISO 14644 and GMP (Good Manufacturing Practices).

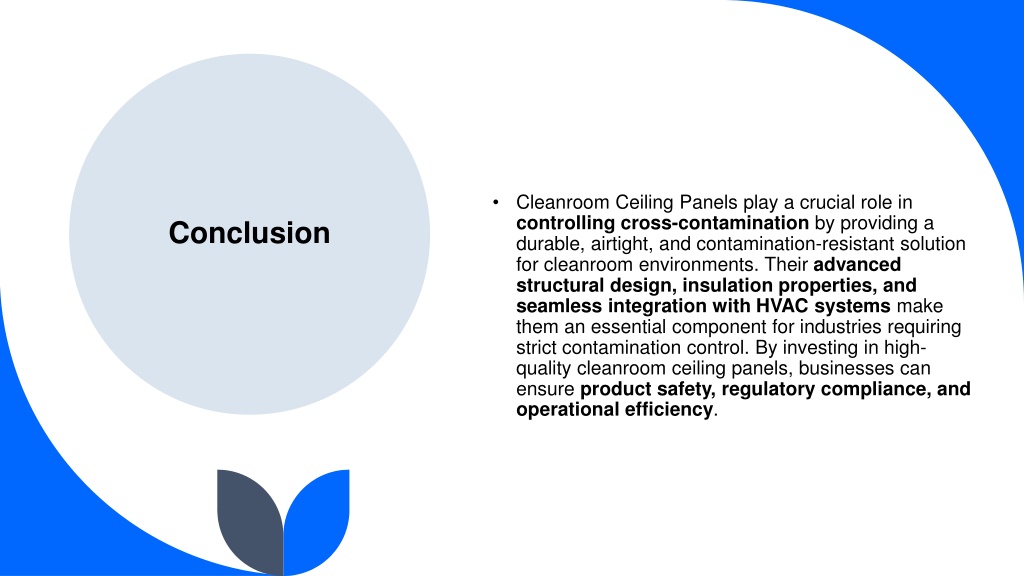

  9. Conclusion • Cleanroom Ceiling Panels play a crucial role in controlling cross-contamination by providing a durable, airtight, and contamination-resistant solution for cleanroom environments. Their advanced structural design, insulation properties, and seamless integration with HVAC systems make them an essential component for industries requiring strict contamination control. By investing in high-quality cleanroom ceiling panels, businesses can ensure product safety, regulatory compliance, and operational efficiency.
