  1. Status Quo Assessment of Wastewater Ponding Systems

  2. Presentation Road Map… 1. Background 2. Study Methodology 3. Study Findings 4. Why Ponds

  3. Background… • Free State • Act. sludge, trick. filters, RBCs and Ponds • Complaints relating to the failure and/or poor condition • Locality and operation – unacceptable and create environmental and health risks • Insufficient information wrt operational status & effectiveness of management thereof by WSAs • Circumstances in other parts of SA??? • ID and understand status of pond systems in SA • Develop Practical Guidelines

  4. Study Methodology

  5. Management Meetings… • Management questionnaire • Included queries related to: • Effluent source • Population served (size and status) • Records of pond system design • Understanding of the status of the pond system • Safety aspects (e.g. fence, location, clothing) • Monitoring • Staff  availability and skills, basic needs met (water)

  6. Site Visits… • Assessment of pond system using modified/updated questionnaire • Collection of GPS co-ordinates (location) • Photographing the site • Number of ponds, shape of ponds, type of ponds and flow patterns • Location relevant to nearest housing • Capacity – measured either by a measuring tape or the foot method • Measurement of sludge depth • Maintenance aspects – screenings, grass on linings or within ponds • Safety aspects – enclosure, vandalism, etc • Origin of effluent – nightsoil: bucket washing, connection • Final effluent – discharged, irrigated, recycled/re-used • Water quality – systems discharging or irrigating

  7. Wastewater Pond System Assessment Tool… • WSAs  Self Assessment of the Wastewater Pond System • Assist in planning (short/medium or long term needs) • Identify areas of risks and needs (short/medium or long term needs) • Assist in identifying and tracking emergency issues • Assist in understanding of required maintenance

  8. Tool Components… • General Assessment • Standardized assessment • Can be completed by range of people with same outcome • Allows for comparative assessments • Guides proactive intervention • Risk Assessment • Looks at Key Areas of Risk • Guides attention to Proactive Intervention (i.e. prevent incidents before they arise)  Tool has been modified to make easier to use

  9. Allocation of Weights/Score… If the issue may/will lead to:

  10. Weighting Score Consequence of the Risk Risk Orientated Weighting… • Weighting scores

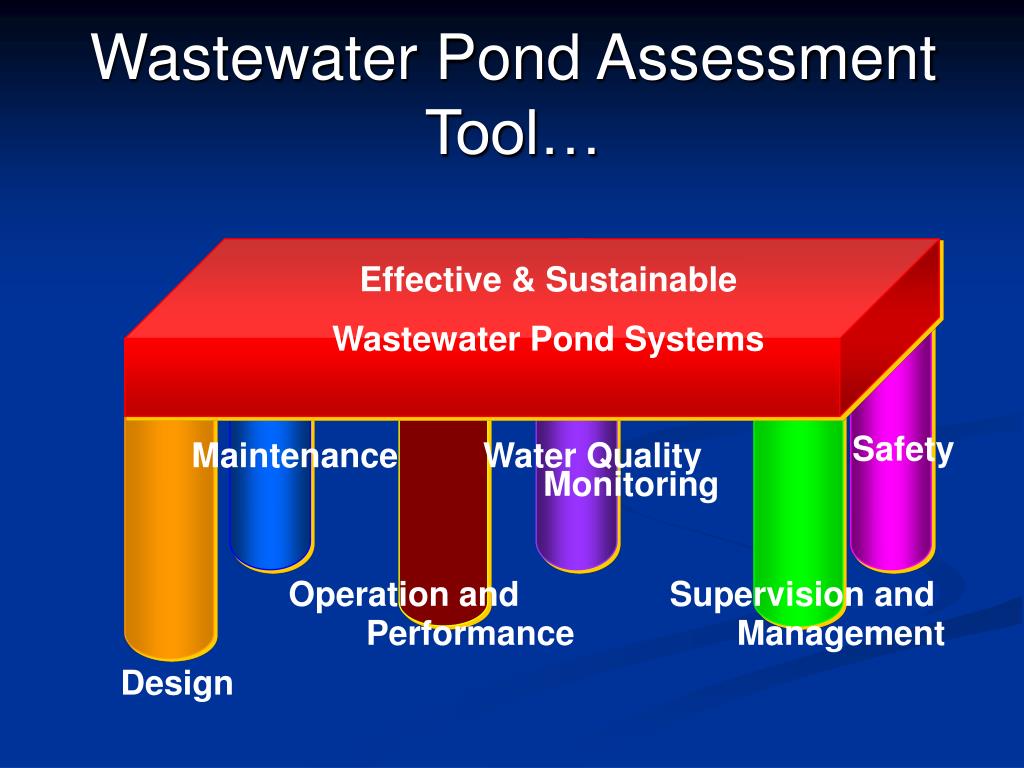

  11. Wastewater Pond Assessment Tool… Effective & Sustainable Wastewater Pond Systems Safety Maintenance Water Quality Monitoring Operation and Performance Supervision and Management Design

  12. Assessment Categories… • Design (lining, depth, etc) • Maintenance (screenings removal/handling, housekeeping, etc) • Operation and Performance (flow rates, population served, etc) • Water Quality Monitoring (parameters, frequency, effluent standards, etc) • Supervision and Management (assigning responsibilities, checks, etc) • Safety (fencing, “no entry” signs, etc)

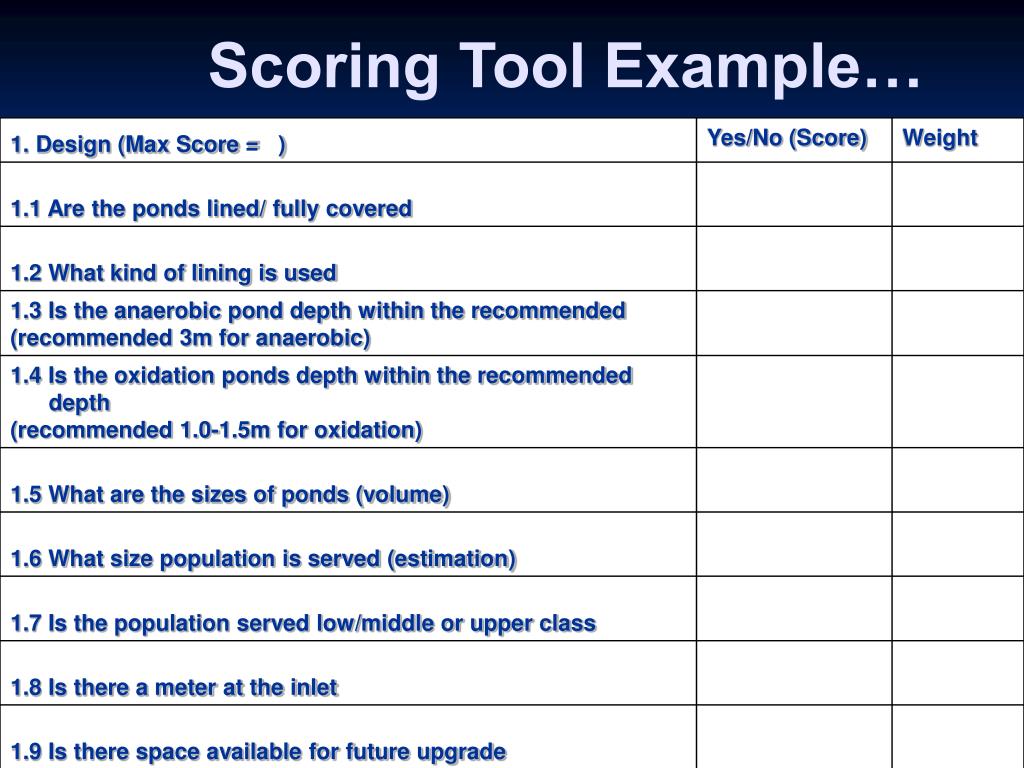

  13. Scoring Tool Example…

  14. Tool Users… • Likely to be completed by: • Supervisor • Superintendent • Could be completed by process controller BUT may not be able to read/write (can still provide info to supervisor/superintendent)  Responsibility ultimately lies with Head of Water/Water Quality Manager or Technical Manager

  15. Study Findings

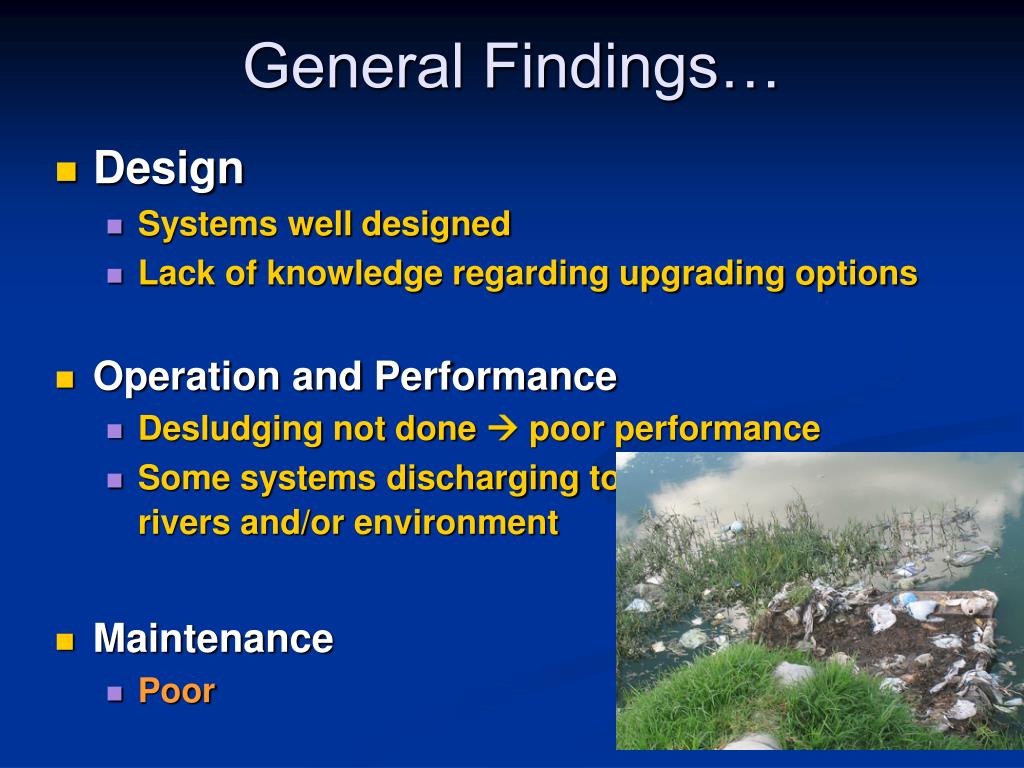

  16. General Findings… • Design • Systems well designed • Lack of knowledge regarding upgrading options • Operation and Performance • Desludging not done  poor performance • Some systems discharging to rivers and/or environment • Maintenance • Poor

  17. General Findings (cont)… • Water Quality Monitoring • No monitoring • Supervision and Management • No records • Safety • Not well secured, vandalism • Community awareness problematic • Operator basic need (e.g. drinking water, shelter) and sanitary facilities

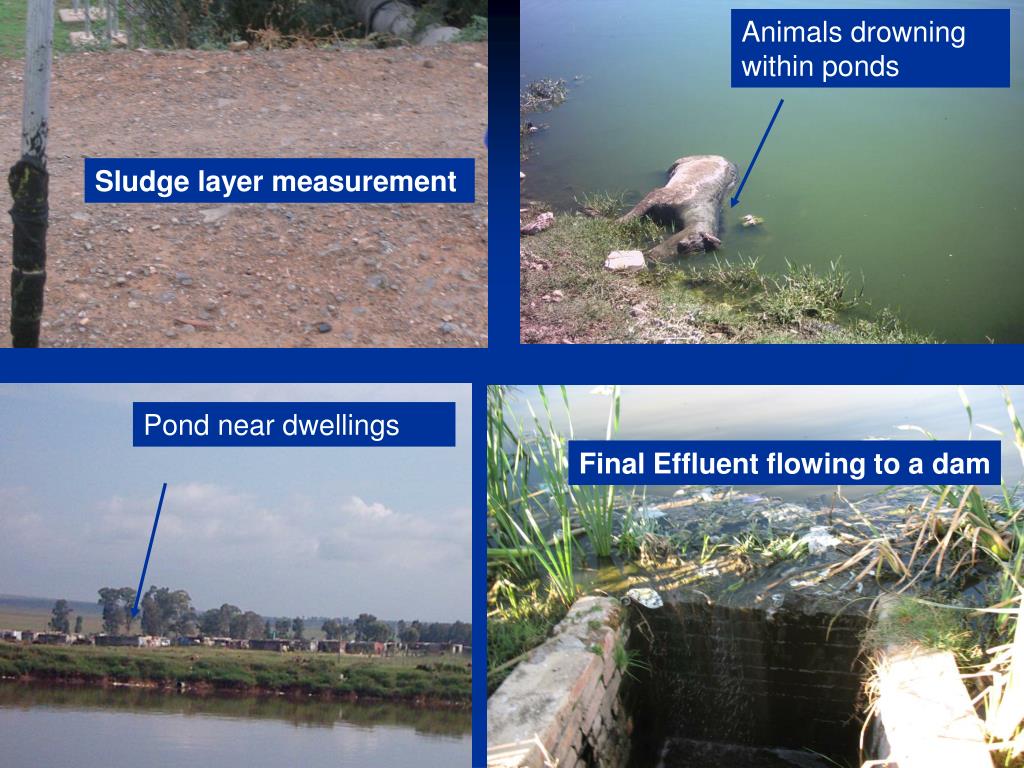

  18. Animals drowning within ponds Pond near dwellings Sludge layer measurement Final Effluent flowing to a dam

  19. Why Ponds?

  20. Discharge to environment

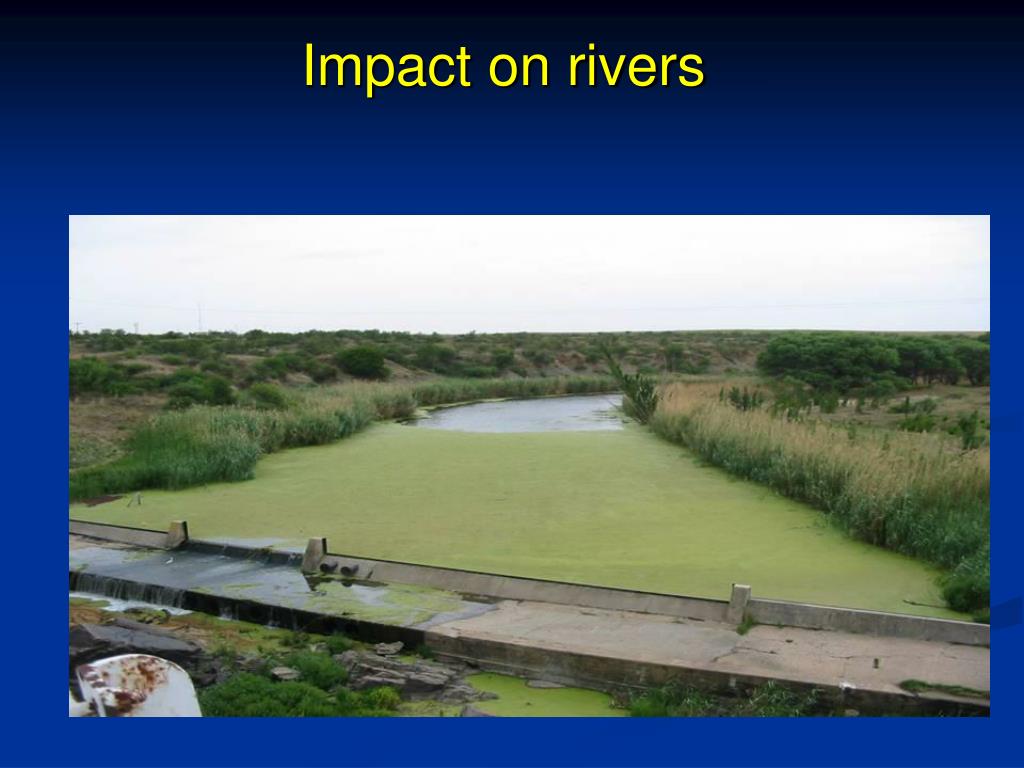

  21. Impact on rivers

  22. Challenges • Urbanisation • Bucket eradication • More capacity required • More possible overflow  pollution • More protection costs • More management costs

  23. Why consider Ponds? • Remove organic matter and solids • Simple construction with relatively low capital • High level of disinfection achievable • Simple process operation – an appropriate technology • Solar powered aeration/disinfection

  24. Why consider Ponds • Minimal (or nil) mechanical/electrical equipment • Minimal labour requirement without requirement for sophisticated technical training • Simple process operation – an appropriate technology
