  1. Tutorial chapter 3Extra Arwa Al-Issa

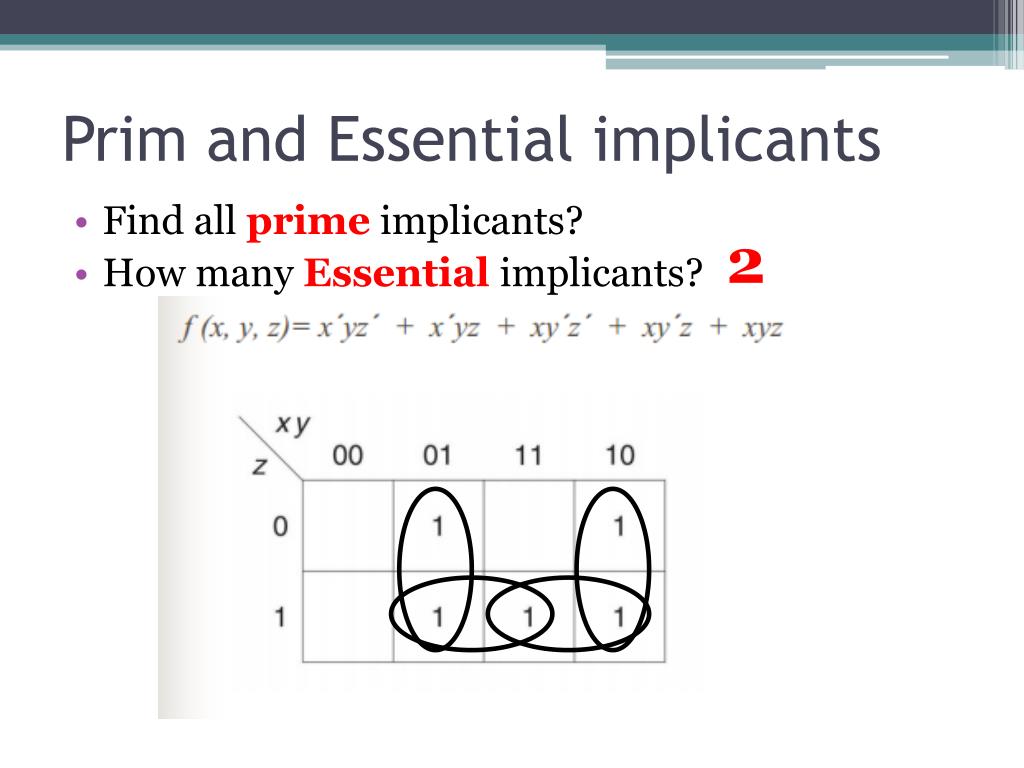

  2. Prim and Essential implicants 2 • Find all primeimplicants? • How many Essentialimplicants?

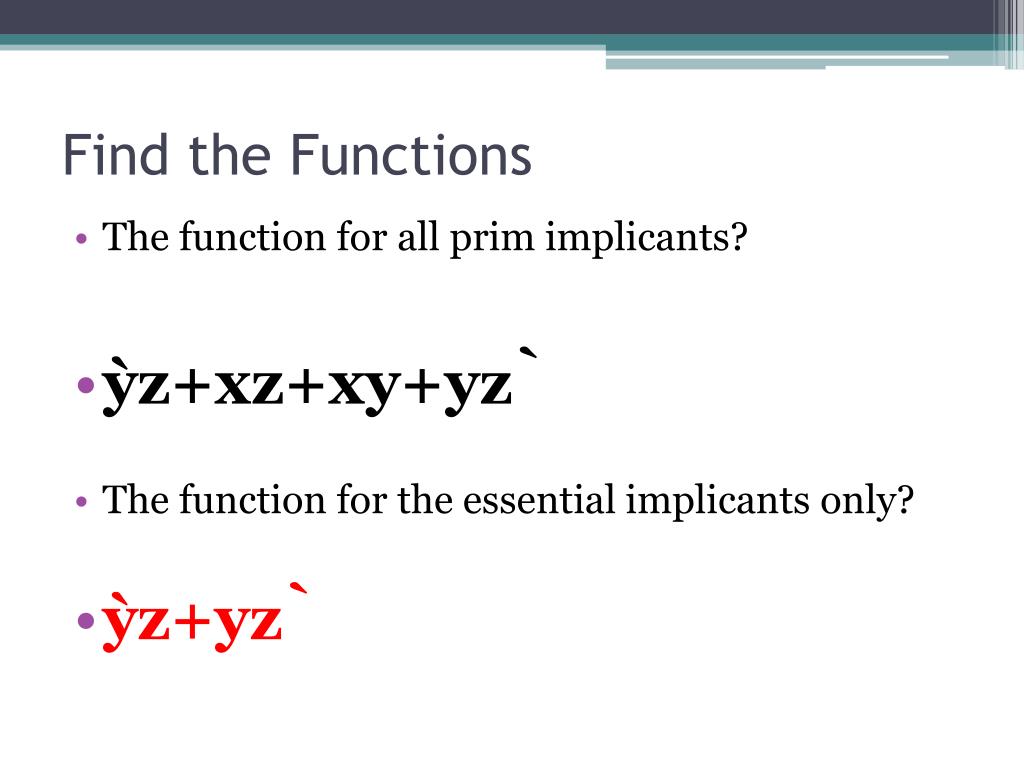

  3. Find the Functions • The function for all prim implicants? • ỳz+xz+xy+yz̀ • The function for the essential implicants only? • ỳz+yz̀

  4. Prim and Essential implicants • Find all primeimplicants? • How many Essentialimplicants?

  5. 5

  6. Don’t Care C • Find the function for this k-map: B A F=BD+ÀBC̀+ACD̀ D

  7. Done
