  1. Overview of Automated Quarantine Engine (AQE) Automation of isolation of misbehaving network Devices

  2. Agenda • What it does • Network Components • Hardware Components • Configuration • How it works • Screen views • Logging • Competition • Performance and Limitations • How to sell

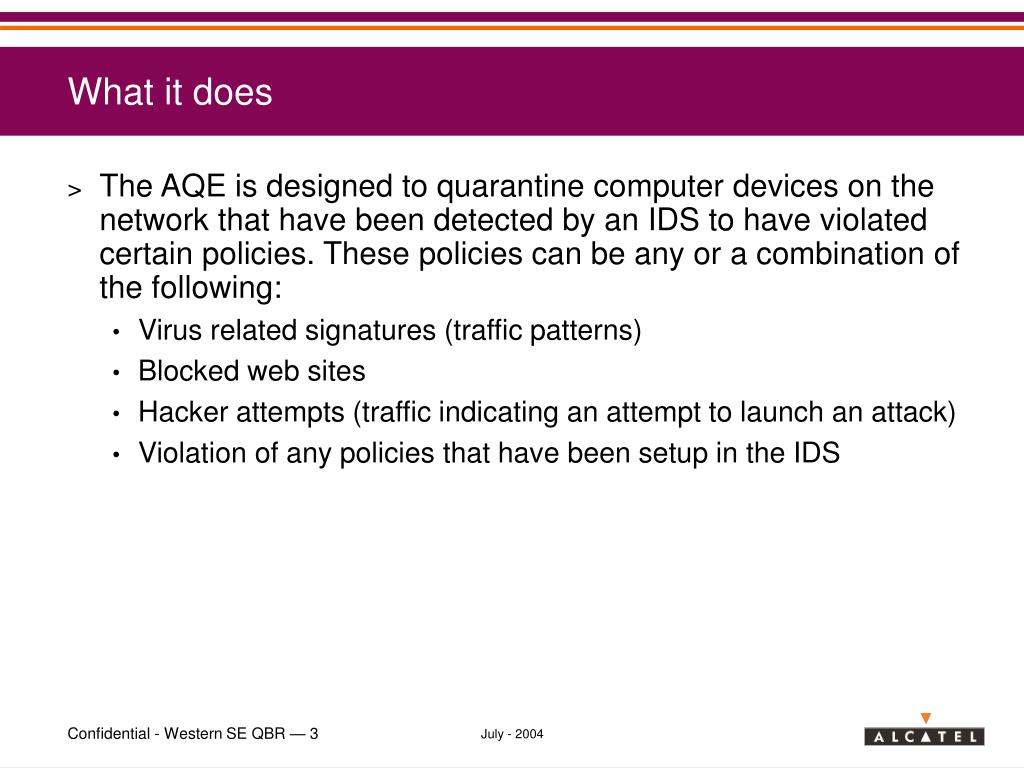

  3. What it does • The AQE is designed to quarantine computer devices on the network that have been detected by an IDS to have violated certain policies. These policies can be any or a combination of the following: • Virus related signatures (traffic patterns) • Blocked web sites • Hacker attempts (traffic indicating an attempt to launch an attack) • Violation of any policies that have been setup in the IDS

  4. Layer 3 Switches IDS System (Pre-Existing) AQE Server Layer 2 Switches Network Components Network Users

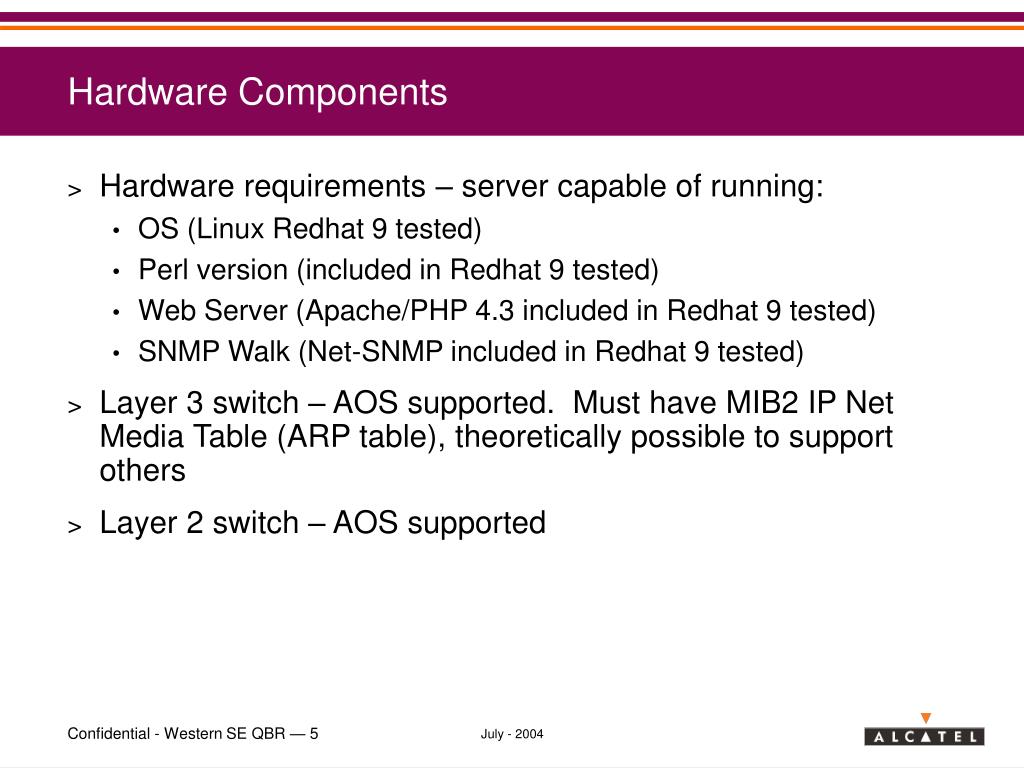

  5. Hardware Components • Hardware requirements – server capable of running: • OS (Linux Redhat 9 tested) • Perl version (included in Redhat 9 tested) • Web Server (Apache/PHP 4.3 included in Redhat 9 tested) • SNMP Walk (Net-SNMP included in Redhat 9 tested) • Layer 3 switch – AOS supported. Must have MIB2 IP Net Media Table (ARP table), theoretically possible to support others • Layer 2 switch – AOS supported

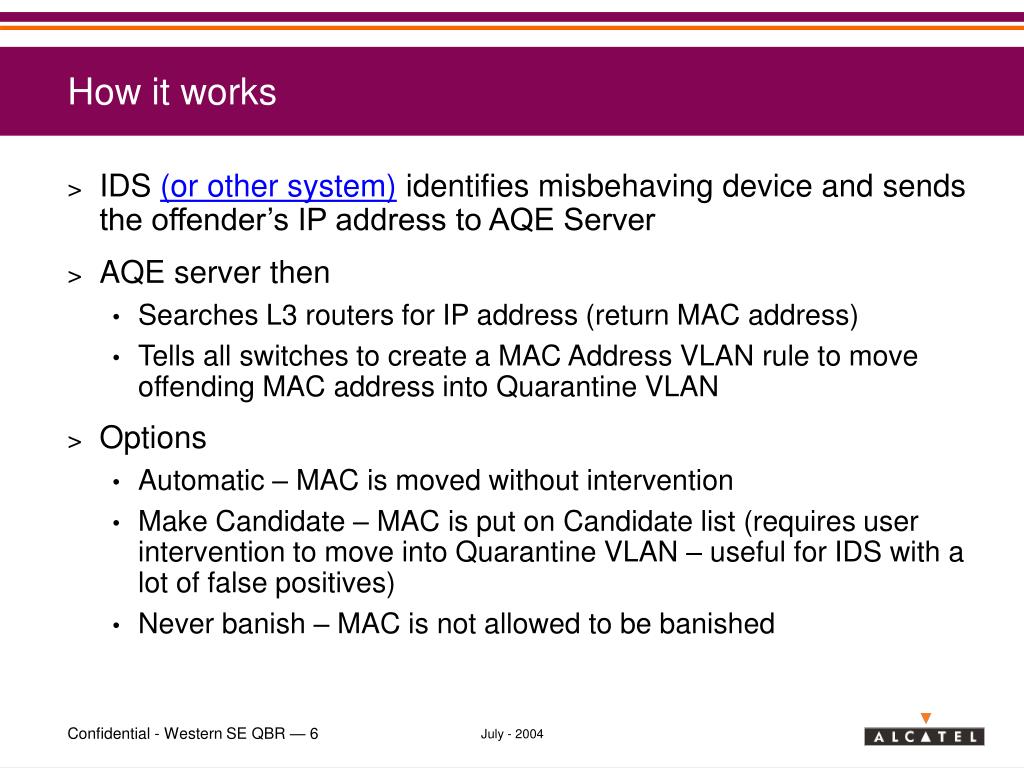

  6. How it works • IDS (or other system) identifies misbehaving device and sends the offender’s IP address to AQE Server • AQE server then • Searches L3 routers for IP address (return MAC address) • Tells all switches to create a MAC Address VLAN rule to move offending MAC address into Quarantine VLAN • Options • Automatic – MAC is moved without intervention • Make Candidate – MAC is put on Candidate list (requires user intervention to move into Quarantine VLAN – useful for IDS with a lot of false positives) • Never banish – MAC is not allowed to be banished

  7. Candidate Screen

  8. Banned Screen

  9. Software Elements (Deliverables) • Zip file containing • Perl scripts • Web pages • Configuration files • Comes Attached to a Professional Services Engineer ONLY. • Server with Apache, Linux 9.X or above • SNMP software • Perl

  10. Logging • ASCII log file rolled over each day • Possible to send email upon automated action • Possible to write syslog event • Possible to generate trap to send to OmniVista for Notification Service

  11. Performance and Limitations • Scalability • Each MAC address moved into quarantine VLAN requires one MAC Address VLAN Rule • In AOS, there are a maximum of 1024 rules per switch • Performance • Estimated 30 to 120 seconds from the time the IDS generates the command to the time the device is moved into quarantine VLAN • High variance expected due to server capabilities, network load, IDS load, etc. • Performance expected to decrease as monitored network size increases.

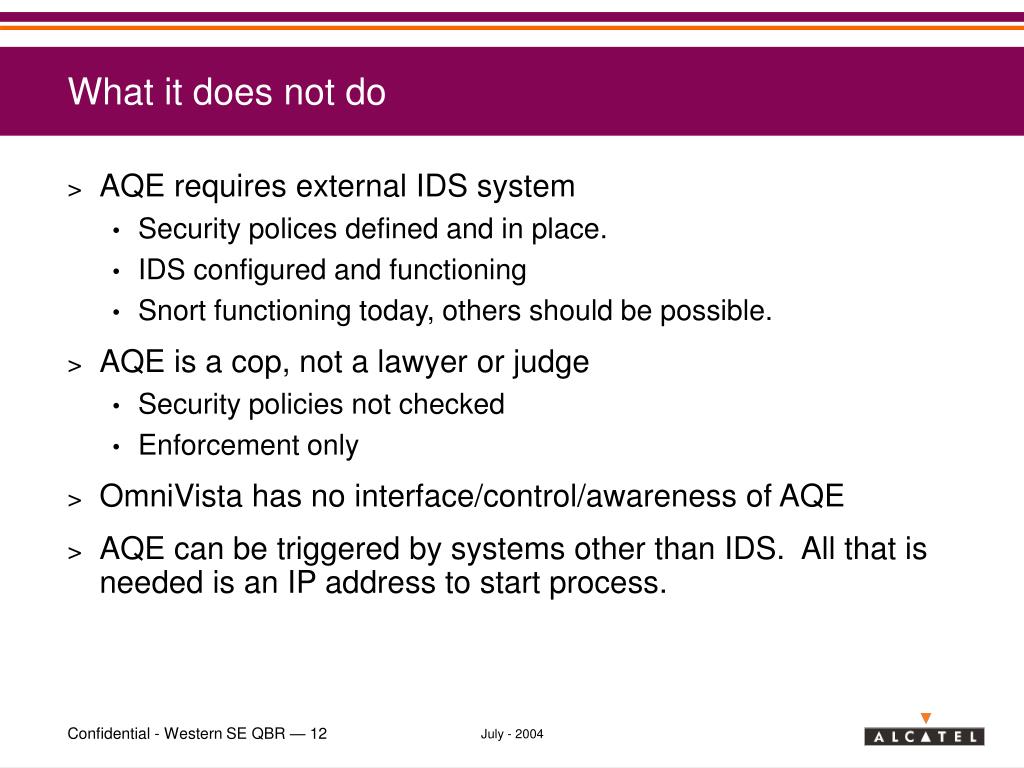

  12. What it does not do • AQE requires external IDS system • Security polices defined and in place. • IDS configured and functioning • Snort functioning today, others should be possible. • AQE is a cop, not a lawyer or judge • Security policies not checked • Enforcement only • OmniVista has no interface/control/awareness of AQE • AQE can be triggered by systems other than IDS. All that is needed is an IP address to start process.

  13. So how do I Sell it? • Part Number is 801915-00 • Price is on WW Price list • Not to be sold without Professional Services AQE Service. • Customer support is the same engagement as a new installation. It has a 90-day warranty on it. • Marketing slicks • What about positioning ideas, vertical positioning… • Can be sold through BP
