1. Enterprise IP Solutions OfficeServ 7x00 Quick Install Guide- Data Server –S/W Upgrade Mar, 2006 OfficeServ Lab. Samsung Electronics Co., Ltd.

2. Upgrade using Web Management

3. 1. Run the Web Browser. 2. Access the initial IP of GWIM/GSIM/GPLIM using HTTPS. The IP initial value of each board is as follows: GWIM - 10.0.0.1/24(eth0) GSIM – 10.0.3.1/24(rd1) GPLIM – 10.0.4.1/24(vsd) - 10.0.1.1/24(eth1) - 10.0.2.1/24(eth2) In case of upgrading GWIM SW from v1.12 to v1.25 you should use bootloader. Because GWIM v1.12 SW has some problem in upgrading using Web Management. Other versions of GWIM and GSIM/GPLIM will have no problem with Web Management. Note

4. 3. Login using the administrator ID and Password. (ID : admin / Password : root)

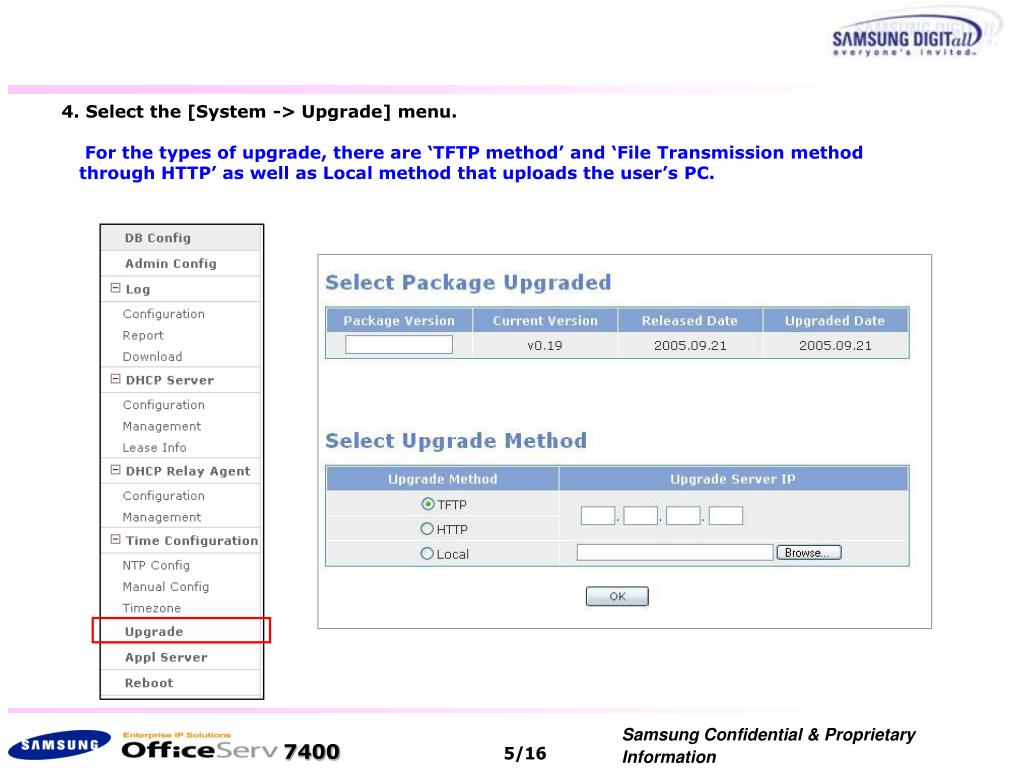

5. 4. Select the [System -> Upgrade] menu. For the types of upgrade, there are ‘TFTP method’ and ‘File Transmission method through HTTP’ as well as Local method that uploads the user’s PC.

6. 5. The package version to upgrade should be entered like ‘v1.24’ in the [Package Version] field.

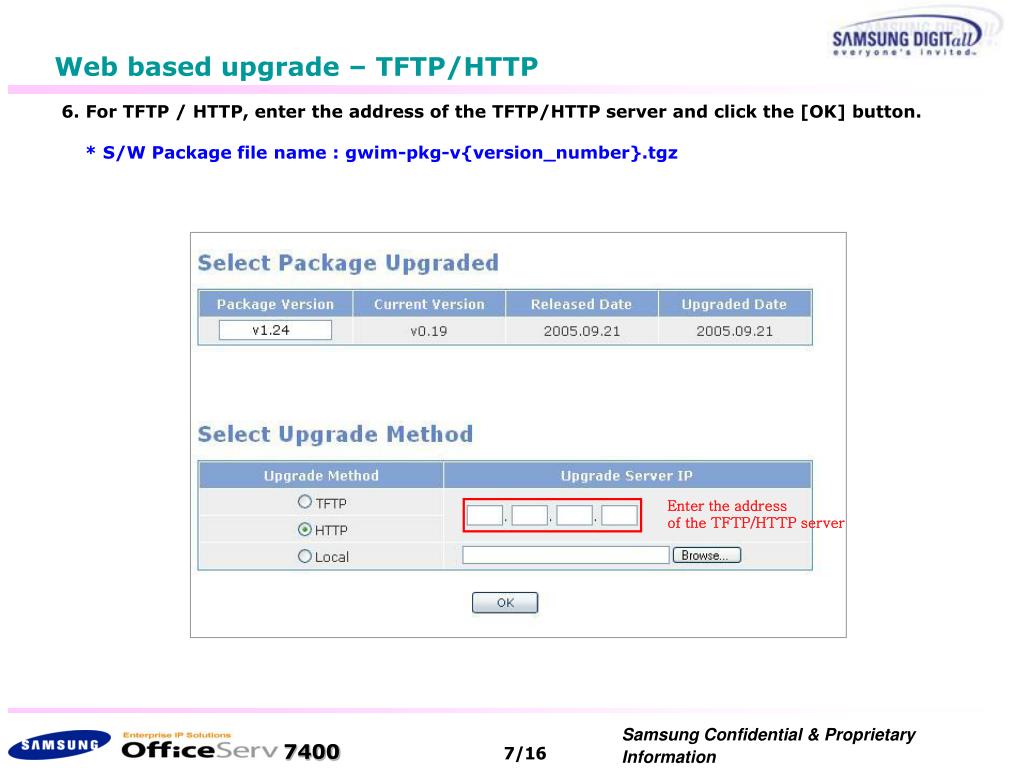

7. Web based upgrade – TFTP/HTTP 6. For TFTP / HTTP, enter the address of the TFTP/HTTP server and click the [OK] button. * S/W Package file name : gwim-pkg-v{version_number}.tgz Enter the address of the TFTP/HTTP server

8. Web based upgrade – Local 6. For Local method, the relevant package file should be existed in the user’s PC. Click the [OK] button after selecting the file. (In the TFTP / HTTP method, the files of the relevant version are searched automatically and downloaded, but for Local method, the entered version name and file name to upload should be identical. If Package Version is 'v1.24', the file name is ‘gwim-pkg-v1.24.tgz'. )

9. Upgrade using Serial I/O Interface

10. Environment (OS7200) IP : 165.213.89.200 Hub or Switch TFTP server e.g. Execute the PumpKIN program. S/W package exists in the TFTP server directory Serial I/O cable Management PC TFTP root directory

11. Environment (OS7400) IP : 165.213.89.200 GPLIM Hub or Switch TFTP server e.g. Execute the PumpKIN program. S/W package exists in the TFTP server directory eth0 eth1 GWIM V.35 eth2 HSSI Serial I/O cable Management PC TFTP root directory

12. 1. Connect the serial cable to the SIO port of Board * baudrate : 19200 2. Enter the ‘D’ key after resetting the Board. Then the system goes into Bootloader Mode. 3. Reset the previous setting environment S/W Upgrade using TFTP (on the bootloader) U-Boot 1.1.2 (Jun 22 2005 - 22:07:53) OfficeServ 7400 SAMSUNG (GWIM v0.11) CPU: 750GX v1.2 @ 996 MHz BOARD: GWIM v0.11 DRAM: 512 MB Now running in RAM - Memory Address is 0x0ffcd000 FLASH: [32MB@fc000000] [512kB@ff800000] 32.5 MB In: serial Out: serial Err: serial Net: mv_enet0, mv_enet1, mv_enet2 Hit 'd' or 'D' key to stop autoboot : 0 GWIM => GWIM =>protect off bank 1 ; remove the flash protection GWIM =>erase 0xfc000000 0xfc03ffff (or erase bootcf) ; erase the current setting environments / : done Erased 1 sectors GWIM => reset GWIM : 0xfc000000 0xfc03ffff GSIM : 0xe0000000 0xe00fffff GPLIM : 0x2c000000 0x2c01ffff

13. 4. Set the environment for TFTP * If you want to know the current setting environments, enter the “printenv” command. S/W Upgrade using TFTP (on the bootloader) GWIM => setenv ethaddr =; erase the MAC address because MAC address isn’t overwritten GWIM => setenv ethaddr 00:00:00:00:00:01; setting the MAC address which isn’t duplicated GWIM => setenv ipaddr 165.213.89.100; 165.213.89.100 is temporary IP address GWIM => setenv serverip 165.213.89.200; 165.213.89.200 is the TFTP Server IP address GWIM => setenv netmask 255.255.255.0 GWIM => setenv pkgversion 1.24; 1.24 is the package version to upgrade GWIM => saveenv ; save the current setting environments GWIM => printenv bootldrstart=0xff800000 bootcfstart=0xfc000000 osstart=0xfc040000 configdbstart=0xfd700000 logdbstart=0xfda00000 bootldrend=0xff87ffff bootcfend=0xfc03ffff osend=0xfc1fffff firmwareend=0xfd6fffff configdbend=0xfd9fffff logdbend=0xfdffffff bootldrfile=gwim-bootldr.img-v bootcffile=gwim-bootcf.img-v osfile=gwim-os.img-v firmwarefile=gwim-firmware.img-v configdbfile=gwim-configdb.img-v logdbfile=gwim-logdb.img-v downloadaddr=0x00400000 bootargs=console=ttyS0,19200 bootcmd=setenv bootargs $(bootargs) $(rootpath); bootm $(osstart) $(firmwarestart);

14. 5. Enter the “install all” command install [os | firmware | configdb | logdb | all] os – Linux Kernel firmware – Root File System configdb – Config DB File System logdb – Log DB File System all - All of them S/W Upgrade using TFTP (on the bootloader) bootdelay=5 baudrate=19200 loads_echo=0 ipaddr=165.213.89.100 serverip=165.213.89.200 rootpath=root=/dev/ram rw ethact=mv_enet0 firmwarestart=0xfc180000 pkgversion=0.24 ethaddr=00:00:00:00:00:01 stdin=serial stdout=serial stderr=serial Environment size: 884/262140 bytes GWIM =>

15. S/W Upgrade using TFTP (on the bootloader) GWIM =>intall all Ethernet status port 0: Link up, Full Duplex, Speed 1 Gbps Using mv_enet0 device TFTP from server 192.168.0.227; our IP address is 192.168.0.249 Filename 'gwim-os.img-v0.12'. Load address: 0x400000 Loading: | : done Bytes transferred = 975782 (ee3a6 hex) | : done Erased 7 sectors Copy to Flash... : 100 % : done Ethernet status port 0: Link up, Full Duplex, Speed 1 Gbps Using mv_enet0 device . . . . . . TFTP from server 192.168.0.227; our IP address is 192.168.0.249 Filename 'gwim-logdb.img-v0.12'. Load address: 0x400000 Loading: | : done Bytes transferred = 131072 (20000 hex) | : done Erased 24 sectors Copy to Flash... : 100 % : done GWIM => reset (NOTE) When you upgrade S/W package on the bootloader, you connect a PC to the debug port in the board. While the debug port of GSIM and GPLIM isn’t a front port of the board but inner port of the board, GWIM just uses a front port of the board for debug.
