159.235 Graphics & Graphical Programming. Lecture 26 - Visible & Hidden Surface Determination. Hidden Surface Removal. Inventing renderers led to geometric models, a call for more realism and therefore lots of polygons.

Download Presentation
## 159.235 Graphics & Graphical Programming

**An Image/Link below is provided (as is) to download presentation**
Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.
Content is provided to you AS IS for your information and personal use only.
Download presentation by click this link.
While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.
During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

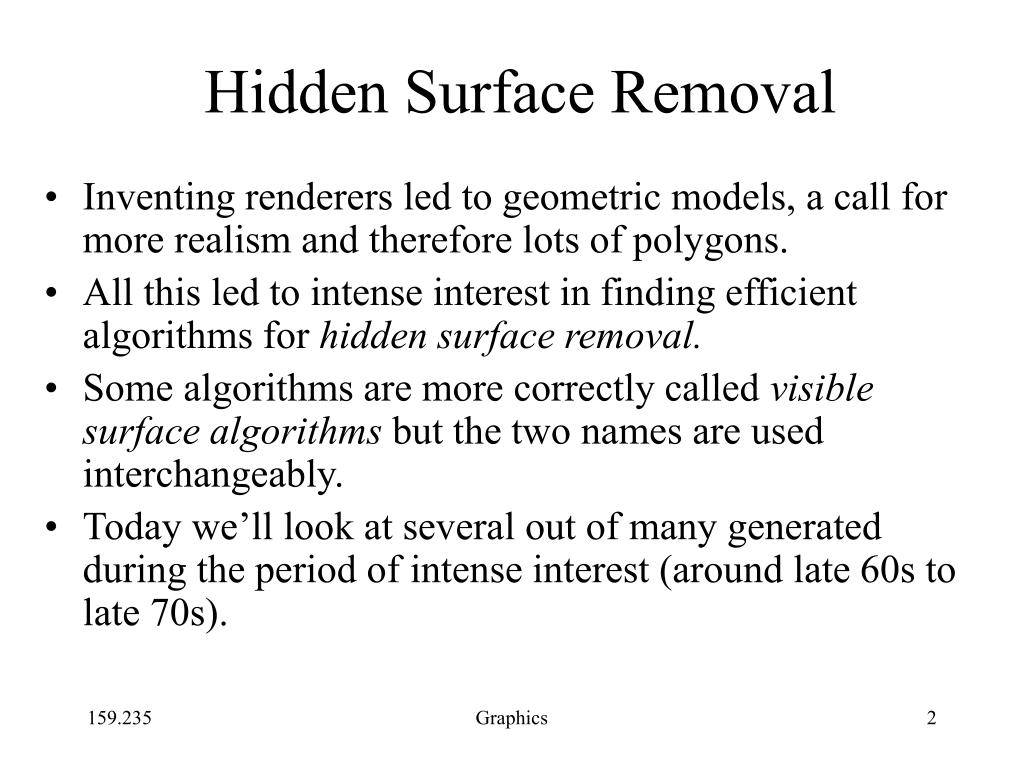

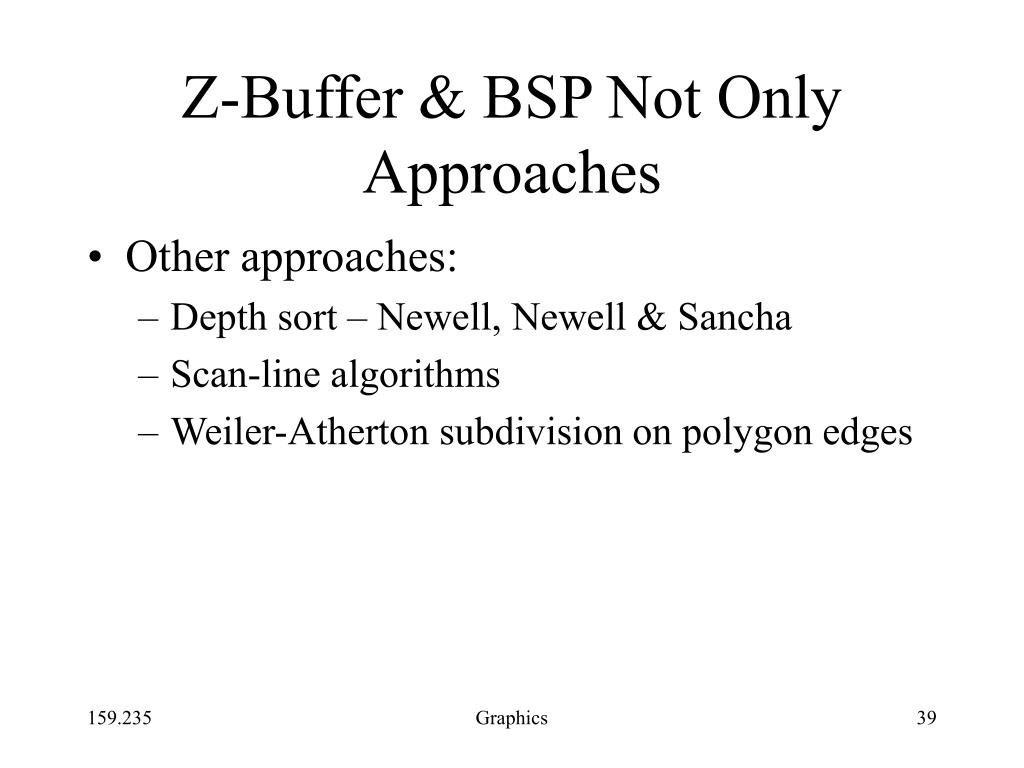

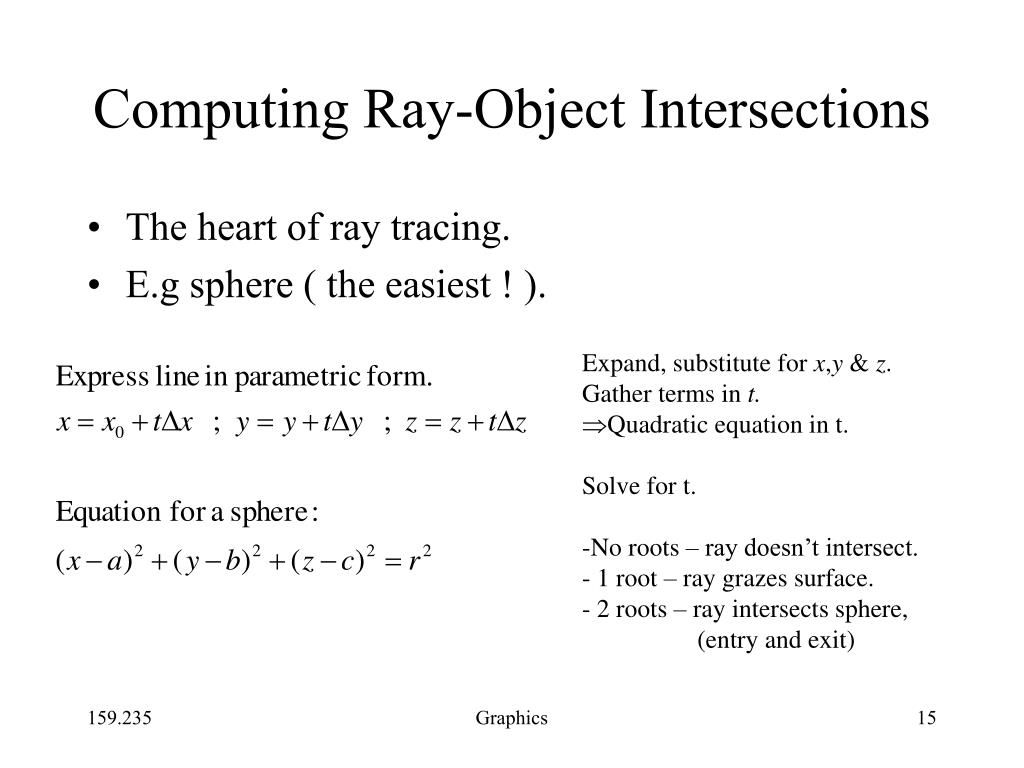

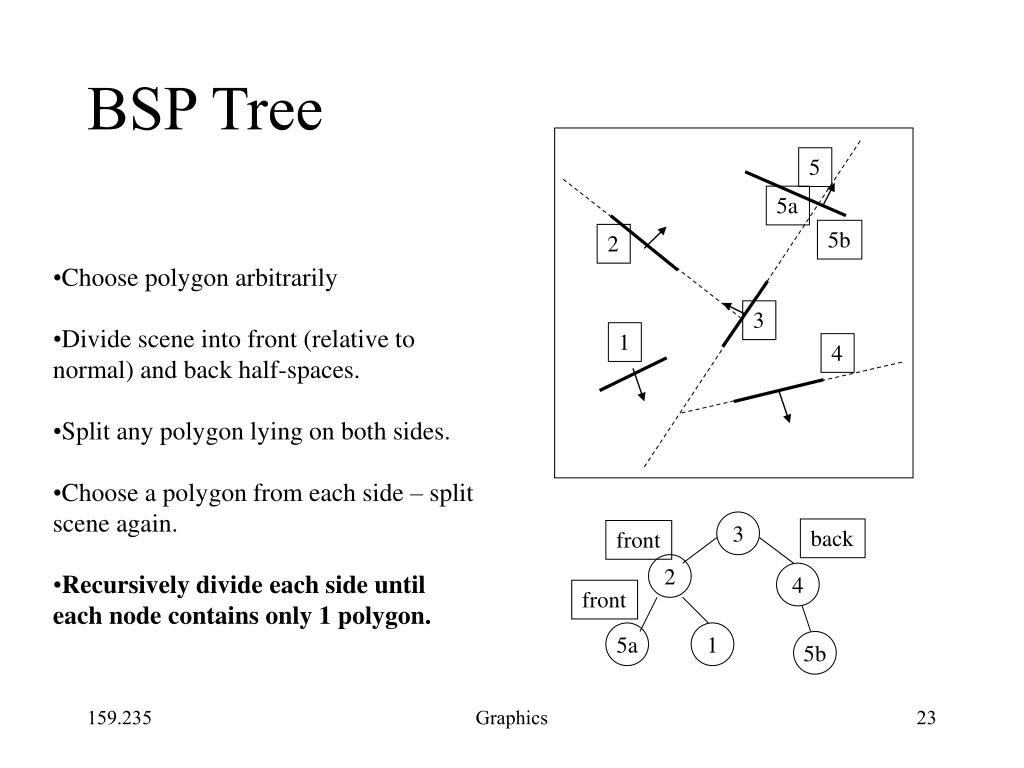

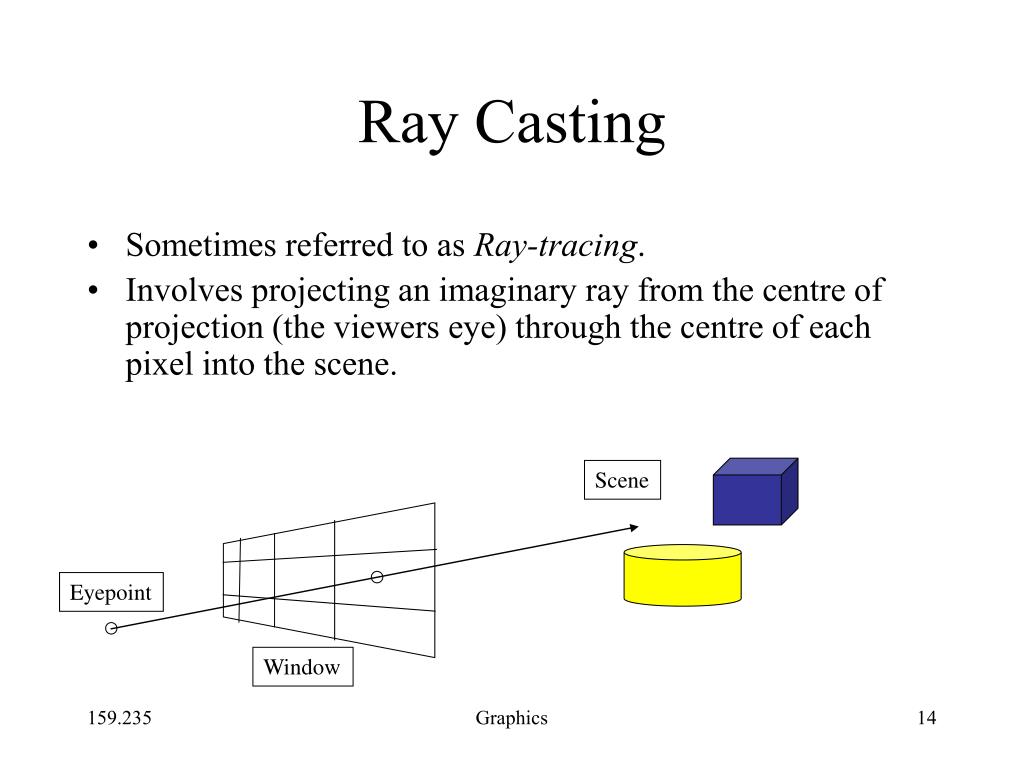

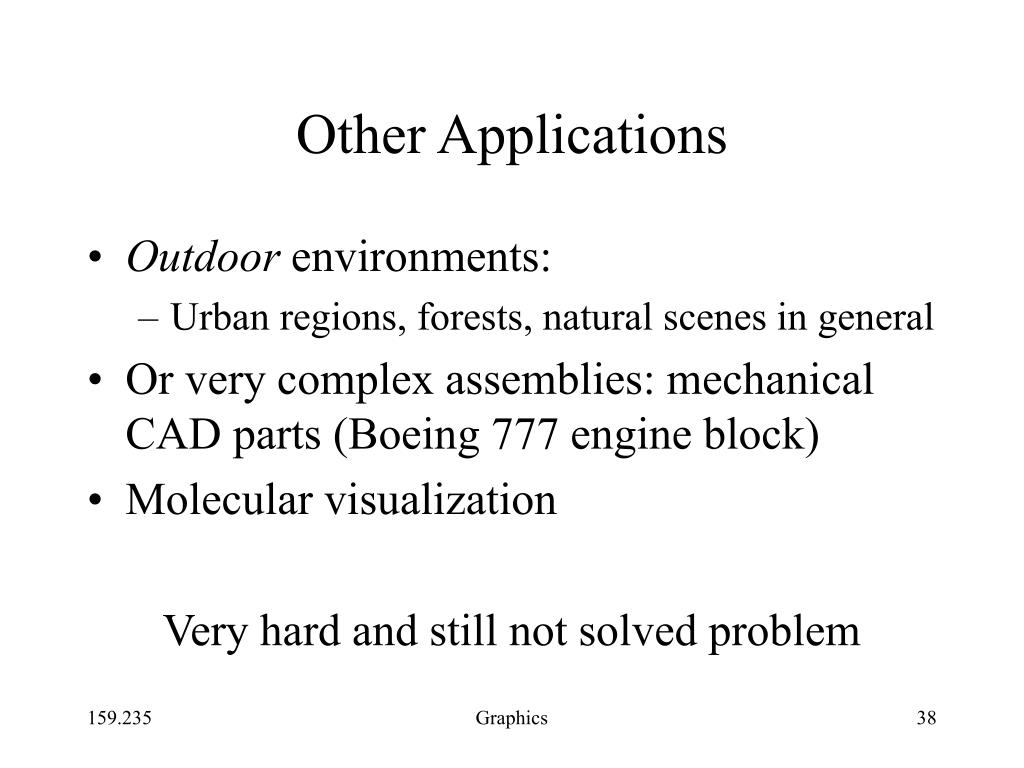

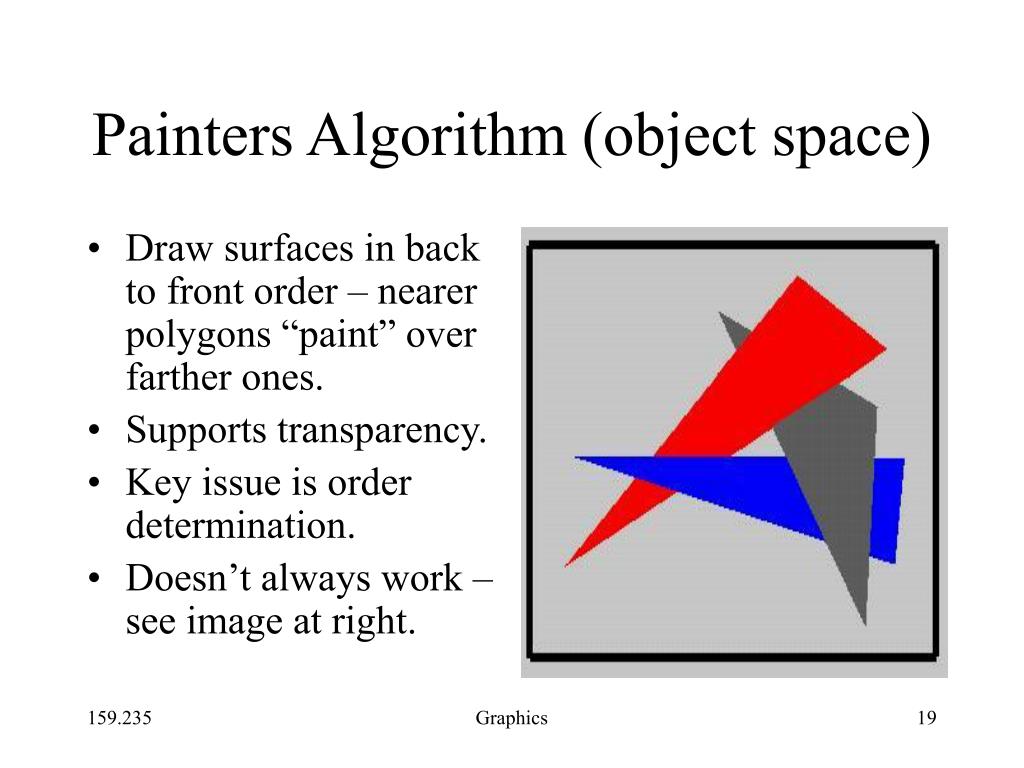

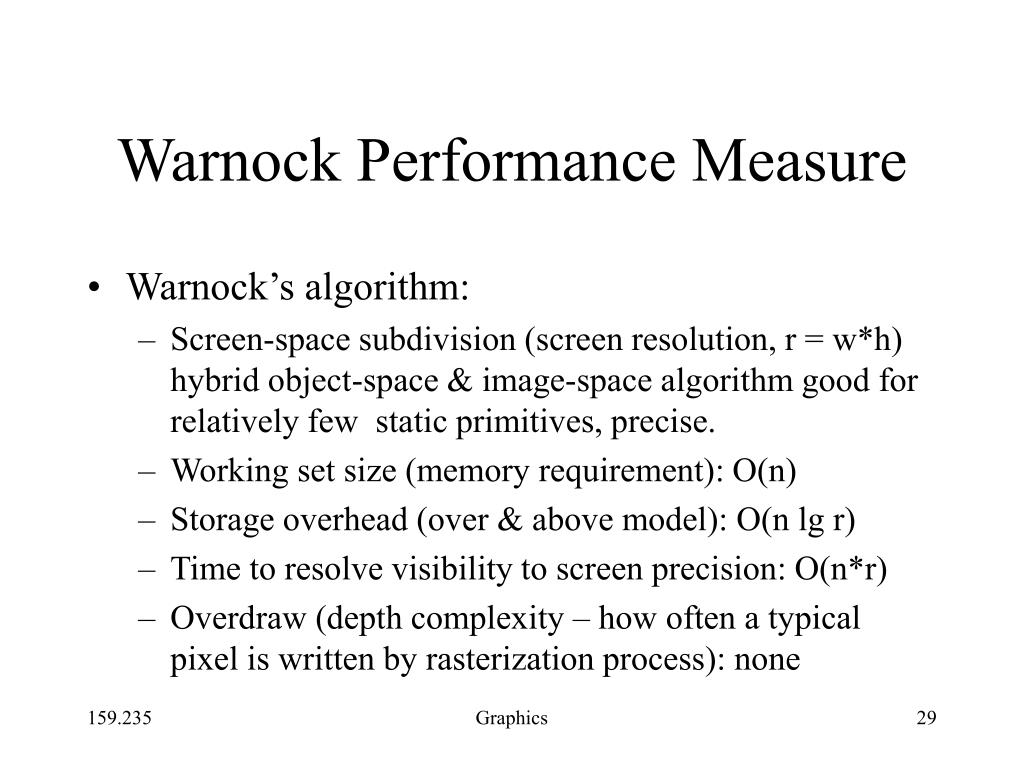

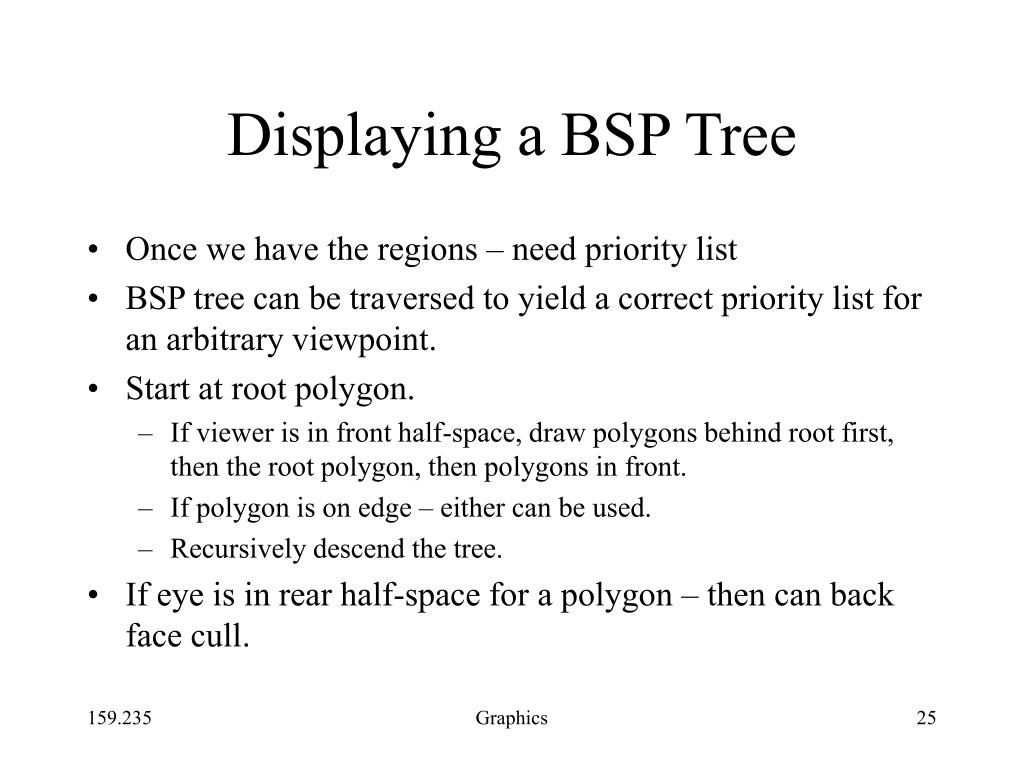

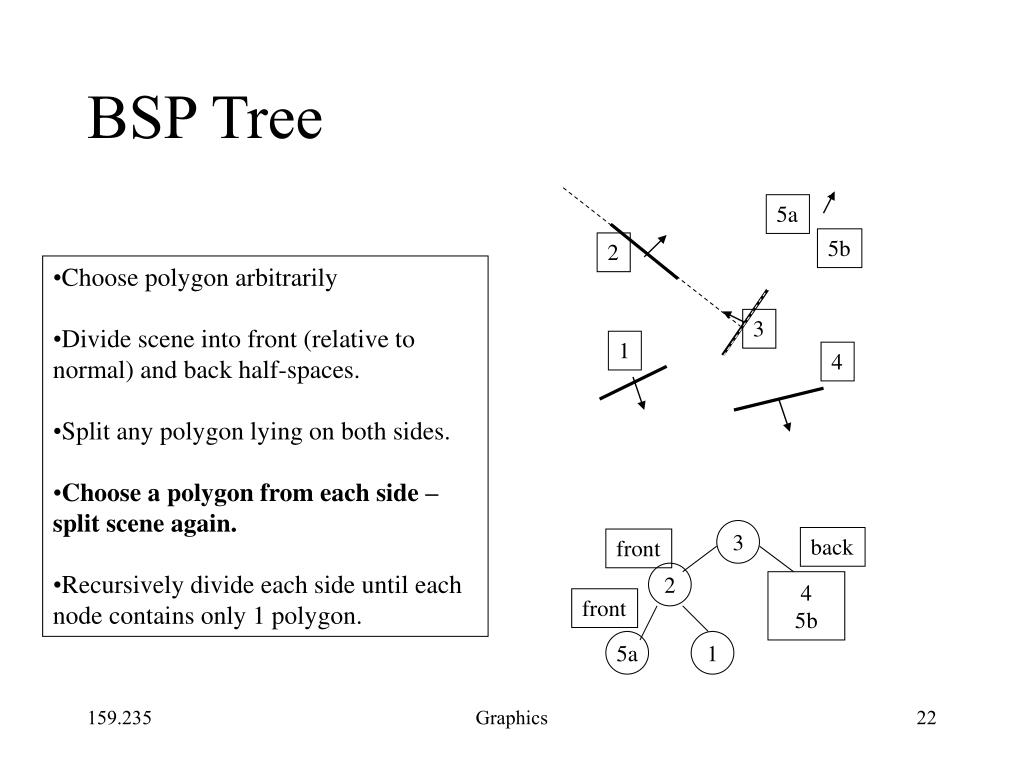

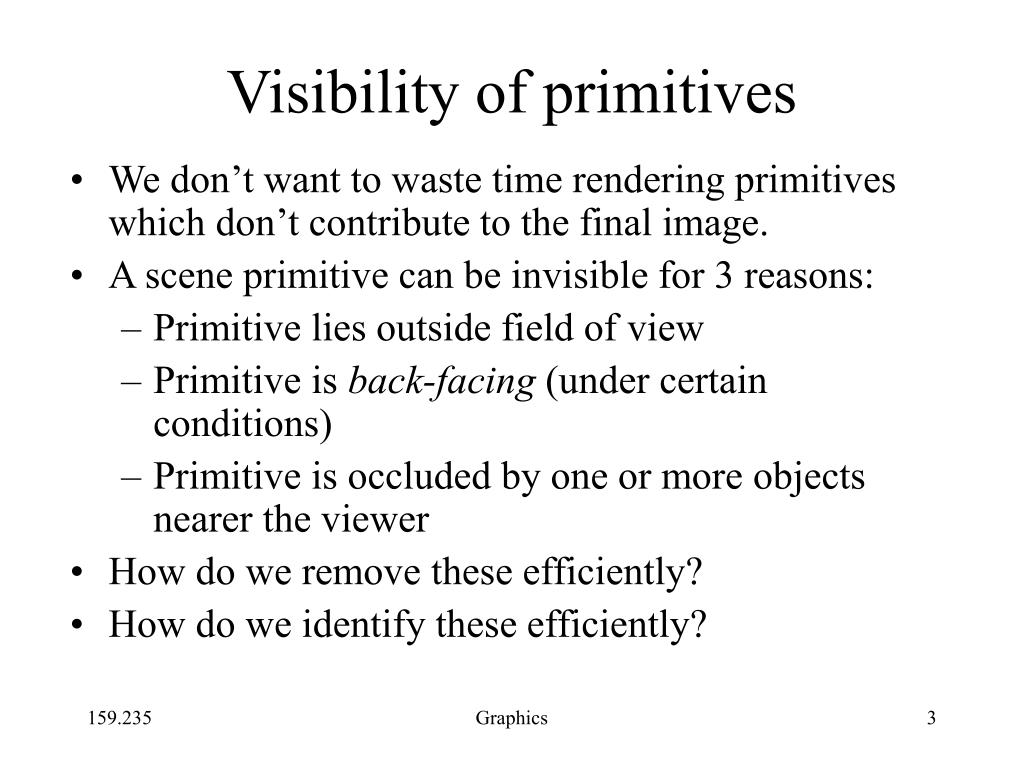

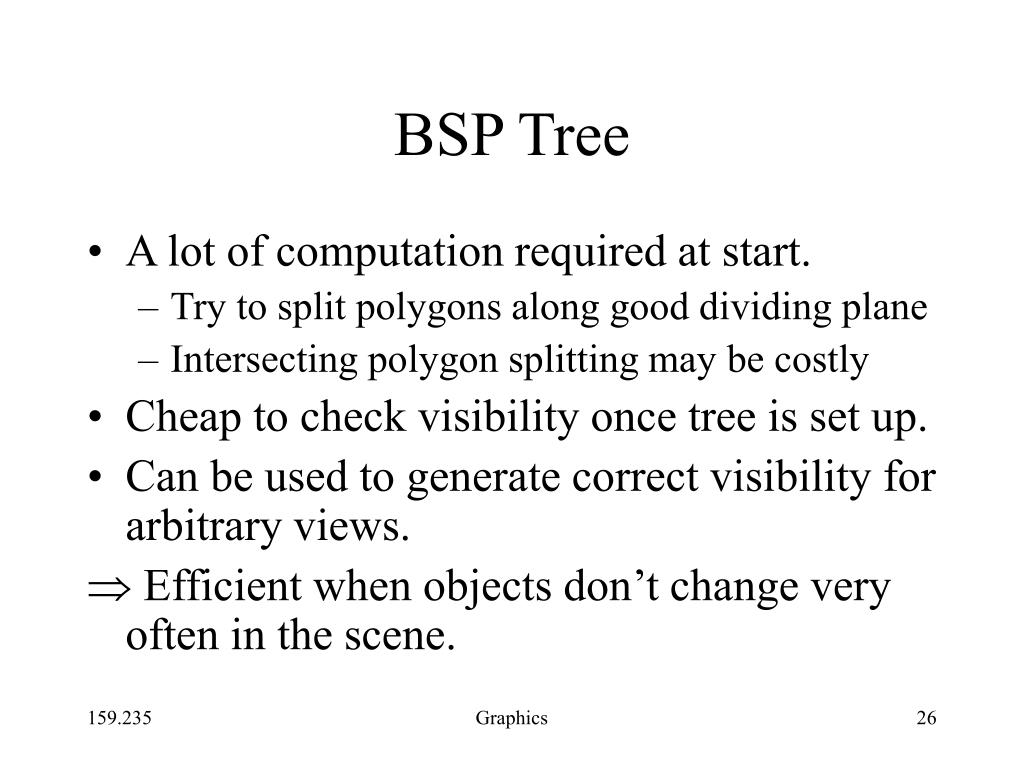

**159.235 Graphics & Graphical Programming**Lecture 26 - Visible & Hidden Surface Determination Graphics**Hidden Surface Removal**• Inventing renderers led to geometric models, a call for more realism and therefore lots of polygons. • All this led to intense interest in finding efficient algorithms for hidden surface removal. • Some algorithms are more correctly called visible surface algorithms but the two names are used interchangeably. • Today we’ll look at several out of many generated during the period of intense interest (around late 60s to late 70s). Graphics**Visibility of primitives**• We don’t want to waste time rendering primitives which don’t contribute to the final image. • A scene primitive can be invisible for 3 reasons: • Primitive lies outside field of view • Primitive is back-facing (under certain conditions) • Primitive is occluded by one or more objects nearer the viewer • How do we remove these efficiently? • How do we identify these efficiently? Graphics**The Visibility Problem.**• Two problems remain: • (Clipping we have covered) • Removal of faces facing away from the viewer. • Removal of faces obscured by closer objects. Graphics**Visible Surface Algorithms**Hidden/Visible Surface/Line Elimination/Determination • Requirements • Handle diverse set of geometric primitives • Handle large number of geometric primitives Classification: Sutherland, Sproull, Schumacher (1974): • Object Space • Geometric calculations involving polygons • Floating point precision: Exact • Often process scene in object order • Image Space • Visibility at pixel samples • Integer precision • Often process scene in image order Graphics**Back Face Culling**• We saw in modelling, that the vertices of polyhedra are oriented in an anticlockwise manner when viewed from outside – surface normal N points out. • Project a polygon. • Test z component of surface normal. If negative – cull, since normal points away from viewer. • Or if N.V > 0 we are viewing the back face so polygon is obscured. • Only works for convex objects without holes, ie. closed orientable manifolds. Graphics**Back Face Culling**• Back face culling can be applied anywhere in the pipeline: world or eye coords, NDC, image space. • Where is the best point? What portion of the scene is eliminated, on average? • Depends on application • If we clip our scene to the view frustrum, then remove all back-facing polygons – are we done? • NO! Most views involve overlapping polygons. Graphics**How de we handle overlapping?**How about drawing the polygons in the “right order” so that we get the correct result ( eg. blue, then green, then peach)? Is it just a sorting problem ? Yes it is for 2D, but in 3D we can encounter intersecting polygons or groups of non-intersecting polygons which form a cycle where order is impossible (later). Graphics**Simple Z-buffering**• Simple to include in scanline algorithm. • Interpolate z during scan conversion. • Maintain a depth (range) image in the frame buffer (16 or 24 bits common ). • When drawing, compare with the currently stored z value. • Pixel given intensity of nearest polygon. Graphics**Implementation**• Initialise frame buffer to background colour. • Initialise depth buffer to z = max. value for far clipping plane, ie. LHCS • Need to calculate value for z for each pixel • But only for polygons intersecting that pixel. • Could interpolate from values at vertices. • Update both frame and depth buffer. Graphics**Determining Depth**• Only one subtraction needed • Depth coherence. Graphics**Why is z-buffering so popular ?**Advantage • Simple to implement in hardware. • Add additional z interpolator for each primitive. • Memory for z-buffer is now not expensive • Diversity of primitives – not just polygons. • Unlimited scene complexity • Don’t need to calculate object-object intersections. Disadvantage • Extra memory and bandwidth • Waste time drawing hidden objects • Z-precision Errors • May have to use point sampling Graphics**Z-compositing**Colour photograph. Can use depth other than from polygons. Laser range return. Reflected laser power Data courtesy of UNC. Graphics**Ray Casting**• Sometimes referred to as Ray-tracing. • Involves projecting an imaginary ray from the centre of projection (the viewers eye) through the centre of each pixel into the scene. Scene Eyepoint Window Graphics**Computing Ray-Object Intersections**• The heart of ray tracing. • E.g sphere ( the easiest ! ). • Expand, substitute for x,y & z. • Gather terms in t. • Quadratic equation in t. Solve for t. • No roots – ray doesn’t intersect. • 1 root – ray grazes surface. • 2 roots – ray intersects sphere, • (entry and exit) Graphics**Ray-Polygon Intersection**• Not so easy ! • Determine whether ray intersects polygon’s plane. • Determine whether intersection lies within polygon. • Easiest to determine (2) with an orthographic projection onto the nearest axis and the 2D point-in-polygon test. z Ray x y Graphics**Ray Casting**• Easy to implement for a variety of primitives – only need a ray-object intersection function. • Pixel adopts colour of nearest intersection. • Can draw curves and surfaces exactly – not just triangles ! • Can generate new rays inside the scene to correctly handle visibility with reflections, refraction etc – recursive ray-tracing. • Can be extended to handle global illumination. • Can perform area-sampling using ray super-sampling. • But… too expensive for real-time applications. Graphics**Examples of Ray-traced images.**Graphics**Painters Algorithm (object space)**• Draw surfaces in back to front order – nearer polygons “paint” over farther ones. • Supports transparency. • Key issue is order determination. • Doesn’t always work – see image at right. Graphics**BSP (Binary Space Partitioning) Tree**• One of class of “list-priority” algorithms – returns ordered list of polygon fragments for specified view point (static pre-processing stage). • Choose polygon arbitrarily • Divide scene into front (relative to normal) and back half-spaces. • Split any polygon lying on both sides. • Choose a polygon from each side – split scene again. • Recursively divide each side until each node contains only 1 polygon. 5 2 3 1 4 View of scene from above Graphics**5**5a 5b 2 3 1 4 3 back front 1 2 5a 4 5b BSP Tree • Choose polygon arbitrarily • Divide scene into front (relative to normal) and back half-spaces. • Split any polygon lying on both sides. • Choose a polygon from each side – split scene again. • Recursively divide each side until each node contains only 1 polygon. Graphics**BSP Tree**5 5a 5b 2 • Choose polygon arbitrarily • Divide scene into front (relative to normal) and back half-spaces. • Split any polygon lying on both sides. • Choose a polygon from each side – split scene again. • Recursively divide each side until each node contains only 1 polygon. 3 1 4 3 back front 2 4 5b front 5a 1 Graphics**5**5a 5b 2 3 1 4 3 back front 2 4 front 5a 1 5b BSP Tree • Choose polygon arbitrarily • Divide scene into front (relative to normal) and back half-spaces. • Split any polygon lying on both sides. • Choose a polygon from each side – split scene again. • Recursively divide each side until each node contains only 1 polygon. Graphics**BSP Tree**5 2 • Choose polygon arbitrarily • Divide scene into front (relative to normal) and back half-spaces. • Split any polygon lying on both sides. • Choose a polygon from each side – split scene again. • Recursively divide each side until each node contains only 1 polygon. 3 1 4 5 back 4 back Alternate formulation starting at 5 3 front 1 back 2 Graphics**Displaying a BSP Tree**• Once we have the regions – need priority list • BSP tree can be traversed to yield a correct priority list for an arbitrary viewpoint. • Start at root polygon. • If viewer is in front half-space, draw polygons behind root first, then the root polygon, then polygons in front. • If polygon is on edge – either can be used. • Recursively descend the tree. • If eye is in rear half-space for a polygon – then can back face cull. Graphics**BSP Tree**• A lot of computation required at start. • Try to split polygons along good dividing plane • Intersecting polygon splitting may be costly • Cheap to check visibility once tree is set up. • Can be used to generate correct visibility for arbitrary views. Efficient when objects don’t change very often in the scene. Graphics**Warnock’s Algorithm**• Elegant hybrid of object-space and image-space. • Uses standard graphics solution:- if situation too complex then subdivide problem. • Start with root window: • If zero or one intersecting, contained or surrounding polygon then scan convert window • Else subdivide window as quadtree • Recurse until zero or one polygon, or some set depth • Depth may be pixel resolution, display nearest polygon Graphics**Warnock’s Example**Graphics**Warnock Performance Measure**• Warnock’s algorithm: • Screen-space subdivision (screen resolution, r = w*h) hybrid object-space & image-space algorithm good for relatively few static primitives, precise. • Working set size (memory requirement): O(n) • Storage overhead (over & above model): O(n lg r) • Time to resolve visibility to screen precision: O(n*r) • Overdraw (depth complexity – how often a typical pixel is written by rasterization process): none Graphics**BSP Performance Measure**• Tree construction and traversal (object-space ordering algorithm – good for relatively few static primitives, precise) • Working set size (depends on application): O(1), O(lg n) • Storage overhead: O(n2) • Time to resolve visibility to screen precision: O(n2) • Overdraw: maximum Graphics**Z-buffer Performance**• Brute-force image-space algorithm scores best for complex scenes – not very accurate but is easy to implement and is very general. • Working set size: O(1) • Storage overhead: O(1) • Time to resolve visibility to screen precision: O(n) • Overdraw: maximum • But even O(n) is now intolerable! Graphics**Example Architectural scenes**Here there can be an enormous amount of occlusion Graphics**Occlusion at various levels**Graphics**A**B C D E Cells & Portals (object-space) D F • Model scene as a graph: • Nodes: Cells (or rooms) • Edges: Portals (or doors) • Graph gives us: • Potentially visible set • Superset of visible polygons • Room to room visibility • Not a complete solution ! C B E A G Graphics**Example Application : Quake game engine**• Calculates visibility separately for environment and objects. • Environment • Use portals to determine potentially visible set • Use BSP-tree to order polygons front-back. • Scan-convert polygons maintaining order. Graphics**Example : Quake Game Engine**• Scan converting polygons • Maintain front-back ordering. • Use visibility mask on scanline. F • - Create active edge list for polygons F & B. • - Write in front-back order. • Mask values once written to buffer. • Write colour to framebuffer • - Write z to z-buffer Scanline B Graphics**Example : Quake Game Engine**• Calculates visibility separately for environment and objects. • Environment • Use portals to determine potentially visible set • Use BSP-tree to order polygons front-back. • Scan-convert polygons maintaining order. • Maintain colour and z buffers. • Objects. • Use Z-buffer from environment stage. Graphics**Other Applications**• Outdoor environments: • Urban regions, forests, natural scenes in general • Or very complex assemblies: mechanical CAD parts (Boeing 777 engine block) • Molecular visualization Very hard and still not solved problem Graphics**Z-Buffer & BSP Not Only Approaches**• Other approaches: • Depth sort – Newell, Newell & Sancha • Scan-line algorithms • Weiler-Atherton subdivision on polygon edges Graphics**Visible Surfaces - Summary**• Visible and Hidden Surfaces • Z-Buffering • BSP • Acknowledgments - thanks to Eric McKenzie, Edinburgh, from whose Graphics Course some of these slides were adapted. Graphics
