Presentation Transcript

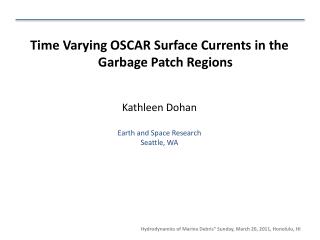

slide1

Time Varying OSCAR Surface Currents in the Garbage Patch Regions

Kathleen Dohan

Earth and Space Research

Seattle, WA

Hydrodynamics of Marine Debris” Sunday, March 20, 2011, Honolulu, HI

slide2

OSCAR surface currents

  • OSCAR surface currents (Ocean Surface Current Analyses- Realtime) are global ocean surface velocities calculated from satellite-sensed SSH, wind, and SST (SSS).
  • The dataset is produced on a 5-day timebase, on a 1/3 degree regular grid.
  • Here:
    • OSCAR currents in the convergent zones
    • How best to describe the convergent zones?
      • EulerianvsLagrangian views
        • Compare with drifters
    • Effects of vertical variation
    • Discussion

Hydrodynamics of Marine Debris” Sunday, March 20, 2011, Honolulu, HI

slide3

OSCAR Surface currents from satellite fields

  • Ocean Surface Currents Analyses-Realtime processing system (OSCAR) is a satellite-derived surface current database provided in near-real time based on a combination of quasi-steady geostrophic and locally wind-driven dynamics (Bonjean and Lagerloef, 2002).
    • geostrophic term is computed from the gradient of ocean surface topography fields (AVISO/CLS)
    • wind-driven velocity components are computed from an Ekman/Stommel formulation with variable eddy viscosity using QuikSCAT vector winds (FSU/COAPS) and NCEP winds
    • thermal wind adjustment using Reynolds OI SST data.
  • Data is available at http://podaac.jpl.nasa.gov and http://www.oscar.noaa.gov.
  • Areas of development:
    • time-dependent wind-driven dynamics
    • Turbulent mixing scheme
    • Vertical variation
    • Coastal altimetry

Hydrodynamics of Marine Debris” Sunday, March 20, 2011, Honolulu, HI

slide4

OSCAR Movie

Hydrodynamics of Marine Debris” Sunday, March 20, 2011, Honolulu, HI

slide5

Validation against drifting buoy velocities

  • OSCAR surface velocities are interpolated onto drifter locations (which have been averaged over 1 day). Zonal and meridional currents vsdrifter velocities are plotted on the scatter plot.
  • Drifter data distributed by NOAA/AOML www.aoml.noaa.gov/phod/dac/gdp.html

Hydrodynamics of Marine Debris” Sunday, March 20, 2011, Honolulu, HI

slide6

OSCAR in the Pacific Vortex Region

  • OSCAR currents in the Pacific
    • Snapshot in time
    • Relatively quiet region

Hydrodynamics of Marine Debris” Sunday, March 20, 2011, Honolulu, HI

slide7

OSCAR animation

Hydrodynamics of Marine Debris” Sunday, March 20, 2011, Honolulu, HI

slide8

Variability

  • Region of low EKE

Hydrodynamics of Marine Debris” Sunday, March 20, 2011, Honolulu, HI

slide9

Speed

  • Low mean speed
    • txt
      • txt

Hydrodynamics of Marine Debris” Sunday, March 20, 2011, Honolulu, HI

slide10

Convergent Zones

  • Simple calculation of w from du/dx and dv/dy

Hydrodynamics of Marine Debris” Sunday, March 20, 2011, Honolulu, HI

slide11

Convergent Zones Year Average

  • Simple calculation of w from du/dx and dv/dy

Hydrodynamics of Marine Debris” Sunday, March 20, 2011, Honolulu, HI

slide12

Convergent Zones Year Average

  • Transport into the sides of a box around the Pacific patch
  • Need concentrations of pollutants to connect to garbage patch

Hydrodynamics of Marine Debris” Sunday, March 20, 2011, Honolulu, HI

slide13

Lagrangian approach: Particles in OSCAR

  • Simple advection of initial seeding of “drifters” by interpolated currents

Hydrodynamics of Marine Debris” Sunday, March 20, 2011, Honolulu, HI

slide14

Particles in OSCAR

  • Final positions after running from 2000 to end of 2009
  • Stop when drifters approach coasts (NaN velocities)

Hydrodynamics of Marine Debris” Sunday, March 20, 2011, Honolulu, HI

slide15
Global Impact of Eddies on Inertial Oscillations of the Mixed Layer Planning Meeting Feb 22-24, 2011
slide16
Global Impact of Eddies on Inertial Oscillations of the Mixed Layer Planning Meeting Feb 22-24, 2011
slide17

Particles in OSCAR

  • Drifter paths, color coded by initial position

Hydrodynamics of Marine Debris” Sunday, March 20, 2011, Honolulu, HI

slide18

Particles in OSCAR

  • Westward and eastward tracks

Hydrodynamics of Marine Debris” Sunday, March 20, 2011, Honolulu, HI

slide19

Compare with AOML drifters

  • Initial position of subset of total drifter array

Hydrodynamics of Marine Debris” Sunday, March 20, 2011, Honolulu, HI

slide20

Compare with AOML drifters

  • Final position of subset of total drifter array

Hydrodynamics of Marine Debris” Sunday, March 20, 2011, Honolulu, HI

slide21

Compare with AOML drifters

  • Drifter paths (some)

Hydrodynamics of Marine Debris” Sunday, March 20, 2011, Honolulu, HI

slide22

Compare with AOML drifters

  • Drifter “end” points are related to concentration of initial deployments
  • Area binned final locations divided by initial area binning

Hydrodynamics of Marine Debris” Sunday, March 20, 2011, Honolulu, HI

slide23

Compare with AOML drifters

  • Amount of time drifter tracks are in bins

Hydrodynamics of Marine Debris” Sunday, March 20, 2011, Honolulu, HI

slide24

OSCAR

  • Same plot for OSCAR drifters

Hydrodynamics of Marine Debris” Sunday, March 20, 2011, Honolulu, HI

slide25

Vertical Variation

  • Vertical variation is implicit in the OSCAR analytical model. OSCAR currents are averaged over the top 30m of the model.
  • The wind-driven component in OSCAR uses an eddy viscosity formulation (at the moment), dependent on the wind, with
  • Optimal choice for a in OSCAR blends from 8 x 10-5 m2s-1, b = 2.2 at the equator as in Santiago-Mandujano & Firing (JPO 1990), to 2.85 x 10-4 m2s-1, b = 2 for the global value.
  • Following Cronin and Kessler (JPO 2009), we’ve used a vertically varying eddy viscosity which decays with depth (exponential profile), so that stress is zero at depth H.

Hydrodynamics of Marine Debris” Sunday, March 20, 2011, Honolulu, HI

slide26

Vertical Variation

  • Green and cyan (OSCAR) show the vertical variation implicit in OSCAR. Blue compares with using a vertically varying eddy viscosity.
  • Timeseries of averaged 30m currents are compared with TAO mooring data. Less significant for surface measurements, but significant once you are considering transport at varying levels.

Hydrodynamics of Marine Debris” Sunday, March 20, 2011, Honolulu, HI

slide27

Vertical Variation

  • Extreme test case of linearly decaying uwith depth to base of mixed layer
    • Using Holte mixed layer climatology from Argo http://mixedlayer.ucsd.edu
    • Holte, J., J. Gilson, L. Talley and D. Roemmich, 2010: Argo Mixed Layers, Scripps Institution of Oceanography/UCSD.

Hydrodynamics of Marine Debris” Sunday, March 20, 2011, Honolulu, HI

slide28

Linearly decaying currents to depth of mixed layer

  • Lose the convergent zones (albeit unrealistic)

Hydrodynamics of Marine Debris” Sunday, March 20, 2011, Honolulu, HI

slide29

Vertical Variation

  • Second test case of surface wind-driven uscaled by depth of mixed layer
    • U wind = U wind * 30m/MLD
  • Idea of momentum being distributed over well-mixed layer

Hydrodynamics of Marine Debris” Sunday, March 20, 2011, Honolulu, HI

slide30

Questions

  • Are coarse velocity fields enough to measure Lagrangian pathways?
    • Coasts: we aren’t getting the offshore transport correct (I think)
  • How reliant are any calculations of transport on the vertical profile?
  • How deep do particles reside?
  • How do we quantifiably describe the convergent/divergent zones?
    • Need concentrations of particles to connect with transport
    • Turbulent small-scale processes
    • Vertical processes
    • Coastal processes
    • Combine the Lagrangian with Eulerian
      • Drifters give locations of origin
      • Transform concentration along coasts into concentrations within convergent regions

Hydrodynamics of Marine Debris” Sunday, March 20, 2011, Honolulu, HI

slide31
Global Impact of Eddies on Inertial Oscillations of the Mixed Layer Planning Meeting Feb 22-24, 2011
slide33

txt

  • txt
    • txt
      • txt

Hydrodynamics of Marine Debris” Sunday, March 20, 2011, Honolulu, HI
