  1. ANNUAL SHUTDOWN MAINTENANCE OFFIELD INSTRUMENTIN PT ASAHIMAS CHEMICAL End of Probation Presentation 29 September 2014 Yuniawan Erwin Seloaji Instrument Department

  2. Background • Proses di plant berlangsung secara kontinu (beberapa proses berlangsung secara batch) • Peralatan beroperasi terus-menerus • Lama-kelamaan peralatan akan “lelah” • Jika dibiarkan saja dapat menjadi potensi bahaya • Peralatan perlu di-maintenance secara berkala

  3. 5W 2HAnnual Shutdown Maintenance of Field Instrument • What? • Who? • Why? • Where? • When? • How many? • How?

  4. What? Apasajafield instrument yang di-maintenance? • Transmitters • Thermoelements • Gauges • Switches • Control Valves

  5. Who? Siapasaja yang terlibatdalam ASDM field instrument? • INS • MCA • MVM • MPU • Production (CA-2, VCM-2, UTL) • Business Partner

  6. Why? Mengapafield instrumentperlu di-maintenance? • Field instrument tetapawet • Performa field instrumenttetapbaik • Proses berjalandenganaman

  7. Where? Plant yang Shutdown: • CA-2 • VCM-2 • UTL TempatMaintenance Field Instrument: • W/S II INS

  8. When? Kapan ASDM field instrumentinidilaksanakan? • Rencana : 19 Agustus 2014 – 18 September 2014 • Realisasi : 19 Agustus 2014 – 10 September 2014

  9. How Many? Berapa banyak field instrument yang di-maintenance? Transmitter Control Valve

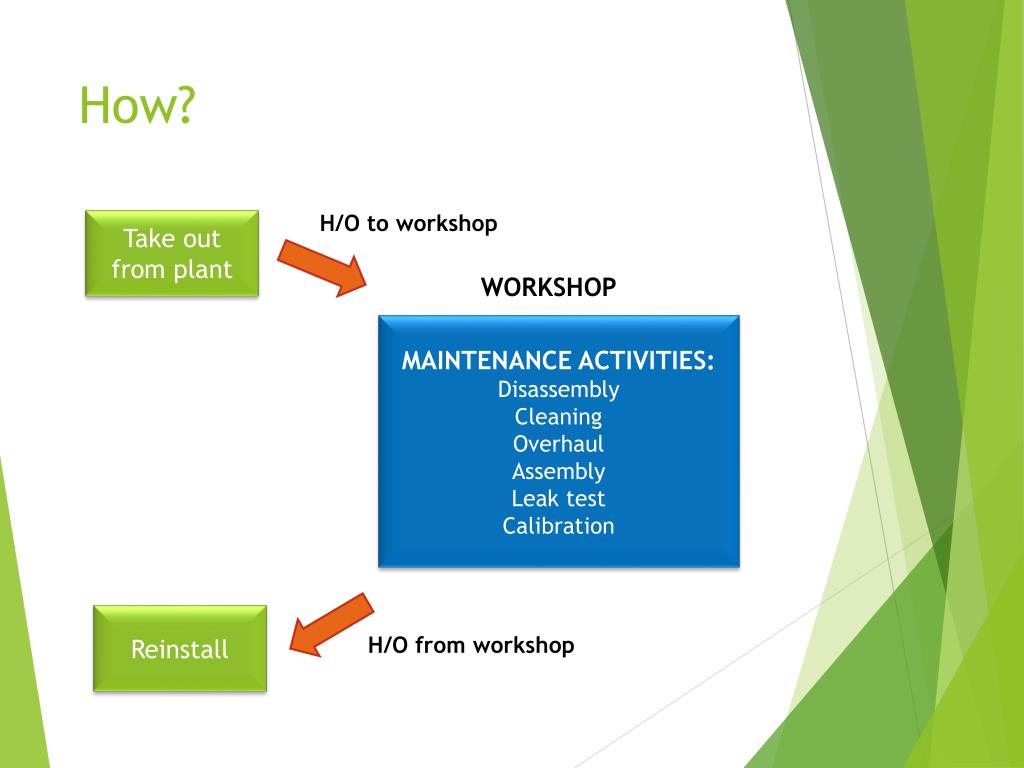

  10. How? H/O to workshop Take out from plant WORKSHOP MAINTENANCE ACTIVITIES: Disassembly Cleaning Overhaul Assembly Leak test Calibration Reinstall H/O from workshop

  11. Scheduling • Menyusun jumlah rata-rata field instrument yang harus dikerjakan dalam satu hari • Berdasarkan jadwal take out – maintenance - install • Berdasarkan request

  12. Handover • Formhandover kurang praktis, memuat daftar instrument secara berurut • Sulit diinput ke komputer • Kapan suatu field instrument datang dan keluar sulit dilacak secara kronologis • Seharusnya hanya form kosong berisi tanggal, waktu, field instrument yang masuk/keluar, PIC yang menyerahkan, PIC yang menerima • Letak tag number field instrument tidak seragam sehingga mesti dibolak-balik terlebih dahulu

  13. Tahapan Maintenance di Workshop

  14. Disassembly • Transmitter • Hanya untuk transmitter dengan model D/P biasa • Transmitter dipisahkan dari manifold dan process flange • Dibuat gambar orientasi • Control Valve • Aktuator dipisahkan dari body • Body, bonnet, stem, packing flange, packing follower, gland packing dipisahkan • Dibuat gambar orientasi

  15. Tahapan Maintenance di Workshop

  16. Overhaul • Lapping • Modification • Painting

  17. Tahapan Maintenance di Workshop

  18. Leak TestTransmitter Bagian yang berpotensiterjadikebocoran: • Process flange • Manifold

  19. Leak TestControl Valve Leak test untuk Control Valve: • Body leak test • Seat leak test

  20. Tahapan Maintenance di Workshop

  21. KalibrasiTransmitter

  22. Menginput Data Kalibrasi ke CACS

  23. KalibrasiKendala & Solusi • Transmitter menumpuk di ruang kalibrasi • Portable calibrator • Alat bantu setup untuk remote seal • Temperature calibrator • Teknisi kesulitan menentukan item yang harus dikalibrasi lebih dulu • Membuat label tag number di kertas ukuran A4 • Menuliskan item yang harus segera dikalibrasi & pencapaian kalibrasi hari ini di whiteboard • Memisahkan transmitter yang mesti segera dikalibrasi

  24. ASDM Reporting • Aktivitas selama ASDM field instrument dilaporkan dalam bentuk: • Progress Report • Today-Tomorrow Report • Highlighted Item Report • Semuanya disimpan di direktori S:asdm • Laporan dapat langsung dilihat oleh jajaran manajemen

  25. End of Part I

  26. MENGUKUR FLOWRATE DENGAN CONTROL VALVE End of Probation Presentation 29 September 2014 Yuniawan Erwin Seloaji Instrument Department

  27. Verifikasi Flowrate • (SS dari PI Processbook)

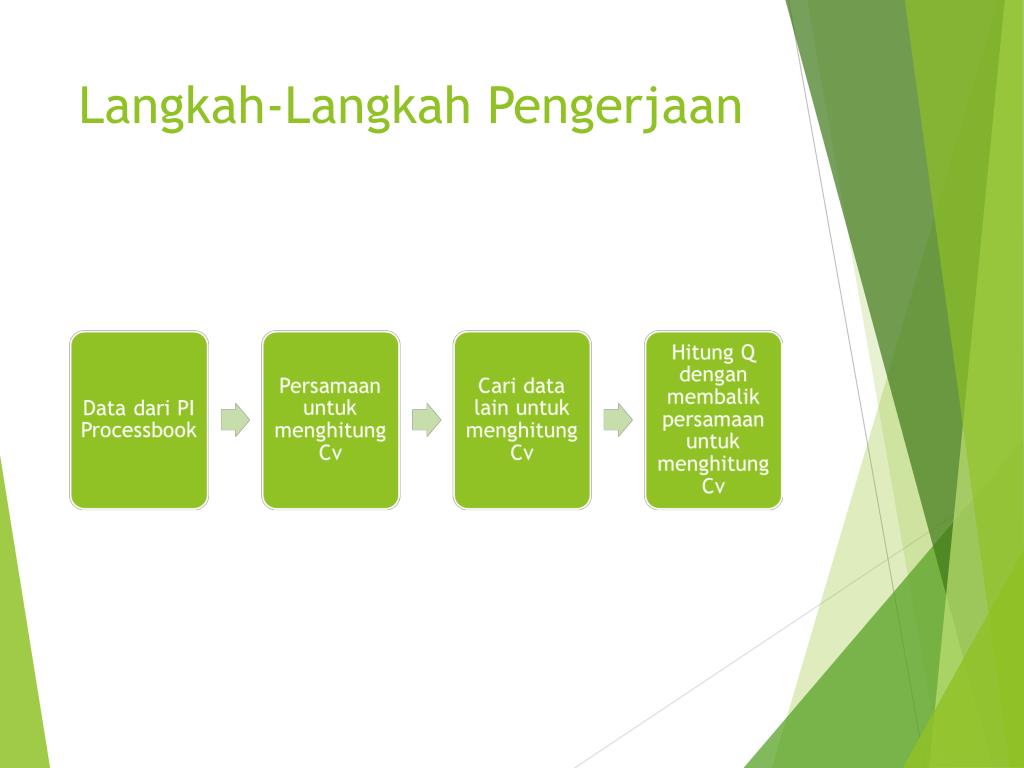

  28. Langkah-Langkah Pengerjaan

  29. Data Awal yang Diketahui FV-51011 • Rated Cv = 600 • P1 = 1.673 kg/cm2.G = 2.673 kg/cm2.A • P2 = 0.289 kg/cm2.G = 1.289 kg/cm2.A • t = 37.5°C • % travel = 76.7%

  30. Persamaan untuk Menghitung Cv (Fluida Gas) • P1 = 1.673 kg/cm2.G = 2.673 kg/cm2.A ½ P1 = 1.337 kg/cm2.A • P2 = 0.289 kg/cm2.G = 1.289 kg/cm2.A • ΔP = 1.384 kg/cm2.D

  31. Data-Data Lain Berdasarkan specification sheet FV-51011 diketahui • Model : • Flow Characteristic : Equal Percentage • Fluida : ethylene • Fasa : gas • G : 0.9683

  32. Mencari Nilai Rated Cv MencarinilaiCv • Grafik %travel vs %Cv

  33. Menghitung Nilai Flowrate DenganmembalikpersamaanuntukmenghitungCv: • Q = (225)(249)(2.673) / sqrt {(0.9683)(273+37.5)} = 8637 m3/h Q [m3/h] = 1.0569 x Q [Nm3/h] • Q [Nm3/h] = (8637 m3/h) / 1.0569 = 8172 Nm3/h
