  1. Monitoring UNIX/Linux with Operations Manager 2007 R2 Sacha Dawes Sr. Product Manager Microsoft MGT310

  2. Agenda • Supported platforms • Cross platform extensions features • Architecture • Partner extensions • Demos

  3. Features

  4. 17 Platforms Supported at RTM Solaris Version 8 (SPARC) Version 9 (SPARC) Version 10 (SPARC/x86) SUSE Linux Enterprise Server Version 9 (x86) Version 10 SP1 (x86/x64) • AIX • Version 5.3 (Power) • Version 6.1 (Power) • HP-UX • Version 11iv2 (PA-RISC/IA64) • Version 11iv3 (PA-RISC/IA64) • Red Hat Enterprise Linux • Version 4 (x86/x64) • Version 5 (x86/x64)

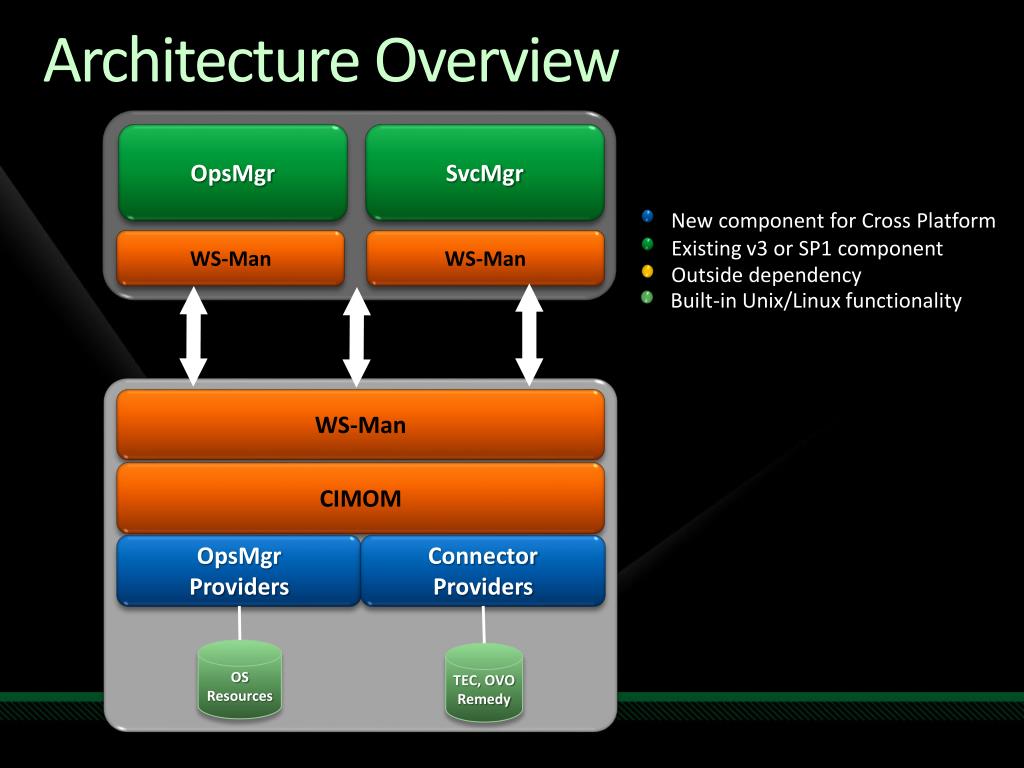

  5. Architecture Overview New component for Cross Platform Existing v3 or SP1 component Outside dependency OpsMgr SvcMgr Built-in Unix/Linux functionality WS-Man WS-Man WS-Man CIMOM OpsMgrProviders ConnectorProviders OSResources TEC, OVORemedy

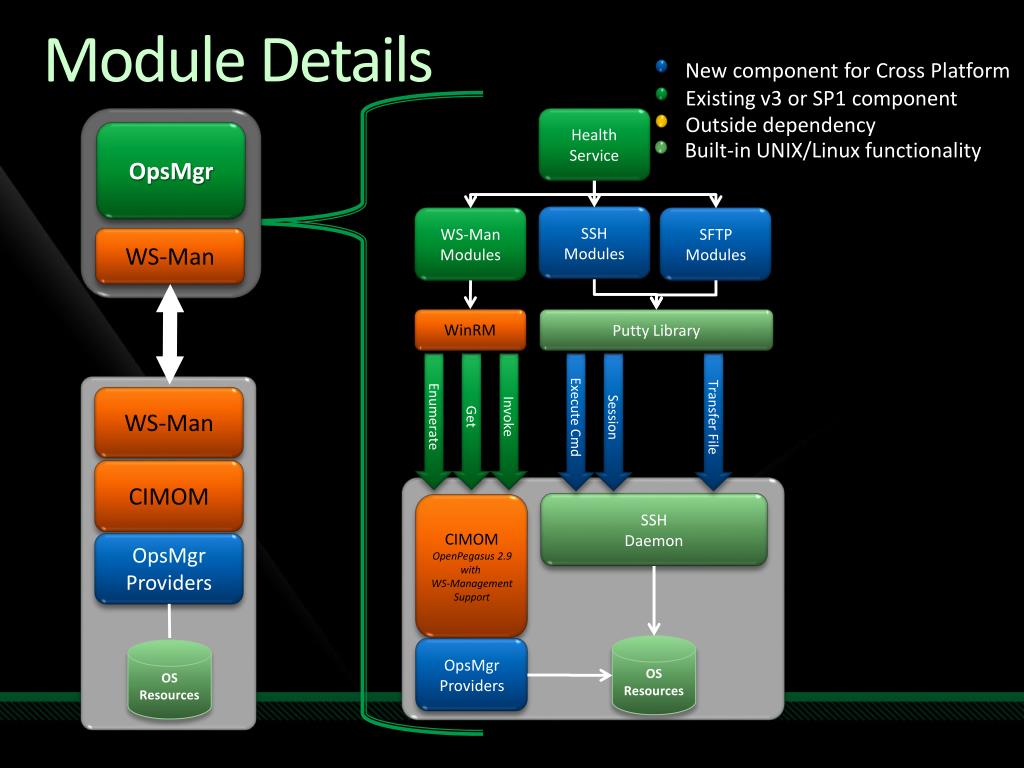

  6. Module Details New component for Cross Platform Existing v3 or SP1 component Outside dependency HealthService OpsMgr Built-in UNIX/Linux functionality SSHModules WS-ManModules SFTPModules WS-Man WinRM Putty Library Enumerate Get Invoke Execute Cmd Session Transfer File WS-Man CIMOM SSHDaemon CIMOM OpenPegasus 2.9 with WS-Management Support OpsMgrProviders OSResources OpsMgrProviders OSResources

  7. UNIX/Linux Component Overview New component for Cross Platform Existing v3 or SP1 component RPM/depot/pkgInstaller Outside dependency OpsMgr Built-in UNIX/Linux functionality CIMOMbinaries Provider libraries WS-Manbinaries WS-Man CIMOMdaemonOpenPegasus WS-Man CIMOM OpsMgrProviders File transProvider CPUProvider Ext APIProvider OSProvider ScriptProvider DiskProvider MemoryProvider OSResources NetworkProvider ProcessProvider SyslogProvider LogfileProvider

  8. Ops Mgr Component Overview New component for Cross Platform Existing v3 or SP1 component Integrated Installer Outside dependency OpsMgr Built-in UNIX/Linux functionality UIExtensionAssemblies Management Packs ModulesDLL WS-Man OpsMgrSrv/UI WS-Man HealthService CIMOM OpsMgrProviders SSHModules WS-ManModules SFTPModules OSResources WinRMAPI

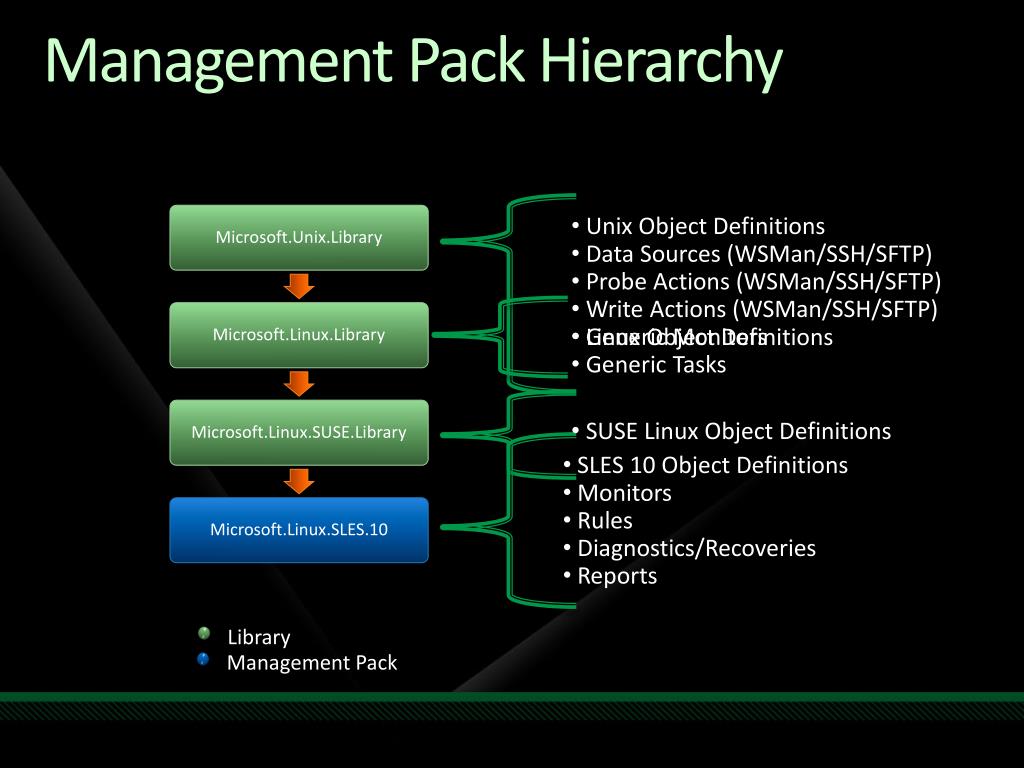

  9. Microsoft.Unix.Library Management Pack Hierarchy • Microsoft.Linux.Library Library Management Pack • Microsoft.Linux.SUSE.Library • Unix Object Definitions • Data Sources (WSMan/SSH/SFTP) • Probe Actions (WSMan/SSH/SFTP) • Write Actions (WSMan/SSH/SFTP) • Generic Monitors • Generic Tasks • Microsoft.Linux.SLES.10 • Linux Object Definitions • SUSE Linux Object Definitions • SLES 10 Object Definitions • Monitors • Rules • Diagnostics/Recoveries • Reports

  10. Management Pack • Generic libraries (imported automatically)

  11. Management Pack • OS Type Libraries

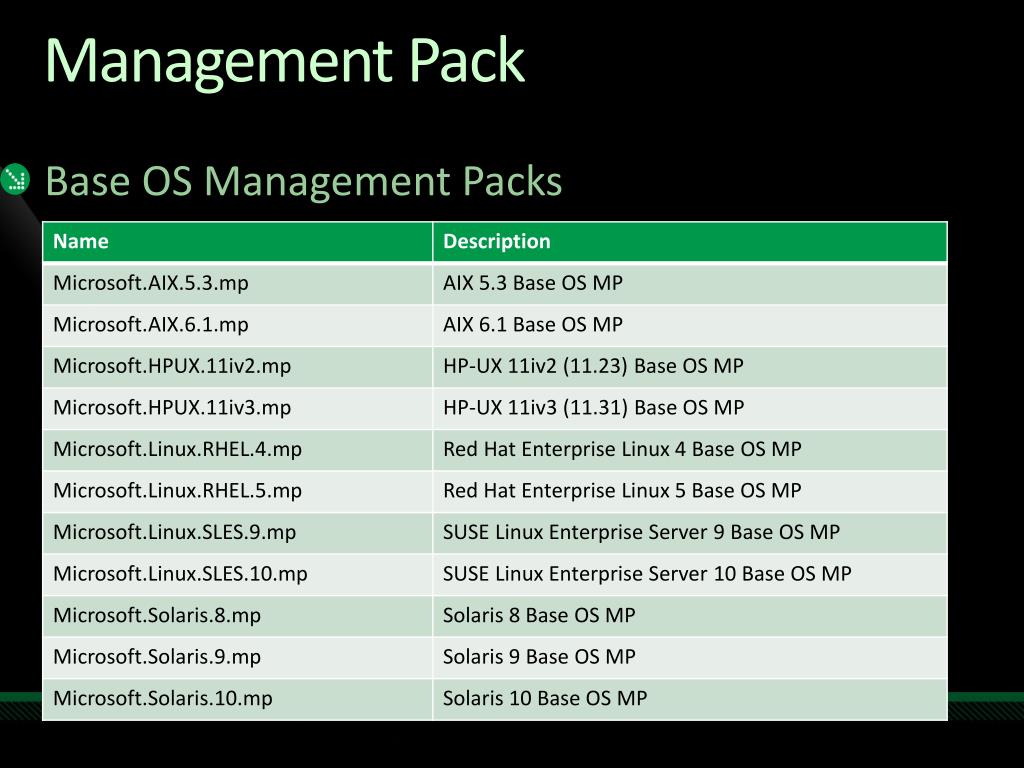

  12. Base OS Management Packs Management Pack

  13. partner BridgeWays & Novell Extending the Operations Manager 2007 R2 Framework

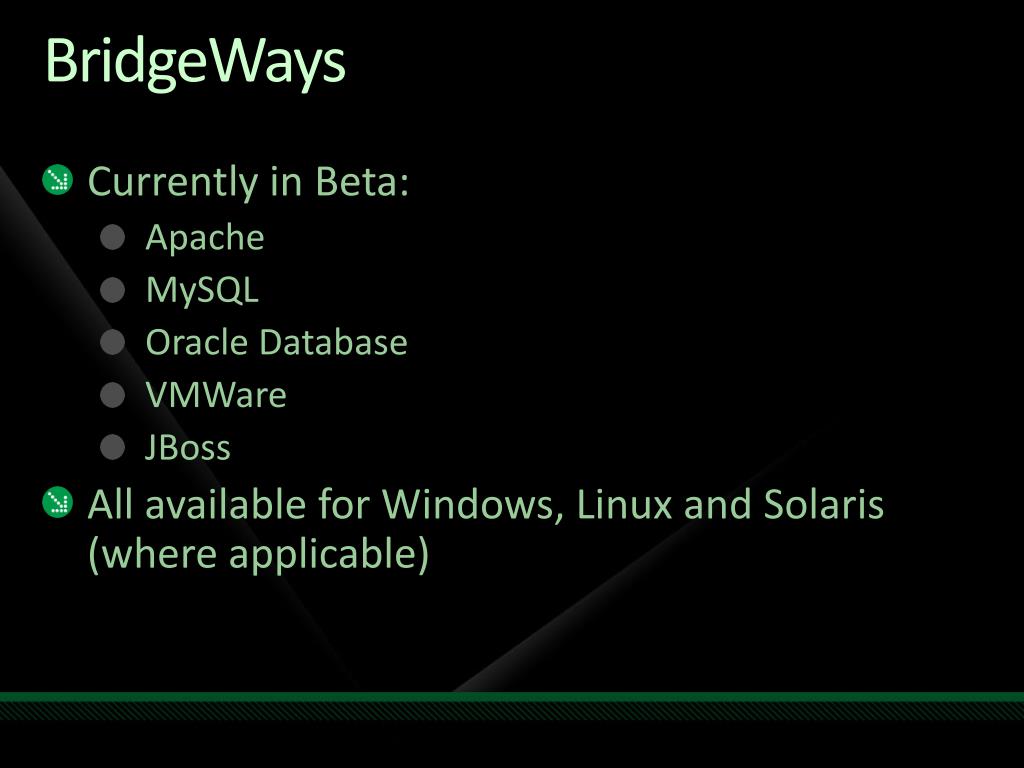

  14. BridgeWays • Currently in Beta: • Apache • MySQL • Oracle Database • VMWare • JBoss • All available for Windows, Linux and Solaris (where applicable)

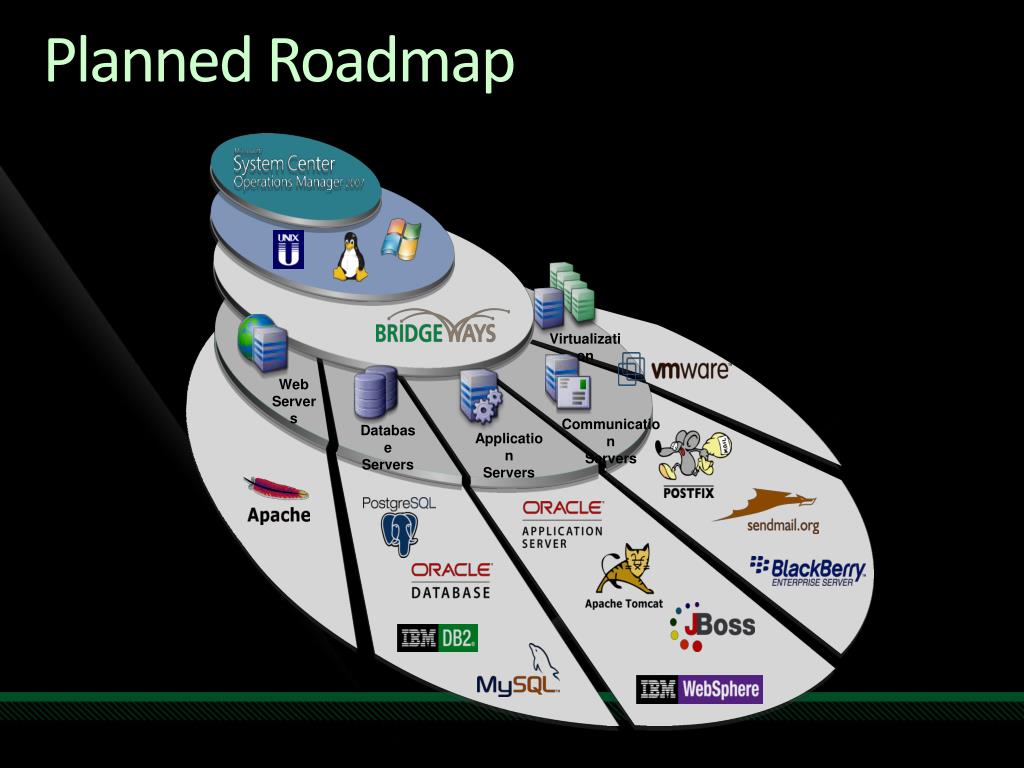

  15. Planned Roadmap Virtualization Web Servers Communication Servers Database Servers Application Servers

  16. Novell • Linux Roles Management Packs: • BIND/DNS • DHCP Server • SAMBA • NFS server • LDAP server (OpenLDAP) • Print server (CUPS) • Firewall (SuSEfirewall2)

  17. demos, demos, demos

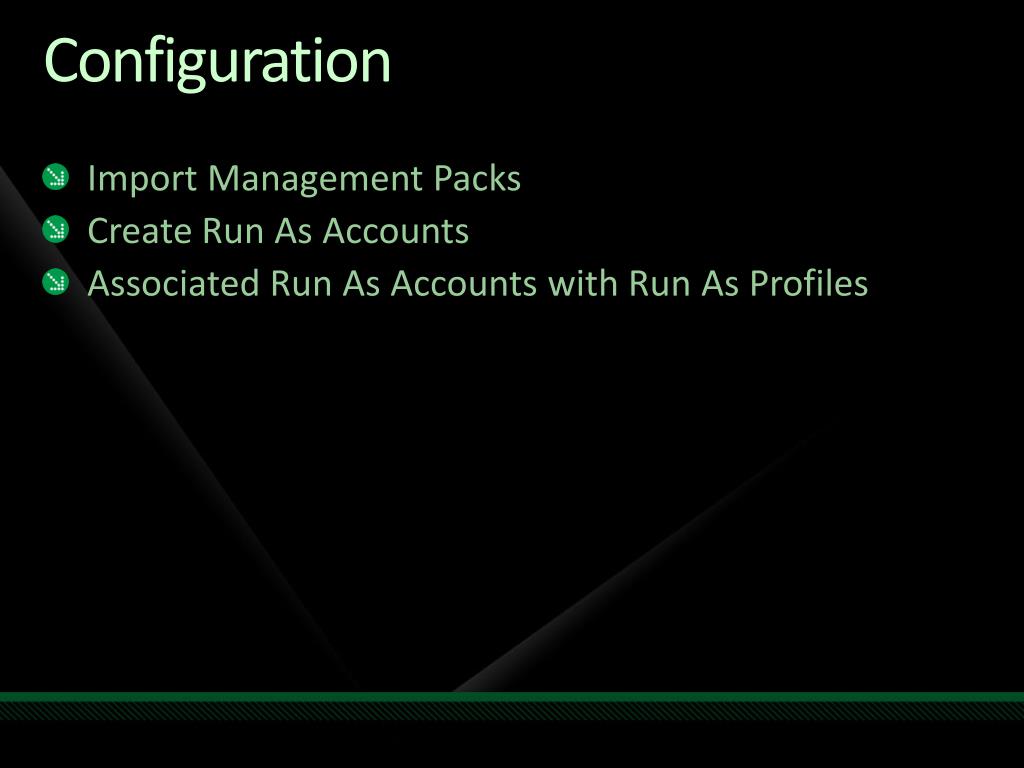

  18. Configuration • Import Management Packs • Create Run As Accounts • Associated Run As Accounts with Run As Profiles

  19. demo Configuration

  20. Discovery Wizard • Built on the Ops Mgr Discovery Wizard Framework • Fully integrated into the Ops Mgr Discovery Wizard

  21. Discovery Wizard – Phase 1 IP Address •  DNS Name Agent Installed? Supported Version?   IP Range Signed?  •   Sign Cert  • 

  22. Discovery Wizard – Phase 2 Agent Installed? Agent Supported? •  •   •  Deploy Package   Install/Upgrade Package •   •  Sign Cert/Validate Installation   Insert in DB

  23. demo Discovery Wizard

  24. demo Baseline Monitoring Evaluating the health and performance of the disk, processor, and network interfaces

  25. Logfile Monitoring • SU Command Execution • Root login failures • Critical authentication errors • Breakin attempts • SSH authentication failures • Successful login to root

  26. demo Logfile Monitoring

  27. Management Pack Templates • LogFile monitoring • Monitor for events in any logfile • Target a single computer or group of computers • Choose RegEx Filter • Test expression • Service monitoring • Monitor any service, daemon or process • Target a single computer or group of computers

  28. demo Management Pack Templates Simplifying the creation of new monitors

  29. demo Reports

  30. demo Uninstalling Unix/Linux Agents

  31. demo Deleting UNIX/Linux Server From Ops Mgr

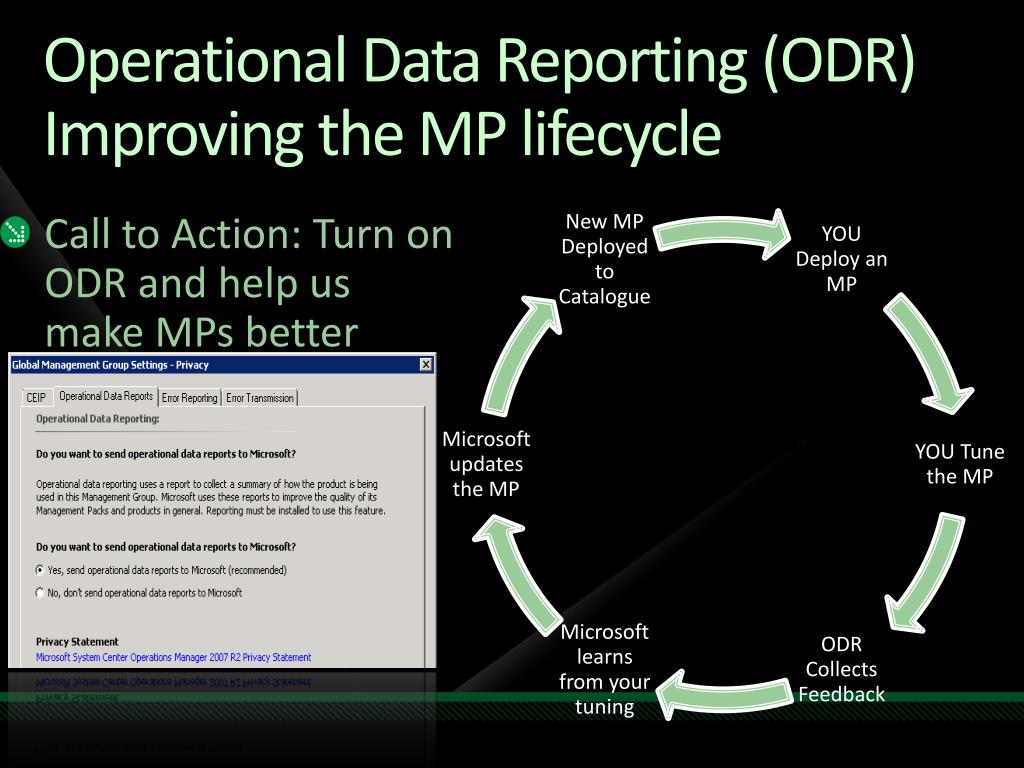

  32. Call to Action: Turn on ODR and help us make MPs better Operational Data Reporting (ODR)Improving the MP lifecycle

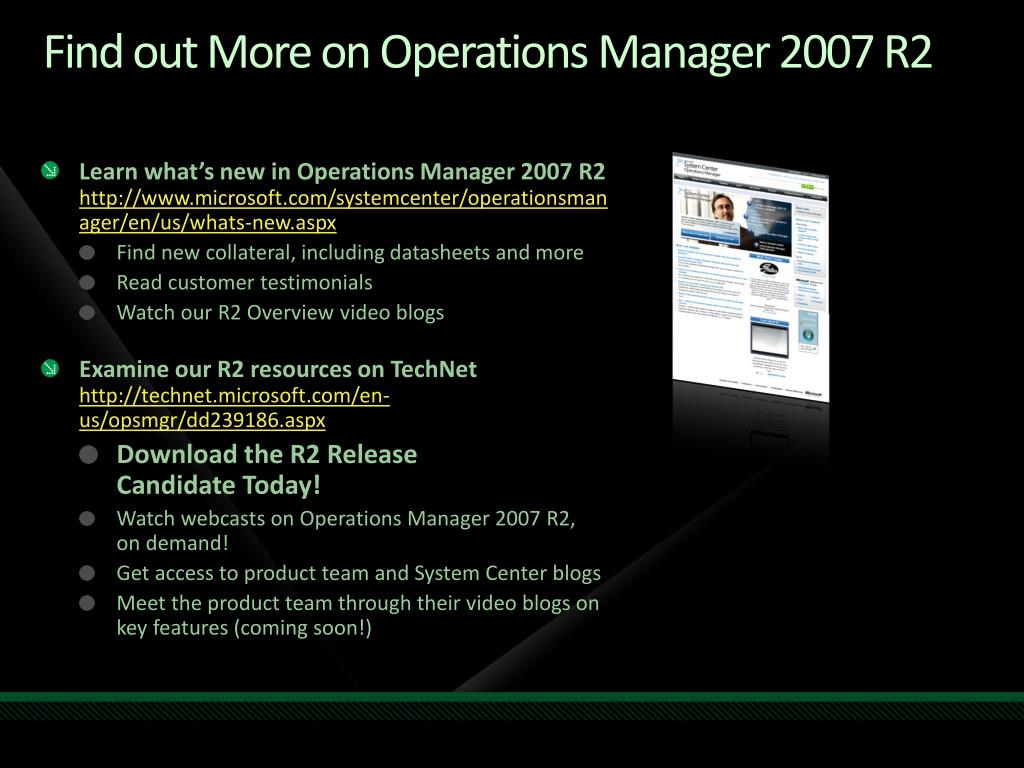

  33. Find out More on Operations Manager 2007 R2 • Learn what’s new in Operations Manager 2007 R2http://www.microsoft.com/systemcenter/operationsmanager/en/us/whats-new.aspx • Find new collateral, including datasheets and more • Read customer testimonials • Watch our R2 Overview video blogs • Examine our R2 resources on TechNet http://technet.microsoft.com/en-us/opsmgr/dd239186.aspx • Download the R2 Release Candidate Today! • Watch webcasts on Operations Manager 2007 R2, on demand! • Get access to product team and System Center blogs • Meet the product team through their video blogs on key features (coming soon!)

  34. question & answer

  35. Resources • www.microsoft.com/teched Sessions On-Demand & Community • www.microsoft.com/learning • Microsoft Certification & Training Resources • http://microsoft.com/technet • Resources for IT Professionals • http://microsoft.com/msdn Resources for Developers www.microsoft.com/learning Microsoft Certification and Training Resources

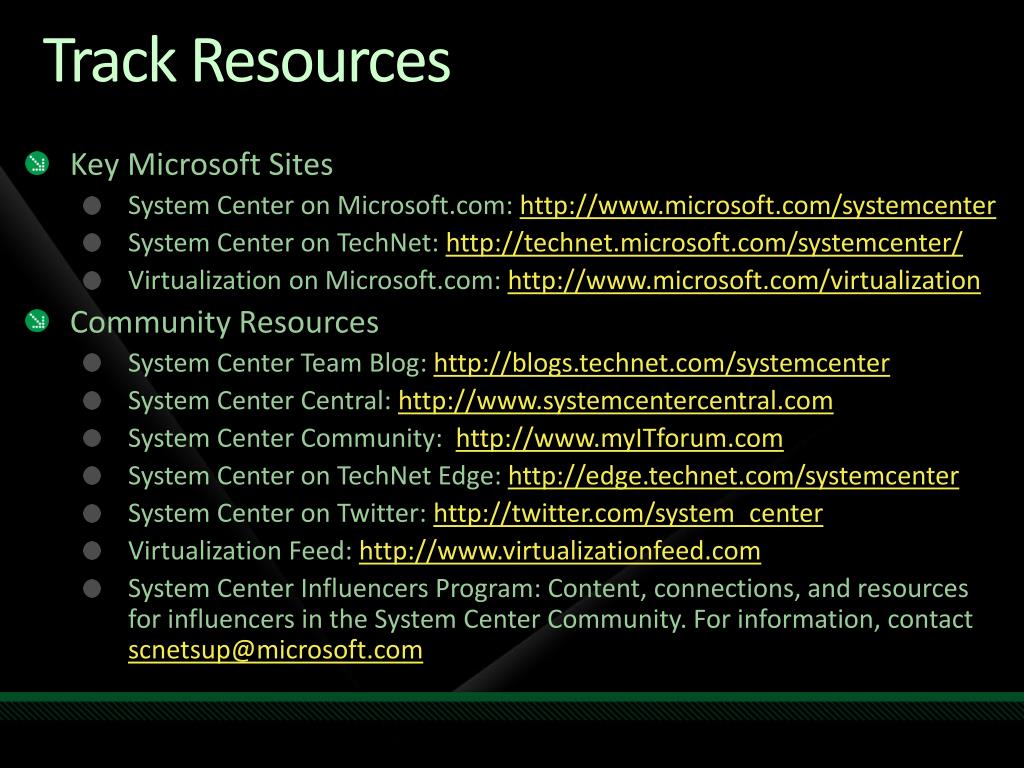

  36. Track Resources • Key Microsoft Sites • System Center on Microsoft.com: http://www.microsoft.com/systemcenter • System Center on TechNet: http://technet.microsoft.com/systemcenter/ • Virtualization on Microsoft.com: http://www.microsoft.com/virtualization • Community Resources • System Center Team Blog: http://blogs.technet.com/systemcenter • System Center Central: http://www.systemcentercentral.com • System Center Community: http://www.myITforum.com • System Center on TechNet Edge: http://edge.technet.com/systemcenter • System Center on Twitter: http://twitter.com/system_center • Virtualization Feed: http://www.virtualizationfeed.com • System Center Influencers Program: Content, connections, and resources for influencers in the System Center Community. For information, contact scnetsup@microsoft.com
