  1. Issues in Digital Image Acquisition

  2. devices scannervideo digitizerdigital cameradigital video sensor organization line scan sensorsarea sensors Digital Image Acquisition

  3. X origin Y Digital Image Representation f(x,y) Monochrome image - a two-dimensional light intensity function f(x,y)

  4. Spatial Resolution • Brightness Quantization

  5. 128x128 64x64 Spatial Resolution 256x256

  6. 128x128 64x64 32x32 16x16 Spatial Resolution 256x256

  7. G=64 G=16 G=8 G=4 G=2 Brightness Quantization G=256

  8. Benchmark Images

  9. Benchmark Images

  10. Benchmark Images

  11. Benchmark Images

  12. Digital Representations

  13. Digital Representations Binary image 1 bit/pixel

  14. Digital Representations Greyscale 8 bits/pixel

  15. Digital Representations True color 24 bits/pixel

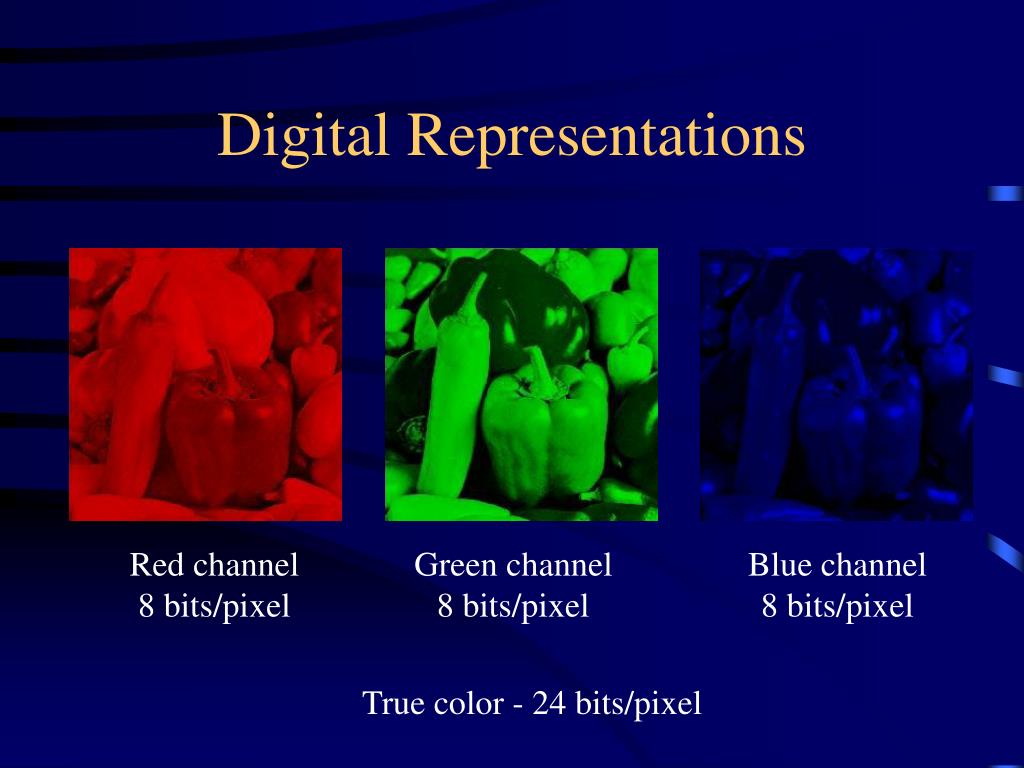

  16. Digital Representations Red channel 8 bits/pixel Green channel 8 bits/pixel Blue channel 8 bits/pixel True color - 24 bits/pixel

  17. Digital Representations Pseudocolor 8 bits/pixel + look-up table (LUT)
