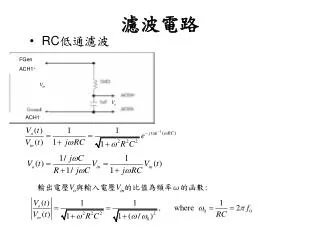

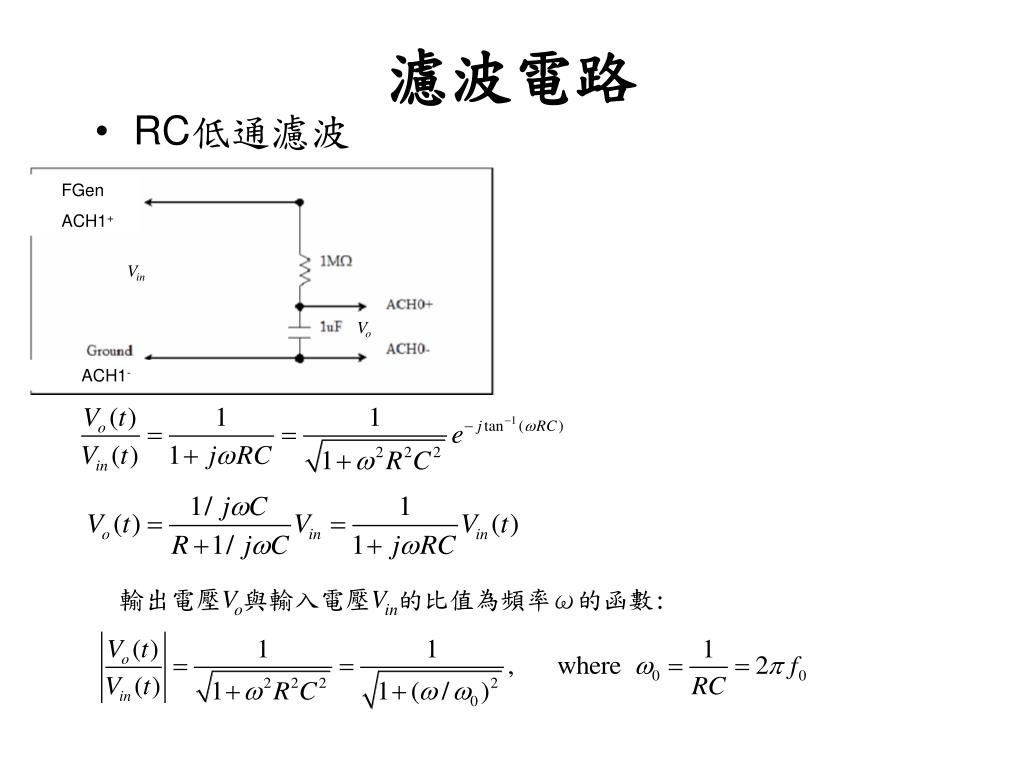

  1. 濾波電路 FGen ACH1+ • RC低通濾波 Vin Vo ACH1- 輸出電壓Vo與輸入電壓Vin的比值為頻率ω的函數:

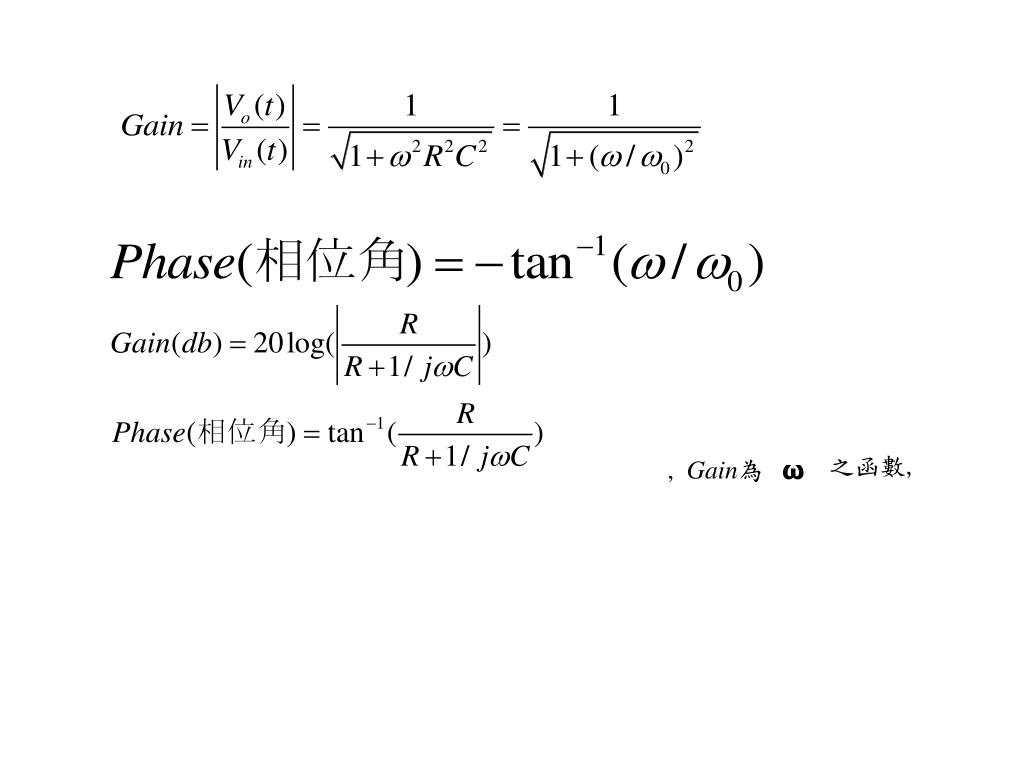

  2. 之函數, , Gain為 ω

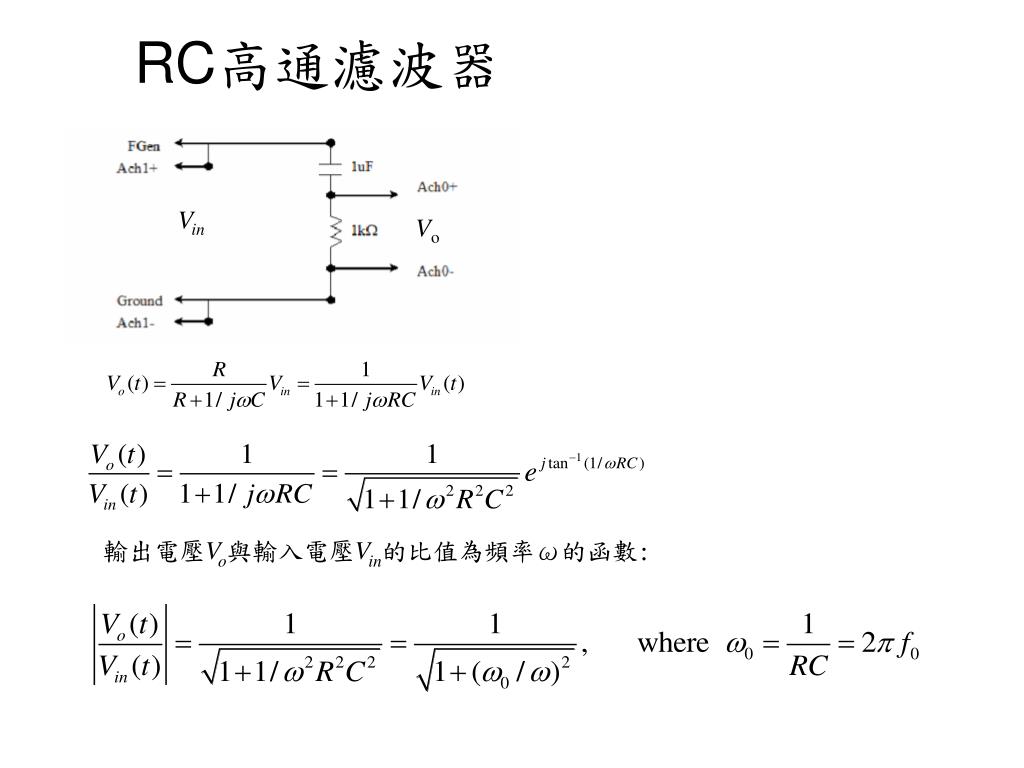

  3. RC高通濾波器 Vin Vo 輸出電壓Vo與輸入電壓Vin的比值為頻率ω的函數:

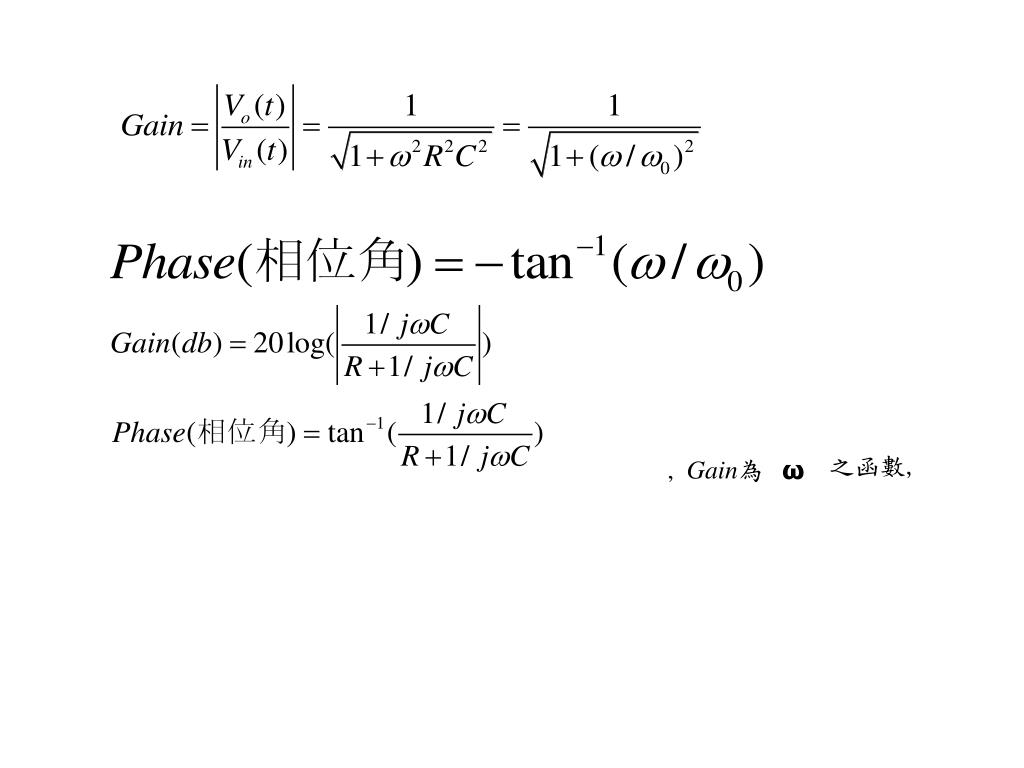

  4. 之函數, , Gain為 ω

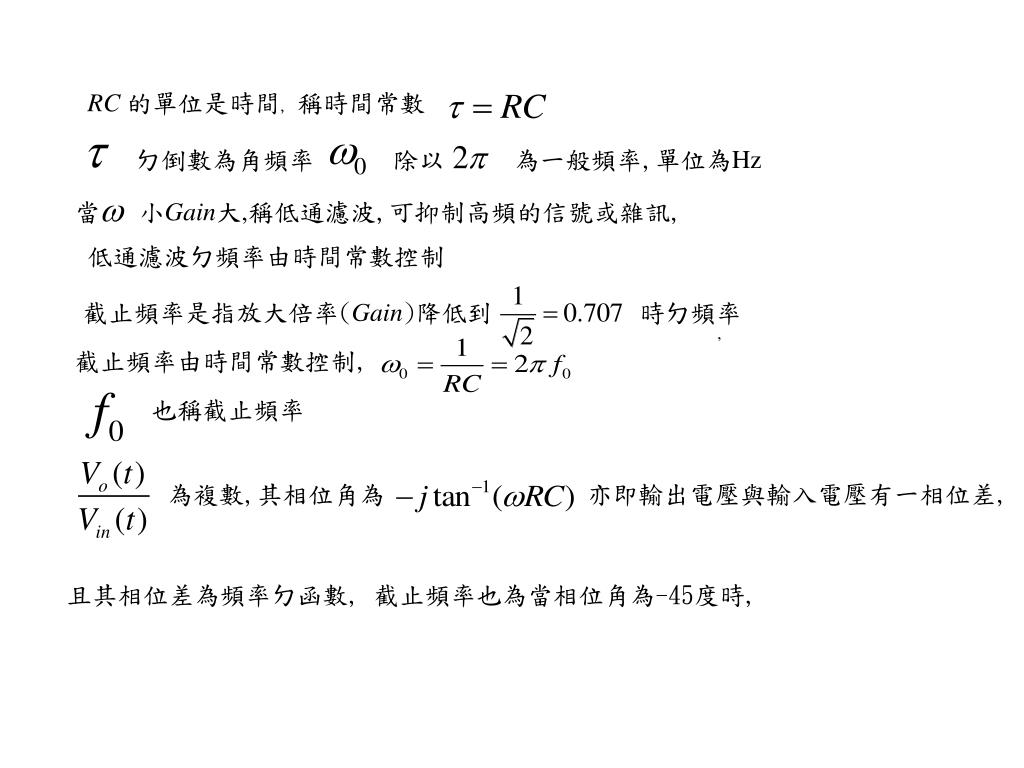

  5. RC的單位是時間, 稱時間常數 ㄉ倒數為角頻率 除以 為一般頻率,單位為Hz 當 小Gain大,稱低通濾波,可抑制高頻的信號或雜訊, 低通濾波ㄉ頻率由時間常數控制 截止頻率是指放大倍率(Gain)降低到 時ㄉ頻率 , 截止頻率由時間常數控制, 也稱截止頻率 為複數,其相位角為 亦即輸出電壓與輸入電壓有一相位差, 且其相位差為頻率ㄉ函數, 截止頻率也為當相位角為-45度時,

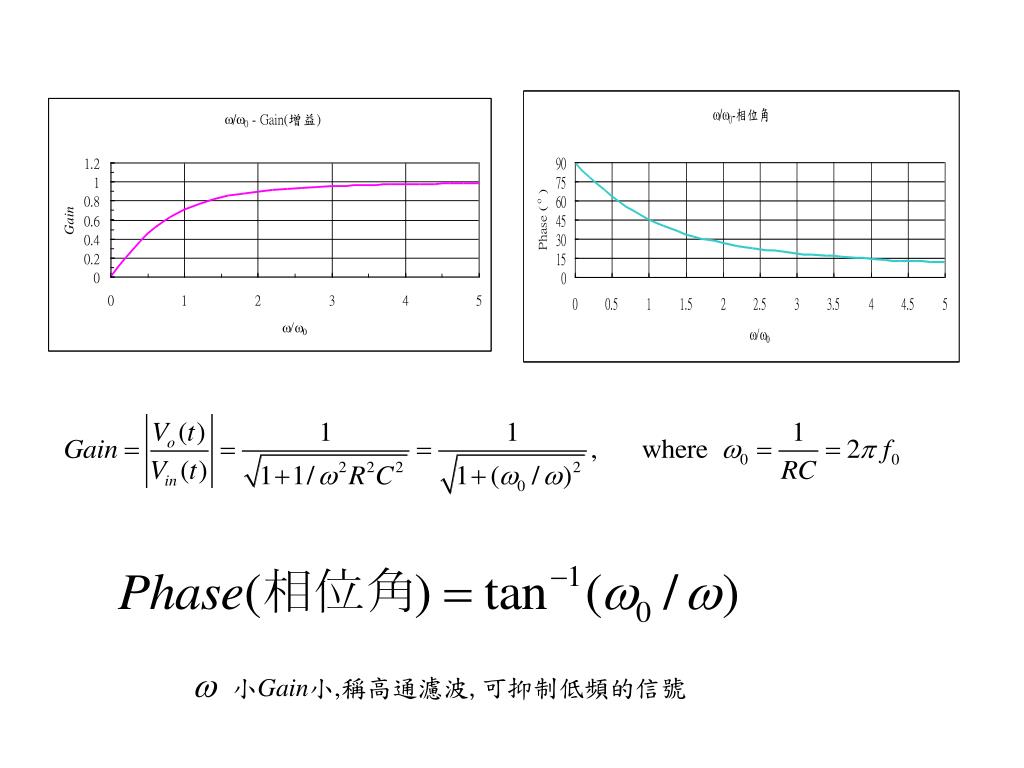

  6. 小Gain小,稱高通濾波,可抑制低頻的信號

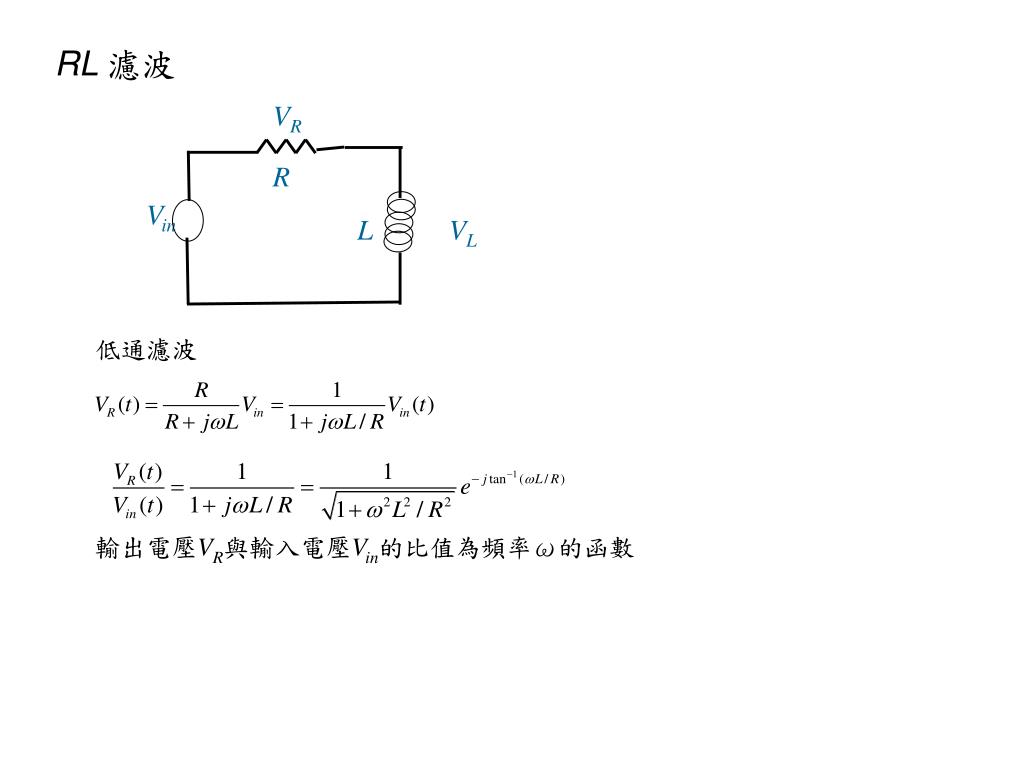

  7. VR • R • Vin • L • VL RL 濾波 低通濾波 輸出電壓VR與輸入電壓Vin的比值為頻率ω的函數
