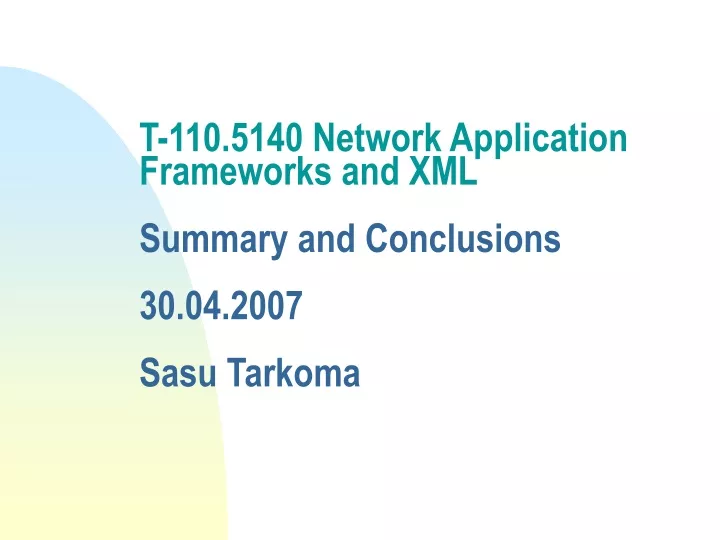

  1. T-110.5140 Network Application Frameworks and XML Summary and Conclusions30.04.2007Sasu Tarkoma

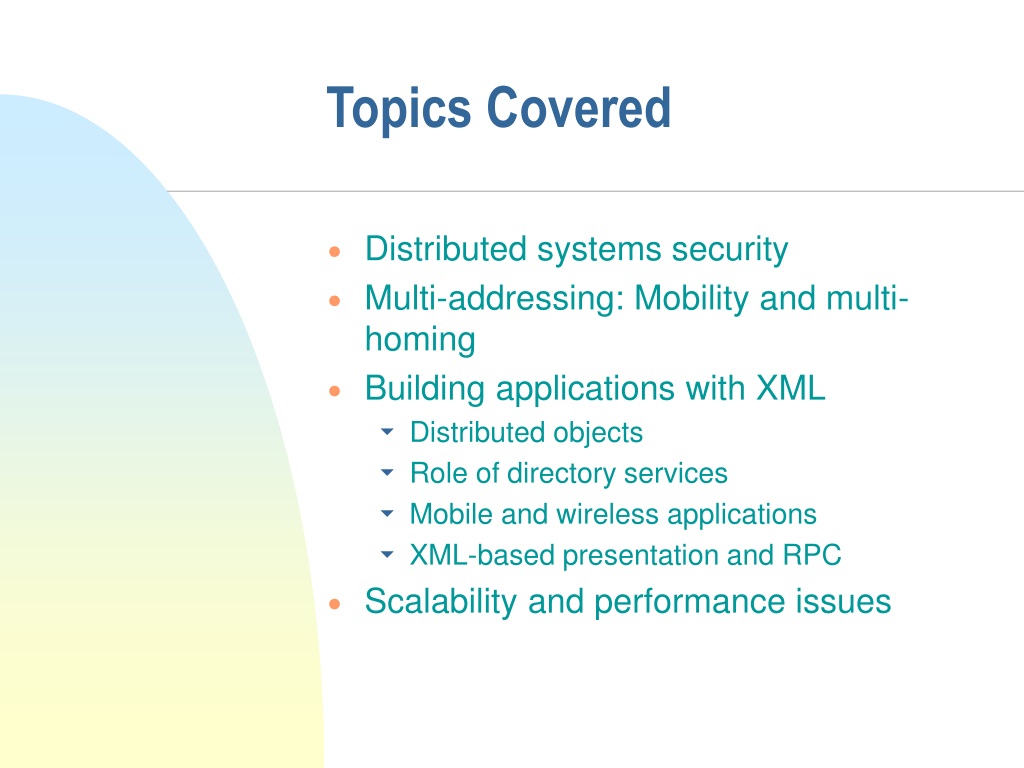

  2. Topics Covered • Distributed systems security • Multi-addressing: Mobility and multi-homing • Building applications with XML • Distributed objects • Role of directory services • Mobile and wireless applications • XML-based presentation and RPC • Scalability and performance issues

  3. Objects Interconnections • Interconnections applicable on many levels • Network-level operation • DNS, overlay lookup, IPsec • Application-level operation • UDDI, SSL, WS-Security Network Security Directories

  4. Mobility and Routing

  5. Naming, Addressing, and Routing How to identify and name a node? Frequent updates? One or two new name spaces? NAMING unicast: to a specific node broadcast: to all nodes multicast: to a subset of nodes anycast: to any one in some subset (IPv6) ROUTING ADDRESSING How to route information to the node’s address? NAT traversal? Overlay vs. network routing Where is the node located? Differences (IPv4/IPv6) Multi-addressing?

  6. Routing vs. mobility • Topology data aggregation is necessary • Cannot track all hosts in the world • IP addresses determined by topology • Network gives the routing prefix • Mobile hosts must change their IP addresses • Causes sockets / connections to break • How to communicate address changes? • Goal of a mobility protocol • Transport and applications do not see address changes

  7. Rendezvous • How to find the moving end-point? • Tackling double jump • What if both hosts move at the same time? • Requires a rendezvous point • Mobility management is needed! • Initial rendezvous • Can be based on directories • Requires fast updates to directories • Does not work well for DNS

  8. Process Transport IP Layer Link Layer Identity/Locator split • New name space for IDs • Maybe based on DNS • Maybe a separate namespace • Maybe IP addresses are used for location • Good for hiding IP versions • Communication end-points (sockets) bound to identifiers identifier ID Layer locator

  9. Host Identity Protocol • New cryptographic namespace • Connection endpoints mapped to 128 bit host identity tags (hashes of public keys) • Mapping at HIP layer • 4-phase Base Exchange with cryptographic puzzle for DoS prevention • IPSec for network-level security

  10. Upper layer view • IP connectivity problematic today • Broken by firewalls, NATs, mobility • Two versions of IP: IPv4 and IPv6 • HIP has a potential remedy • Restores end-to-end connectivity (NAT traversal possible but may require changes / tunnelling) • Adds opportunistic security • Handles mobility and multi-homing • Requires DHT based overlay (currently missing) • Where is the network state? • Routers know addresses • Like today • DHT knows HITs / SIDs • Lease based storage • Middleboxes know SPIs • Soft state

  11. Lessons to learn • Hierarchical routing likely to stay • Addresses carry topological information • Efficient and well established • Applications face changing connectivity • QoS varies • periods of non-connectivity • Identifiers and locators likely to split • Mobility management is needed • Probably changes in directory services • Overlays have been proposed

  12. Summary • Topology based routing is necessary • Mobility causes address changes • Address changes must be signalled end-to-end • Mobility management needed • Initial rendezvous: maybe a directory service • Double jump problem: rendezvous needed • Many engineering trade-offs

  13. Distributed Hash Tables and Overlays

  14. Overlay Networks • Origin in Peer-to-Peer (P2P) • Builds upon Distributed Hash Tables (DHTs) • Easy to deploy • No changes to routers or TCP/IP stack • Typically on application layer • Overlay properties • Resilience • Fault-tolerance • Scalability

  15. Some DHT applications • File sharing • Web caching • Censor-resistant data storage • Event notification • Naming systems • Query and indexing • Communication primitives • Backup storage • Web archive

  16. Applications for DHTs • DHTs are used as a basic building block for an application-level infrastructure • Internet Indirection Infrastructure (i3) • New forwarding infrastructure based on Chord • DOA (Delegation Oriented Architecture) • New naming and addressing infrastructure based on overlays

  17. Summary • Mobility and multi-homing require directories • Scalability, low-latency updates • Overlay networks have been proposed • Searching, storing, routing, notification,.. • Lookup (Chord, Tapestry, Pastry), coordination primitives (i3), middlebox support (DOA) • Logarithmic scalability, decentralised,… • Host/identity split and overlays for directories seem good candidates for solving many of the issues with mobility and multi-homing

  18. Middleware

  19. Middleware • Widely used and popular term • Fuzzy term • One definition • “A set of service elements above the operating system and the communications stack” • Second definition • “Software that provides a programming model above the basic building blocks of processes and message passing” (Colouris, Dollimore, Kindberg, 2001)

  20. Why Middleware? • Application development is complex and time-consuming • Should every developer code their own protocols for directories, transactions, ..? • How to cope with heterogeneous environments? • Networks, operating systems, hardware, programming languages • Middleware is needed • To cut down development time • Rapid application development • Simplify the development of applications • Support heterogeneous environments and mask differences in OS/languages/hardware

  21. Middleware cont. • Middleware services include • directory, trading, brokering • remote invocation (RPC) facilities • transactions • persistent repositories • location and failure transparency • messaging • Security • Network stack (transport and below) is not part of middleware

  22. Transparencies • Location transparency • RPC and RMI used without knowledge of the location of the invoked procedure / object • transport protocol transparency • RPC may be implemented using any transport protocol • transparency of OS and hardware • RPC/RMI uses external data representation • Presentation is important • XML is becoming increasingly important • transparency of programming languages • language independent definition of procedures: CORBA IDL

  23. Network Application Framework • Network Application Framework is middleware • Contains services for distributed applications • Middleware as a term is fuzzier and larger • In this course, we focus on network application frameworks and XML • objects (discovery, representation) • directories (overlays,..) • network • security

  24. Examples • Middleware • CORBA • Message-oriented Middleware • Event Systems & tuple spaces • Java Message Service • Java 2 Enterprise Edition (J2EE) • .NET • Mobile middleware • WAE • J2ME • Wireless CORBA • FUEGO

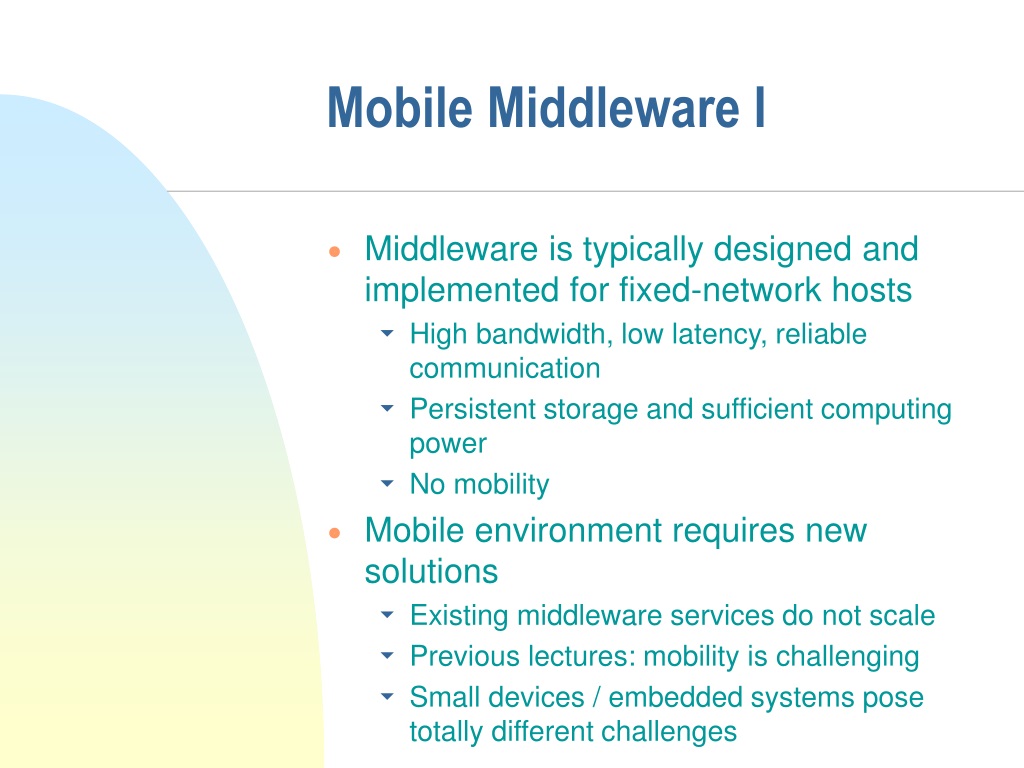

  25. Mobile Middleware I • Middleware is typically designed and implemented for fixed-network hosts • High bandwidth, low latency, reliable communication • Persistent storage and sufficient computing power • No mobility • Mobile environment requires new solutions • Existing middleware services do not scale • Previous lectures: mobility is challenging • Small devices / embedded systems pose totally different challenges

  26. Mobile Middleware II • Goals for middleware: • fault-tolerance, adaptability, heterogeneity,scalability, resource sharing • Mobile middleware • dynamically changing context • decoupled • events, tuple spaces • Basic solution for wireless • Use a proxy

  27. Summary • Middleware • for application development and deployment • for supporting heterogeneous environments • Main communication paradigms: RPC/RMI, asynchronous events (publish/subscribe) • J2EE, CORBA, .. • Mobile middleware • Desktop middleware not usable on small, mobile devices • Special solutions are needed • J2ME, Wireless CORBA, ..

  28. Web Services

  29. Standardization • W3C Web Services • XML Protocol Working Group • SOAP • Web Services Addressing Working Group • Web Services Choreography Working Group • Web Services Description Working Group • WSDL • OASIS • E-business standards, UDDI • WS-I (Web Service Interoperability Org.) • Binding profiles,..

  30. Web Service Architecture • The three major roles in web services • Service provider • Provider of the WS • Service Requestor • Any consumer / client • Service Registry • logically centralized directory of services • A protocol stack is needed to support these roles

  31. Web Services Protocol Stack • Message Transport • Responsible for transporting messages • HTTP, BEEP • XML Messaging • Responsible for encoding messages in common XML format • XML-RPC, SOAP • Service Description • Responsible for describing an interface to a specific web service • WSDL • Service discovery • Responsible for service discovery and search • UDDI

  32. WS Protocol Stack Discovery: UDDI Description: WSDL XML Messaging: SOAP, XML-RPC, XML Transport: HTTP, FTP, BEEP, SMTP, JMS

  33. What is WSDL? • WSDL: Web Service Description Language • An XML language used to describe and locate web services • location of web service • methods that are available • data type information and XML messages • Commonly used to describe SOAP-based services • W3C standard (work in progress) • Initial input: WSDL 1.1 as W3C Note • Current version 2.0 (last call) • Some differences between 1.1 and 2.0 • WSDL 1.1 in WS-I Basic Profile 1.0 and 1.1.

  34. WSDL Overview <definitions>: ROOT WSDL element <types>: The data types that are used <message>: What messages are transmitted? <portType>: The supported operations <binding>: The binding to concrete protocols <service>: Reference to actual location

  35. Mapping SOAP to WSDL

  36. Putting it together Source: http://msdn.microsoft.com/

  37. SOAP Envelope SOAP Header Header block Header block SOAP Body Message Body SOAP Message Structure Optional header contains blocks of information regarding how to process the message: • Routing and delivery settings • Authentication/authorization assertions • Transaction contexts • Body is a mandatory element and contains the actual message to be delivered and processed (and fault information)

  38. What is UDDI? • Universal Description Discovery and Integration • Industry-wide initiative supporting web services • Specifications • Schemas for service description • Schemas for business (service implementers) description • Developed on industry standards • Applies equally to XML and non-XML web services • Implementation • Public web service registry and development resources • SOAP-based programming protocol for registering and discovering Web services • XML schema for SOAP messages • a description of the API • UDDI does not directly specify how pricing, deadlines, etc. are handled/matched • Advanced discovery via portals and marketplaces

  39. Web Services Security

  40. Need for XML security • XML document can be encrypted using SSL or IPSec • this cannot handle the different parts of the document • documents may be routed hop-by-hop • different entities must process different parts of the document • SSL/TLS/IPSec provide message integrity and privacy only when the message is in transit • We also need to encrypt and authenticate the document in arbitrary sequences and to involve multiple parties

  41. High-level view to WS security • Security is as strong as the weakest link • The options for an attacker are: • Attack the Web Service directly • Using ”unexpected” XML • Attack the Web Services platform • Attack a WS security tool • Attack the underlying operating system or network connection

  42. Application-layer Security • Identity-based security • Authentication and authorization information shared across security domains • Content-based security • Protecting against buffer overflow and CGI-like attacks • Must have knowledge about the applications to which these messages are directed • Accountability or non-repudation • Need message level security • Maintain integrity, archived audit trails • The standards and specifications mentioned earlier address these issues

  43. Standardization landscape • Who are specifying the basic standards? • Who are specifying the higher level standards? • Who is implementing the standards?

  44. Who are specifying the standards? • Joint IETF/W3C • XML Signature (www.w3.org/Signature) • W3C • XML Encryption (www.w3.org/Encryption/2001) • XML Key Management (XKMS) (www.w3.org/2001/XKMS) • OASIS • WS-Security • SOAP Message Security specification etc. • SAML: Security Assertion Markup Language • XACML: Extensible Access Control Markup language • Electronic Business XML (ebXML) (with UN/CEFACT) • Web Services Interoperability Organization (WS-I) • Basic security

  45. W3C OASIS Standardization Groups Extensible Rights Markup Language XrML Provisioning XML Common Biometric Format (XCBF) eXtensible Access Control Markup Language (XACML) XML Key Management Specification WS-Security Biometrics XML Encryption XML Signature XKMS SAML XACML Security Assertion Markup language

  46. Basic XML Security • XML Digital Signatures (XMLDSIG) • XML Encryption • XML Canonicalization • XML Key Management

  47. Web Services Security Requirements • Access control to Web services • WS-Security, XML-Signature • SAML – Issuing and validation of SAML assertions • Digital certificate validation • Content-filtering XML • Filters based on data format (XSD) • Filters based on content (XPath) • Filters based on integrity (XML Signature)

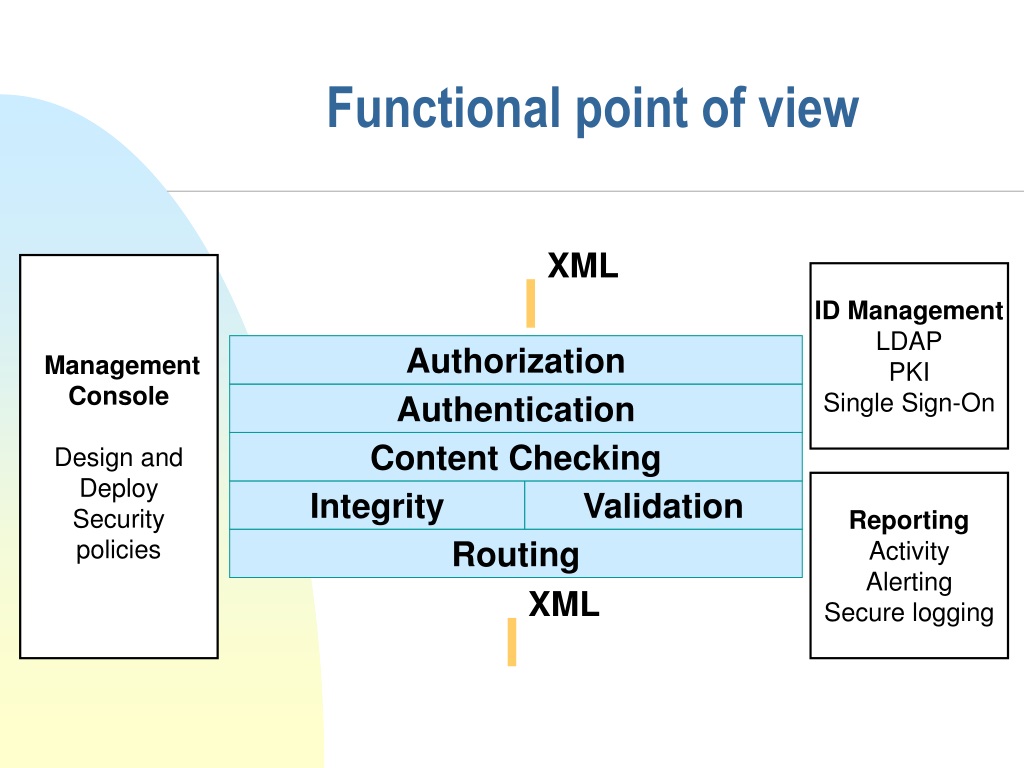

  48. XML XML Functional point of view Management Console Design and Deploy Security policies ID Management LDAP PKI Single Sign-On Authorization Authentication Content Checking Reporting Activity Alerting Secure logging Integrity Validation Routing

  49. Security Contexts in Web Services • Remember Web Services goals: • Re-use existing services • Combine services from several domains • Security result: Must support several security domains • SOAP intermediaries • Reusing security tokens from one message in another message

  50. Summary • Security contexts • Security needed within and between contexts • XML validation, encryption, and authentication needed between security contexts! • WS security standard revisited • SOAP header carries security information (and other info as well) • Selective processing • SAML • Statements about authorization, authentication, attributes • SAML & WS-Security & XACML • Implementations available
