Adam Becker

Matt Eicholtz

Jie Gong

Dustin Li

ME 4447/6405Pulse Width Modulation (PWM)

outline

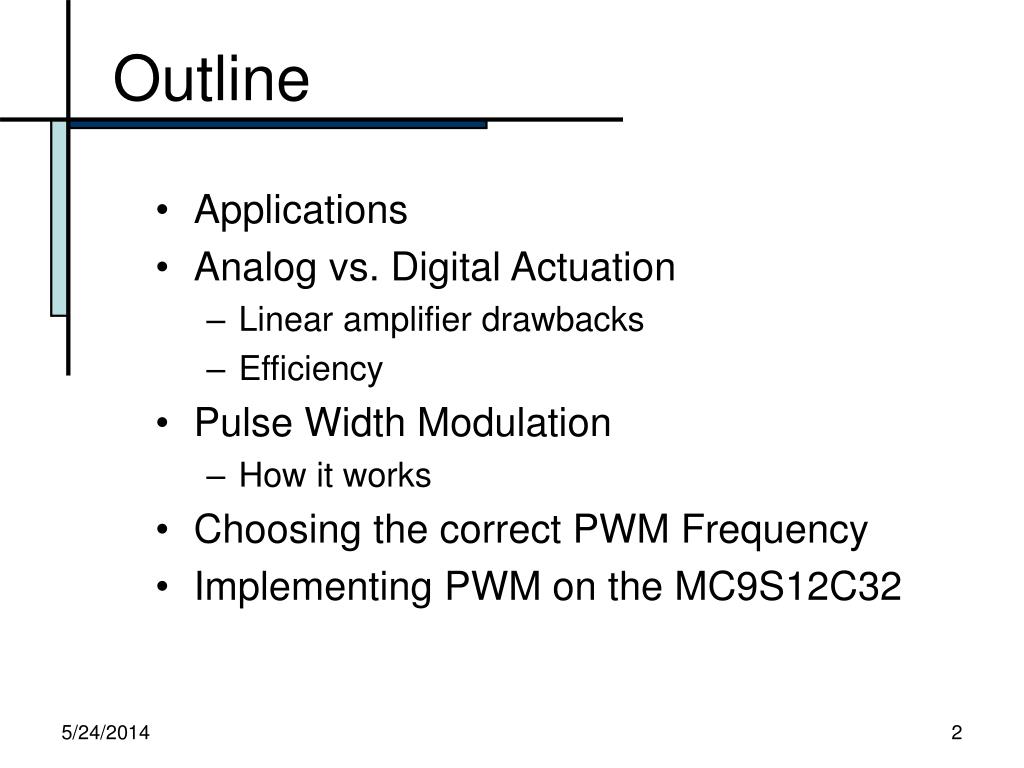

Outline
  • Applications
  • Analog vs. Digital Actuation
    • Linear amplifier drawbacks
    • Efficiency
  • Pulse Width Modulation
    • How it works
  • Choosing the correct PWM Frequency
  • Implementing PWM on the MC9S12C32
applications

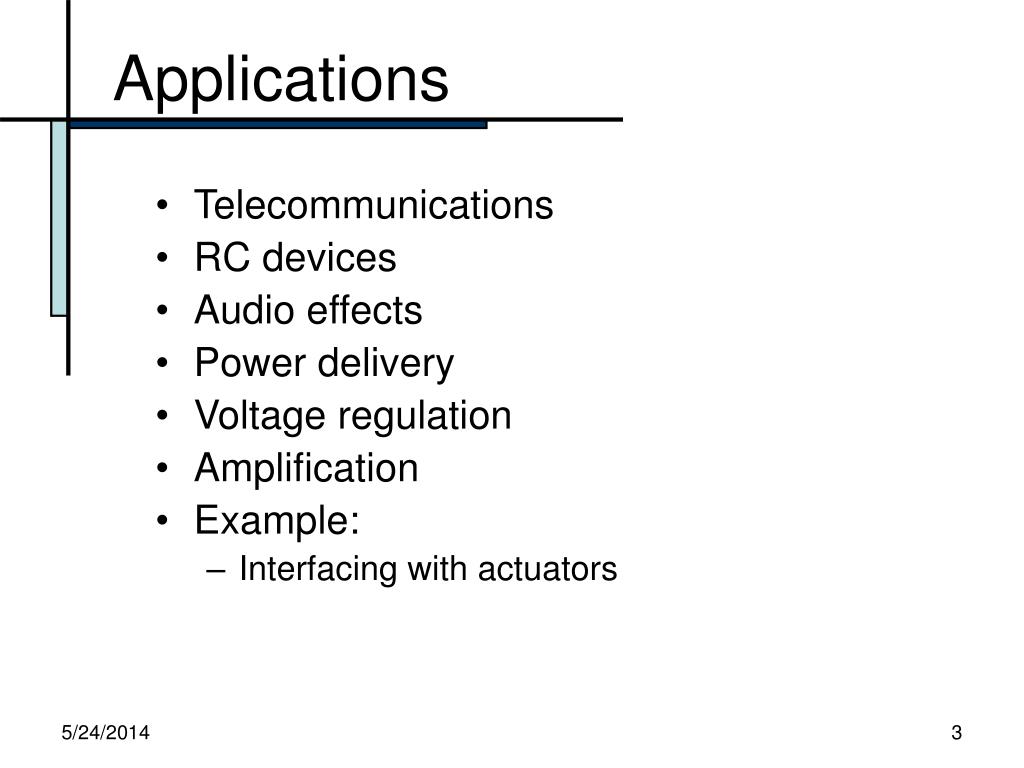

Applications
  • Telecommunications
  • RC devices
  • Audio effects
  • Power delivery
  • Voltage regulation
  • Amplification
  • Example:
    • Interfacing with actuators
interfacing with actuators
Interfacing with Actuators
  • Microcontrollers control electrical power through actuators
    • Requirement: a drive to take commands and control power
    • Result: effects mechanical part of system
  • Form of commands vary
    • From signals proportional to desired electrical
    • To industrial ethernet and wireless protocols
  • Microcontroller
    • Decision making
    • Communication (low power)
  • Drive
    • Power amplifier
    • Actuation (high power)
  • Actuator
    • Power conversion

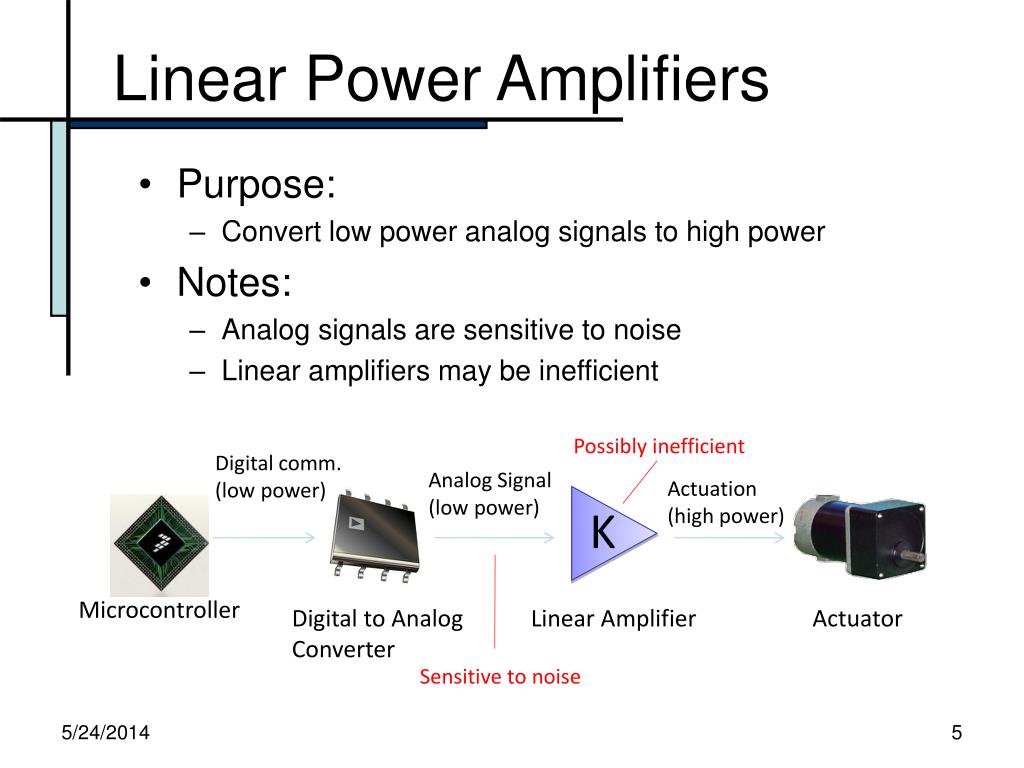

linear power amplifiers
Linear Power Amplifiers

Possibly inefficient

Digital comm.

(low power)

K

Analog Signal

(low power)

Actuation

(high power)

Microcontroller

Digital to Analog

Converter

Linear Amplifier

Actuator

Sensitive to noise

  • Purpose:
    • Convert low power analog signals to high power
  • Notes:
    • Analog signals are sensitive to noise
    • Linear amplifiers may be inefficient

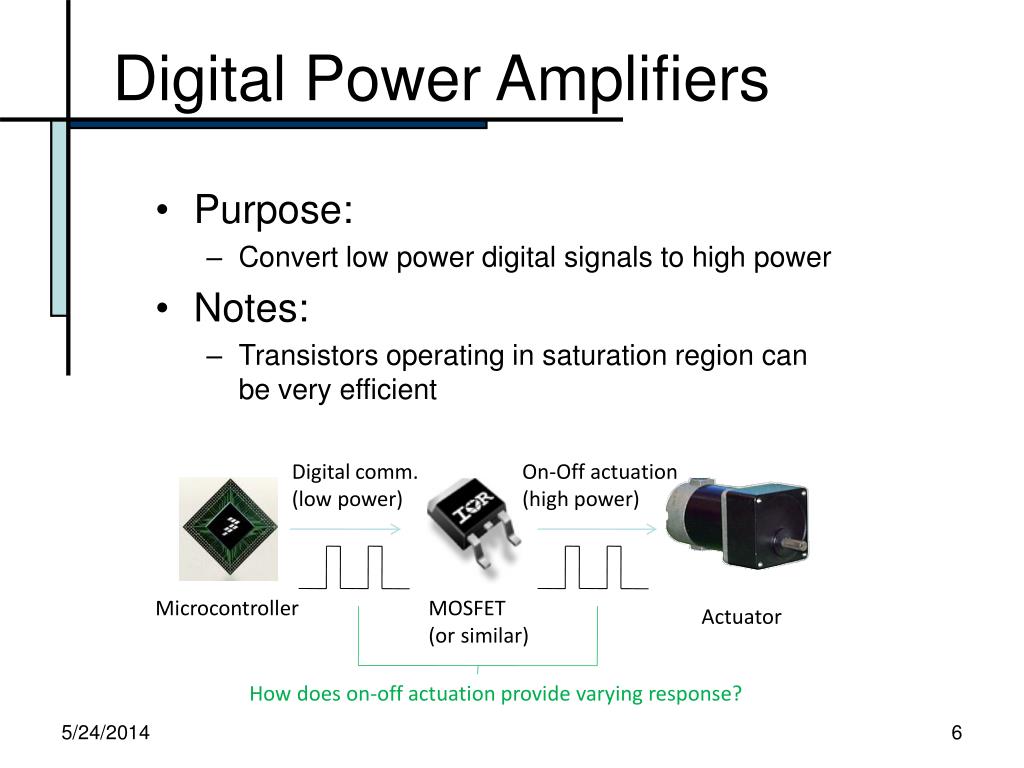

digital power amplifiers
Digital Power Amplifiers

Digital comm.

(low power)

On-Off actuation

(high power)

Microcontroller

MOSFET

(or similar)

Actuator

How does on-off actuation provide varying response?

  • Purpose:
    • Convert low power digital signals to high power
  • Notes:
    • Transistors operating in saturation region can be very efficient
pulse width modulation pwm

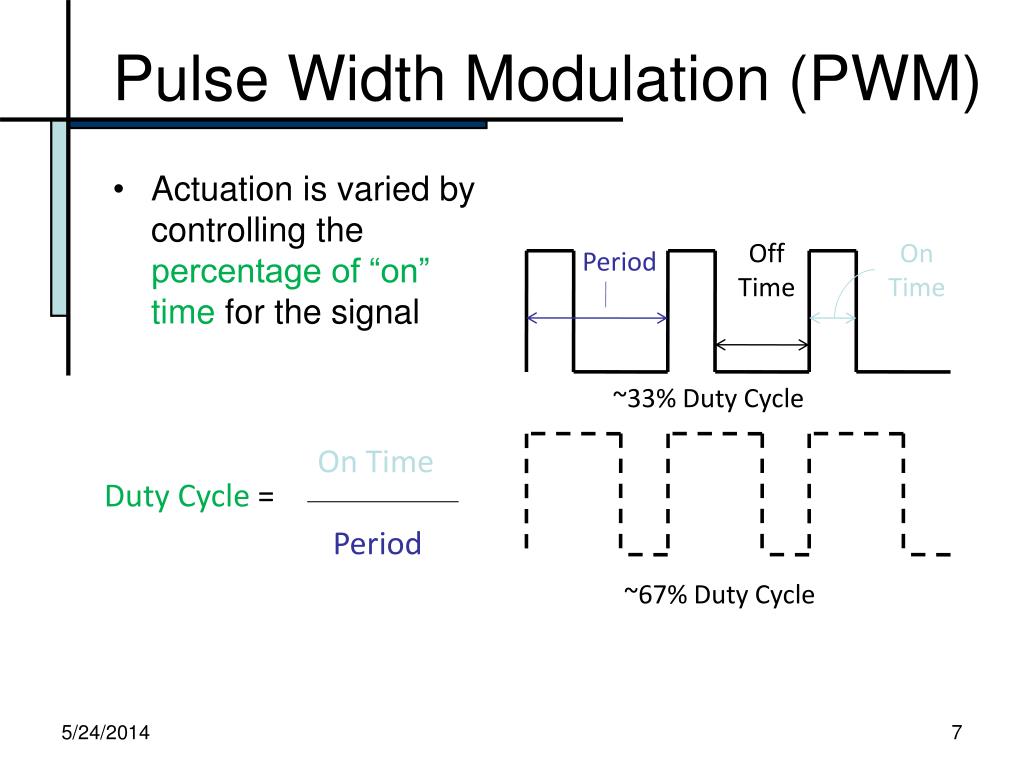

Pulse Width Modulation (PWM)

Off

Time

On

Time

Period

~33% Duty Cycle

On Time

Period

Duty Cycle =

~67% Duty Cycle

Actuation is varied by controlling the percentage of “on” time for the signal

duty cycle
Duty Cycle
  • The average value of a PWM signal increases linearly with the duty cycle
choosing your pwm frequency
Choosing your PWM frequency

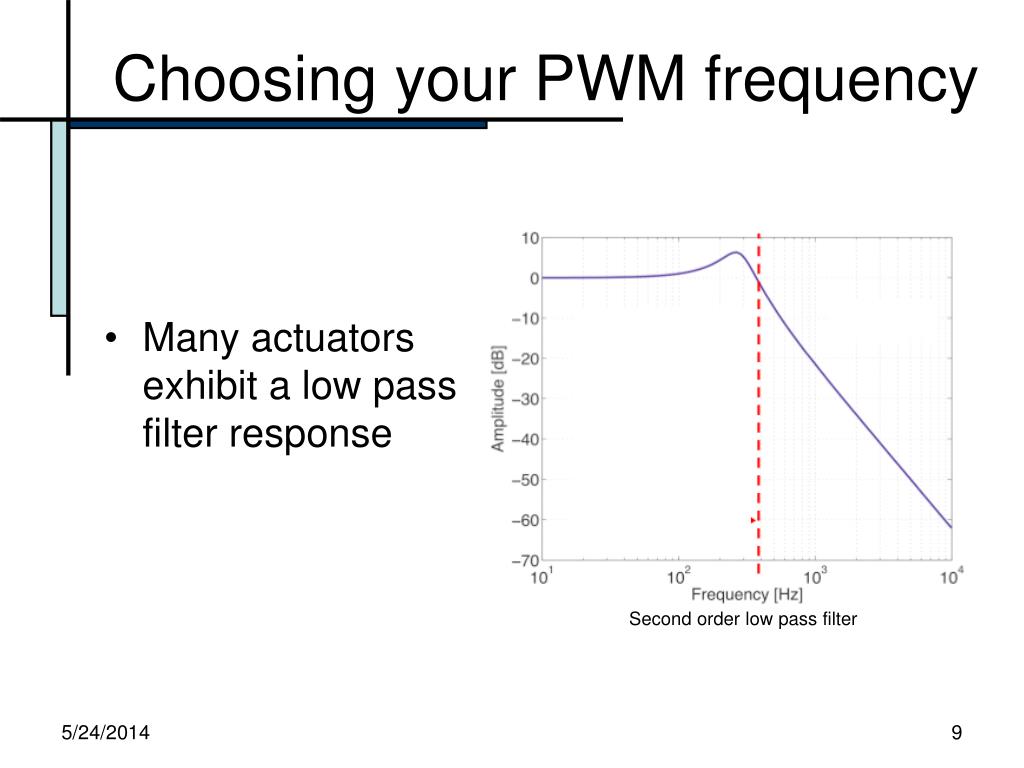

  • Many actuators exhibit a low pass filter response

Second order low pass filter

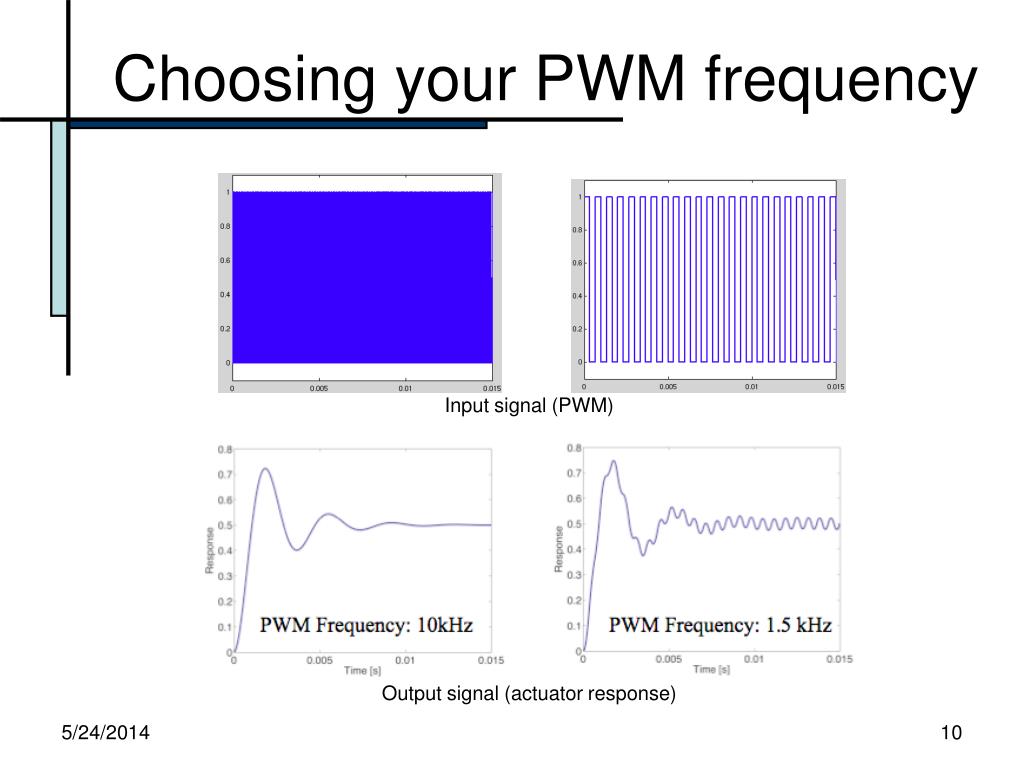

choosing your pwm frequency1
Choosing your PWM frequency

Input signal (PWM)

Output signal (actuator response)

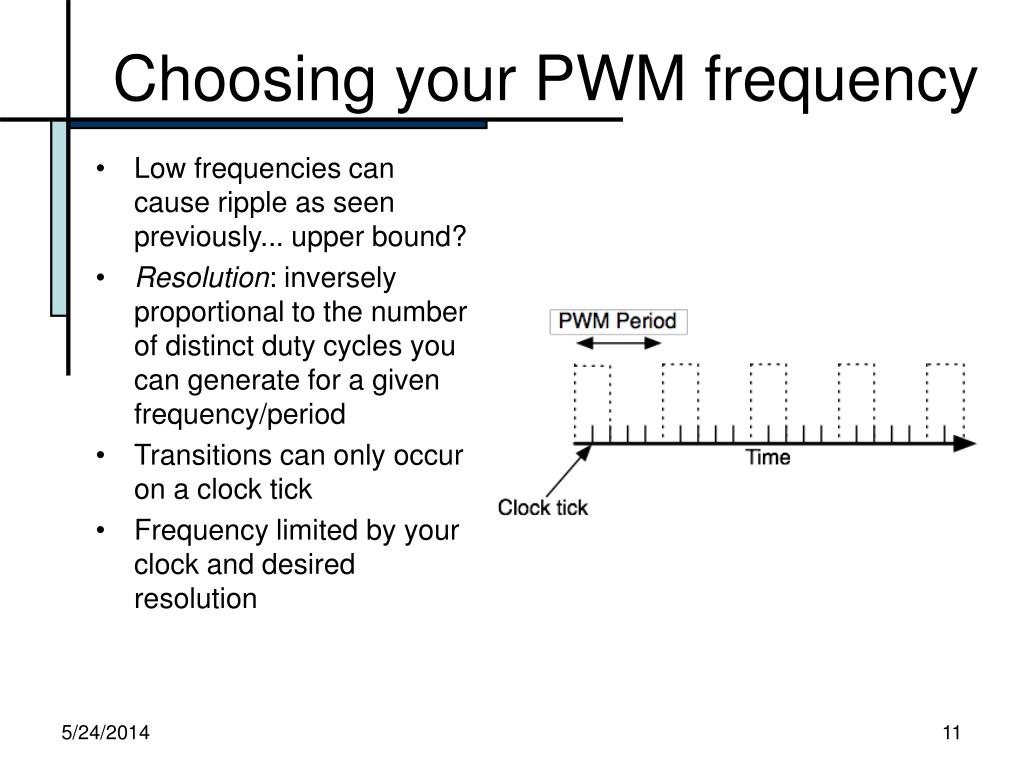

choosing your pwm frequency2
Choosing your PWM frequency
  • Low frequencies can cause ripple as seen previously... upper bound?
  • Resolution: inversely proportional to the number of distinct duty cycles you can generate for a given frequency/period
  • Transitions can only occur on a clock tick
  • Frequency limited by your clock and desired resolution
choosing your pwm frequency3
Choosing your PWM frequency

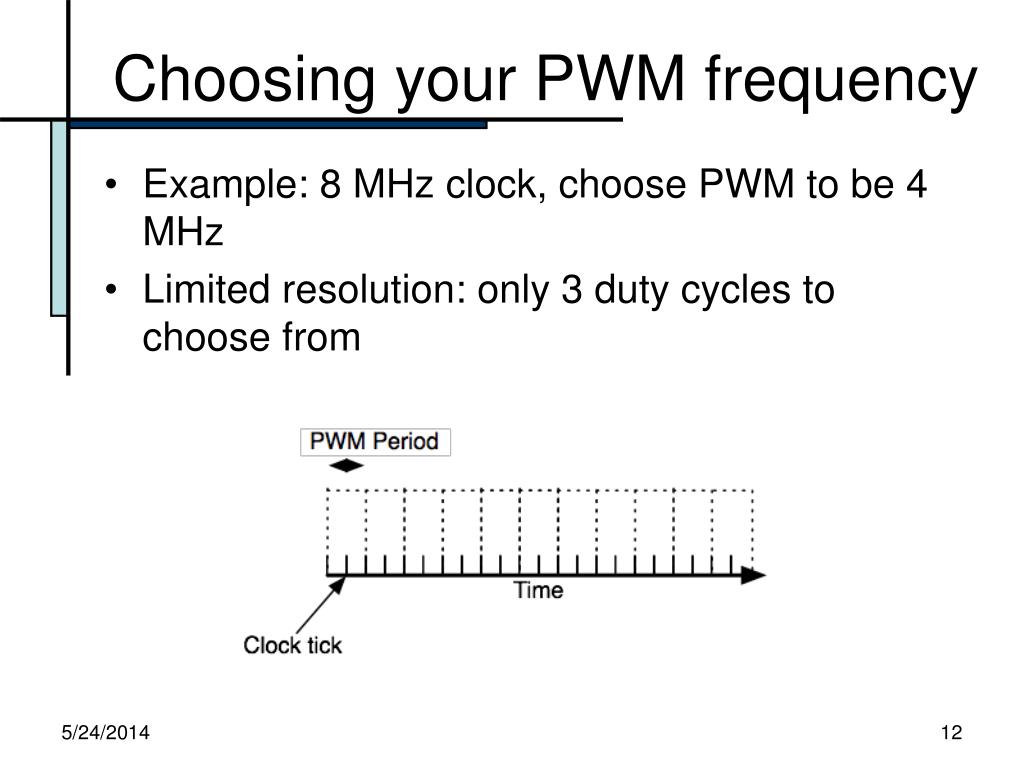

  • Example: 8 MHz clock, choose PWM to be 4 MHz
  • Limited resolution: only 3 duty cycles to choose from
choosing your pwm frequency4
Choosing your PWM frequency
  • Additional upper bound: high frequency current in actuator coils can induce eddy currents, resulting in motor heating and reduced efficiency. Loss is proportional to frequency squared.(Heathcote, Martin (1998-11-03). J & P Transformer Book, Twelfth edition. Newnes, pp. 41–42. ISBN 0750611588.)
  • Human hearing range ~ 20 Hz - 20 kHz
  • Summary: avoid ripple, resolution loss, power loss, and human hearing
implementing pwm using the mc9s12c32

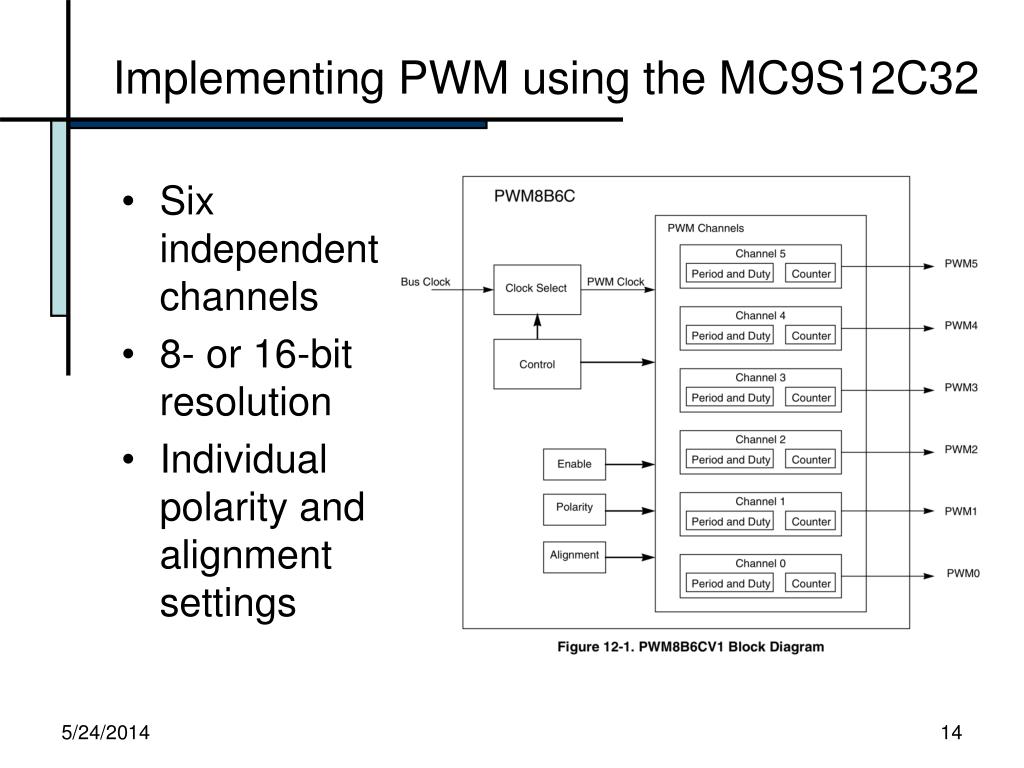

Implementing PWM using the MC9S12C32

Six independent channels

8- or 16-bit resolution

Individual polarity and alignment settings

pwme 00e0

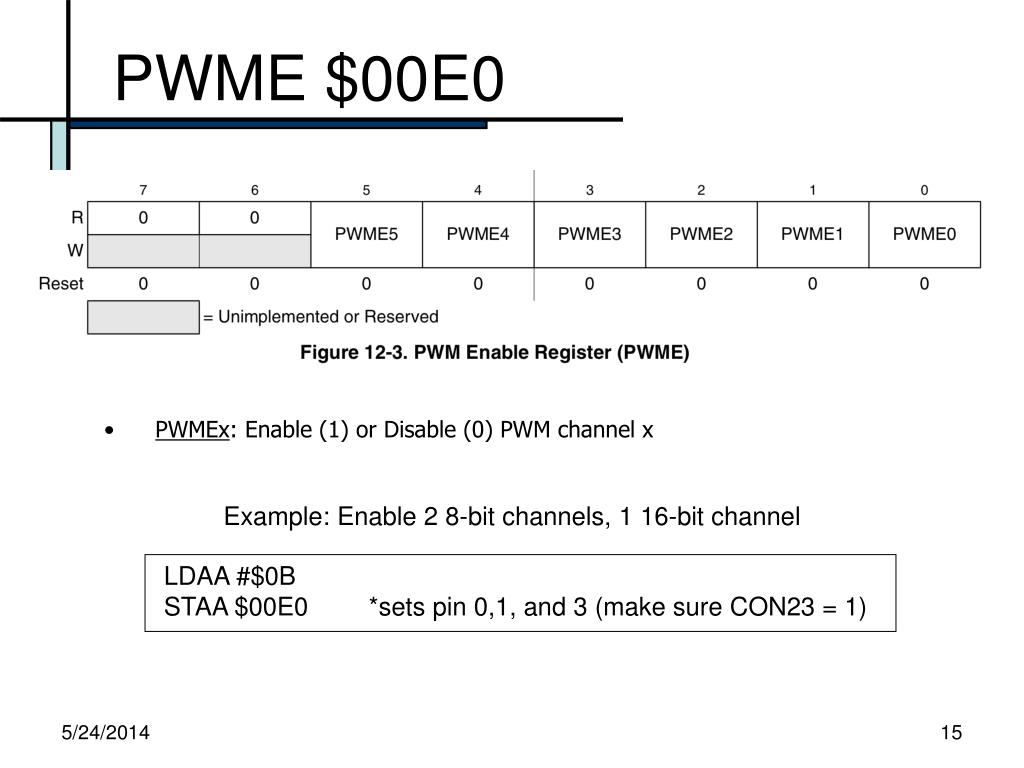

PWME $00E0

Example: Enable 2 8-bit channels, 1 16-bit channel

LDAA #$0BSTAA $00E0 *sets pin 0,1, and 3 (make sure CON23 = 1)

PWMEx: Enable (1) or Disable (0) PWM channel x

pwmpol 00e1
PWMPOL $00E1

PPOLx: PWM output starts high then goes low when duty count is reached (1) or starts low and goes high when duty count is reached (0)

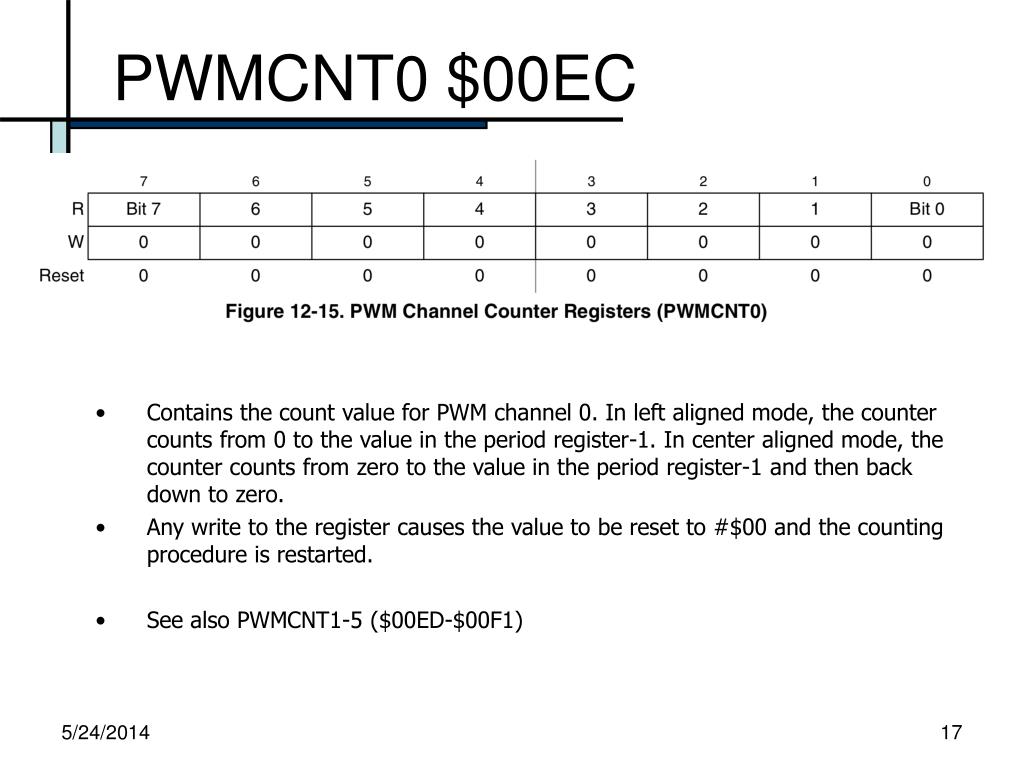

pwmcnt0 00ec
PWMCNT0 $00EC

Contains the count value for PWM channel 0. In left aligned mode, the counter counts from 0 to the value in the period register-1. In center aligned mode, the counter counts from zero to the value in the period register-1 and then back down to zero.

Any write to the register causes the value to be reset to #$00 and the counting procedure is restarted.

See also PWMCNT1-5 ($00ED-$00F1)

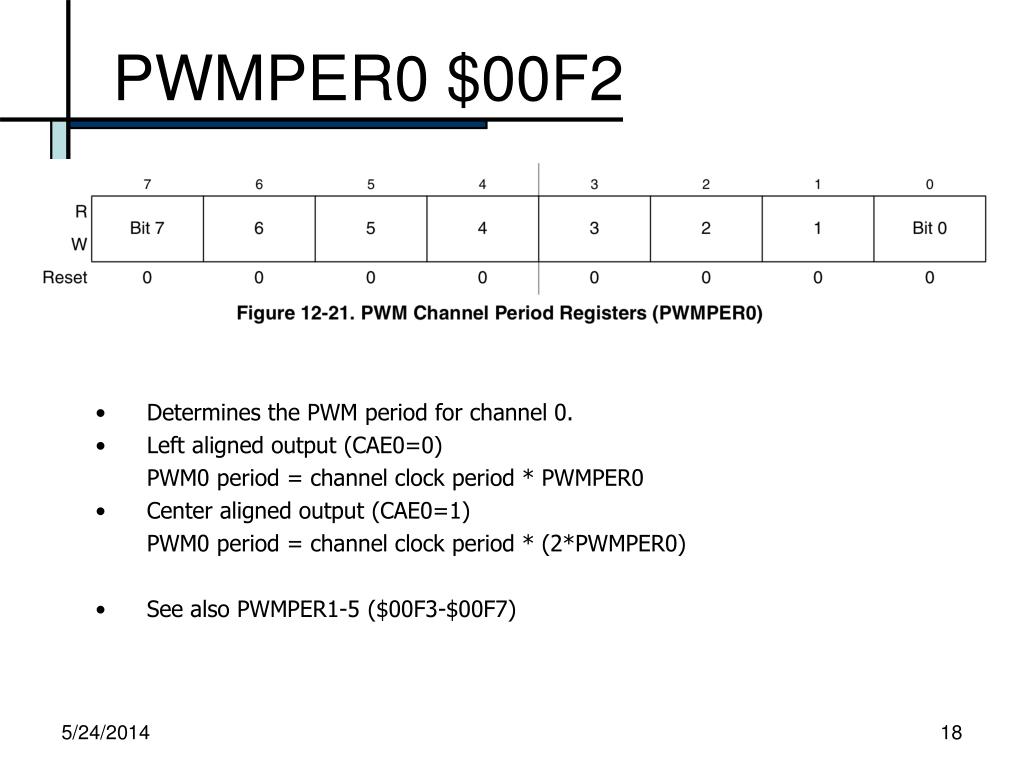

pwmper0 00f2
PWMPER0 $00F2
  • Determines the PWM period for channel 0.
  • Left aligned output (CAE0=0)

PWM0 period = channel clock period * PWMPER0

  • Center aligned output (CAE0=1)

PWM0 period = channel clock period * (2*PWMPER0)

  • See also PWMPER1-5 ($00F3-$00F7)

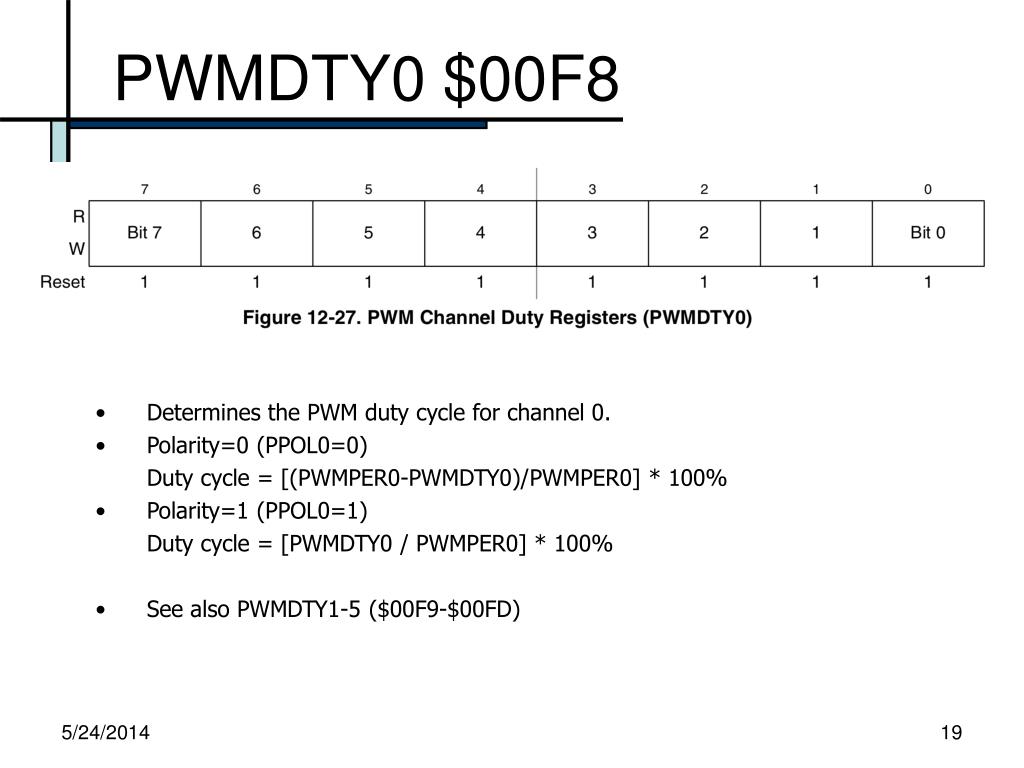

pwmdty0 00f8
PWMDTY0 $00F8
  • Determines the PWM duty cycle for channel 0.
  • Polarity=0 (PPOL0=0)

Duty cycle = [(PWMPER0-PWMDTY0)/PWMPER0] * 100%

  • Polarity=1 (PPOL0=1)

Duty cycle = [PWMDTY0 / PWMPER0] * 100%

  • See also PWMDTY1-5 ($00F9-$00FD)

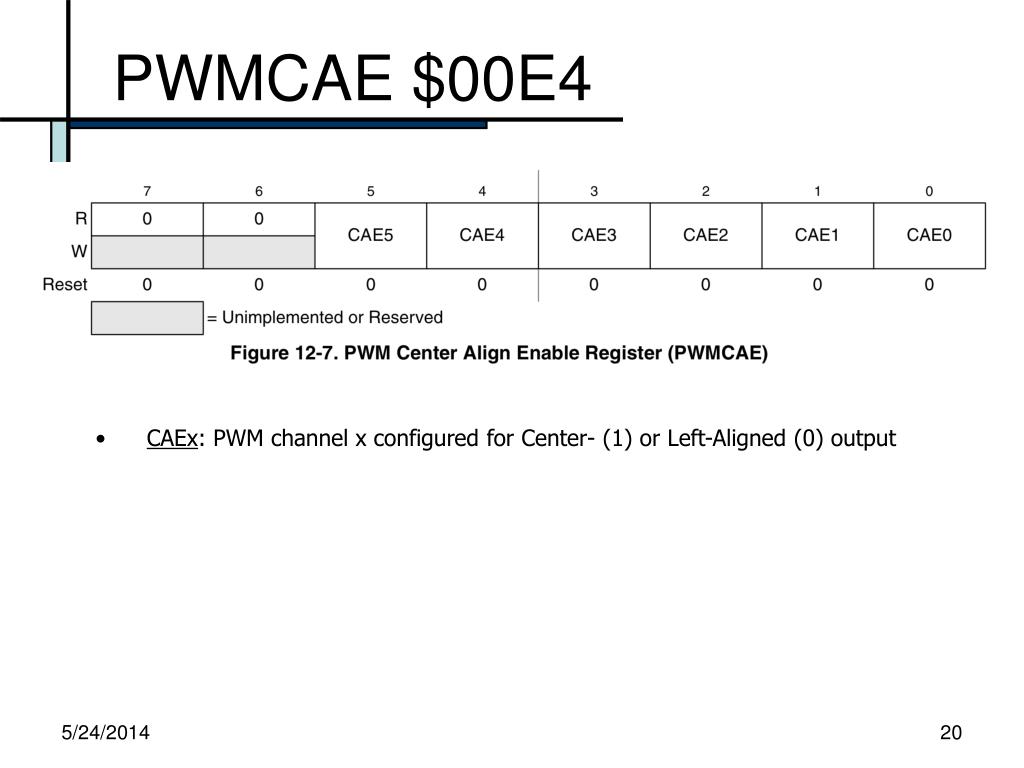

pwmcae 00e4
PWMCAE $00E4

CAEx: PWM channel x configured for Center- (1) or Left-Aligned (0) output

resolution concerns

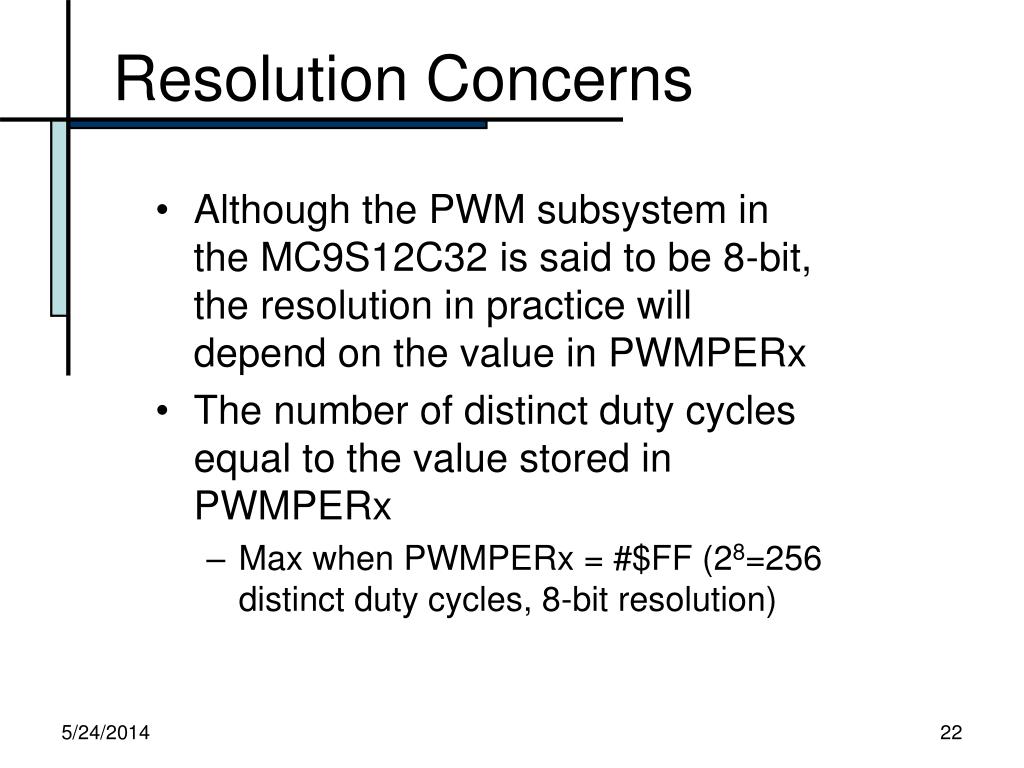

Resolution Concerns
  • Although the PWM subsystem in the MC9S12C32 is said to be 8-bit, the resolution in practice will depend on the value in PWMPERx
  • The number of distinct duty cycles equal to the value stored in PWMPERx
    • Max when PWMPERx = #$FF (28=256 distinct duty cycles, 8-bit resolution)
determining clock source

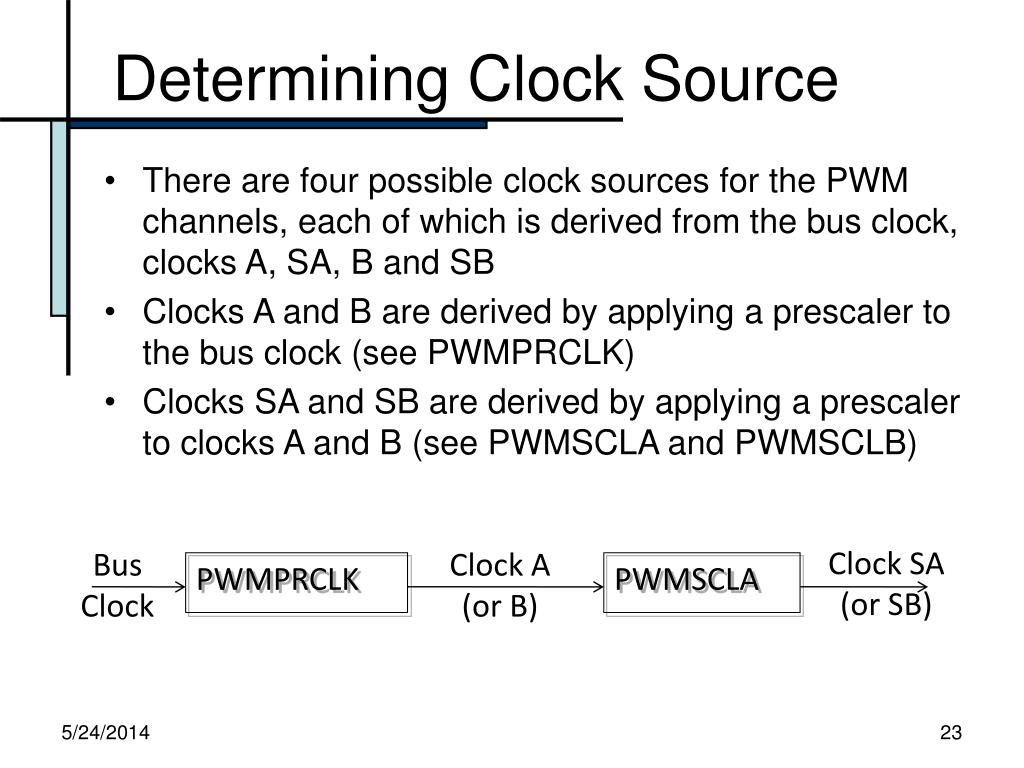

Determining Clock Source

Clock SA

(or SB)

Bus

Clock

Clock A

(or B)

PWMPRCLK

PWMSCLA

There are four possible clock sources for the PWM channels, each of which is derived from the bus clock, clocks A, SA, B and SB

Clocks A and B are derived by applying a prescaler to the bus clock (see PWMPRCLK)

Clocks SA and SB are derived by applying a prescaler to clocks A and B (see PWMSCLA and PWMSCLB)

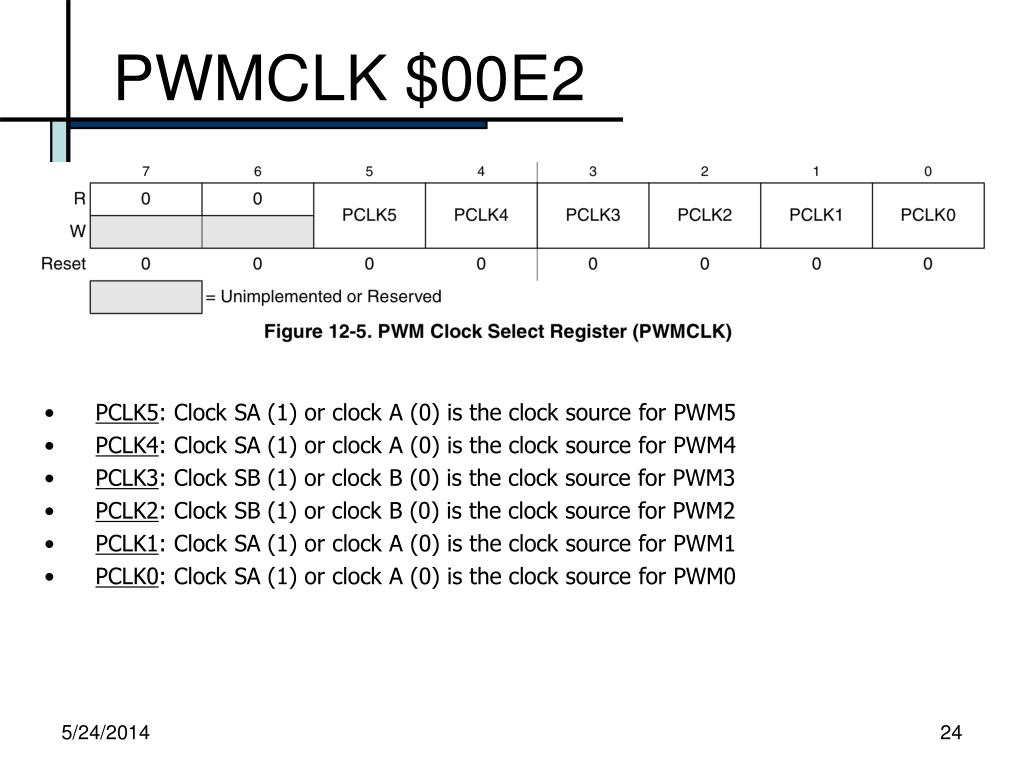

pwmclk 00e2
PWMCLK $00E2

PCLK5: Clock SA (1) or clock A (0) is the clock source for PWM5

PCLK4: Clock SA (1) or clock A (0) is the clock source for PWM4

PCLK3: Clock SB (1) or clock B (0) is the clock source for PWM3

PCLK2: Clock SB (1) or clock B (0) is the clock source for PWM2

PCLK1: Clock SA (1) or clock A (0) is the clock source for PWM1

PCLK0: Clock SA (1) or clock A (0) is the clock source for PWM0

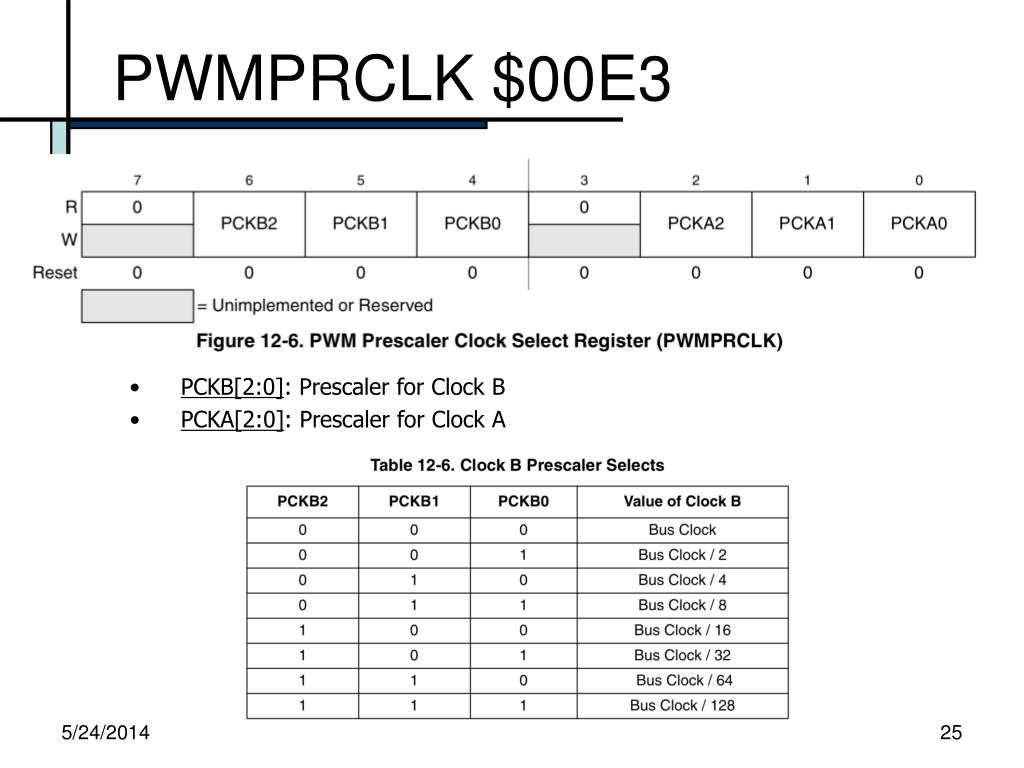

pwmprclk 00e3
PWMPRCLK $00E3

PCKB[2:0]: Prescaler for Clock B

PCKA[2:0]: Prescaler for Clock A

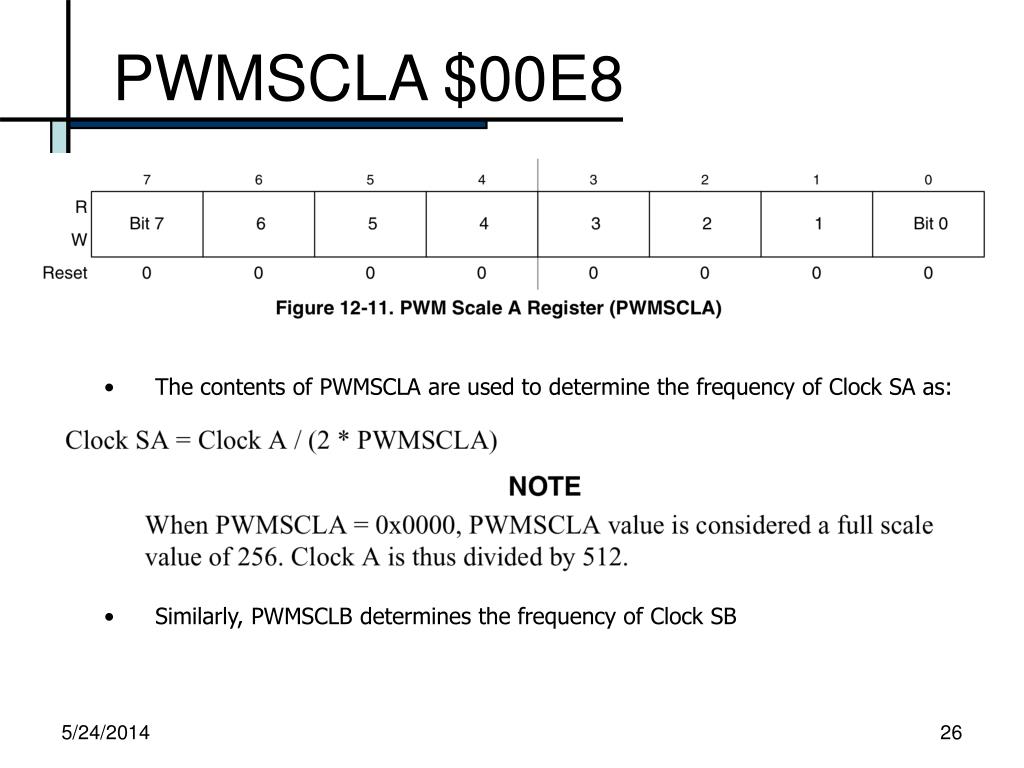

pwmscla 00e8
PWMSCLA $00E8

The contents of PWMSCLA are used to determine the frequency of Clock SA as:

Similarly, PWMSCLB determines the frequency of Clock SB

pwmctl 00e5
PWMCTL $00E5
  • CONxy: channels x and y are separate 8-bit channels (0) or are concatenated to form one 16-bit channel (1). X forms the high byte and y forms the low byte.

Note:

1. Change these bits only when both corresponding channels are disabled.

  • Resolution: three 16-bit channel (compared with six 8-bit channel )

3. Channel y determines the configuration.

  • PSWAI: The clock to the prescaler stops (1) or continues (0) in wait mode
  • PFRZ: PWM counters stop (1) or continue (0) while in freeze mode (this is useful for emulation)
summary of features
Summary of Features

Six independent PWM channels with programmable period and duty cycle

Dedicated counter for each PWM channel

Software selection of PWM duty pulse polarity for each channel

Period and duty cycle are double buffered. Changes takes effect when the end of the effective period is reach or when the channel is disabled.

Programmable center or left aligned outputs on individual channel

Six 8-bit channels or three 16-bit channels PWM resolution

Four clock sources (A, B, SA and SB) provide for a wide range of frequencies

Programmable clock select logic

Emergency shutdown

example configuring a pwm channel

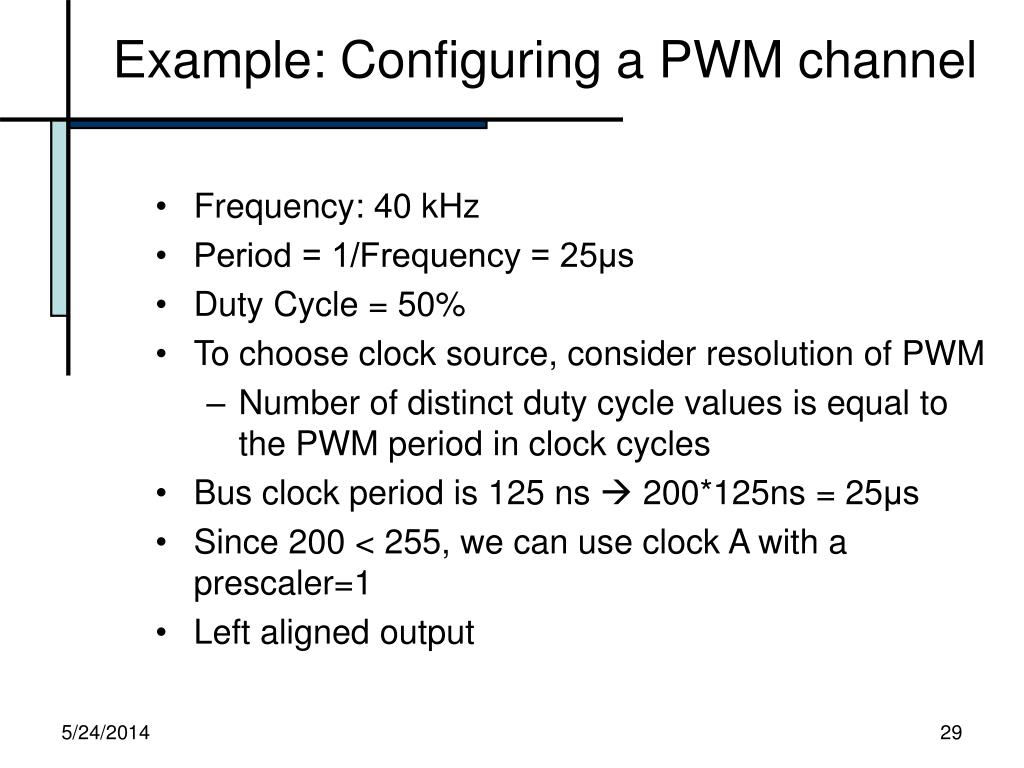

Example: Configuring a PWM channel
  • Frequency: 40 kHz
  • Period = 1/Frequency = 25μs
  • Duty Cycle = 50%
  • To choose clock source, consider resolution of PWM
    • Number of distinct duty cycle values is equal to the PWM period in clock cycles
  • Bus clock period is 125 ns  200*125ns = 25μs
  • Since 200 < 255, we can use clock A with a prescaler=1
  • Left aligned output
slide30

Example: Configuring a PWM channel

PWMCLK = #$00 - PWM0 uses clock A

PWMPRCLK = #$00 - Prescaler = 1

PWMPOL = #$01 - Positive polarity

PWMCAE = #$00 - Left aligned

PWMPER0 = #$C8 - Period = 200

PWMDTY0 = #$64 - Duty cycle = 100/200 = 50%

PWME = #$01 - Enable PWM channel 0

slide31

Assembly Code

PWME EQU $00E0

PWMCAE EQU $00E4

PWMDTY0 EQU $00F8PWMPER0 EQU $00F2

PWMPOL EQU $00E1

PWMCLK EQU $00E2

PWMPRCLK EQU $00E3

ORG $1000

LDAA #$00

STAA PWMCLK ;Use Clock A

STAA PWMPRCLK ;Clock A prescaler = 1

STAA PWMCAE ;Left aligned output

LDAA #$01

STAA PWMPOL ;Positive polarity (starts high)

LDAA #$C8

STAA PWMPER0 ;Period = 200 (25μs)

LDAA #$64 ;100 decimal

STAA PWMDTY0 ;Duty cycle = 50% (100/200)

LDAA #$01

STAA PWME ;Enable PWM Channel 0

...

slide32

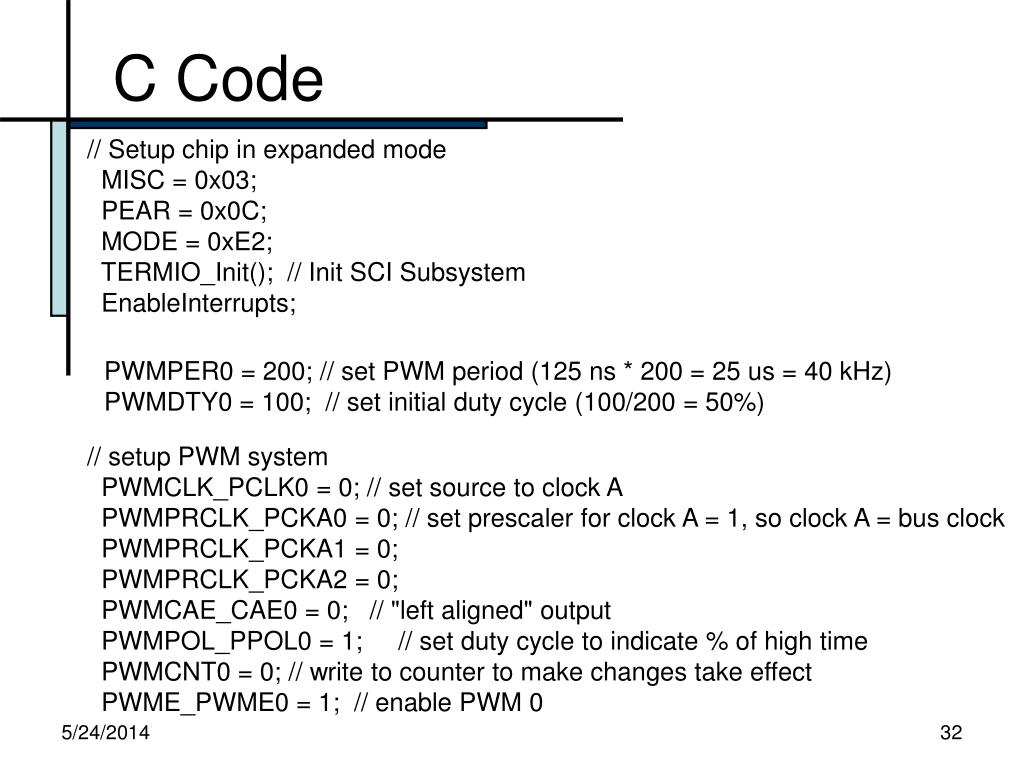

C Code

// Setup chip in expanded mode

MISC = 0x03;

PEAR = 0x0C;

MODE = 0xE2;

TERMIO_Init(); // Init SCI Subsystem

EnableInterrupts;

PWMPER0 = 200; // set PWM period (125 ns * 200 = 25 us = 40 kHz)

PWMDTY0 = 100; // set initial duty cycle (100/200 = 50%)

// setup PWM system

PWMCLK_PCLK0 = 0; // set source to clock A

PWMPRCLK_PCKA0 = 0; // set prescaler for clock A = 1, so clock A = bus clock

PWMPRCLK_PCKA1 = 0;

PWMPRCLK_PCKA2 = 0;

PWMCAE_CAE0 = 0; // "left aligned" output

PWMPOL_PPOL0 = 1; // set duty cycle to indicate % of high time

PWMCNT0 = 0; // write to counter to make changes take effect

PWME_PWME0 = 1; // enable PWM 0

example 2 configuring pwm channels
Example 2: Configuring PWM channels

CHANNEL 2-3 (16-bit)

  • Frequency: 50 kHz
  • Period = 1/Frequency = 20μs
  • Duty Cycle = 60%
  • To choose clock source, consider resolution of PWM
    • Number of distinct duty cycle values is equal to the PWM period in clock cycles
  • Bus clock period is 125 ns  160*125ns = 20μs
  • Since 160 < 255, we can use clock B with a prescaler=1
  • Left aligned output

CHANNEL 0 (8-bit)

  • Frequency: 10 kHz
  • Period = 1/Frequency = 100μs
  • Duty Cycle = 30%
  • To choose clock source, consider resolution of PWM
    • Number of distinct duty cycle values is equal to the PWM period in clock cycles
  • Bus clock period is 125 ns  800*125ns = 100μs
  • Since 800 > 255, we can use clock A with a prescaler=4
  • Now, PWMPER0 = (100μs/(4*125ns) = 200
  • Left aligned output

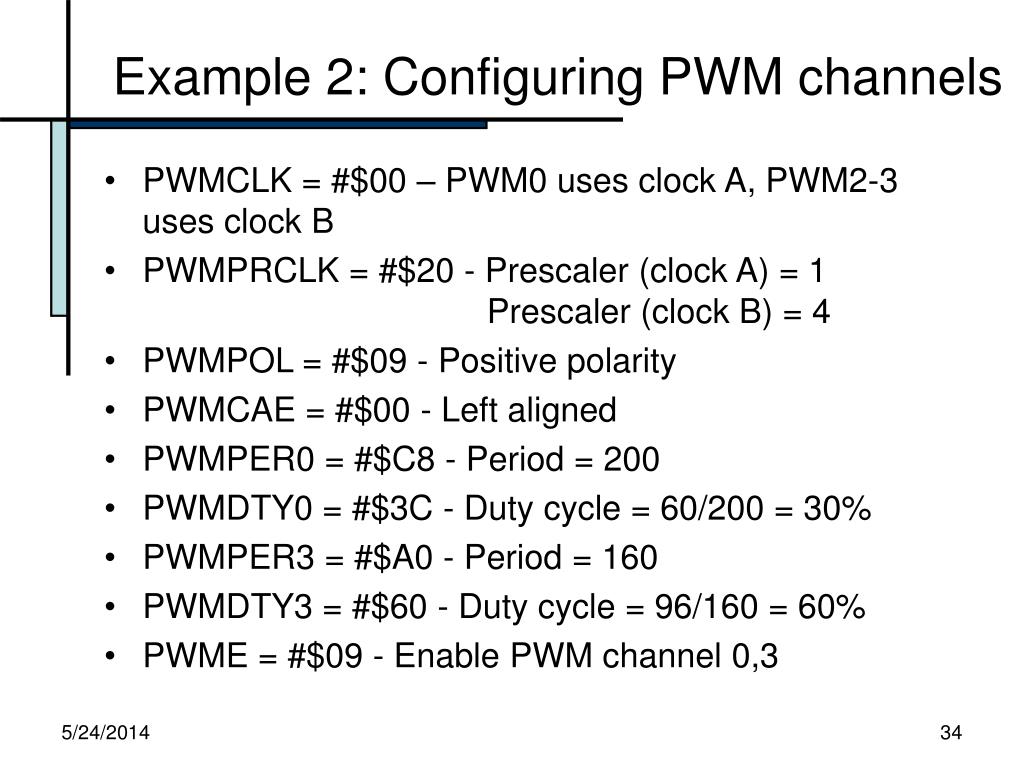

slide34

Example 2: Configuring PWM channels

PWMCLK = #$00 – PWM0 uses clock A, PWM2-3 uses clock B

PWMPRCLK = #$20 - Prescaler (clock A) = 1 Prescaler (clock B) = 4

PWMPOL = #$09 - Positive polarity

PWMCAE = #$00 - Left aligned

PWMPER0 = #$C8 - Period = 200

PWMDTY0 = #$3C - Duty cycle = 60/200 = 30%

PWMPER3 = #$A0 - Period = 160

PWMDTY3 = #$60 - Duty cycle = 96/160 = 60%

PWME = #$09 - Enable PWM channel 0,3

slide35

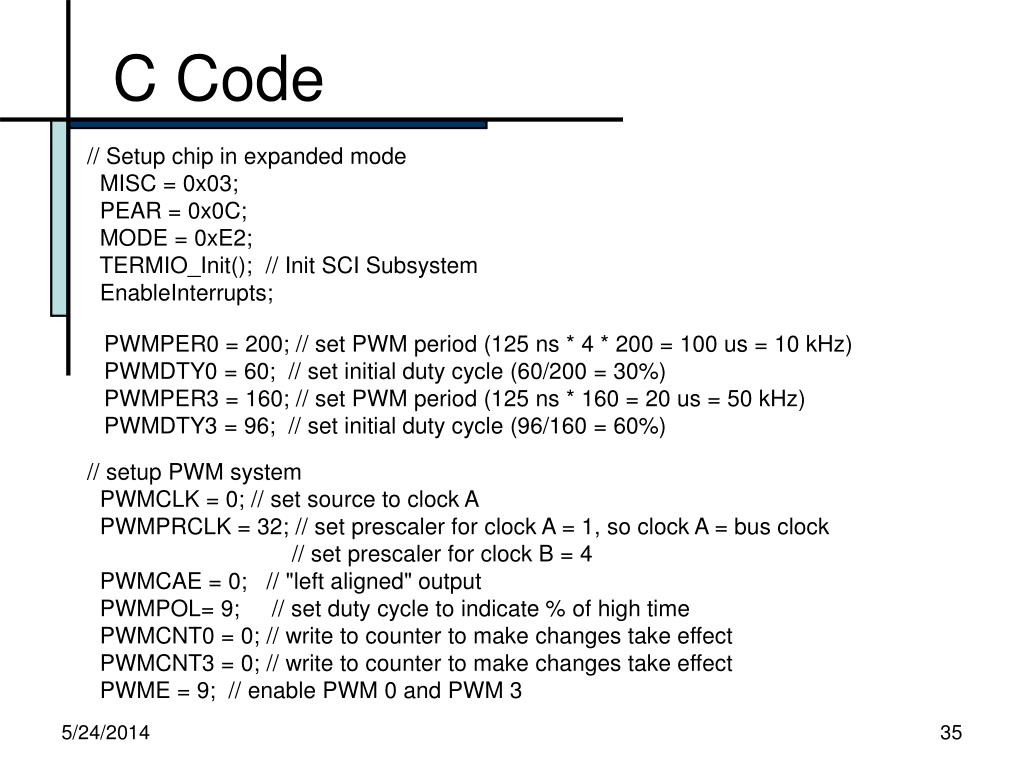

C Code

// Setup chip in expanded mode

MISC = 0x03;

PEAR = 0x0C;

MODE = 0xE2;

TERMIO_Init(); // Init SCI Subsystem

EnableInterrupts;

PWMPER0 = 200; // set PWM period (125 ns * 4 * 200 = 100 us = 10 kHz)

PWMDTY0 = 60; // set initial duty cycle (60/200 = 30%)

PWMPER3 = 160; // set PWM period (125 ns * 160 = 20 us = 50 kHz)

PWMDTY3 = 96; // set initial duty cycle (96/160 = 60%)

// setup PWM system

PWMCLK = 0; // set source to clock A

PWMPRCLK = 32; // set prescaler for clock A = 1, so clock A = bus clock // set prescaler for clock B = 4

PWMCAE = 0; // "left aligned" output

PWMPOL= 9; // set duty cycle to indicate % of high time

PWMCNT0 = 0; // write to counter to make changes take effect

PWMCNT3 = 0; // write to counter to make changes take effect

PWME = 9; // enable PWM 0 and PWM 3

references
References
  • ME 4447/6405 PWM Lecture
  • MC9S12C Family, MC9S12GC Family Reference Manual (pp. 347-382)
