Hybrid Routing Protocol (HRP): A Comprehensive Overview

The Hybrid Routing Protocol (HRP) combines proactive and reactive routing techniques to optimize network performance for both short and long distances. This protocol minimizes routing overhead and latency by using proactive methods for short-range connections and reactive methods for long-range communication. Key features include efficient route discovery and error handling through AODV (Ad hoc On-Demand Distance Vector). Despite its complexity, HRP offers significant advantages over traditional protocols, addressing their limitations while enhancing overall routing efficiency.

lou
Download Presentation

Hybrid Routing Protocol (HRP): A Comprehensive Overview

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. HybridRoutingProtocol HRP source code by Jeong - Ganghee Advanced Operating System – Spring 2012

  2. Advanced Operating System – Spring 2012 • Hybrid Routing Protocol • AODV • Route Discovery • Route Error • Hrp.cpp and it’s methods Agenda

  3. Advanced Operating System – Spring 2012 • Main features: • The routing is proactive for short distances and reactive for long distances. • Advantages: • Reduces impact of disadvantages of proactive and reactive routing protocols. • No route setup latency for short distance connections. • Lower routing overhead due to reactive routing for further away destinations. • Disadvantages: • More complex • Protocol examples: • Zone Routing Protocol (ZRP) Hybrid Routing Protocols

  4. Advanced Operating System – Spring 2012 G F H J A C E B D I K AODV: Route Discovery

  5. Advanced Operating System – Spring 2012 A - Source J - Destination G F H J A C E B D I K AODV: Route Discovery

  6. Advanced Operating System – Spring 2012 ‘A’ broadcast a route request (RREQ) packet with Initial TTL = 1 G F H J A C E B D I K Broadcast RREQ AODV: Route Discovery

  7. Advanced Operating System – Spring 2012 Nodes receiving the RREQ sets up Reverse Routes to the source G F H J A C E B D I K Broadcast RREQ Reverse Route AODV: Route Discovery

  8. Advanced Operating System – Spring 2012 ‘A’ times out and re-broadcast a Route Request(RREQ) packet with TTL = 2 G F H J A C E B D I K Broadcast RREQ Reverse Route AODV: Route Discovery

  9. Advanced Operating System – Spring 2012 Other nodes Rebroadcasts the Route Request (RREQ) packet G F H J A C E Note: Nodes B, C and F receives RREQ Multiple times but forward it only once B D I K Broadcast RREQ Reverse Route AODV: Route Discovery

  10. Advanced Operating System – Spring 2012 ‘A’ times out and re-broadcast a Route Request(RREQ) packet with TTL = 4 G F H J A C E B D I K Broadcast RREQ Reverse Route AODV: Route Discovery

  11. Advanced Operating System – Spring 2012 Route Request Eventually Reaches the Destination J G F H J A C E B D I K Broadcast RREQ Reverse Route AODV: Route Discovery

  12. Advanced Operating System – Spring 2012 Destination send route Reply (RREP) back to source using the reverse route G F H RREP J A C E B D I K AODV: Route Discovery

  13. Advanced Operating System – Spring 2012 Node receiving the RREP sets up a Forward path to the Destination G F H J A C E B D I K Route Reply Forward Path AODV: Route Discovery

  14. Advanced Operating System – Spring 2012 Node receiving the RREP sets up a Forward path to the Destination G F H J A C E B D I K Route Reply Forward Path AODV: Route Discovery

  15. Advanced Operating System – Spring 2012 Node receiving the RREP sets up a Forward path to the Destination G F H ‘A’ now has a route to ‘J’ J A C E B D I K Route Reply Forward Path AODV: Route Discovery

  16. Advanced Operating System – Spring 2012 A can now use The forward route created G F H J A C E B D I K AODV: Route Discovery

  17. Advanced Operating System – Spring 2012 B - Source J - Destination G F H J A C E B D I K AODV: Route Discovery

  18. Advanced Operating System – Spring 2012 ‘B’ broadcast a route request (RREQ) packet G F H J A C E B D I K AODV: Route Discovery

  19. Advanced Operating System – Spring 2012 ‘A’ and ‘C’ replies G F H J A C E RREP RREP B D I K AODV: Route Discovery

  20. Advanced Operating System – Spring 2012 ‘B’ picks the minimum hop route (which is through C) G F H J A C E B D I K AODV: Route Discovery

  21. Advanced Operating System – Spring 2012 A - Source J - Destination G F H J A C E B D I K AODV: Route Error

  22. Advanced Operating System – Spring 2012 Data is flowing between A and J G F H J A C E B D I K AODV: Route Error

  23. Advanced Operating System – Spring 2012 Link between E and J breaks due to any reason. G F H J A Link Break C E B D I K AODV: Route Error

  24. Advanced Operating System – Spring 2012 All nodes maintain a precursor list of nodes who might use a link G F H J A Link Break C E B D I K AODV: Route Error

  25. Advanced Operating System – Spring 2012 Route Error message is sent to the source G F H J A Link Break C E B D I K AODV: Route Error

  26. Advanced Operating System – Spring 2012 Routeto J is removed and Route Discovery is reinitiated G F H J A Link Break C E B D I K AODV: Route Error

  27. Advanced Operating System – Spring 2012 • HrpInit • HrpHandleProtocolPacket • HrpHandleProtocolEvent • HrpFinalize • HrpRouterFunction • HrpHandleRequest • HrpHandleReply • HrpHandleRouteError • HrpBroadcastHelloMessage • HrpTransmitData • HrpInitializeConfigurableParameters Hrp.cpp and its methods

  28. Advanced Operating System – Spring 2012 • Prototype: • voidHrpInit (Node*, HrpData**, constNodeInput*,int, NetowrkRoutingProtocolType) • Purpose: • Initialization function for HRP protocol • Arguments: • node, hrpPtr, nodeInput, interfaceIndex, hrpProtocolType • Return: • None HrpInit

  29. Advanced Operating System – Spring 2012 // Read user configurable parameters from the configuration file or // initial them with the default value. HrpInitializeConfigurableParameters(node, nodeInput, hrp,interfaceIndex); // Initialize hrp routing table // Allocate chunk of memory // Set the mac status handler function // Set the router function HrpInit code (some)

  30. Advanced Operating System – Spring 2012 • Prototype: • voidHrpFinalize (Node*) • Purpose: • Called at the end of the simulation to collect the results. • Arguments: • node • Return: • None HrpFinalize

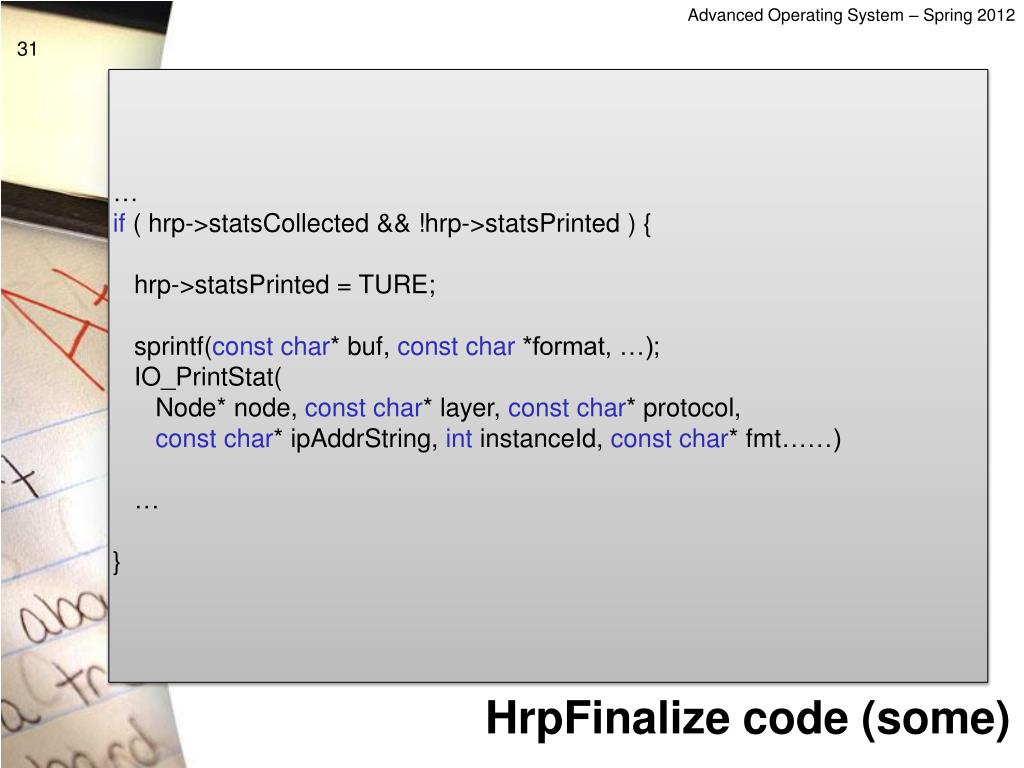

  31. Advanced Operating System – Spring 2012 … if ( hrp->statsCollected && !hrp->statsPrinted ) { hrp->statsPrinted = TURE; sprintf(const char* buf, const char *format, …); IO_PrintStat( Node* node, const char* layer, const char* protocol, const char* ipAddrString, intinstanceId, const char* fmt……) … } HrpFinalize code (some)

  32. Advanced Operating System – Spring 2012 • Prototype: • voidHrpHandleProtocolPacket (Node*, Message*, NodeAddress, NodeAddress, int, int) • Purpose: • Called when Hrp packet is received from MAC, the packetsmay be of following types, Route Request, Route Reply, Route Error, Route Acknodwledgement • Arguments: • Node, msg, srcAddr, destAddr, ttl, interfaceIndex • Return: • None HrpHandleProtocolPacket

  33. Advanced Operating System – Spring 2012 char* packetType = MESSASGE_ReturnPacket(msg); switch (*packetType) { case HRP_RREQ: … HrpHandleRequest(node, msg, srcAddr, ttl, interfaceIndex); … case HRP_RREP: … HrpHandleReply(node, msg, srcAddr, interfaceIndex); … case HRP_RERR: … HrpHandleRouteError(node, msg, srcAddr, InterfaceIndex); … } • Let QualNet know HRP as a network layer protocol • In the file include/trace.h HrpHandleProtocolPacket code (some)

  34. Advanced Operating System – Spring 2012 • Prototype: • voidHrpHandleProtocolEvent (Node*, Message*); • Purpose: • Handles all the protocol events • Arguments: • node, msg • Return: • None HrpHandleProtocolEvent

  35. Advanced Operating System – Spring 2012 switch (MESSAGE_GetEvent(msg)) { // Remove an entry from the RREQ Seen Table caseMSG_NETWORK_FlushTables: {} // Remove the route that has not been used for awhile. caseMSG_NETWORK_CheckRouteTimeout: {} caseMSG_NETWORK_DeleteRoute: {} // Check if RREP is received after sending RREQ. caseMSG_NETWORK_CheckReplied: {} caseMSG_NETWORK_BlacklistTimeout: {} caseMSG_NETWORK_SendHello: {} } HrpHandleProtocolEvent code (some)

  36. Advanced Operating System – Spring 2012 • Prototype: • voidHrpRouterFunction (Node*, Message*, NodeAddress, NodeAddress, BOOL*) • Purpose: • Determine the routing action to take for a the given data packet set the wasRouted variable to TRUE if no further handling of this packet by IP is necessary. • Arguments: • node, msg, destAddr, previousHopAddress, wasRouted • Return: • None HrpRouterFunction

  37. Advanced Operating System – Spring 2012 if (NetworkIpIsMyIP(node, destAddr)) { *wasRouted = FALSE; } else { *wasRouted = TRUE; } // Intermediate node or destination of the route if (!NetowrkIpIsMyIP(node, ipHeader->ip_src)) { HrpHandleData(node, msg, destAddr, previousHopAddress); } else{ if (isValidRt) { // HrpCheckRouteExist(destAddr, rtTable, &isValidRt) // Source has a route to the destination HrpTransmitData(node, msg, rtToDest, previousHopAddress); hrp->stats.numDataInitiated++; } else if (!HrpCheckSent(destAddr, &hrp->sent)) { HrpInsertBuffer( node, msg, destAddr, previousHopAddress, &hrp->msgBuffer); // There is no routeto the destination and RREQ has not been sent HrpInitiateRREQ(node, destAddr); } else { // There is no route but RREQ has already been sent HrpInsertBuffer( node, msg, destAddr, previousHopAddress, &hrp->msgBuffer); } } • Let QualNet know HRP as a network layer protocol • In the file include/trace.h HrpRouterFunction code (some)

  38. Advanced Operating System – Spring 2012 • Prototype: • voidHrpHandleRequest (Node*, Message*, NodeAddress, int, int) • Purpose: • Processing procedure when RREQ is received • Arguments: • node, msg, srcAddr, ttl, interfaceIndex • Return: • None HrpHandleRequest

  39. Advanced Operating System – Spring 2012 if (zone == 1) { if (HrpCheckBlacklistTable(srcAddr, &hrp->blacklistTable)) {} if (rreqPkt->hopCount > (unsigned int) HRP_NET_DIAMETER) {} if (FALSE == HrpLookupSeenTable( hrp, rreqPkt->source.address, rreqPkt->floodingId, &hrp->seenTable)) { if(NetworkIpIsMyIP(node, rreqPkt->destination.address) { // dest. node } else { // intermediate node replyByIntermediate = TRUE;} } // The node always creates or updates a reverse route to the Source // IP Address in its routing table. if (replyByIntermediate) { … } // When a node receives an HRP control packet from a neighbor, it // checks its route table for an entry for that neighbor. } • Let QualNet know HRP as a network layer protocol • In the file include/trace.h HrpHandleRequest code (some)

  40. Advanced Operating System – Spring 2012 • Prototype: • voidHrpHandleReply (Node*, Message*, NodeAddress, int) • Purpose: • Processing procedure when RREP is received • Arguments: • node, msg, srcAddr, interfaceIndex • Return: • None HrpHandleReply

  41. Advanced Operating System – Spring 2012 if (rrepPkt->sourceAddr == ANY_IP) { // Whenever a node receives a HELLO packet from a neighbor, } if (rrepPkt->destination.address != srcAddr) { // intermediate node || from destination to source } prevRtPtr = HrpCheckRouteExist(rrepPkt->destination.address, &hrp->routeTable, &isValidRt); if (!prevRtPtr || (prevRtPtr->destination.seqNum < rrepPkt->destination.seqNum) || ((prevRtPtr->destination.seqNum == repPkt->desination.seqNum) && (!isValidRt || revRtPtr->hopCount > hopCount))) { // The forward route for this destination is created or updated only if } if (NetworkIpIsMyIP(node, rrepPkt->sourceAddr)) { // Source of the route } else { // Intermediate node of the route } • Let QualNet know HRP as a network layer protocol • In the file include/trace.h HrpHandleReply code (some)

  42. Advanced Operating System – Spring 2012 • Prototype: • voidHrpHandleRouteError (Node*, Message*, NodeAddress, int) • Purpose: • Processing procedure when RERR is received • Arguments: • node, msg, srcAddr, interfaceIndex • Return: • None HrpHandleRouteError

  43. Advanced Operating System – Spring 2012 unreachableDestList = HrpCalculateNumInactiveRouteByDest( node, msg,srcAddr, &hrp->routeTable, &ifOneUpstream, &upstreamAddr); destCount = BUFFER_GetCurrentSize( &unreachableDestList / sizeof (HrpAddrSeqInfo)); if (destCount) { // Allocate the rerrpacket // rerr packet allocation is complete send out the packet } BUFFER_DestoyDataBuffer(&unreachableDestList); • Let QualNet know HRP as a network layer protocol • In the file include/trace.h HrpHandleRouteError code (some)

  44. Advanced Operating System – Spring 2012 • Prototype: • voidHrpBroadcastHelloMessage (Node*, HrpData*) • Purpose: • Function to advertise hello message if a node wants to • Arguments: • node, hrp • Return: • None HrpBroadcastHelloMessage

  45. Advanced Operating System – Spring 2012 unreachableDestList = HrpCalculateNumInactiveRouteByDest( node, msg,srcAddr, &hrp->routeTable, &ifOneUpstream, &upstreamAddr); destCount = BUFFER_GetCurrentSize( &unreachableDestList / sizeof (HrpAddrSeqInfo)); if (destCount) { // Allocate the rerr packet } // DESC. NetworkDataIP :: Main structure of network layer. NetworkDataIp* ip = (NetworkDataIp*) node->netowrkData.networkVar; intpkt_Size = sizeof (HrpRrepPacket); Message *newMsg = MESSAGE_Alloc(node, layer_type, pkt_Size, event_type); MESSAGE_packetAlloc(node, newMsg, pkt_Size, TRACE_HRP); // Allocate the message and then broadcast to all interface. // No specification in the draft for source address! rrepPkt->sourceAddr = ANY_IP; // #define ANY_IP 0xFFFFFFFF for (inti = 0; i < node->numberInterfaces; i++ ) { ipInterfaceInfoType* intfInfo = ip->interfaceInfo[i]; if (intfInfo->routingProtocolType != ROUTING_PROTOCOL_HRP && DualIpGetInterfaceTunnelType(node, i) != IPv6_TUNNEL) { continue; } rrepPkt->desination.address = intfInfor->ipAddress; } hrp->stats.numHelloSent++; • Let QualNet know HRP as a network layer protocol • In the file include/trace.h HrpBroadcastHelloMessage (some)

  46. Advanced Operating System – Spring 2012 • Prototype: • voidHrpTransmitData (Node*, Message*, HrpRouteEntry*, NodeAddress) • Purpose: • Forward the data packet to the next hop • Arguments: • node, msg, rtEntryToDest, previousHopAddress • Return: • None HrpTransmitData

  47. Advanced Operating System – Spring 2012 unreachableDestList = HrpCalculateNumInactiveRouteByDest( node, msg,srcAddr, &hrp->routeTable, &ifOneUpstream, &upstreamAddr); destCount = BUFFER_GetCurrentSize( &unreachableDestList / sizeof (HrpAddrSeqInfo)); if (destCount) { // Allocate the rerr packet } MESSAGE_SetLayer (msg, MAC_LAYER, 0); MESSAGE_SetEvent (msg, MSG_MAC_FromNetwork); // Each time a route is used to forward a data packet, its Lifetime field is // updated to be no less than the current time + ACTIVE_ROUTE_TIMEOUT If (rtEntryToDest->lifetime < getSimTime(node) + HRP_ACTIVE_ROUTE_TIMEOUT) { rtEntryToDest->lifetime = getSimTime(node) + HRP_ACTIVE_ROUTE_TIMEOUT; HrpMoveRouteEntry (&hrp->routeTable, rtEntryToDest); } // Since the route between each src and dest pair are expected to be symmetric,// the Lifetime for the previous hop, along the reverse path back to the IP source, // is also updated to be no less than the current time + ACTIVE_ROUTE_TIMEOUT if (previousHopAddress != ANY_IP) { HrpUpdateLifetime(…); } // Update lifetime of src. if (previousHopAddress != src) { HrpUpdateLifetime(…); } // Update the lifetime of next hop towards the dest. HrpUpdateLifetime(…); NetworkIpSendPacketToMacLayer(…) {} • Let QualNet know HRP as a network layer protocol • In the file include/trace.h HrpTransmitData code (some)

  48. Advanced Operating System – Spring 2012 • Prototype: • static voidHrpInitializeConfigurableParameters(Node*, constNodeInput*, HrpData*, int) • Purpose: • To initialize the user configurable parameters or initialize the corresponding variables with the default values as specified in draft-ieft-manet-hrp-08.txt • Arguments: • node, nodeInput, hrp, intfIndex • Return: • node HrpInitializeConfigurableParameters

  49. Advanced Operating System – Spring 2012 unreachableDestList = HrpCalculateNumInactiveRouteByDest( node, msg,srcAddr, &hrp->routeTable, &ifOneUpstream, &upstreamAddr); destCount = BUFFER_GetCurrentSize( &unreachableDestList / sizeof (HrpAddrSeqInfo)); if (destCount) { // Allocate the rerr packet } BOOL wasFound = FALSE; NodeAddressinterfaceAddress = NetworkIpGetInterfaceAddress(node, intfIndex) NodeAddressnodeId = node->nodeId; IO_ReadInt(nodeId, interfaceAddress, nodeInput, “HRP-NET-DIAMETER”, &wasFound, &hrp->netDiameter); if (!wasFound) hrp->netDiameter = HRP_DEFAULT_NET_DIAMETER; // #define IO_ReadTime(nodeId, interfaceAddress, nodeInput, “HRP-NODE-TRAVERSAL-TIME”, &wasFound, &hrp->nodeTraversalTime); if (!wasFound) hrp->nodeTraversalTime= HRP_DEFAULT_NODE_TRAVERSAL_TIME; // #define IO_ReadString(nodeId, InterfaceAddress, nodeInput, “HRP-LOCAL-REPAIR”, &wasFound, buf); if ((wasFound == FALSE) || (strcmp(buf, “NO”) == 0)) { hrp->localRepair = FALSE; } else if (strcmp(buf, “YES”) == 0) { hrp->localRepair = TRUE; } else { ERROR_ReportError(“Needs YES/NO against HRP-LOCAL-REPAIR”); } • Let QualNet know HRP as a network layer protocol • In the file include/trace.h HrpInitializeConfigurableParameterscode (some)

  50. Advanced Operating System – Spring 2012 End
