esnet doe s science network gnew march 2004

Esnet:DOE’s Science NetworkGNEW March, 2004

William E. Johnston, ESnet Manager and Senior Scientist

Michael S. Collins, Stan Kluz,Joseph Burrescia, and James V. Gagliardi, ESnet Leads

and the ESnet Team

Lawrence Berkeley National Laboratory

esnet provides
Esnet Provides
  • High bandwidth backbone and connections for Office of Science Labs and programs
  • High bandwidth peering with the US, European, and Japanese Research and Education networks
  • SecureNet (DOE classified R&D) as an overlay network
  • Science services – Grid and collaboration services
  • User support: ESnet “owns” all network trouble tickets (even from end users) until they are resolved
    • one stop shopping for user network problems
    • 7x24 coverage
    • Both network and science services problems
esnet connects doe facilities and collaborators
ESnet Connects DOE Facilities and Collaborators

GEANT

- Germany

- France

- Italy

- UK

- etc

Sinet (Japan)

Japan – Russia(BINP)

CA*net4

KDDI (Japan)

France

Switzerland

Taiwan

(TANet2)

Australia

CA*net4

Taiwan

(TANet2)

Singaren

PNNL

NERSC

SLAC

BNL

ANL

MIT

INEEL

LIGO

LBNL

LLNL

SNLL

JGI

TWC

Starlight

GTN&NNSA

4xLAB-DC

ANL-DC

INEEL-DC

ORAU-DC

LLNL/LANL-DC

JLAB

PPPL

AMES

FNAL

ORNL

SRS

LANL

SNLA

DOE-ALB

PANTEX

SDSC

ORAU

NOAA

OSTI

ARM

ALB

HUB

YUCCA MT

BECHTEL

GA

Allied

Signal

KCP

ELP HUB

ATL HUB

CHI HUB

NYC HUB

DC HUB

Office Of Science Sponsored (22)

NNSA Sponsored (12)

NREL

Joint Sponsored (3)

Other Sponsored (NSF LIGO, NOAA)

Laboratory Sponsored (6)

CA*net4

CERN

MREN

Netherlands

Russia

StarTap

Taiwan

(ASCC)

PNWG

SEA HUB

ESnet IP

Abilene

Japan

Abilene

Chi NAP

NY-NAP

QWEST

ATM

Abilene

MAE-E

SNV HUB

PAIX-E

MAE-W

Fix-W

PAIX-W

Euqinix

Abilene

42 end user sites

International (high speed)

OC192 (10G/s optical)

OC48 (2.5 Gb/s optical)

Gigabit Ethernet (1 Gb/s)

OC12 ATM (622 Mb/s)

OC12

OC3 (155 Mb/s)

T3 (45 Mb/s)

T1-T3

T1 (1 Mb/s)

peering points

ESnet backbone: Optical Ring and Hubs

hubs

SNV HUB

esnet is driven by the needs of doe science
ESnet is Driven by the Needs of DOE Science

August 13-15, 2002

Organized by Office of Science

Mary Anne Scott, Chair

Dave Bader

Steve Eckstrand

Marvin Frazier

Dale Koelling

Vicky White

Workshop Panel Chairs

Ray Bair and Deb Agarwal Bill Johnston and Mike Wilde Rick Stevens Ian Foster and Dennis Gannon Linda Winkler and Brian Tierney Sandy Merola and Charlie Catlett

  • Focused on science requirements that drive
  • Advanced Network Infrastructure
  • Middleware Research
  • Network Research
  • Network Governance Model

Available at www.es.net/#research

evolving qualitative requirements for network infrastructure

S

C

C&C

C&C

I

C&C

C&C

C&C

C

C&C

C

S

Evolving Qualitative Requirements for Network Infrastructure

S

C

S

C

guaranteedbandwidthpaths

I

1-40 Gb/s,end-to-end

I

2-4 yrs

1-3 yrs

C

C

C

C

storage

S

S

S

compute

C

instrument

I

cache &compute

C&C

S

C

C&C

C&C

I

4-7 yrs

3-5 yrs

C&C

C&C

C&C

C

C&C

100-200 Gb/s,end-to-end

C

S

new strategic directions to address needs of doe science
New Strategic Directions to Address Needs of DOE Science

June 3-5, 2003

Organized by the ESSC

Workshop Chair

Roy Whitney, JLAB

Report Editors

Roy Whitney, JLAB Larry Price, ANL

Workshop Panel Chairs

Wu-chun Feng, LANL William Johnston, LBNL Nagi Rao, ORNL David Schissel, GA Vicky White, FNAL Dean Williams, LLNL

  • Focused on what was needed to achieve the science driven network requirements of the previous workshop
  • Both Workshop reports are available at es.net/#research

Available at www.es.net/#research

esnet strategic directions
ESnet Strategic Directions
  • Developing a 5 yr. strategic plan for how to provide the required capabilities identified by the workshops
    • Between DOE Labs and their major collaborators in the University community we must address
      • Scalable bandwidth
      • Reliability
      • Quality of Service
    • Must address an appropriate set of Grid and human collaboration supporting middleware services
esnet connects doe facilities and collaborators10
ESnet Connects DOE Facilities and Collaborators

GEANT

- Germany

- France

- Italy

- UK

- etc

Sinet (Japan)

Japan – Russia(BINP)

CA*net4

KDDI (Japan)

France

Switzerland

Taiwan

(TANet2)

Australia

CA*net4

Taiwan

(TANet2)

Singaren

PNNL

NERSC

SLAC

BNL

ANL

MIT

INEEL

LIGO

LBNL

LLNL

SNLL

JGI

TWC

Starlight

GTN&NNSA

4xLAB-DC

ANL-DC

INEEL-DC

ORAU-DC

LLNL/LANL-DC

JLAB

PPPL

AMES

FNAL

ORNL

SRS

LANL

SNLA

DOE-ALB

PANTEX

SDSC

ORAU

NOAA

OSTI

ARM

ALB

HUB

YUCCA MT

BECHTEL

GA

Allied

Signal

KCP

ELP HUB

ATL HUB

CHI HUB

NYC HUB

DC HUB

Office Of Science Sponsored (22)

NNSA Sponsored (12)

NREL

Joint Sponsored (3)

Other Sponsored (NSF LIGO, NOAA)

Laboratory Sponsored (6)

CA*net4

CERN

MREN

Netherlands

Russia

StarTap

Taiwan

(ASCC)

PNWG

SEA HUB

ESnet IP

Abilene

Japan

Abilene

Chi NAP

NY-NAP

QWEST

ATM

Abilene

MAE-E

SNV HUB

PAIX-E

MAE-W

Fix-W

PAIX-W

Euqinix

Abilene

42 end user sites

International (high speed)

OC192 (10G/s optical)

OC48 (2.5 Gb/s optical)

Gigabit Ethernet (1 Gb/s)

OC12 ATM (622 Mb/s)

OC12

OC3 (155 Mb/s)

T3 (45 Mb/s)

T1-T3

T1 (1 Mb/s)

peering points

ESnet backbone: Optical Ring and Hubs

hubs

SNV HUB

slide11

PNNL

NERSC

SLAC

Brandeis

Nevis

Yale

MIT

BNL

ANL

INEEL

INEEL

LIGO

LLNL

SAN

SNLL

STARLIGHT

CHI NAP

JGI

TWC

4xLAB-DC

ANL-DC

INEEL-DC

ORAU-DC

LLNL/LANL-DC

PAIX-E

MAE-E

JLAB

PPPL

AMES

FNAL

Fix-W

Mae-W

SNV HUB

ELP HUB

SNV HUB

ELP HUB

ORNL

CHI HUB

SRS

DC HUB

ATL HUB

NYC HUBS

LANL

SNLA

SEA HUB

SEA HUB

PAIX-W

DOE-ALB

SNV

SNV

SNV

ELP

OSTI

NOAA

ORAU

ARM

ALB

HUB

SDSC/CENIC

YUCCA MT

YUCCA MT

BECHTEL

GA

Allied

Signal

Allied

Signal

Allied

Signal

ELP

Qwest Owned

SBC(PacBell) Contracted/Owned

NREL

FTS2000 Contracted/Owned

SPRINT Contracted/Owned

Level3

While ESnet Has One Backbone Provider, there areMany Local Loop Providers to Get to the Sites

NY-NAP

QWEST

ATM

LBNL/

CalRen2

GTN

DOE-NNSA

PANTEX

Qwest Contracted

Touch America (bankrupt)

MCI Contracted/Owned

Site Contracted/Owned

slide12

ESnet Logical InfrastructureConnects the DOE Community With its Collaborators

Abilene

ESnet provides complete access to the Internet by managing the full complement of Global Internet routes (about 150,000) at 10 general/commercial peering points + high-speed peerings w/ Abilene and the international networks

esnet traffic
ESnet Traffic

Annual growth in the past five years has increased from 1.7x annually to just over 2.0x annually.

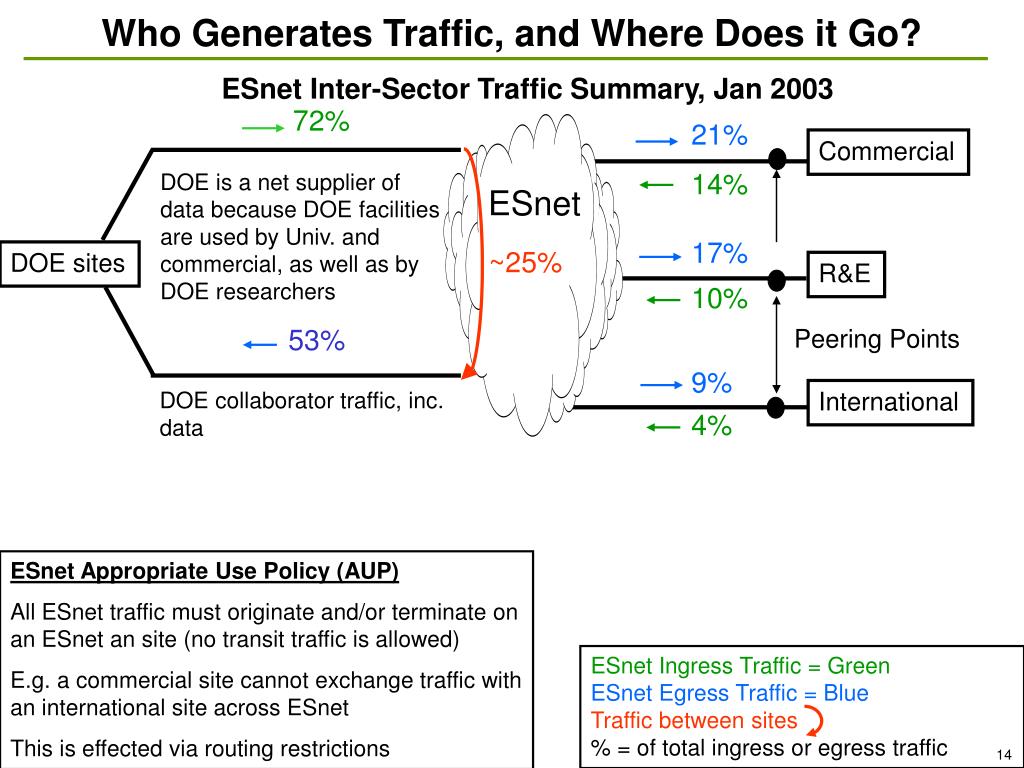

who generates traffic and where does it go
Who Generates Traffic, and Where Does it Go?

ESnet Inter-Sector Traffic Summary, Jan 2003

72%

21%

Commercial

14%

DOE is a net supplier of data because DOE facilities are used by Univ. and commercial, as well as by DOE researchers

ESnet

17%

~25%

DOE sites

R&E

10%

53%

Peering Points

9%

International

DOE collaborator traffic, inc.data

4%

ESnet Appropriate Use Policy (AUP)

All ESnet traffic must originate and/or terminate on an ESnet an site (no transit traffic is allowed)

E.g. a commercial site cannot exchange traffic with an international site across ESnet

This is effected via routing restrictions

ESnet Ingress Traffic = Green

ESnet Egress Traffic = Blue

Traffic between sites

% = of total ingress or egress traffic

esnet site architecture
ESnet Site Architecture

New York (AOA)

Chicago (CHI)

Washington, DC (DC)

The Hubs have lots of connections(42 in all)

Backbone(optical fiber ring)

Atlanta (ATL)

Sunnyvale (SNV)

ESnet responsibility

Site responsibility

El Paso (ELP)

Hubs(backbone routers and local loop connection points)

Site gateway router

ESnet border router

SiteLAN

Local loop

(Hub to local site)

DMZ

Site

securenet
SecureNet
  • SecureNet connects 10 NNSA (Defense Programs) Labs
  • Essentially a VPN with special encrypters
    • The NNSA sites exchange encrypted ATM traffic
    • The data is unclassified when ESnet gets it because it is encrypted before it leaves the NNSA sites with an NSA certified encrypter
  • Runs over the ESnet core backbone as a layer 2 overlay – that is, the SecureNet encrypted ATM is transported over ESnet’s Packet-Over-SONET infrastructure by encapsulating the ATM in MPLS using Juniper CCC
securenet mid 2003
SecureNet – Mid 2003

Backup SecureNet Path

AOA-HUB

CHI-HUB

GTN

SNV-HUB

LLNL

DC-HUB

SNLL

ORNL

KCP

DOE-AL

Pantex

LANL

Primary SecureNet Path

SNLA

SRS

ATL-HUB

ELP-HUB

SecureNet encapsulates payload encrypted ATM in MPLSusing the Juniper Router Circuit Cross Connect (CCC) feature.

slide18

6BONE

Abilene

Abilene

TWC

ESnet

LBNL

SLAC

IPv6 only

7206

7206

7206

7206

7206

IPv4/IPv6

IPv4 only

IPv6-ESnet Backbone

9peers

18 peers

BNL

StarLight

7peers

Distributed 6TAP

PAIX

LBL

Chicago

Sunnyvale

New York

ANL

FNAL

DC

Albuquerque

Atlanta

SLAC

El Paso

  • IPv6 is the next generation Internet protocol, and ESnet is working on addressing deployment issues
    • one big improvement is that while IPv4 has 32 bit – about 4x109 – addresses (which we are running short of), IPv6 has 132 bit – about 1040 – addresses (which we are not ever likely to run short of)
    • another big improvement is native support for encryption of data
operating science mission critical infrastructure
Operating Science Mission Critical Infrastructure
  • ESnet is a visible and critical pieces of DOE science infrastructure
    • if ESnet fails,10s of thousands of DOE and University users know it within minutes if not seconds
  • Requires high reliability and high operational security in the ESnet operational services – the systems that are integral to the operation and management of the network
    • Secure and redundant mail and Web systems are central to the operation and security of ESnet
      • trouble tickets are by email
      • engineering communication by email
      • engineering database interface is via Web
    • Secure network access to Hub equipment
    • Backup secure telephony access to Hub equipment
    • 24x7 help desk (joint with NERSC)
    • 24x7 on-call network engineer
disaster recovery and stability
Disaster Recovery and Stability
  • The network operational services must be kept available even if, e.g., the West coast is disabled by a massive earthquake, etc.
    • ESnet engineers in four locations across the country
    • Full and partial engineering databases and network operational service replicas in three locations
    • Telephone modem backup access to all hub equipment
  • All core network hubs are located in commercial telecommunication facilities with high physical security and backup power
disaster recovery and stability21

BNL

LBNL

TWC

PPPL

AMES

ELP HUB

SNV HUB

CHI HUB

NYC HUBS

DC HUB

ATL HUB

SEA HUB

SDSC

ALB

HUB

Disaster Recovery and Stability
  • Engineers, 24x7 NOC, generator backed power
  • Spectrum (net mgmt system)
  • DNS (name – IP address translation)
  • Eng database
  • Load database
  • Config database
  • Public and private Web
  • E-mail (server and archive)
  • PKI cert. repository and revocation lists
  • collaboratory authorization service
  • Remote Engineer
  • partial duplicate infrastructure

DNS

Remote

Engineer

Duplicate Infrastructure

(currently deploying full replication of the NOC databases and servers and Science Services databases)

Engineers

Eng Srvr

Load Srvr

Config Srvr

  • ESnet backbone operated without interruption through
    • N. Calif. Power blackout of 2000
    • the 9/11 attacks
    • the Sept., 2003 NE States power blackout
maintaining science mission critical infrastructure in the face of cyberattack
Maintaining Science Mission Critical Infrastructurein the Face of Cyberattack
  • A Phased Security Architecture is being implemented to protect the network and the sites
  • The phased response ranges from blocking certain site traffic to a complete isolation of the network which allows the sites to continue communicating among themselves in the face of the most virulent attacks
    • Separates ESnet core routing functionality from external Internet connections by means of a “peering” router that can have a policy different from the core routers
    • Provide a rate limited path to the external Internet that will insure site-to-site communication during an external denial of service attack
    • provide “lifeline” connectivity for downloading of patches, exchange of e-mail and viewing web pages (i.e.; e-mail, dns, http, https, ssh, etc.) with the external Internet prior to full isolation of the network
phased response to cyberattack
Phased Response to Cyberattack

ESnet third response – shut down the main peering path and provide only a limited bandwidth path for specific “lifeline” services

ESnet first response – filters to assist a site

ESnet second response – filter traffic from outside of ESnet

peeringrouter

X

X

router

ESnet

router

LBNL

attack traffic

router

X

borderrouter

Lab first response – filter incoming traffic at their ESnet gateway router

gatewayrouter

peeringrouter

border router

Lab

gatewayrouter

Lab

Sapphire/Slammer worm infection created almost a Gb/s traffic spike on the ESnet backbone until filters were put in place (both into and out of sites) to damp it out.

future directions the 5 yr network strategy
Future Directions – the 5 yr Network Strategy
  • Elements
    • University connectivity
    • Scalable and reliable site connectivity
    • Provisioned circuits for hi-impact science bandwidth
    • Close collaboration with the network R&D community
    • Services supporting science (Grid middleware, collaboration services, etc.)
5 yr strategy near term goal 1
5 yr Strategy – Near Term Goal 1
  • Connectivity between any DOE Lab and any Major University should be as good as ESnet connectivity between DOE Labs and Abilene connectivity between Universities
    • Partnership with I2/Abilene
    • Multiple high-speed peering points
    • Routing tailored to take advantage of this
    • Latency and bandwidth from DOE Lab to University should be comparable to intra ESnet or intra Abilene
    • Continuous monitoring infrastructure to verify
5 yr strategy near term goal 2

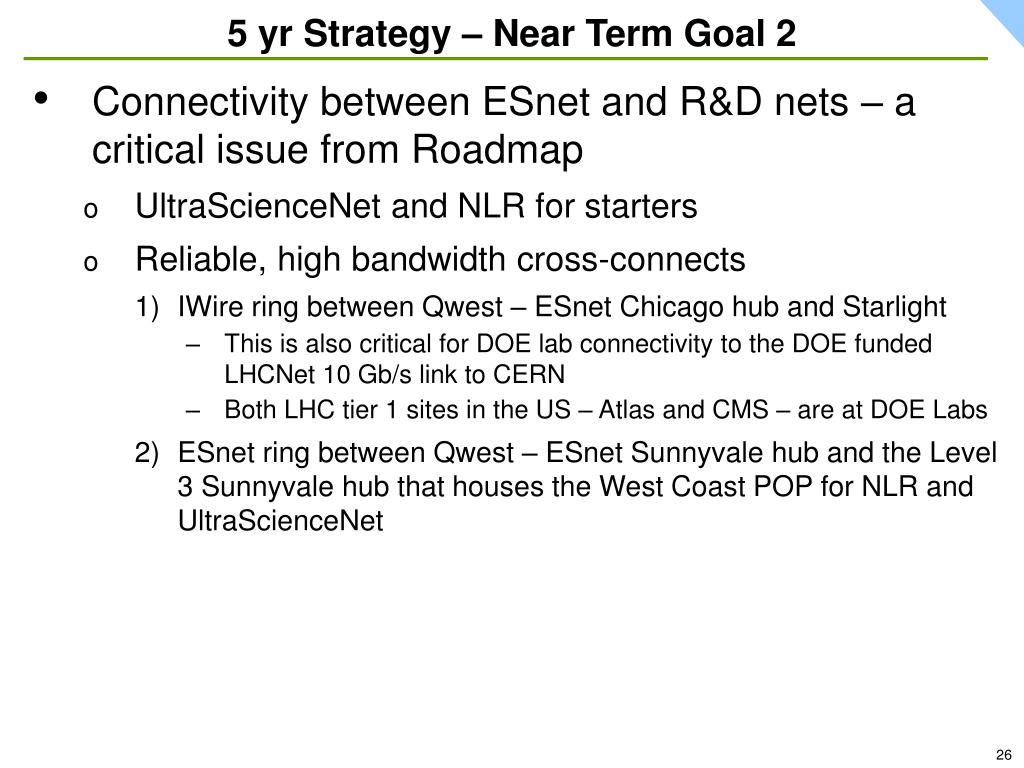

5 yr Strategy – Near Term Goal 2
  • Connectivity between ESnet and R&D nets – a critical issue from Roadmap
    • UltraScienceNet and NLR for starters
    • Reliable, high bandwidth cross-connects
      • IWire ring between Qwest – ESnet Chicago hub and Starlight
        • This is also critical for DOE lab connectivity to the DOE funded LHCNet 10 Gb/s link to CERN
        • Both LHC tier 1 sites in the US – Atlas and CMS – are at DOE Labs
      • ESnet ring between Qwest – ESnet Sunnyvale hub and the Level 3 Sunnyvale hub that houses the West Coast POP for NLR and UltraScienceNet
5 yr strategy near medium term goal
5 yr Strategy – Near-Medium Term Goal
  • Scalable and reliable site connectivity
    • Fiber / lambda ring based Metropolitan Area Networks
    • Preliminary engineering study completed for San Francisco Bay Area and Chicago area
      • Proposal submitted
      • At least one of these is very likely to be funded this year
  • Hi-impact science bandwidth – provisioned circuits
esnet future architecture
ESnet Future Architecture
  • Migrate site local loops to ring structured Metropolitan Area Network and regional nets in some areas
    • Goal is local rings, like the backbone, that provide multiple paths
  • Dynamic provisioning of private “circuits” in the MAN and through the backbone to provide “high impact science” connections
    • This should allow high bandwidth circuits to go around site firewalls to connect specific systems. The circuits are secure and end-to-end, so if the sites trust each other, they should allow direct connections if they have compatible security policies. E.g. HPSS <-> HPSS
  • Partnership with DOE UltraNet, Internet 2 HOPI, and National Lambda Rail
esnet future architecture29
ESnet Future Architecture

site

one optical fiber pairDWDM providing point-to-point, unprotected circuits

provisioned circuits initially via MPLS paths, eventually via lambda paths

Layer 2 management equipment (e.g. 10 GigEthernet switch)

MetropolitanAreaNetworks

corering

site

Layer 3 (IP)management equipment (router)

production IP

provisioned circuits carriedover lambdas

Optical channel (λ) management equipment

provisioned circuits carriedas tunnels through the ESnetIP backbone

site

esnet man architecture example

T320

monitor

monitor

ESnet MAN Architecture - Example

CERN(DOE funded link)

StarLight

Qwest hub

Current DMZs are back-hauled to the core router

Implemented via 2 VLANs – one in each direction around the ring

ESnet core

other international peerings

Vendor neutral

facility

ESnet managedλ / circuit services

ESnet management and monitoring – partly to compensate for no site router

  • Ethernet switch
  • DMZ VLANs
  • Management of provisioned circuits

ESnet managedλ / circuit services

tunneled through the IP backbone via MPLS

ESnet production IP service

ANL

FNAL

site equip.

Site gateway router

site equip.

Site gateway router

Site LAN

Site LAN

future esnet architecture

Specific host, instrument, etc.

Specific host, instrument, etc.

common security policy

Future ESnet Architecture

circuit cross connect

ESnet border

Site gateway router

MANoptical fiber ring

SiteLAN

DMZ

Site

New York (AOA)

Washington

ESnetbackbone

Atlanta (ATL)

Private “circuit” from one Lab to another

El Paso (ELP)

circuit cross connect

Site gateway router

ESnet border

SiteLAN

MANoptical fiber ring

DMZ

Site

long term esnet connectivity goal
Long-Term ESnet Connectivity Goal
  • MANs for scalable bandwidth and redundant site access to backbone
  • Connecting MANs with two backbones to ensure against hub failure (for example NLR is shown as the second backbone below)

Japan

Europe

CERN/Europe

Japan

MANs

Local loops

High-speed cross connects with Internet2/Abilene

Qwest

Major DOE Office of Science Sites

NLR

long term esnet bandwidth goal

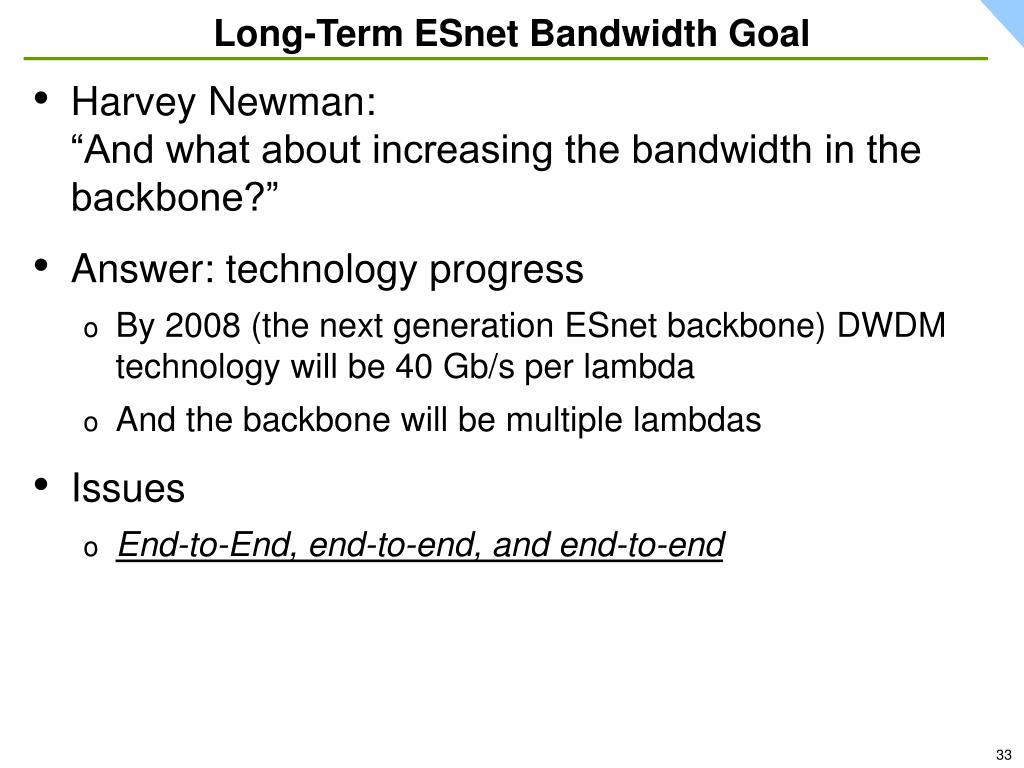

Long-Term ESnet Bandwidth Goal
  • Harvey Newman:“And what about increasing the bandwidth in the backbone?”
  • Answer: technology progress
    • By 2008 (the next generation ESnet backbone) DWDM technology will be 40 Gb/s per lambda
    • And the backbone will be multiple lambdas
  • Issues
    • End-to-End, end-to-end, and end-to-end
science services strategy
Science Services Strategy
  • ESnet is in a natural position to be the provider of choice for a number of middleware services that support collaboration, colaboratories, Grids, etc.
  • The characteristics of ESnet that make it a natural middleware provider are that ESnet
    • is the only computing related organization that serves all of the Office of Science
    • is trusted and well respected in the OSC community
    • has the 7x24 infrastructure required to support critical services, and is a long-term stable organization.
  • The characteristics of the services for which ESnet is the natural provider are those that
    • require long-term persistence of the service or the data associated with the service
    • require high availability, require a high degree of integrity on the part of the provider
    • are situated at the root of a hierarchy so that the service scales in the number of people that it serves by adding nodes that are managed by local organizations (so that ESnet does not have a large and constantly growing direct user base).
science services strategy35
Science Services Strategy
  • DOE Grids CA that provides X.509 identity certificates to support Grid authentication provides an example of this model
    • the service requires a highly trusted provider, requires a high degree of availability
    • provides a centralized agent for negoiating trust relationships with, e.g., European CAs
    • it scales by adding site based or Virtual Organization based Registration Agents that interact directly with the users
science services public key infrastructure
Science Services: Public Key Infrastructure
  • Public Key Infrastructure supports cross-site, cross-organization, and international trust relationships that permit sharing computing and data resources and other Grid services
  • Digital identity certificates for people, hosts and services – essential core service for Grid middleware
    • provides formal and verified trust management – an essential service for widely distributed heterogeneous collaboration, e.g. in the International High Energy Physics community
    • DOE Grids CA
  • Have recently added a second CA with a policy that permits bulk issuing of certificates with central private key mg’mt
    • Important for secondary issuers
      • NERSC will auto issue certs when accounts are set up – this constitutes an acceptable identity verification
      • May also be needed for security domain gateways such asKerberos – X509 – e.g. KX509
science services public key infrastructure37
Science Services: Public Key Infrastructure
  • Policy Management Authority – negotiates and manages the formal trust instrument (Certificate Policy - CP)
    • Sets and interprets procedures that are carried out by ESnet
    • Currently facing an important oversight situation involving potential compromise of user X.509 cert private keys
      • Boys-from-Brazil style exploit => kbd sniffer on several systems that housed Grid certs
      • Is there sufficient forensic information to say that the pvt keys were not compromised??
        • Is any amount of forensic information sufficient to guarantee this, or should the certs be revoked?
        • Policy refinement by experience
  • Registration Agents (RAs) validate users against the CP and authorize the CA to issue digital identity certs
  • This service was the basis of the first routine sharing of HEP computing resources between US and Europe
science services public key infrastructure38
Science Services: Public Key Infrastructure
  • The rapidly expanding customer base of this service will soon make it ESnet’s largest collaboration service by customer count
voice video and data collaboration service
Voice, Video, and Data Collaboration Service
  • The other highly successful ESnet Science Service is the audio, video, and data teleconferencing service to support human collaboration
  • Seamless voice, video, and data teleconferencing is important for geographically dispersed collaborators
    • ESnet currently provides voice conferencing, videoconferencing (H.320/ISDN scheduled, H.323/IP ad-hoc), and data collaboration services to more than a thousand DOE researchers worldwide
voice video and data collaboration service40
Voice, Video, and Data Collaboration Service
    • Heavily used services, averaging around
      • 4600 port hours per month for H.320 videoconferences,
      • 2000 port hours per month for audio conferences
      • 1100 port hours per month for H.323
      • approximately 200 port hours per month for data conferencing
  • Web-Based registration and scheduling for all of these services
    • authorizes users efficiently
    • lets them schedule meetings

Such an automated approach is essential for a scalable service – ESnet staff could never handle all of the reservations manually

science services strategy41
Science Services Strategy
  • The Roadmap Workshop identified twelve high priority middleware services, and several of these fit the criteria for ESnet support. These include, for example
    • long-term PKI key and proxy credential management (e.g. an adaptation of the NSF’s MyProxy service)
    • directory services that virtual organizations (VOs) can use to manage organization membership, member attributes and privileges
    • perhaps some form of authorization service
    • in the future, some knowledge management services that have the characteristics of an ESnet service are also likely to be important
  • ESnet is seeking the addition funding necessary to develop, deploy, and support these types of middleware services.
conclusions
Conclusions
  • ESnet is an infrastructure that is critical to DOE’s science mission and that serves all of DOE
  • Focused on the Office of Science Labs
  • ESnet is evolving its architecture and services strategy to need the stated requirements for bandwidth, reliability, QoS, and Grid and collaboration supporting services
