EIS STATUS. J.L. Culhane 3 rd February, 2003. SOLAR-B PROJECT OVERVIEW. Solar-B MTM Spacecraft at ISAS for Vibration Tests. SOLAR-B PROJECT OVERVIEW. Solar-B – Removal from Thermal Test Chamber. SOLAR-B PROJECT OVERVIEW. Solar-B – Leaving Test Area. SOLAR-B PROJECT OVERVIEW.

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'EIS STATUS' - lot


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
eis status

EIS STATUS

J.L. Culhane

3rd February, 2003

slide2
SOLAR-B PROJECT OVERVIEW

Solar-B MTM Spacecraft at ISAS for Vibration Tests

slide3
SOLAR-B PROJECT OVERVIEW

Solar-B – Removal from Thermal Test Chamber

slide4
SOLAR-B PROJECT OVERVIEW

Solar-B – Leaving Test Area

slide5
SOLAR-B PROJECT OVERVIEW

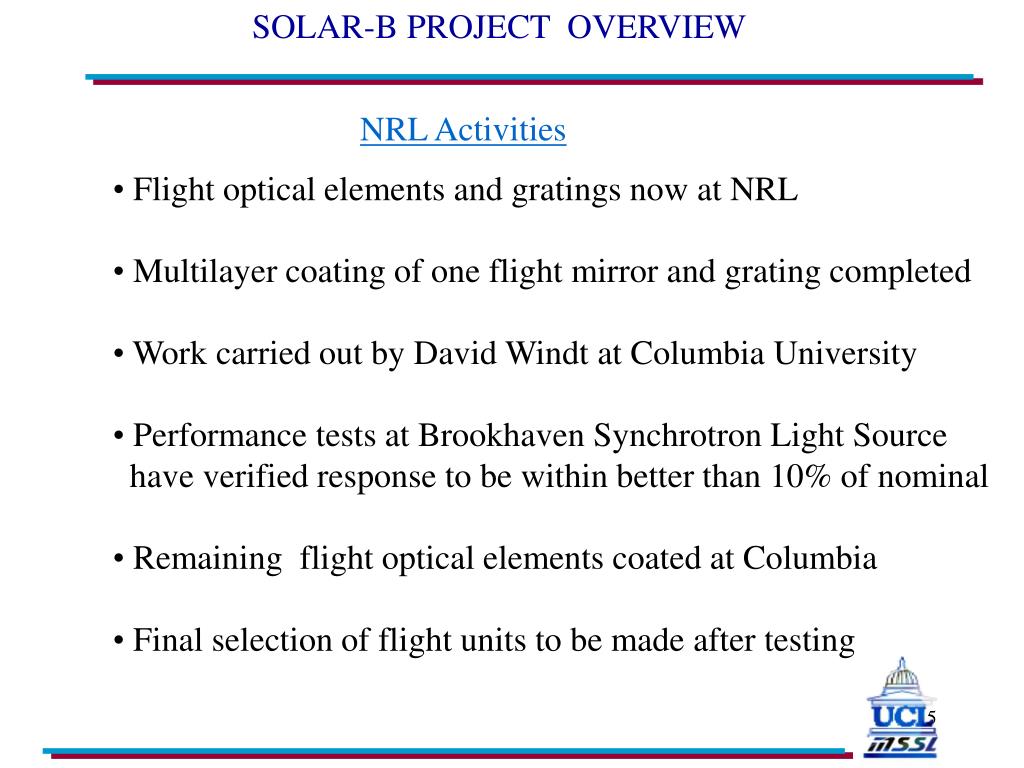

NRL Activities

  • Flight optical elements and gratings now at NRL
  • Multilayer coating of one flight mirror and grating completed
  • Work carried out by David Windt at Columbia University
  • Performance tests at Brookhaven Synchrotron Light Source
  • have verified response to be within better than 10% of nominal
  • Remaining flight optical elements coated at Columbia
  • Final selection of flight units to be made after testing
slide6
SOLAR-B PROJECT OVERVIEW

Synchrotron Light Source (SLS) Monochromator Samples

Reference

Points

slide7
SOLAR-B PROJECT OVERVIEW

EIS M1 Mirror Reflectance Measurements

slide8
SOLAR-B PROJECT OVERVIEW

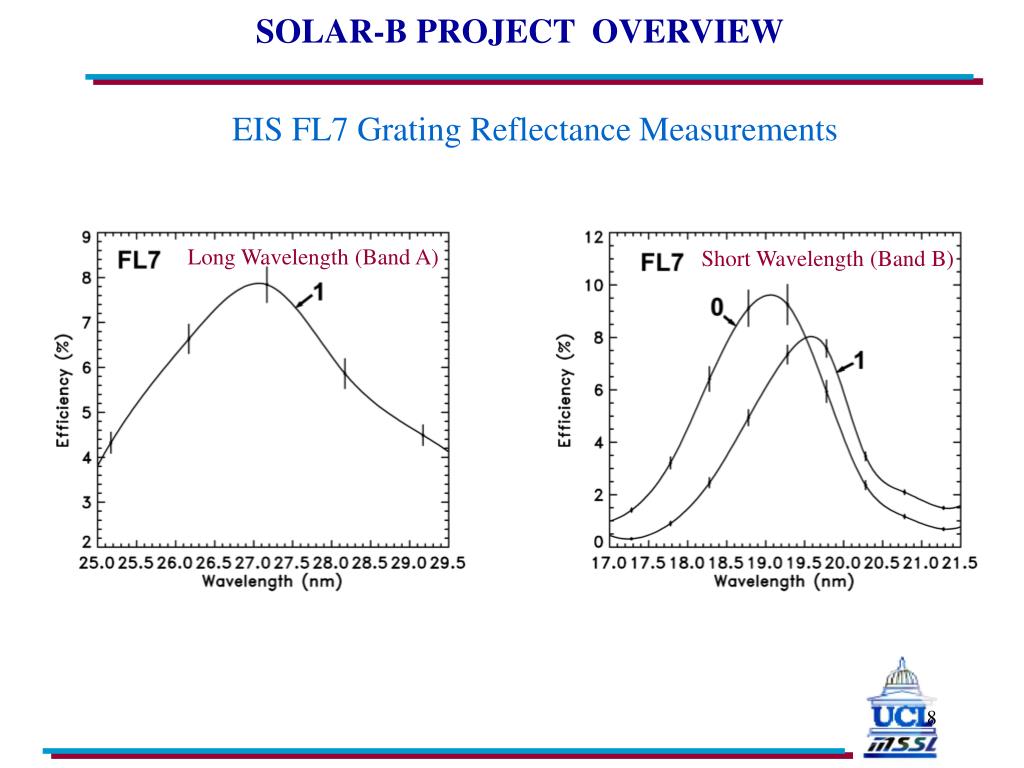

EIS FL7 Grating Reflectance Measurements

Long Wavelength (Band A)

Short Wavelength (Band B)

slide9
SOLAR-B PROJECT OVERVIEW

CCD Quantum Efficiency Measurements

  • Representative CCD from the flight batch will be measured
  • Testing will take place at the Brookhaven SLS in the period
  • 11 – 15 November
  • Chris McFee will use the NRL beamline and monochromator
  • with NRL assistance
  • New Test Mid Feb 2003.
