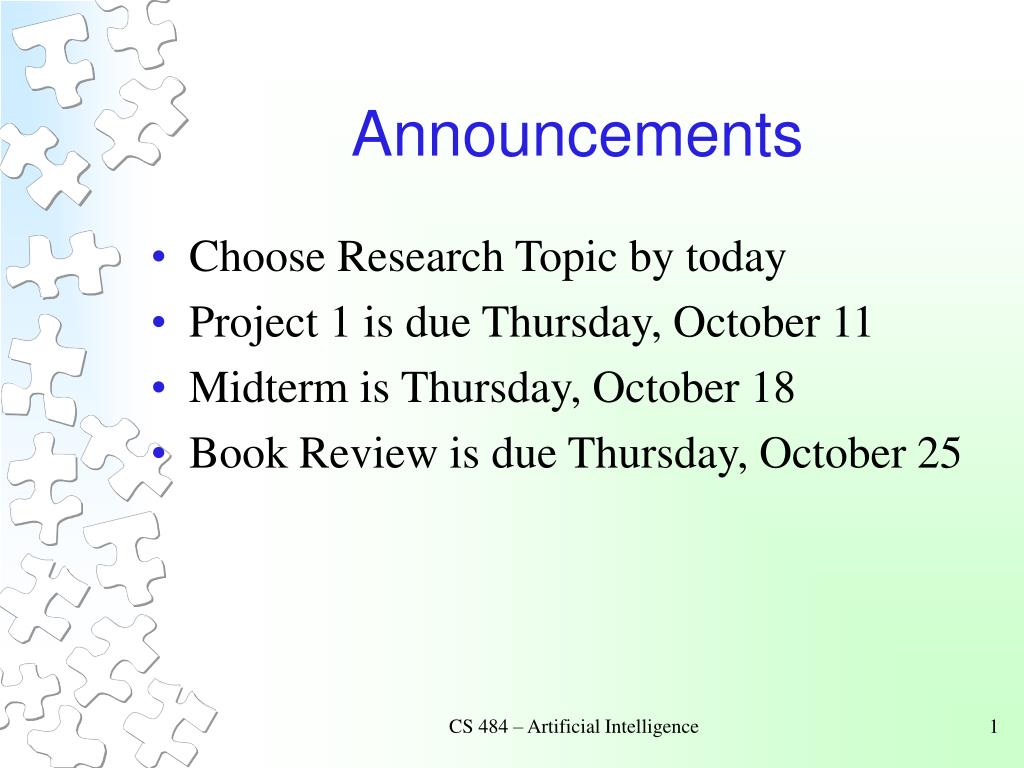

  1. Announcements • Choose Research Topic by today • Project 1 is due Thursday, October 11 • Midterm is Thursday, October 18 • Book Review is due Thursday, October 25 CS 484 – Artificial Intelligence

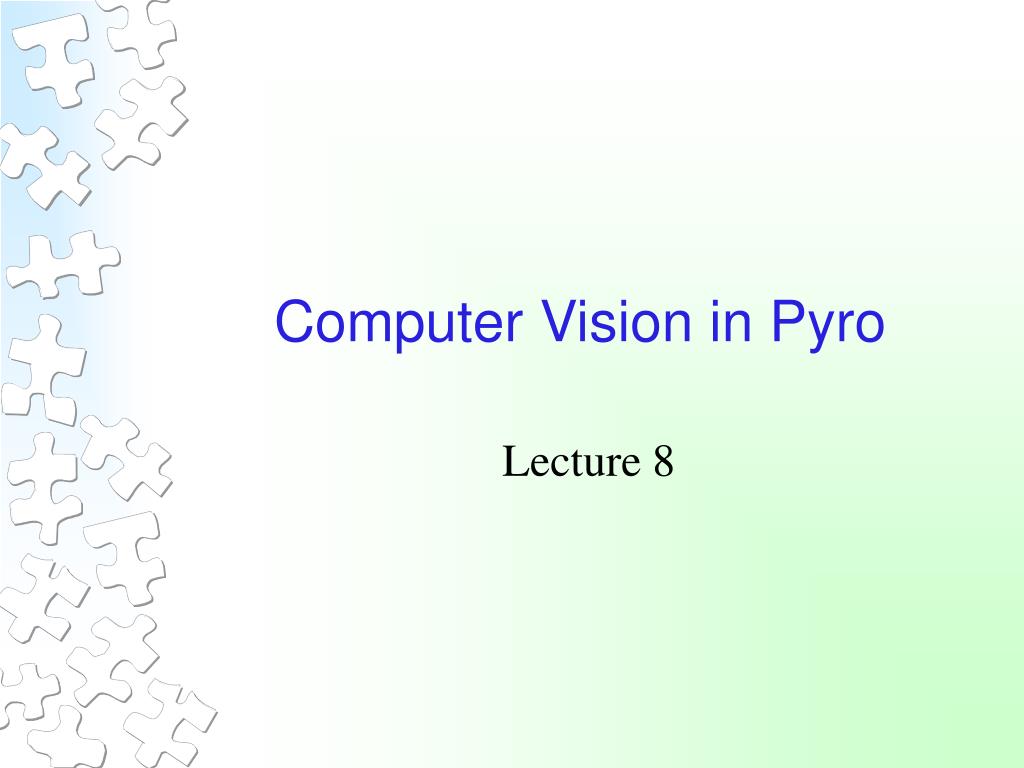

  2. Computer Vision in Pyro Lecture 8

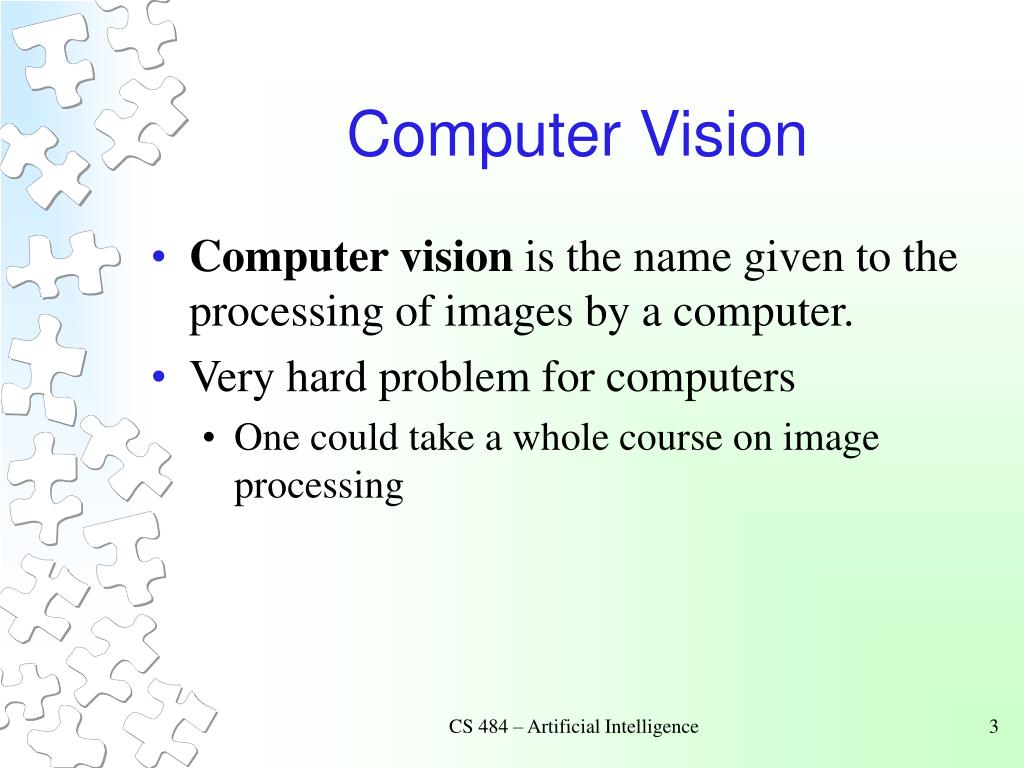

  3. Computer Vision • Computer vision is the name given to the processing of images by a computer. • Very hard problem for computers • One could take a whole course on image processing CS 484 – Artificial Intelligence

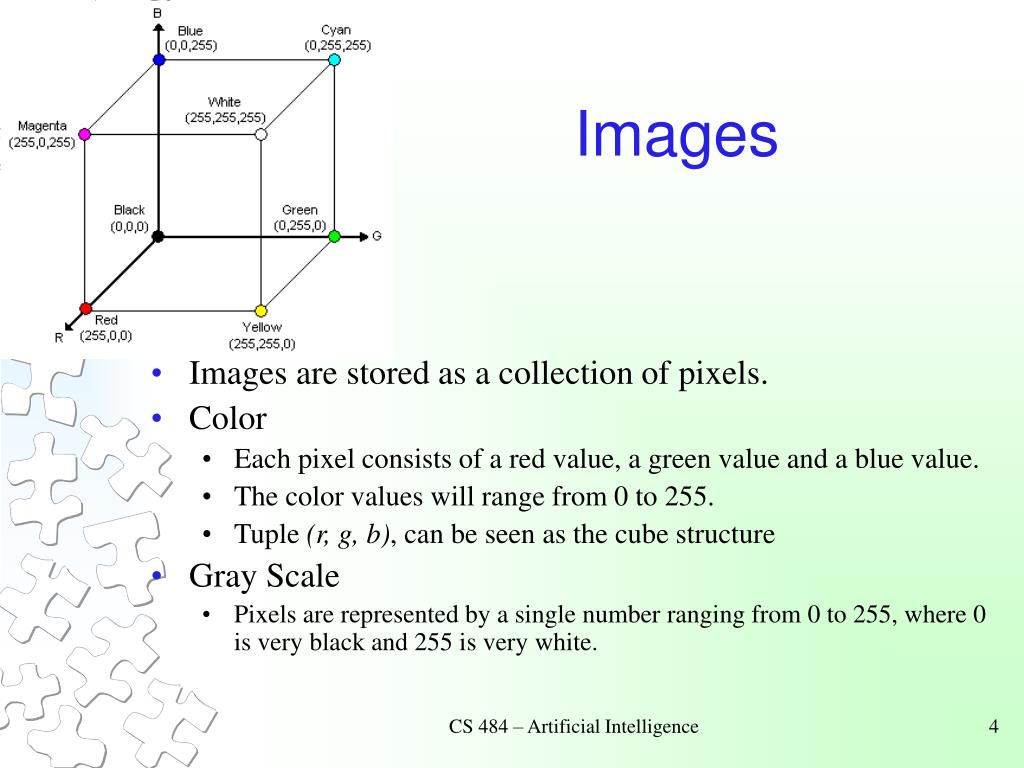

  4. Images • Images are stored as a collection of pixels. • Color • Each pixel consists of a red value, a green value and a blue value. • The color values will range from 0 to 255. • Tuple (r, g, b), can be seen as the cube structure • Gray Scale • Pixels are represented by a single number ranging from 0 to 255, where 0 is very black and 255 is very white. CS 484 – Artificial Intelligence

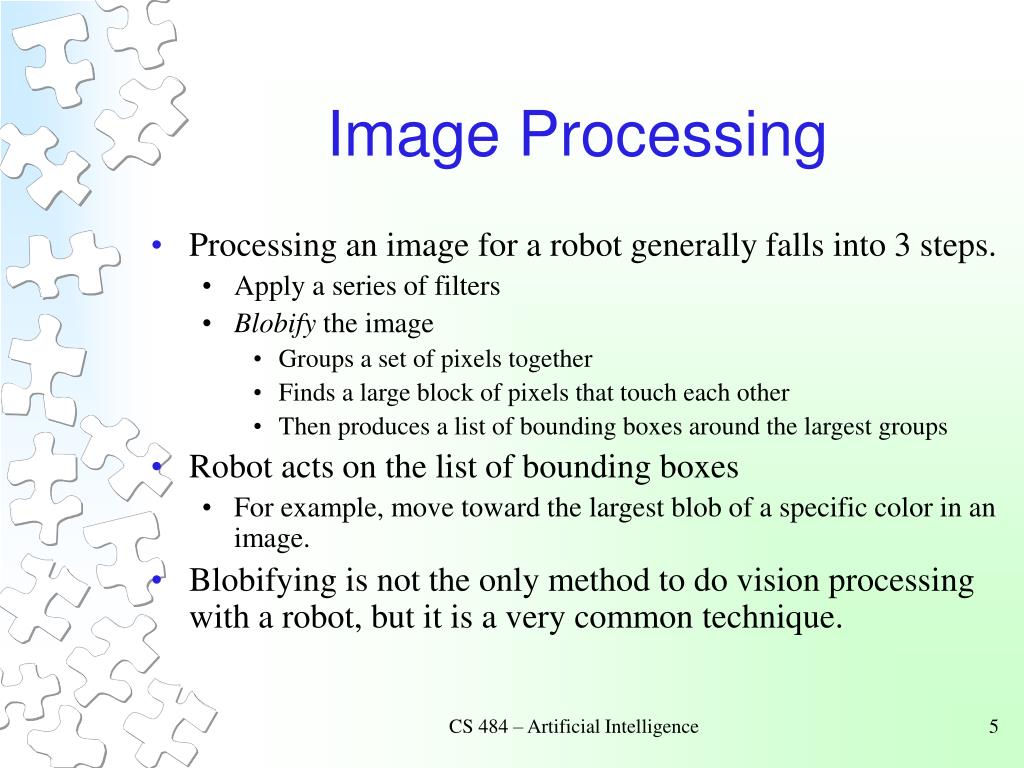

  5. Image Processing • Processing an image for a robot generally falls into 3 steps. • Apply a series of filters • Blobify the image • Groups a set of pixels together • Finds a large block of pixels that touch each other • Then produces a list of bounding boxes around the largest groups • Robot acts on the list of bounding boxes • For example, move toward the largest blob of a specific color in an image. • Blobifying is not the only method to do vision processing with a robot, but it is a very common technique. CS 484 – Artificial Intelligence

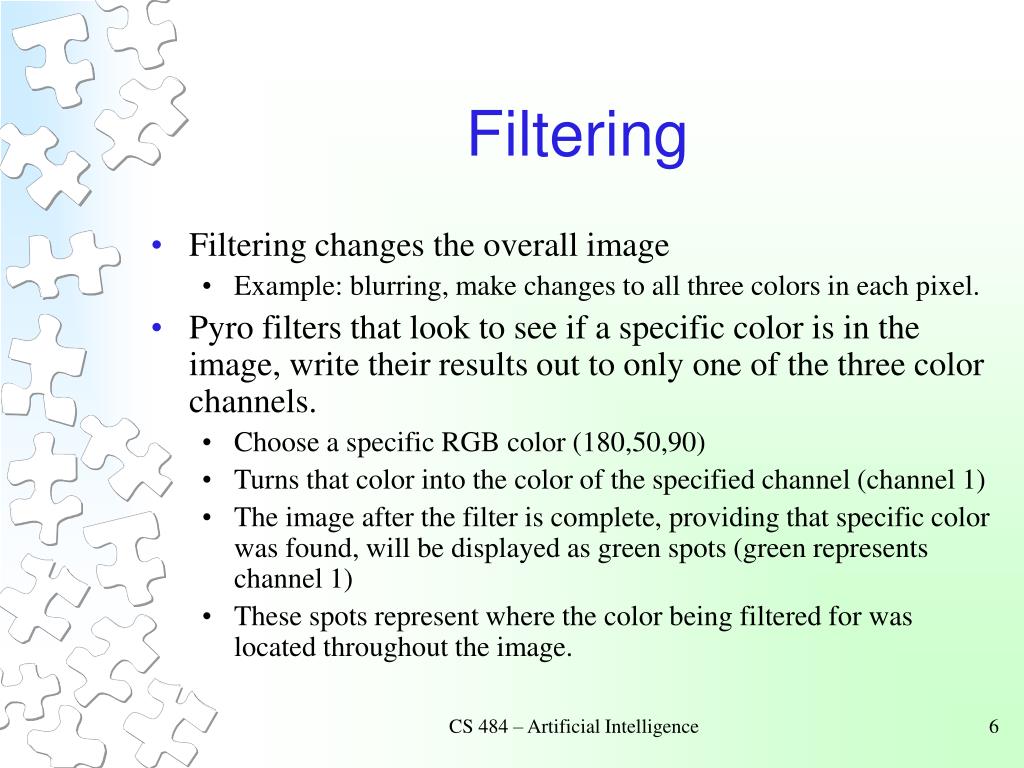

  6. Filtering • Filtering changes the overall image • Example: blurring, make changes to all three colors in each pixel. • Pyro filters that look to see if a specific color is in the image, write their results out to only one of the three color channels. • Choose a specific RGB color (180,50,90) • Turns that color into the color of the specified channel (channel 1) • The image after the filter is complete, providing that specific color was found, will be displayed as green spots (green represents channel 1) • These spots represent where the color being filtered for was located throughout the image. CS 484 – Artificial Intelligence

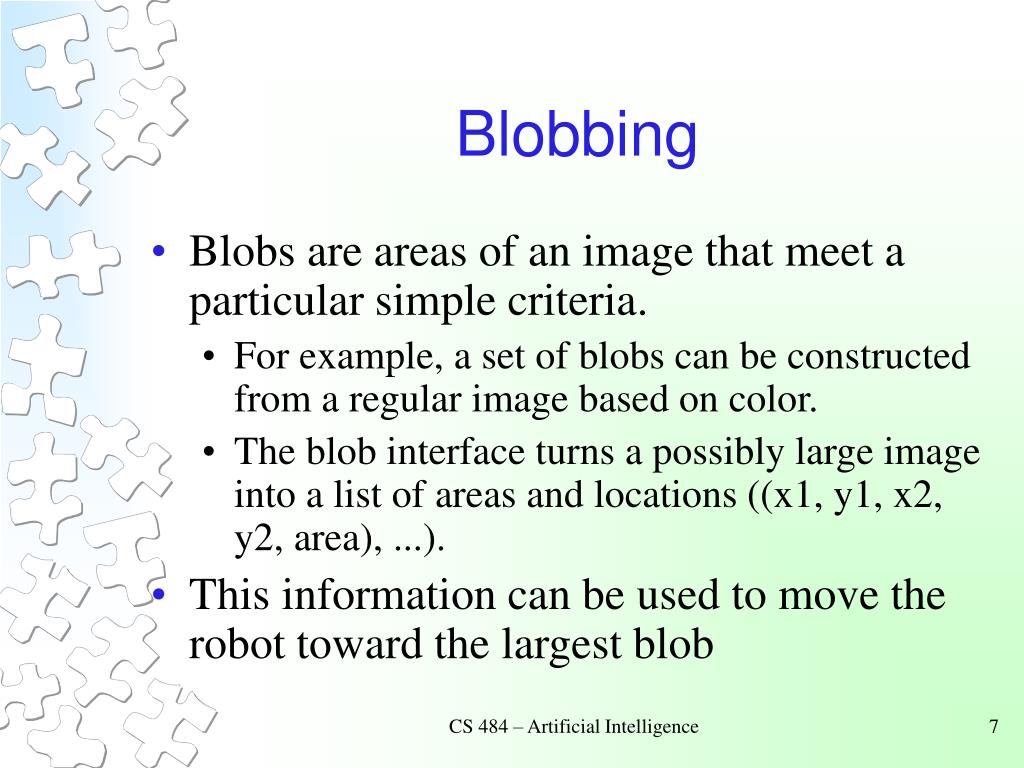

  7. Blobbing • Blobs are areas of an image that meet a particular simple criteria. • For example, a set of blobs can be constructed from a regular image based on color. • The blob interface turns a possibly large image into a list of areas and locations ((x1, y1, x2, y2, area), ...). • This information can be used to move the robot toward the largest blob CS 484 – Artificial Intelligence

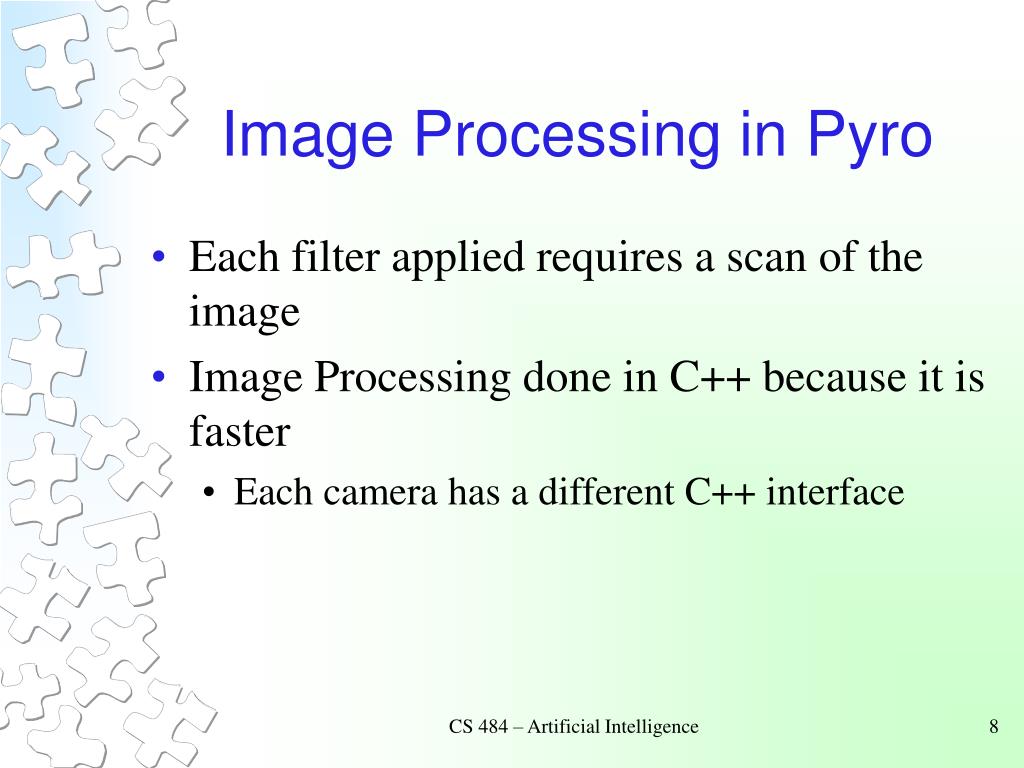

  8. Image Processing in Pyro • Each filter applied requires a scan of the image • Image Processing done in C++ because it is faster • Each camera has a different C++ interface CS 484 – Artificial Intelligence

  9. Instructions • Load Robot: Test.py • Load Device: TutorialCamera2 • Make the camera window larger • Tear off "View" menu in Camera Window • Adjust the speeds and watch • Pause the image when you have a good view of Dino • Tear off "Filter" menu in Camera Window CS 484 – Artificial Intelligence

  10. Continue Instructions • Right click on part of the Dino image • Turns part of Dino red • Applies a "match" filter to that color • If you don't like the amount of red, you can try again • Clear Filters and try again • Add filter Supercolor – Red • This will turn the rest of the image black • Add filter Blobify – Red • Draws a box around the largest blob • Press Play • See what happens • Does the box stay on Dino? CS 484 – Artificial Intelligence

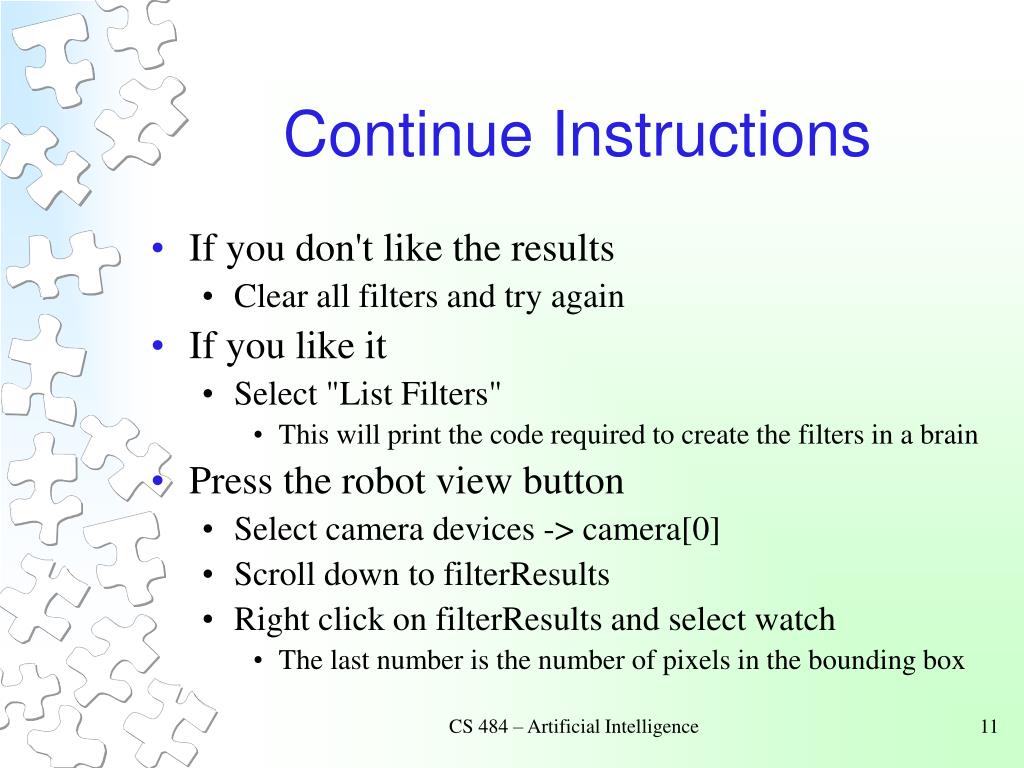

  11. Continue Instructions • If you don't like the results • Clear all filters and try again • If you like it • Select "List Filters" • This will print the code required to create the filters in a brain • Press the robot view button • Select camera devices -> camera[0] • Scroll down to filterResults • Right click on filterResults and select watch • The last number is the number of pixels in the bounding box CS 484 – Artificial Intelligence

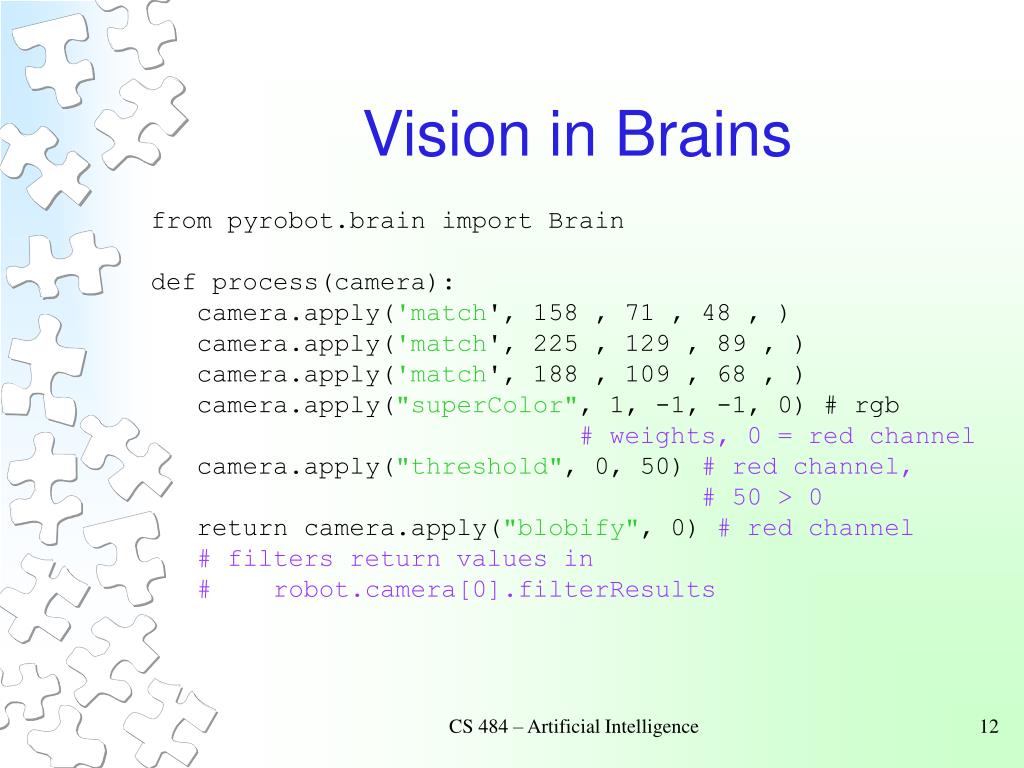

  12. Vision in Brains from pyrobot.brain import Brain def process(camera): camera.apply('match', 158 , 71 , 48 , ) camera.apply('match', 225 , 129 , 89 , ) camera.apply('match', 188 , 109 , 68 , ) camera.apply("superColor", 1, -1, -1, 0) # rgb # weights, 0 = red channel camera.apply("threshold", 0, 50) # red channel, # 50 > 0 return camera.apply("blobify", 0) # red channel # filters return values in # robot.camera[0].filterResults CS 484 – Artificial Intelligence

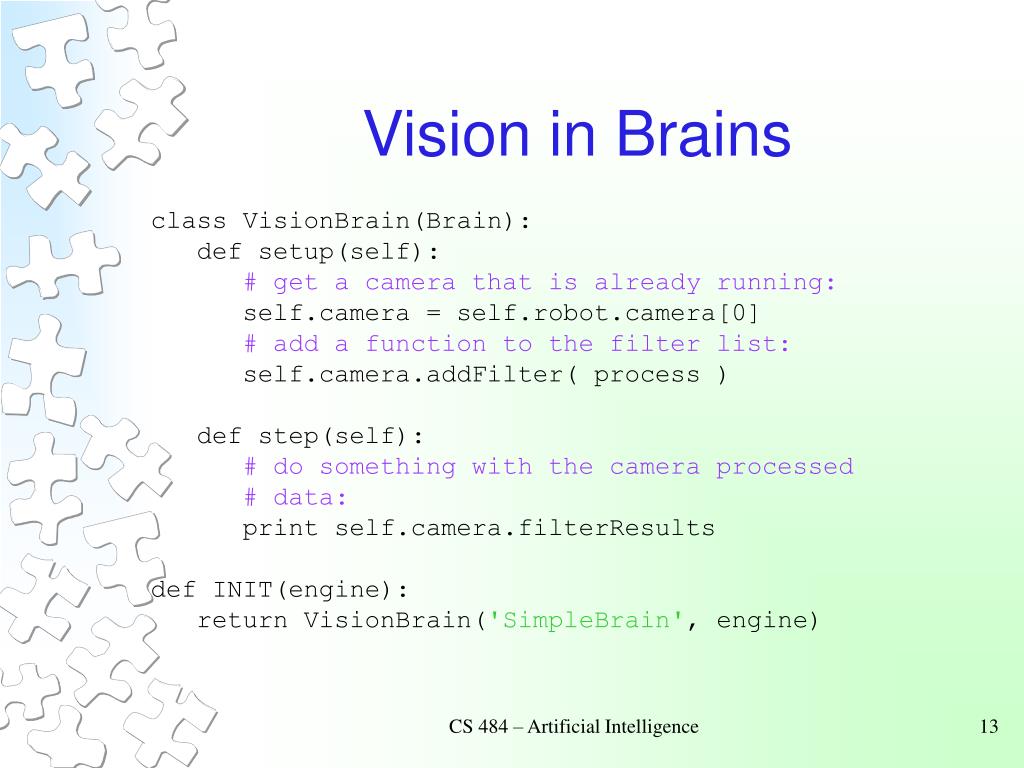

  13. Vision in Brains class VisionBrain(Brain): def setup(self): # get a camera that is already running: self.camera = self.robot.camera[0] # add a function to the filter list: self.camera.addFilter( process ) def step(self): # do something with the camera processed # data: print self.camera.filterResults def INIT(engine): return VisionBrain('SimpleBrain', engine) CS 484 – Artificial Intelligence
