Presentation Transcript


  1. MEASUREMENT AND MODELING OF A WEB-BASED QUESTION ANSWERING SYSTEM Chunyi Peng, Zaoyang Gong, Guobin shen Microsoft Research Asia HotWeb 2006

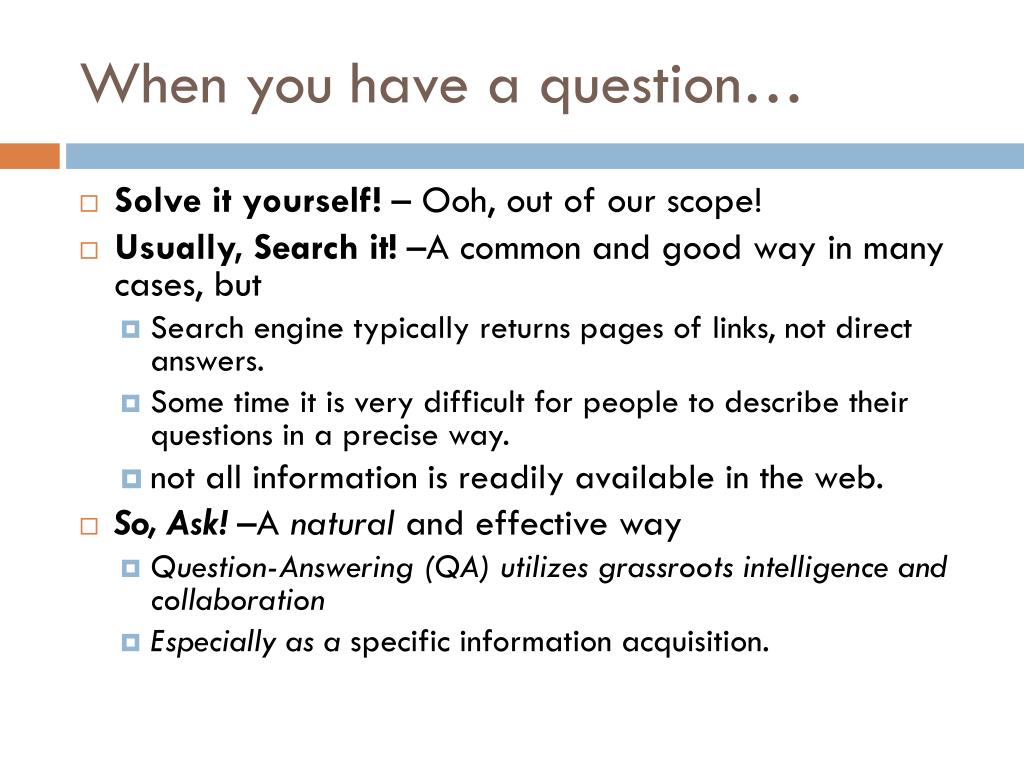

  2. When you have a question… • Solve it yourself! – Ooh, out of our scope! • Usually, Search it! –A common and good way in many cases, but • Search engine typically returns pages of links, not direct answers. • Some time it is very difficult for people to describe their questions in a precise way. • not all information is readily available in the web. • So, Ask! –A natural and effective way • Question-Answering (QA) utilizes grassroots intelligence and collaboration • Especially as a specific information acquisition.

  3. So, our goals… • Measurement and modeling o f a real large-scale QA system • how a real QA system works? • What are the typical user behaviors and their impacts? • Seek Better QA system • How to design a QA system? • How to make performance tradeoffs?

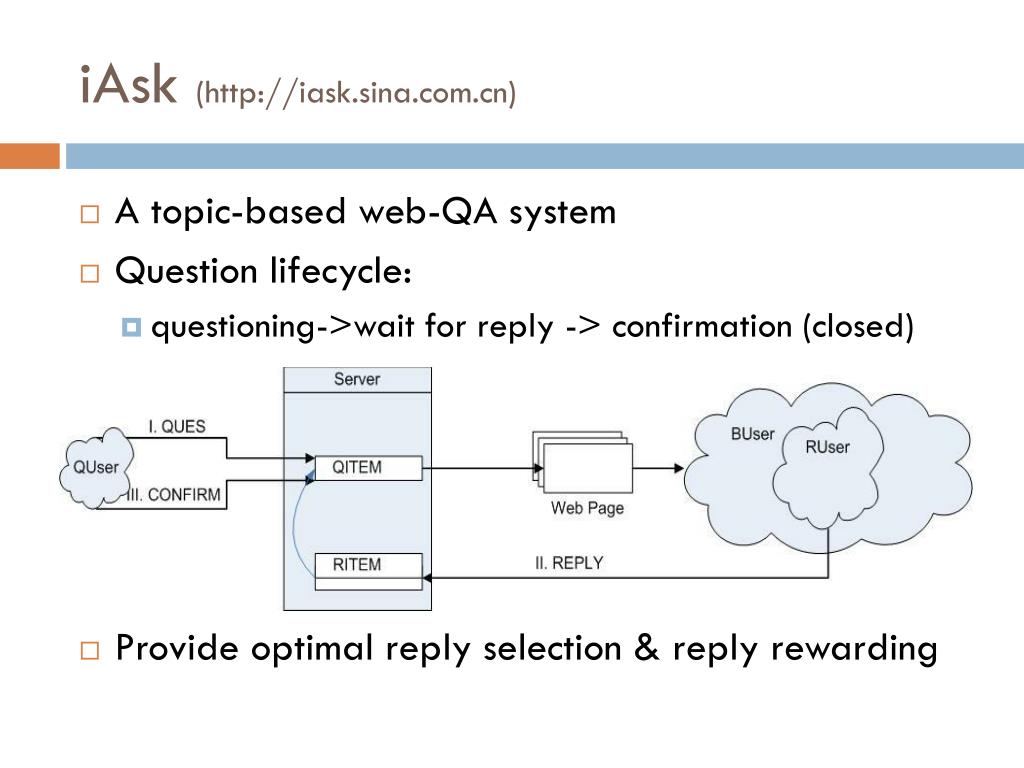

  4. iAsk (http://iask.sina.com.cn) • A topic-based web-QA system • Question lifecycle: • questioning->wait for reply -> confirmation (closed) • Provide optimal reply selection & reply rewarding

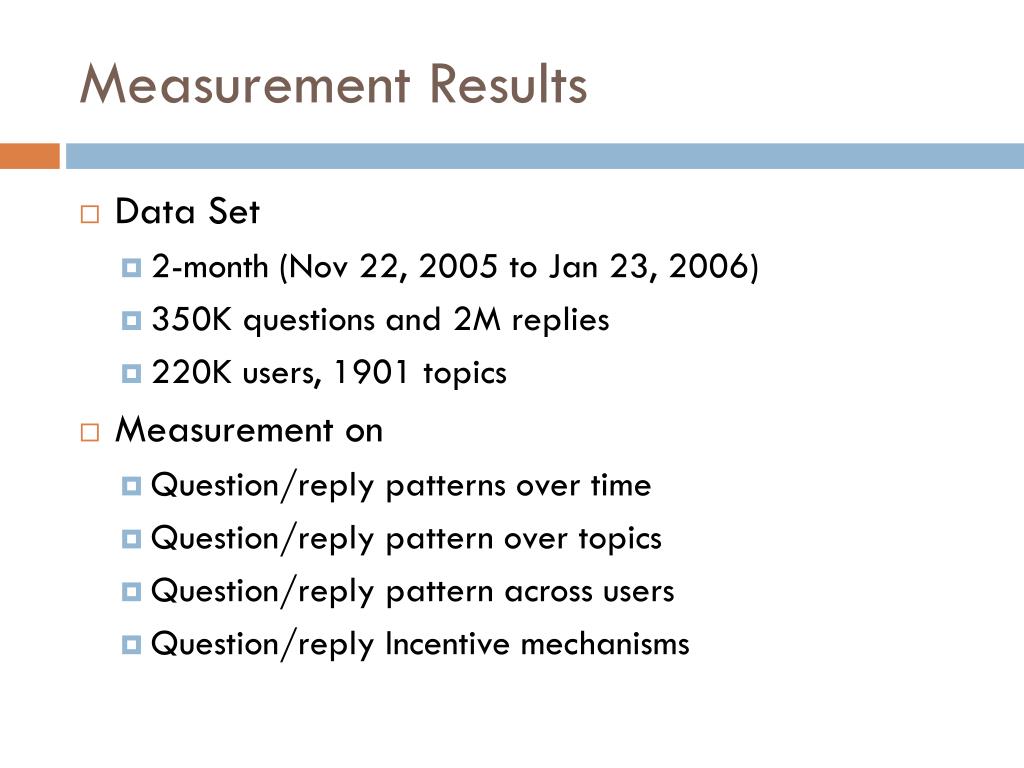

  5. Measurement Results • Data Set • 2-month (Nov 22, 2005 to Jan 23, 2006) • 350K questions and 2M replies • 220K users, 1901 topics • Measurement on • Question/reply patterns over time • Question/reply pattern over topics • Question/reply pattern across users • Question/reply Incentive mechanisms

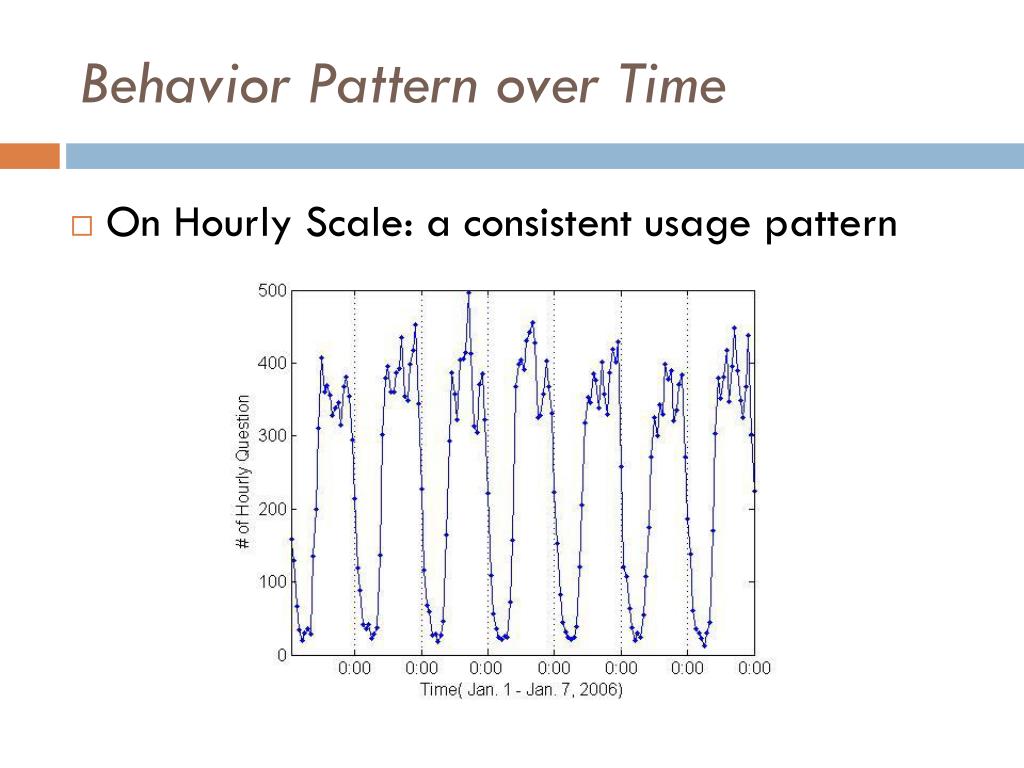

  6. Behavior Pattern over Time • On Hourly Scale: a consistent usage pattern

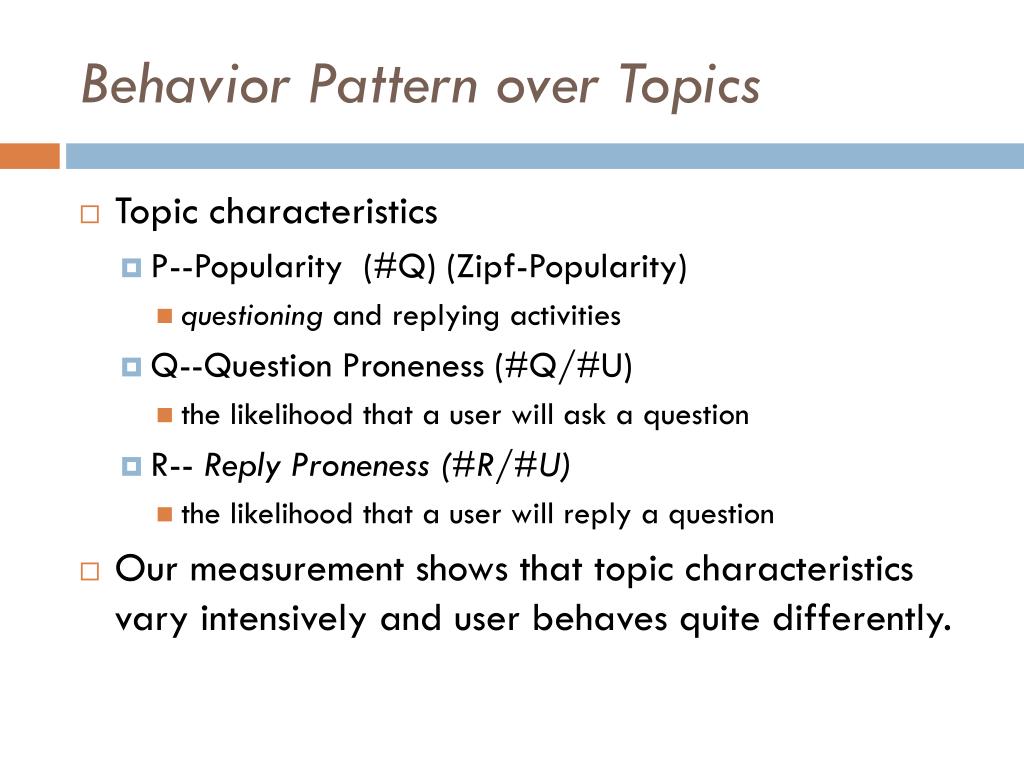

  7. Behavior Pattern over Topics • Topic characteristics • P--Popularity (#Q) (Zipf-Popularity) • questioning and replying activities • Q--Question Proneness (#Q/#U) • the likelihood that a user will ask a question • R-- Reply Proneness (#R/#U) • the likelihood that a user will reply a question • Our measurement shows that topic characteristics vary intensively and user behaves quite differently.

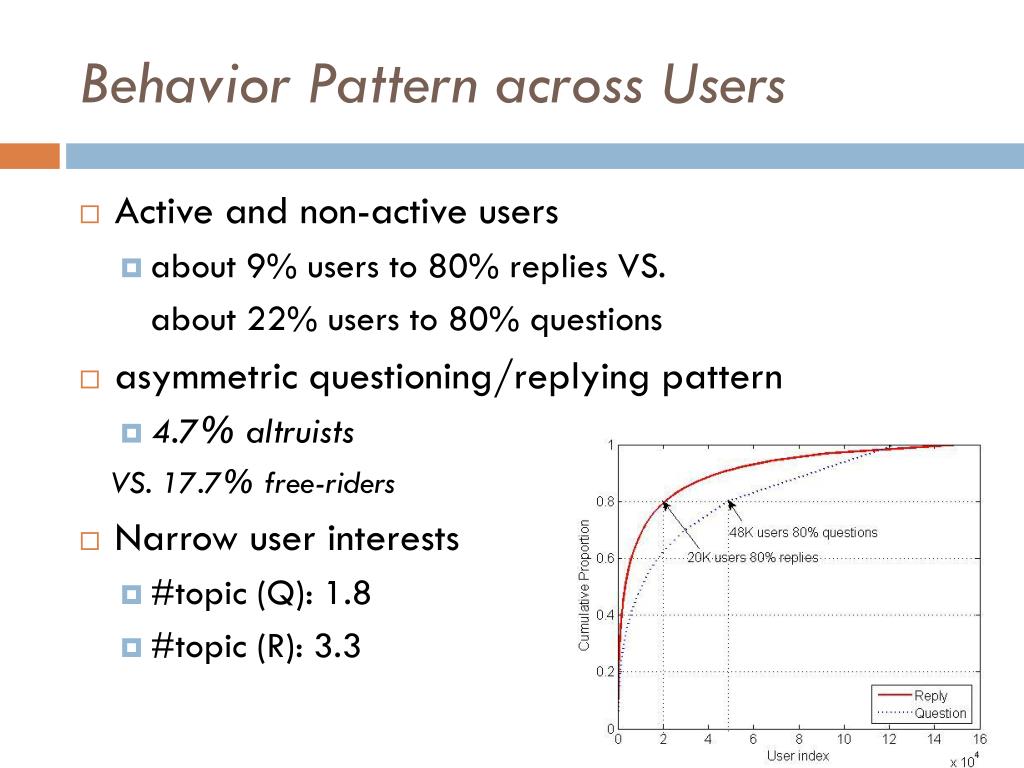

  8. Behavior Pattern across Users • Active and non-active users • about 9% users to 80% replies VS. about 22% users to 80% questions • asymmetric questioning/replying pattern • 4.7% altruists VS. 17.7% free-riders • Narrow user interests • #topic (Q): 1.8 • #topic (R): 3.3

  9. Performance Metric • Reply-Rate • how likely his question can be replied • Reply-Number • How likely his question can get an expected answer • Reply-Latency • how quickly he can get an answer

  10. iAsk performance • Long-term performance: • Reply-Rate: 99.8% • Reply-Number: about 5 • Reply-Latency: about 10hr • Within 24hrs • Reply-Rate: 85% • Reply-Number: about 4 • Reply-Latency: about 6hr • In summary, the performance is quite satisfactory except sometimes users need tolerate a relative long delay

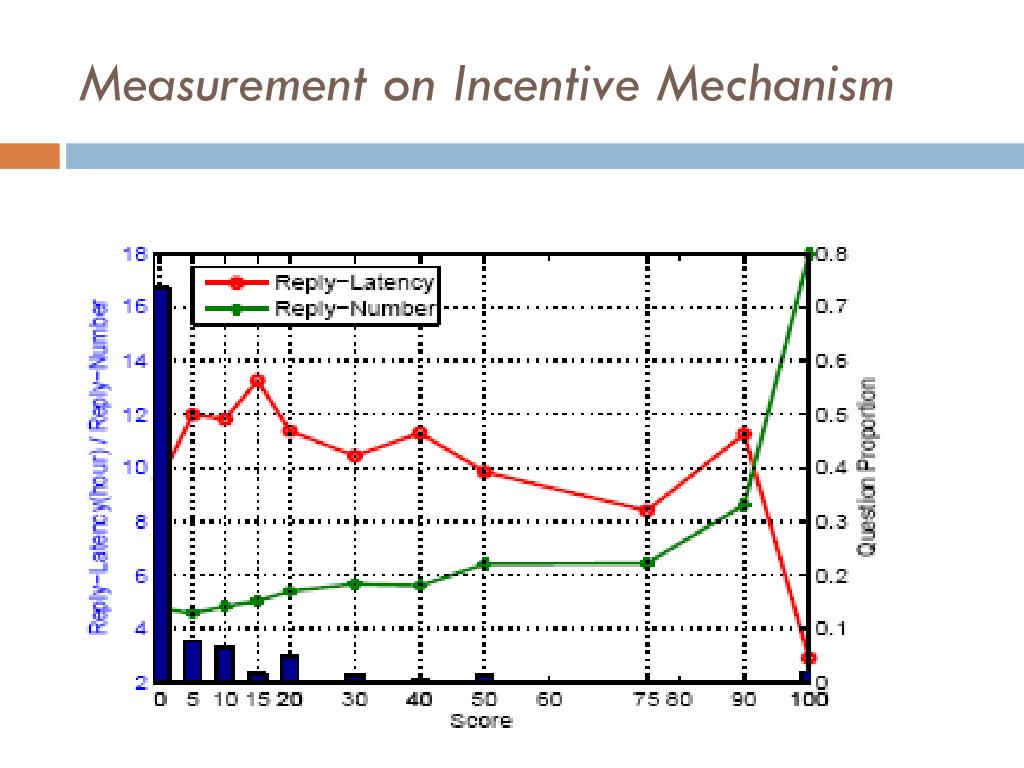

  11. Measurement on Incentive Mechanism

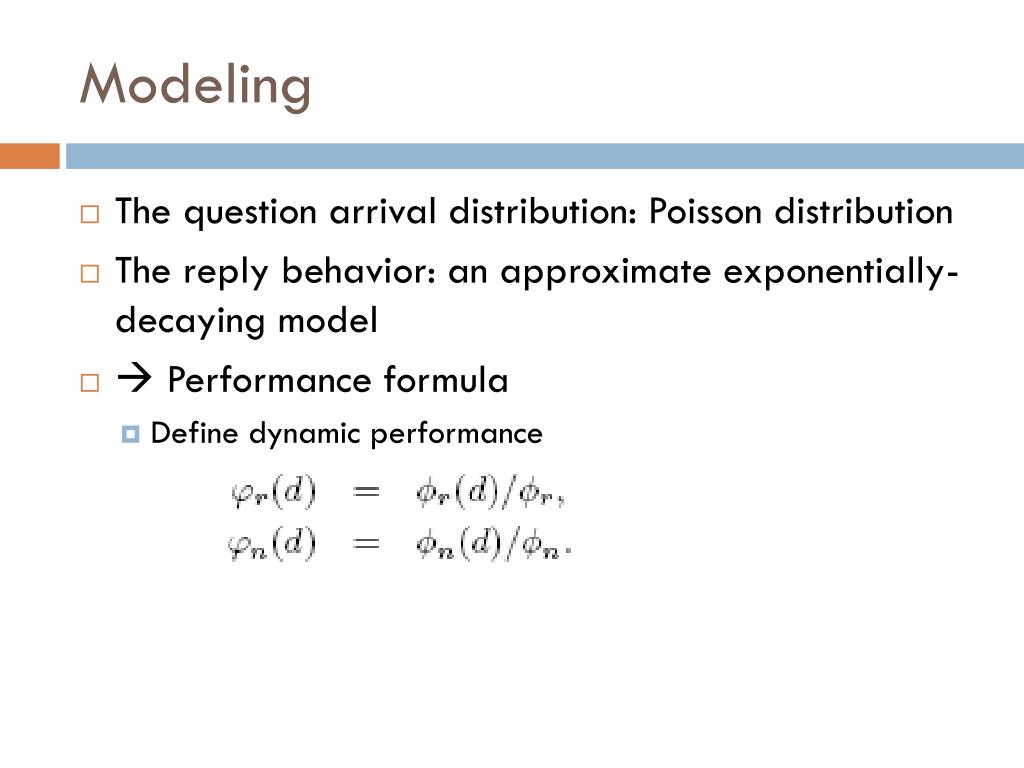

  12. Modeling • The question arrival distribution: Poisson distribution • The reply behavior: an approximate exponentially-decaying model •  Performance formula • Define dynamic performance

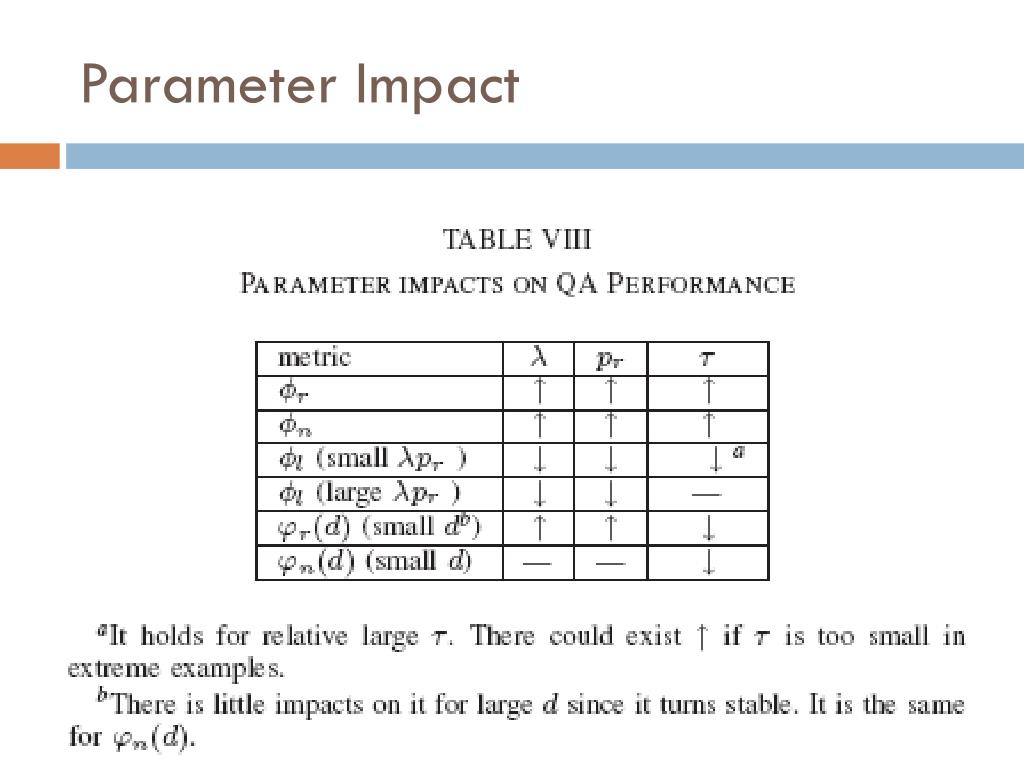

  13. Parameter Impact

  14. Possible Improvement • Active or Push-based Question Delivery • Better Webpage Layout, e.g. adding shortcuts • Better Incentive mechanism • Utilize Power of Social Networks

  15. Conclusions • Web-QA that leverages the grassroots’ intelligence and collaboration is hot and getting hotter… • Our measurement and model revealed that the QA’s QoS heavily depends on three key factors: user scale, user reply probability and a system design artifact, e.g. webpage design. • Current simple Web-QA System achieved the acceptable performance, but there still is improvement room

  16. Backup

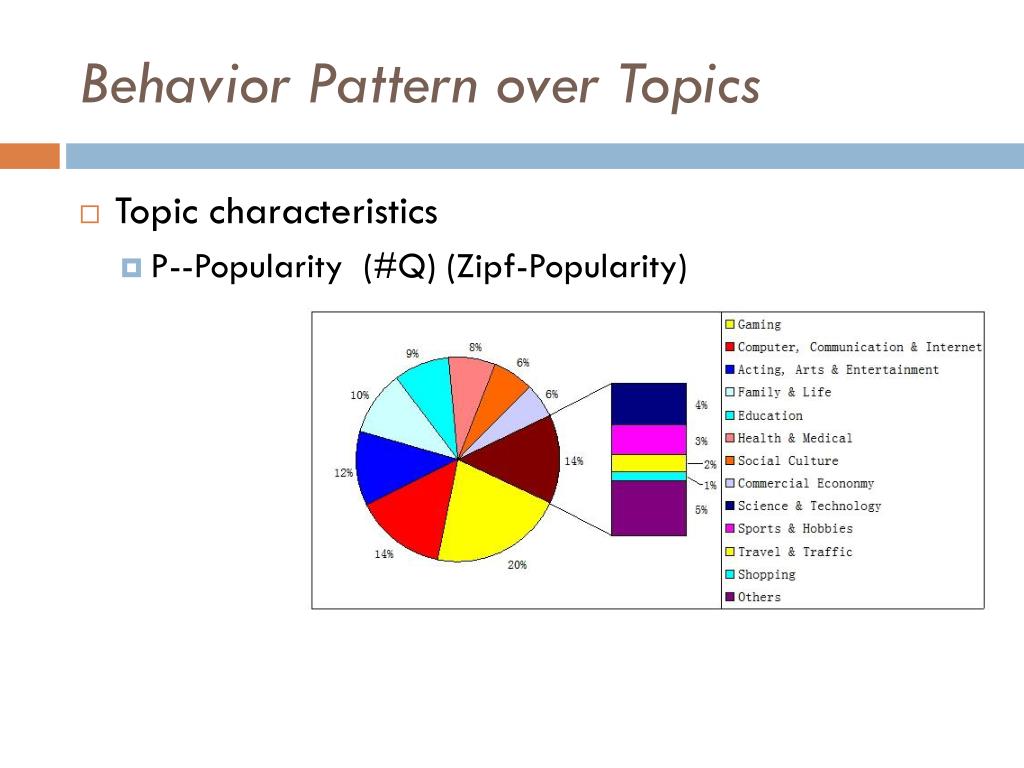

  17. Behavior Pattern over Topics • Topic characteristics • P--Popularity (#Q) (Zipf-Popularity)

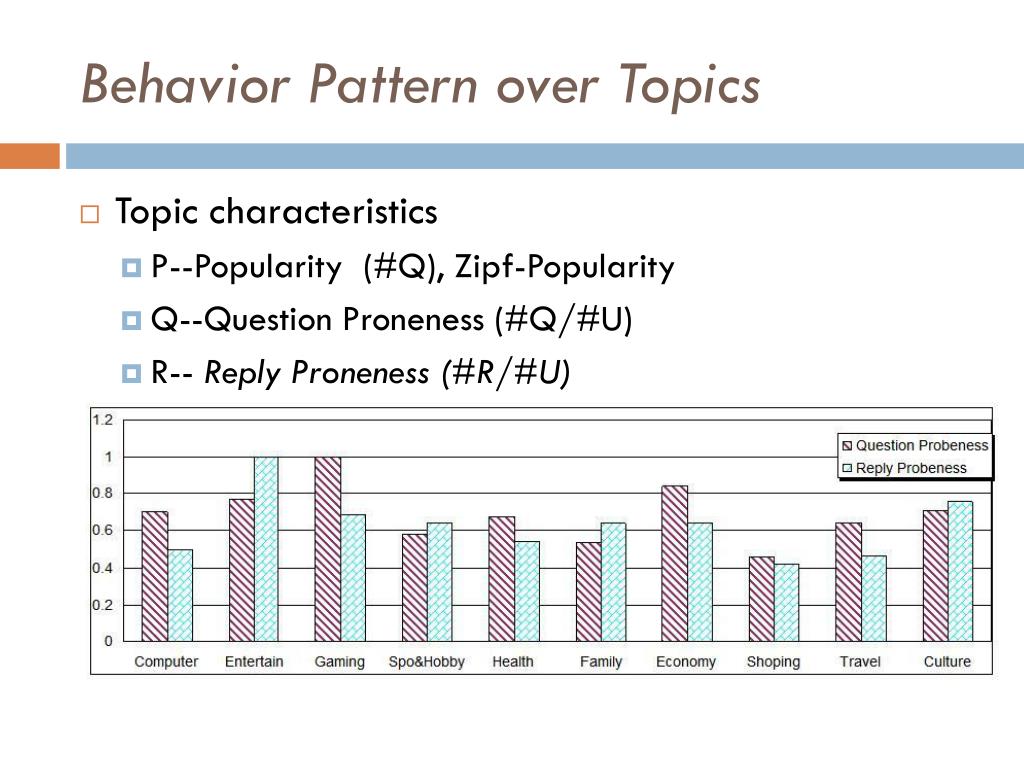

  18. Behavior Pattern over Topics • Topic characteristics • P--Popularity (#Q), Zipf-Popularity • Q--Question Proneness (#Q/#U) • R-- Reply Proneness (#R/#U)

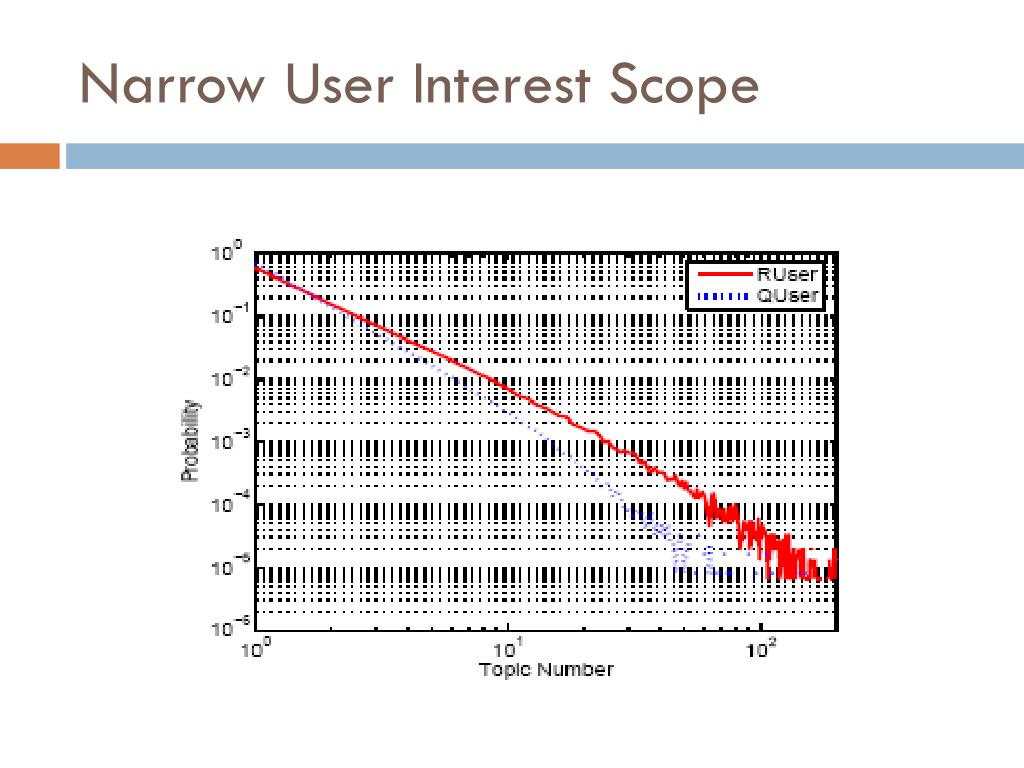

  19. Narrow User Interest Scope

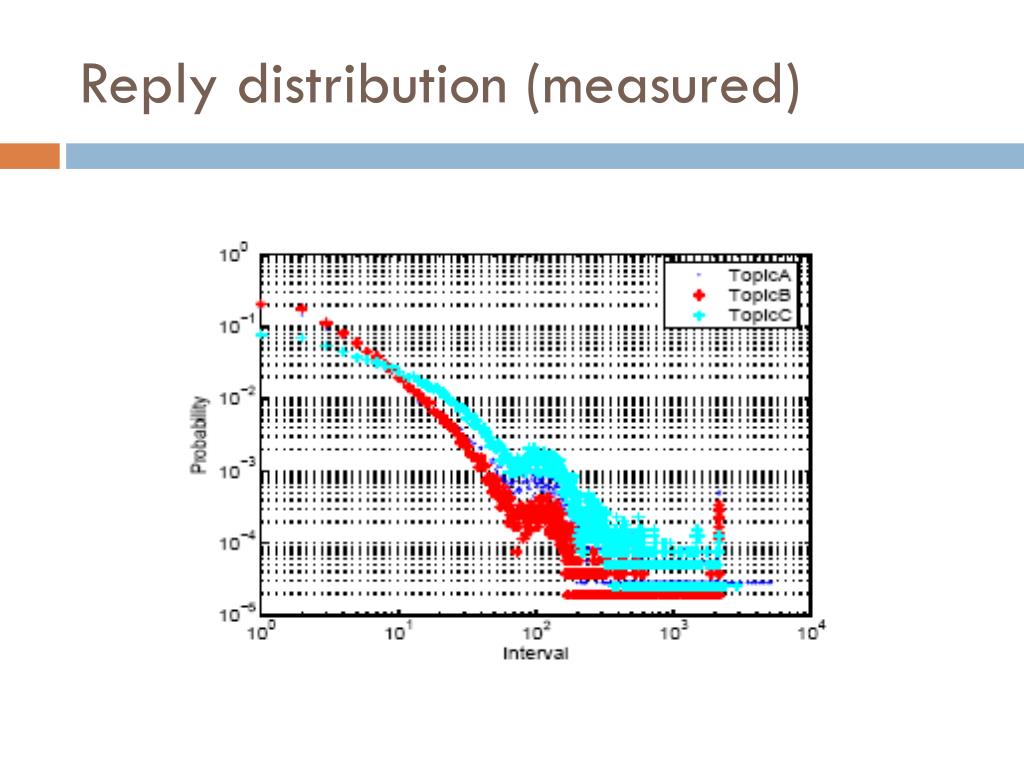

  20. Reply distribution (measured)

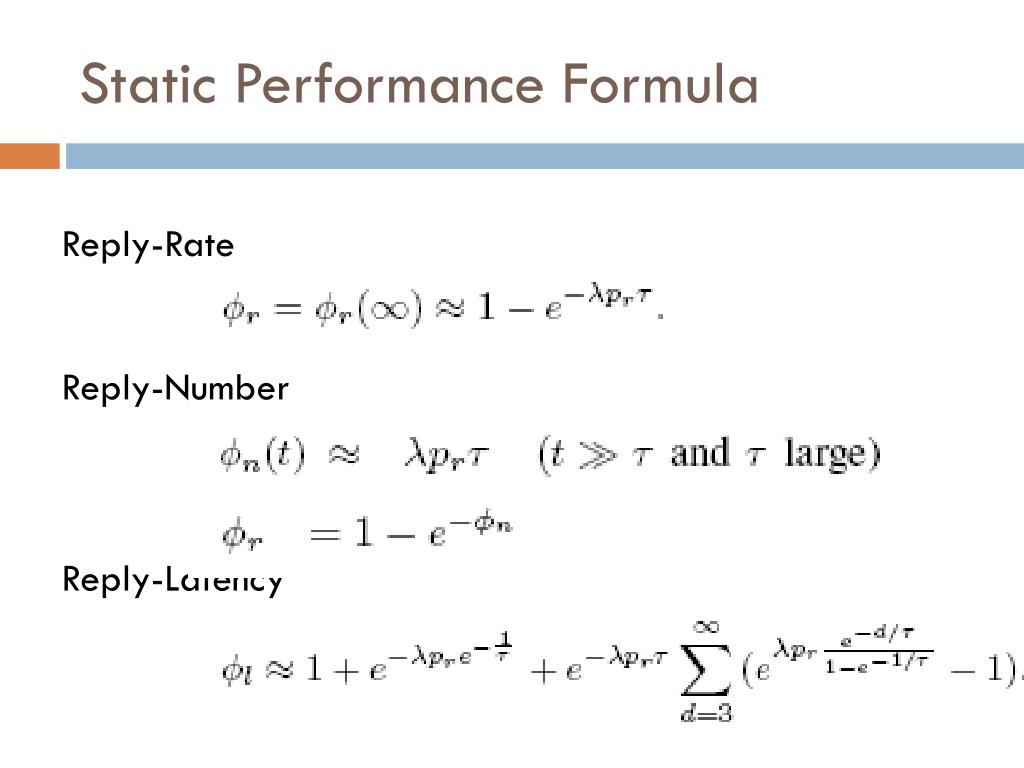

  21. Static Performance Formula Reply-Rate Reply-Number Reply-Latency

  22. Dynamic Performance Formula Define dynamic performance We have,
