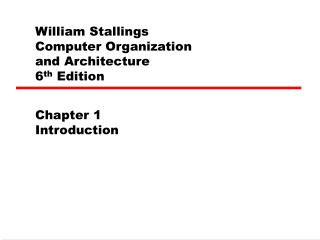

William Stallings Computer Organization and Architecture 6 th Edition. Chapter 1 Introduction. Architecture & Organization 1. Architecture is those attributes visible to the programmer Instruction set, number of bits used for data representation, I/O mechanisms, addressing techniques.

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'William Stallings Computer Organization and Architecture 6 th Edition' - lois


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
architecture organization 1
Architecture & Organization 1
  • Architecture is those attributes visible to the programmer
    • Instruction set, number of bits used for data representation, I/O mechanisms, addressing techniques.
    • e.g. Is there a multiply instruction?
  • Organization is how features are implemented
    • Control signals, interfaces, memory technology.
    • e.g. Is there a hardware multiply unit or is it done by repeated addition?
architecture organization 2
Architecture & Organization 2
  • All Intel x86 family share the same basic architecture
  • The IBM System/370 family share the same basic architecture
  • This gives code compatibility
    • At least backwards
  • Organization differs between different versions
structure function
Structure & Function
  • Structure is the way in which components relate to each other
  • Function is the operation of individual components as part of the structure
function
Function
  • All computer functions are:
    • Data processing
    • Data storage
    • Data movement
    • Control
structure top level
Structure - Top Level

Computer

Peripherals

Central

Processing

Unit

Main

Memory

Computer

Systems

Interconnection

Input

Output

Communication

lines

structure the cpu
Structure - The CPU

CPU

Arithmetic

and

Login Unit

Computer

Registers

I/O

System

Bus

CPU

Internal CPU

Interconnection

Memory

Control

Unit

structure the control unit
Structure - The Control Unit

Control Unit

CPU

Sequencing

Login

ALU

Control

Unit

Internal

Bus

Control Unit

Registers and

Decoders

Registers

Control

Memory

outline of the book 1
Outline of the Book (1)
  • Computer Evolution and Performance
  • Computer Interconnection Structures
  • Internal Memory
  • External Memory
  • Input/Output
  • Operating Systems Support
  • Computer Arithmetic
  • Instruction Sets
outline of the book 2
Outline of the Book (2)
  • CPU Structure and Function
  • Reduced Instruction Set Computers
  • Superscalar Processors
  • Control Unit Operation
  • Microprogrammed Control
  • Multiprocessors and Vector Processing
  • Digital Logic (Appendix)
internet resources web site for book
Internet Resources- Web site for book
  • http://WilliamStallings.com/COA6e.html
    • links to sites of interest
    • links to sites for courses that use the book
    • errata list for book
    • information on other books by W. Stallings
  • http://WilliamStallings.com/StudentSupport.html
    • Math
    • How-to
    • Research resources
    • Misc
internet resources web sites to look for
Internet Resources- Web sites to look for
  • WWW Computer Architecture Home Page
  • CPU Info Center
  • ACM Special Interest Group on Computer Architecture
  • IEEE Technical Committee on Computer Architecture
  • Intel Technology Journal
  • Manufacturer’s sites
    • Intel, IBM, etc.
internet resources usenet news groups
Internet Resources - Usenet News Groups
  • comp.arch
  • comp.arch.arithmetic
  • comp.arch.storage
  • comp.parallel
