Mineralogical and TOC Trends in the Ohio Utica Shale

This study explores the mineralogical composition and total organic carbon (TOC) variations in the Utica/Point Pleasant formations across Ohio. By analyzing 24 core samples from 7 wells, we aim to identify geochemical patterns and their energy potential. The research highlights a correlation between mineral content and TOC levels, revealing that TOC increases with depth. Notable trends include higher TOC concentrations in the eastern region and a diverse mineralogical profile, laying a groundwork for future investigations into shale gas viability.

lois-valdez
Download Presentation

Mineralogical and TOC Trends in the Ohio Utica Shale

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Mineralogical and TOC Trends in the Ohio Utica Shale Jake Harrington Dr. Julie Sheets, Dr. Dave Cole, Dr. Sue Welch, Mike Murphy, Alex Swift SEMCAL

  2. Overview • Purpose • Sample Selection • Methodology • Results • Analysis • The Future 500 nm D. Cole, SEMCAL, OSU

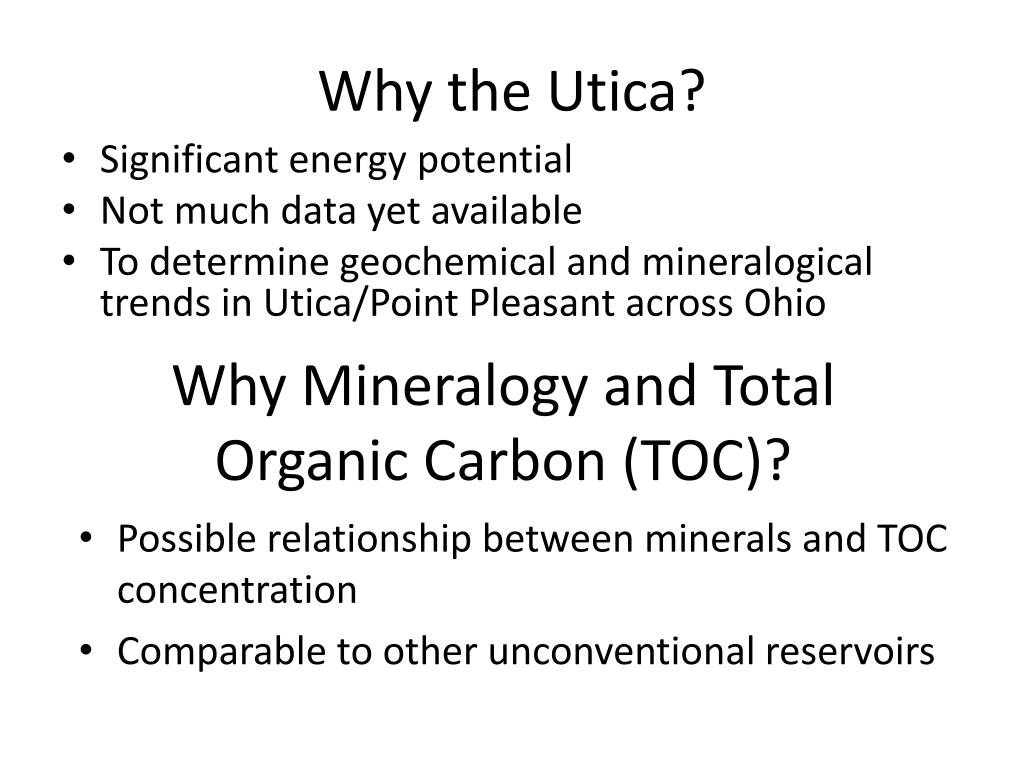

  3. Why the Utica? • Significant energy potential • Not much data yet available • To determine geochemical and mineralogical trends in Utica/Point Pleasant across Ohio Why Mineralogy and Total Organic Carbon (TOC)? • Possible relationship between minerals and TOC concentration • Comparable to other unconventional reservoirs

  4. Ohio Stratigraphy Ohio Geological Survey

  5. Sample Selection • Core obtained from ODNR • Part of Utica/Point Pleasant Formation • Depth Range: 1220 – 9564 ft • Longitudinal Range: 84.7°W to 81.4°W • 24 samples from 7 wells

  6. Utica Thickness Ohio Geological Survey

  7. Methodology X-Ray Diffraction Elemental Analysis • PANalytical XRD • Randomly oriented powder samples • Qualitative analysis with intensity and 2θ to identify mineral phases • DD Eberl’s Excel program RockJockused for quantification • Costech EA • Samples treated with hydrochloric acid to dissolve all inorganic carbon

  8. Location Data

  9. Barth and Wood Co. Wells TOC increasing with increasing depth TOC increasing with decreasing depth

  10. Location Data

  11. Location Data

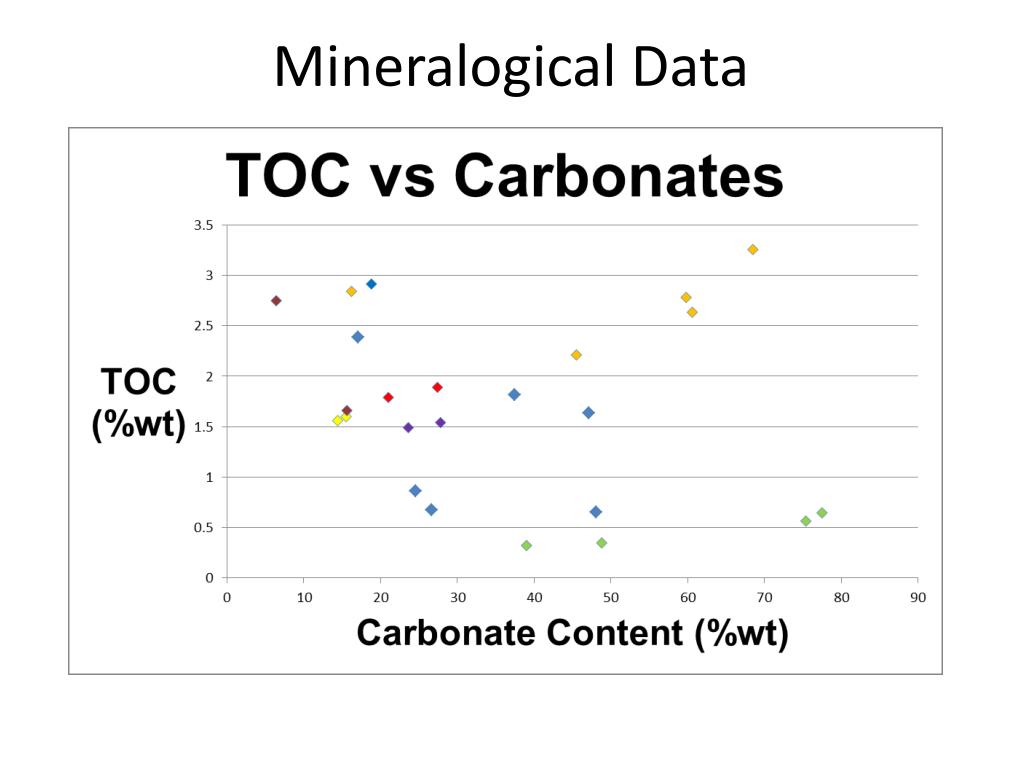

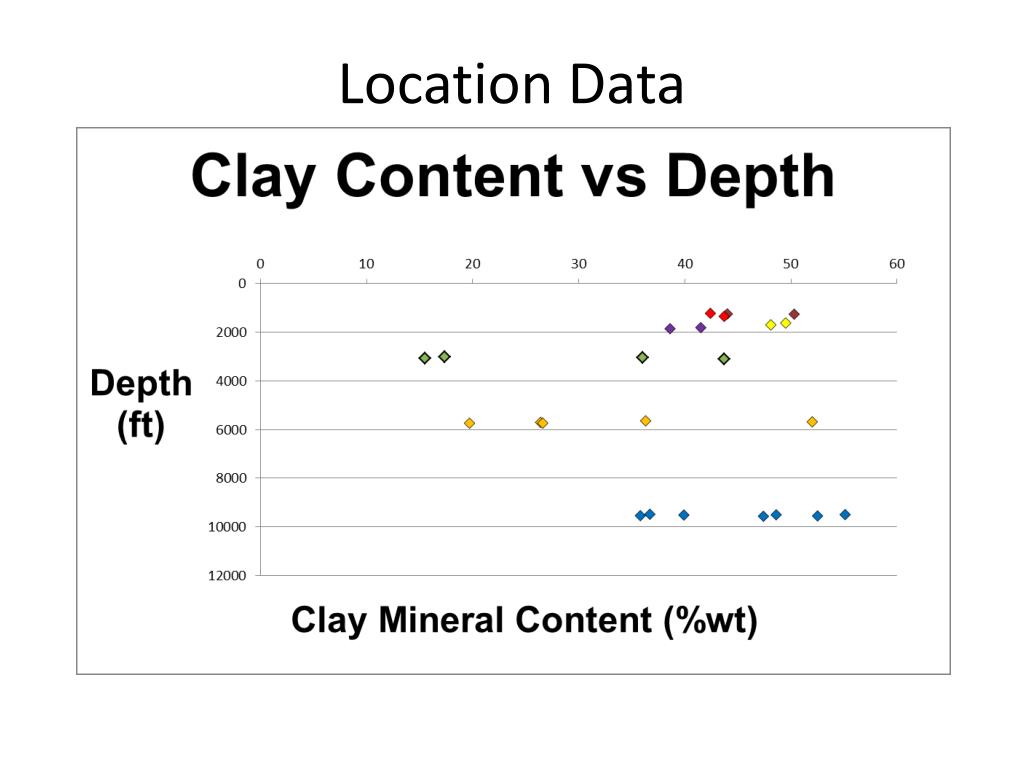

  12. Mineralogical Data

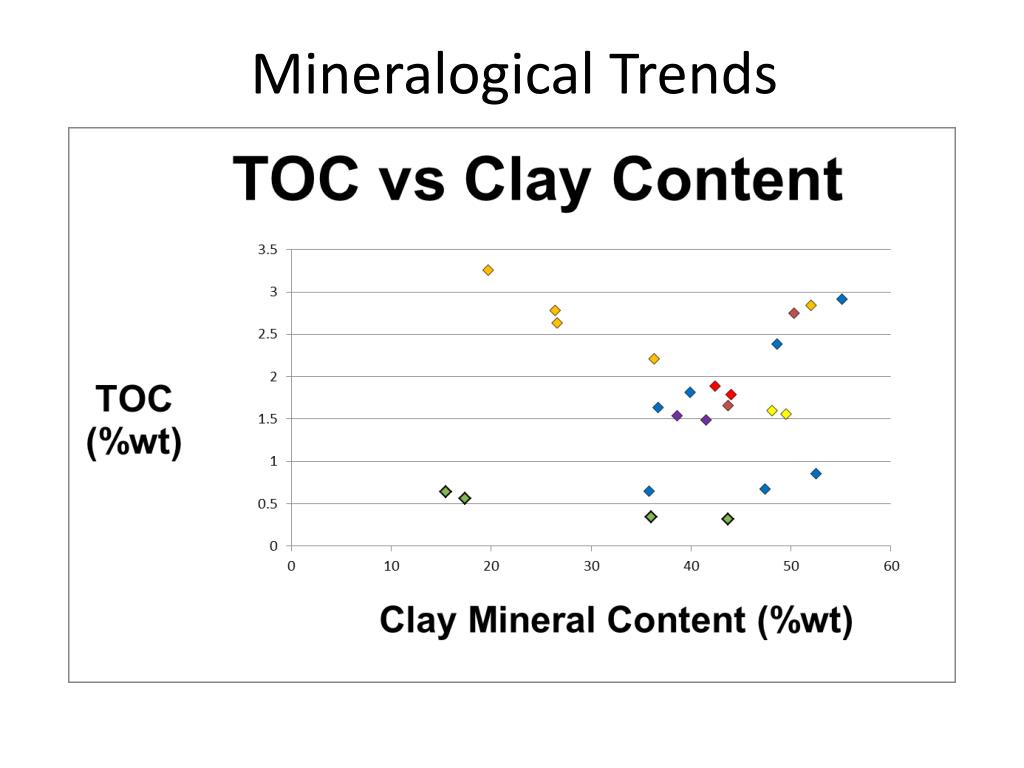

  13. Mineralogical Trends

  14. Mineralogical Trends

  15. Summary by the Numbers • Average TOC across all samples is 1.70% • Highest TOC values are found in the east and at greater depths • Average TOC, west/east: 1.78/1.66 • Average wt% of clays, west/east: 45/37 • Average wt% of carbonates, west/east: 19/44 • Anything but consistent

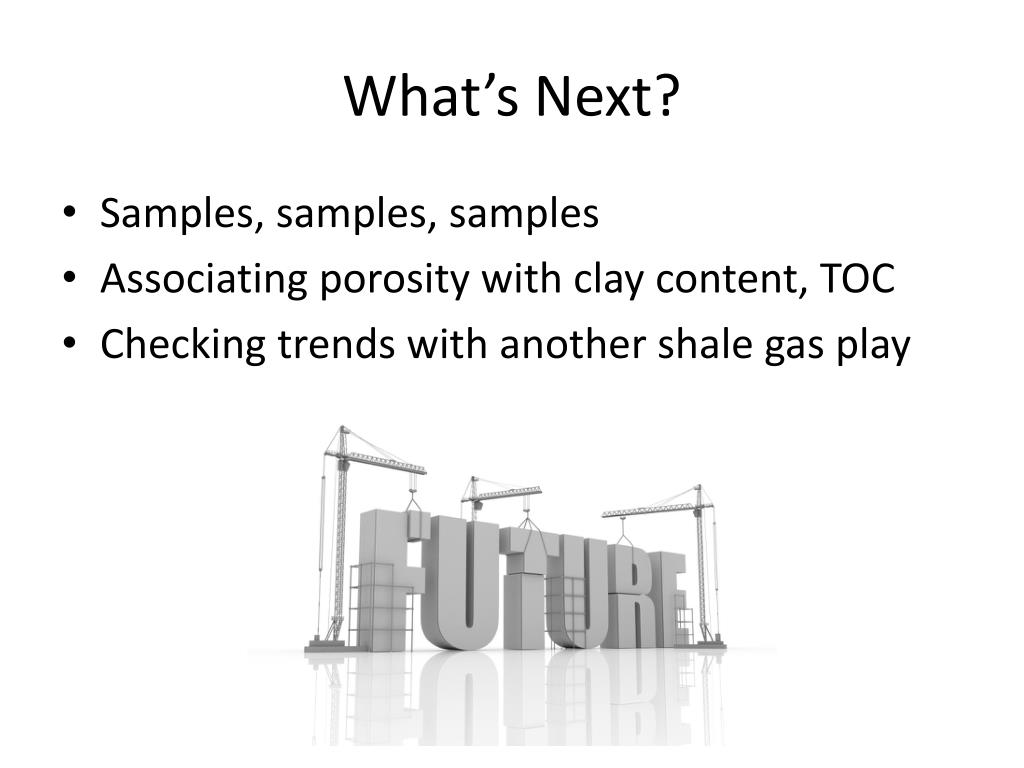

  16. What’s Next? • Samples, samples, samples • Associating porosity with clay content, TOC • Checking trends with another shale gas play

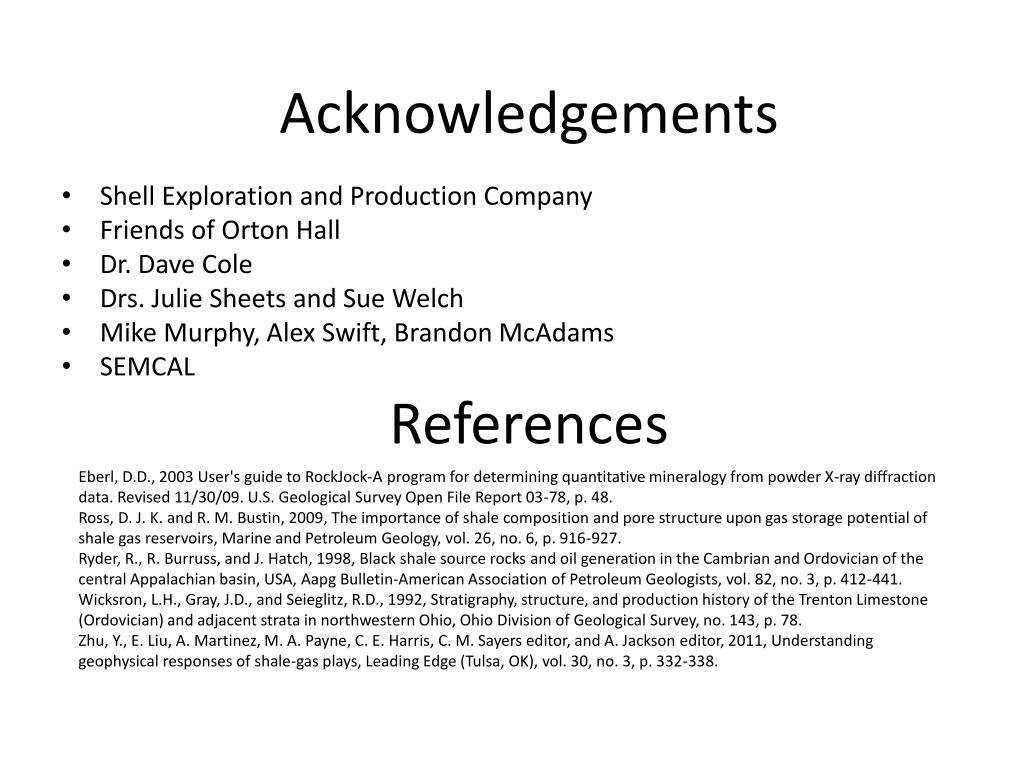

  17. References Acknowledgements • Shell Exploration and Production Company • Friends of Orton Hall • Dr. Dave Cole • Drs. Julie Sheets and Sue Welch • Mike Murphy, Alex Swift, Brandon McAdams • SEMCAL Eberl, D.D., 2003 User's guide to RockJock-A program for determining quantitative mineralogy from powder X-ray diffraction data. Revised 11/30/09. U.S. Geological Survey Open File Report 03-78, p. 48. Ross, D. J. K. and R. M. Bustin, 2009, The importance of shale composition and pore structure upon gas storage potential of shale gas reservoirs, Marine and Petroleum Geology, vol. 26, no. 6, p. 916-927. Ryder, R., R. Burruss, and J. Hatch, 1998, Black shale source rocks and oil generation in the Cambrian and Ordovician of the central Appalachian basin, USA, Aapg Bulletin-American Association of Petroleum Geologists, vol. 82, no. 3, p. 412-441. Wicksron, L.H., Gray, J.D., and Seieglitz, R.D., 1992, Stratigraphy, structure, and production history of the Trenton Limestone (Ordovician) and adjacent strata in northwestern Ohio, Ohio Division of Geological Survey, no. 143, p. 78. Zhu, Y., E. Liu, A. Martinez, M. A. Payne, C. E. Harris, C. M. Sayers editor, and A. Jackson editor, 2011, Understanding geophysical responses of shale-gas plays, Leading Edge (Tulsa, OK), vol. 30, no. 3, p. 332-338.

  18. Questions?
