Concave Mirrors

View kacleaveland's map. Taken in a place with no name (See more photos or videos here ).

loe
Download Presentation

Concave Mirrors

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. View kacleaveland's map Taken in a place with no name (See more photos or videos here) "Have you ever approached a giant concave mirror? See your upside-down image suspended in mid-air. Walk through the image to see a new reflection, right-side-up and greatly magnified. In the background you see reflected a room full of visitors enjoying other Concave Mirrors • Curves inward

  2. Concave Mirrors • AKA converging mirror • Described as a mirror with a surface that curved inward like a bowl

  3. Terminology Vertex Centre of Curvature (C) Principle Axis (PA) Focus (F)

  4. Light Rays in a Concave Mirror Purpose: To determine how light behaves in a concave mirror Observations:

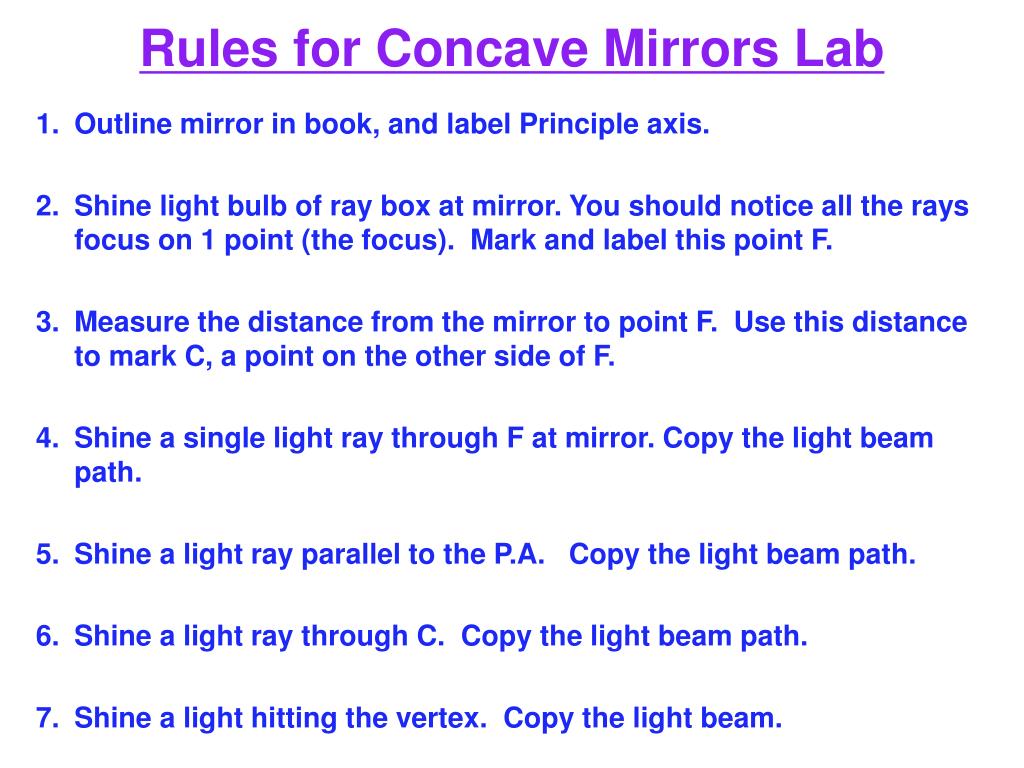

  5. Rules for Concave Mirrors Lab Outline mirror in book, and label Principle axis. Shine light bulb of ray box at mirror. You should notice all the rays focus on 1 point (the focus). Mark and label this point F. Measure the distance from the mirror to point F. Use this distance to mark C, a point on the other side of F. Shine a single light ray through F at mirror. Copy the light beam path. Shine a light ray parallel to the P.A. Copy the light beam path. Shine a light ray through C. Copy the light beam path. Shine a light hitting the vertex. Copy the light beam.

  6. Analysis: What happens when you shine a light ray through the focus (F)? What happens when you shine a light ray parallel to the principle axis (PA)? What happens when you shine a light ray through the centre of curvature (C)? What happens when you shine a light ray at the vertex (V)?

  7. Light Ray Rules for Concave Mirrors • A light ray parallel to P.A. reflects through F. • A light ray that passes through F will reflect parallel to P.A. • A light ray hitting the vertex (perpendicular to P.A.) will follow Өi & Өr reflection rule.

  8. Using Light Ray Rules to Find an Image Case 1: An object outside C Case 2: An object between C and F Case 3: An object on F Case 4: An object between F and Mirror

  9. Locating Images in Curved Mirrorswith Lab Benches

  10. Concave Mirror Applications • A searchlight/car headlight • radiates light rays from focus to reflect rays parallel (beam of light) • Satellite Dish • TV dish receives parallel rays and reflects them to focus where wave detector is • Cosmetic Mirrors - Large virtual images provide magnified face

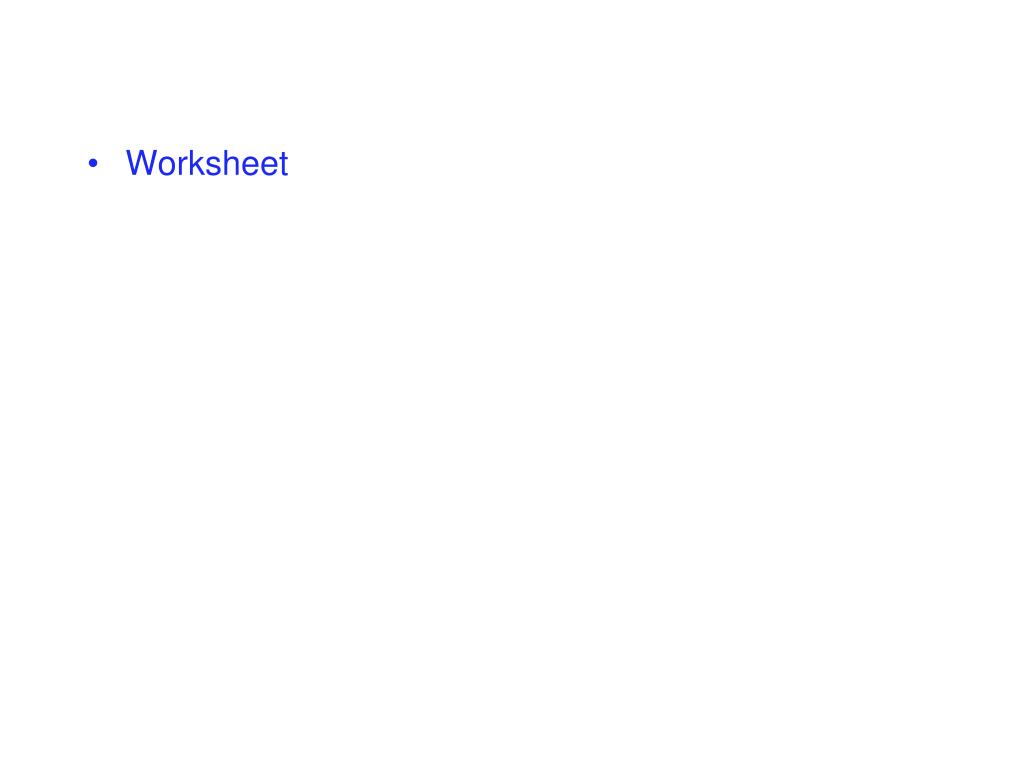

  11. Worksheet
