  1. The Chemistry of Climate Change

  2. Increase in CO2 Atmospheric CO2 levels have increased 26% since the industrial revolution Total Dry Mass of Atmosphere: 5.13x1018 kg Average molar mass of the atmosphere: 29 g/mol or 1.8x1020 moles Mass of Carbon from fossil fuel combustion per year: 6x1012 kg or 5x1014 moles increase of 5x1014/1.8x1020=2.8 ppmv

  3. Hypotheses: 1. Global Warming is not Occuring 2. Global Warming is Occuring but due to natural cycles 3. Global Warming is Occuring and due in part to human activity

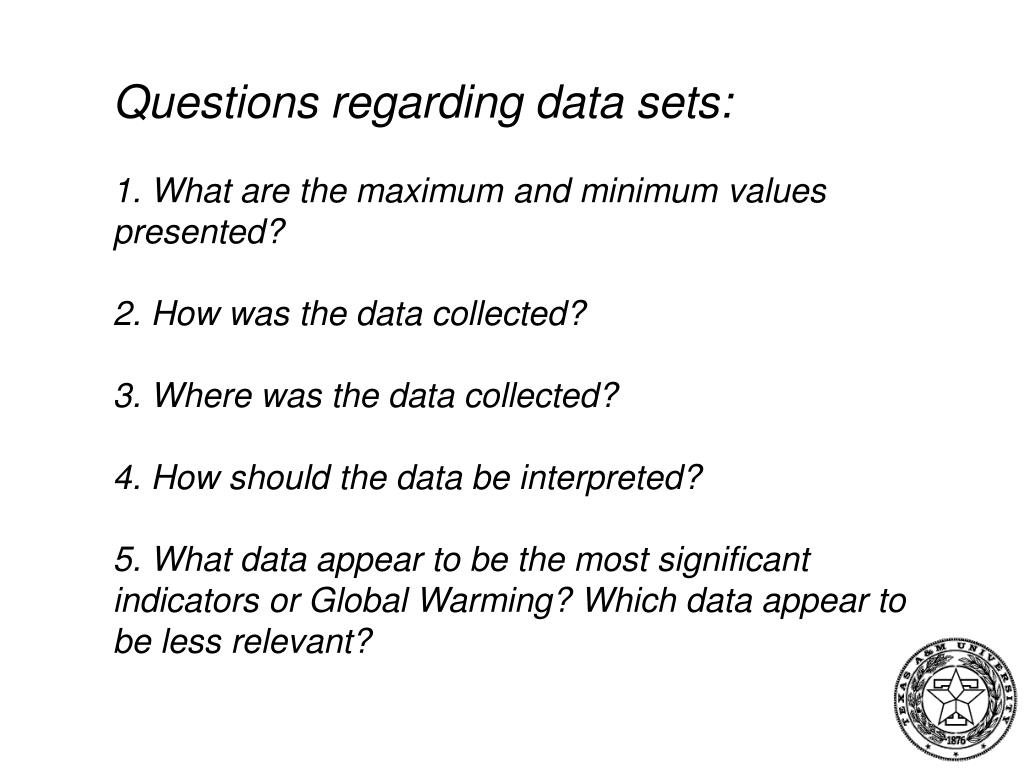

  4. Questions regarding data sets: 1. What are the maximum and minimum values presented? 2. How was the data collected? 3. Where was the data collected? 4. How should the data be interpreted? 5. What data appear to be the most significant indicators or Global Warming? Which data appear to be less relevant?

  5. Global Warming?: Houston

  6. Houston Summer Months and Number of Days at a Temperature >96o Year June July August September Total 1948 3 14 18 2 37 1954 2 15 14 2 33 1962 0 11 19 1 31 1963 5 8 11 6 30 1969 9 20 9 0 38 1978 1 18 13 0 32 1980 19 25 24 10 78 1982 5 24 14 3 46 1985 3 3 14 5 34 1986 2 20 10 0 32 1988 5 15 16 4 40 1990 14 4 23 4 45 1993 1 16 26 6 49 1994 6 19 4 2 31 1995 7 14 11 11 43 1998 15 30 20 4 69 1999 0 5 29 8 42 2000 0 22 24 7 53 2001 0 7 16 0 23 2002 2 12 5 0 19 2003 4 2 8 0 14 2004 1 8 8 2 19 2005 7 8 7 7 29

  7. Annual Rainfall* in Houston, TX Year Annual Rainfall (Inches) 1900 72.86 1919 72.38 1949 71.19 1973 70.16 1979 83.02 1981 82.14 1997 78.41 2001 71.18 *for years when the annual rainfall exceeded 70 inches

  8. Global Warming?: Greenhouse Gases

  9. Evolution of Trace Gas Mixing Ratios Preindustrial 1960 1980 1990 CO2(ppmv) 295 315 325 352 CH4(ppbv) 975 1270 1570 1675 N2O(ppbv) 290 300 303 310 CFC-11(pptv) 0 11 173 275 CFC-12(pptv) 0 33 297 468 CFC-113(pptv) 0 0.2 15 51 CFC-114(pptv) 0 0.2 4 7 CFC-115(pptv) 0 0 2 5 CCl4(pptv) 0 75 95 105 CH3Cl(pptv) 600 600 600 600

  10. Global CH4 Levels

  11. Global N2O Levels

  12. Global Temperature

  13. The effect of mean and variance increases on temperature

  14. Global Warming?: Severe Weather

  15. Major Storms in the United States

  16. Tornadoes in the United States
