Email Worm Modeling and Defense

1. Email Worm Modeling and Defense Cliff C. Zou, Don Towsley, Weibo Gong Univ. Massachusetts, Amherst

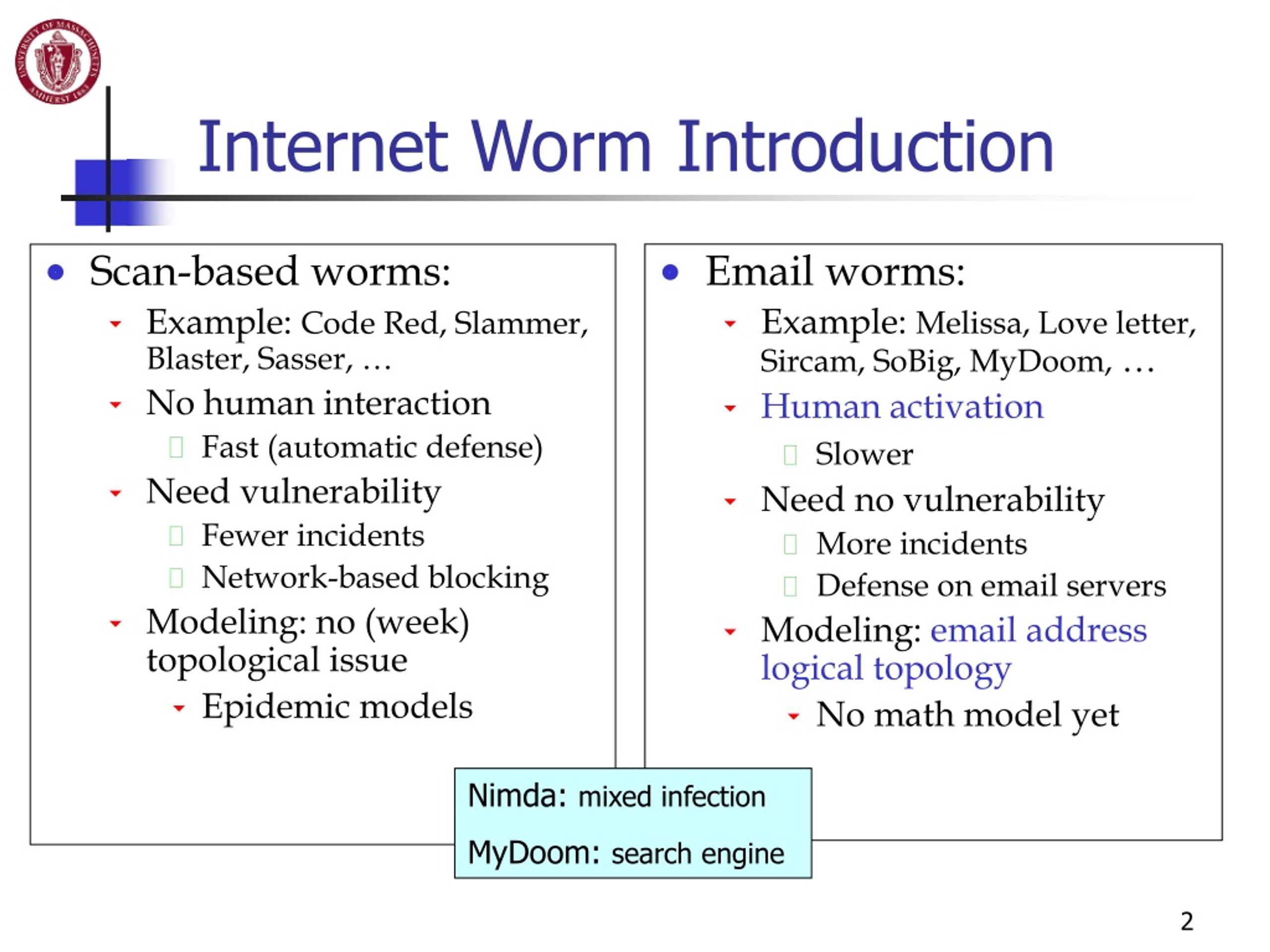

2. Internet Worm Introduction • Email worms: • Example: Melissa, Love letter, Sircam, SoBig, MyDoom, … • Human activation • Slower • Need no vulnerability • More incidents • Defense on email servers • Modeling: email address logical topology • No math model yet • Scan-based worms: • Example: Code Red, Slammer, Blaster, Sasser, … • No human interaction • Fast (automatic defense) • Need vulnerability • Fewer incidents • Network-based blocking • Modeling: no (week) topological issue • Epidemic models Nimda: mixed infection MyDoom: search engine

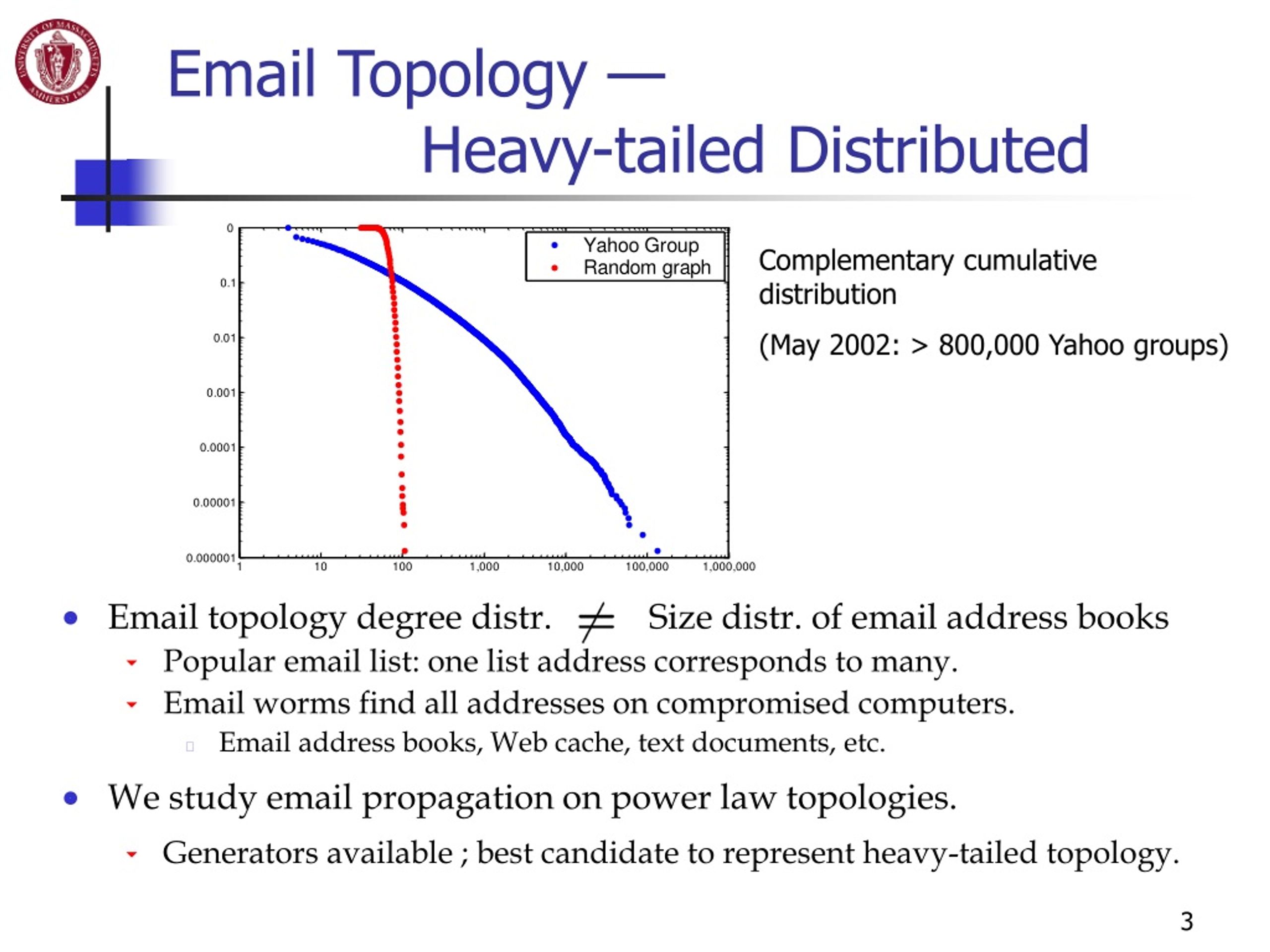

3. Email Topology — Heavy-tailed Distributed Complementary cumulative distribution (May 2002: > 800,000 Yahoo groups) • Email topology degree distr. Size distr. of email address books • Popular email list: one list address corresponds to many. • Email worms find all addresses on compromised computers. • Email address books, Web cache, text documents, etc. • We study email propagation on power law topologies. • Generators available ; best candidate to represent heavy-tailed topology.

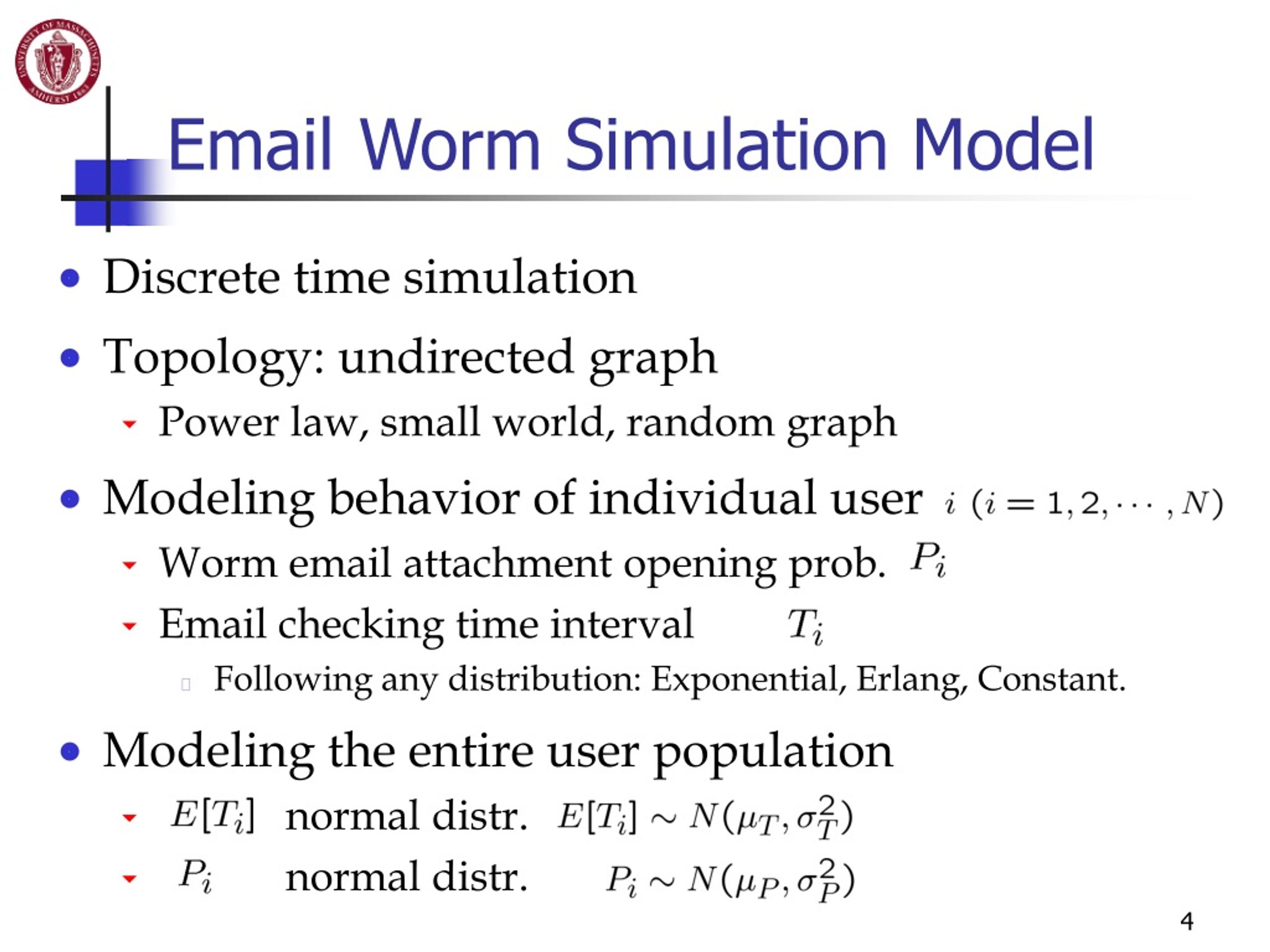

4. EmailWorm Simulation Model • Discrete time simulation • Topology: undirected graph • Power law, small world, random graph • Modeling behavior of individual user • Worm email attachment opening prob. • Email checking time interval • Following any distribution: Exponential, Erlang, Constant. • Modeling the entire user population • normal distr. • normal distr.

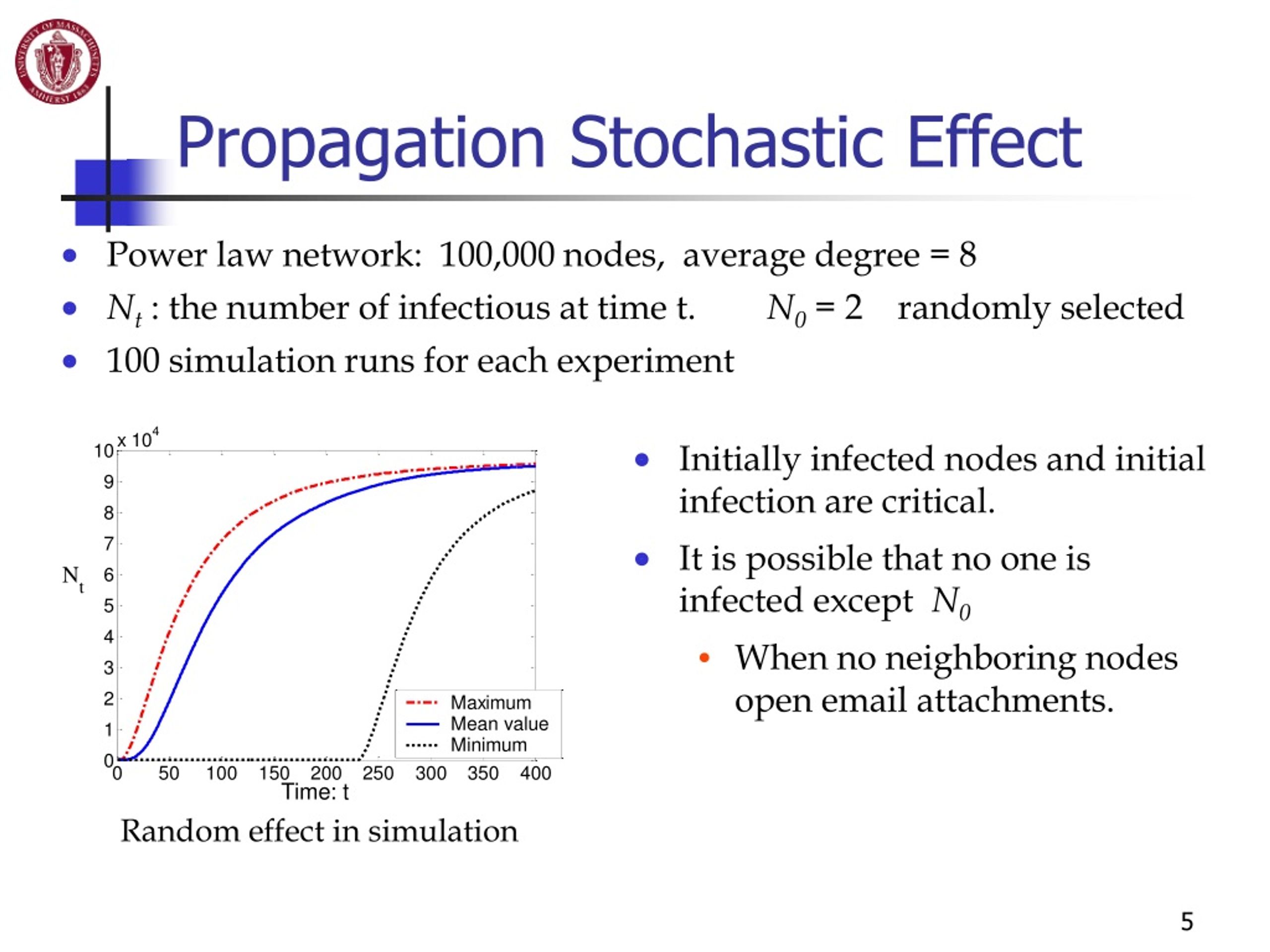

5. Propagation Stochastic Effect • Power law network: 100,000 nodes, average degree = 8 • Nt : the number of infectious at time t. N0 = 2 randomly selected • 100 simulation runs for each experiment • Initially infected nodes and initial infection are critical. • It is possible that no one is infected except N0 • When no neighboring nodes open email attachments. Random effect in simulation

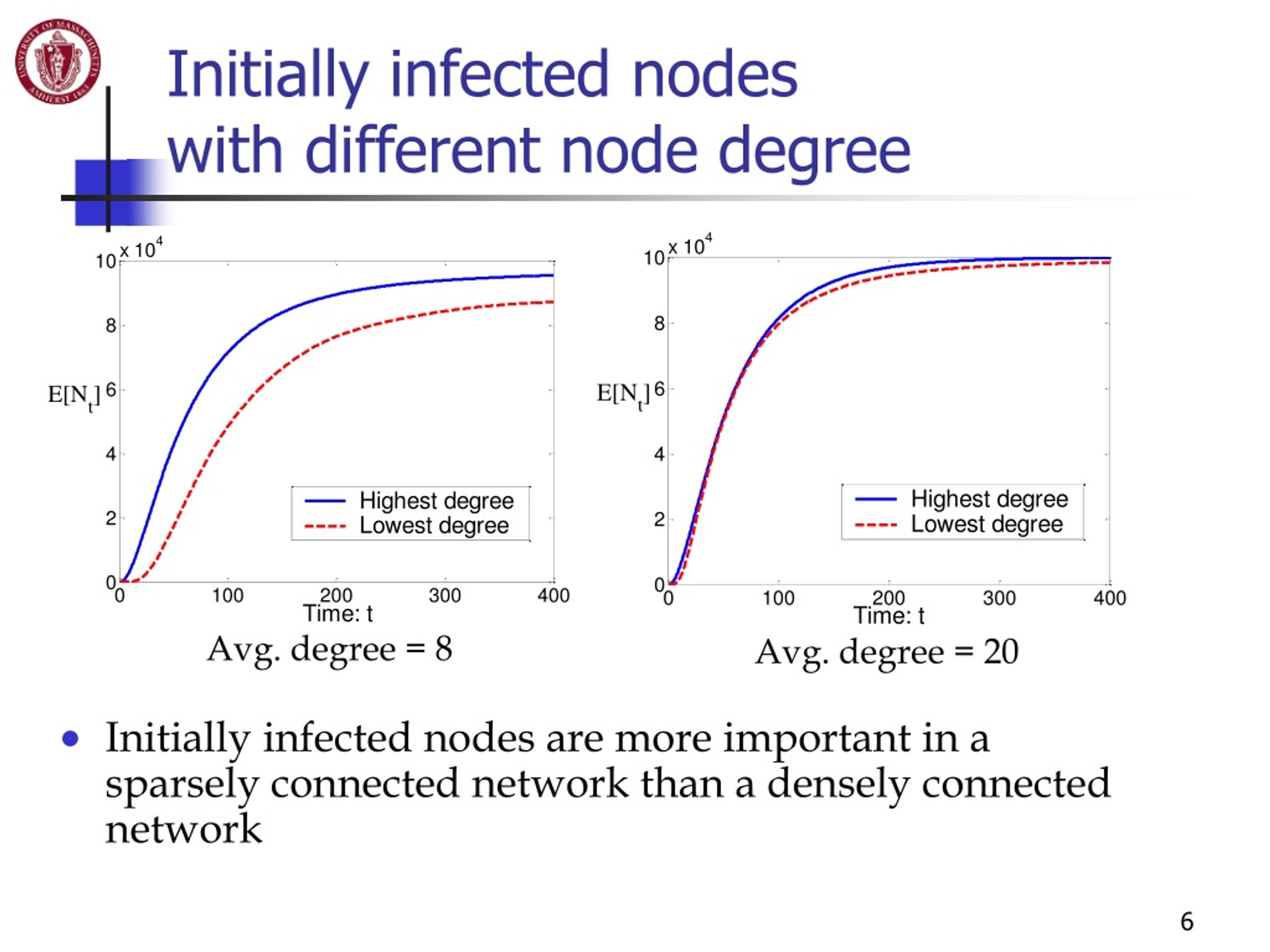

6. Initially infected nodes with different node degree • Initially infected nodes are more important in a sparsely connected network than a densely connected network Avg. degree = 8 Avg. degree = 20

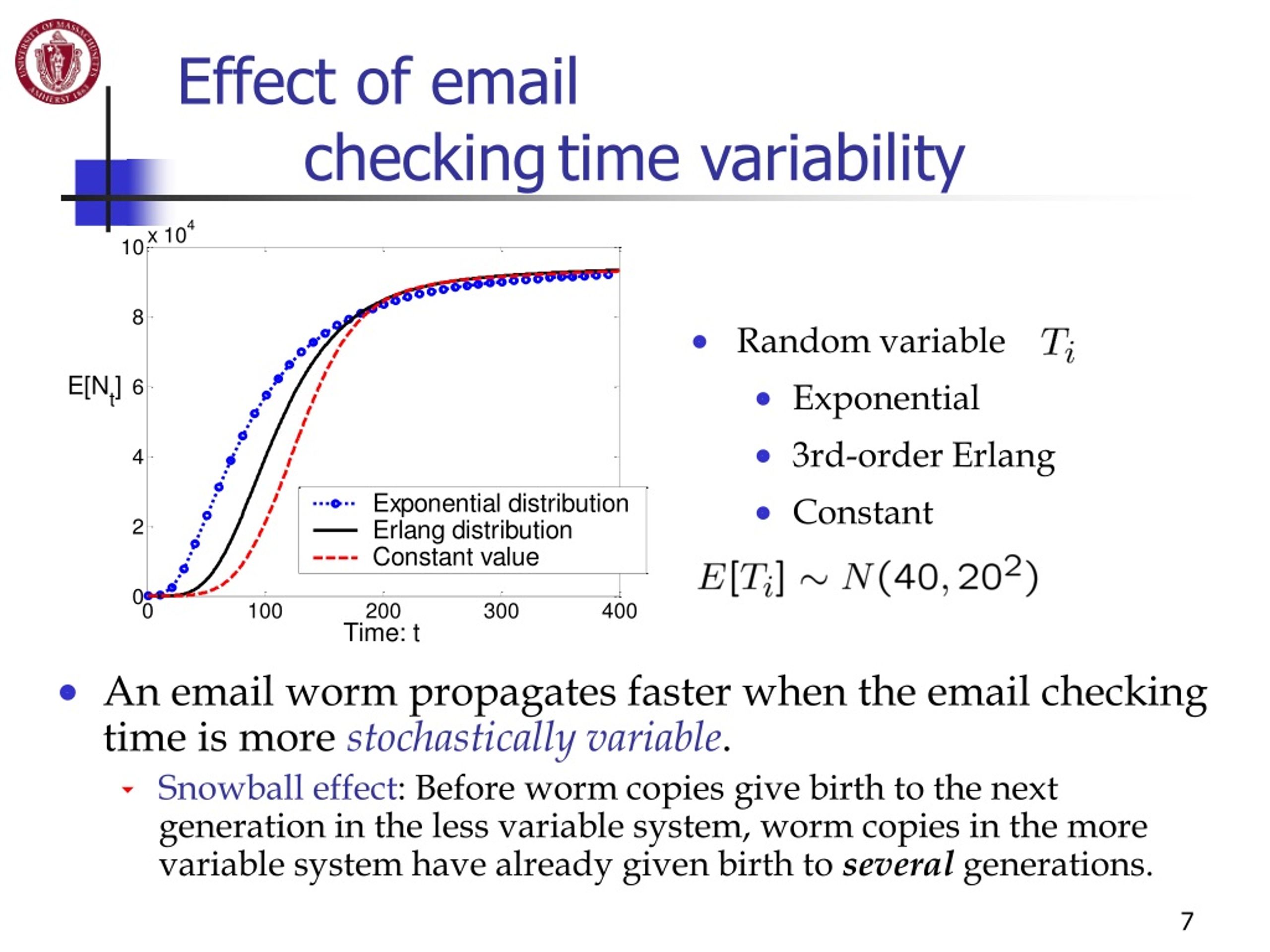

7. Effect of email checking time variability • An email worm propagates faster when the email checking time is more stochasticallyvariable. • Snowball effect: Before worm copies give birth to the next generation in the less variable system, worm copies in the more variable system have already given birth to several generations. • Random variable • Exponential • 3rd-order Erlang • Constant

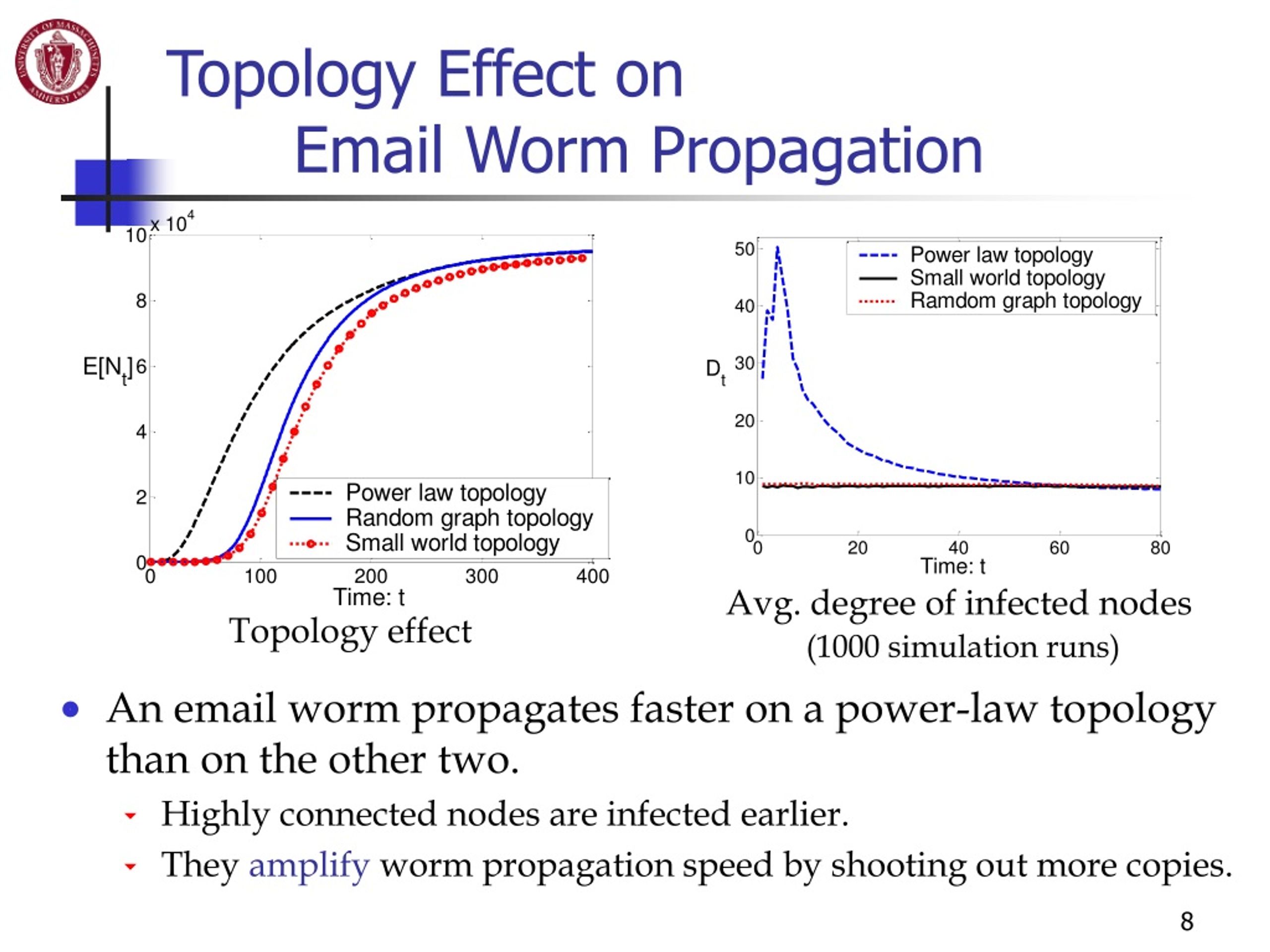

8. Topology Effect on Email Worm Propagation • An email worm propagates faster on a power-law topology than on the other two. • Highly connected nodes are infected earlier. • They amplify worm propagation speed by shooting out more copies. Avg. degree of infected nodes (1000 simulation runs) Topology effect

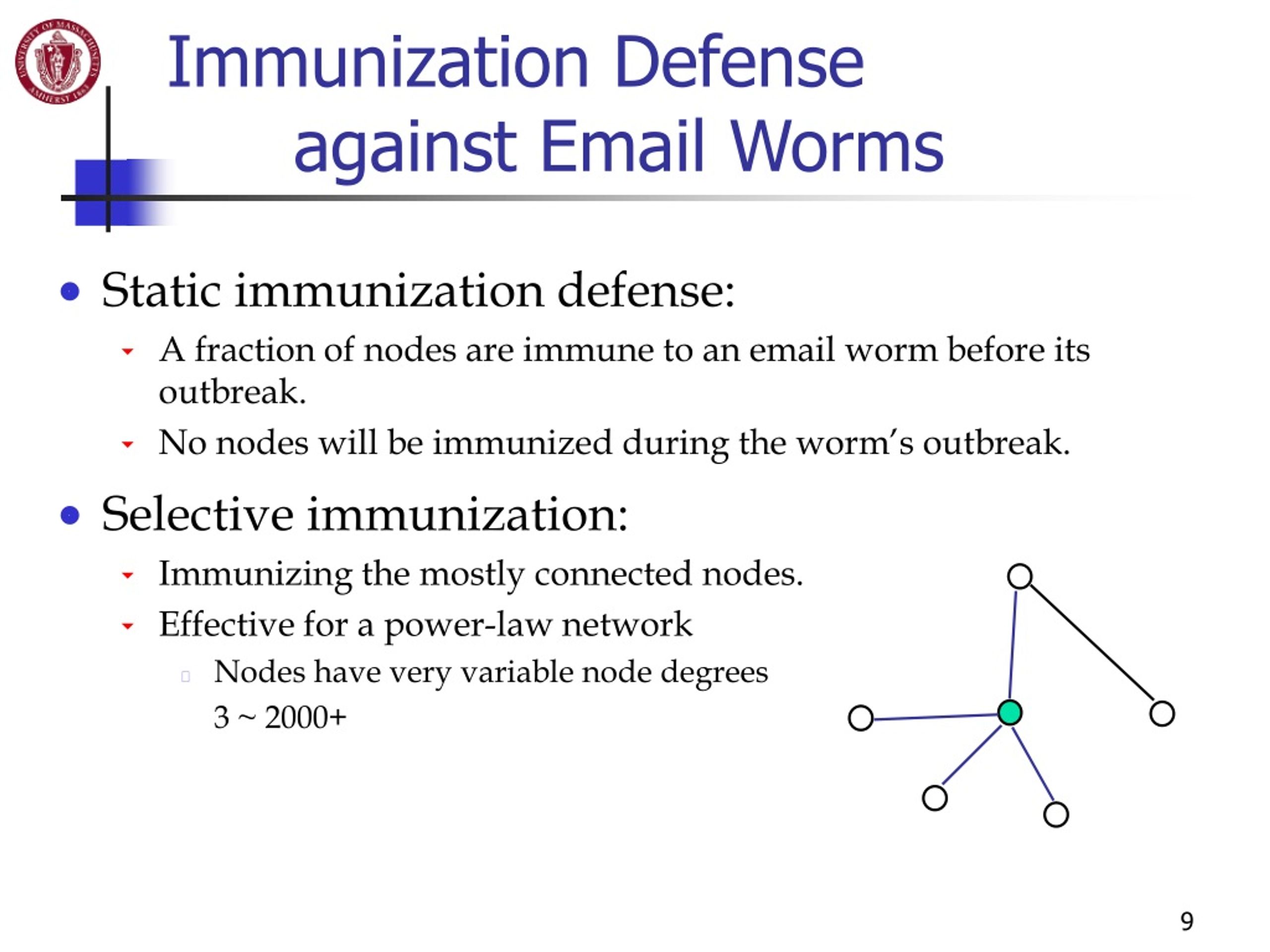

9. Immunization Defense against Email Worms • Static immunization defense: • A fraction of nodes are immune to an email worm before its outbreak. • No nodes will be immunized during the worm’s outbreak. • Selective immunization: • Immunizing the mostly connected nodes. • Effective for a power-law network • Nodes have very variable node degrees 3 ~ 2000+

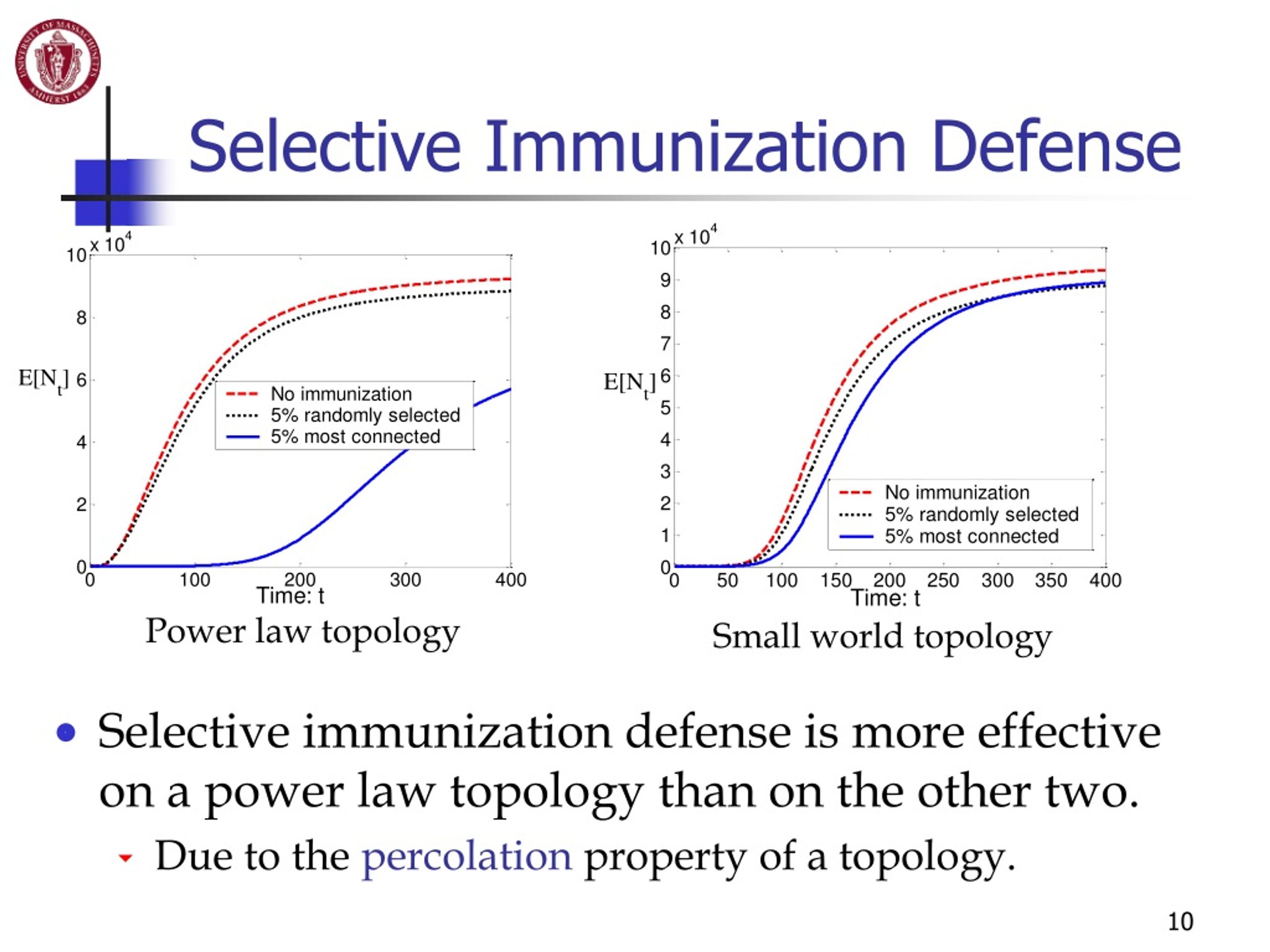

10. Selective Immunization Defense • Selective immunization defense is more effective on a power law topology than on the other two. • Due to the percolation property of a topology. Power law topology Small world topology

11. Percolation and Phase Transition • Selective percolation with p: • Removing top p percent of mostly connected nodes. • Corresponding to selective immunization. • Newman et al. studied uniform percolation. • Selective percolation property: • Connection ratio: • fraction of remained nodes that are connected. • Remaining link ratio: • fraction of remained links. • Phase transition selective percolation threshold • Disjoint the remaining network when

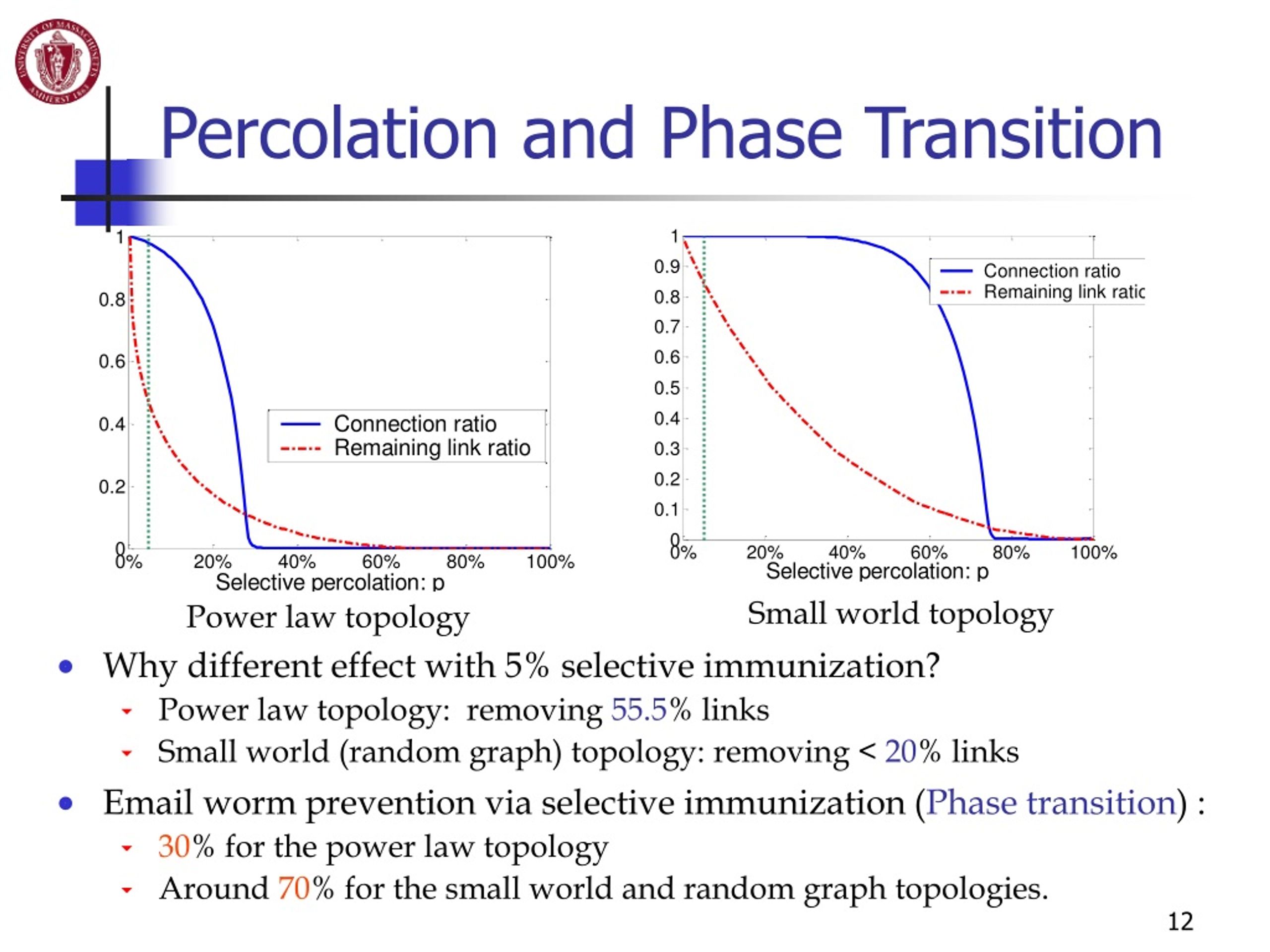

12. Percolation and Phase Transition • Why different effect with 5% selective immunization? • Power law topology: removing 55.5% links • Small world (random graph) topology: removing < 20% links • Email worm prevention via selective immunization (Phase transition) : • 30% for the power law topology • Around 70% for the small world and random graph topologies. Small world topology Power law topology

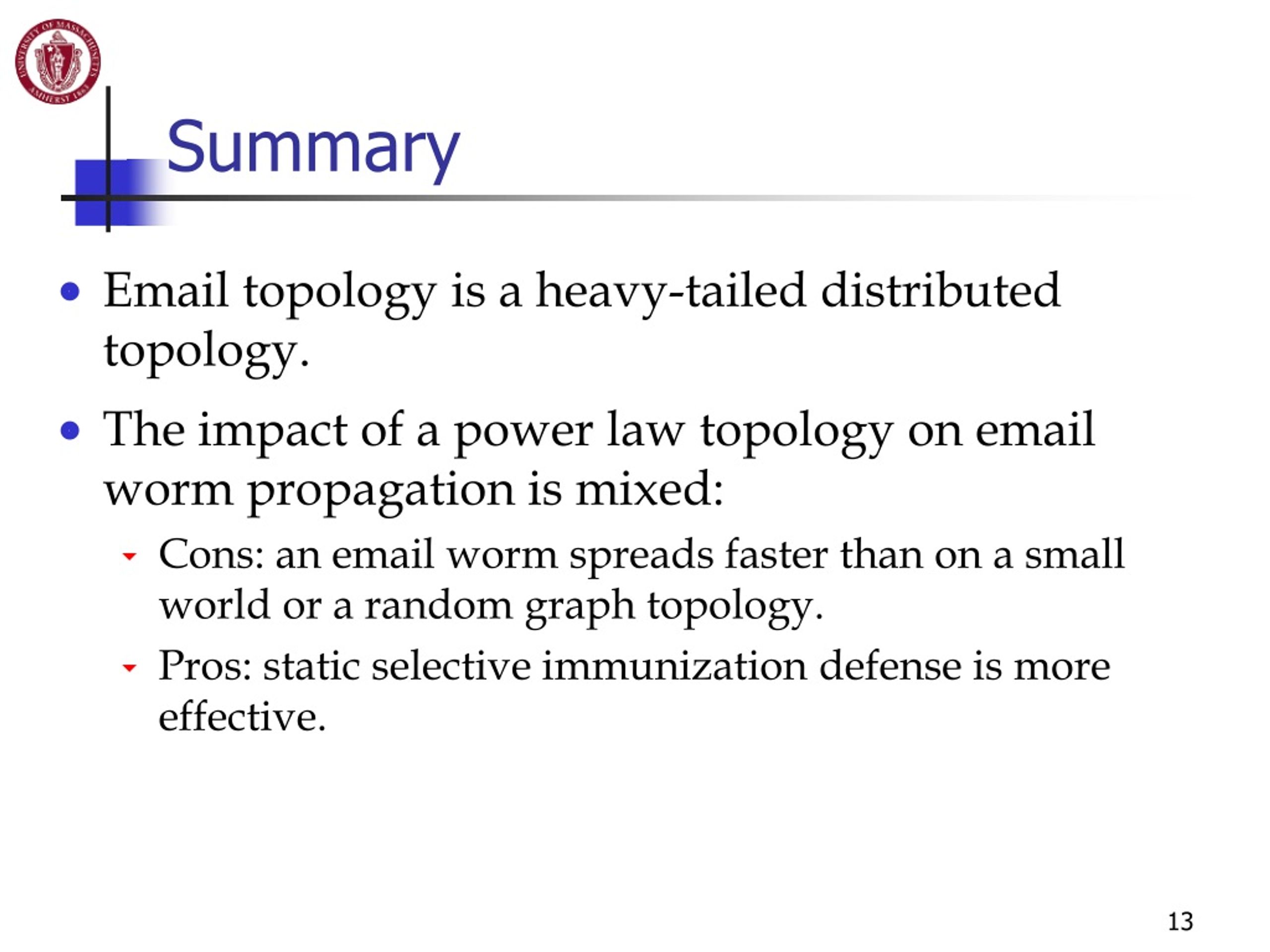

13. Summary • Email topology is a heavy-tailed distributed topology. • The impact of a power law topology on email worm propagation is mixed: • Cons: an email worm spreads faster than on a small world or a random graph topology. • Pros: static selective immunization defense is more effective.

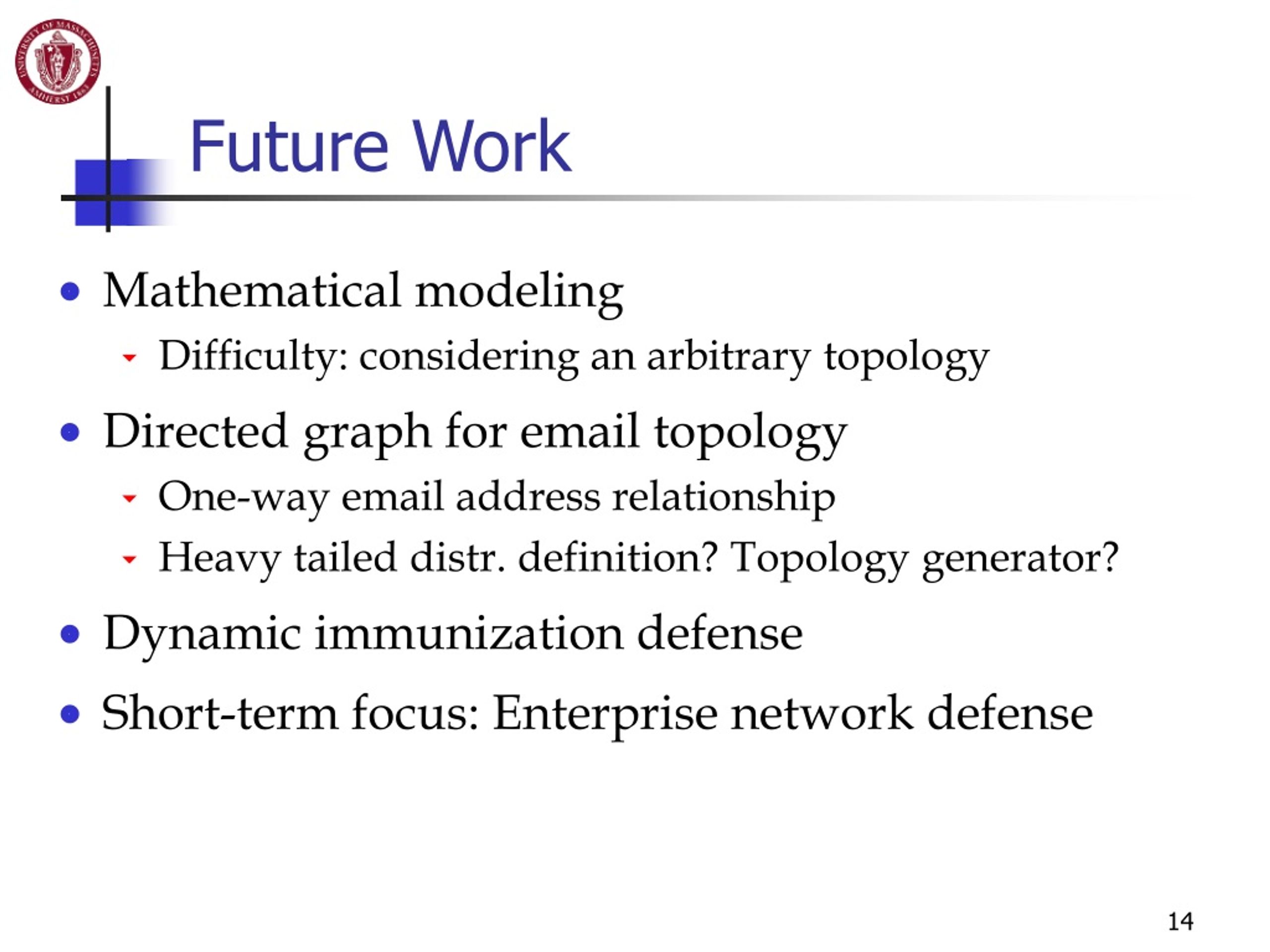

14. Future Work • Mathematical modeling • Difficulty: considering an arbitrary topology • Directed graph for email topology • One-way email address relationship • Heavy tailed distr. definition? Topology generator? • Dynamic immunization defense • Short-term focus: Enterprise network defense
