slide1

Overcoming Severe Diffraction Anisotropy

in Crystallographic Refinement

Michael Sawaya

ACA Meeting

Thursday, July 27, 2006, 4:35 PM

Honolulu/Kahuku

diffraction anisotropy

c*

c*

mean |F| vs.

resolution

a*

b*

c*

b*

a*

c*

c*

a*

b*

c*

a*

b*

Diffraction Anisotropy

diffraction strength differs with cell direction

ANISOTROPIC

ISOTROPIC

slide3
Diffraction anisotropy arises when then number of lattice contacts is less in one cell direction than another

Myohemerythrin (PDB ID 2MHR) crystal packing viewed from two orthogonal directions

The crystal diffracts to 1.3 Å along b*, 1.7 Å along a* and c*

Sheriff & Hendrickson, (1987) Description of overall Anisotropy in Diffraction from Macromolecular Crystals. Acta A43, 118-121.

View perpendicular to b

View parallel to b

diffraction anisotropy presents two major problems to crystallographers
Diffraction anisotropy presents two major problems to crystallographers
  • Problem 1: choice of resolution boundaries of the data set
  • Clearly, one would like to chose an ellipsoidal boundary for anisotropic data.
    • a) Concentric ellipsoids more accurately describe the intensity contours of anisotropic data sets than do concentric spheres.
    • b) Reflection bounded by ellipsoidal shells will have the similar I/s and Rsym.
  • Currently available programs provide only spherical shells for selecting a resolution cutoff and reporting diffraction statistics. (An anisotropic B is allowed in Scala, but is not recommended because parameters for this option are likely to be poorly determined.)
  • Anisotropic data is best contoured using ellipsoidal shells
the inadequacy of spherical shells in reporting diffraction statistics

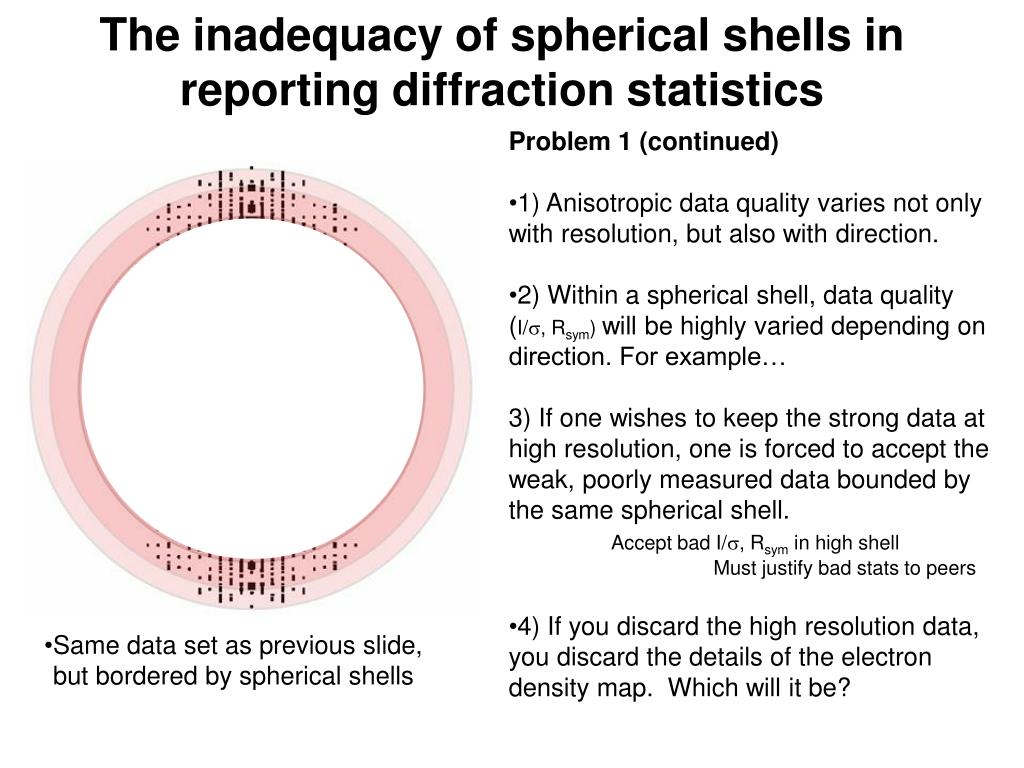

The inadequacy of spherical shells in reporting diffraction statistics
  • Problem 1 (continued)
  • 1) Anisotropic data quality varies not only with resolution, but also with direction.
  • 2) Within a spherical shell, data quality (I/s,Rsym) will be highly varied depending on direction. For example…
  • 3) If one wishes to keep the strong data at high resolution, one is forced to accept the weak, poorly measured data bounded by the same spherical shell.
  • Accept bad I/s,Rsymin high shell
      • Must justify bad stats to peers
  • 4) If you discard the high resolution data, you discard the details of the electron density map. Which will it be?
  • Same data set as previous slide, but bordered by spherical shells
problem 2 the need for an anisotropic scale factor for comparing f calc f obs
Problem 2: The need for an anisotropic scale factor for comparing Fcalc & Fobs
  • Refinement of a structure against anisotropic data will stall at a high R-factor
    • the agreement between Fobs and Fcalc will be very poor
    • |Fobs| has a directional dependence and |Fcalc| does not;
  • An anisotropic scale factor must be applied to either |Fobs| or |Fcalc| to make them comparable.
  • Anisotropic diffraction is not modeled by TLS disorder parameters nor individual isotropic B-factors.

c*

c*

Areas of poor agree-ment

b*

b*

| Fcalc |

|Fobs |

plane h=0

plane h=0

how the anisotropic scale factor works

anisotropic B factor

Scale factor

Scale factor

Scale factor

resolution

resolution

resolution

b22= -5 Å2

b33= +12 Å2

b11= +2 Å2

along a*along b*along c*

How the anisotropic scale factor works.

B=12 Å2

  • An anisotropic scale factor is a multiplicative factor like the overall B-factor.
  • Like the overall B-factor, its value varies with resolution.
  • But, unlike the overall B-factor, its value also varies with direction.
  • It has three principle components, b11, b22, and b33 acting as B-factors along a*,b*,c* directions, respectively.
  • An anisotropic data set can be made isotropic by applying the appropriate scale factor that increases |F| in weak diffracting direction or decrease |F| in the strong diffracting direction or a combination of both.
  • “B”s can be positive or negative.

Same for all lattice directions (a*,b*,c*)

Scale factor

resolution

isotropic B factor

anisotropic scale factor

[

]

b11b12b13

b12b22b23

b13b23b33

c*

a*

b*

Anisotropic Scale Factor

Anisotropic tensor

The anisotropic scale factor components are obtained from a least-squares fit of the elements of an anisotropic tensor to Fobs.

S(|Fobs|-k|Fcalc|)2→ min

k=e-(b11a*2h2+2b12a*b*hk+2b12a*c*hl+b22b*2k2+2b23b*c*kl+b33c*2l2)

The value of k changes in the form of concentric elliptical shells from the center of the reciprocal lattice.The parametersb11b22andb33correspond to the principal axes of the ellipse.

Anisotropic scaling is increasingly employed in crystallography.

    • Molecular replacement
      • Phaser (MR_ANISO keyword)
    • Refinement
      • Refmac
      • CNS
  • Anisotropic scaling dramatically improves R-factors (see The Effect of Overall Anisotropic Scaling in Macromolecular Refinement. Murshudov, Davies, Isupov, Krzywda and DodsonCCP4 Newsletter on Protein Crystallography Number 35. July 1998) ,
    • But, a shortcoming in its formulation was newly revealed by the severe degree of anisotropy in our data set… and refinement was stalled.
crystal structure of a pe ppe protein complex from m tuberculosis
Crystal structure of a PE-PPE protein complex from M. tuberculosis.
  • PE and PPE are 2 families named for the conserved proline (P) and glutamate residues (E) near the N-termini.
  • Large families
    • 100 PE members
    • 60 PPE members
  • Precise function not known
    • Associated with cell wall
    • Linked to virulence
    • Immune evasion by antigenic variation?
  • Prevalent in M.tb. and absent in humans
    • Drug target

Domain organization of the PE and PPE proteins as reported in Nature 393:537-44. (1998)

pe ppe project
PE-PPE project
  • Michael Strong
    • Characterization of the complex
      • 28 different individual proteins tested –insoluble.
      • A complex of Rv2430c and Rv2431c guided by bioinformatics
    • Purification
    • Crystallization and Structure Solution
pe ppe crystal parameters

Rebecca Page Screen

14% iso-Propanol

0.07M Sodium Acetate trihydrate pH 4.6

0.14M Calcium Chloride dehydrate

30% Glycerol anhydrous

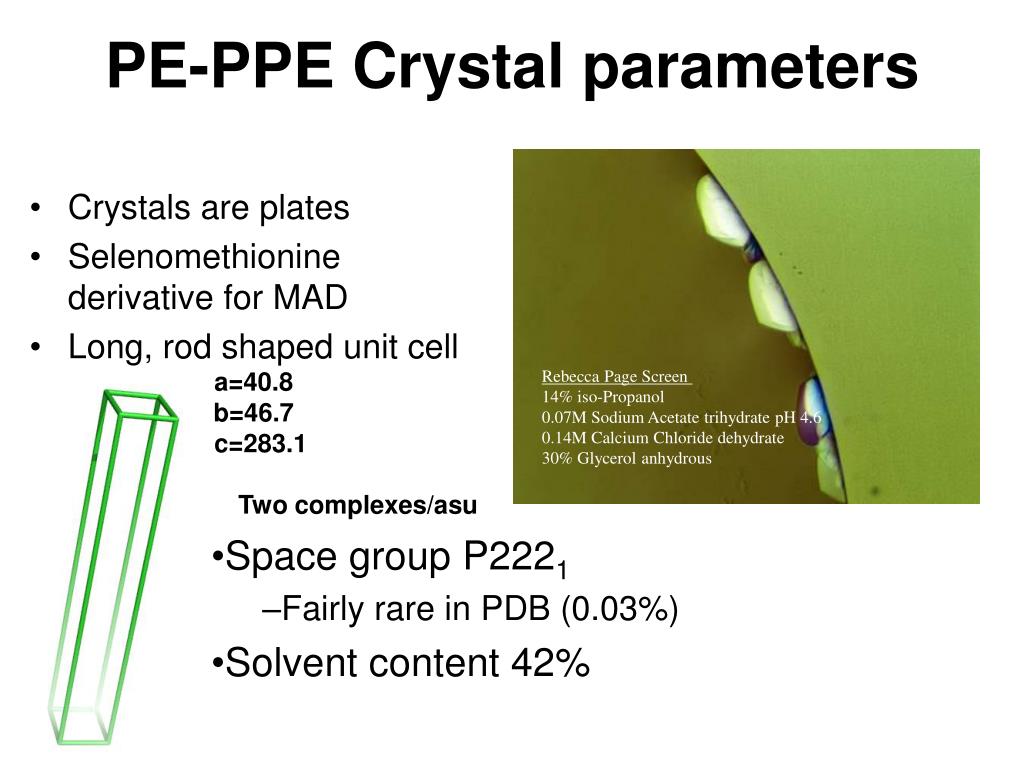

PE-PPE Crystal parameters
  • Crystals are plates
  • Selenomethionine derivative for MAD
  • Long, rod shaped unit cell

a=40.8

b=46.7

c=283.1

Two complexes/asu

  • Space group P2221
    • Fairly rare in PDB (0.03%)
  • Solvent content 42%
pe ppe crystals diffract anisotropically

mean |F| vs.

resolution

a*

b*

c*

PE-PPE crystals diffract anisotropically

c -strong

a- medium

b-weakest

ALS beamline 8.2.2

data used for phasing and refinement

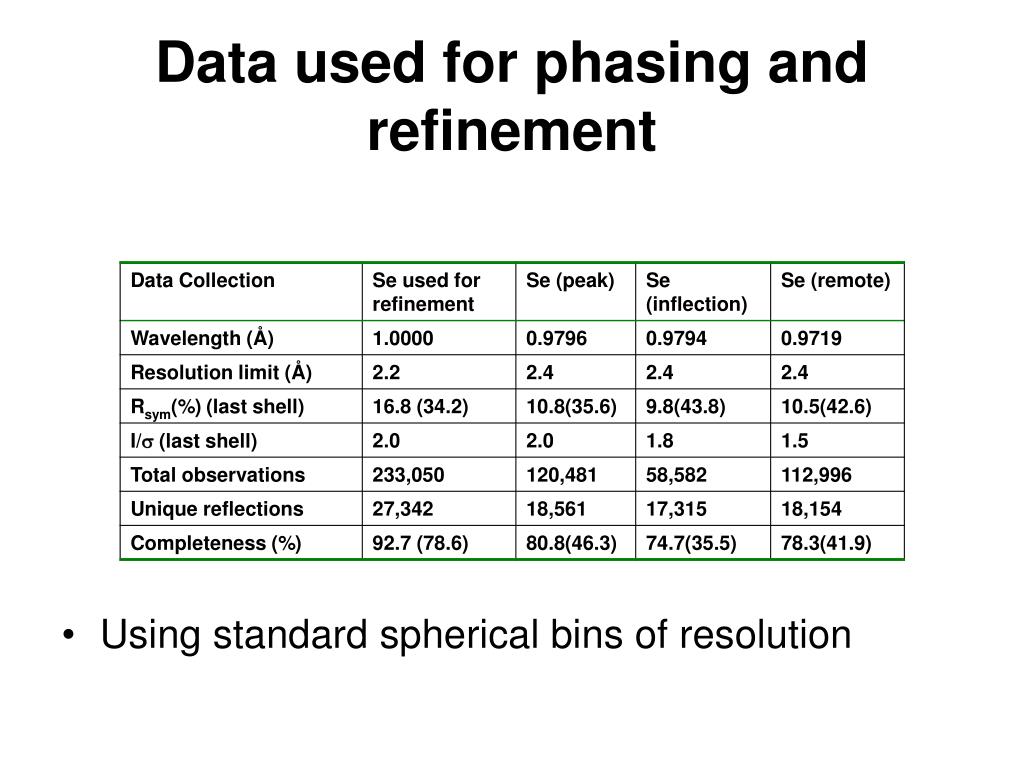

Data used for phasing and refinement
  • Using standard spherical bins of resolution
data statistics for best data set

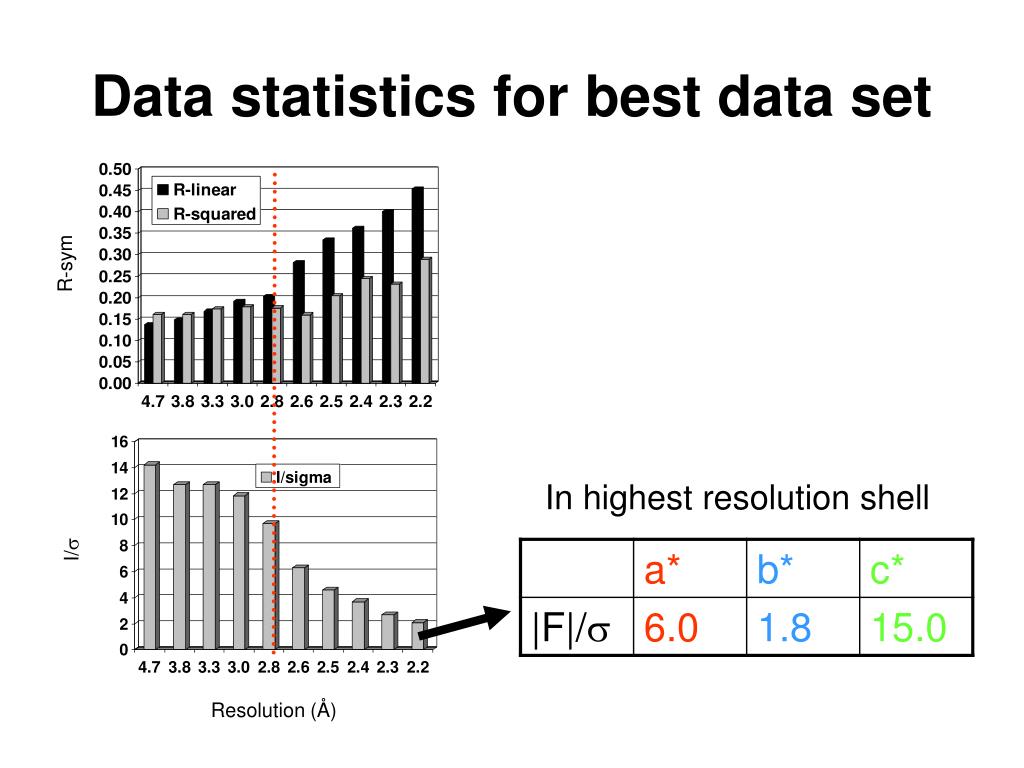

Data statistics for best data set

R-sym

In highest resolution shell

I/s

Resolution (Å)

phasing statistics
Phasing Statistics
  • Just adequate

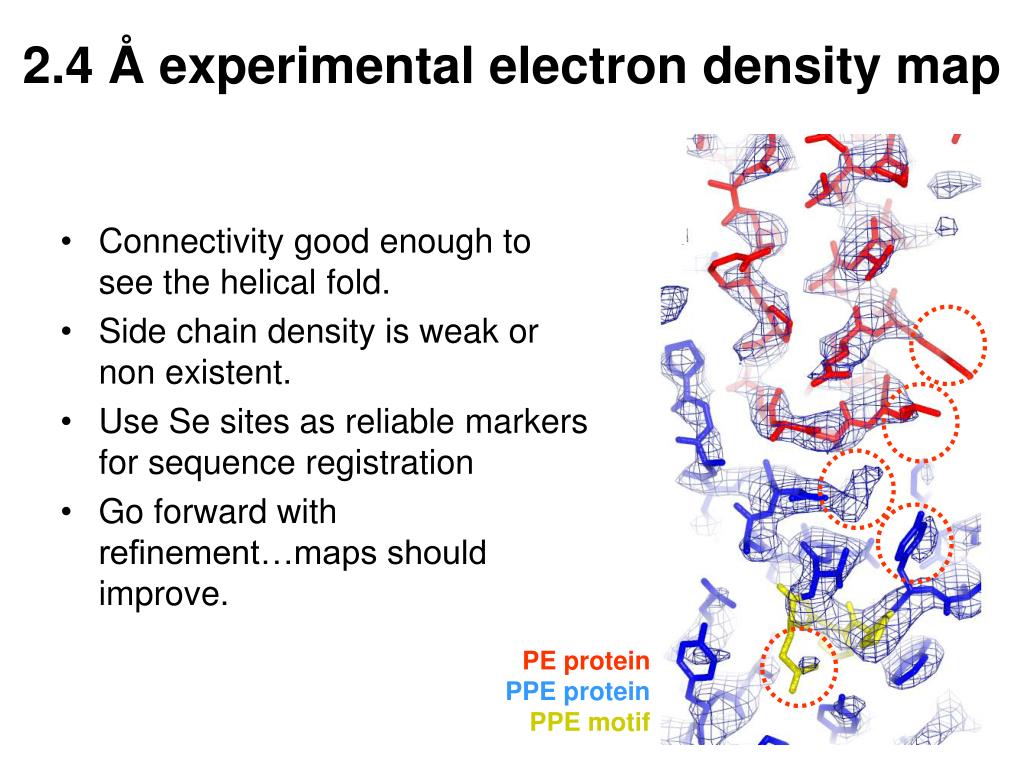

2 4 experimental electron density map
2.4 Å experimental electron density map
  • Connectivity good enough to see the helical fold.
  • Side chain density is weak or non existent.
  • Use Se sites as reliable markers for sequence registration
  • Go forward with refinement…maps should improve.

PE protein

PPE protein

PPE motif

refinement yields only marginal improvement in electron density map
Refinement yields only marginal improvement in electron density map
  • Side chain density is still missing
  • Refinement stuck
    • Rwork=38.5%
    • Rfree=43.4%
    • No apparent way to improve the coordinates/R-factors.
    • No new features apparent in electron density map.
  • Check for twinning
    • Twinning not indicated
  • Check for pseudosymmetry
    • Refinement in P21 or P1 yielded no improvement in R factors
  • Use TLS
    • Unstable, R-factor shot up.
  • Use 3.0 Å cutoff
    • R-factors improved, but map does not improve.

2Fo-Fc

Experimental

2.2 Å

2.4 Å

looking to the literature for help
Looking to the literature for help

Science, vol 300, pp. 1256-1262

  • Lodowski et al. Supplemental methods,
    • “Because the diffraction pattern exhibited severe anisotropy, a 3-D ellipsoid was defined and merging R-factors and I/s were calculated in ellipsoidal shells. Diffraction data were then limited to the outermost shell that still contained significant data…”
  • Zhang et al.
    • “Data observed to 2.5A resolution in the c* direction, but to only 3.3 A in the plane perpendicular to c*.”
    • An ellipsoid of diffraction data, rather than the usual sphere, was used for scaling and refinement.
    • Refers to Lodowski et al. for method.
  • Let’s do the same

Acta D, vol 60, pp. 1512-1518

solution proposed by literature
Solution proposed by literature

Equation of an ellipsoid

1=x2/a2 + y2/b2 + z2/c2

Where a, b, and c are the vertices of the ellipse.

Set the following:

a= 1/resolution limit along a*=1/2.2Å

b=1/resolution limit along b*=1/3.2Å

c=1/resolution limit along c*=1/2.2Å

Resolution limits determined by the point were mean |F|/s drops below 2 for the given axis. See truncate output.

To test whether a given reflection falls within the ellipsoid, calculate:

x=component of d* along a*

y=component of d* along b*

z=component of d* along c*

Plug a,b,c,x,y,z into equation above. Where the sum>1, discard reflection.

Reflections before truncation 27,293

Reflections after truncation 20,053

discard

discard

elliptical truncation produced a sharp drop in r factors but no improvement in map

Big drop

R-work

Before truncation

After truncation

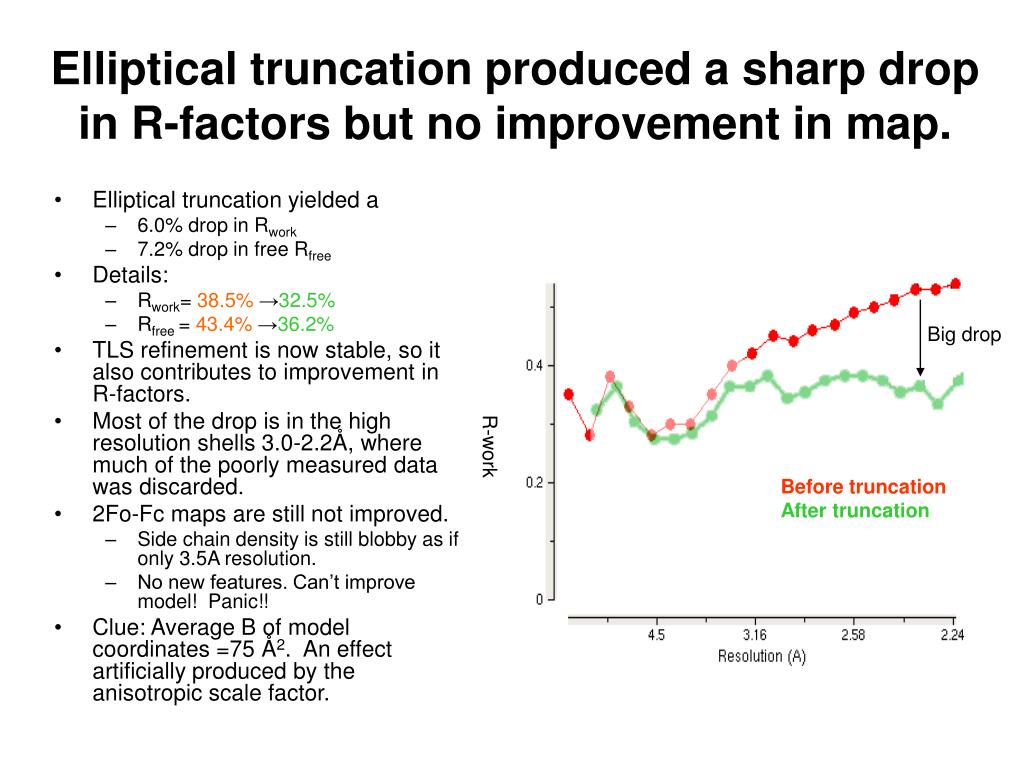

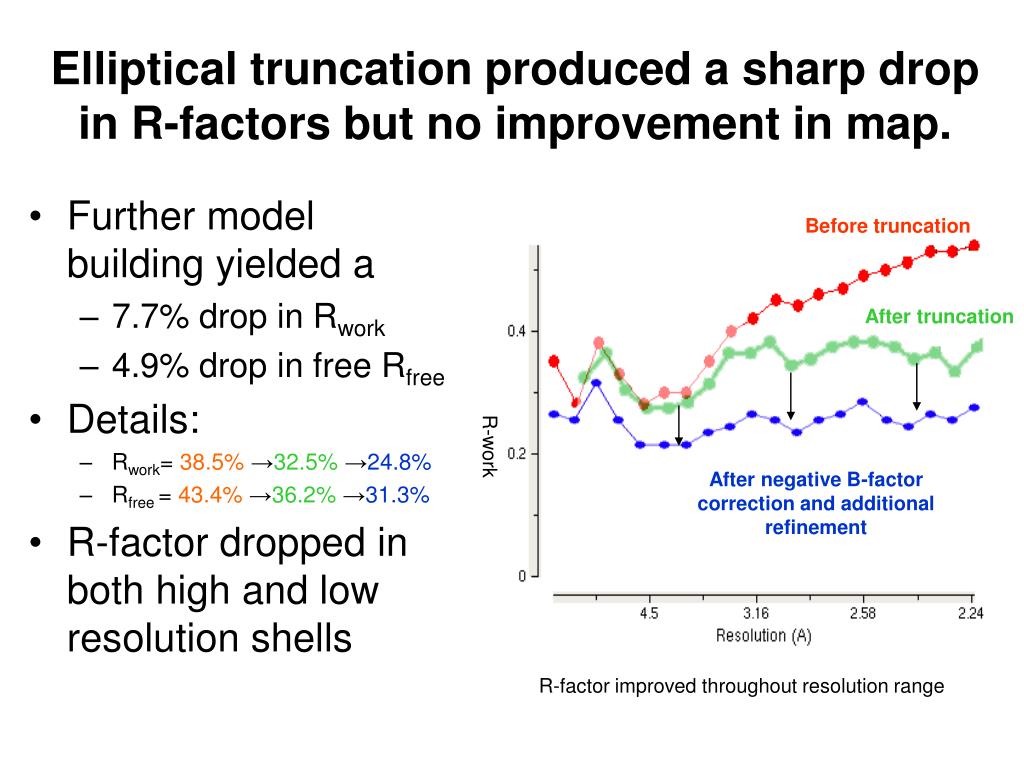

Elliptical truncation produced a sharp drop in R-factors but no improvement in map.
  • Elliptical truncation yielded a
    • 6.0% drop in Rwork
    • 7.2% drop in free Rfree
  • Details:
    • Rwork= 38.5%→32.5%
    • Rfree = 43.4%→36.2%
  • TLS refinement is now stable, so it also contributes to improvement in R-factors.
  • Most of the drop is in the high resolution shells 3.0-2.2Å, where much of the poorly measured data was discarded.
  • 2Fo-Fc maps are still not improved.
    • Side chain density is still blobby as if only 3.5A resolution.
    • No new features. Can’t improve model! Panic!!
  • Clue: Average B of model coordinates =75 Å2. An effect artificially produced by the anisotropic scale factor.
adverse side effect of anisotropic scaling

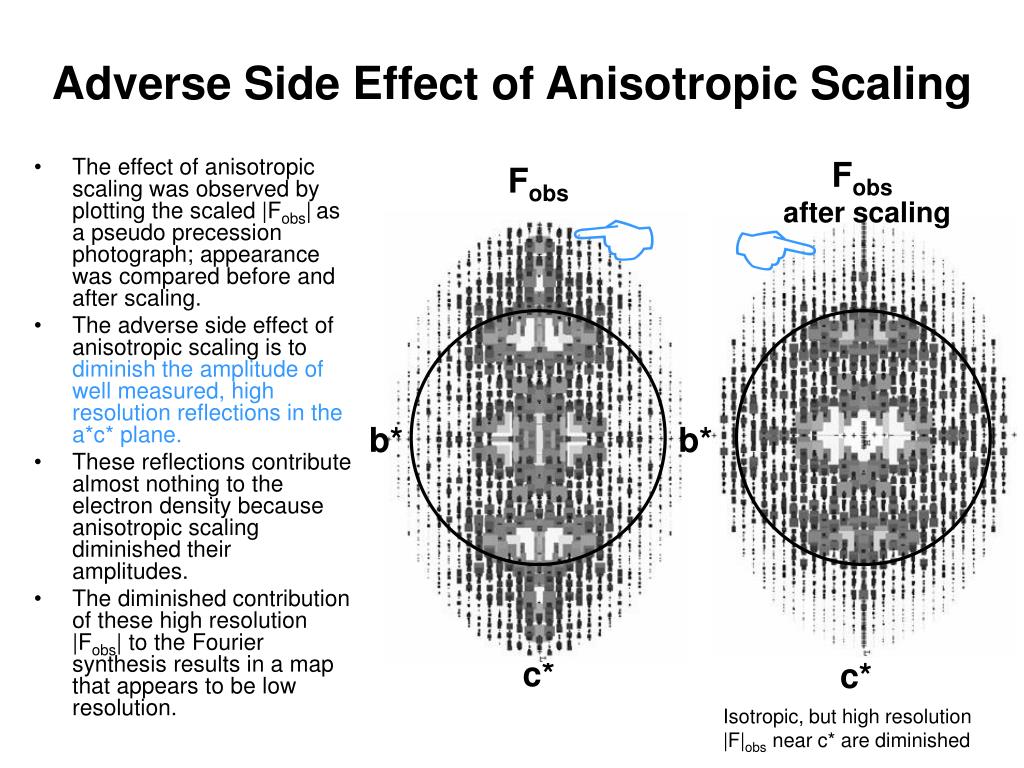

Adverse Side Effect of Anisotropic Scaling

Fobs

after scaling

Fobs

  • The effect of anisotropic scaling was observed by plotting the scaled |Fobs|as a pseudo precession photograph; appearance was compared before and after scaling.
  • The adverse side effect of anisotropic scaling is to diminish the amplitude of well measured, high resolution reflections in the a*c* plane.
  • These reflections contribute almost nothing to the electron density because anisotropic scaling diminished their amplitudes.
  • The diminished contribution of these high resolution |Fobs| to the Fourier synthesis results in a map that appears to be low resolution.

b*

b*

c*

c*

Isotropic, but high resolution |F|obs near c* are diminished

why anisotropic scaling might diminish high resolution f obs

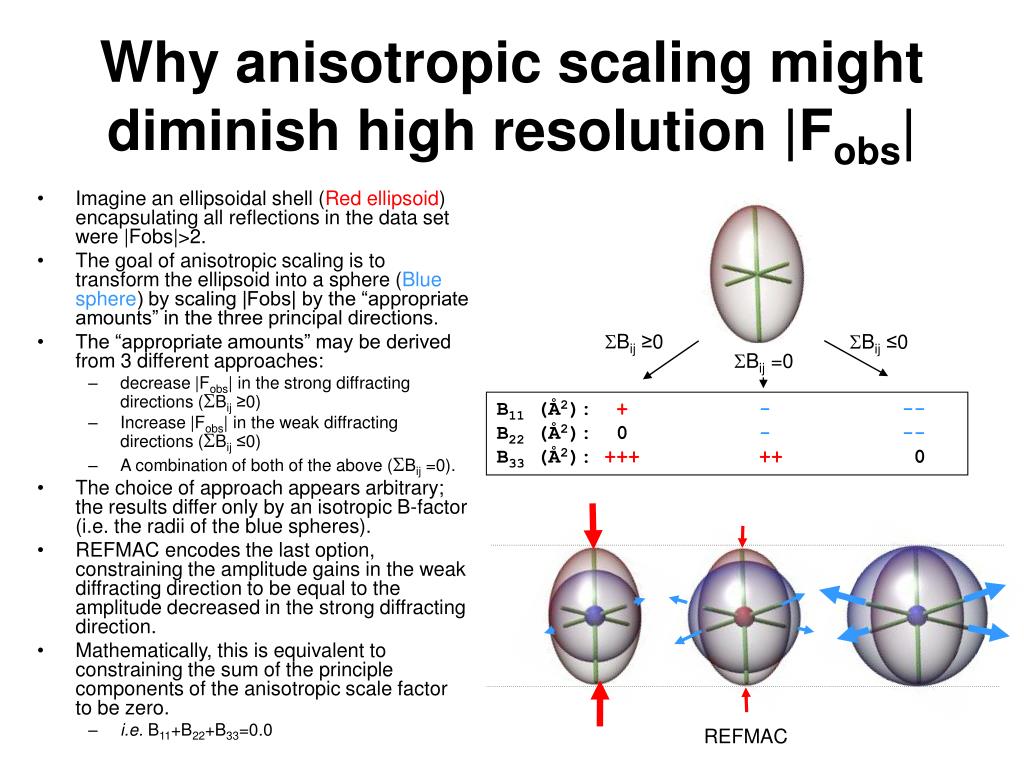

Why anisotropic scaling might diminish high resolution |Fobs|
  • Imagine an ellipsoidal shell (Red ellipsoid) encapsulating all reflections in the data set were |Fobs|>2.
  • The goal of anisotropic scaling is to transform the ellipsoid into a sphere (Blue sphere) by scaling |Fobs| by the “appropriate amounts” in the three principal directions.
  • The “appropriate amounts” may be derived from 3 different approaches:
    • decrease |Fobs| in the strong diffracting directions (SBij≥0)
    • Increase |Fobs| in the weak diffracting directions (SBij≤0)
    • A combination of both of the above (SBij=0).
  • The choice of approach appears arbitrary; the results differ only by an isotropic B-factor (i.e. the radii of the blue spheres).
  • REFMAC encodes the last option, constraining the amplitude gains in the weak diffracting direction to be equal to the amplitude decreased in the strong diffracting direction.
  • Mathematically, this is equivalent to constraining the sum of the principle components of the anisotropic scale factor to be zero.
    • i.e. B11+B22+B33=0.0

SBij≥0

SBij≤0

SBij=0

B11 (Å2): + - --

B22 (Å2): 0 - --

B33 (Å2): +++++0

REFMAC

constraining s b ij 0 improved map model building resumed

x

x

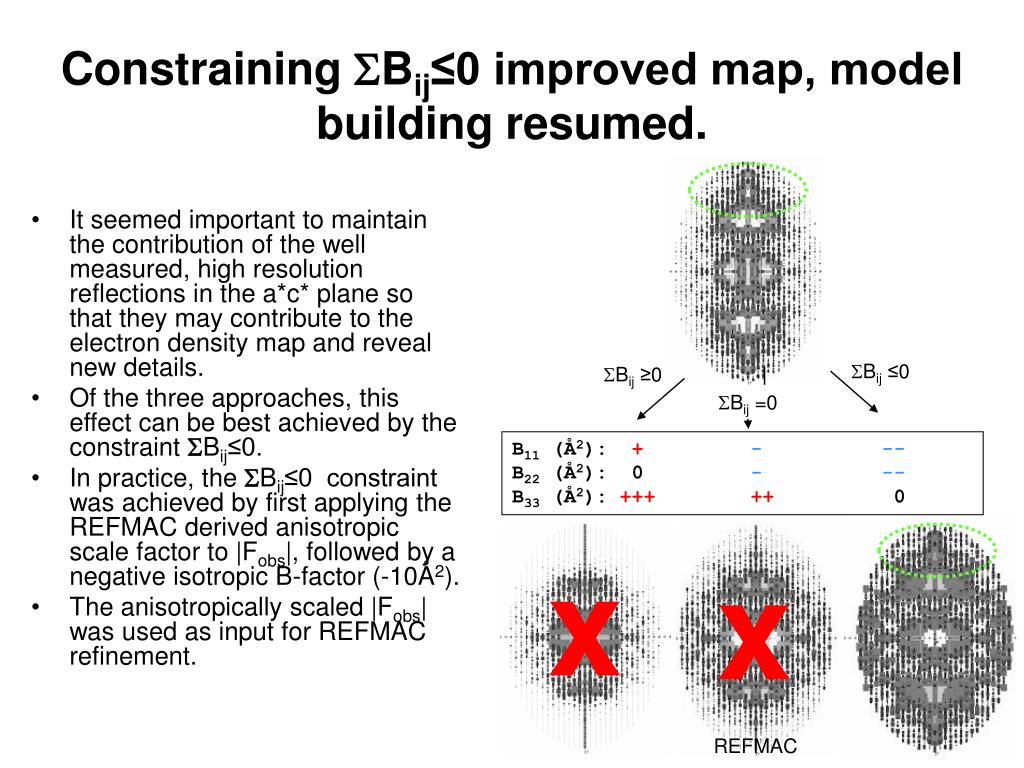

Constraining SBij≤0 improved map, model building resumed.
  • It seemed important to maintain the contribution of the well measured, high resolution reflections in the a*c* plane so that they may contribute to the electron density map and reveal new details.
  • Of the three approaches, this effect can be best achieved by the constraint SBij≤0.
  • In practice, the SBij≤0 constraint was achieved by first applying the REFMAC derived anisotropic scale factor to |Fobs|, followed by a negative isotropic B-factor (-10Å2).
  • The anisotropically scaled |Fobs| was used as input for REFMAC refinement.

SBij≤0

SBij≥0

SBij=0

B11 (Å2): + - --

B22 (Å2): 0 - --

B33 (Å2): +++++0

REFMAC

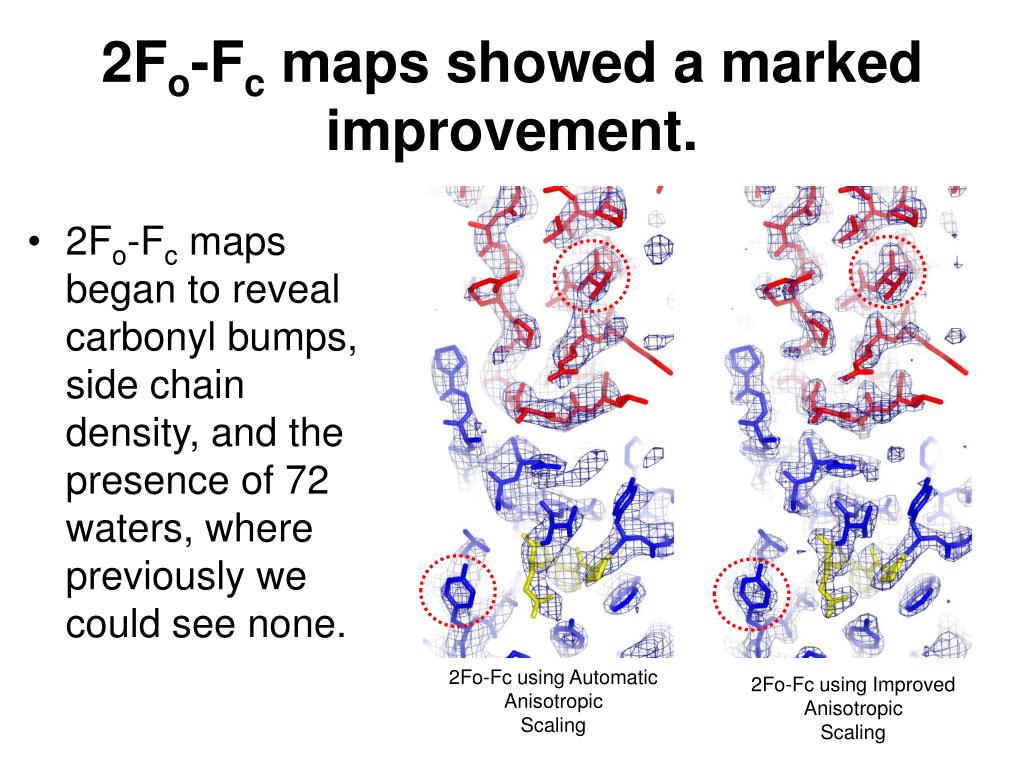

2f o f c maps showed a marked improvement
2Fo-Fc maps showed a marked improvement.
  • 2Fo-Fc maps began to reveal carbonyl bumps, side chain density, and the presence of 72 waters, where previously we could see none.

2Fo-Fc using Automatic Anisotropic

Scaling

2Fo-Fc using Improved Anisotropic

Scaling

elliptical truncation produced a sharp drop in r factors but no improvement in map1
Elliptical truncation produced a sharp drop in R-factors but no improvement in map.
  • Further model building yielded a
    • 7.7% drop in Rwork
    • 4.9% drop in free Rfree
  • Details:
    • Rwork= 38.5%→32.5% →24.8%
    • Rfree = 43.4%→36.2% →31.3%
  • R-factor dropped in both high and low resolution shells

Before truncation

After truncation

R-work

After negative B-factor correction and additional refinement

R-factor improved throughout resolution range

origins of diffraction anisotropy resemble those in myohemorythrin
Origins of diffraction anisotropy resemble those in myohemorythrin

Strong diffraction

Poor diffraction

anisotropic scaling of other proteins
Anisotropic scaling of other proteins
  • The technique of applying anisotropic scaling with SBij≤0 has helped in the refinement of structures of Actin dimer, and Tim8/13 complex.
  • The improvement in R-factors and electron density maps have been more modest in these cases, as the anisotropy is less severe.
  • The technique appears to be most helpful when the best and worst diffracting directions extend between 2.5 to 3.0, where water molecules are discernable.
procedures
Procedures
  • Judge whether anisotropy is a problem.
    • Look at the anisotropy graph from truncate (loggraph truncate.log)
    • Does mean F/s drop with different slopes along the 3 principle directions?
  • If anisotropy is significant, determine the resolution limits along the three principle cell directions.
    • Note where mean F/s drops below 2 along the three principle directions.
  • Truncate data using ellipsoidal limits.
    • I’ll make my truncation program available from http:www.doe-mbi.ucla.edu/~sawaya.
  • Calculate the anisotropic scale parameters (for Fcalc).
    • Perform a cycle of refinement with Refmac or CNS.
    • Note the anisotropic scale parameters (B11,B22,B33,etc.) listed in the PDB header
    • For example B11= -6, B22= +14, B33= -9
  • Apply the negated scale factors to Fobs to create an isotropic data set.
    • For example B11= +6, B22= -14, B33= +9
    • use cad from CCP4
  • Apply a negative isotropic scale factor to the newly isotropic Fobs to restore the magnitude of those reflections weakened by the previous step.
    • Negate the most positive component from the previous step (e.g. +9 → -9).
    • Use cad again.
  • Use this scaled Fobs for refinement.
  • -all these steps are performed by the diffraction anisotropy server
  • http://www.doe-mbi.ucla.edu/~sawaya/anisoscale/
acknowledgements
Acknowledgements
  • Michael Strong
  • Shuishu Wang
  • Duilio Cascio
  • Alex Lisker
  • David Eisenberg
