  1. and Alexandre Duarte OurGrid/EELA Interoperability Meeting Campina Grande, 31.08.2006 www.eu-eela.org - Campina Grande, OurGrid/EELA interoperability meeting 31.08.2006

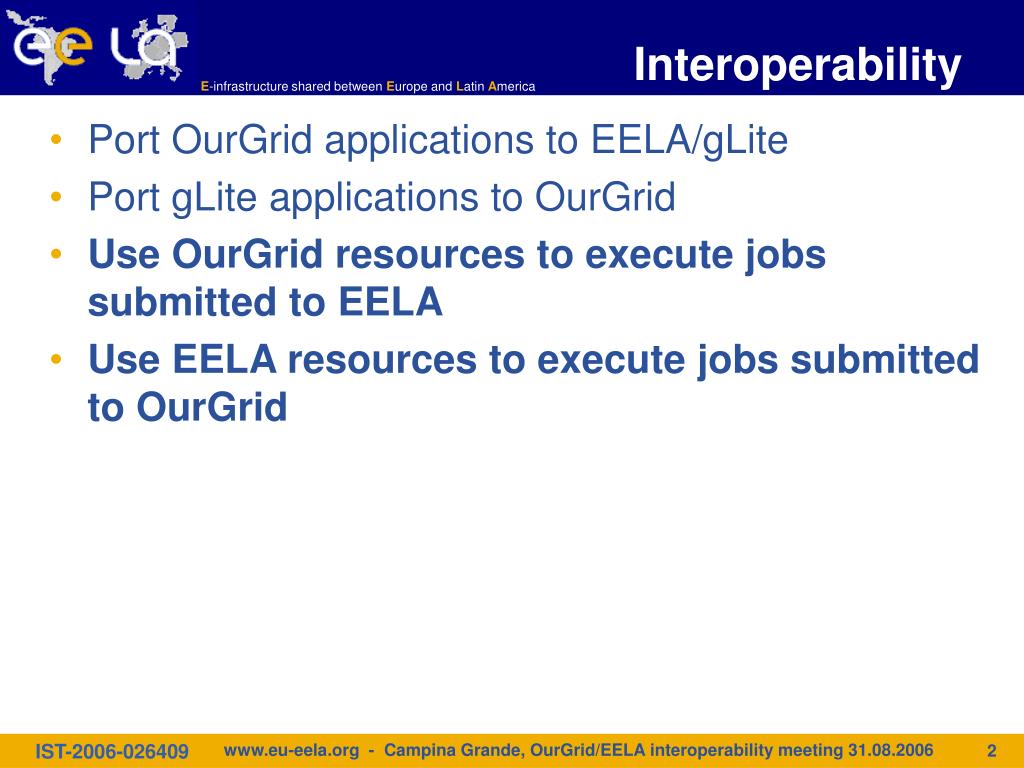

  2. Interoperability • Port OurGrid applications to EELA/gLite • Port gLite applications to OurGrid • Use OurGrid resources to execute jobs submitted to EELA • Use EELA resources to execute jobs submitted to OurGrid www.eu-eela.org - Campina Grande, OurGrid/EELA interoperability meeting 31.08.2006

  3. EELA Infrastructure www.eu-eela.org - Campina Grande, OurGrid/EELA interoperability meeting 31.08.2006

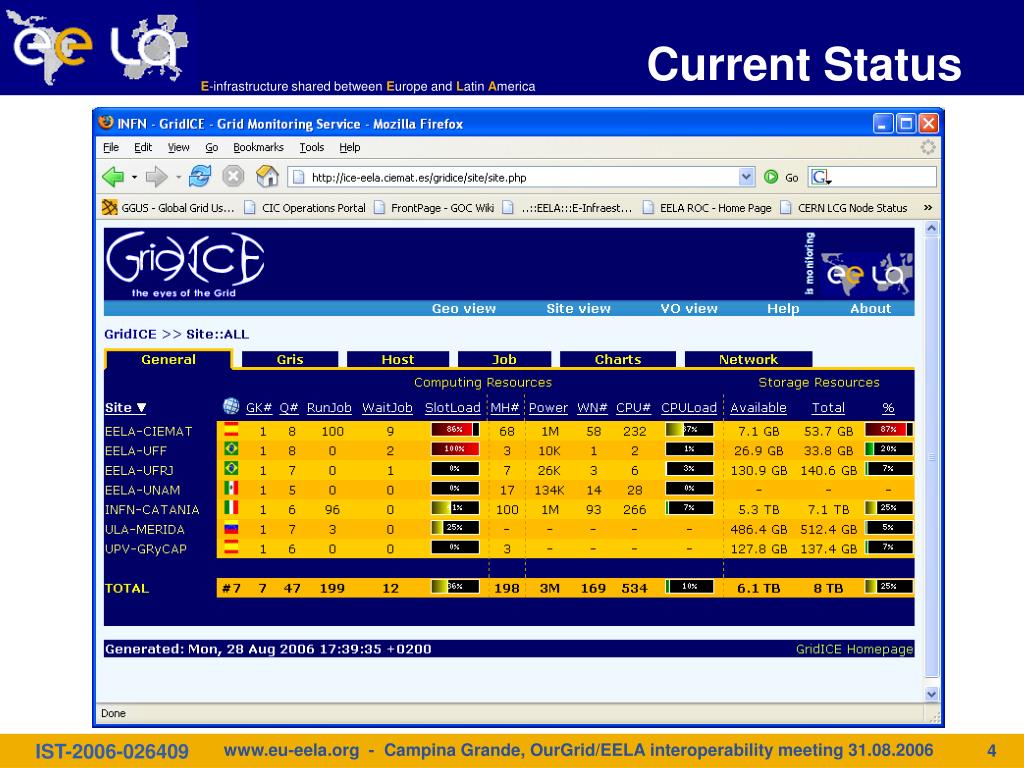

  4. Current Status www.eu-eela.org - Campina Grande, OurGrid/EELA interoperability meeting 31.08.2006

  5. Application Porting www.eu-eela.org - Campina Grande, OurGrid/EELA interoperability meeting 31.08.2006

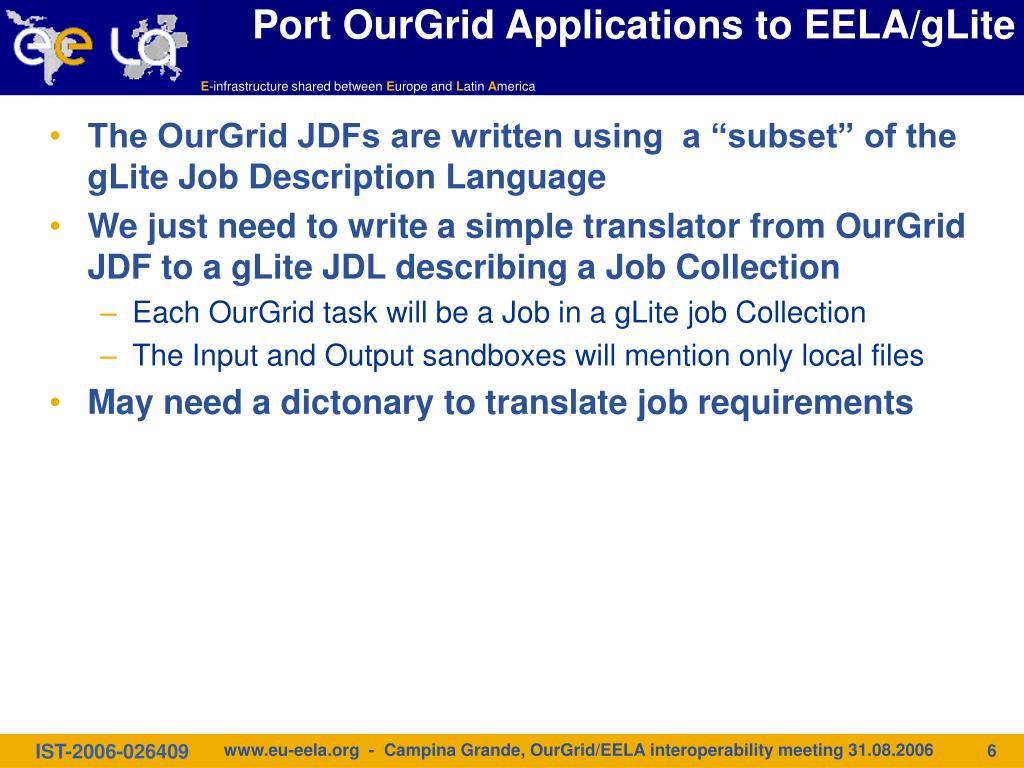

  6. Port OurGrid Applications to EELA/gLite • The OurGrid JDFs are written using a “subset” of the gLite Job Description Language • We just need to write a simple translator from OurGrid JDF to a gLite JDL describing a Job Collection • Each OurGrid task will be a Job in a gLite job Collection • The Input and Output sandboxes will mention only local files • May need a dictonary to translate job requirements www.eu-eela.org - Campina Grande, OurGrid/EELA interoperability meeting 31.08.2006

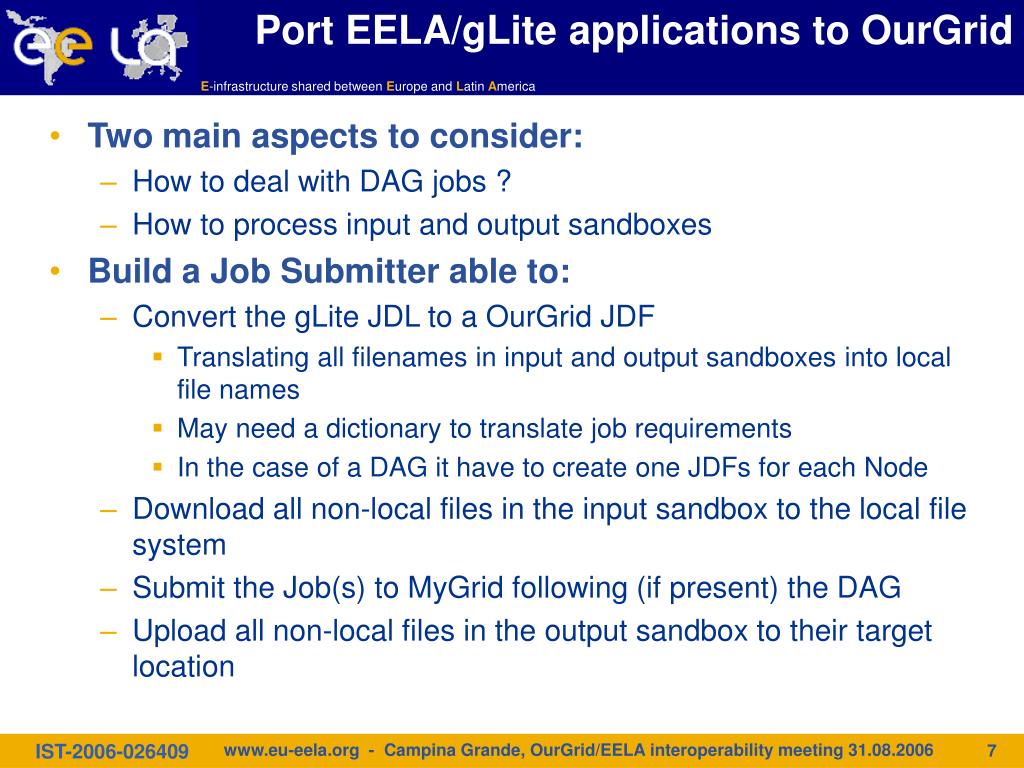

  7. Port EELA/gLite applications to OurGrid • Two main aspects to consider: • How to deal with DAG jobs ? • How to process input and output sandboxes • Build a Job Submitter able to: • Convert the gLite JDL to a OurGrid JDF • Translating all filenames in input and output sandboxes into local file names • May need a dictionary to translate job requirements • In the case of a DAG it have to create one JDFs for each Node • Download all non-local files in the input sandbox to the local file system • Submit the Job(s) to MyGrid following (if present) the DAG • Upload all non-local files in the output sandbox to their target location www.eu-eela.org - Campina Grande, OurGrid/EELA interoperability meeting 31.08.2006

  8. Use OurGrid resources to execute jobs submitted to EELA www.eu-eela.org - Campina Grande, OurGrid/EELA interoperability meeting 31.08.2006

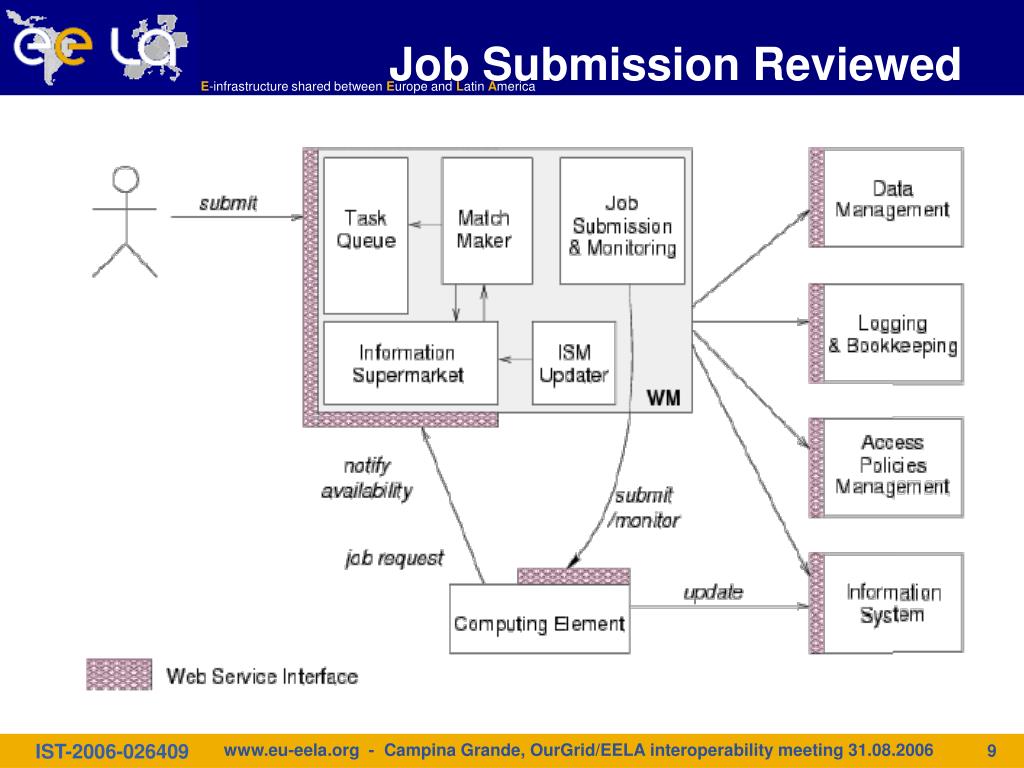

  9. Job Submission Reviewed www.eu-eela.org - Campina Grande, OurGrid/EELA interoperability meeting 31.08.2006

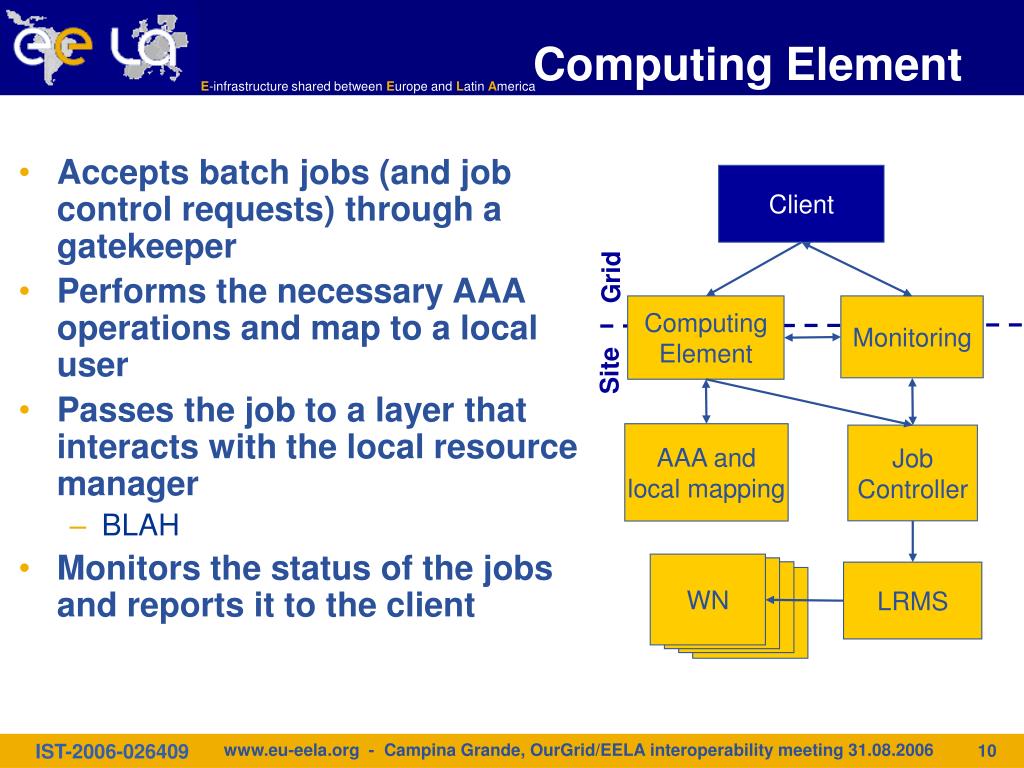

  10. WN Computing Element • Accepts batch jobs (and job control requests) through a gatekeeper • Performs the necessary AAA operations and map to a local user • Passes the job to a layer that interacts with the local resource manager • BLAH • Monitors the status of the jobs and reports it to the client Client Grid Computing Element Monitoring Site AAA and local mapping Job Controller LRMS www.eu-eela.org - Campina Grande, OurGrid/EELA interoperability meeting 31.08.2006

  11. BLAH • The BLAHP (Batch Local ASCII Helper Protocol) provides a set of plain ASCII commands to manage jobs on the batch systems. • Batch system interactions • Not part of the daemon's core. • Performed via external scripts with a common syntax among different batch systems. • Three scripts for every batch system: • xxx_submit • xxx_status • xxx_cancel • The effort for batch system abstraction is concentrated in these scripts. • Adding support for new batch systems requires “only” to write a new set of scripts. www.eu-eela.org - Campina Grande, OurGrid/EELA interoperability meeting 31.08.2006

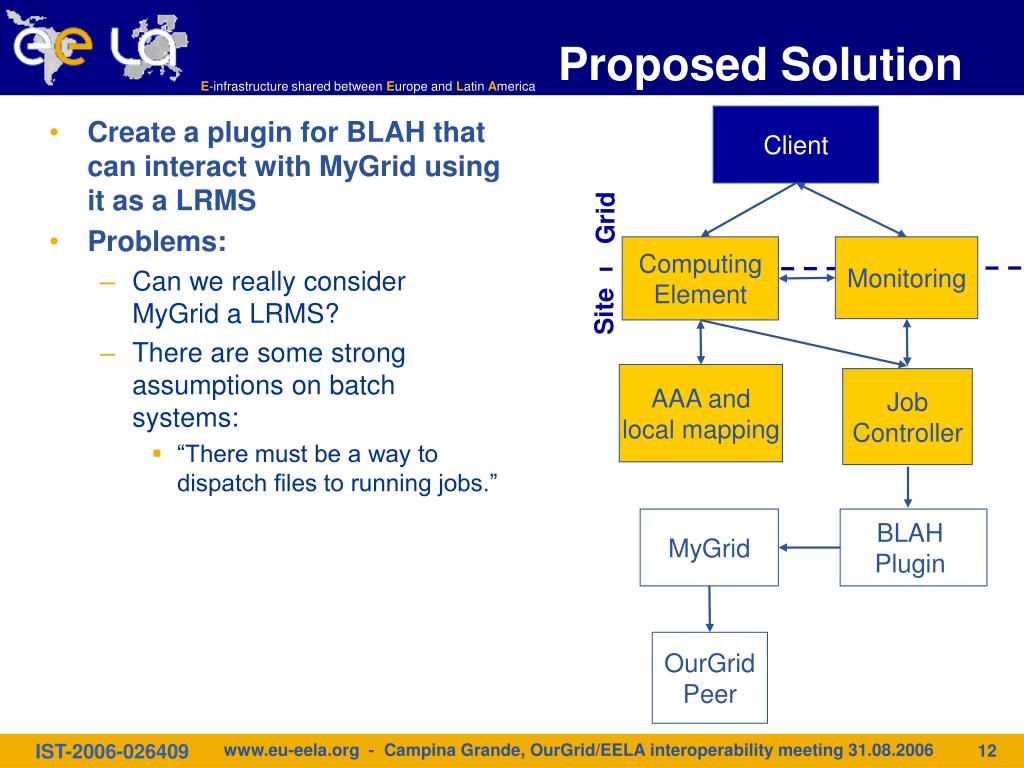

  12. Proposed Solution Client • Create a plugin for BLAH that can interact with MyGrid using it as a LRMS • Problems: • Can we really consider MyGrid a LRMS? • There are some strong assumptions on batch systems: • “There must be a way to dispatch files to running jobs.” Grid Computing Element Monitoring Site AAA and local mapping Job Controller MyGrid BLAH Plugin OurGrid Peer www.eu-eela.org - Campina Grande, OurGrid/EELA interoperability meeting 31.08.2006

  13. Use EELA resources to execute jobs submitted to OurGrid www.eu-eela.org - Campina Grande, OurGrid/EELA interoperability meeting 31.08.2006

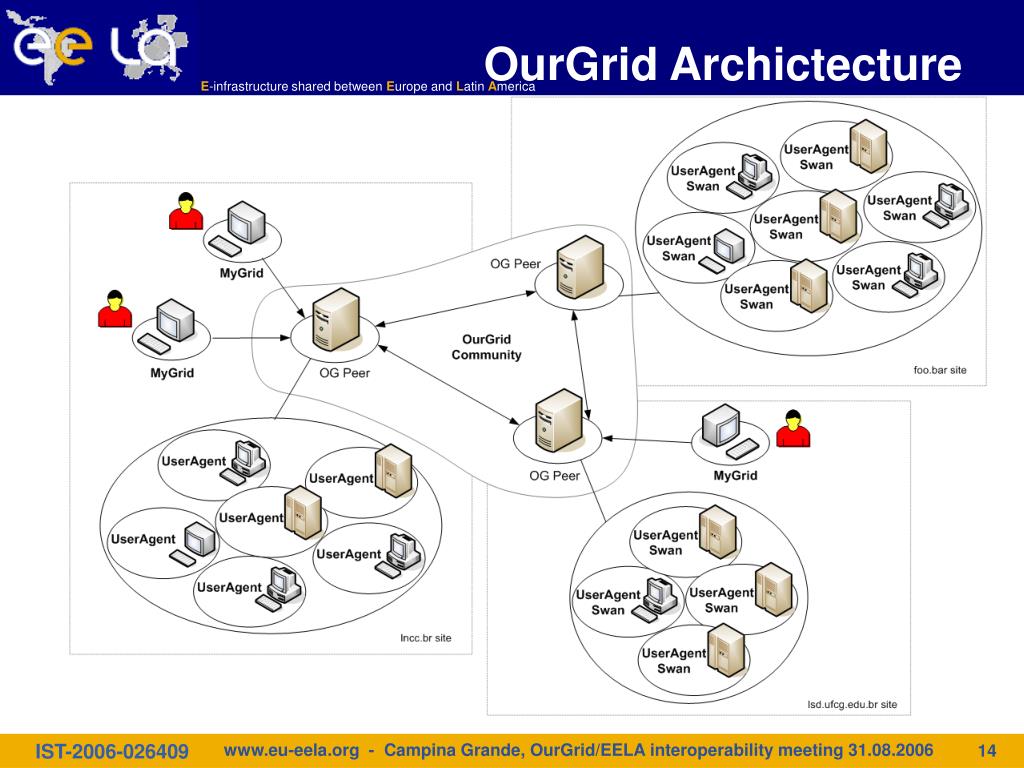

  14. OurGrid Archictecture www.eu-eela.org - Campina Grande, OurGrid/EELA interoperability meeting 31.08.2006

  15. Proposed Solution MyGrid X.509 1 gLite Peer 6 2 OurGrid Workers Workload Manager Computing Element Computing Element 5 3 WorkerNodes Computing Element Computing Element 4 Computing Element www.eu-eela.org - Campina Grande, OurGrid/EELA interoperability meeting 31.08.2006

  16. I think that we may have answered the What. Now we need to answer Who and When. www.eu-eela.org - Campina Grande, OurGrid/EELA interoperability meeting 31.08.2006
