Presentation Transcript

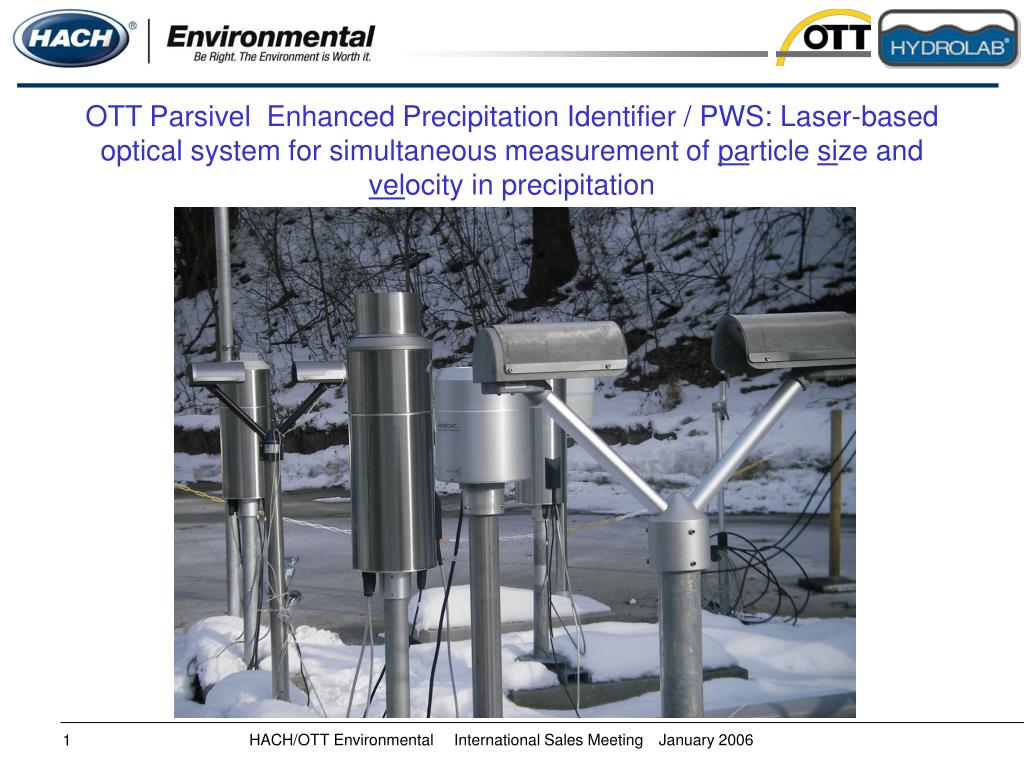

Slide1 l.jpg

OTT Parsivel Enhanced Precipitation Identifier / PWS: Laser-based optical system for simultaneous measurement of particle size and velocity in precipitation


Slide2 l.jpg

OTT Parsivel®

  • Design with two heads

  • No catching losses due to wind effect, no bucket or vessel

  • Wide intensity range 0,001 to 1200 mm/h

  • Velocity: 0,2 to 20 m/s

  • Sizes: 0,2 to 25 mm

  • Reports according WMO codes

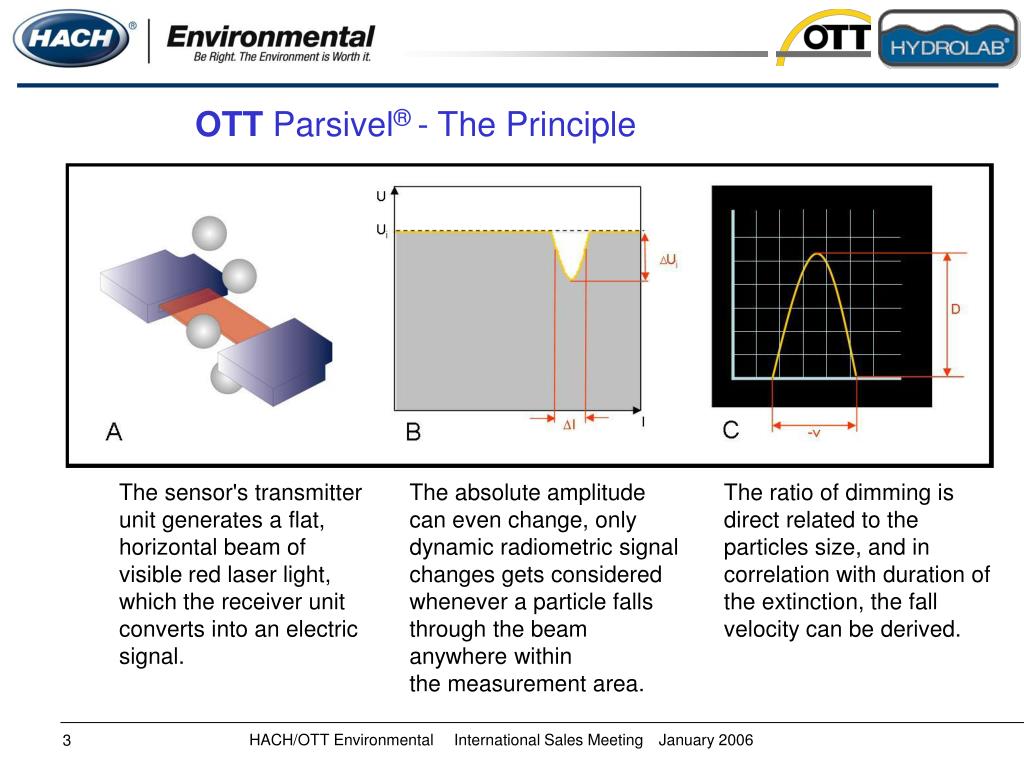

Slide3 l.jpg

OTT Parsivel® - The Principle

The sensor's transmitter unit generates a flat, horizontal beam of visible red laser light, which the receiver unit converts into an electric signal.

The absolute amplitude can even change, only dynamic radiometric signal changes gets considered

whenever a particle falls through the beam anywhere within

the measurement area.

The ratio of dimming is

direct related to the particles size, and in correlation with duration of

the extinction, the fall velocity can be derived.


Ott parsivel type of precipitation rain l.jpg
OTT Parsivel® - Type Of Precipitation: Rain

  • Accumulated particles in 60 second interval

  • Drop speed like Gunn-Kinzer distribution (dashed line)

  • Rain because large number of drops on the Gunn-Kinzer curve

  • Derivation to water equivalent

  • Drops with different shapes relating to sizes and speed

  • Distinguish of different types of liquid precipitation: drizzle, rain, mixed form in light moderate and heavy classes

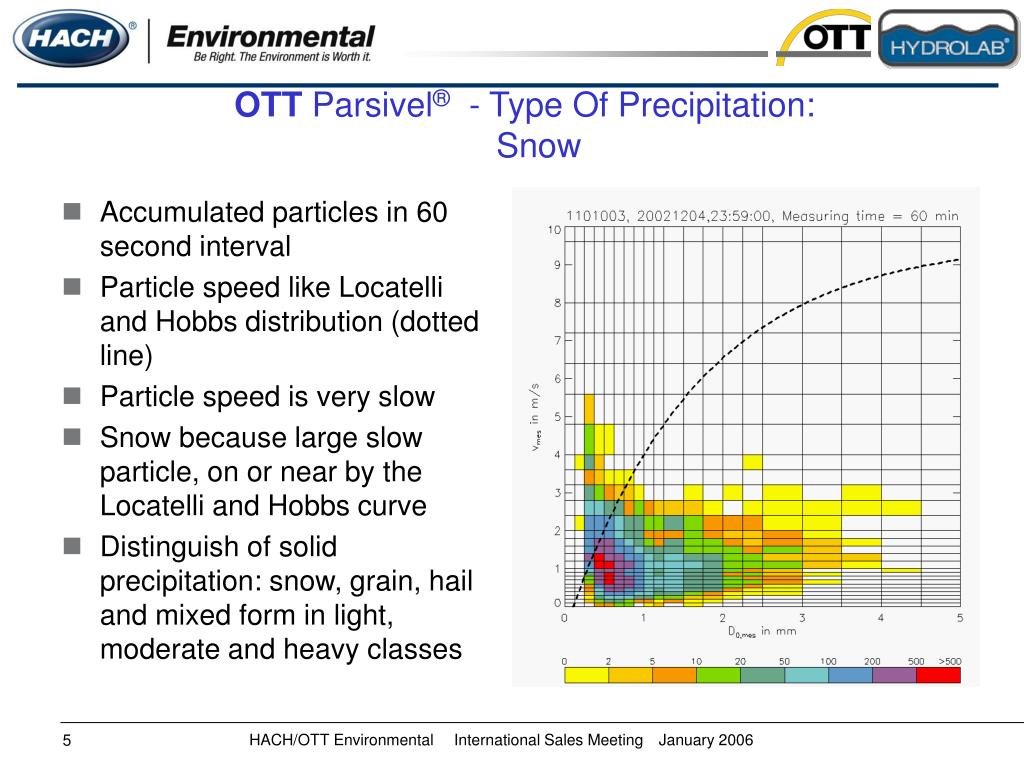

Ott parsivel type of precipitation snow l.jpg
OTT Parsivel®- Type Of Precipitation: Snow

  • Accumulated particles in 60 second interval

  • Particle speed like Locatelli and Hobbs distribution (dotted line)

  • Particle speed is very slow

  • Snow because large slow particle, on or near by the Locatelli and Hobbs curve

  • Distinguish of solid precipitation: snow, grain, hail and mixed form in light, moderate and heavy classes


Slide6 l.jpg

Drop distribution: 32 classes of size and speed

Intensity and accumulation of precipitation

WMO reports: WaWa, WW, Metar, Speci, NWS

Visibility in precipitation

Radar reflectivity

Laser energy

Number of particles

Measuring interval

Housekeeping data: heater power, supply voltage, sensor status, temperature

OTT Parsivel® - Operating Software

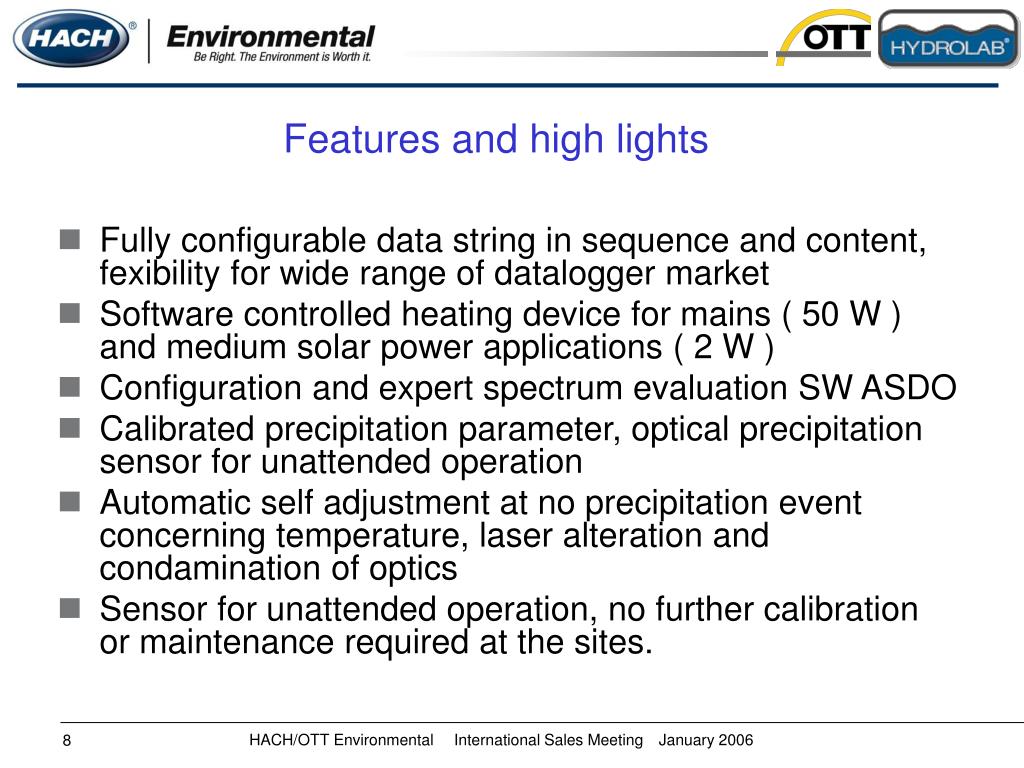

Slide8 l.jpg

Features and high lights

  • Fully configurable data string in sequence and content, fexibility for wide range of datalogger market

  • Software controlled heating device for mains ( 50 W ) and medium solar power applications ( 2 W )

  • Configuration and expert spectrum evaluation SW ASDO

  • Calibrated precipitation parameter, optical precipitation sensor for unattended operation

  • Automatic self adjustment at no precipitation event concerning temperature, laser alteration and condamination of optics

  • Sensor for unattended operation, no further calibration or maintenance required at the sites.


Features and high lights l.jpg

Patented extinction method for simultaneous measurement of particles size and velocity

Only one version and fully configurable for all applications

Multipurpose instrument for PWS, optical precipitation sensor, spectrum distribution and energy, radar reflectivity and visibility in precipitation (MOR)

Multipurpose interfaces for RS 485, RS 422, SDI-12, Digital Output for state of precipitation and pulse related to 0,1mm

Parallel operation of ASDO (PC-Monitoring and logging) and datalogger with SDI-12

Features and high lights


Slide10 l.jpg

Market and customers particles size and velocity

Present Weather Sensor

Enhanced Precipitation Identifier

- Meteorological Services

- Avalanche Warning institutes

- ASOS Systems Airports

- Flood warning Systems

- Water Resources and Energy

Precipitation intensity

- Hydrological Services

- Water Boards

- Flood Warning

- Water Resources and Energy

- Avalanche Warning Institute

PWS

PI

V

PD

MZ

Precipitation distribution

and precipitation energy

- Universities

- Soil Research Institutes

- Avalanche Warning Institutes

Visibility

Traffic Monitoring:

- Road Weather Information System

- Harbour Monitoring System

  • Heliport Monitoring System

    - Naval Market/Navigation Supplier

Z/R-calculation

- Weather Radar Supplier

- Weather Radar Network

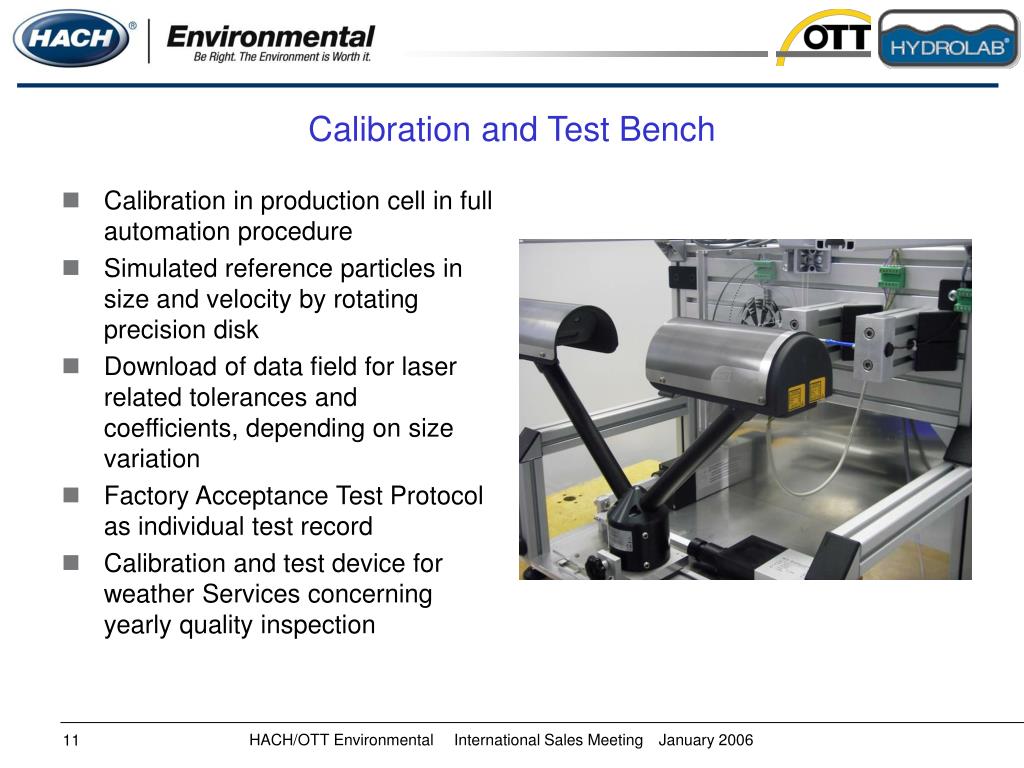

Calibration and test bench l.jpg
Calibration and Test Bench particles size and velocity

  • Calibration in production cell in full automation procedure

  • Simulated reference particles in size and velocity by rotating precision disk

  • Download of data field for laser related tolerances and coefficients, depending on size variation

  • Factory Acceptance Test Protocol as individual test record

  • Calibration and test device for weather Services concerning yearly quality inspection


Satellite transmission l.jpg
Satellite Transmission particles size and velocity

GOES / Meteosat Satellite

Data Collection Platforms

Receiving Stations

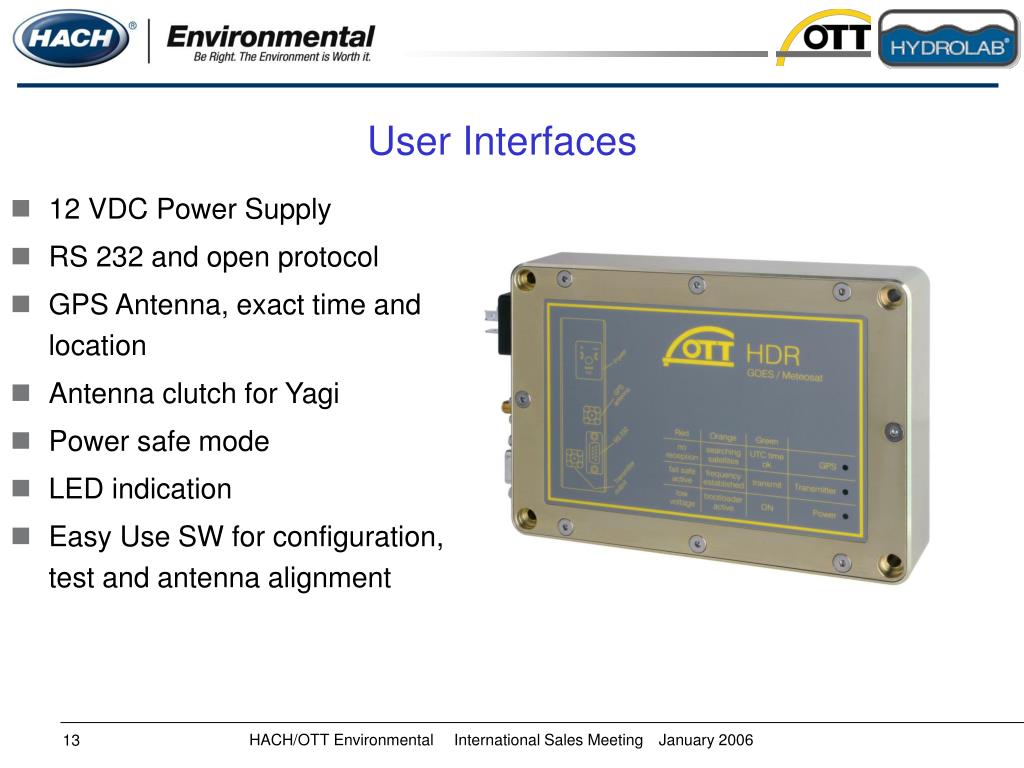

Slide13 l.jpg

User Interfaces particles size and velocity

12 VDC Power Supply

RS 232 and open protocol

GPS Antenna, exact time and location

Antenna clutch for Yagi

Power safe mode

LED indication

Easy Use SW for configuration, test and antenna alignment

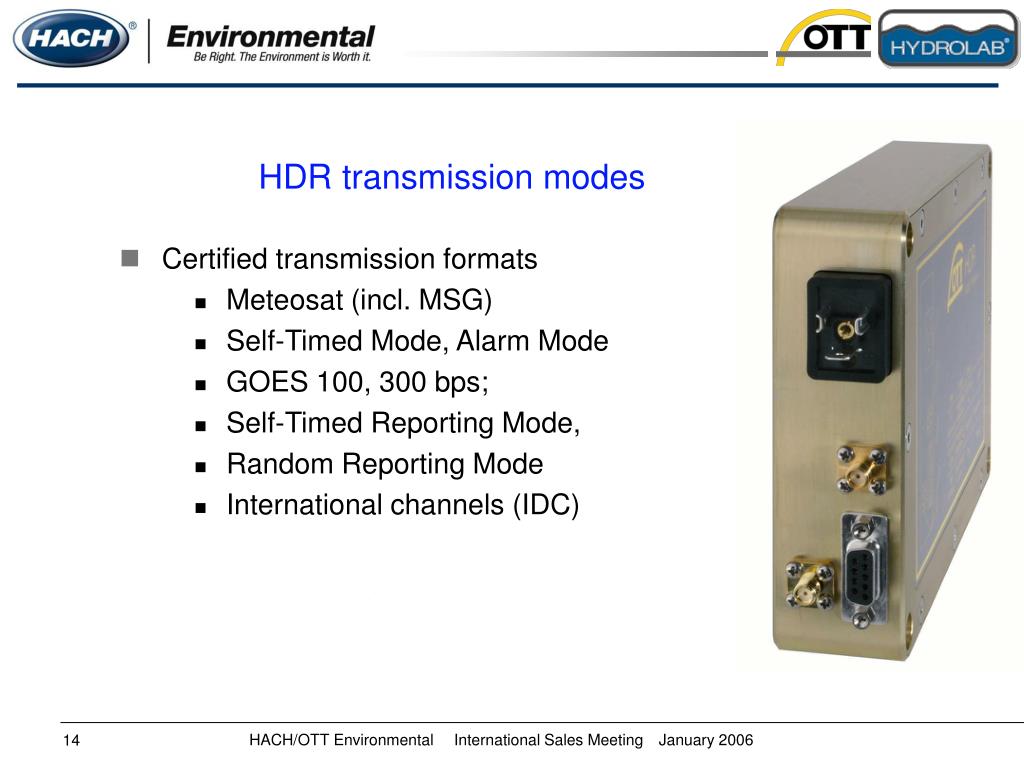

Hdr transmission modes l.jpg
HDR transmission modes particles size and velocity

  • Certified transmission formats

    • Meteosat (incl. MSG)

    • Self-Timed Mode, Alarm Mode

    • GOES 100, 300 bps;

    • Self-Timed Reporting Mode,

    • Random Reporting Mode

    • International channels (IDC)

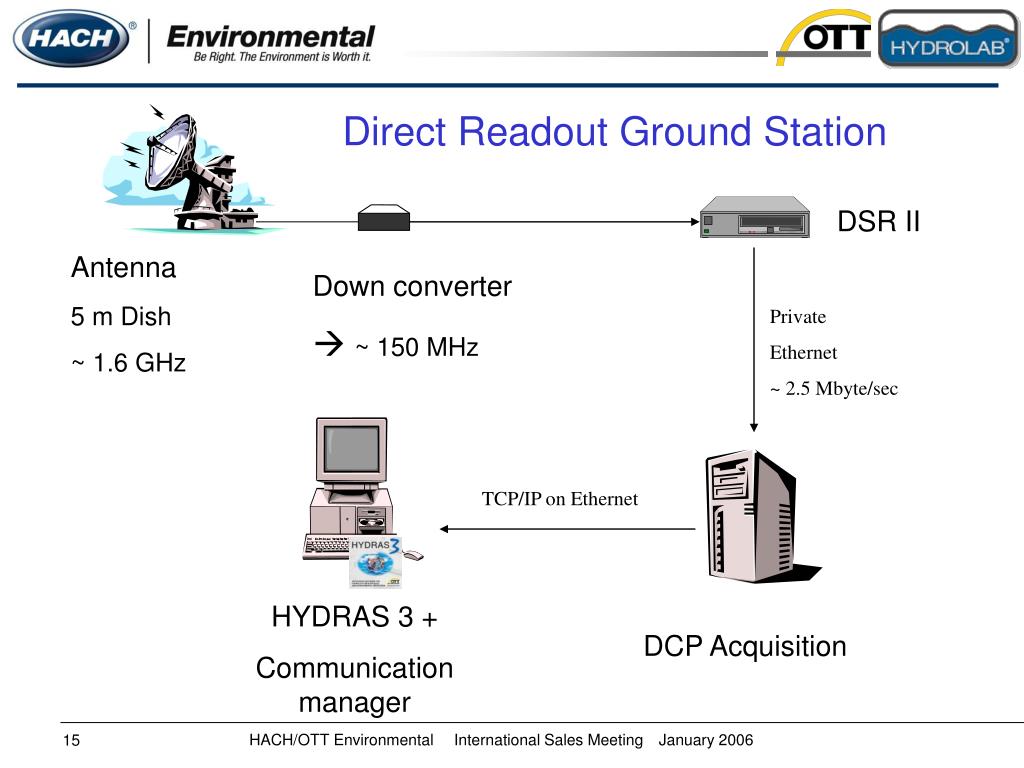

Direct readout ground station l.jpg
Direct Readout Ground Station particles size and velocity

DSR II

Antenna

5 m Dish

~ 1.6 GHz

Down converter

 ~ 150 MHz

Private

Ethernet

~ 2.5 Mbyte/sec

TCP/IP on Ethernet

HYDRAS 3 +

Communication manager

DCP Acquisition

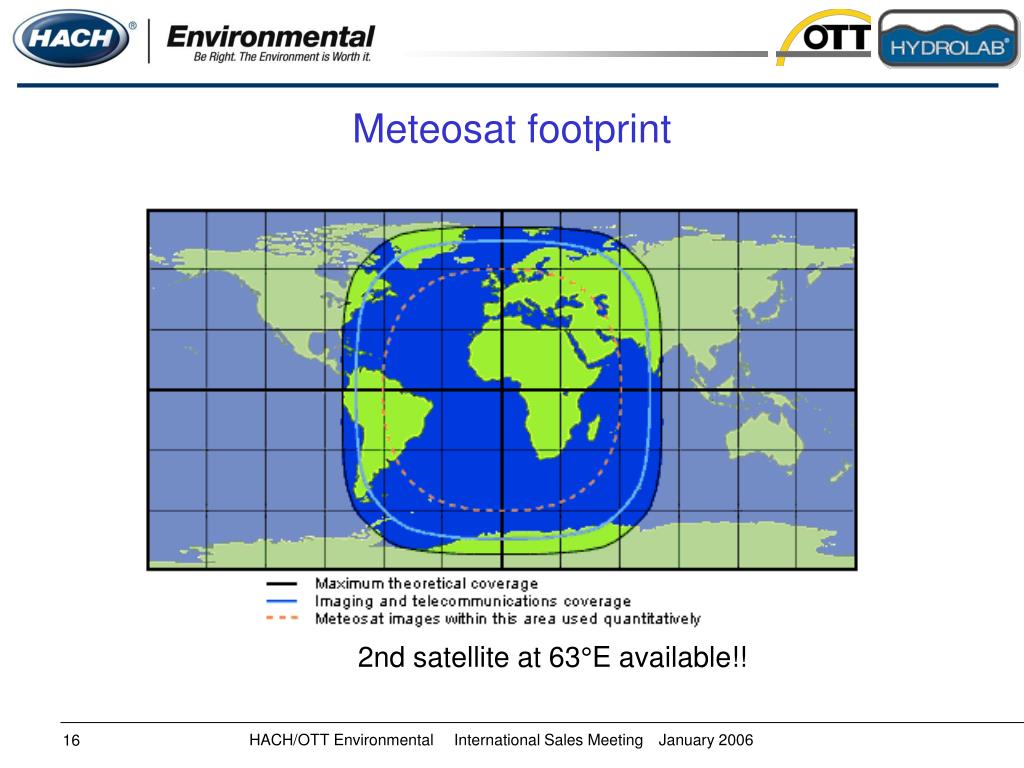

Meteosat footprint l.jpg
Meteosat footprint particles size and velocity

2nd satellite at 63°E available!!

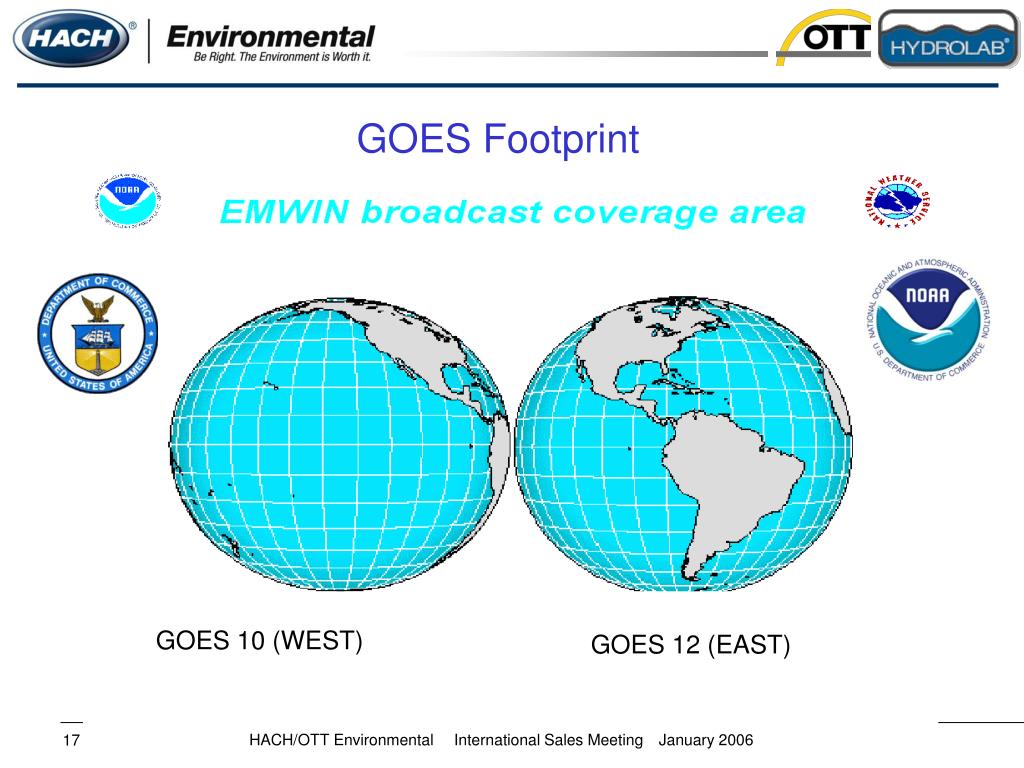

Slide17 l.jpg

GOES Footprint particles size and velocity

GOES 10 (WEST)

GOES 12 (EAST)
