IRMIS: Future Developments

1. IRMIS: Future Developments IRMIS/Relational Database Workshop Argonne National Laboratory D. Dohan, June 12, 2006

2. component_rel_type rel_name component type component_rel namedescriptionform factormanufacturerfunction parent_cmpnt_idchild_cmpnt_idlogical_orderlogical_desccomponent_rel_type_id is a component component_type_id Component Connections The IRMIS schema, how components are interconnected: • physically (housing hierarchy) • logically (control hierarchy) • power grid (power hierarchy) • Each relationship type is hierarchical in nature (each child has a unique parent in each hierarchy). The hierarchies are modeled as node/edge graphs (DAGs).

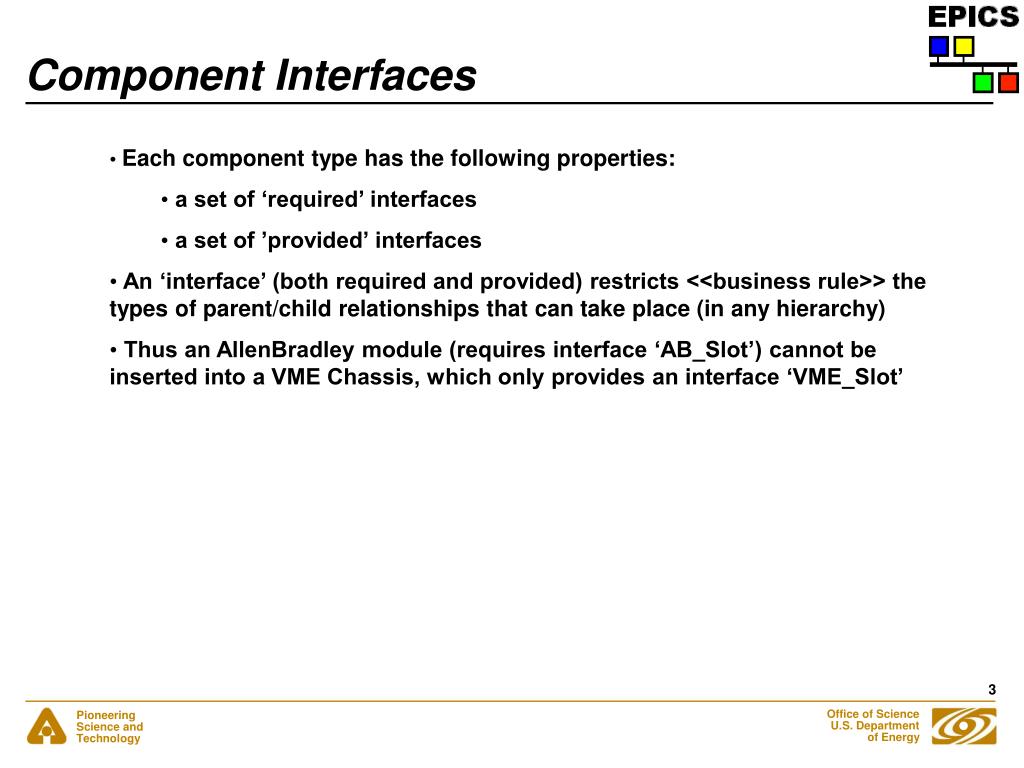

3. Component Interfaces • Each component type has the following properties: • a set of ‘required’ interfaces • a set of ’provided’ interfaces • An ‘interface’ (both required and provided) restricts <<business rule>> the types of parent/child relationships that can take place (in any hierarchy) • Thus an AllenBradley module (requires interface ‘AB_Slot’) cannot be inserted into a VME Chassis, which only provides an interface ‘VME_Slot’

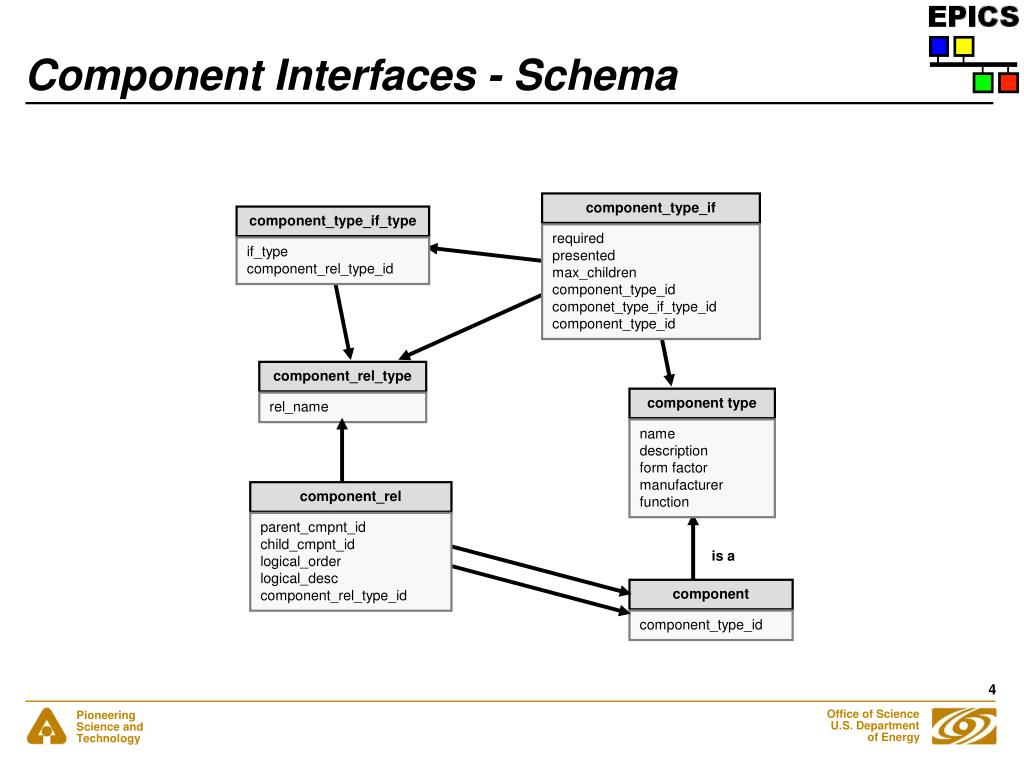

4. component type component_rel component_type_if component_type_if_type namedescriptionform factormanufacturerfunction parent_cmpnt_idchild_cmpnt_idlogical_orderlogical_desccomponent_rel_type_id requiredpresentedmax_childrencomponent_type_idcomponet_type_if_type_idcomponent_type_id if_typecomponent_rel_type_id component component_type_id Component Interfaces - Schema component_rel_type rel_name is a

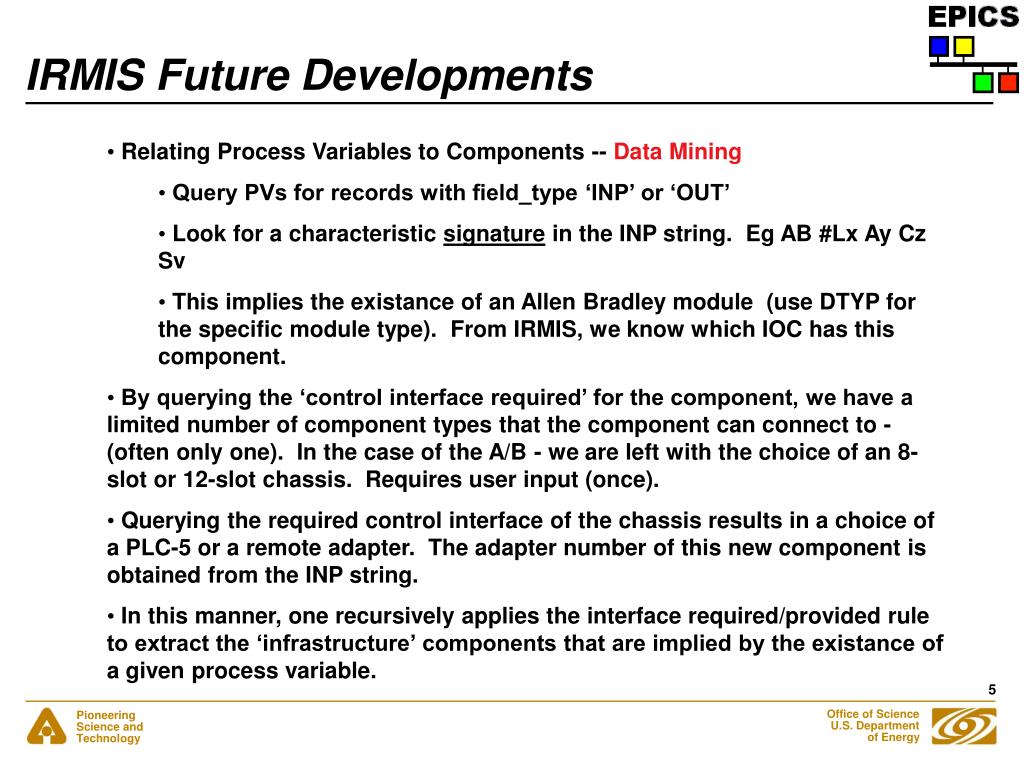

5. IRMIS Future Developments • Relating Process Variables to Components -- Data Mining • Query PVs for records with field_type ‘INP’ or ‘OUT’ • Look for a characteristic signature in the INP string. Eg AB #Lx Ay Cz Sv • This implies the existance of an Allen Bradley module (use DTYP for the specific module type). From IRMIS, we know which IOC has this component. • By querying the ‘control interface required’ for the component, we have a limited number of component types that the component can connect to - (often only one). In the case of the A/B - we are left with the choice of an 8-slot or 12-slot chassis. Requires user input (once). • Querying the required control interface of the chassis results in a choice of a PLC-5 or a remote adapter. The adapter number of this new component is obtained from the INP string. • In this manner, one recursively applies the interface required/provided rule to extract the ‘infrastructure’ components that are implied by the existance of a given process variable.

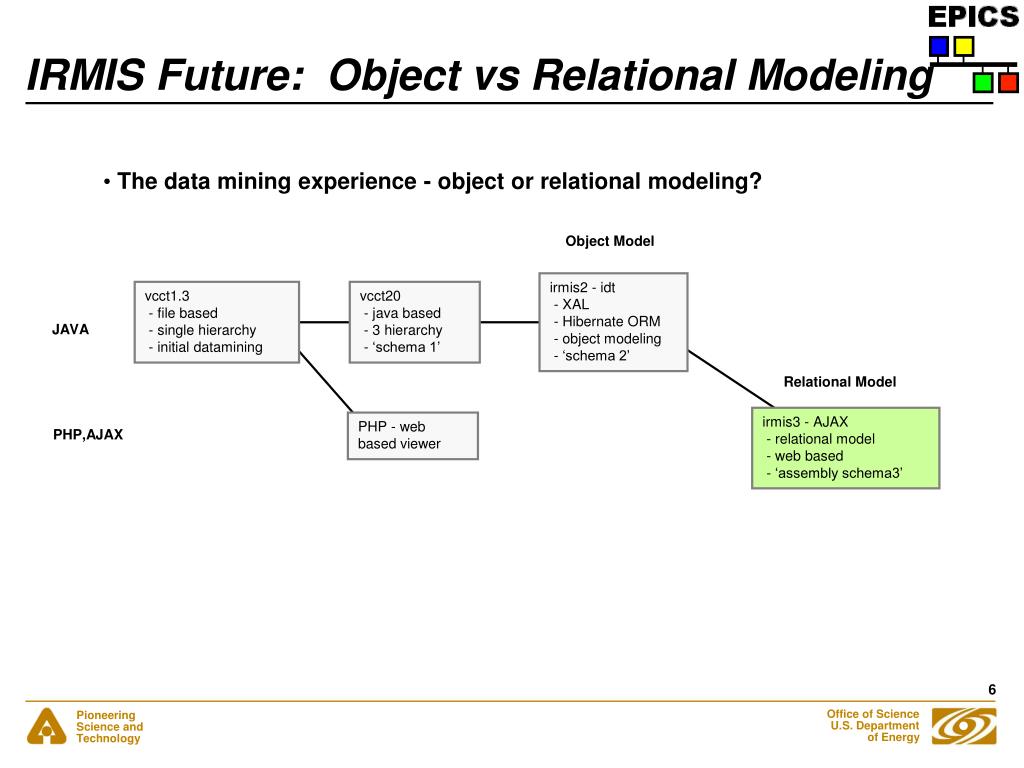

6. IRMIS Future: Object vs Relational Modeling • The data mining experience - object or relational modeling? Object Model irmis2 - idt - XAL - Hibernate ORM - object modeling - ‘schema 2’ vcct1.3 - file based - single hierarchy - initial datamining vcct20 - java based - 3 hierarchy - ‘schema 1’ JAVA Relational Model irmis3 - AJAX - relational model - web based - ‘assembly schema3’ PHP - web based viewer PHP,AJAX

7. connection_type connection_type component type component_type_interface interface assembly namedescriptionform factormanufacturerfunction component_type_idinterface_id interfacerequiredprovidedconnection_type_id component_idfield_namecontrol_p_idlog_addrhousing_p_idlocatorpower_p_id component component_type_id Component Interfaces - Schema is a

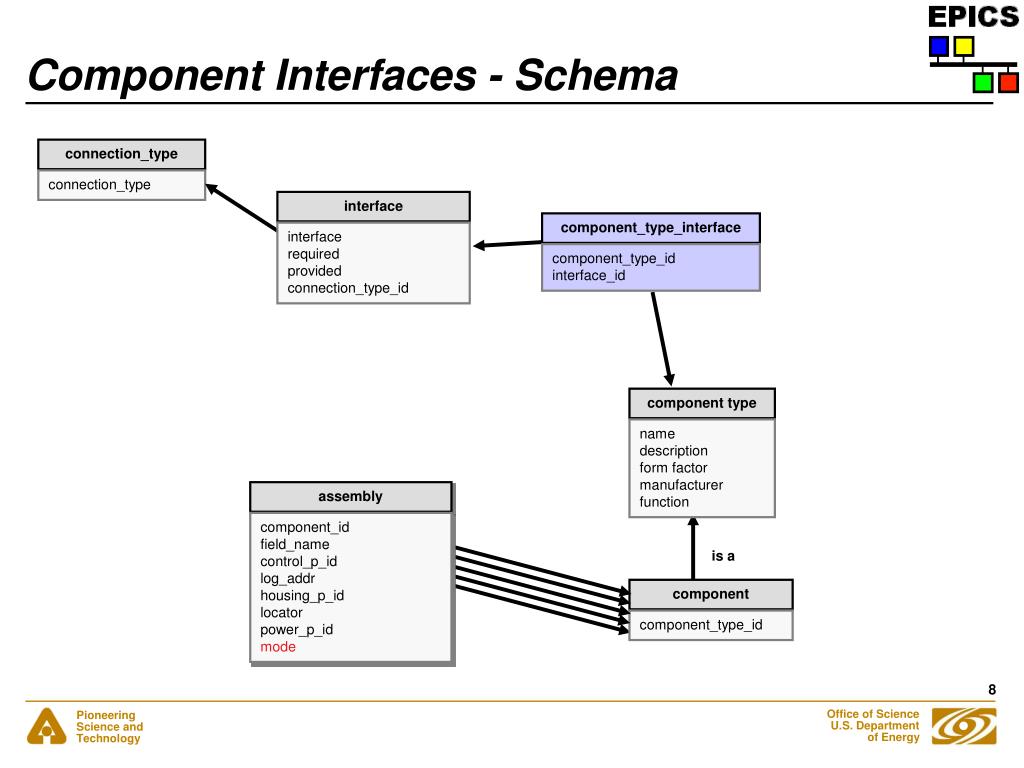

8. connection_type connection_type component type component_type_interface interface assembly namedescriptionform factormanufacturerfunction component_type_idinterface_id interfacerequiredprovidedconnection_type_id component_idfield_namecontrol_p_idlog_addrhousing_p_idlocatorpower_p_idmode component component_type_id Component Interfaces - Schema is a

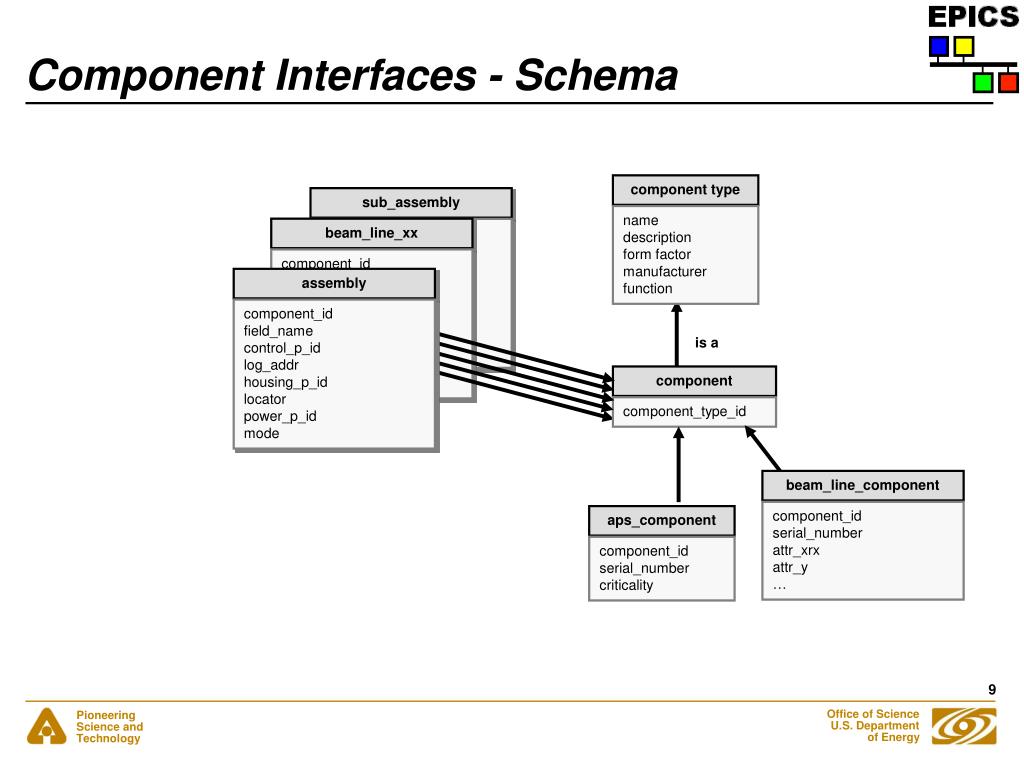

9. sub_assembly beam_line_xx component type assembly aps_component beam_line_component component_idfield_namecontrol_p_idlog_addrhousing_p_idlocatorpower_p_idmode component_idfield_namecontrol_p_idlog_addrhousing_p_idlocatorpower_p_idmode namedescriptionform factormanufacturerfunction component_idfield_namecontrol_p_idlog_addrhousing_p_idlocatorpower_p_idmode component_idserial_numbercriticality component_idserial_numberattr_xrxattr_y… component component_type_id Component Interfaces - Schema is a

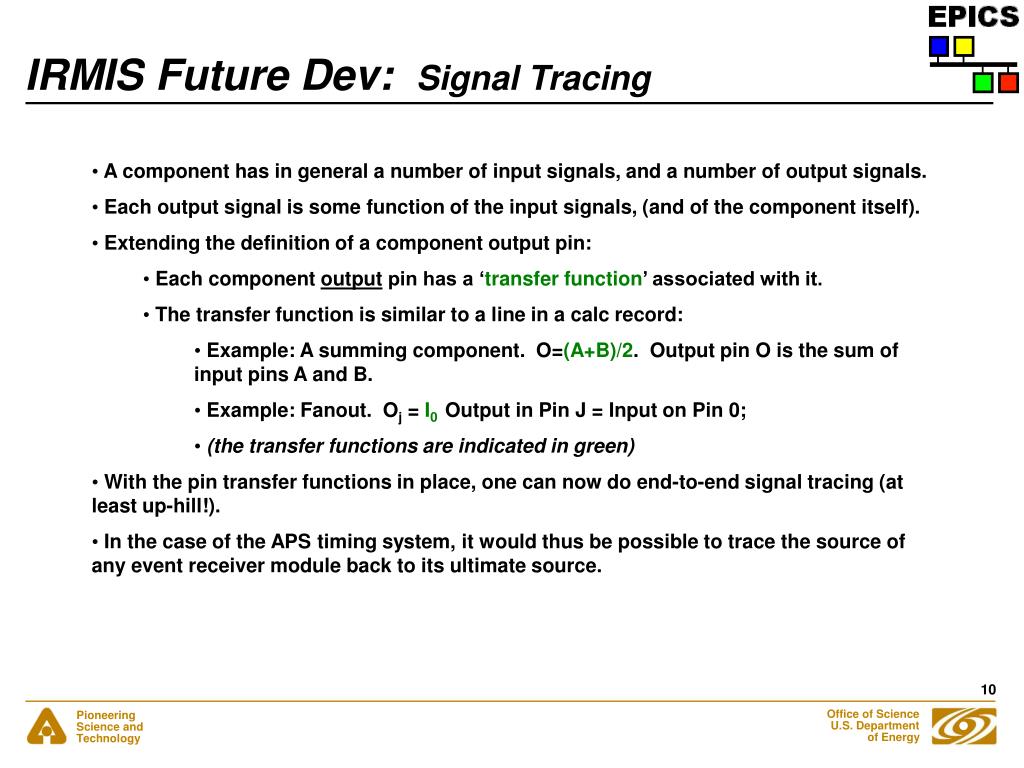

10. IRMIS Future Dev: Signal Tracing • A component has in general a number of input signals, and a number of output signals. • Each output signal is some function of the input signals, (and of the component itself). • Extending the definition of a component output pin: • Each component output pin has a ‘transfer function’ associated with it. • The transfer function is similar to a line in a calc record: • Example: A summing component. O=(A+B)/2. Output pin O is the sum of input pins A and B. • Example: Fanout. Oj = I0Output in Pin J = Input on Pin 0; • (the transfer functions are indicated in green) • With the pin transfer functions in place, one can now do end-to-end signal tracing (at least up-hill!). • In the case of the APS timing system, it would thus be possible to trace the source of any event receiver module back to its ultimate source.

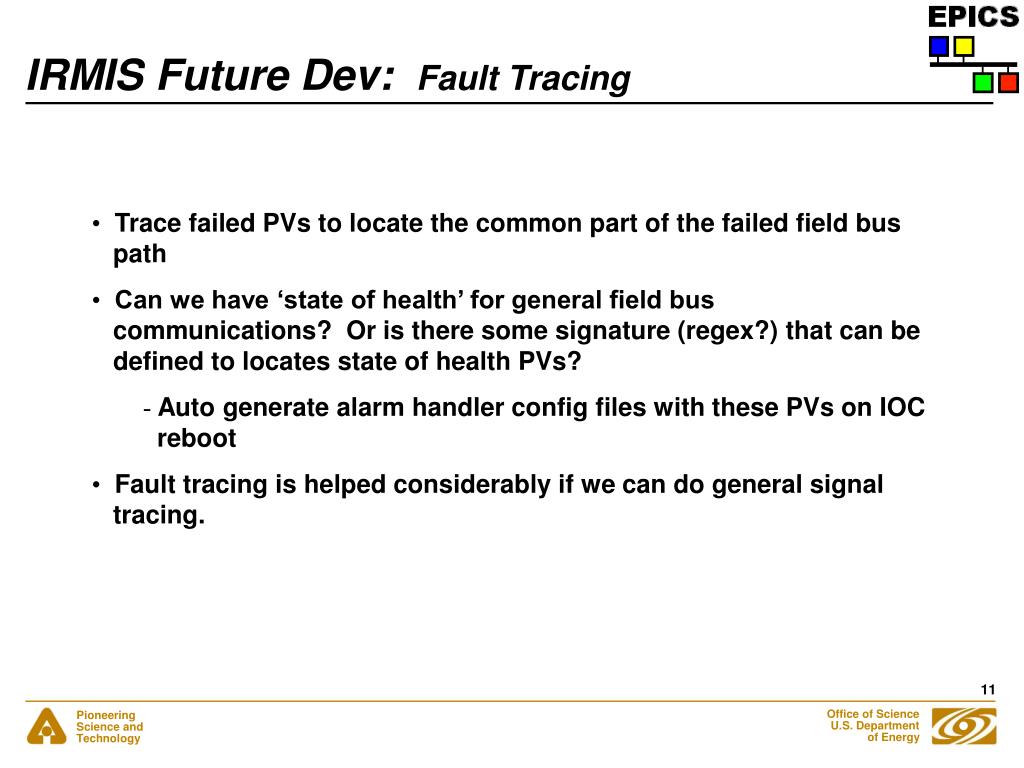

11. IRMIS Future Dev: Fault Tracing • Trace failed PVs to locate the common part of the failed field bus path • Can we have ‘state of health’ for general field bus communications? Or is there some signature (regex?) that can be defined to locates state of health PVs? • Auto generate alarm handler config files with these PVs on IOC reboot • Fault tracing is helped considerably if we can do general signal tracing.

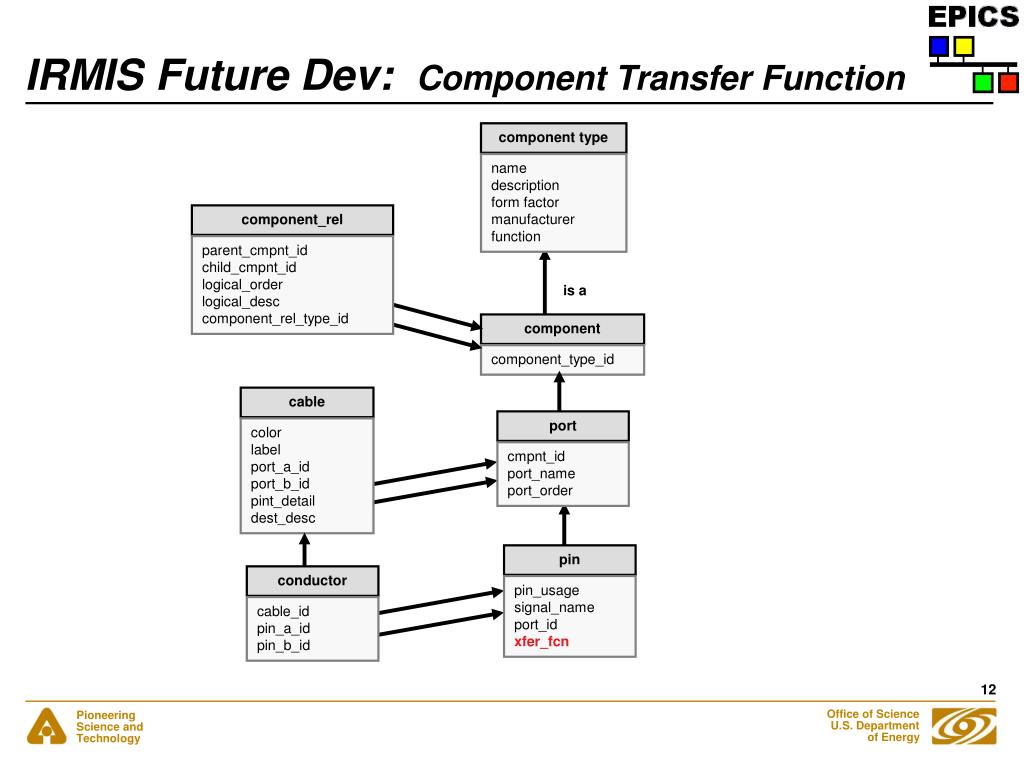

12. component type component_rel port pin cable conductor namedescriptionform factormanufacturerfunction parent_cmpnt_idchild_cmpnt_idlogical_orderlogical_desccomponent_rel_type_id cmpnt_idport_nameport_order pin_usagesignal_nameport_idxfer_fcn colorlabelport_a_idport_b_idpint_detaildest_desc cable_idpin_a_idpin_b_id component component_type_id IRMIS Future Dev: Component Transfer Function is a
